风云气象卫星微波大气探测回顾与展望

何杰颖; 张升伟; 王振占; 张瑜

doi:10.11728/cjss2023.06.yg16

风云气象卫星微波大气探测回顾与展望

doi: 10.11728/cjss2023.06.yg16 cstr: 32142.14.cjss2023.06.yg16

何杰颖^{1, 2,},
张升伟¹,
王振占¹,
张瑜¹

1.
中国科学院国家空间科学中心微波遥感技术重点实验室　北京　100190
2.
中国科学院大学　北京　100049

基金项目: 中国科学院青年交叉团队项目资助 (JCTD-2021-10)

详细信息

作者简介:

何杰颖：E-mail：hejieying@mirslab.cn

中图分类号: P412
计量
- 文章访问数: 1050
- HTML全文浏览量: 947
- PDF下载量: 103
- 被引次数:
  0(来源:Crossref)

  0(来源:其他)
出版历程
- 收稿日期: 2023-11-21
- 修回日期: 2023-12-11
- 网络出版日期: 2023-12-18

Prospects for Microwave Atmospheric Sounding of the New Generation of Fengyun Meteorological Satellites

1.
Key Laboratory of Microwave Remote Sensing, National Space Science Center, Chinese Academy of Sciences, Beijing 100190
2.
University of Chinese Academy of Sciences, Beijing 100049

摘要

摘要: 基于风云三号（FY-3）三个批次极轨气象卫星微波湿度计的研制历程，取得的技术突破与研制进展，涵盖关键技术实现以及关键技术指标的设计与测试评估，微波湿度计在数值天气预报、台风暴雨等灾害性天气预报与监测等方面的科学应用，阐述了星载被动微波大气探测技术的提升。分析微波大气探测的研究现状与发展趋势，重点展望了极轨气象卫星微波大气探测在气象参数探测能力、探测精度、时空分辨率、应用效能等方面的潜力。对标世界气象组织（WMO）2040年愿景规划，针对中国风云五号新一代极轨气象卫星，提出了具有跨代表征的高性能新体制微波大气综合探测系统——高光谱微波大气探测仪，简要陈述了在轨定量化提升的技术途径与应用前景，为风云五号气象卫星微波大气探测载荷研制奠定基础。
- 风云三号 /
- 微波湿度计 /
- 风云五号 /
- 高光谱 /
- 微波大气探测
Abstract: The development history of microwave humidity sounder for three batches of polar-orbiting meteorological satellites of Fengyun-3 (FY-3) and the technological breakthroughs and development progress made are introduced, covering the realization of key technologies and the design of key technological indexes and testing and evaluation, as well as the scientific applications in numerical weather prediction, typhoon and rainstorm and other catastrophic weather prediction and monitoring, etc., and the upgrading of the technology of satellite-mounted passive microwave atmospheric sounding is elaborated. Based on the current status and development trend of microwave atmospheric detection research at home and abroad, it focuses on the potential of microwave atmospheric detection by polar-orbiting meteorological satellites in terms of meteorological parameter detection capability, detection accuracy, temporal and spatial resolution, and application effectiveness. In view of the 2040 vision plan of the World Meteorological Organization (WMO) and the new generation of polar-orbiting meteorological satellites of Fengyun-5 of China, a new high-performance microwave atmospheric integrated detection system with trans-representative signatures – hyperspectral microwave atmospheric detector – is proposed, and the technical way of on-orbit quantitative enhancement and the application prospect are briefly described. It also briefly describes the technical way and application prospect of quantitative enhancement in orbit, laying a foundation for the development of microwave atmospheric detection payload for Fengyun-5 meteorological satellite.
- Fengyun-3 /
- Microwave humidity sounder /
- Fengyun-5 /
- Fine spectrum /
- Microwave atmospheric sounding

HTML全文

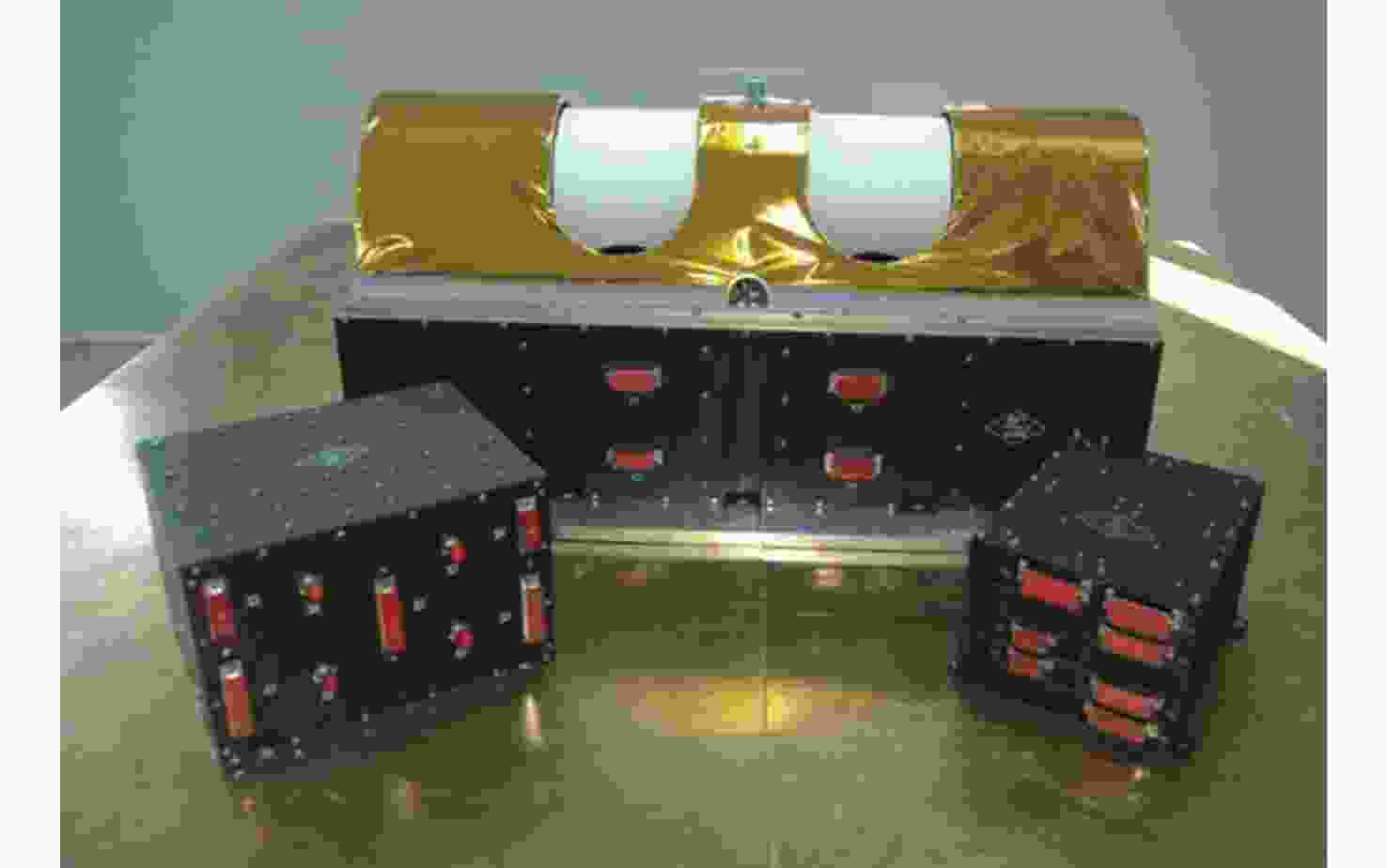

图 1 FY-3A/B星微波湿度计

Figure 1. FY-3A/B MWHS

下载: 全尺寸图片幻灯片

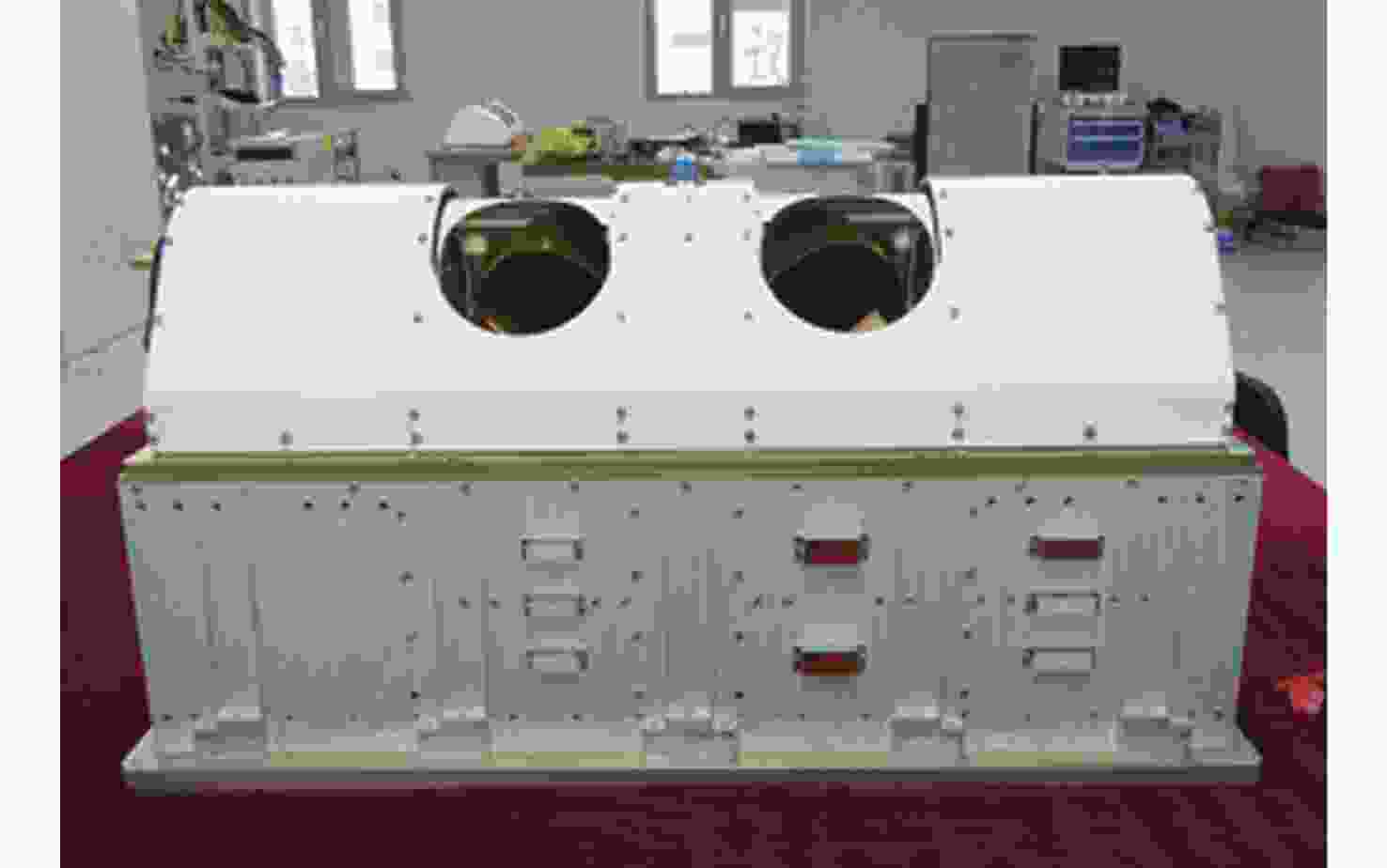

图 2 FY-3C/D星微波湿度计

Figure 2. FY-3C/D MWHS

下载: 全尺寸图片幻灯片

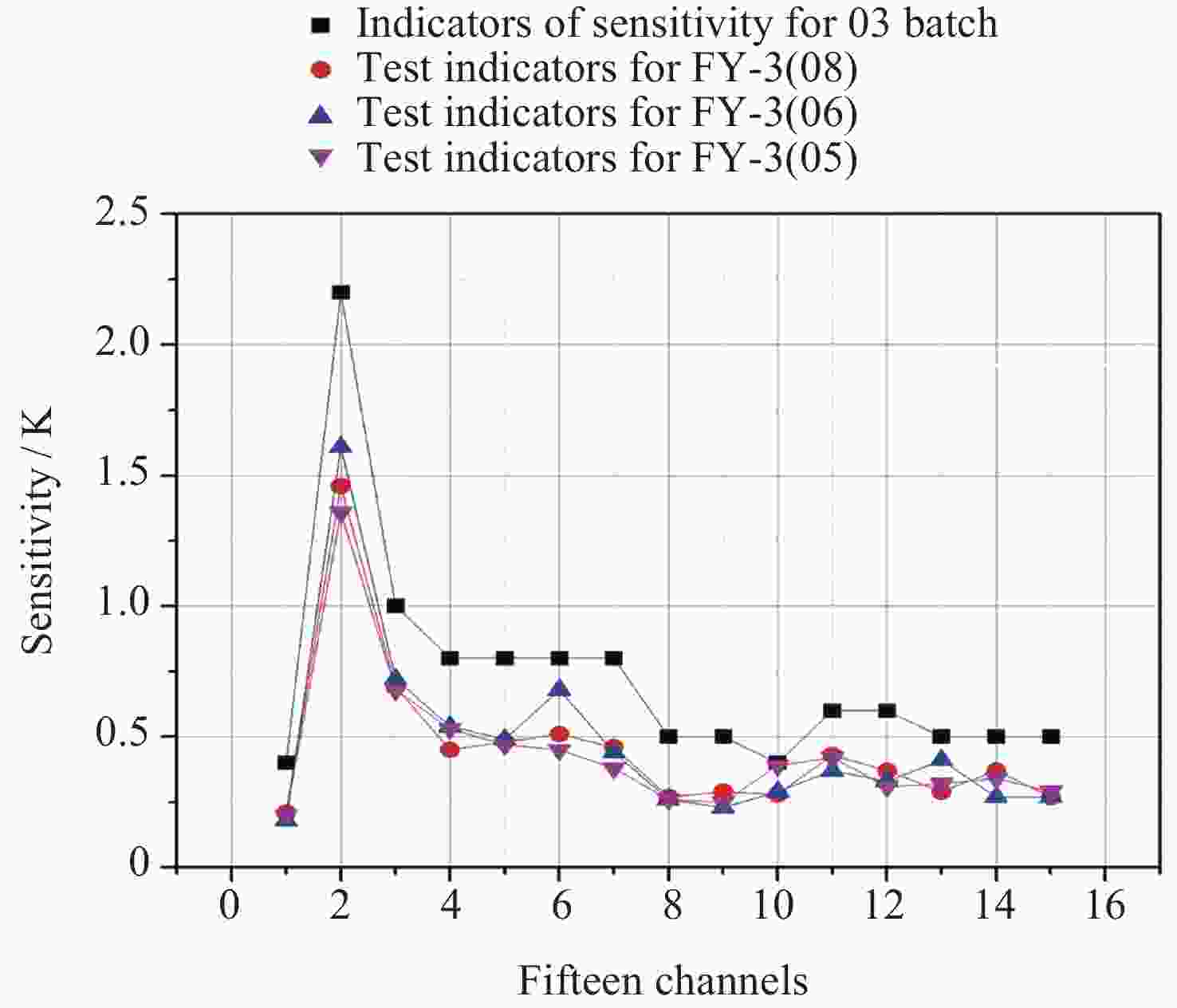

图 3 代际间微波湿度计灵敏度对比

Figure 3. Sensitivity comparison of MWHS between different generations

下载: 全尺寸图片幻灯片

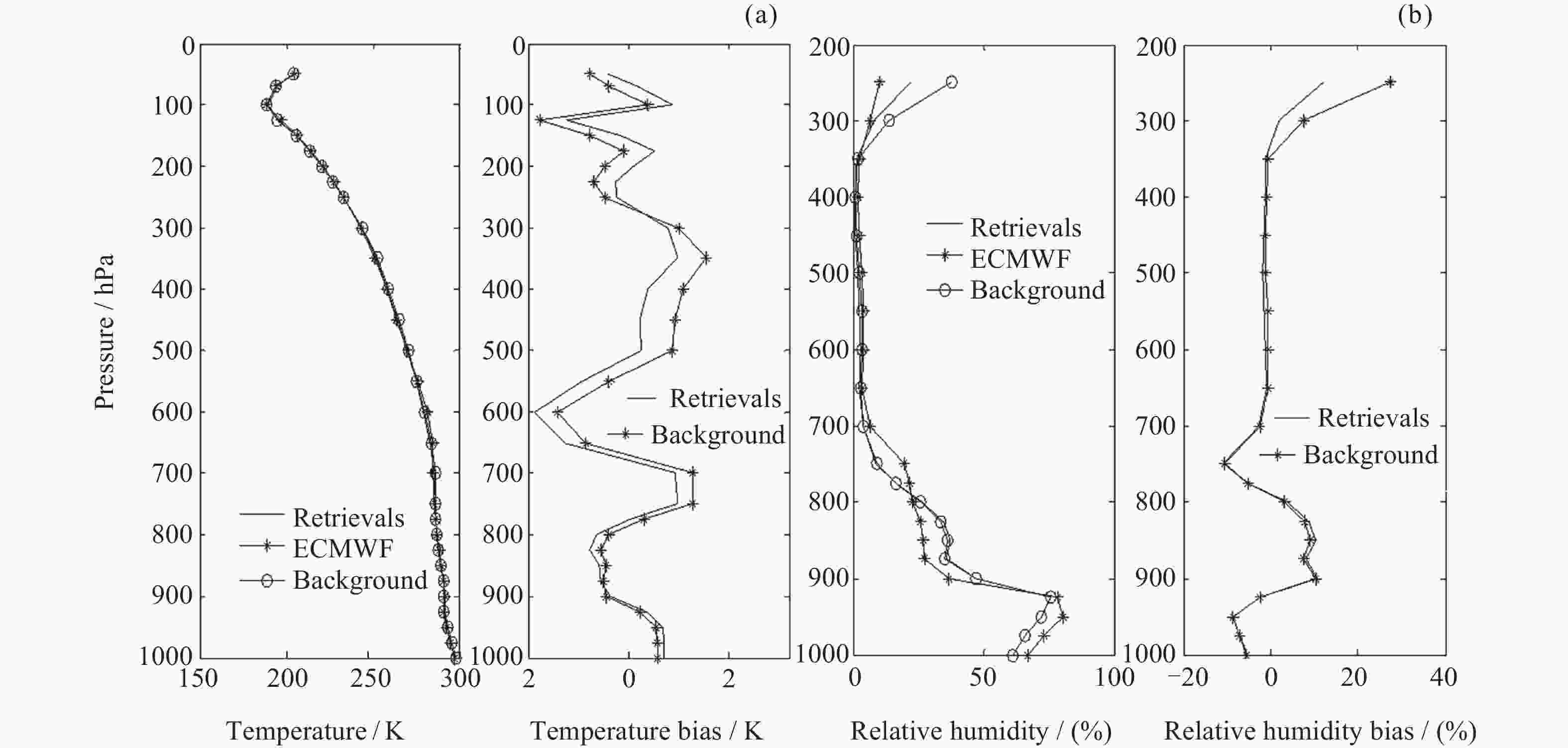

图 4 单点反演结果与ECMWF再分析数据对比

Figure 4. Comparison between single point retrieval results and ECMWF reanalysis data

下载: 全尺寸图片幻灯片

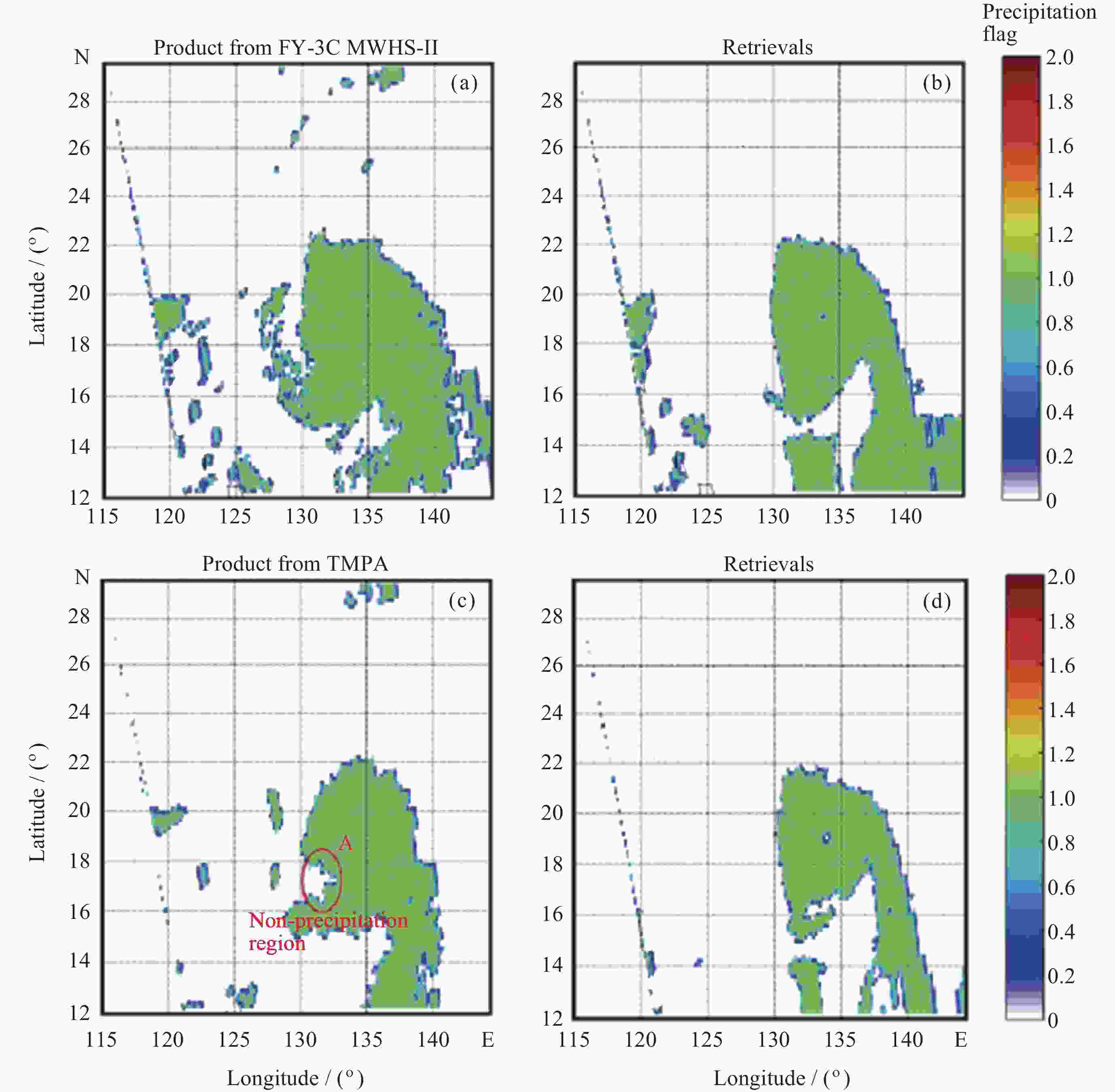

图 5 2016年9月24日 12:18 UTC－14:10 UTC FY-3C微波湿度计观测到台风时的降水检测数据（a），TMPA/3 B42降水数据（c）和FY-3C/MWHS-II降水反演数据（b）（d）

Figure 5. FY-3C MWHS observed the precipitation detection data when typhoon occurred (a), TMPA/3 B42 precipitation data (c) and FY-3C/MWHS-II precipitation retrieval data (b)(d) on 24 Sept. 2016 from 12:18 UTC to 14:10 UTC

下载: 全尺寸图片幻灯片

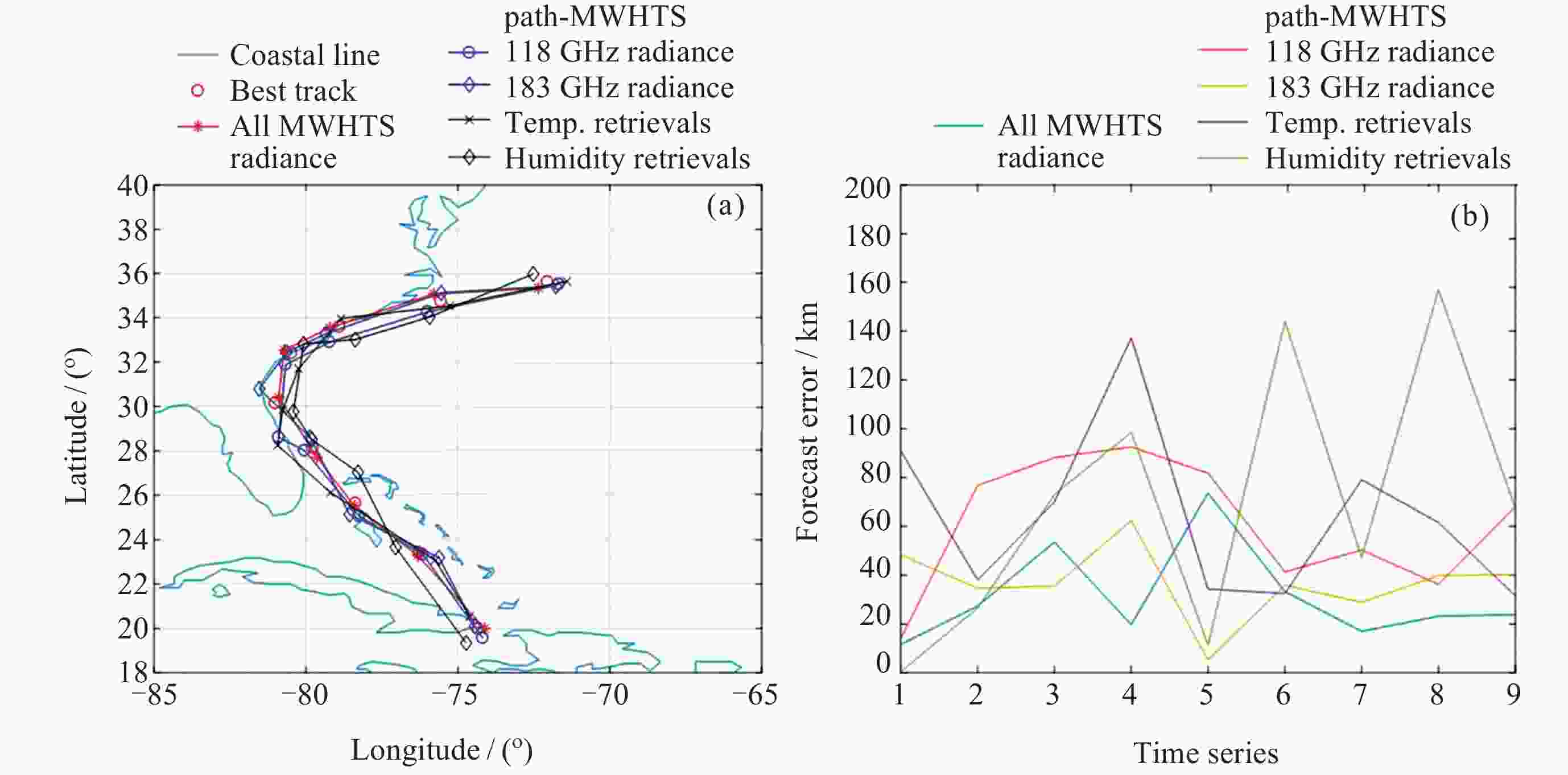

图 6 微波湿度计在热带气旋同化试验中的作用

Figure 6. Role of MWHS in tropical cyclone assimilation experiment

下载: 全尺寸图片幻灯片

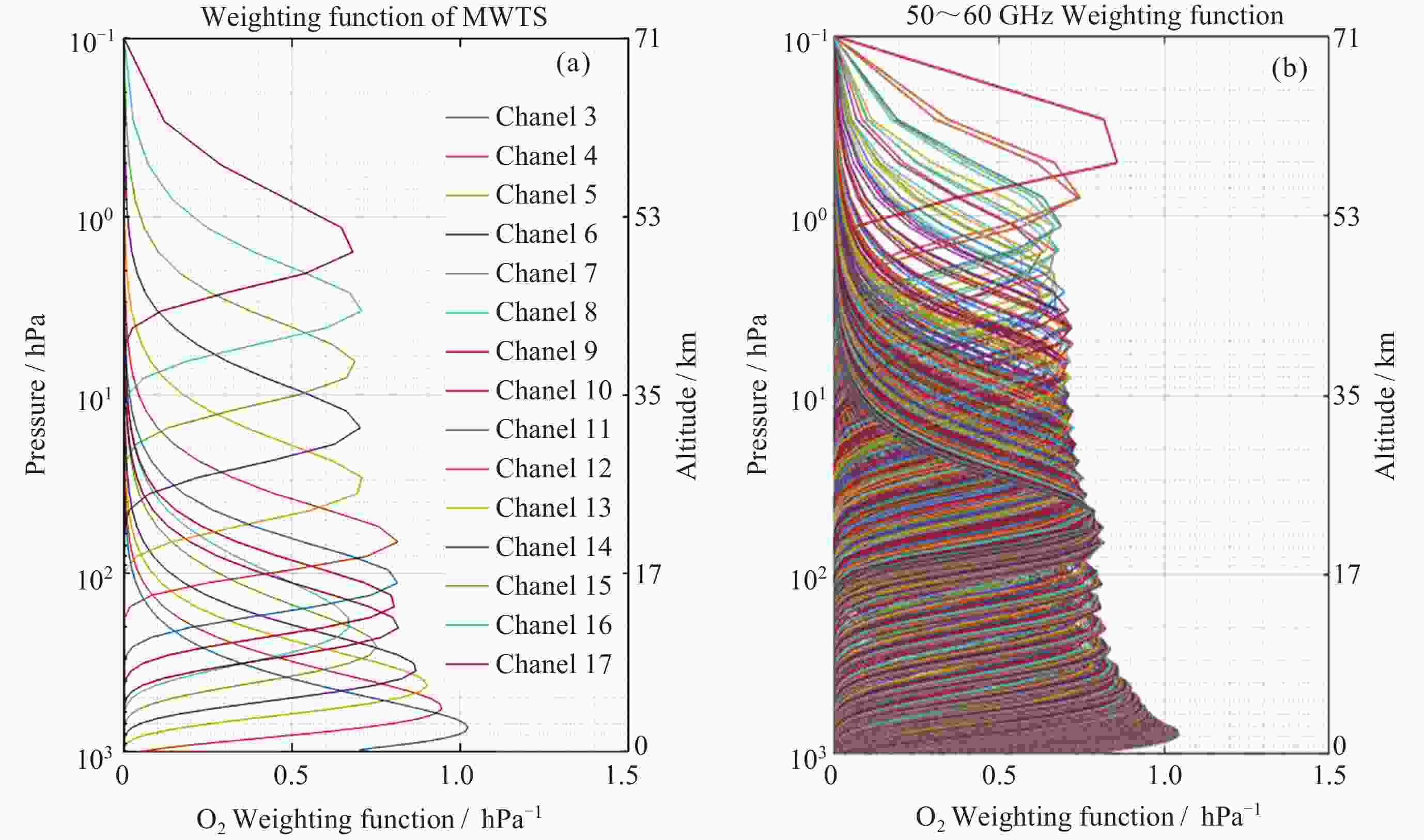

图 7 50～60 GHz权重函数分布。（a）微波模拟通道，（b）微波高光谱

Figure 7. 50～60 GHz weight function distribution. (a) Microwave analog channel, (b) microwave hyperspectral

下载: 全尺寸图片幻灯片

表 1 微波湿度计设计性能指标

Table 1. Design performance index of MWHS

通道	中心频率/GHz	极化	带宽/MHz	3 dB波束宽度/（^o）	03批额定指标/K		实测值/K
					03批额定指标/K		02批		03批
					灵敏度	定标精度	灵敏度	定标精度	灵敏度	定标精度
1	89.0	V	1500	2.0±0.2	≤0.4	≤1.0/0.8	0.23	0.51	0.14	0.23
2	118.75±0.08	H	20	2.0±0.2	≤2.2	≤2.4/2.2	1.60	1.65	0.92	1.24
3	118.75±0.2	H	100	2.0±0.2	≤1.0	≤1.2/1.0	0.64	0.71	0.46	0.65
4	118.75±0.3	H	165	2.0±0.2	≤0.8	≤1.2/1.0	0.51	0.74	0.35	0.51
5	118.75±0.8	H	200	2.0±0.2	≤0.8	≤1.2/1.0	0.50	0.59	0.32	0.48
6	118.75±1.1	H	200	2.0±0.2	≤0.8	≤1.0/0.8	0.50	0.59	0.30	0.46
7	118.75±2.5	H	200	2.0±0.2	≤0.8	≤1.0/0.8	0.46	0.53	0.28	0.44
8	118.75±3.0	H	1000	2.0±0.2	≤0.5	≤1.0/0.8	0.23	0.38	0.16	0.31
9	118.75±5.0	H	2000	2.0±0.2	≤0.5	≤1.0/0.8	0.18	0.32	0.14	0.30
10	166.0	V	1500	1.1±0.11	≤0.4	≤1.0/0.8	0.30	0.43	0.22	0.33
11	183.31±1	H	500	1.1±0.11	≤0.6	≤1.0/0.8	0.46	0.51	0.26	0.42
12	183.31±1.8	H	700	1.1±0.11	≤0.6	≤1.0/0.8	0.35	0.41	0.21	0.36
13	183.31±3	H	1000	1.1±0.11	≤0.5	≤1.0/0.8	0.28	0.35	0.19	0.35
14	183.31±4.5	H	2000	1.1±0.11	≤0.5	≤1.0/0.8	0.27	0.57	0.18	0.34
15	183.31±7	H	2000	1.1±0.11	≤0.5	≤1.0/0.8	0.21	0.46	0.18	0.34

下载: 导出CSV
