中国区域临近空间准零风层的观测特征

胡耀月 王东海 吴珍珍 张春燕 曾智琳 万轶婧

胡耀月, 王东海, 吴珍珍, 张春燕, 曾智琳, 万轶婧. 中国区域临近空间准零风层的观测特征[J]. 空间科学学报, 2022, 42(3): 383-395. doi: 10.11728/cjss2022.03.210303022
引用本文: 胡耀月, 王东海, 吴珍珍, 张春燕, 曾智琳, 万轶婧. 中国区域临近空间准零风层的观测特征[J]. 空间科学学报, 2022, 42(3): 383-395. doi: 10.11728/cjss2022.03.210303022
HU Yaoyue, WANG Donghai, WU Zhenzhen, ZHANG Chunyan, ZENG Zhilin, WAN Yijing. Analysis of the Observational Characteristics of the Quasi-zero Wind Layer in the Near Space over China (in Chinese). Chinese Journal of Space Science, 2022, 42(3): 383-395. DOI: 10.11728/cjss2022.03.210303022
Citation: HU Yaoyue, WANG Donghai, WU Zhenzhen, ZHANG Chunyan, ZENG Zhilin, WAN Yijing. Analysis of the Observational Characteristics of the Quasi-zero Wind Layer in the Near Space over China (in Chinese). Chinese Journal of Space Science, 2022, 42(3): 383-395. DOI: 10.11728/cjss2022.03.210303022

中国区域临近空间准零风层的观测特征

doi: 10.11728/cjss2022.03.210303022
基金项目: 中国科学院战略性先导科技专项(A类)临近空间飞行器运行环境预报技术项目资助(XDA17010402)
详细信息
    作者简介:

    胡耀月:E-mail:huyy39@mail2.sysu.edu.cn

  • 中图分类号: P356

Analysis of the Observational Characteristics of the Quasi-zero Wind Layer in the Near Space over China

  • 摘要: 准零风层(Quasi-zero Wind Layer)是指平流层下部风速较小的东西风转换层,是临近空间(20~100 km)开发利用的重要参考依据,也是当前临近空间飞行器浮空运行的研究热点。基于2010-2019年中国多个站点L波段探空资料,将中国分为5个区域(15°N-20°N,20°N-25°N,25°N-30°N,30°N-40°N,40°N-50°N),分析各区域准零风层的结构特点及其随纬度、季节的变化规律。根据实测风场分析发现平流层下部存在单层/双层准零风层,各区域的南北分布差异大致以25°N为界:单层准零风层主要出现在25°N以北的夏季;双层准零风层主要出现在25°N以南的10月至次年5月。单层/双层准零风层平均维持高度随纬度递增,且其厚度以双峰变化为主。此外,单层准零风层每月出现和维持天数均大于双层,30°N以北的单层准零风层在夏季的维持天数较其他区域长。



  • 图  1  根据纬度分区的全国探空站点空间分布(不同颜色站点代表不同区域)

    Figure  1.  Spatial distribution of sounding stations in China according to the latitude partition (Different color represents different region)

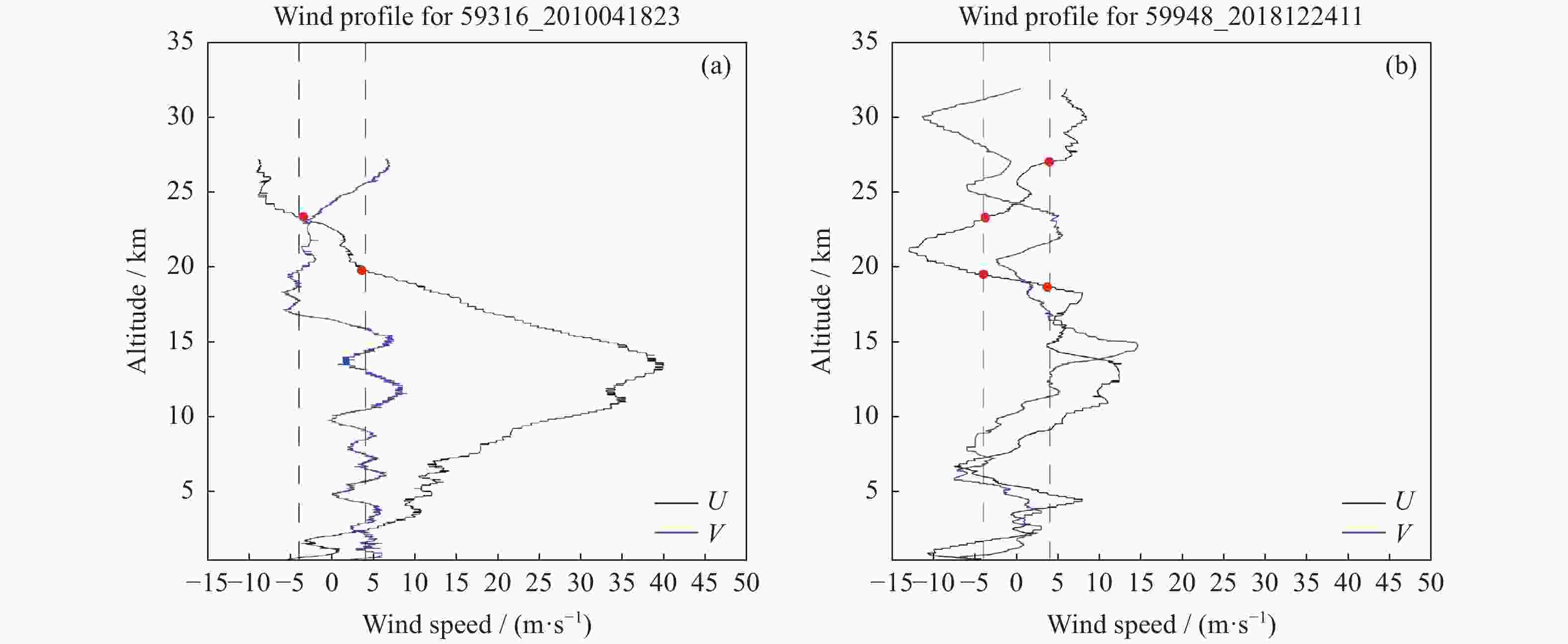

    图  2  一次探空观测记录的风廓线 (黑色和蓝色实线表示纬向风和经向风,红点随高度递增依次表示准零风层的开始和结束高度)

    Figure  2.  Wind profile for one record of sounding observation (black and blue full line represent zonal wind and meridional wind, respectively. The red dots increasing with the height indicate the beginning and ending height of the Quasi-zero wind layer in turn)

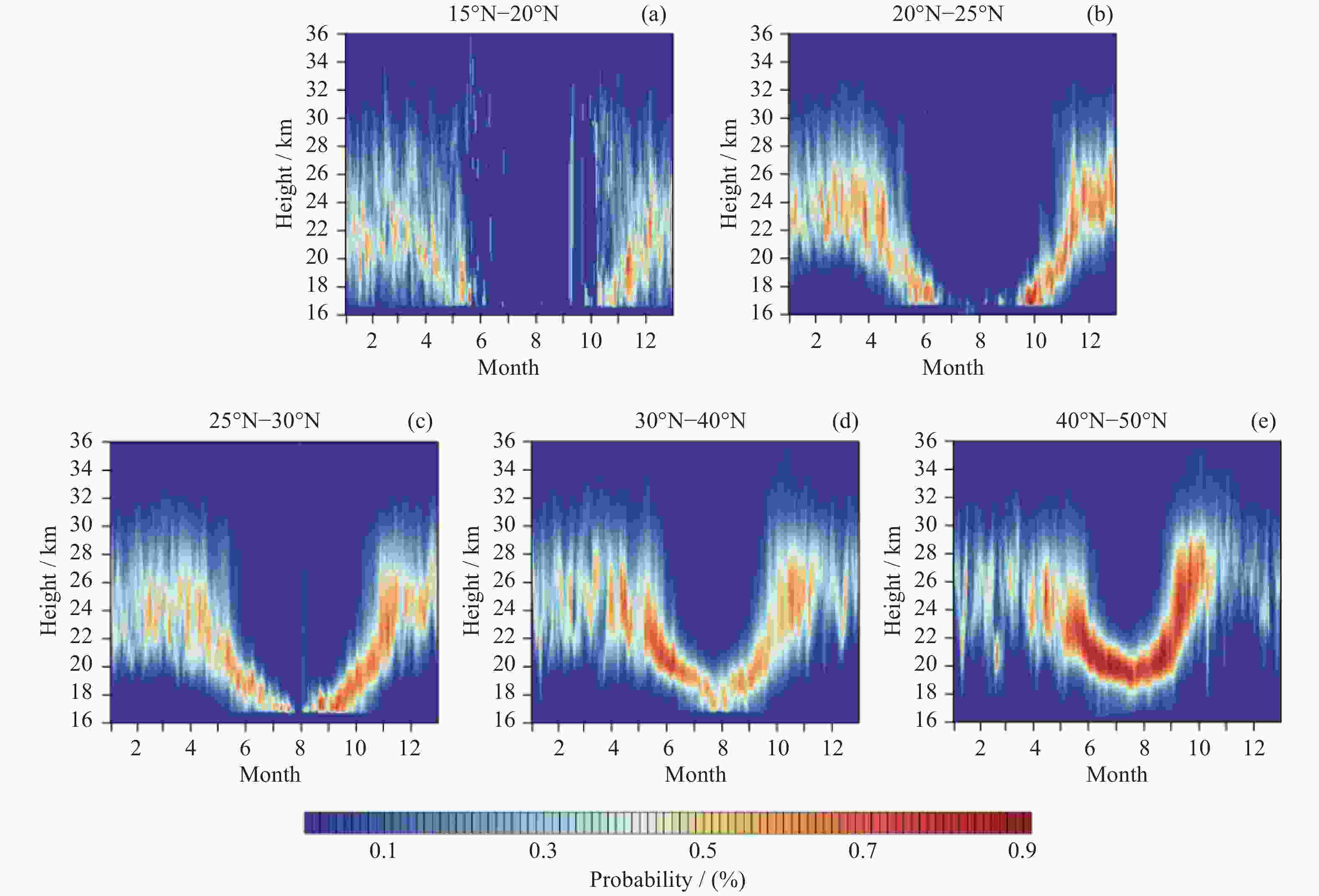

    图  3  2010-2019年平均单层准零风层出现概率高度–时间分布

    Figure  3.  Height temporal sections of probability for existence of the single-layer QZWL averaged from 2010 to 2019

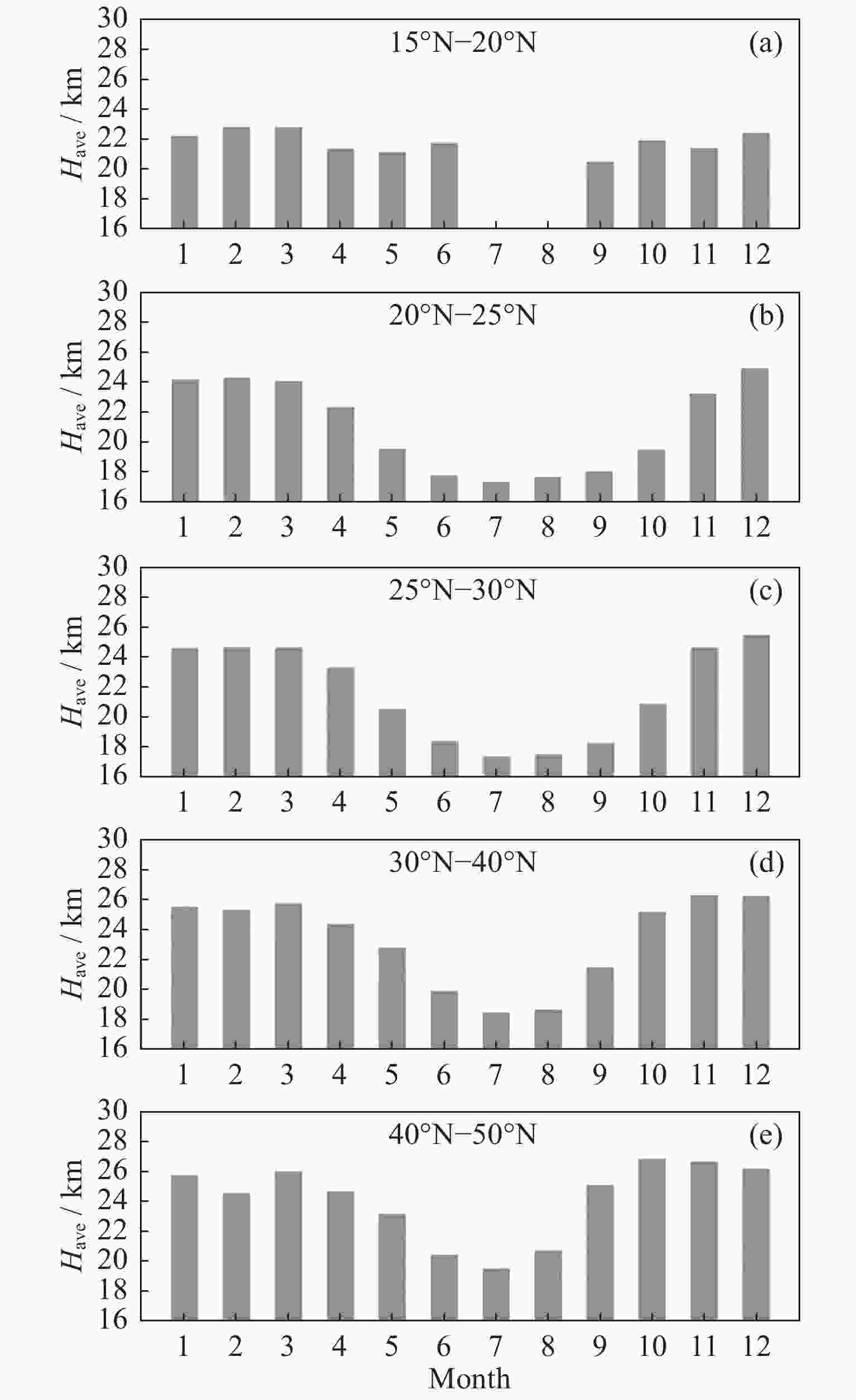

    图  4  2010-2019年单层准零风层平均维持高度逐月变化

    Figure  4.  Annual variation of averaged height of the single-layer QZWL from 2010 to 2019

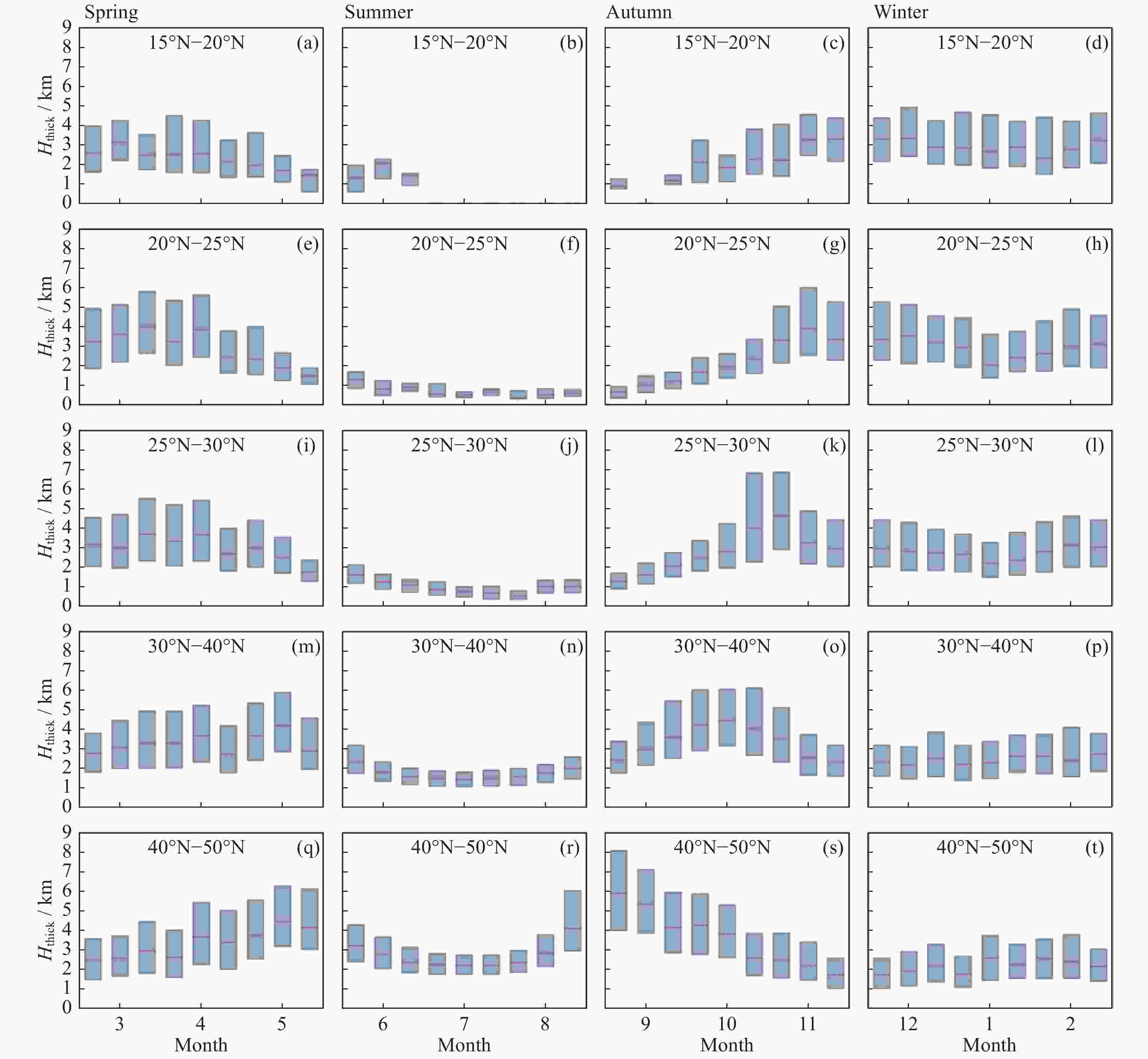

    图  5  2010-2019年单层准零风层厚度的季节变化

    Figure  5.  Seasonal variation of thickness of the single-layer QZWL from 2010 to 2019

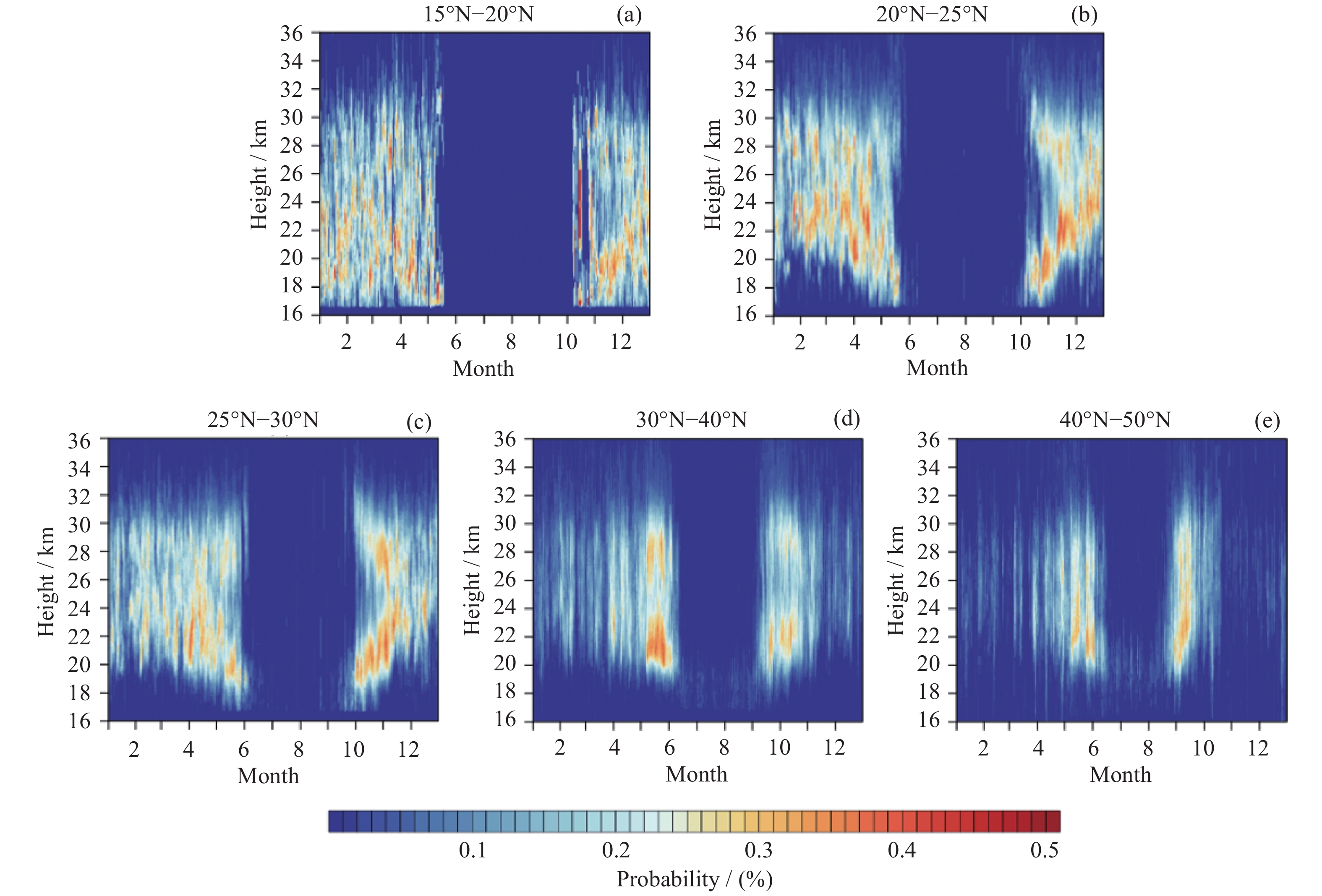

    图  6  2010-2019年多年平均双层准零风层出现概率高度–时间分布

    Figure  6.  Height temporal sections of probability for existence of the double-layer QZWL from 2010 to 2019

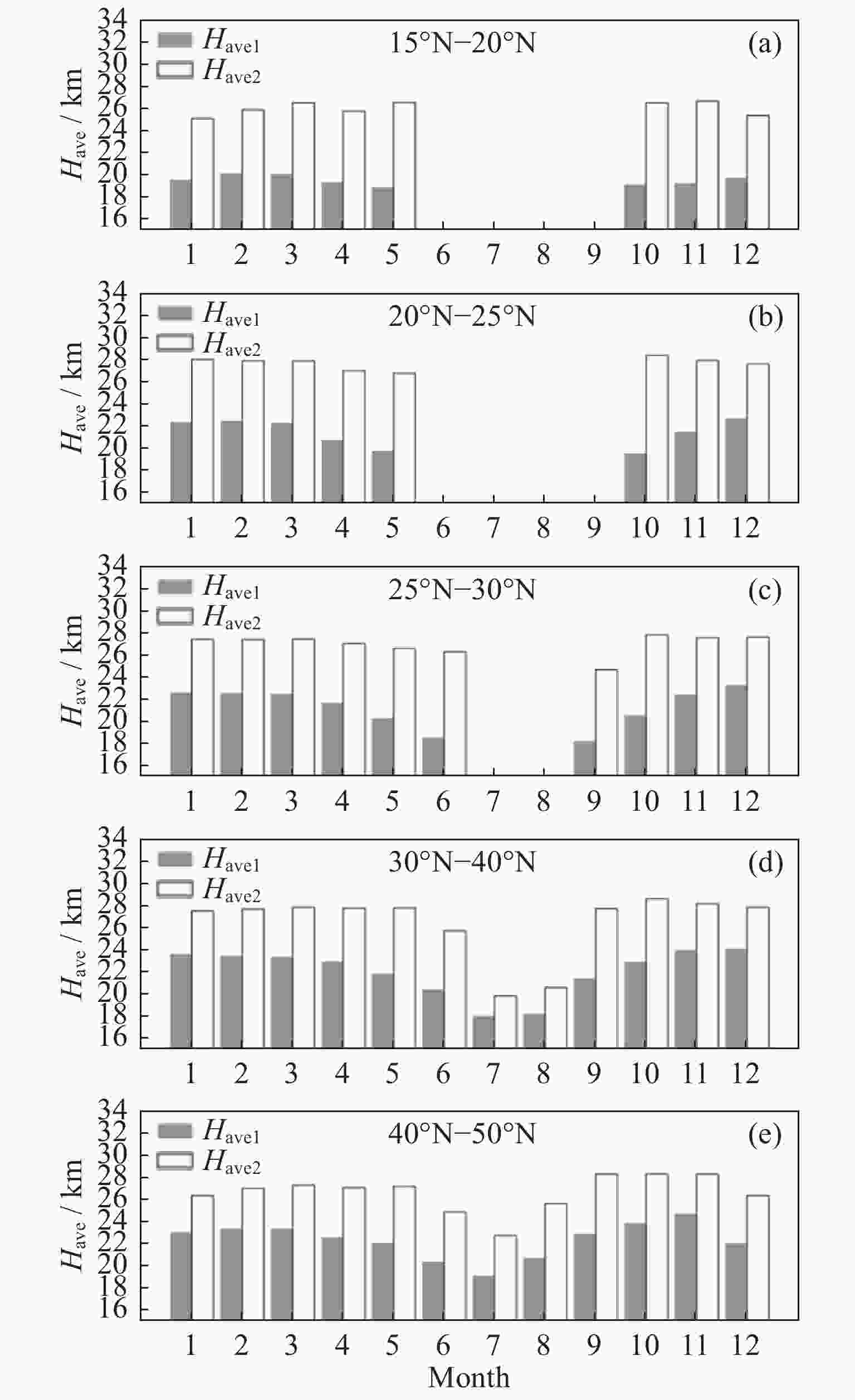

    图  7  2010-2019年双层准零风层平均维持高度逐月变化

    Figure  7.  Annual variation of average height of the double-layer QZWL from 2010 to 2019

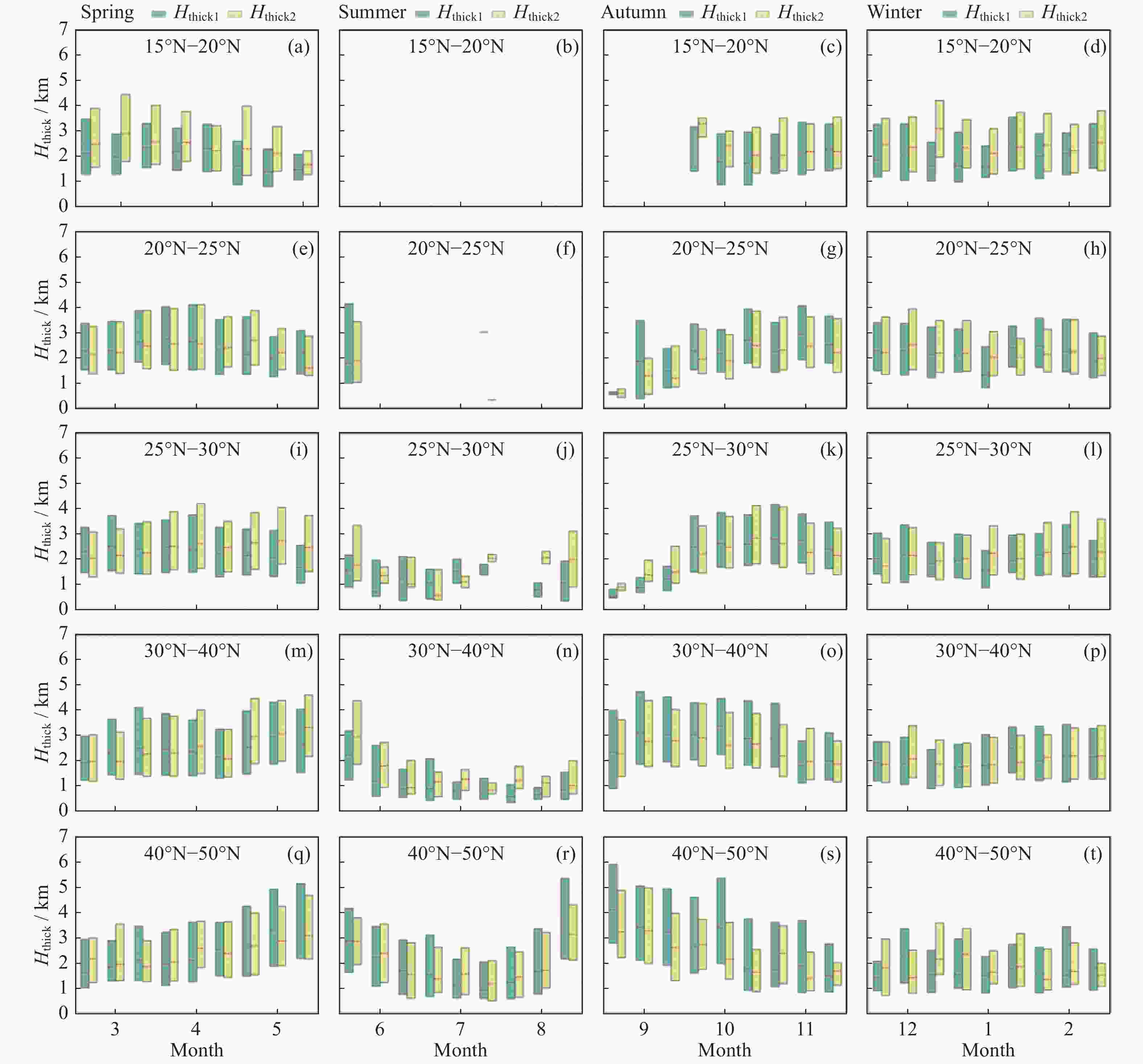

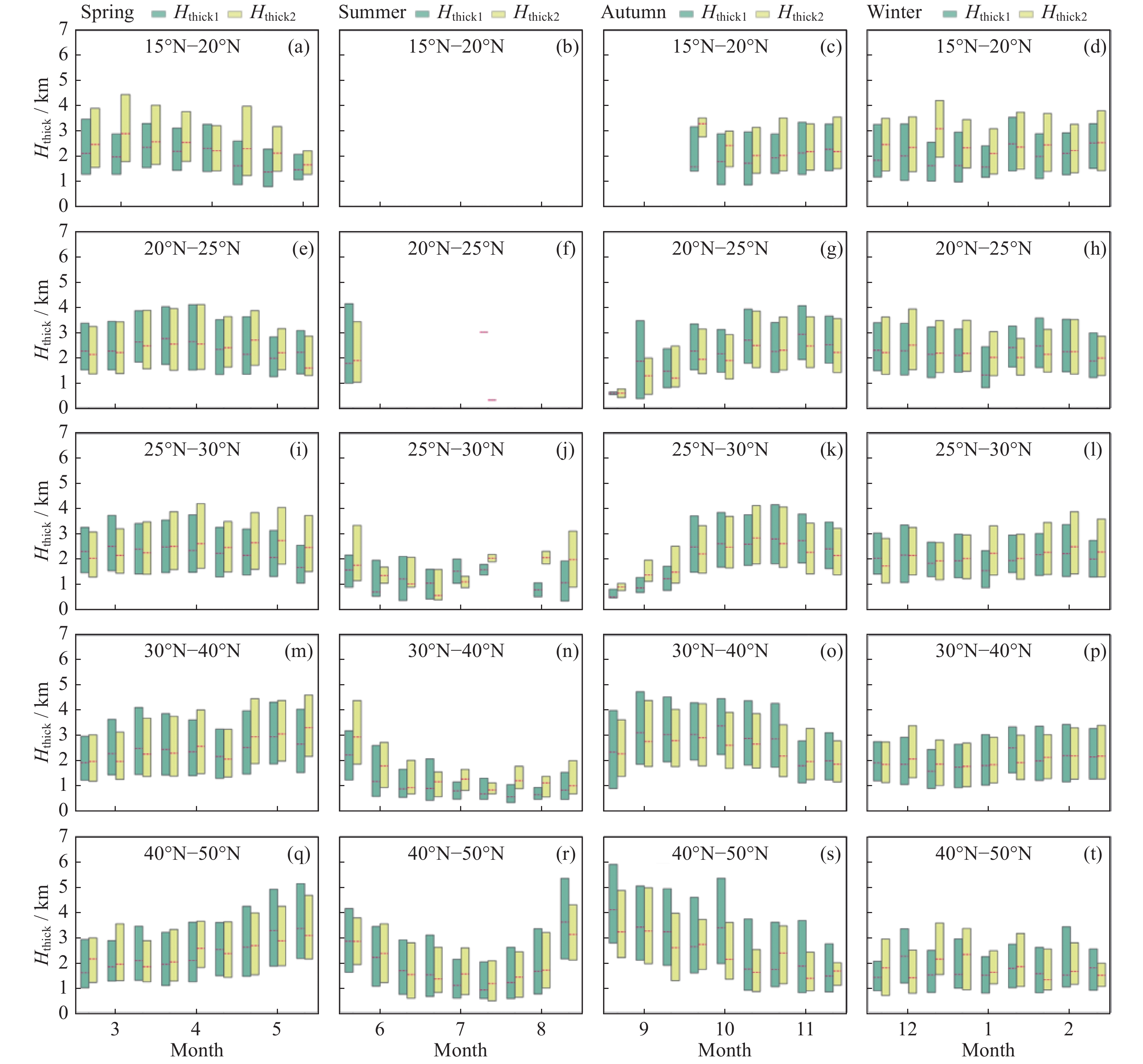

    图  8  2010-2019年双层准零风层厚度季节变化

    Figure  8.  Seasonal variation of thickness of the double-layer QZWL from 2010 to 2019

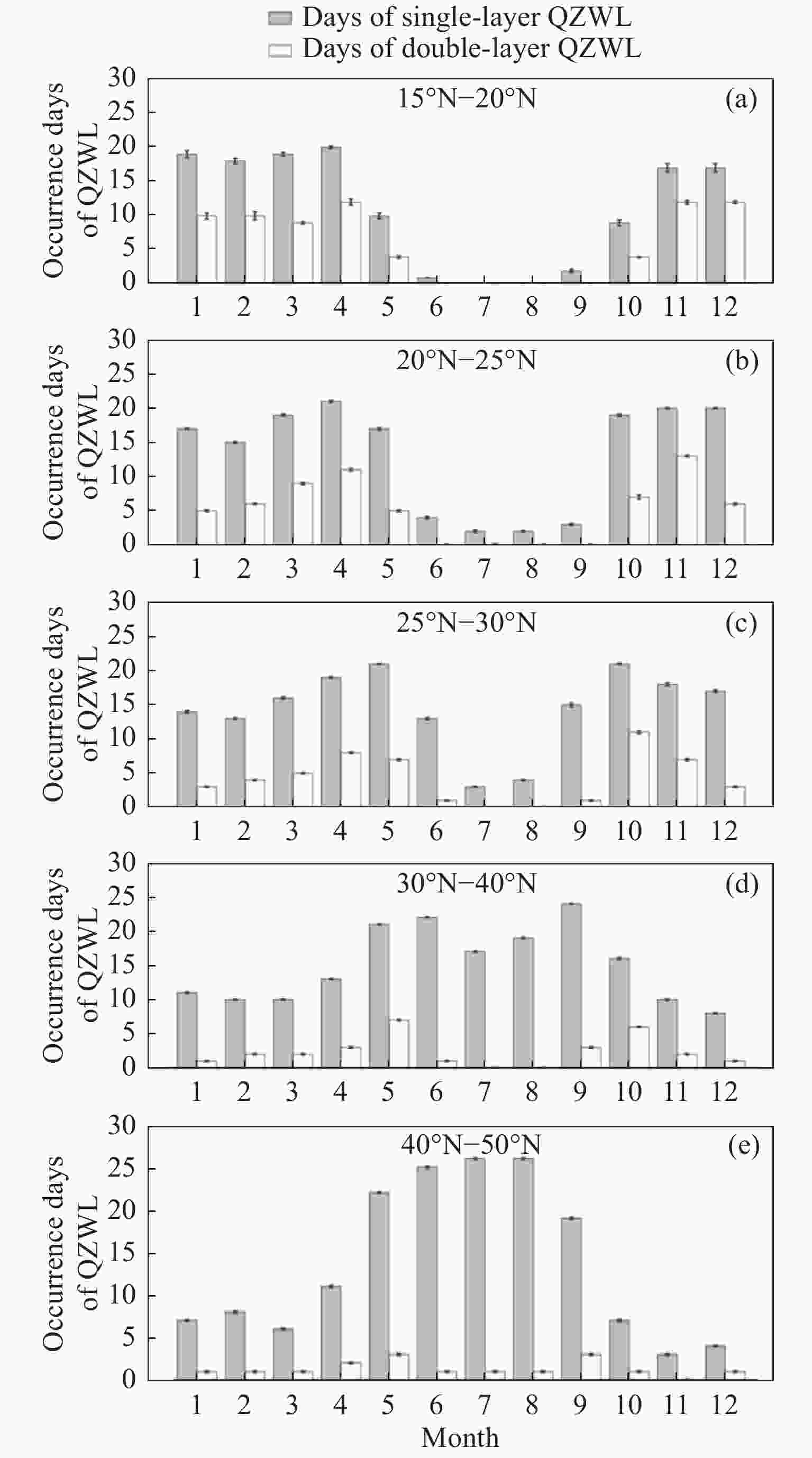

    图  9  2010-2019年多年平均的单层/双层准零风层出现天数逐月变化

    Figure  9.  Annual variation of occurrence days of the single/double-layer QZWL from 2010 to 2019

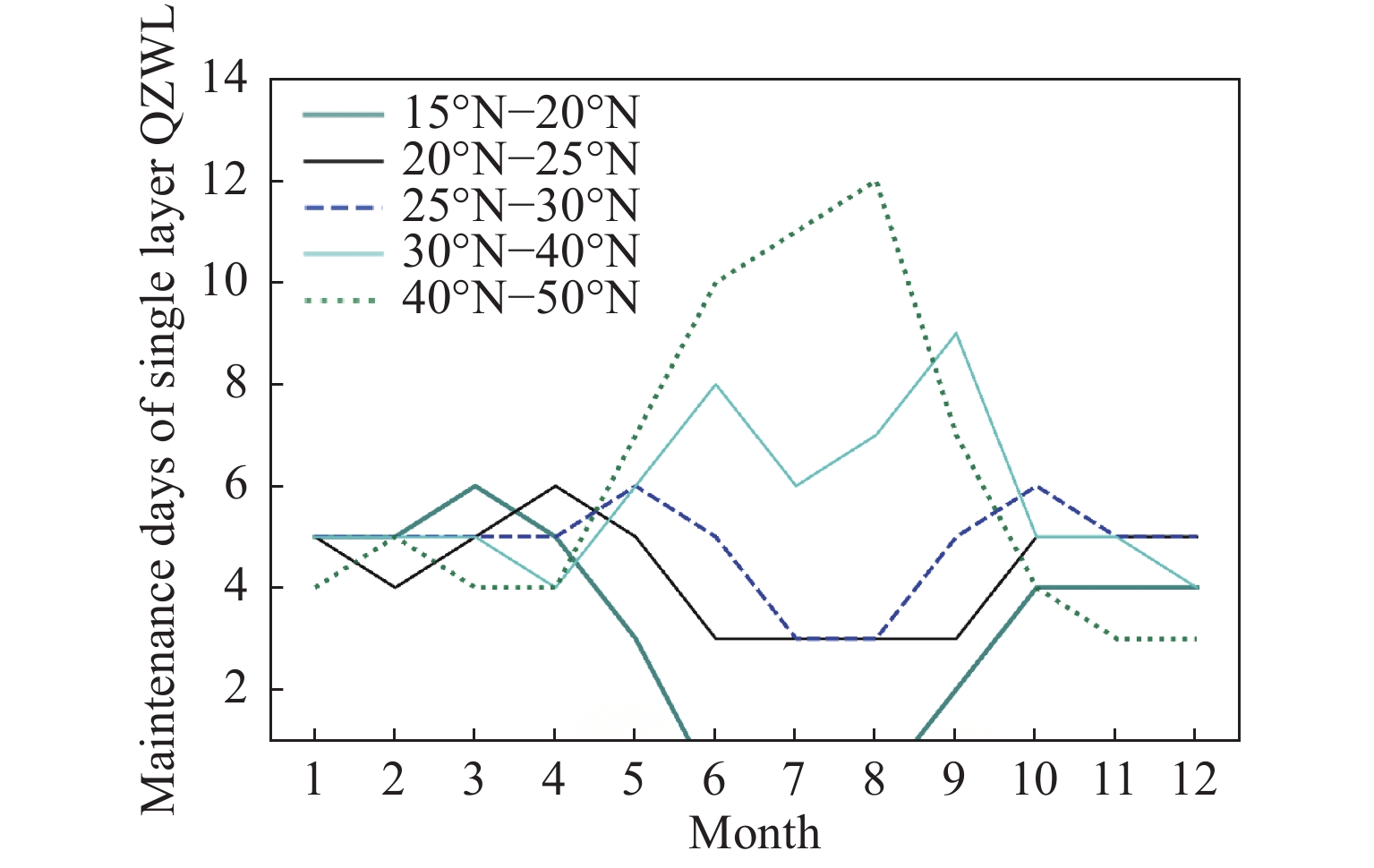

    图  10  2010-2019年多年平均的单层准零风层维持天数逐月变化

    Figure  10.  Annual variation of maintenance days of the single layer QZWL from 2010 to 2019

  • [1] YOUNG M, KEITH L S, PANCOTTI A. An overview of advanced concepts for near-space systems[C]//Proceeding of the 45th AIAA/ASME/SAE/ASEE Joint Propulsion Conference & Exhibit Denver, Colorado: AIAA, 2009
    [2] 肖存英. 临近空间大气动力学特性研究[D]. 北京: 中国科学院研究生院, 2009

    XIAO Cunying. Research on the Dynamics of Atmosphere in the Near Space[D]. Beijing: Graduate University of Chinese Academy of Sciences, 2009
    [3] 陈凤贵, 陈光明, 刘克华. 临近空间环境及其影响分析[J]. 装备环境工程, 2013, 10(4): 71-75, 85

    CHEN Fenggui, CHEN Guangming, LIU Kehua. Analysis of near space environment and its effect[J]. Equipment Environmental Engineering, 2013, 10(4): 71-75, 85
    [4] BATTEN E S. Wind systems in the mesosphere and lower ionosphere[J]. Journal of Atmospheric Sciences, 1961, 18(3): 283-291
    [5] 吕达仁, 陈泽宇, 郭霞, 等. 临近空间大气环境研究现状[J]. 力学进展, 2009, 39(6): 674-682

    LÜ Daren, CHEN Zeyu, GUO Xia, et al. Recent progress in near space atmospheric environment study[J]. Advances in Mechanics, 2009, 39(6): 674-682
    [6] 陈洪滨. 中高层大气研究的空间探测[J]. 地球科学进展, 2009, 24(3): 229-241

    CHEN Hongbin. An overview of the space-based observations for upper atmospheric research[J]. Advances in Earth Science, 2009, 24(3): 229-241
    [7] FAIRBROTHER D A, PIERCE D. NASA balloon program status[C]//Proceeding of the AIAA Balloon Systems Conference. Seattle, Washington: AIAA, 2009: 1-5
    [8] CATHEY H M JR. The NASA super pressure balloon-A path to flight[J]. Advances in Space Research, 2009, 44(1): 23-38 doi: 10.1016/j.asr.2009.02.013
    [9] Aarti Upasna. Review on project loon[J]. International Journal of Engineering Research & Technology, 2017, 5(3): 1-6
    [10] YANG X X, LIU D N. Renewable power system simulation and endurance analysis for stratospheric airships[J]. Renewable Energy, 2017, 113: 1070-1076 doi: 10.1016/j.renene.2017.06.077
    [11] 刘园园, 吴维, 张静, 等. 临近空间大气环境特性及探测技术概论[C]//第30届中国气象学会年会论文集. 北京, 2013: 1-5

    LIU Yuanyuan, WU Wei, ZHANG Jing, et al. An introduction to atmospheric environment characteristics and detection technology in near space[C]//Proceedings of the 30th Annual meeting of Chinese Meteorological Society. Beijing, 2013: 1-5
    [12] BELMONT A D, DARTT D G, NASTROM G D. Variations of stratospheric zonal winds, 20~65 km, 1961-1971[J]. Journal of Applied Meteorology, 1975, 14(4): 585-594 doi: 10.1175/1520-0450(1975)014<0585:VOSZWK>2.0.CO;2
    [13] BELMONT A D, DARTT D G. The variability of tropical stratospheric winds[J]. Journal of Geophysical Research, 1970, 75(15): 3133-3145 doi: 10.1029/JC075i015p03133
    [14] 周昕家, 陈洪滨, 卞建春. 北半球平流层中低层纬向风季节转换及转换层特征的分析研究[J]. 气候与环境研究, 2011, 16(5): 565-576

    ZHOU Xijia, CHEN Hongbin, BIAN Jianchun. Analysis of the characteristics of zonal wind reverse layer in the lower and middle stratosphere of the northern hemisphere and its seasonal variation[J]. Climatic and Environmental Research, 2011, 16(5): 565-576
    [15] ZHANG Y L, LIU Y, LIU C X. Dynamic seasonal transition from winter to summer in the northern hemisphere stratosphere[J]. Atmospheric and Oceanic Science Letters, 2014, 7(3): 180-185 doi: 10.1080/16742834.2014.11447156
    [16] 吕达仁, 孙宝来, 李立群. 零风层与我国首次高空气球停留试验[J]. 目标与环境特性研究, 2002, 22(1): 45-51

    LÜ Daren, SUN Baolai, LI Liqun. Zero wind layer and first dwell experiment of high-altitude Ballon in China[J]. Target Environmental Feat, 2002, 22(1): 45-51
    [17] RONEY J A. Statistical wind analysis for near-space applications[J]. Journal of Atmospheric and Solar-Terrestrial Physics, 2007, 69(13): 1485-1501 doi: 10.1016/j.jastp.2007.05.005
    [18] 闫峰, 杨燕初, 卢莹, 等. 临近空间长航时浮空器气象服务与保障系统研究[C]//第四届高分辨率对地观测学术年会论文集. 武汉, 2017: 1-14

    YAN Feng, YANG Yanchu, LU Ying, et al. Meteorological service and support system for near space long endurance aerostat[C]//Proceedings of the 4th Annual Academic Conference on High-resolution Earth Observation. Wuhan, 2017: 1-14
    [19] 肖存英, 胡雄, 龚建村, 等. 中国上空平流层准零风层的特征分析[J]. 空间科学学报, 2008, 28(3): 230-235

    XIAO Cunying, HU Xiong, GONG Jiancun, et al. Analysis of the characteristics of the stratospheric Quasi-zero Wind Layer over China[J]. Chinese Journal of Space Science, 2008, 28(3): 230-235
    [20] 陶梦初, 何金海, 刘毅. 平流层准零风层统计特征及准两年周期振荡对其影响分析[J]. 气候与环境研究, 2012, 17(1): 92-102

    TAO Mengchu, HE Jinhai, LIU Yi. Analysis of the characteristics of the stratospheric quasi-zero wind layer and the effects of the quasi-biennial oscillation on it[J]. Climatic and Environmental Research, 2012, 17(1): 92-102
    [21] 陈柏青. 中国上空平流层准零风层时空分布特征分析[D]. 南京: 南京信息工程大学, 2018

    CHEN Baiqing. Characteristics of Spatial-Temporal Distribution of the Stratospheric Quasi-Zero Wind Layer in China[D]. Nanjing: Nanjing University of Information Science and Technology, 2018
    [22] 林海涛. QBO及SSW对准零风层分布的影响探究[D]. 昆明: 云南大学, 2017

    LIN Haitao. The Discussion of the Influence of QBO and SSW over Quasi-zero Wind Layers[D]. Kunming: Yunnan University, 2017
    [23] BLACK R X, MCDANIEL B A. Interannual variability in the southern hemisphere circulation organized by stratospheric final warming events[J]. Journal of the Atmospheric Sciences, 2007, 64(8): 2968-2974 doi: 10.1175/JAS3979.1
    [24] 张灵, 李维京, 陈丽娟. 北半球平流层大气环流转型的基本气候特征[J]. 应用气象学报, 2011, 22(4): 411-420

    ZHANG Ling, LI Weijing, CHEN Lijuan. The basic climatic features of stratospheric circulation transition in northern hemisphere[J]. Journal of Applied Meteorological Science, 2011, 22(4): 411-420
    [25] 任国玉, 张爱英, 王颖, 等. 我国高空风速的气候学特征[J]. 地理研究, 2009, 28(6): 1583-1592

    REN Guoyu, ZHANG Aiying, WANG Ying, et al. Climatology of upper wind speeds over China[J]. Geographical Research, 2009, 28(6): 1583-1592
    [26] 王洪, 曹云昌, 肖稳安. COSMIC掩星数据与L波段探空数据的对比分析[J]. 气象, 2010, 36(9): 14-20

    WANG Hong, CAO Yunchang, XIAO Wenan. Comparison between the COSMIC and the L-band radiosonde data[J]. Meteorological Monthly, 2010, 36(9): 14-20
    [27] 杨湘婧, 徐祥德, 陈宏尧, 等. L波段探空高分辨率廓线中近地层信息分析及相关模型[J]. 气象, 2011, 37(12): 1504-1510

    YANG Xiangqing, XU Xiangde, CHEN Hongyao, et al. The analysis and correlation model of the surface layer information in L-band radiosonde high resolution profile[J]. Meteorological Monthly, 2011, 37(12): 1504-1510
    [28] YANG R, RAN L K, ZHANG Y L, et al. Analysis and simulation of the stratospheric quasi-zero wind layer over Korla, Xinjiang province, China[J]. Advances in Atmospheric Sciences, 2019, 36(10): 1143-1155 doi: 10.1007/s00376-019-9045-6
    [29] 梁智豪, 王东海, 梁钊明. 探空观测的边界层高度时空变化特征[J]. 应用气象学报, 2020, 31(4): 447-459

    LIANG Zhihao, WANG Donghai, LIANG Zhaoming. Spatio-temporal characteristics of boundary layer height derived from soundings[J]. Journal of Applied Meteorological Science, 2020, 31(4): 447-459
    [30] 郝民, 田伟红, 龚建东. L波段秒级探空资料在GRAPES同化系统中的应用研究[J]. 气象, 2014, 40(2): 158-165

    HAO Ming, TIAN Weihong, GONG Jiandong. Study of L-band second-level radiosonde data applied in GRAPES assimilation system[J]. Meteorological Monthly, 2014, 40(2): 158-165
    [31] 王雨婷. 中国大气边界层高度特征研究及一次飓风大涡模拟试验[D]. 杭州: 浙江大学, 2017

    WANG Yuting. Characteristics of the Atmospheric Boundary Layer Height in China and a Large Eddy Simulation of Hurricane[D]. Hangzhou: Zhejiang University, 2017
    [32] 陶梦初. 北半球平流层中下层风场特征统计和一类特殊SSW事件的动力学诊断分析[D]. 南京: 南京信息工程大学, 2011

    TAO Mengchu. Characteristics of Zonal Wind in Lower Stratosphere and Diagnosis of a Special Category of Stratospheric Sudden Warming Events[D]. Nanjing: Nanjing University of Information Science and Technology, 2011
    [33] 刘杰, 陈江云, 吴思江, 等. 新疆地区平流层底层风场环境变化特征及规律研究[C]//第四届高分辨率对地观测学术年会. 武汉, 2017: 1-18

    LIU Jie, CHEN Jiangyun, WU Sijiang, et al. Research on the variation characteristics of wind field environment on the bottom of stratosphere in Xinjiang region[C]//Proceedings of the 4th Annual Academic Conference on High-resolution Earth Observation. Wuhan, 2017: 1-18
    [34] BELLEMARE M G, CANDIDO S, CASTRO P S, et al. Autonomous navigation of stratospheric balloons using reinforcement learning[J]. Nature, 2020, 588(7836): 77-82 doi: 10.1038/s41586-020-2939-8
