带电云对大气电场随高度变化特征的影响

李磊 陈涛 苏建峰 李文 提烁 吴晗 罗静 王诗涵 李仁康

李磊, 陈涛, 苏建峰, 李文, 提烁, 吴晗, 罗静, 王诗涵, 李仁康. 带电云对大气电场随高度变化特征的影响[J]. 空间科学学报, 2022, 42(3): 414-421. doi: 10.11728/cjss2022.03.210513053
引用本文: 李磊, 陈涛, 苏建峰, 李文, 提烁, 吴晗, 罗静, 王诗涵, 李仁康. 带电云对大气电场随高度变化特征的影响[J]. 空间科学学报, 2022, 42(3): 414-421. doi: 10.11728/cjss2022.03.210513053
LI Lei, CHEN Tao, SU Jianfeng, LI Wen, TI Shuo, WU Han, LUO Jing, WANG Shihan, LI Renkang. Influence of Charged Clouds on the Distribution of Atmospheric Electric Field with Altitude (in Chinese). Chinese Journal of Space Science, 2022, 42(3): 414-421. DOI: 10.11728/cjss2022.03.210513053
Citation: LI Lei, CHEN Tao, SU Jianfeng, LI Wen, TI Shuo, WU Han, LUO Jing, WANG Shihan, LI Renkang. Influence of Charged Clouds on the Distribution of Atmospheric Electric Field with Altitude (in Chinese). Chinese Journal of Space Science, 2022, 42(3): 414-421. DOI: 10.11728/cjss2022.03.210513053

带电云对大气电场随高度变化特征的影响

doi: 10.11728/cjss2022.03.210513053
基金项目: 中国科学院战略性先导科技专项(XDA17010301,XDA17040505,XDA15052500,XDA15350201),国家自然科学基金项目(41874175,41931073),国家重点实验室专项基金项目及中国科学院国家空间科学中心培育专项135项目(Y92111BA8S),空间中心攀登计划主任基金项目(E0PD41A11S),国家重大科技基础设施子午工程项目和云南省基础研究青年项目(2019FD111)共同资助
详细信息
    作者简介:

    李磊:E-mail:lilei@swl.ac.cn

    通讯作者:

    陈涛,E-mail:tchen@nssc.ac.cn

  • 中图分类号: P352

Influence of Charged Clouds on the Distribution of Atmospheric Electric Field with Altitude

  • 摘要: 大气电场与雷暴活动、气候变化、大气污染、太阳活动密切相关,在特殊地形上探测大气电场的高度分布对于大气电学的相关研究具有重要意义。2020年9月12日,中国科学院鸿鹄专项团队将大气电场仪搭载在探空气球上,在青海省海西蒙古族藏族自治州大柴旦地区进行了大气电场高度分布的探测实验。本文分析讨论了此次实验中用到的电场仪、实验过程及实验结果。大气电场曲线中间凸起的部分对应电场仪穿过带电云层,因此将其分为三段并分别进行拟合。探测实验及分析结果表明:在不同高度处大气电场的主要影响因素不同,其分布规律会存在差异。此外,带电云会使大气电场强度整体增大,但云层中大气电场的高度分布仍能较好地符合指数变化规律。

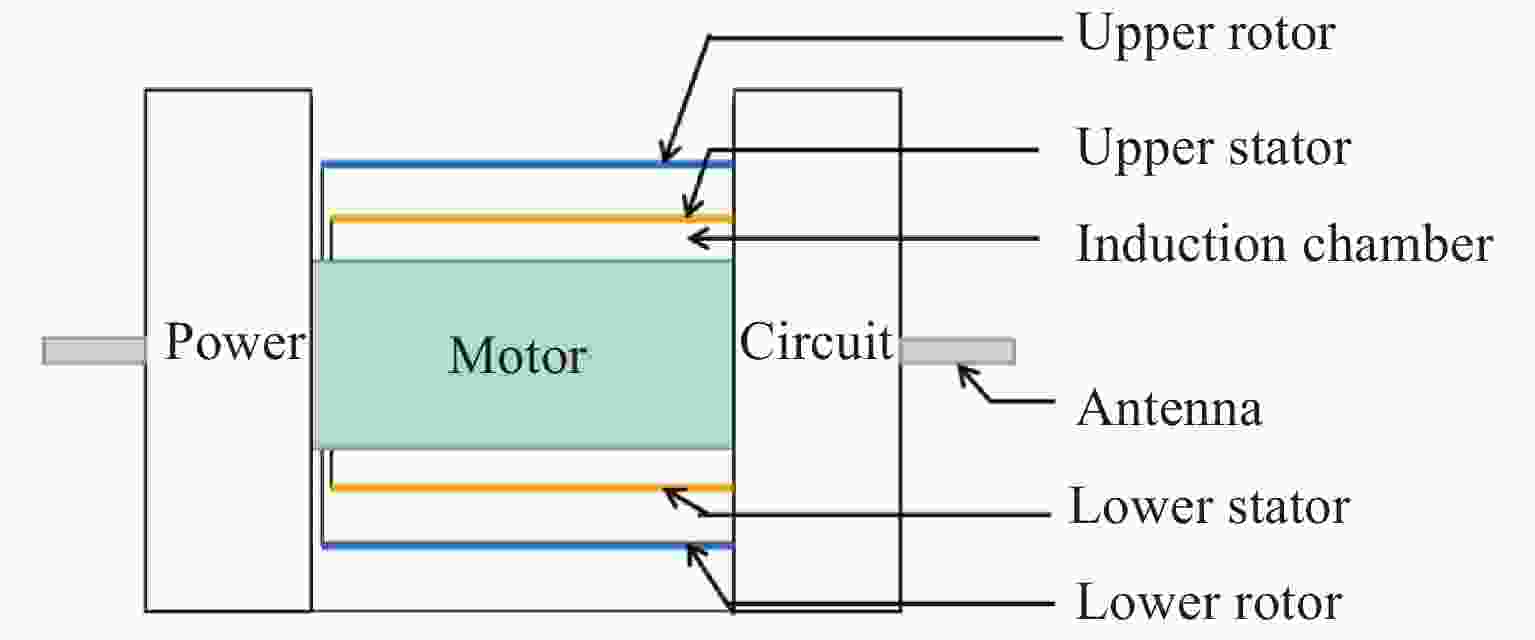

  • 图  1  空间差分新型电场仪原理

    Figure  1.  New space differential electric field instrument’s principle

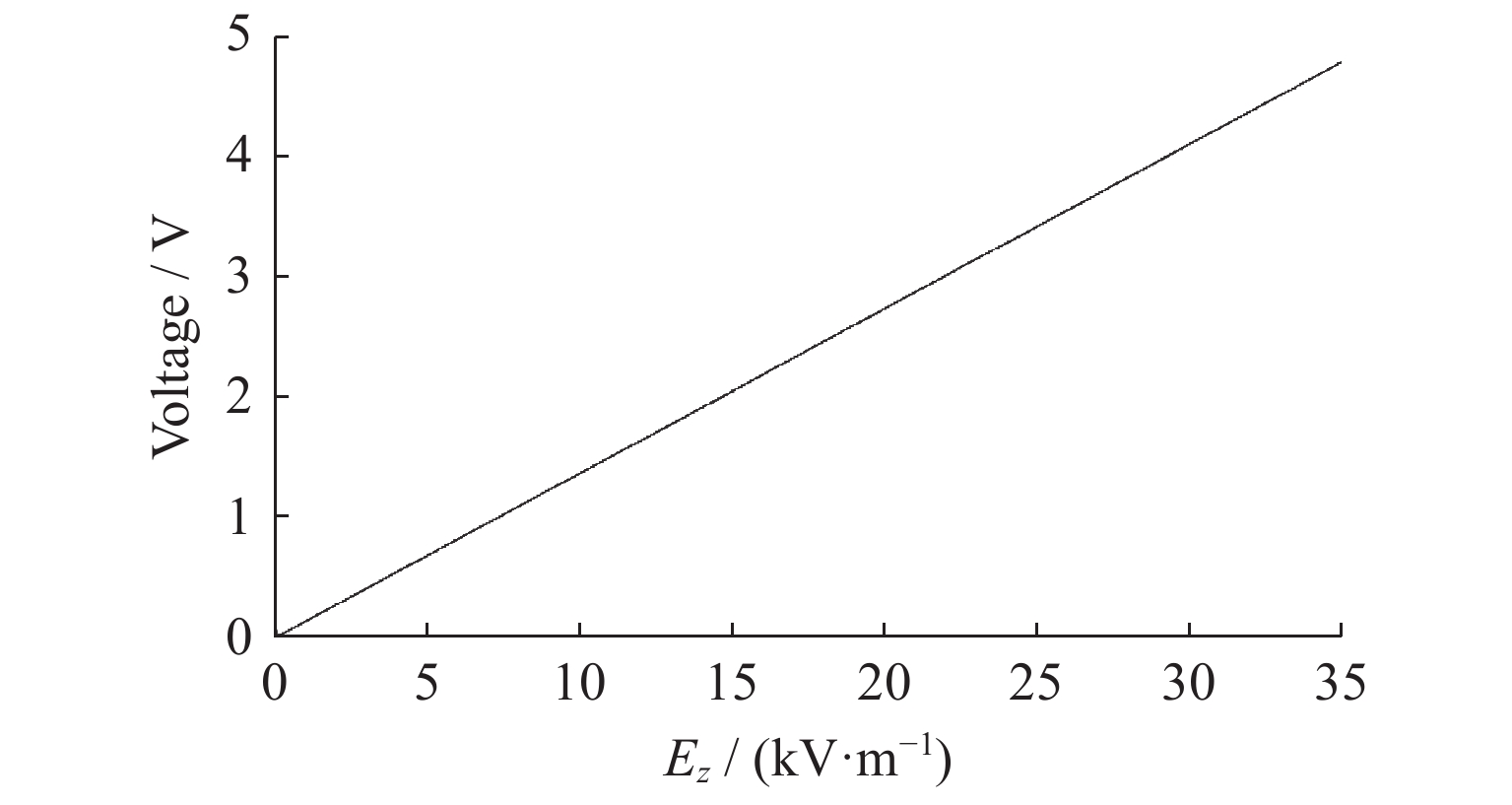

    图  2  大气电场仪的标定曲线

    Figure  2.  Calibration curve of the atmospheric electric field instrument

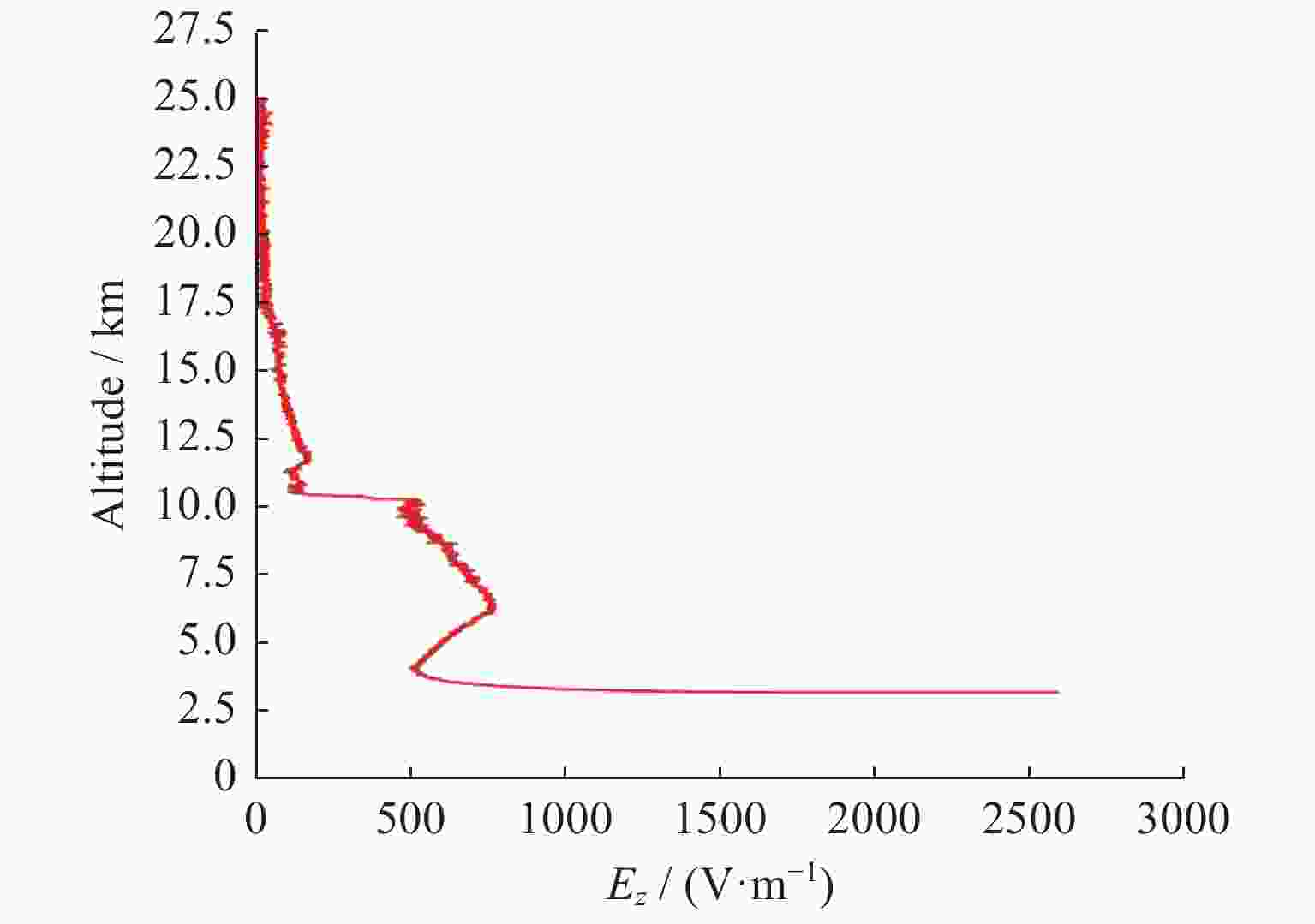

    图  3  探空气球实验测量结果(大气电场–高度分布)

    Figure  3.  Atmospheric electric field-altitude distribution measured by the air sounding balloon experiment

    图  4  探空气球实验的相对湿度–高度分布

    Figure  4.  Relative humidity-altitude distribution measured by the air sounding balloon experiment

    图  5  探空气球实验的风速–高度分布

    Figure  5.  Wind speed-altitude distribution measured by the air sounding balloon experiment

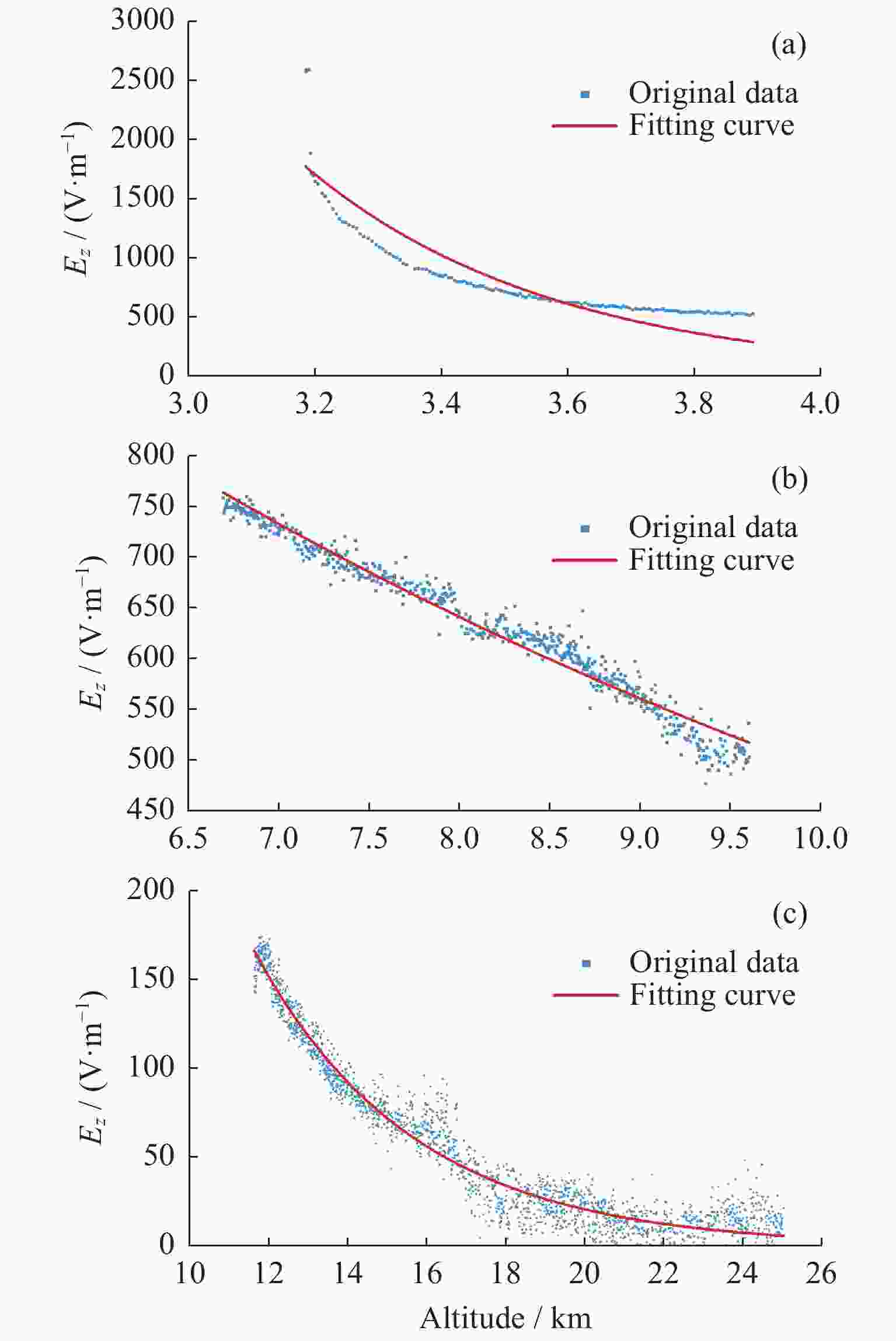

    图  6  探空气球实验大气电场强度的高度分布拟合曲线与原观测数据对比.(a)海拔高度小于3.9 km的数据,(b)海拔高度在6.7~9.7 km的数据,(c)海拔高度在11 km以上的数据

    Figure  6.  Comparison of the fitting curve of atmospheric electric field intensity with altitude and the observed data measured by air sounding balloon experiment. (a) The altitude is less than 3.9 km. (b) The altitude is between 6.7 km and 9.7 km. (c) The altitude is higher than 11 km

    表  1  接收机记录的数据格式

    Table  1.   Data format recorded by the receiver

    电场/
    (V·m–1)
    相对
    湿度/(%)
    工作
    状态
    世界时
    (UT)
    经度/
    (°)
    纬度/
    (°)
    高度/
    m
    96.9422A00:25:0395.3405337.7436833185
    下载: 导出CSV
  • [1] APLIN K L, HARRISON R G, RYCROFT M J. Investigating earth's atmospheric electricity: a role model for planetary studies[J]. Space Science Reviews, 2008, 137(1/2/3/4): 11-27
    [2] RYCROFT M J, ISRAELSSON S, PRICE C. The global atmospheric electric circuit, solar activity and climate change[J]. Journal of Atmospheric and Solar-Terrestrial Physics, 2000, 62(17/18): 1563-1576
    [3] SIINGH D, SINGH R P, KAMRA A K, et al. Review of electromagnetic coupling between the Earth's atmosphere and the space environment[J]. Journal of Atmospheric and Solar-Terrestrial Physics, 2005, 67(6): 637-658 doi: 10.1016/j.jastp.2004.09.006
    [4] VICTOR N J, CHANDRA S, SIINGH D. Lightning, the global electric circuit, and climate[M]//SRIVASTAVA P K, SINGH S K, MOHANTY U C, et al. Techniques for Disaster Risk Management and Mitigation. Hoboken: John Wiley & Sons, Inc. , 2000
    [5] MACH D M, BLAKESLEE R J, BATEMAN M G. Global electric circuit implications of combined aircraft storm electric current measurements and satellite-based diurnal lightning statistics[J]. Journal of Geophysical Research: Atmospheres, 2011, 116(D5): D05201
    [6] BLAKESLEE R J, MACH D M, BATEMAN M G, et al. Seasonal variations in the lightning diurnal cycle and implications for the global electric circuit[J]. Atmospheric Research, 2014, 135-136: 228-243 doi: 10.1016/j.atmosres.2012.09.023
    [7] 张华明, 张义军, 杨世刚, 等. 太原地区大气电场及其与大气污染物关系[J]. 环境科学与技术, 2013, 36(9): 66-69,95 doi: 10.3969/j.issn.1003-6504.2013.09.014

    ZHANG Huaming, ZHANG Yijun, YANG Shigang, et al. Characteristics of atmospheric electric field in Taiyuan and its relationship with atmospheric pollutants[J]. Environmental Science & Technology, 2013, 36(9): 66-69,95 doi: 10.3969/j.issn.1003-6504.2013.09.014
    [8] 李京校, CHEN Xuemeng, 程月星, 等. 北京市大气电场和大气污染物关系初步研究[J]. 高原气象, 2021, 40(1): 209-218

    LI Jingxiao, CHEN Xuemeng, CHENG Yuexing, et al. A preliminary study on the relationship between atmospheric electric field and atmospheric pollutants in Beijing[J]. Plateau Meteorology, 2021, 40(1): 209-218
    [9] TACZA J, RAULIN J P, MENDONÇA R R S, et al. Solar effects on the atmospheric electric field during 2010-2015 at low latitudes[J]. Journal of Geophysical Research: Atmospheres, 2018, 123(21): 11970-11979 doi: 10.1029/2018JD029121
    [10] LI R K, CHEN T, LUO J, et al. Enhancement of high energy electron fluxes and variation of atmospheric electric field in the Antarctic region ormalsize[J]. Chinese Journal of Space Science, 2016, 36(1): 40-48
    [11] TELANG A V R. The influence of rain on the atmospheric-electric field[J]. Terrestrial Magnetism and Atmospheric Electricity, 1930, 35(3): 125-131 doi: 10.1029/TE035i003p00125
    [12] BURNS G B, FRANK-KAMENETSKY A V, TROSHICHEV O A, et al. Interannual consistency of bi-monthly differences in diurnal variations of the ground-level, vertical electric field[J]. Journal of Geophysical Research: Atmospheres, 2005, 110(D10): D10106 doi: 10.1029/2004JD005469
    [13] 黄钰, 吴安坤, 张淑霞. 场地环境对大气电场测量的影响及修正[J]. 电子测量技术, 2018, 41(1): 35-38

    HUANG Yu, WU Ankun, ZHANG Shuxia. Influence of environmental features on the atmospheric electric field and correction[J]. Electronic Measurement Technology, 2018, 41(1): 35-38
    [14] GURMANI S F, AHMAD N, TACZA J, et al. First seasonal and annual variations of atmospheric electric field at a subtropical station in Islamabad, Pakistan[J]. Journal of Atmospheric and Solar-Terrestrial Physics, 2018, 179: 441-449 doi: 10.1016/j.jastp.2018.09.011
    [15] 周筠珺, 陈成品, 刘黎平, 等. 青藏高原那曲地区冰雹天气系统中的大气电场[J]. 高原气象, 2000, 19(3): 339-347 doi: 10.3321/j.issn:1000-0534.2000.03.009

    ZHOU Yunjun, CHEN Chengpin, LIU Liping, et al. The characteristics of electric field of hailstorm weather in Nagqu area of Qinghai-Xizang Plateau[J]. Plateau Meteorology, 2000, 19(3): 339-347 doi: 10.3321/j.issn:1000-0534.2000.03.009
    [16] 张义军, 葛正谟, 陈成品, 等. 青藏高原东部地区的大气电特征[J]. 高原气象, 1998, 17(2): 135-141 doi: 10.3321/j.issn:1000-0534.1998.02.004

    ZHANG Yijun, GE Zhengmo, CHEN Chengpin, et al. Electrical characteristics of atmosphere in East area of Qinghai-Xizang Plateau[J]. Plateau Meteorology, 1998, 17(2): 135-141 doi: 10.3321/j.issn:1000-0534.1998.02.004
    [17] 言穆弘, 肖庆复, 申巧南. 1988年9—11月西太平洋海区大气电场特征分析[J]. 高原气象, 1990, 9(4): 395-404

    YAN Muhong, XIAO Qingfu, SHEN Qiaonan. Characteristics of atmospheric electric field at the West Pacific Region in Sep.-Nov., 1988[J]. Plateau Meteorology, 1990, 9(4): 395-404
    [18] 吴亭, 吕伟涛, 刘晓阳, 等. 北京地区不同天气条件下近地面大气电场特征[J]. 应用气象学报, 2009, 20(4): 394-401 doi: 10.3969/j.issn.1001-7313.2009.04.002

    WU Ting, LV Weitao, LIU Xiaoyang, et al. Characteristics of atmospheric electric field near the earth's surface under different weather conditions in Beijing[J]. Journal of Applied Meteorological Science, 2009, 20(4): 394-401 doi: 10.3969/j.issn.1001-7313.2009.04.002
    [19] HARRISON R G. The Carnegie curve[J]. Surveys in Geophysics, 2013, 34(2): 209-232 doi: 10.1007/s10712-012-9210-2
    [20] MUIR M S. Diurnal variations in the atmospheric electric field[J]. Journal of Atmospheric and Terrestrial Physics, 1976, 38(12): 1339-1344 doi: 10.1016/0021-9169(76)90143-4
    [21] 卢炳源. 大气电场数据在雷电预警中的应用研究[D]. 成都: 电子科技大学, 2012

    LU Bingyuan. The Research on the Application of the Data of Atmospheric Electric Field in Lightning Warning[D]. Chengdu: University of Electronic Science and Technology of China, 2012
    [22] ADZHIEV A H, KOROVIN E A, CHERNYSHEV S V, et al. An atmospheric electric field meter[J]. Instruments and Experimental Techniques, 2017, 60(5): 733-736 doi: 10.1134/S0020441217050013
    [23] 吴晗, 陈涛, 李仁康, 等. 锡林浩特市火山地质公园平台山顶近地面大气电场变化特征[J]. 空间科学学报, 2020, 40(3): 357-363 doi: 10.11728/cjss2020.03.357

    WU Han, CHEN Tao, LI Renkang, et al. Characteristics of the near-surface atmospheric electric field over the top of a flat mountain in Xilin Hot Volcano Geopark[J]. Chinese Journal of Space Science, 2020, 40(3): 357-363 doi: 10.11728/cjss2020.03.357
    [24] IAROSSI S, POSCOLIERI M, RAFANELLI C, et al. The measure of atmospheric electric field[M]//NERI G, DONATO N, D'AMICO A, et al. Sensors and Microsystems: AISEM 2010 Proceedings. Dordrecht: Springer, 2011: 175-179
    [25] 李中富. 基于FPGA数字式大气电场仪的设计[J]. 科技与创新, 2018(22): 136-137

    LI Zhongfu. Design of digital atmospheric electric field instrument based on FPGA[J]. Science and Technology & Innovation, 2018(22): 136-137
    [26] LATHA R. Diurnal variation of surface electric field at a tropical station in different seasons: a study of plausible influences[J]. Earth, Planets and Space, 2003, 55(11): 677-685 doi: 10.1186/BF03352474
    [27] HARRISON R G. Long-term measurements of the global atmospheric electric circuit at Eskdalemuir, Scotland, 1911-1981[J]. Atmospheric Research, 2004, 70(1): 1-19 doi: 10.1016/j.atmosres.2003.09.007
    [28] SIINGH D, SINGH R P, GOPALAKRISHNAN V, et al. Fair-weather atmospheric electricity study at Maitri (Antarctica)[J]. Earth, Planets and Space, 2013, 65(12): 1541-1553 doi: 10.5047/eps.2013.09.011
    [29] 罗福山, 何渝晖, 张华伟, 等. 电场的标定方法[J]. 空间科学学报, 2007, 27(3): 223-226 doi: 10.3969/j.issn.0254-6124.2007.03.008

    LUO Fushan, HE Yuhui, ZHANG Huawei, et al. Calibration method of electric field[J]. Chinese Journal of Space Science, 2007, 27(3): 223-226 doi: 10.3969/j.issn.0254-6124.2007.03.008
