晴天大气电场时空变化特征分析

高志旭 陈涛 李文 刘刚 李仁康

高志旭, 陈涛, 李文, 刘刚, 李仁康. 晴天大气电场时空变化特征分析[J]. 空间科学学报, 2022, 42(3): 403-413. doi: 10.11728/cjss2022.03.210531066
引用本文: 高志旭, 陈涛, 李文, 刘刚, 李仁康. 晴天大气电场时空变化特征分析[J]. 空间科学学报, 2022, 42(3): 403-413. doi: 10.11728/cjss2022.03.210531066
GAO Zhixu, CHEN Tao, LI Wen, LIU Gang, LI Renkang. Analysis of the Spatial and Temporal Variation Characteristics of the Atmospheric Electric Field on Fair-weather (in Chinese). Chinese Journal of Space Science, 2022, 42(3): 403-413. DOI: 10.11728/cjss2022.03.210531066
Citation: GAO Zhixu, CHEN Tao, LI Wen, LIU Gang, LI Renkang. Analysis of the Spatial and Temporal Variation Characteristics of the Atmospheric Electric Field on Fair-weather (in Chinese). Chinese Journal of Space Science, 2022, 42(3): 403-413. DOI: 10.11728/cjss2022.03.210531066

晴天大气电场时空变化特征分析

doi: 10.11728/cjss2022.03.210531066
基金项目: 国家自然科学基金项目(41874175,41931073),国家重大科技基础设施子午工程项目,空间中心攀登计划主任基金项目(E0PD41A11S),中国科学院战略性先导科技专项(XDA17010301,XDA15052500,XDA15350201),云南省基础研究青年项目(2019FD111),中国科学院国家空间科学中心五个重点培育方向项目(Y92111BA8S),中国科学院大学生创新实践训练计划项目(20204001508)和云南师范大学大学生创新创业训练计划项目(202110681009)共同资助
详细信息
    作者简介:

    李仁康:Email:rkli@ynnu.edu.cn

  • 中图分类号: P41

Analysis of the Spatial and Temporal Variation Characteristics of the Atmospheric Electric Field on Fair-weather

  • 摘要: 利用子午工程5个大气电场观测站点近10年的近地面晴天大气电场观测数据,在年变化、季节变化、日变化三种不同时间尺度上进行了对比分析。结果表明:不同纬度站点的日平均晴天大气电场峰谷类型不同,且部分站点的波峰出现了逐年左移或右移的趋势;在电场幅值变化方面,位于中低纬度地区的站点呈现出逐年减小的变化特征,而位于中高纬度的站点呈现出逐年增加的变化趋势,且这种年变化均是线性的;多元回归分析表明,最大波峰出现时间与地理经度呈负相关,而与地理纬度呈正相关;各站点在近10年中均未出现明显的纬度效应;冬季的晴天大气电场日平均值水平较高,夏季较低,且各季节的日平均晴天大气电场最小值及最大值均近似呈正态分布;最小值及最大值在年度和季节两个时间尺度上的变化规律是基本一致的。这些研究结果揭示了晴天大气电场在不同时间尺度上的变化特征。

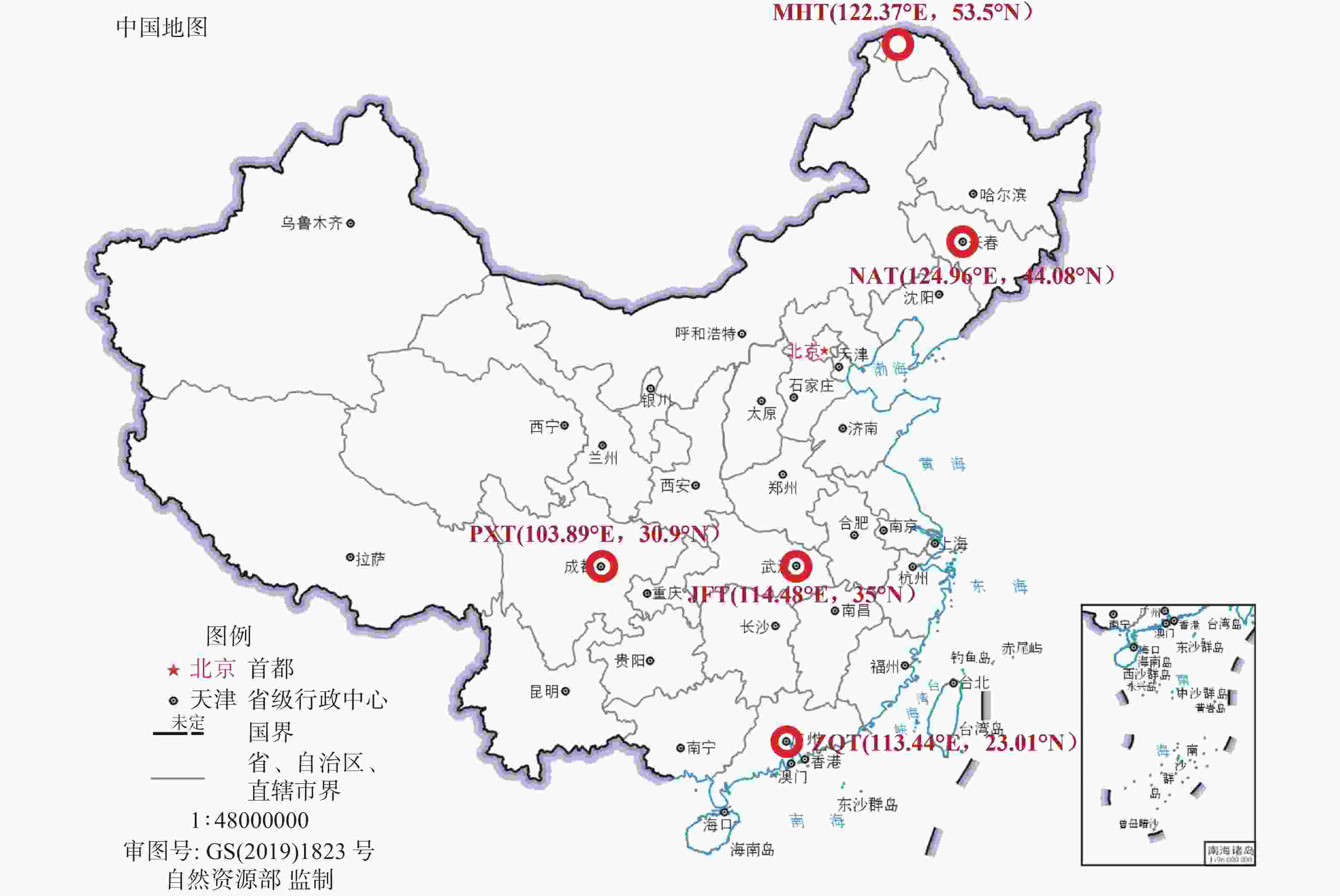

  • 图  1  子午工程大气电场台站地理分布

    Figure  1.  Geographical distribution of atmospheric electric field stations in the Meridian Project

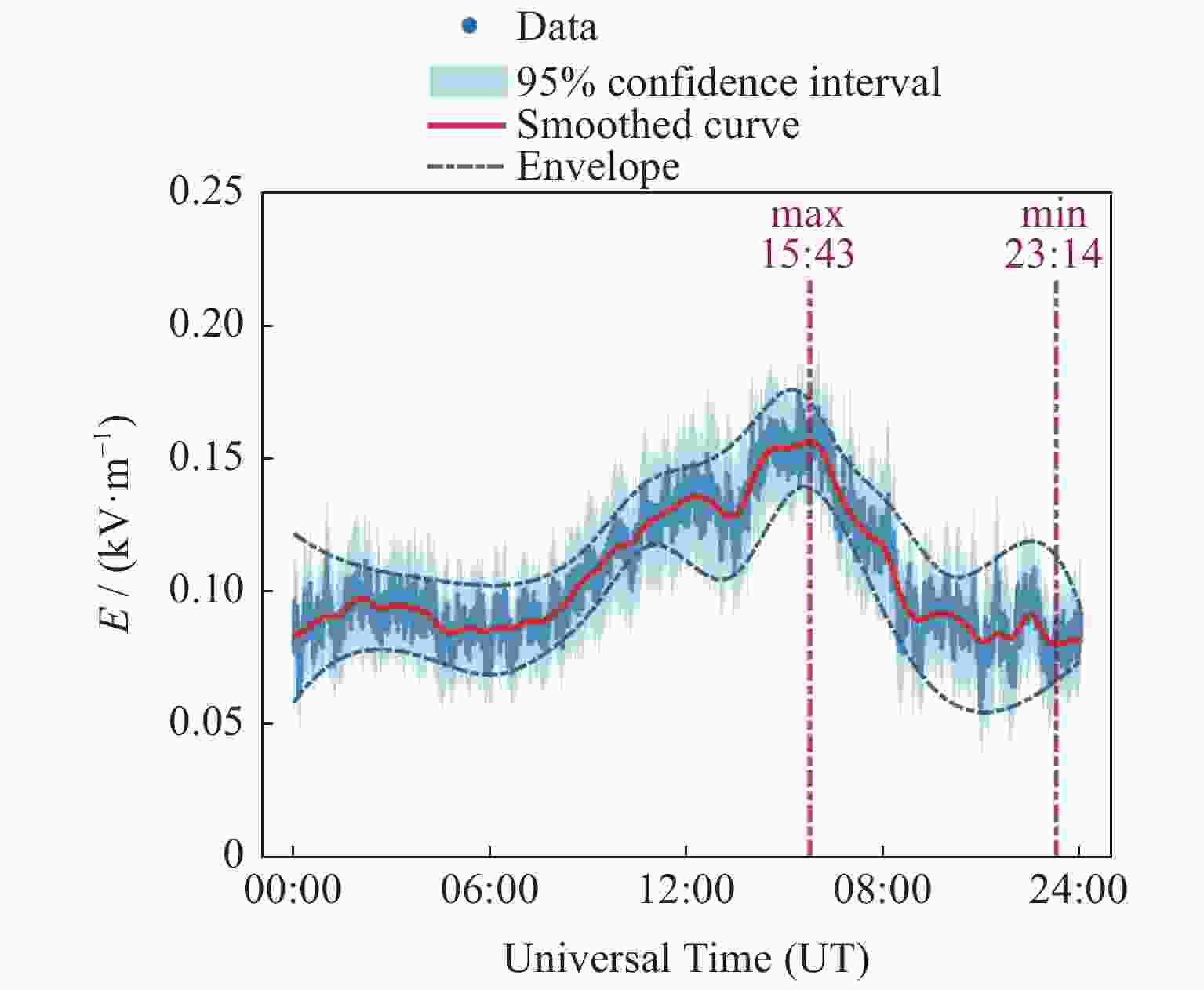

    图  2  黑龙江漠河站2020年晴天大气电场日平均曲线

    Figure  2.  Daily average curve of the fair-weather atmospheric electric field in 2020 at Mohe Station in Heilongjiang Province

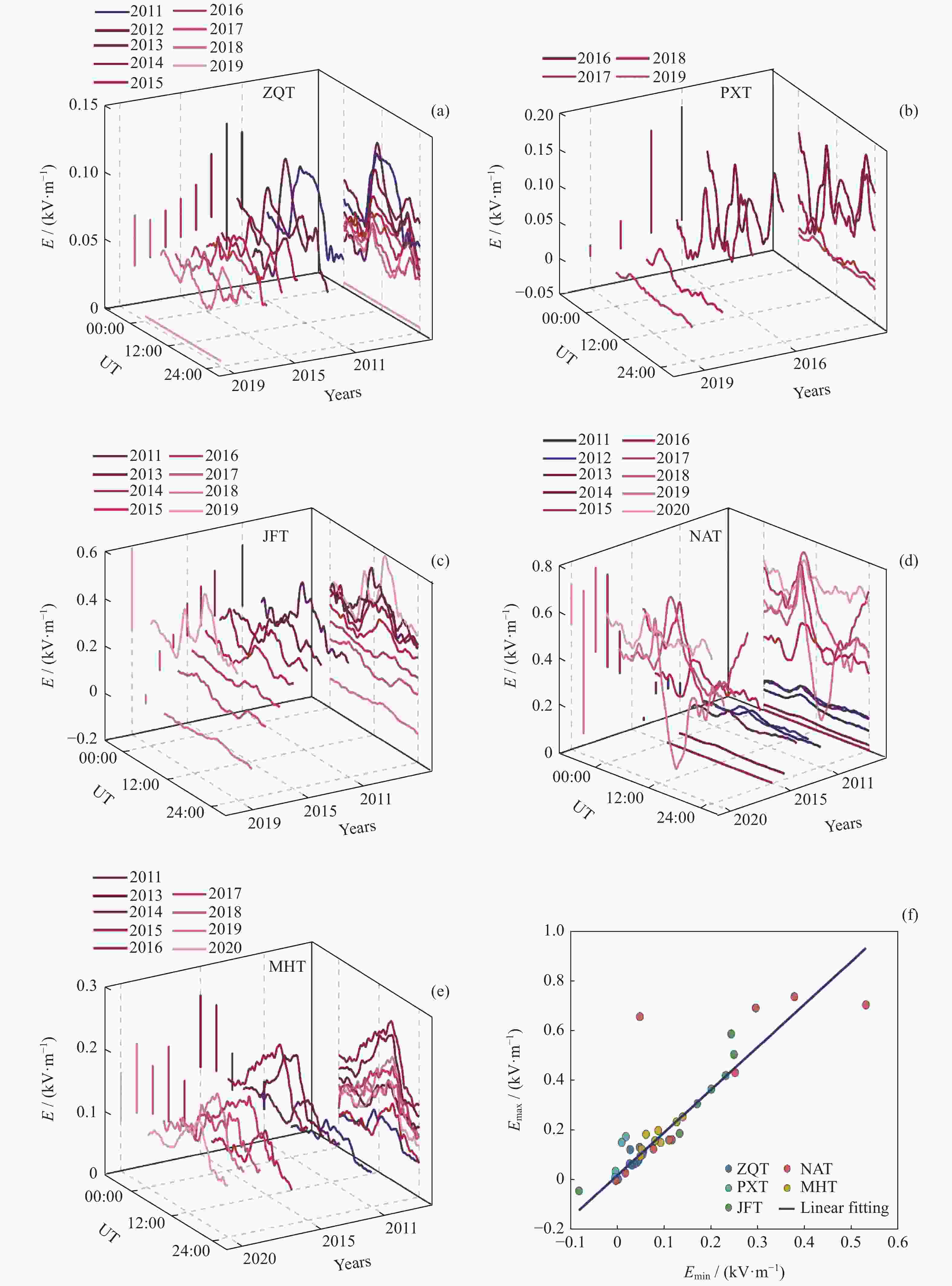

    图  3  (a)~(e) 各台站2011-2020年晴天大气电场日平均曲线,(f) 各台站2011-2020年日平均晴天大气电场最小值–最大值拟合

    Figure  3.  (a) ~ (e) Daily average curve of the fair-weather atmospheric electric field at all stations from 2011 to 2020. (f) Min-max fitting of daily average fair-weather atmospheric electric field from 2011 to 2020 at all stations

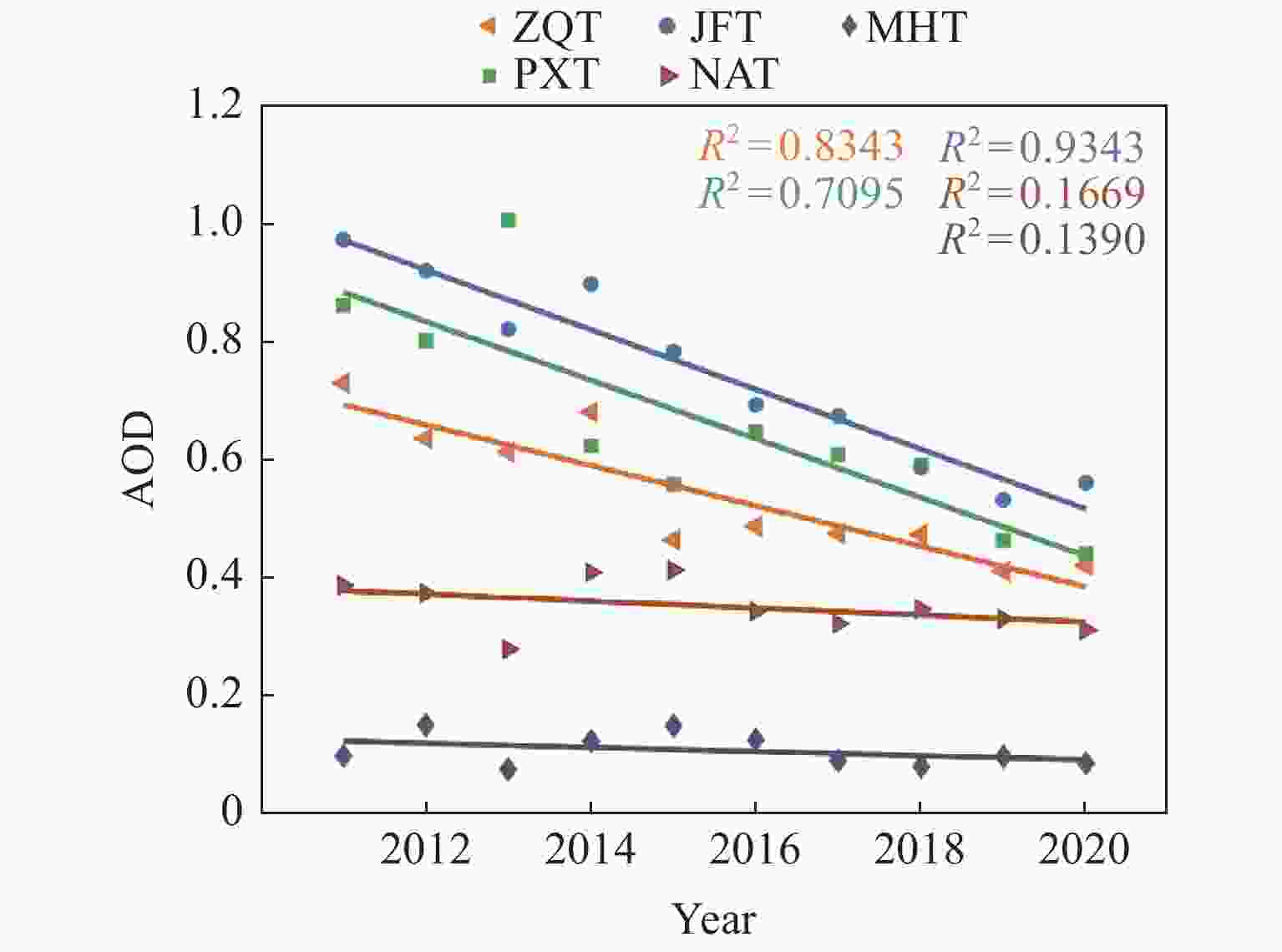

    图  4  各站点区域晴天AOD值年变化趋势

    Figure  4.  Annual trends in fair-weather AOD values at site area

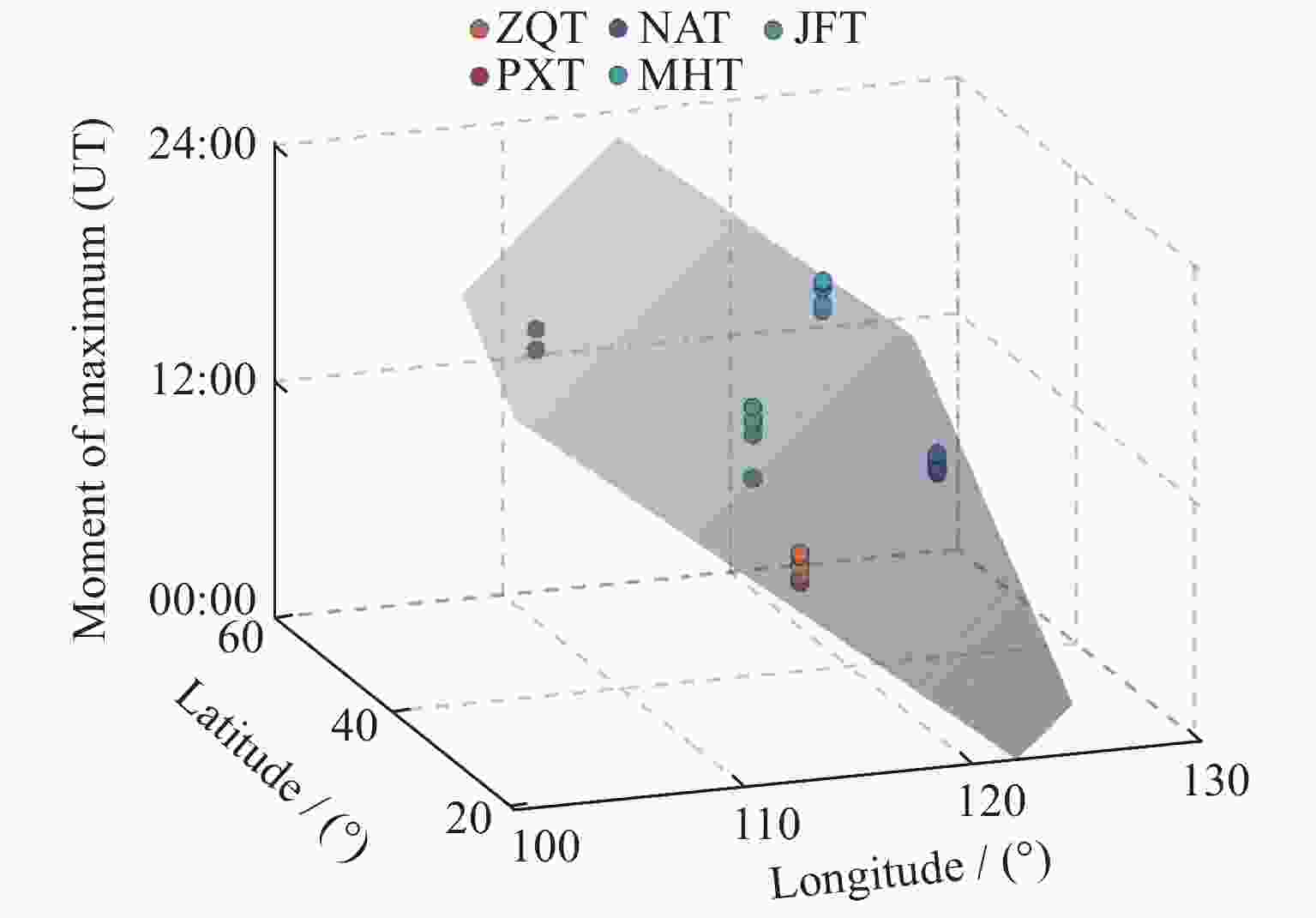

    图  5  多元线性回归结果

    Figure  5.  Results of multiple linear regression

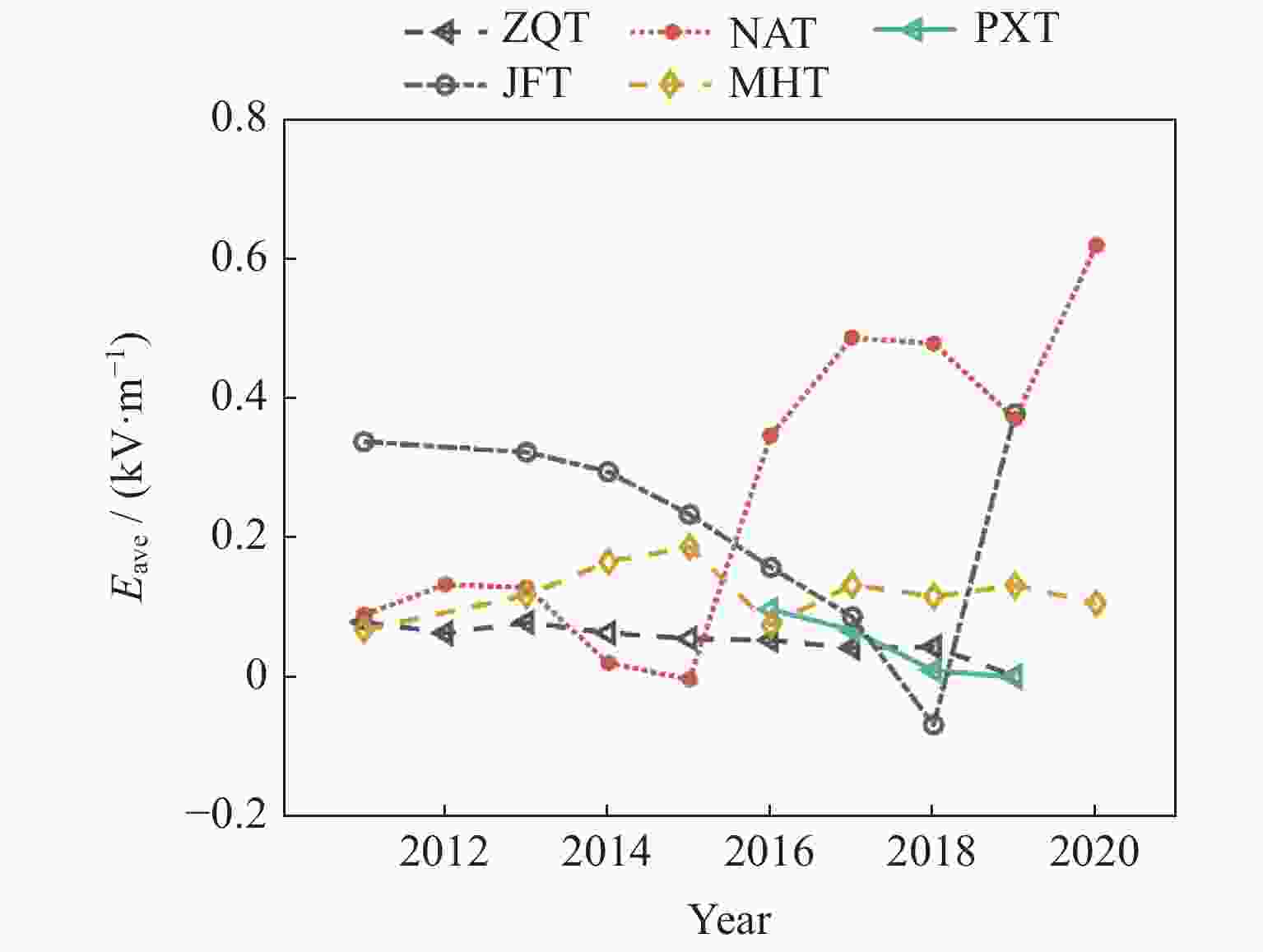

    图  6  各站点晴天大气电场日平均值年变化

    Figure  6.  Annual variation of daily mean value of fair-weather atmospheric electric field at each station

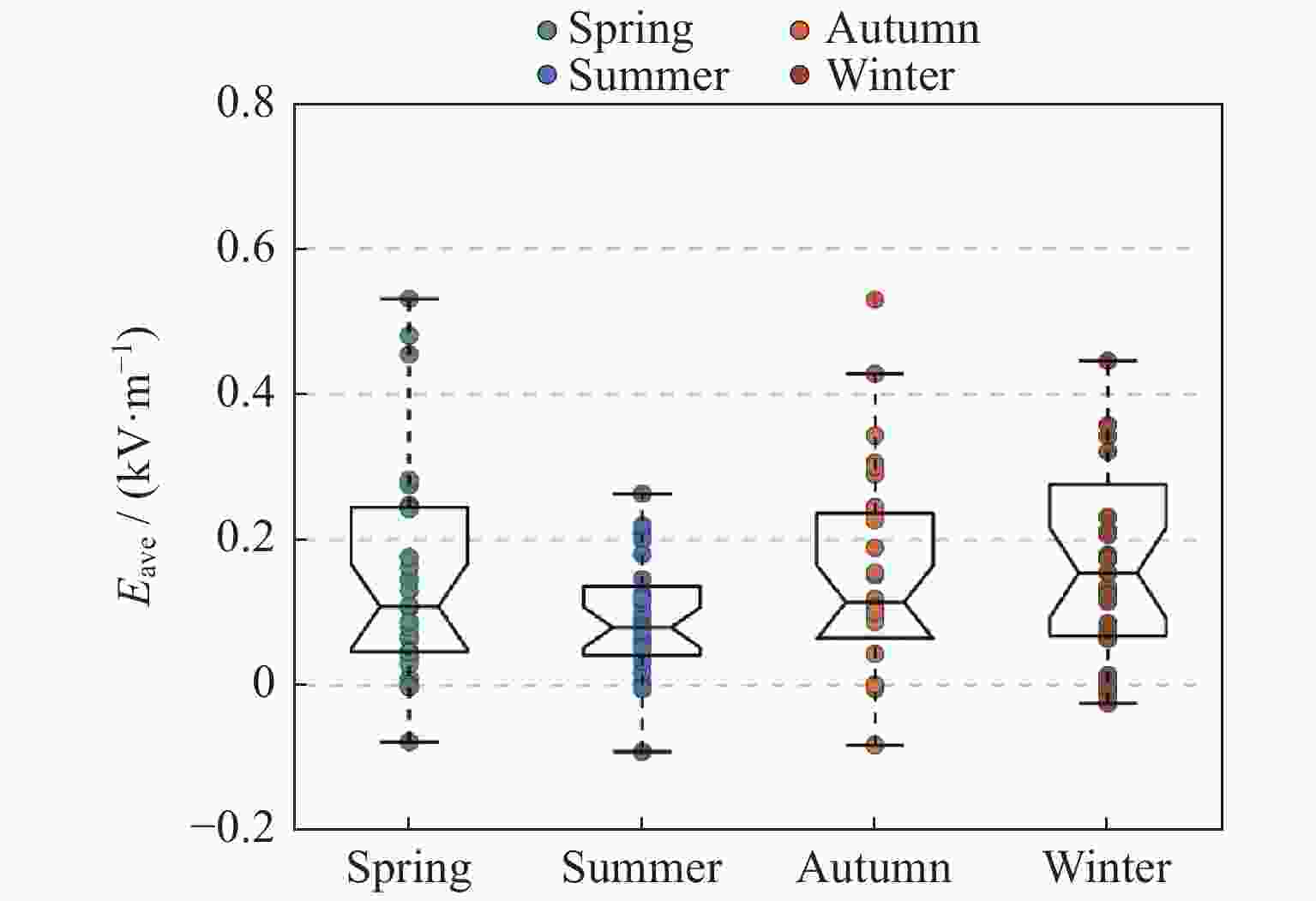

    图  7  各季节晴天大气电场日平均值箱线

    Figure  7.  Boxed plot of the daily mean fair-weather atmospheric electric field in each season

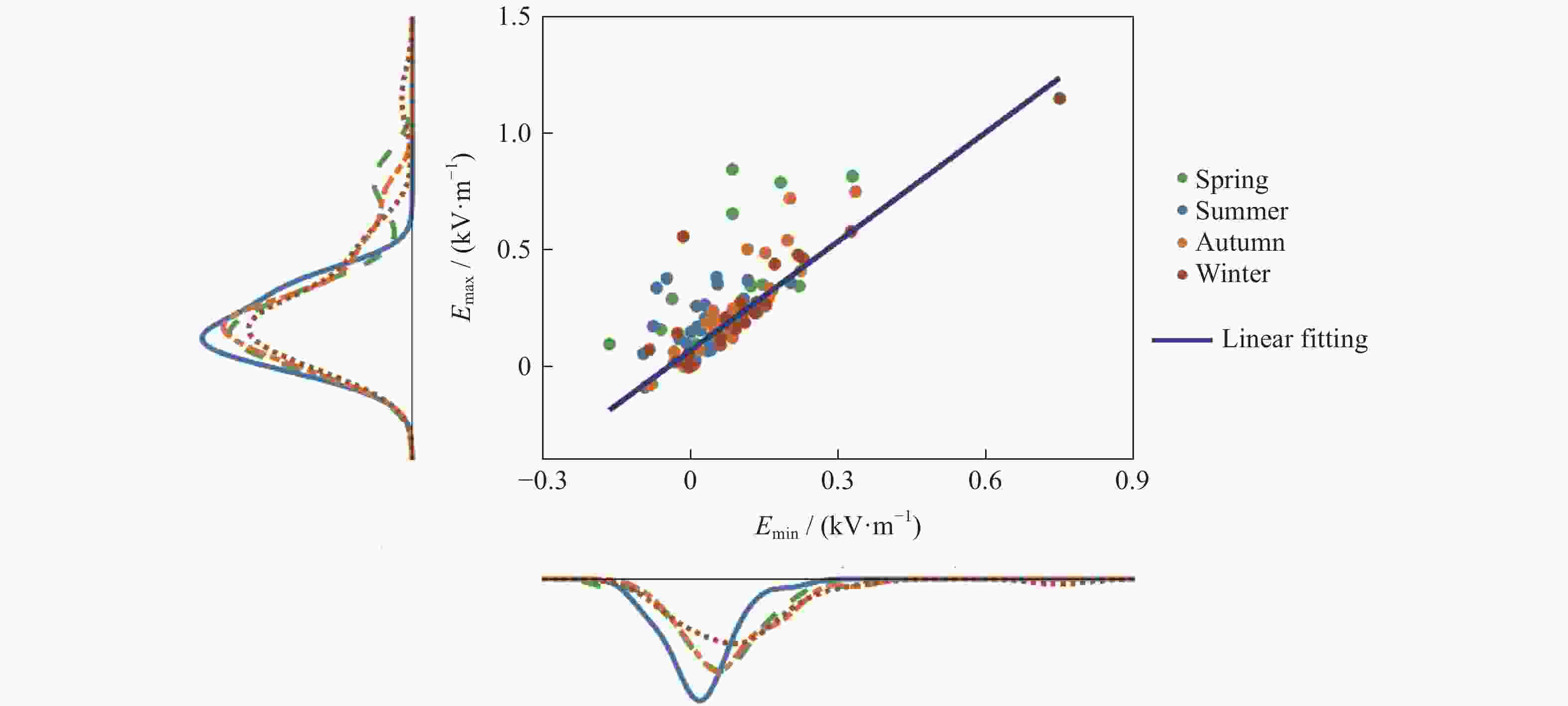

    图  8  各季节日平均晴天大气电场最小值–最大值拟合及分布

    Figure  8.  Minimum-maximum atmospheric electric field fitting and distribution of daily average fair-weather in each season

    表  1  各台站2011—2020年晴天大气电场日平均曲线统计结果

    Table  1.   Statistical results of the average daily curve of the fair-weather atmospheric electric field at each station from 2011 to 2020

    站点地理经度/(°)E地理纬度/(°)N主要峰谷类型最大波峰平均出现时间(UT)
    广州肇庆站113.4423.01双峰双谷09: 44
    成都郫县站103.8930.9三峰三谷20: 37
    武汉九峰站114.4835单峰单谷14: 15
    长春农安站124.9644.08单峰单谷08: 33
    黑龙江漠河站122.3753.5单峰单谷15: 37
    下载: 导出CSV
  • [1] LI R K, CHEN T, LUO J, et al. Enhancement of high energy electron fluxes and variation of atmospheric electric field in the antarctic region[J]. Chinese Journal of Space Science, 2016, 36(1): 40-48
    [2] WILSON C T R. Investigations on lightning discharges and on the electric field of thunderstorms[J]. Philosophical Transactions of the Royal Society A: Mathematical, Physical and Engineering Sciences, 1921, 221(582/583/584/585/586/587/588/589/590/591/592/593): 73-115
    [3] TINSLEY B A, BURNS G B, ZHOU L M. The role of the global electric circuit in solar and internal forcing of clouds and climate[J]. Advances in Space Research, 2007, 40(7): 1126-1139 doi: 10.1016/j.asr.2007.01.071
    [4] Pulinets S, Boyarchuk K. Ionospheric Precursors of EarthQuakes[M]. New York: Springer Science & Business Media, 2004
    [5] 陈涛, 张效信, 张学民, 等. 利用区域大气静电场监测网临震预估地震灾害[J]. 地球物理学报, 2021, 64(4): 1145-1154 doi: 10.6038/cjg2021O0129

    CHEN Tao, ZHANG Xiaoxin, ZHANG Xuemin, et al. Imminent estimation of earthquake hazard by regional network monitoring the near surface vertical atmospheric electrostatic field[J]. Chinese Journal of Geophysics, 2021, 64(4): 1145-1154 doi: 10.6038/cjg2021O0129
    [6] 琚泽立, 吕新良, 蒲路, 等. 基于大气电场特征的雷电临近预警方法[J]. 电瓷避雷器, 2019(4): 111-117

    JÜ Zeli, LÜ Xinliang, PU Lu, et al. Method of lightning nowcasting warning based on atmospheric electric field characteristics[J]. Insulators and Surge Arresters, 2019(4): 111-117
    [7] 行鸿彦, 张强, 季鑫源. 基于地面电场资料的雷暴临近预报研究[J]. 大气科学学报, 2017, 40(1): 111-117

    XING Hongyan, ZHANG Qiang, JI Xinyuan. Experimental research on thunderstorm nowcasting based on atmospheric electric field data[J]. Transactions of Atmospheric Sciences, 2017, 40(1): 111-117
    [8] GURMANI S F, AHMAD N, TACZA J, et al. First seasonal and annual variations of atmospheric electric field at a subtropical station in Islamabad, Pakistan[J]. Journal of Atmospheric and Solar-Terrestrial Physics, 2018, 179: 441-449 doi: 10.1016/j.jastp.2018.09.011
    [9] 杨超, 曾金全, 江慧远, 等. 台湾海峡西岸晴天近地面大气电场日变化及其影响因素[J]. 西南大学学报(自然科学版), 2018, 40(3): 143-149

    YANG Chao, ZENG Jinquan, JIANG Huiyuan, et al. Diurnal variation and its influencing factors of atmospheric electric field under clear days near the surface of the west side of the Taiwan strait[J]. Journal of Southwest University (Natural Science Edition), 2018, 40(3): 143-149
    [10] HARRISON R G. The carnegie curve[J]. Surveys in Geophysics, 2013, 34(2): 209-232 doi: 10.1007/s10712-012-9210-2
    [11] YANIV R, YAIR Y, PRICE C, et al. Local and global impacts on the fair-weather electric field in Israel[J]. Atmospheric Research, 2016, 172/173: 119-125 doi: 10.1016/j.atmosres.2015.12.025
    [12] KUBICKI M, ODZIMEK A, NESKA M. Relationship of ground-level aerosol concentration and atmospheric electric field at three observation sites in the Arctic, Antarctic and Europe[J]. Atmospheric Research, 2016, 178/179: 329-346 doi: 10.1016/j.atmosres.2016.03.029
    [13] BHATTACHARYYA T, CHATTERJEE A, DAS S K, et al. Study of fair weather surface atmospheric electric field at high altitude station in Eastern Himalayas[J]. Atmospheric Research, 2020, 239: 104909 doi: 10.1016/j.atmosres.2020.104909
    [14] GURMANI S F, AHMAD N, TACZA J, et al. Comparative analysis of local and global atmospheric electric field at the Northern Pakistan[J]. Journal of Atmospheric and Solar-Terrestrial Physics, 2020, 206: 105326 doi: 10.1016/j.jastp.2020.105326
    [15] 徐斌, 张颖, 贾焕玉, 等. 西藏羊八井地区近地晴天大气电场周期变化[J]. 高原气象, 2009, 28(2): 314-318

    XU Bin, ZHANG Ying, JIA Huanyu, et al. Periodic variations of fair-weather atmospheric electric field near ground in Yangbajin of Tibet[J]. Plateau Meteorology, 2009, 28(2): 314-318
    [16] 刘畅, 张婧雯, 靳小兵, 等. 成都地区不同天气条件下大气电场特征研究[J]. 高原山地气象研究, 2016, 36(2): 88-91

    LIU Chang, ZHANG Jingwen, JIN Xiaobing, et al. Characteristics of atmospheric electric field under different weather conditions in Chengdu[J]. Plateau and Mountain Meteorology Research, 2016, 36(2): 88-91
    [17] 张祎, 张卫斌, 王振会, 等. 欧亚大陆晴天大气电场变化特征统计分析[J]. 大气科学学报, 2015, 38(5): 703-709

    ZHANG Yi, ZHANG Weibin, WANG Zhenhui, et al. Analysis of fair-weather atmospheric electric field over Eurasian Continent[J]. Transactions of Atmospheric Sciences, 2015, 38(5): 703-709
    [18] 李仁康, 陈涛, 李文, 等. 2010-2020年大气电场数据集[J]. 中国科学数据: 中英文网络版, 2021, 6(2): 146-157

    LI Renkang, CHEN Tao, LI Wen, et al. A dataset of the atmospheric electric field obtained from the Meridian Project during 2010-2020[J]. China Scientific Data, 2021, 6(2): 146-157
    [19] 曹鹏涛, 张敏, 李振春. 基于广义S变换及高斯平滑的自适应滤波去噪方法[J]. 石油地球物理勘探, 2018, 53(6): 1128-1136,1187

    CAO Pengtao, ZHANG Min, LI Zhenchun. An adaptive filtering denoising method based on gen-eralized Stransform and Gaussian smoothing[J]. Oil Geophysical Prospecting, 2018, 53(6): 1128-1136,1187
    [20] HARRISON R G, APLIN K L. Mid-nineteenth century smoke concentrations near London[J]. Atmospheric Environment, 2002, 36(25): 4037-4043 doi: 10.1016/S1352-2310(02)00334-5
    [21] SILVA H G, CONCEIÇÃO R, MELGÃO M, et al. Atmospheric electric field measurements in urban environment and the pollutant aerosol weekly dependence[J]. Environmental Research Letters, 2014, 9(11): 114025 doi: 10.1088/1748-9326/9/11/114025
    [22] CONCEIÇÃO R, MELGÃO M, SILVA H G, et al. Transport of the smoke plume from Chiado’s fire in Lisbon (Portugal) sensed by atmospheric electric field measurements[J]. Air Quality, Atmosphere & Health, 2016, 9(3): 275-283
    [23] BO T L, HUANG Z M. The properties of vertical electric field during haze event in Xi'an, China[J]. Atmospheric Pollution Research, 2021, 12(7): 101109 doi: 10.1016/j.apr.2021.101109
    [24] FRANK-KAMENETSKY A V, TROSHICHEV O A, BURNS G B, et al. Variations of the atmospheric electric field in the near-pole region related to the interplanetary magnetic field[J]. Journal of Geophysical Research: Space Physics, 2001, 106(A1): 179-190 doi: 10.1029/2000JA900058
    [25] SHUMILOV O I, KASATKINA E A, FRANK-KAMENETSKY A V. Effects of extraordinary solar cosmic ray events on variations in the atmospheric electric field at high latitudes[J]. Geomagnetism and Aeronomy, 2015, 55(5): 650-657 doi: 10.1134/S0016793215050151
    [26] KASTELIS N, KOURTIDIS K. Characteristics of the atmospheric electric field and correlation with CO2 at a rural site in southern Balkans[J]. Earth, Planets and Space, 2016, 68(1): 3 doi: 10.1186/s40623-016-0379-3
    [27] 张宸赫, 赵天良, 王富, 等. 2003~2014年东北三省气溶胶光学厚度变化分析[J]. 环境科学, 2017, 38(2): 476-484

    ZHANG Chenhe, ZHAO Tianliang, WANG Fu, et al. Variations in aerosol optical depth over three northeastern provinces of China, in 2003-2014[J]. Environmental Science, 2017, 38(2): 476-484
    [28] Stefano Maggiolo, The time it takes to change the time[EB/OL]. (2015-02-17)[2021-08-13]. http://blog.poormansmath.net/the-time-it-takes-to-change-the-time/
    [29] BENNETT A J, HARRISON R G. Variability in surface atmospheric electric field measurements[J]. Journal of Physics: Conference Series, 2008, 142: 012046 doi: 10.1088/1742-6596/142/1/012046
