Characteristics of Ionospheric Multiparameter Changes in Qujing Area
-

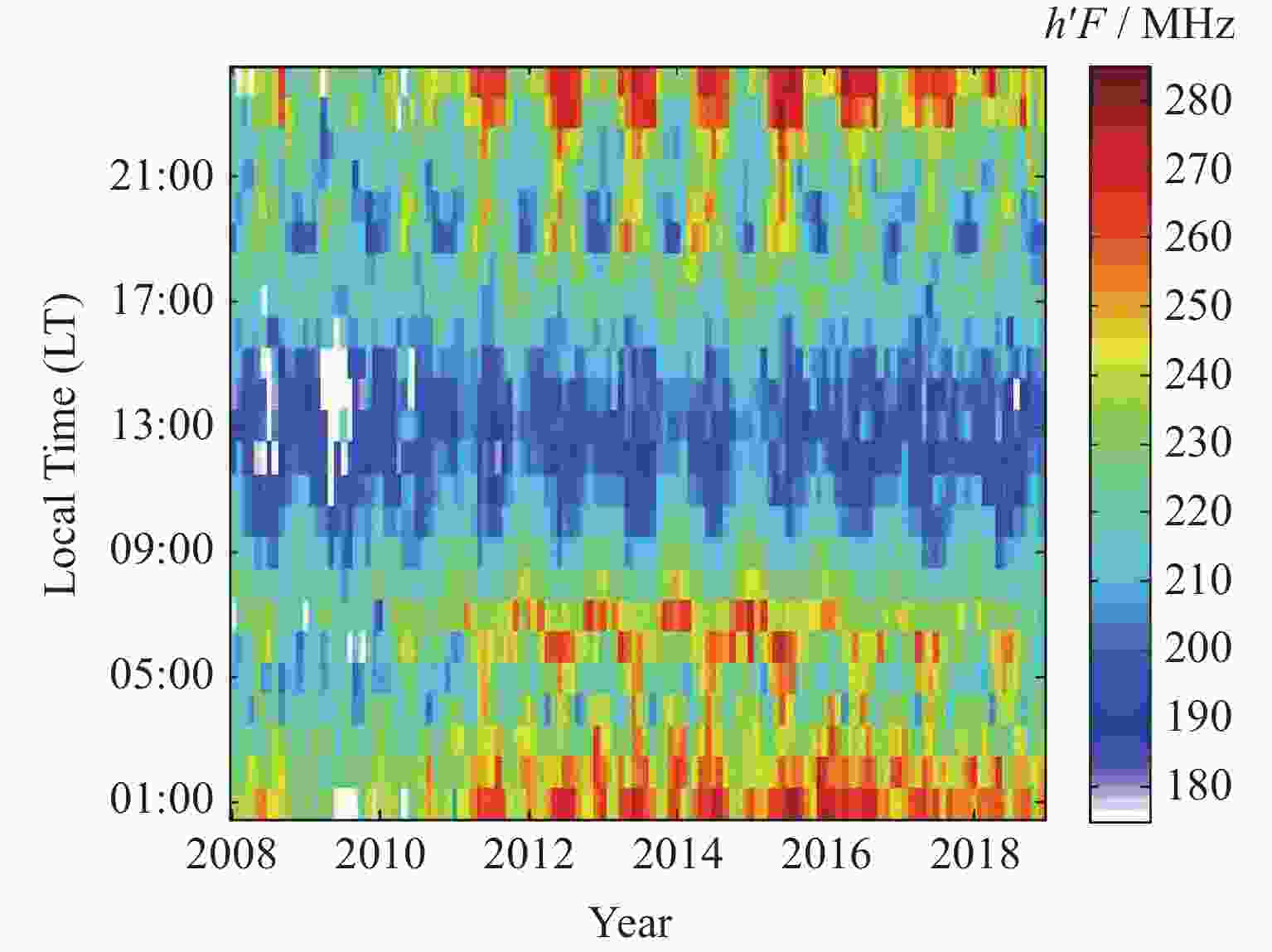

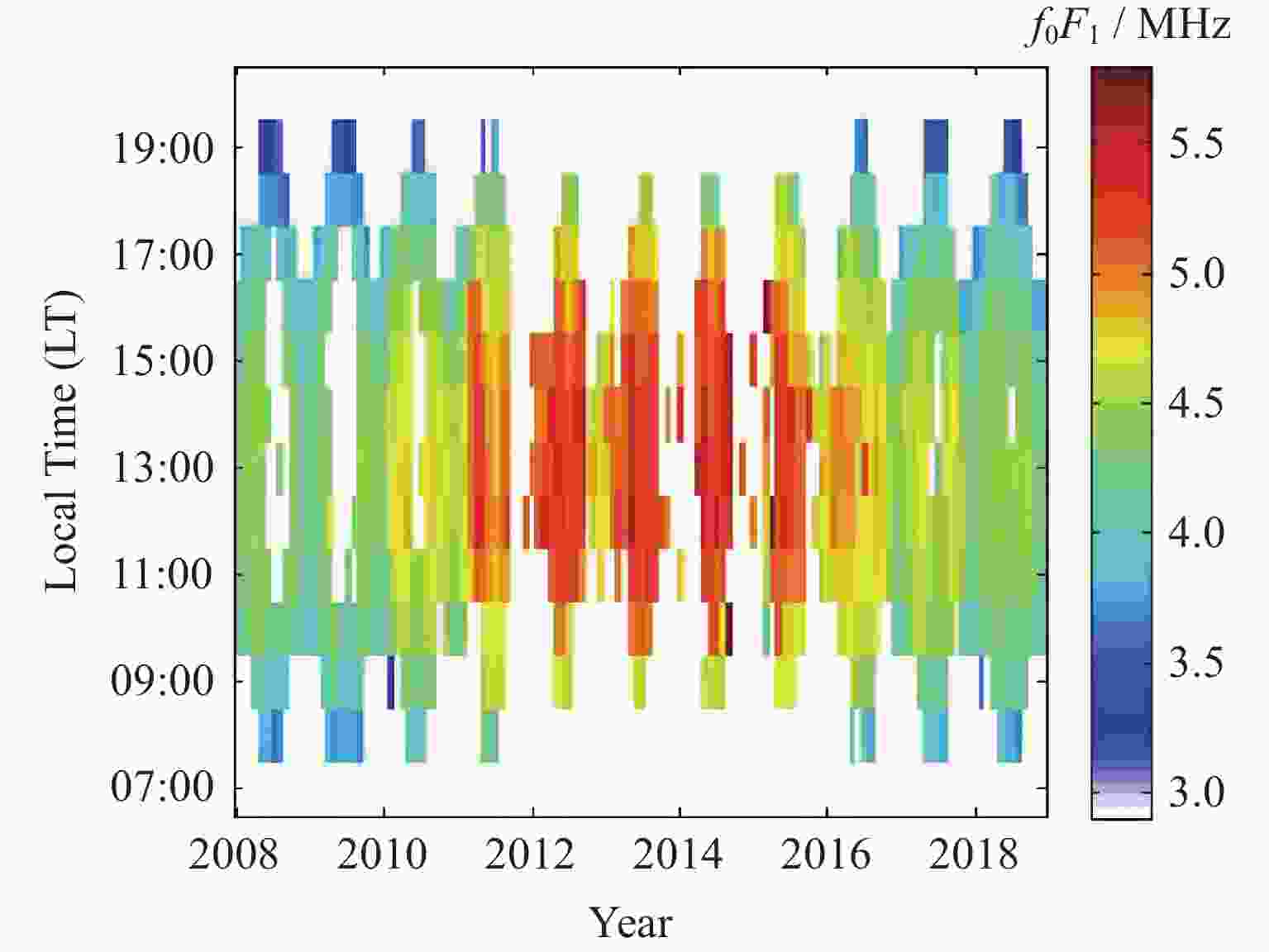

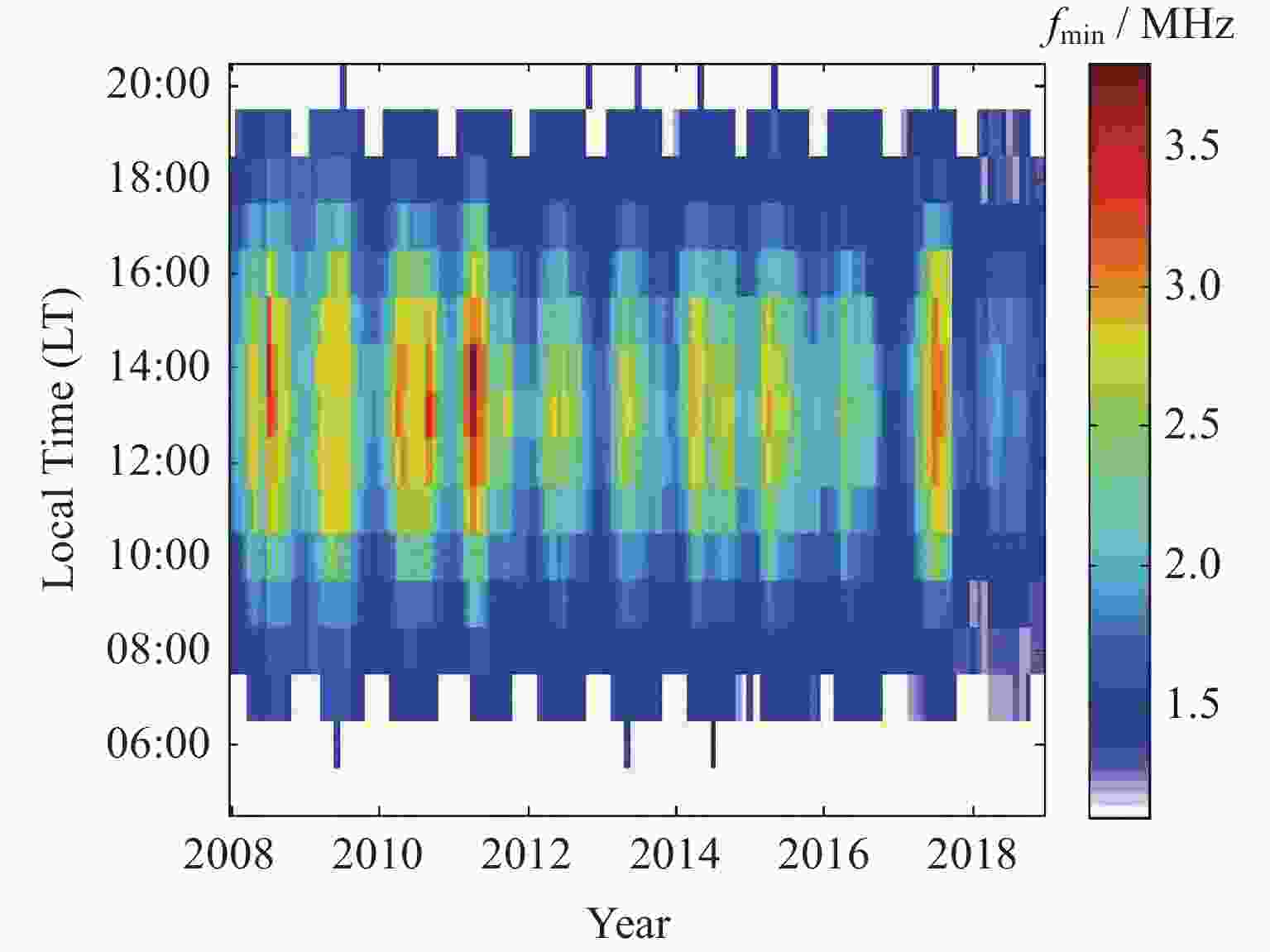

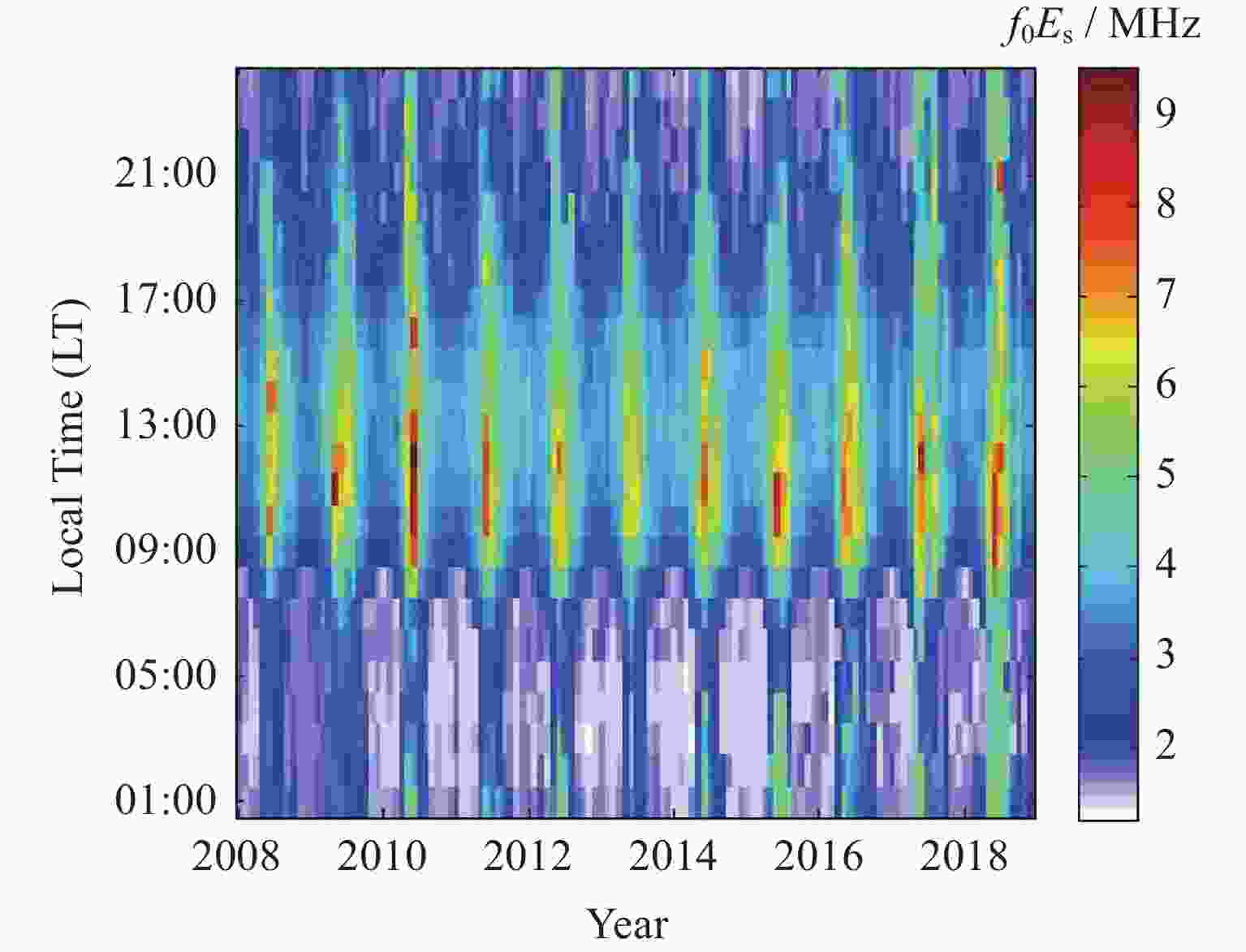

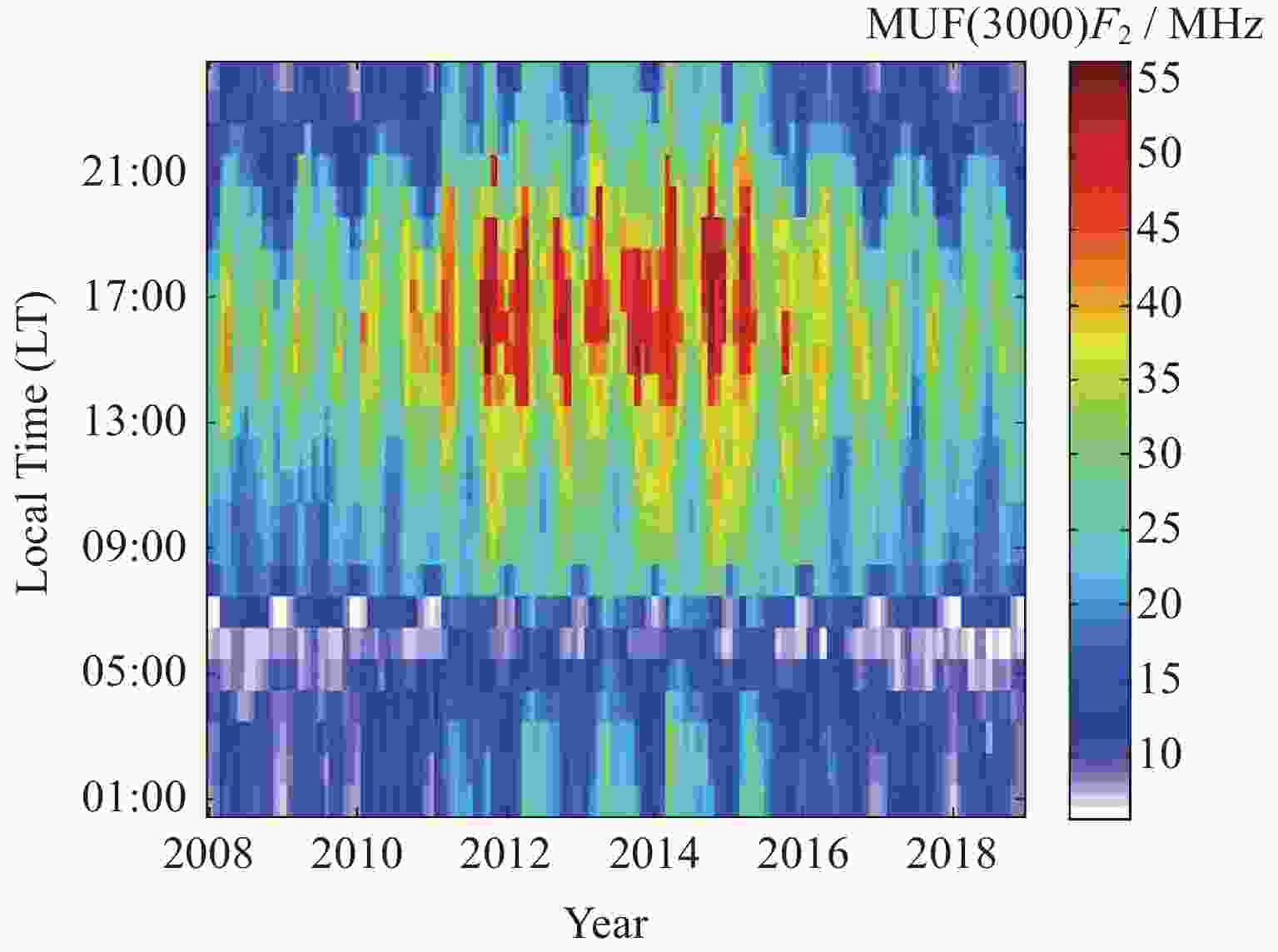

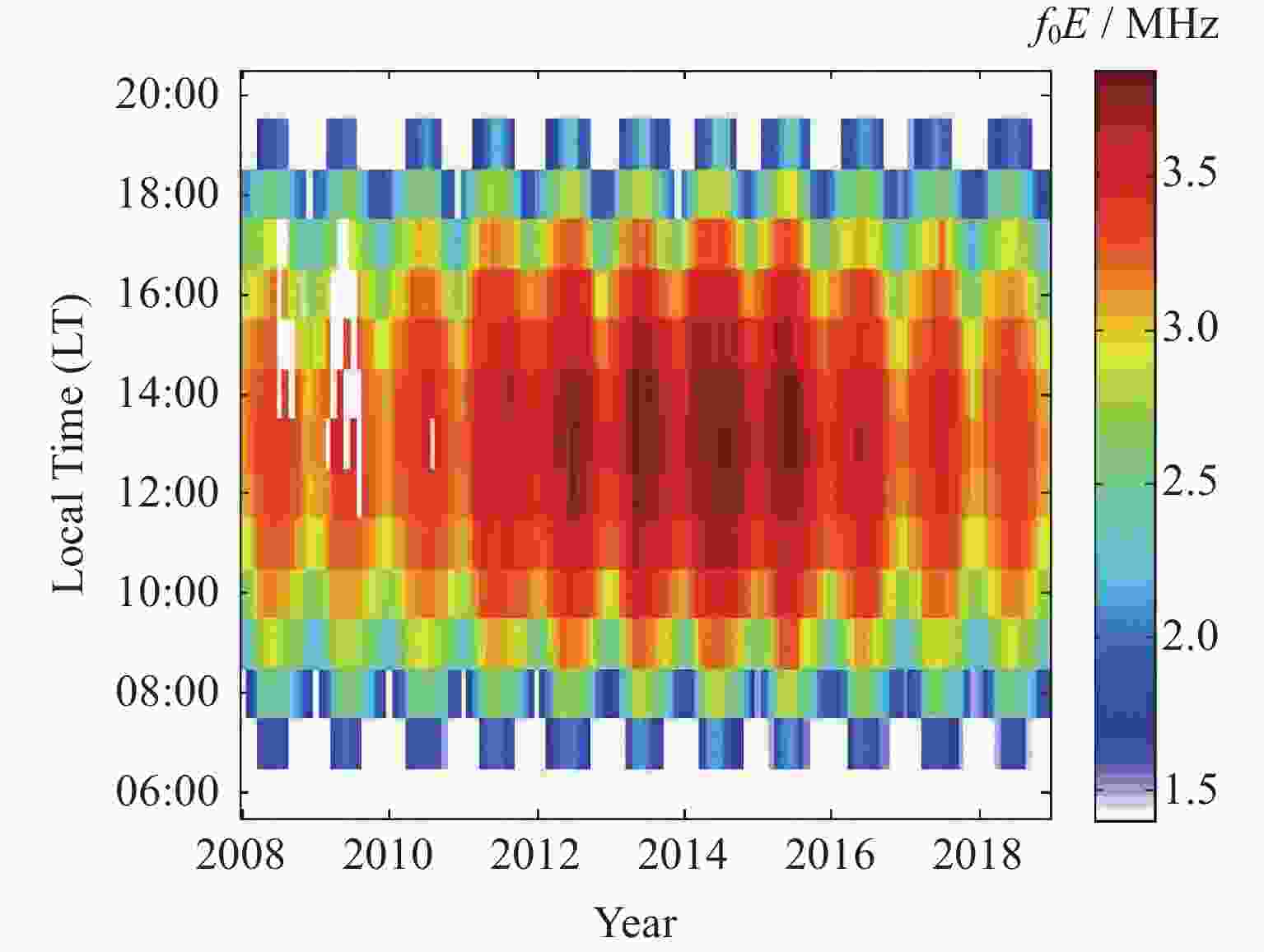

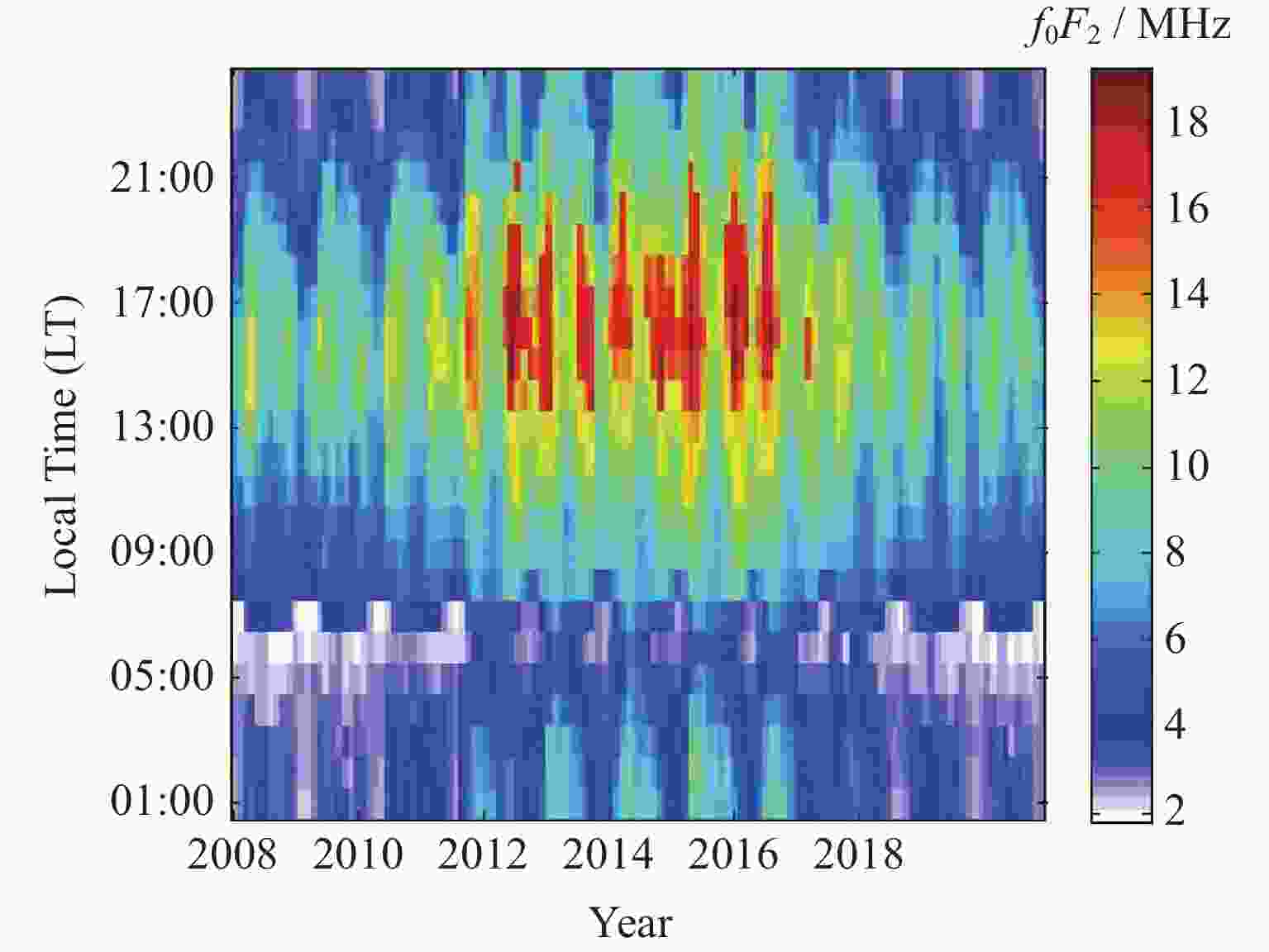

摘要: 利用电波环境观测网曲靖站电离层垂直探测仪数据（2008－2018），分析了该站电离层多参数（包括fmin，f0Es，h'Es，f0E，f0F1，f0F2，h'F，MUF(3000)F2等）随太阳活动、季节、地方时的变化特征。结果表明，fmin，f0Es，h'Es随太阳活动变化不明显，f0E，f0F1，f0F2，h'F，MUF(3000)F2与太阳活动变化具有相关性，f0F2经常发生日落增强现象，同时各自具有独立性；与拉萨、乌鲁木齐地区f0F2，h'F，f0Es变化特征对比，发现地方时与月份变化趋势相同，但是极值出现的位置有所不同，这可能与各地区的地理纬度和地形等因素有关；h'F夜间大于白天，在日出日落时段有突然上升现象，冬季的h'F一般都小于其他季节；MUF(3000)F2与f0F2的变化特征相似，白天值高于夜晚值，春秋分季高于夏冬季，太阳活动高年日落后MUF(3000)F2一直维持较高值并持续到03:00－04:00 LT。Abstract: The Qujing ionospheric vertical sounders 11 years data in network of radio environment observatories are processed. The correlations between ionosphere parameters and solar activity month local time are analyzed including fmin, f0Es, h'Es, f0E, f0F1, f0F2, h'F, MUF(3000)F2. Several interesting results are achieved. Firstly, the relationships between fmin, f0Es, h'Es and solar activity are not obvious, but f0E, f0F1, f0F2, h'F, MUF(3000)F2 have good correlation with solar activity. Secondly, the value of f0F2 parameter often enlarged on sunset, and both are independent. The f0F2, h'F, MUF(3000)F2 parameters variation trend of Lhasa and Urumqi are compared, it is found that the variation trend of local time and month are similar, but extreme values appeared in different positions. This phenomenon may have a relationship with topography and latitude and longitude. Thirdly, the daytime value of h'F is smaller than night, and rise abruptly at sunrise and sunset, and the winter h'F value is smaller than other seasons. Fourthly, the change trend of MUF(3000)F2 is similar with f0F2, the daytime value is higher than night, the equinox value is higher than summer and winter, and the MUF(3000)F2 value in high solar activity year is high till 03:00－04:00 LT on the morning.
-
Key words:
- Qujing /
- Ionosphere /
- Vertical sounders /
- Arameter features
-
图 1 2008－2018年太阳活动指数F10.7月中值
Figure 1. Monthly median of solar activity index F10.7 from 2008 to 2018
-
[1] 熊波, 万卫星, 刘立波, 等. 武汉地区电离层TEC和NmF2及板厚的季节变化[J]. 空间科学学报, 2007, 27(2): 125-131 doi: 10.3969/j.issn.0254-6124.2007.02.006XIONG Bo, WAN Weixing, LIU Libo, et al. Seasonal variation of the ionospheric total electron content, maximum electron density and slab thickness over Wuhan[J]. Chinese Journal of Space Science, 2007, 27(2): 125-131 doi: 10.3969/j.issn.0254-6124.2007.02.006 [2] 左小敏, 万卫星. 电离层突发E层与太阳活动的相关性[J]. 地球物理学报, 2002, 45(6): 759-765 doi: 10.3321/j.issn:0001-5733.2002.06.002ZUO Xiaomin, WAN Weixing. The correlation between sporadic E-layers and solar activity[J]. Chinese Journal of Geophysics, 2002, 45(6): 759-765 doi: 10.3321/j.issn:0001-5733.2002.06.002 [3] 赵海生, 许正文, 吴振森, 等. 东亚地区Es特性研究[J]. 空间科学学报, 2014, 34(1): 38-45 doi: 10.11728/cjss2014.01.038ZHAO Haisheng, XU Zhengwen, WU Zhensen, et al. Sporadic E morphology of East Asia[J]. Chinese Journal of Space Science, 2014, 34(1): 38-45 doi: 10.11728/cjss2014.01.038 [4] 赵海生, 吴振森, 许正文, 等. 乌鲁木齐地区电离层环境长期变化特性研究[J]. 空间科学学报, 2014, 34(4): 398-405 doi: 10.11728/cjss2014.04.398ZHAO Haisheng, WU Zhensen, XU Zhengwen, et al. Long-term ionospheric characteristics over Urumqi[J]. Chinese Journal of Space Science, 2014, 34(4): 398-405 doi: 10.11728/cjss2014.04.398 [5] 高敬帆, 赵海生, 徐朝辉, 等. 拉萨地区电离层长期变化特性研究[J]. 电波科学学报, 2018, 33(6): 701-707 doi: 10.13443/j.cjors.2017112001GAO Jingfan, ZHAO Haisheng, XU Zhaohui, et al. Long-term ionospheric characteristics over Lhasa[J]. Chinese Journal of Radio Science, 2018, 33(6): 701-707 doi: 10.13443/j.cjors.2017112001 [6] 王宁, 郭立新, 赵振维, 等. 中低纬电离层F层峰高和厚度的变化特征分析[J]. 地球物理学报, 2017, 60(4): 1268-1275 doi: 10.6038/cjg20170403WANG Ning, GUO Lixin, ZHAO Zhenwei, et al. Analyzing peak height and thickness variation characteristics of ionospheric F-layer at middle and low latitudes[J]. Chinese Journal of Geophysics, 2017, 60(4): 1268-1275 doi: 10.6038/cjg20170403 [7] AXFORD W I, CUNNOLD D M. The wind-shear theory of temperate zone sporadic E [J]. Radio Science, 1966, 1(2): 191-197 doi: 10.1002/rds196612191 [8] 丁宗华, 吴健, 孙树计, 等. 汶川大地震前电离层参量的变化特征与分析[J]. 地球物理学报, 2010, 53(1): 30-38 doi: 10.3969/j.issn.0001-5733.2010.01.004DING Zonghua, WU Jian, SUN Shuji, et al. The variation of ionosphere on some days before the Wenchuan Earthquake[J]. Chinese Journal of Geophysics, 2010, 53(1): 30-38 doi: 10.3969/j.issn.0001-5733.2010.01.004 [9] WHITEHEAD J D. Production and prediction of sporadic E[J]. Reviews of Geophysics, 1970, 8(1): 65-144 doi: 10.1029/RG008i001p00065 [10] 陈春. 电离层F2层临界频率的短期和暴时预报研究[D]. 西安: 西安电子科技大学, 2010Chen Chun. Study on short-term and storm-time forecasting the critical frequency of the ionospheric F2 layer[D]. Xidian University, 2010 [11] 丁宗华, 鱼浪, 代连东, 等. 曲靖非相干散射雷达功率剖面的初步观测与分析[J]. 地球物理学报, 2014, 57(11): 3564-3569 doi: 10.6038/cjg20141109DING Zonghua, YU Lang, DAI Liandong, et al. The preliminary measurement and analysis of the power profiles by the Qujing incoherent scatter radar[J]. Chinese Journal of Geophysics, 2014, 57(11): 3564-3569 doi: 10.6038/cjg20141109 [12] DING Z H, WU J, XU Z W, et al. The Qujing incoherent scatter radar: system description and preliminary measurements[J]. Earth, Planets and Space, 2018, 70(1): 87 doi: 10.1186/s40623-018-0859-8 [13] LIU L B, DING Z H, LE H J, et al. Newfeatures of the enhancements in electron density at low latitudes[J]. Journal of Geophysical Research, 2020, 125(2): e2019JA027539 doi: 10.1029/2019JA027539 -
