地磁测量卫星的矢量磁场在轨标定算法仿真

杜雯 黄河 周军

杜雯, 黄河, 周军. 地磁测量卫星的矢量磁场在轨标定算法仿真[J]. 空间科学学报. doi: 10.11728/cjss2022.06.211224131
引用本文: 杜雯, 黄河, 周军. 地磁测量卫星的矢量磁场在轨标定算法仿真[J]. 空间科学学报. doi: 10.11728/cjss2022.06.211224131
DU Wen, HUANG He, ZHOU Jun. Simulation of Vector Magnetic Field In-orbit Calibration Algorithm for Geomagnetic Survey Satellite (in Chinese). Chinese Journal of Space Science, xxxx, x(x): x-xx doi: 10.11728/cjss2022.06.211224131
Citation: DU Wen, HUANG He, ZHOU Jun. Simulation of Vector Magnetic Field In-orbit Calibration Algorithm for Geomagnetic Survey Satellite (in Chinese). Chinese Journal of Space Science, xxxx, x(x): x-xx doi: 10.11728/cjss2022.06.211224131

地磁测量卫星的矢量磁场在轨标定算法仿真

doi: 10.11728/cjss2022.06.211224131
基金项目: 国家自然科学基金面上项目资助(2073261)
详细信息
    作者简介:

    杜雯:E-mail:duwen1998@163.com

  • 中图分类号: P353.1

Simulation of Vector Magnetic Field In-orbit Calibration Algorithm for Geomagnetic Survey Satellite

  • 摘要: 以SWARM为代表的高精度地磁测量卫星对地球磁场探测精度经过标定之后优于0.5 nT,对于开展地磁科学研究具有重要意义。地磁测量卫星通过安装在伸展杆上的矢量磁通门磁强计、标量磁强计和高精度星敏感器,获取测量方向的惯性空间姿态的地磁信息,其中高精度标量磁强计主要用于对磁通门矢量磁强计进行标定。针对地磁测量卫星,研究了矢量磁强计在轨测量误差的校正方法。考虑到矢量磁强计非正交角、标度因子以及偏差的影响,建立磁场矢量线性输出模型;结合标量磁强计的测量值分别设计基于小量近似的线性校正算法和基于参数辨识更新的非线性校正算法;校验两种算法的标定精度,并通过Tukey权重函数改善算法的鲁棒性。仿真结果表明,两种算法校正结果相似,磁场三轴误差可校正至0.5 nT以内,在标量磁强计存在异常值时仍具有较好的校正效果。



  • 图  1  非正交角定义

    Figure  1.  Definition of the non-orthogonalities

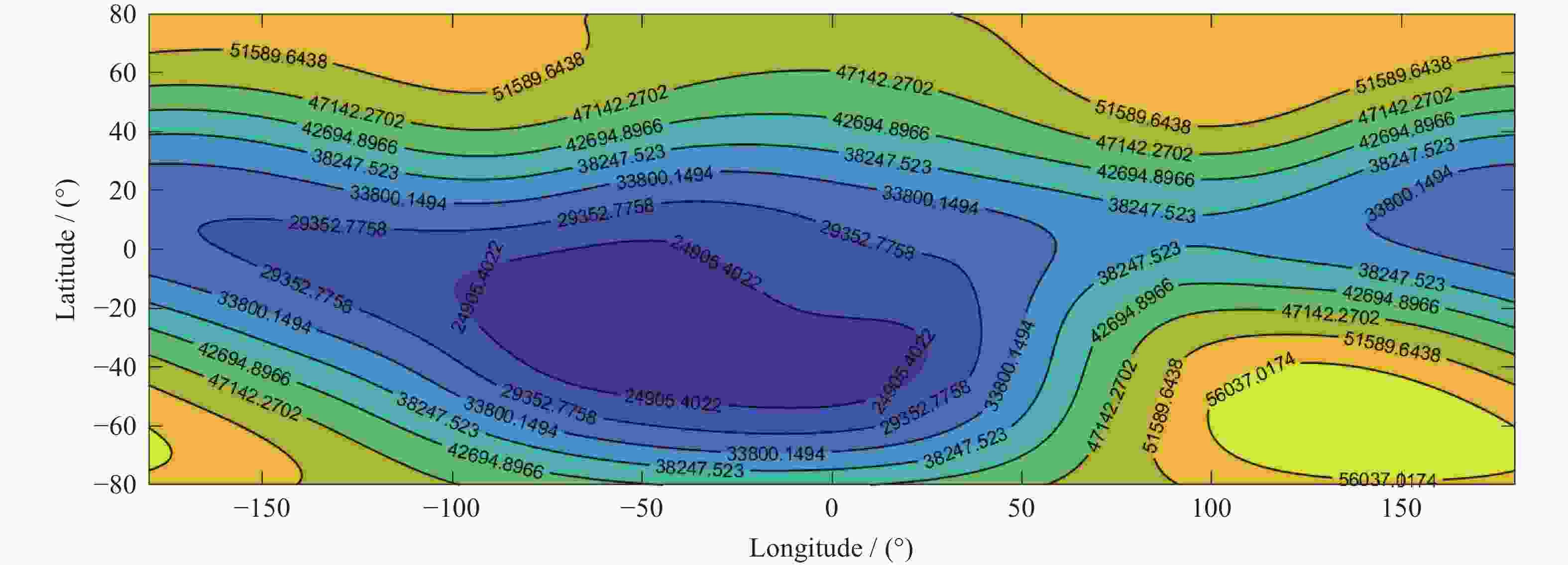

    图  2  全球等强度地磁分布

    Figure  2.  Global geomagnetic map of equal intensity

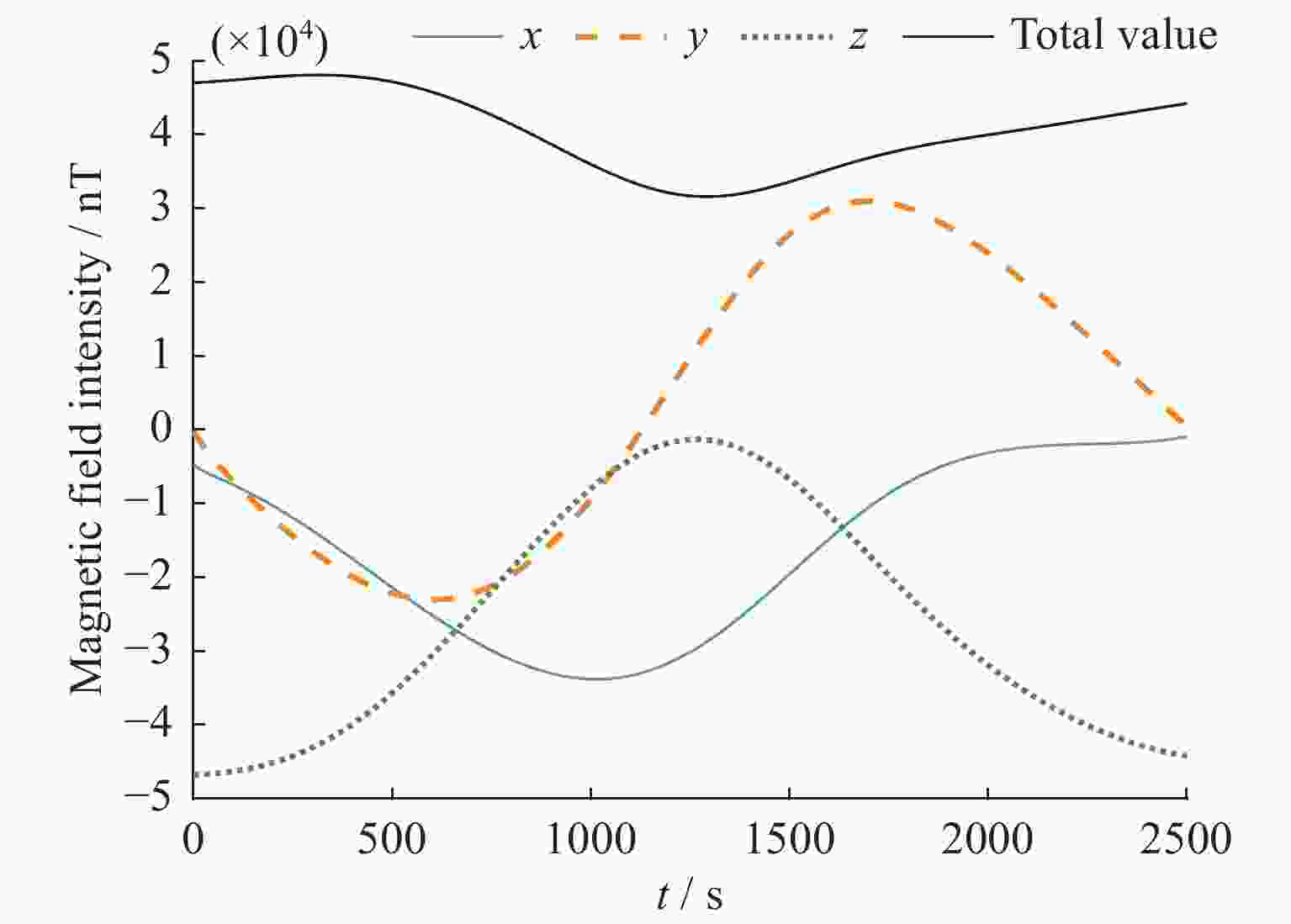

    图  3  采样频率为50 Hz时的磁场仿真数据

    Figure  3.  Magnetic field simulation data at sampling frequency of 50 Hz

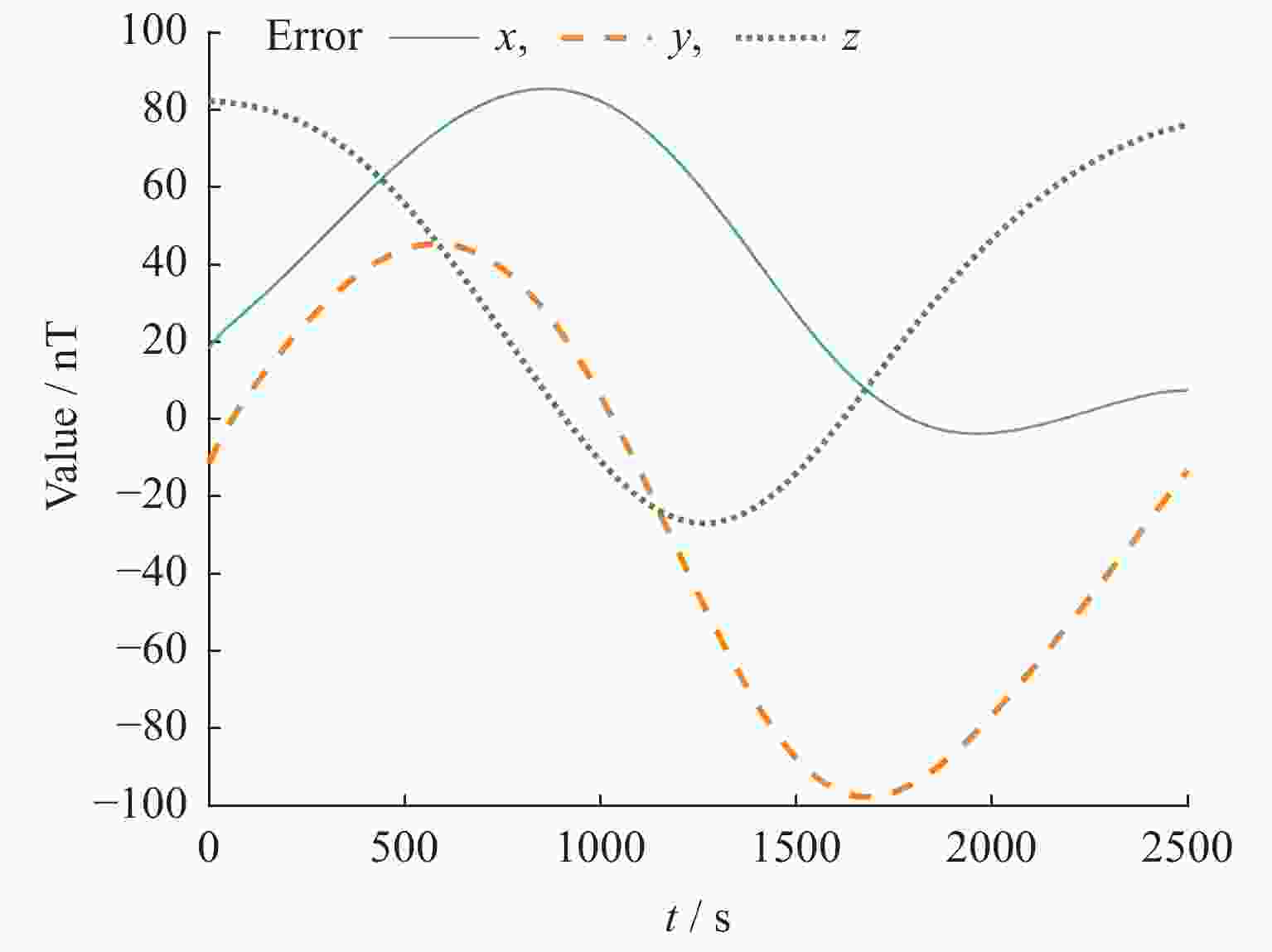

    图  4  三轴初始测量误差

    Figure  4.  Initial measurement errors of the three axes

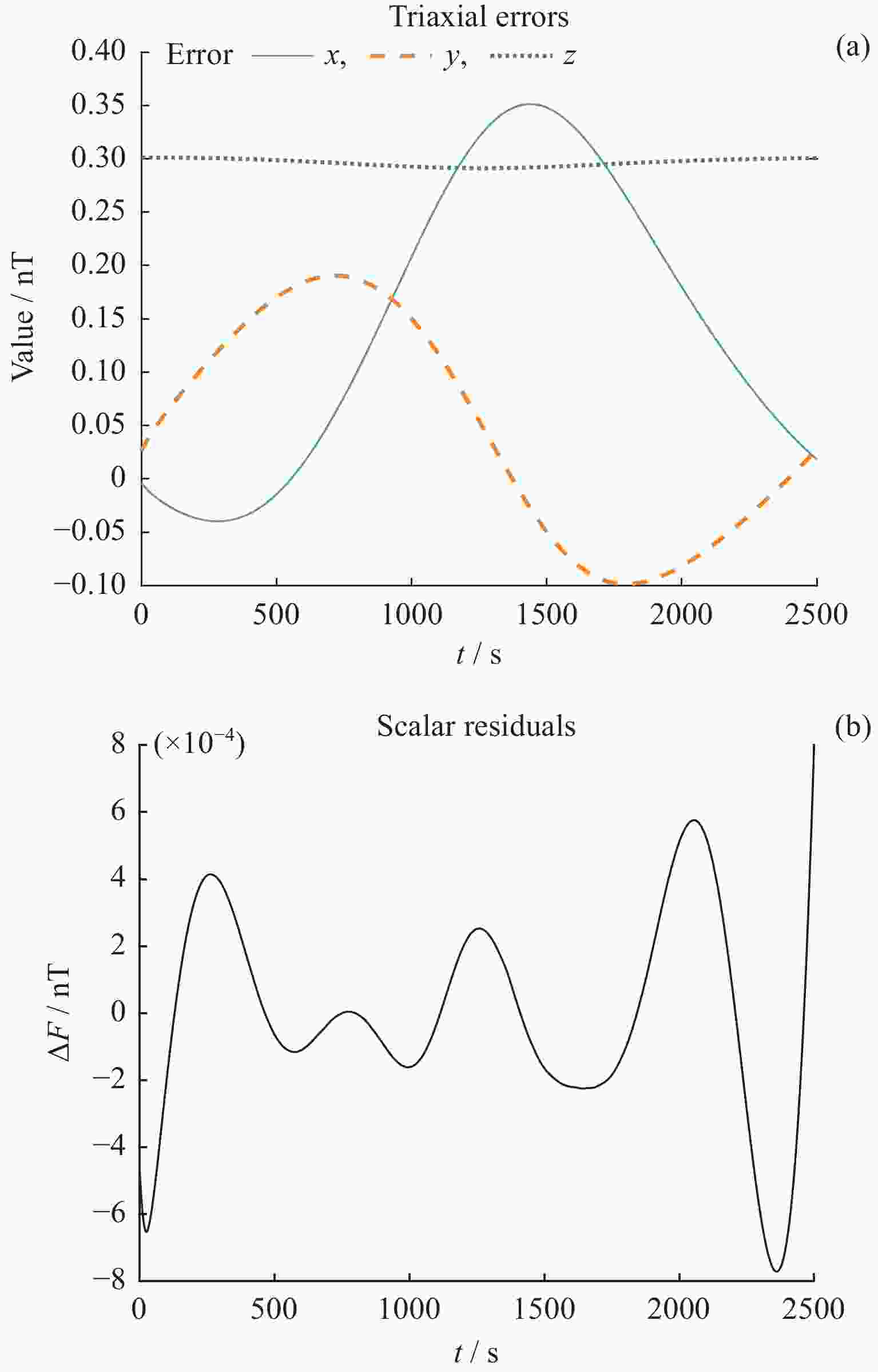

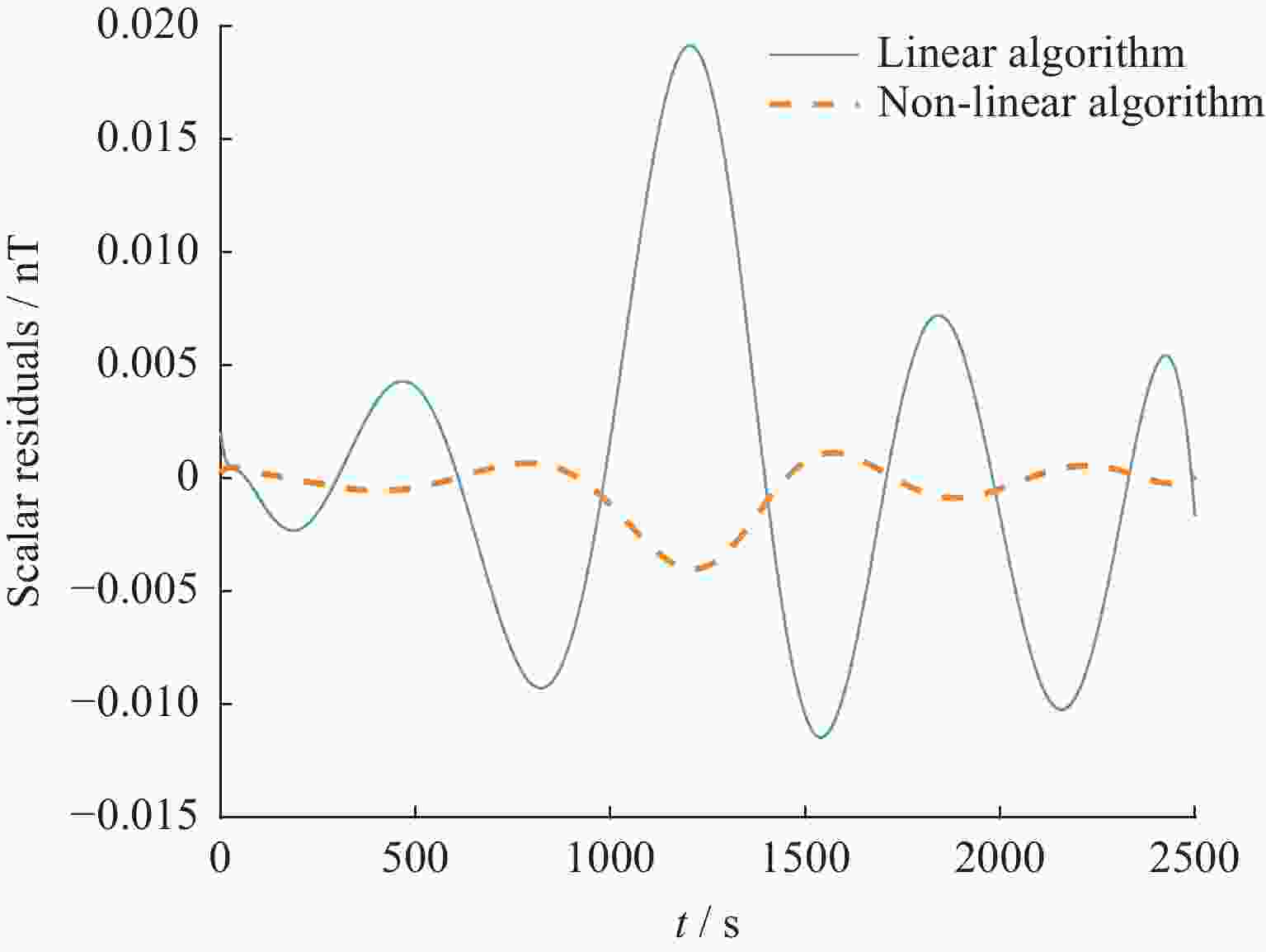

    图  5  经线性模型校正后的磁场三轴误差变化曲线以及标量残差

    Figure  5.  Magnetic field errors and scalar residuals after linear model correction

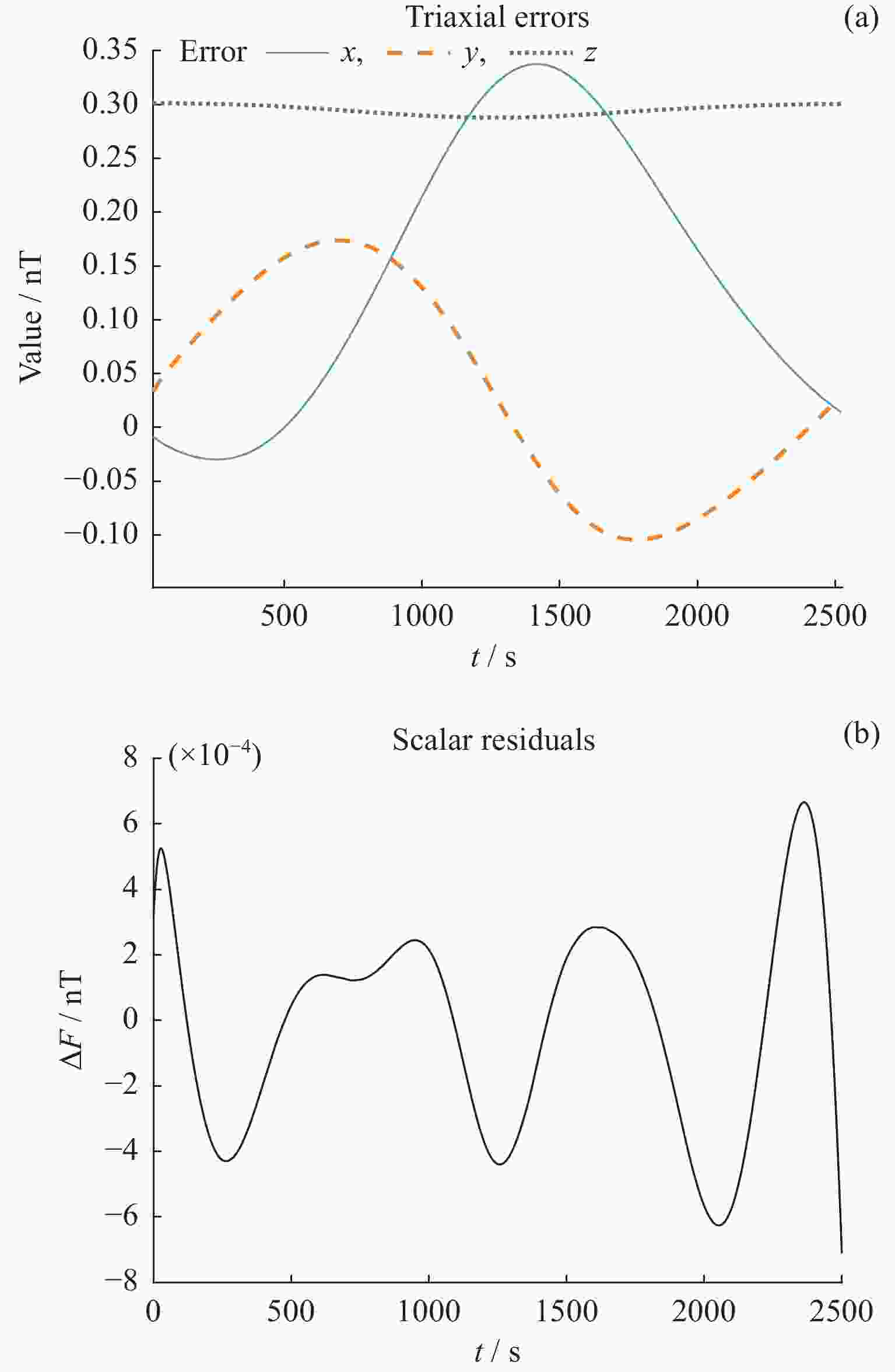

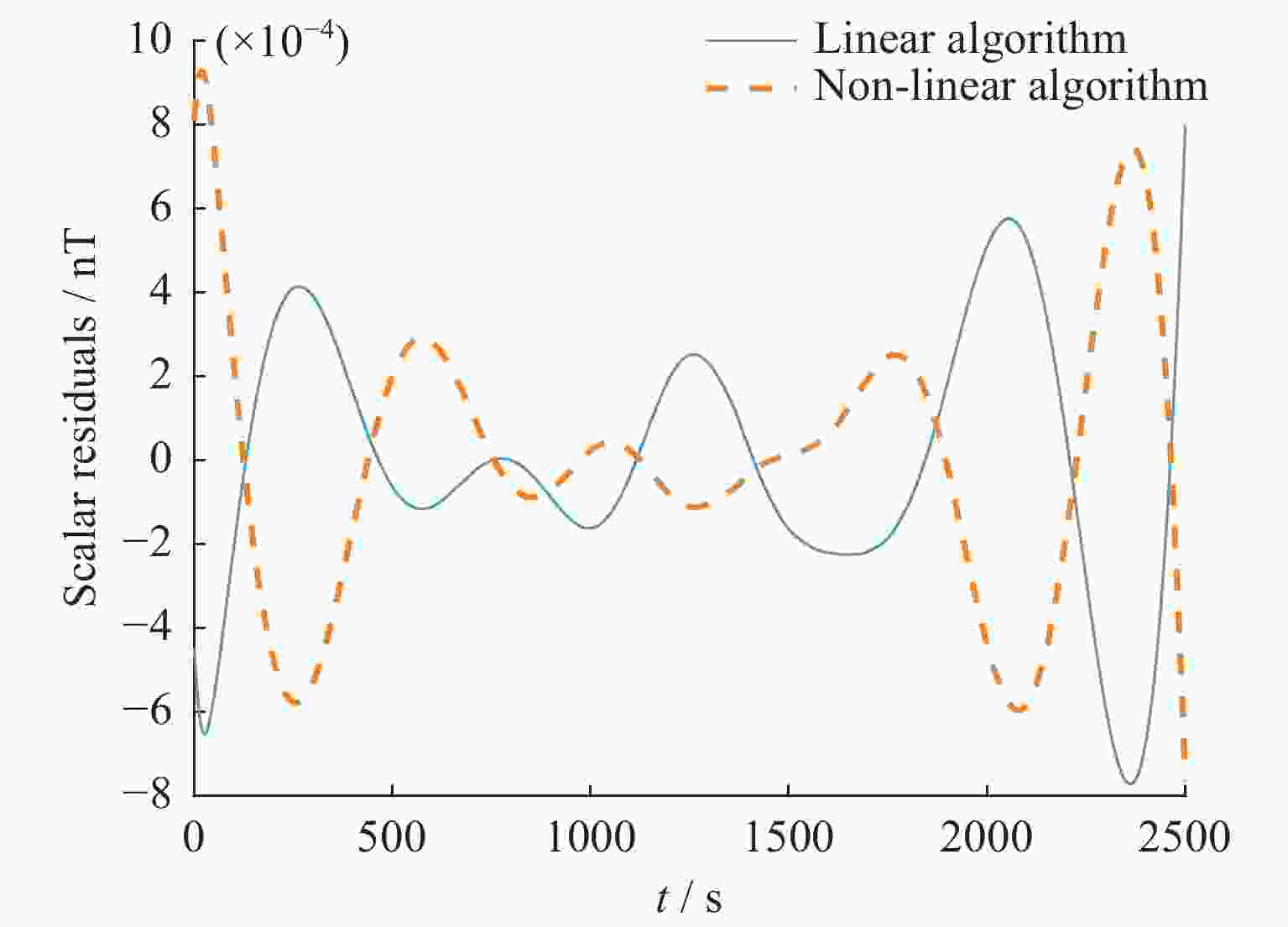

    图  6  经非线性模型校正后的磁场三轴误差以及标量残差变化曲线

    Figure  6.  Magnetic field errors and scalar residuals after nonlinear model correction

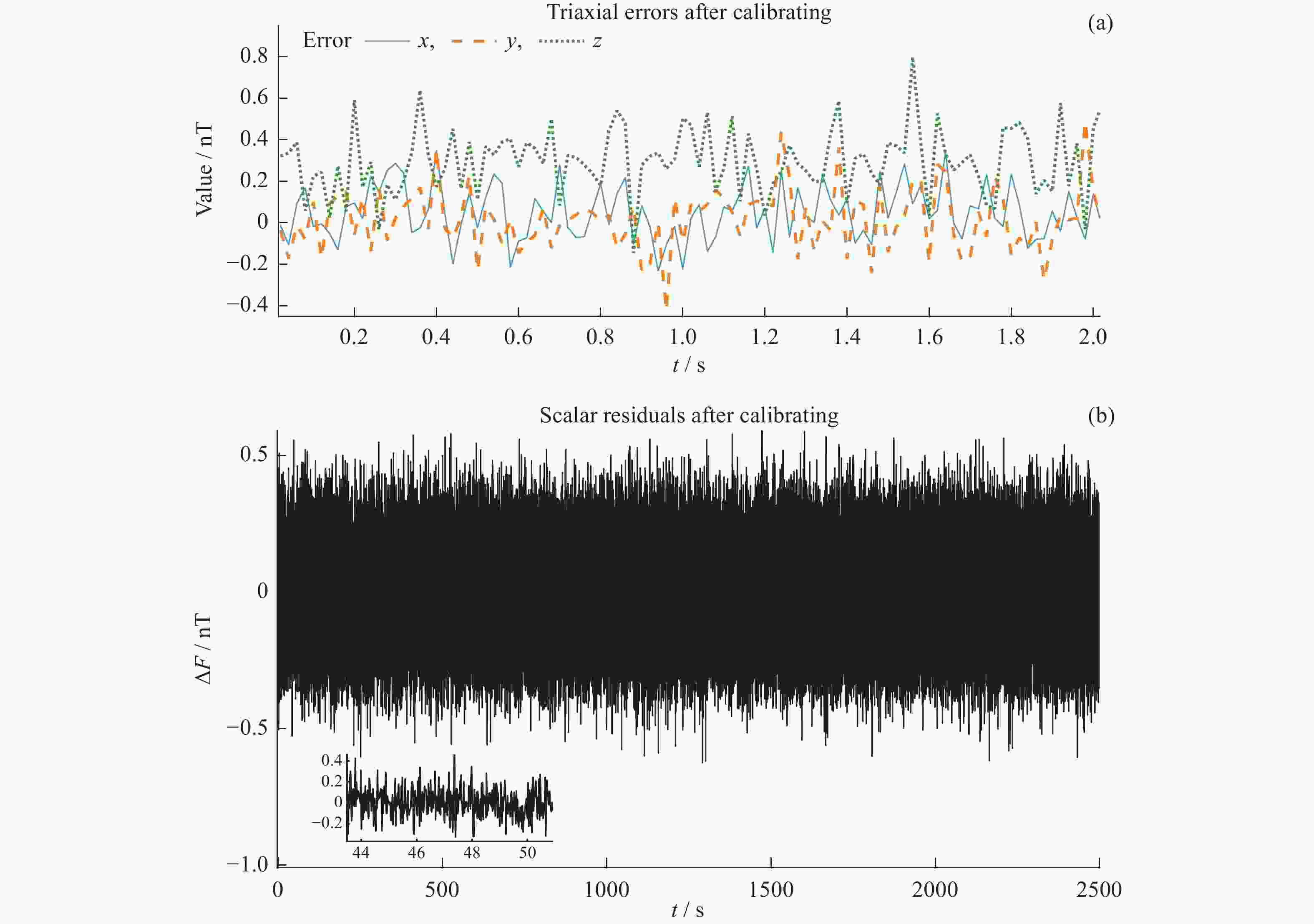

    图  7  添加幅值为0.15 nT高斯白噪声干扰后的校正结果

    Figure  7.  Correction results disturbed by Gaussian white noise with amplitude of 0.15 nT

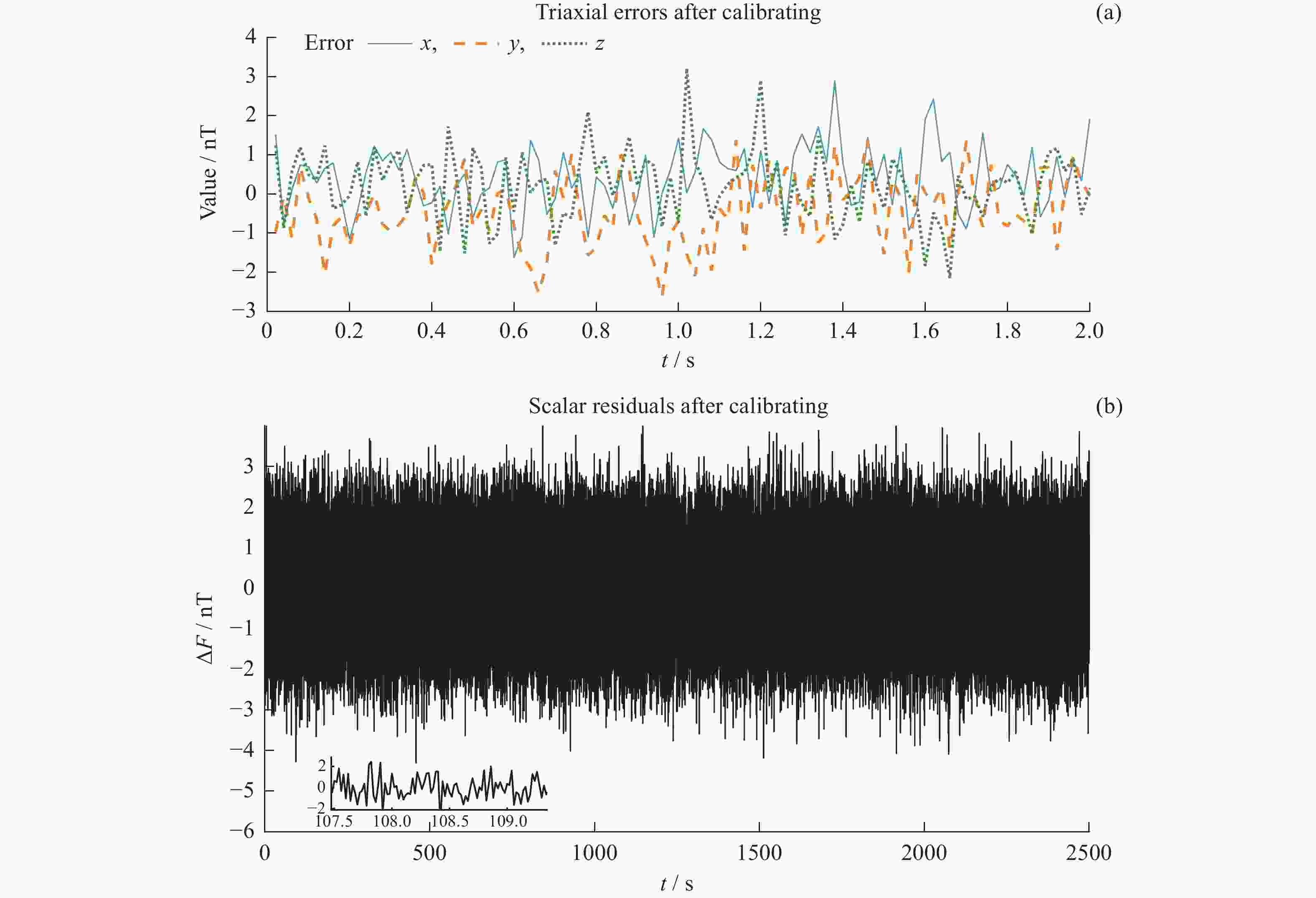

    图  8  添加幅值为1 nT高斯白噪声干扰后的校正结果

    Figure  8.  Correction results disturbed by Gaussian white noise with amplitude of 1 nT

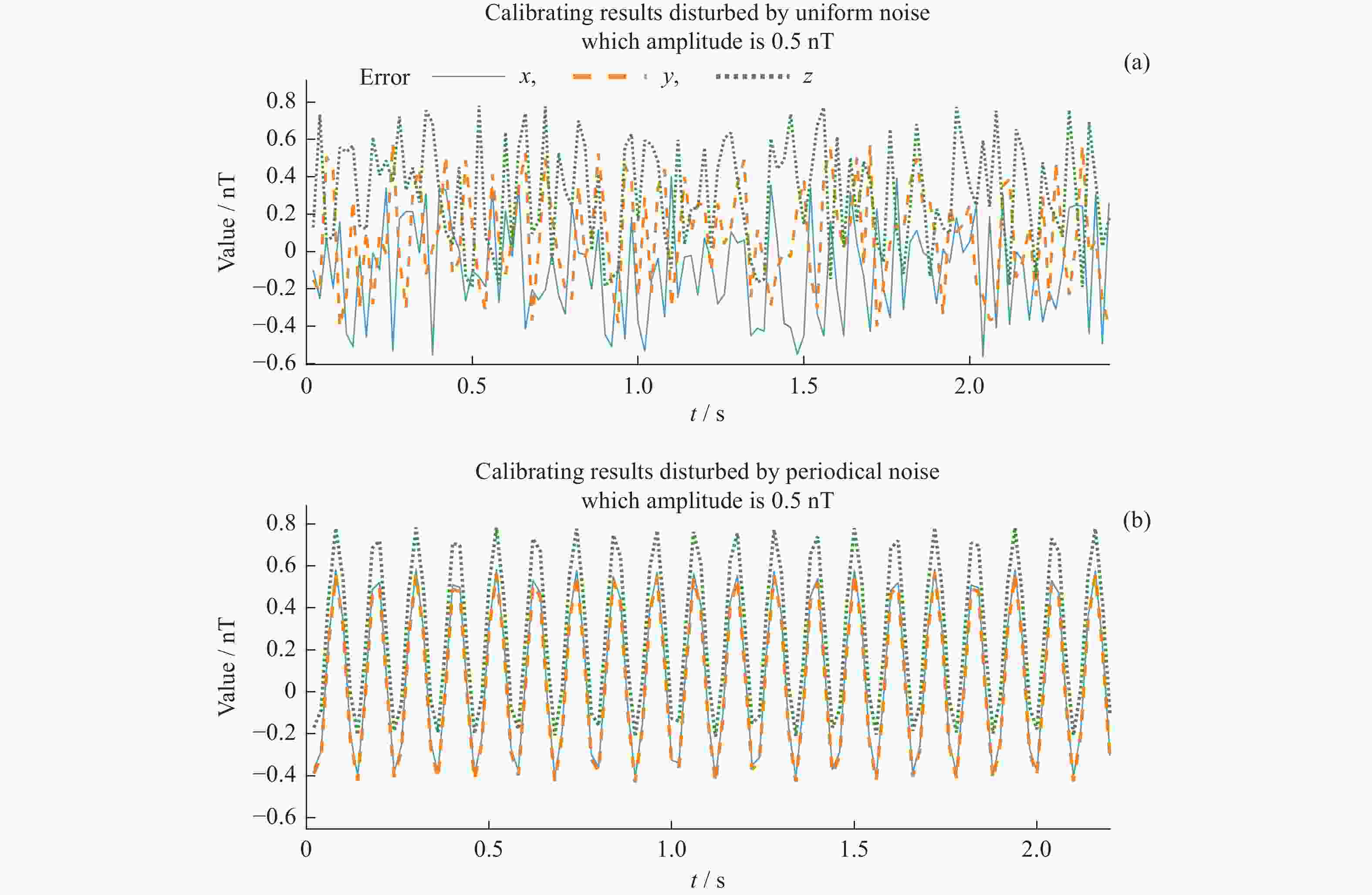

    图  9  添加幅值为0.5 nT均匀分布噪声和周期性噪声干扰后的校正结果

    Figure  9.  Correction results disturbed by uniform noise and periodical noise with amplitude of 0.5 nT

    图  10  标量数据中添加2 nT异常扰动后的校正结果

    Figure  10.  Correction results of scalar data adding 2 nT anomaly perturbation

    图  11  标量数据中添加10 nT异常扰动后的校正结果

    Figure  11.  Correction results of scalar data adding 10 nT anomaly perturbation

    表  1  不同情况下非线性校正算法参数辨识结果与初始参数对比

    Table  1.   Parameter identification results of the nonlinear correction algorithm in different cases compared with the initial parameters

    仿真条件固有偏差b/(nT)标度因子
    Sx
    标度因子
    Sy
    标度因子
    Sz
    非正交角
    ${U_1}$/(°)
    非正交角
    ${U_2}$/(°)
    非正交角
    ${U_3}$/(°)
    初始参数 [10.00,20.00,30.00]T 1.002500 1.002600 1.002400 0.0100 0.0200 0.0300
    无干扰 [10.28,20.13,30.29]T 1.002499 1.002594 1.002399 0.0101 0.0204 0.0302
    高斯白噪声
    (幅值0.15 nT)
    [11.98,20.91,30.50]T 1.002549 1.002587 1.002404 0.0109 0.0222 0.0304
    高斯白噪声
    (幅值1 nT)
    [15.22,19.82,30.94]T 1.002645 1.002615 1.002416 0.0099 0.0243 0.0271
    均匀分布噪声
    (幅值0.5 nT)
    [11.93,19.77,30.31]T 1.002547 1.002599 1.002400 0.0097 0.0220 0.0286
    周期性噪声
    (幅值0.5 nT)
    [11.50,20.29,30.44]T 1.002535 1.002595 1.002403 0.0103 0.0215 0.0298
    标量数据存在
    2 nT异常扰动
    [10.42,19.72,30.23]T 1.002504 1.002598 1.002398 0.0097 0.0205 0.0295
    标量数据存在10 nT
    异常扰动(应用Tukey
    权重函数后)
    [10.38,20.15,30.30]T 1.002503 1.002594 1.002400 0.0101 0.0204 0.0302
    下载: 导出CSV
  • [1] 左文辑, 宋福香. 微小卫星磁测自主导航方法[J]. 宇航学报, 2000, 21(2): 100-104

    ZUO Wenji, SONG Fuxiang. An approach to autonomous navigation using magnetic measurements for small satellites[J]. Journal of Astronautics, 2000, 21(2): 100-104
    [2] 王淑一, 杨旭, 杨涤, 等. 近地卫星磁测自主导航算法研究[J]. 宇航学报, 2003, 24(6): 634-637,660

    WANG Shuyi, YANG Xu, YANG Di, et al. Algorithm for autonomous navigation of low earth orbit satellite using magnetic measurements[J]. Journal of Astronautics, 2003, 24(6): 634-637,660
    [3] ZHOU B, YANG Y Y, ZHANG Y T, et al. Magnetic field data processing methods of the China seismo-electromagnetic satellite[J]. Earth and Planetary Physics, 2018, 2(6): 455-461 doi: 10.26464/epp2018043
    [4] 刘逸康, 任顺清, 张高雄, 等. 星敏与磁力仪间安装矩阵的一种地面标定方法[J]. 哈尔滨工业大学学报, 2021, 53(6): 34-40

    LIU Yikang, REN Shunqing, ZHANG Gaoxiong, et al. A calibration method for installation matrix between star sensor and magnetometer on the ground[J]. Journal of Harbin Institute of Technology, 2021, 53(6): 34-40
    [5] 王兰炜, 胡哲, 申旭辉, 等. 电磁监测试验卫星(张衡一号)数据处理方法和流程[J]. 遥感学报, 2018, 22(S1): 39-55

    WANG Lanwei, HU Zhe, SHEN Xuhui, et al. Data processing methods and procedures of CSES satellite[J]. Journal of Remote Sensing, 2018, 22(S1): 39-55
    [6] 于向前, 刘斯, 肖池阶, 等. 基于椭球拟合的三轴磁强计两步校准法[J]. 仪表技术与传感器, 2021(4): 52-56 doi: 10.3969/j.issn.1002-1841.2021.04.011

    YU Xiangqian, LIU Si, XIAO Chijie, et al. Two-step calibration of tri-axial magnetometer based on ellipsoid fitting[J]. Instrument Technique and Sensor, 2021(4): 52-56 doi: 10.3969/j.issn.1002-1841.2021.04.011
    [7] 夏琳琳, 耿靖童, 肖建磊, 等. 一种正交三轴磁罗盘的椭球拟合分步优化补偿方法(英文)[J]. 中国惯性技术学报, 2018, 26(4): 478-483 doi: 10.13695/j.cnki.12-1222/o3.2018.04.010

    XIA Linlin, GENG Jingtong, XIAO Jianlei, et al. Ellipsoid fitting based two-step optimized correction for orthogonal tri-axis magnetic compass measurements[J]. Journal of Chinese Inertial Technology, 2018, 26(4): 478-483 doi: 10.13695/j.cnki.12-1222/o3.2018.04.010
    [8] OLSEN N, ALBINI G, BOUFFARD J, et al. Magnetic observations from CryoSat-2: calibration and processing of satellite platform magnetometer data[J]. Earth, Planets and Space, 2020, 72(1): 48 doi: 10.1186/s40623-020-01171-9
    [9] HAMMER M D, FINLAY C C, OLSEN N. Applications for CryoSat-2 satellite magnetic data in studies of Earth's core field variations[J]. Earth, Planets and Space, 2021, 73(1): 73 doi: 10.1186/s40623-021-01365-9
    [10] ALKEN P, OLSEN N, FINLAY C C. Co-estimation of geomagnetic field and in-orbit fluxgate magnetometer calibration parameters[J]. Earth, Planets and Space, 2020, 72(1): 49 doi: 10.1186/s40623-020-01163-9
    [11] HERCEG M, JØRGENSEN P S, JØRGENSEN J L. Characterization and compensation of thermo-elastic instability of SWARM optical bench on Micro Advanced Stellar Compass attitude observations[J]. Acta Astronautica, 2017, 137: 205-213 doi: 10.1016/j.actaastro.2017.04.018
    [12] KLOSS C, FINLAY C C, OLSEN N. Co-estimating geomagnetic field and calibration parameters: modeling Earth's magnetic field with platform magnetometer data[J]. Earth, Planets and Space, 2021, 73(1): 23 doi: 10.1186/s40623-020-01351-7
    [13] 张镇琦, 李磊, 周斌, 等. 基于绝对磁场测量的磁通门磁强计在轨标定方法[J]. 空间科学学报, 2014, 34(2): 235-241 doi: 10.11728/cjss2014.02.235

    ZHANG Zhenqi, LI Lei, ZHOU Bin, et al. A method of in-orbit calibration of fluxgate magnetometer based on the measurement of absolute scalar magnetometer[J]. Chinese Journal of Space Science, 2014, 34(2): 235-241 doi: 10.11728/cjss2014.02.235
    [14] JØRGENSEN J L, JØRGENSEN P S, HERCEG M. Swarm μASC star tracker in-flight status and performance[EB/OL]. (2017-10-14)[2021-12-23]. https://orbit.dtu.dk/en/publications/swarm-%CE%BCasc-star-tracker-in-flight-status-and-performance
    [15] 秦赓, 管雪元, 李文胜. 基于椭球补偿的三维载体磁场误差补偿方法[J]. 电子测量技术, 2018, 41(2): 37-40

    QIN Geng, GUAN Xueyuan, LI Wensheng. Compensation method of magnetic field error of three dimensional vector based on ellipsoid compensation[J]. Electronic Measurement Technology, 2018, 41(2): 37-40
    [16] YIN F, LÜHR H. Recalibration of the CHAMP satellite magnetic field measurements[J]. Measurement Science and Technology, 2011, 22(5): 055101 doi: 10.1088/0957-0233/22/5/055101
    [17] TøFFNER-CLAUSEN L, LESUR V, OLSEN N, et al. In-flight scalar calibration and characterisation of the Swarm magnetometry package[J]. Earth, Planets and Space, 2016, 68(1): 129 doi: 10.1186/s40623-016-0501-6
    [18] 陈贵芳, 郁丰, 王润. 基于IGRF的地磁基准图技术[J]. 地震地磁观测与研究, 2020, 41(3): 98-104

    CHEN Guifang, YU Feng, WANG Run. Geomagnetic reference map technology based on IGRF[J]. Seismological and Geomagnetic Observation and Research, 2020, 41(3): 98-104
    [19] 胡睿帆. 数字式氦光泵磁力仪的工程样机设计[D]. 长春: 吉林大学, 2017

    HU Ruifan. Design of Engineering Prototype for Digital Helium Optically Pumped Magnetometer[D]. Changchun: Jilin University, 2017
    [20] BLACK M J, RANGARAJAN A. On the unification of line processes, outlier rejection, and robust statistics with applications in early vision[J]. International Journal of Computer Vision, 1996, 19(1): 57-91 doi: 10.1007/BF00131148
