Meteoroid and Space Debris Risk Assessment for Satellites Orbiting the Earth/Moon
doi: 10.11728/cjss2023.04.2022-0065 cstr: 32142.14.cjss2023.04.2022-0065
-
Abstract: Interplanetary meteoroids and space debris can impact satellites orbiting the Earth or spacecraft traveling to the Moon. Targeting China Space Station (CSS), 7 satellites selected from the constellation of Beidou Navigation Satellite System Phase III (BDS-3), and 3 spacecraft orbiting the Moon, we have adopted in the paper the Meteoroid Engineering Model 3, Divine-Staubach meteoroid environment model, and Jenniskens-McBride meteoroid steam model to analyze the meteoroid environment with the mass range of 10–6~10 g. Orbital Debris Engineering Model 3.1 space debris model is used to analyze the orbital debris environment faced by these satellites. The flux of space debris with a size larger than 100 μm is compared with that of the meteoroids. The results show that the space debris flux encountered by China Space Station is much higher than that of the meteoroids with sizes in the above range. And quite the opposite, the meteoroids flux impacting the 7 satellites from the BDS-3 is higher. Upon adopting the double-layer Whipple protection measure, the catastrophic collision flux of these satellites encountering meteoroids is about 10–6 times of that without protection, or even less, implying that the Whipple protection effectively guarantees the safety of the satellites in orbit. Besides, it is also found that the flux of the high-density meteoroid population encountered by each satellite is greater than that of the low-density population, whereas the impact velocity is lower for each satellite. These results can aid the orbit selection and the protection design for satellites and spacecraft.
-

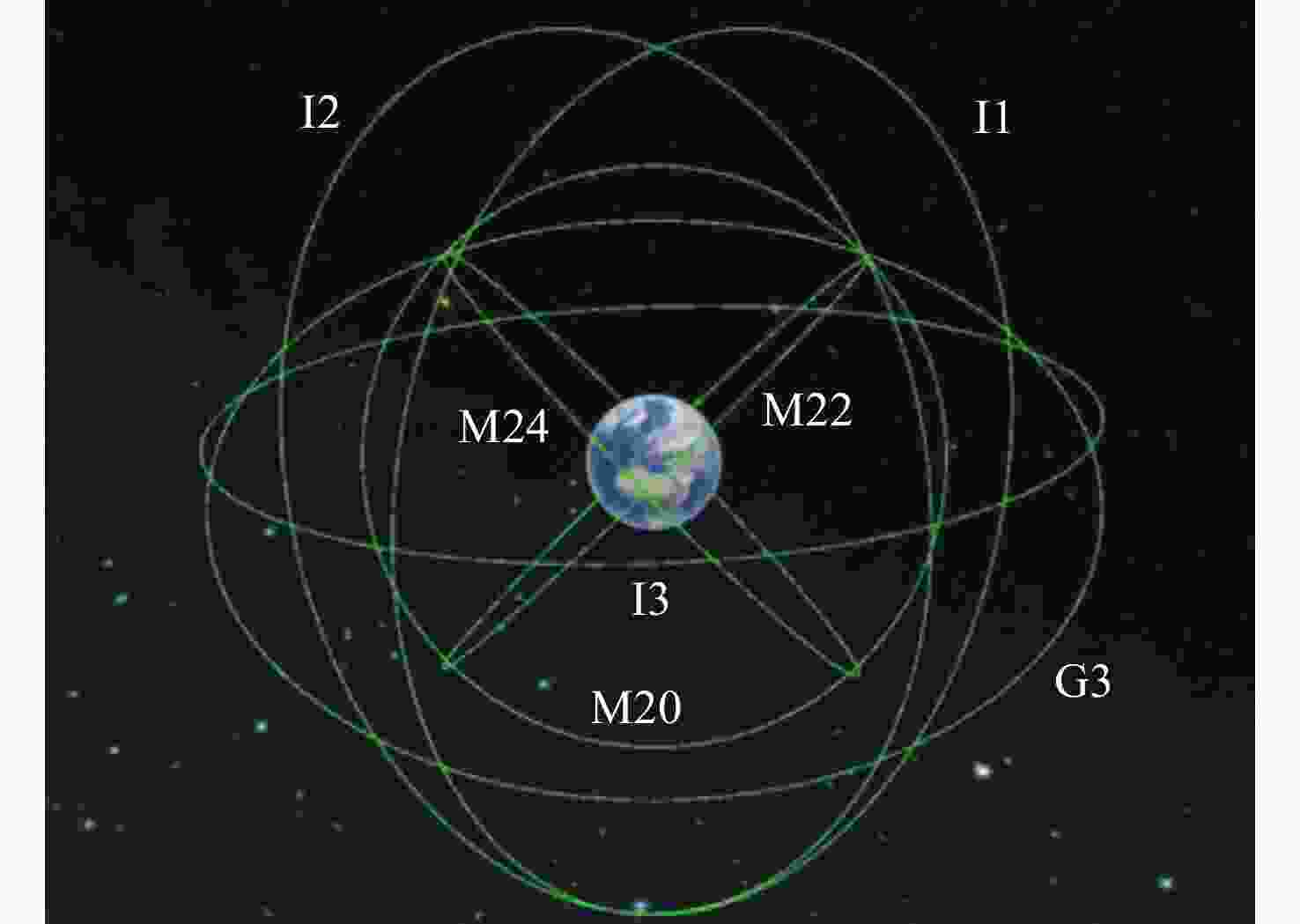

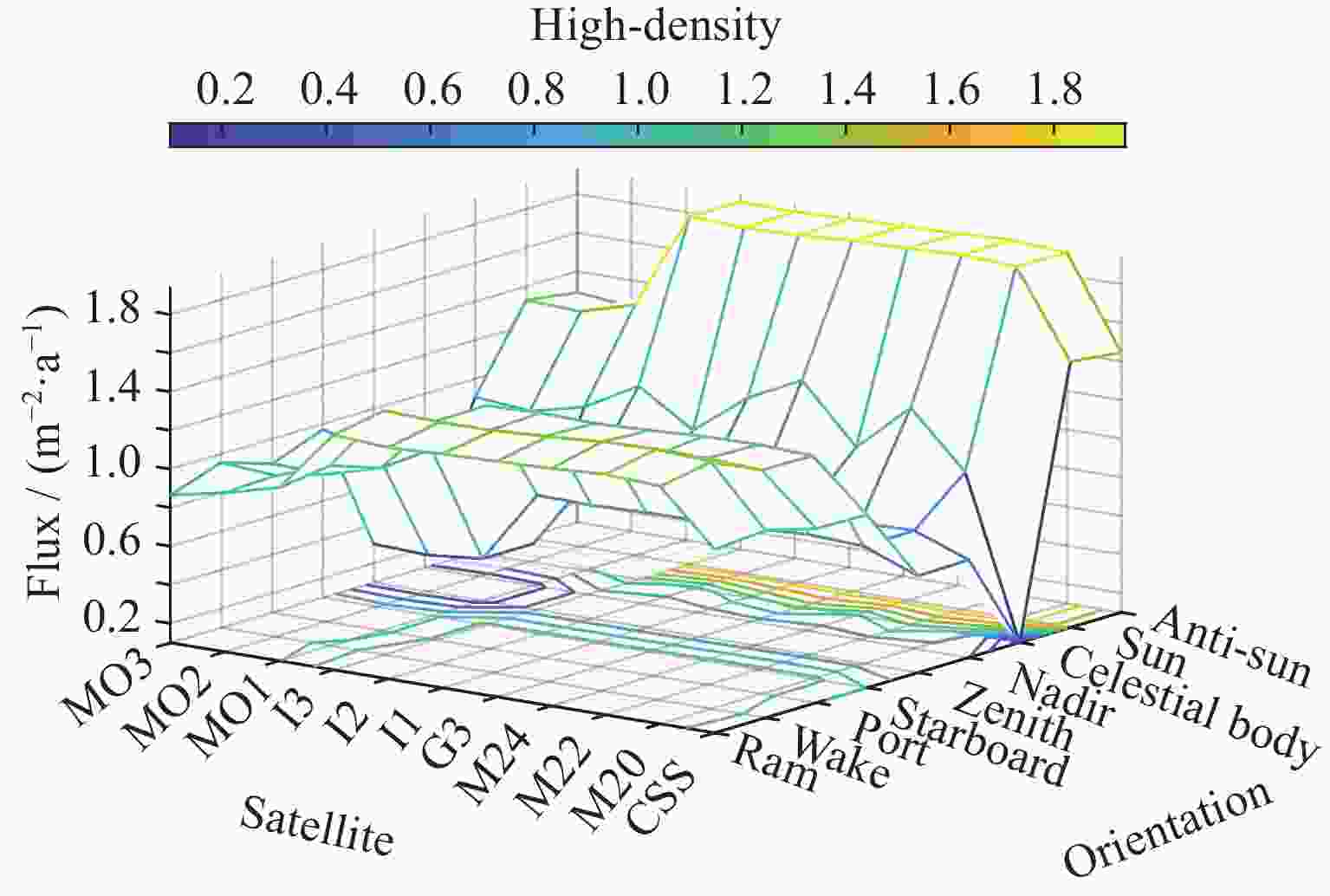

Figure 2. Averaged impact flux of the high-density meteoroid population in 9 directions for all the 11 satellites

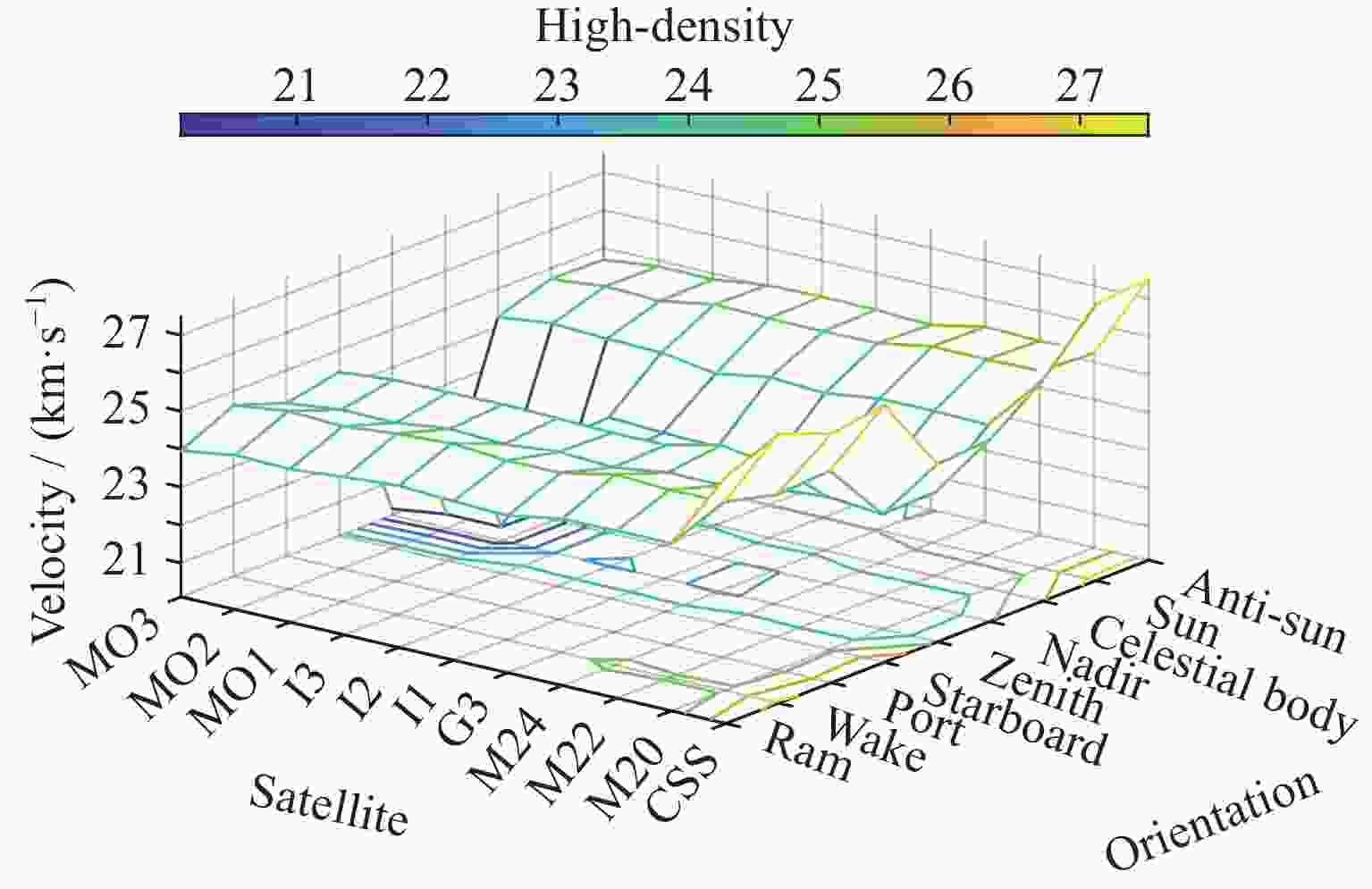

Figure 3. Averaged impact velocity of the high-density meteoroid population in 9 directions for all the 11 satellites

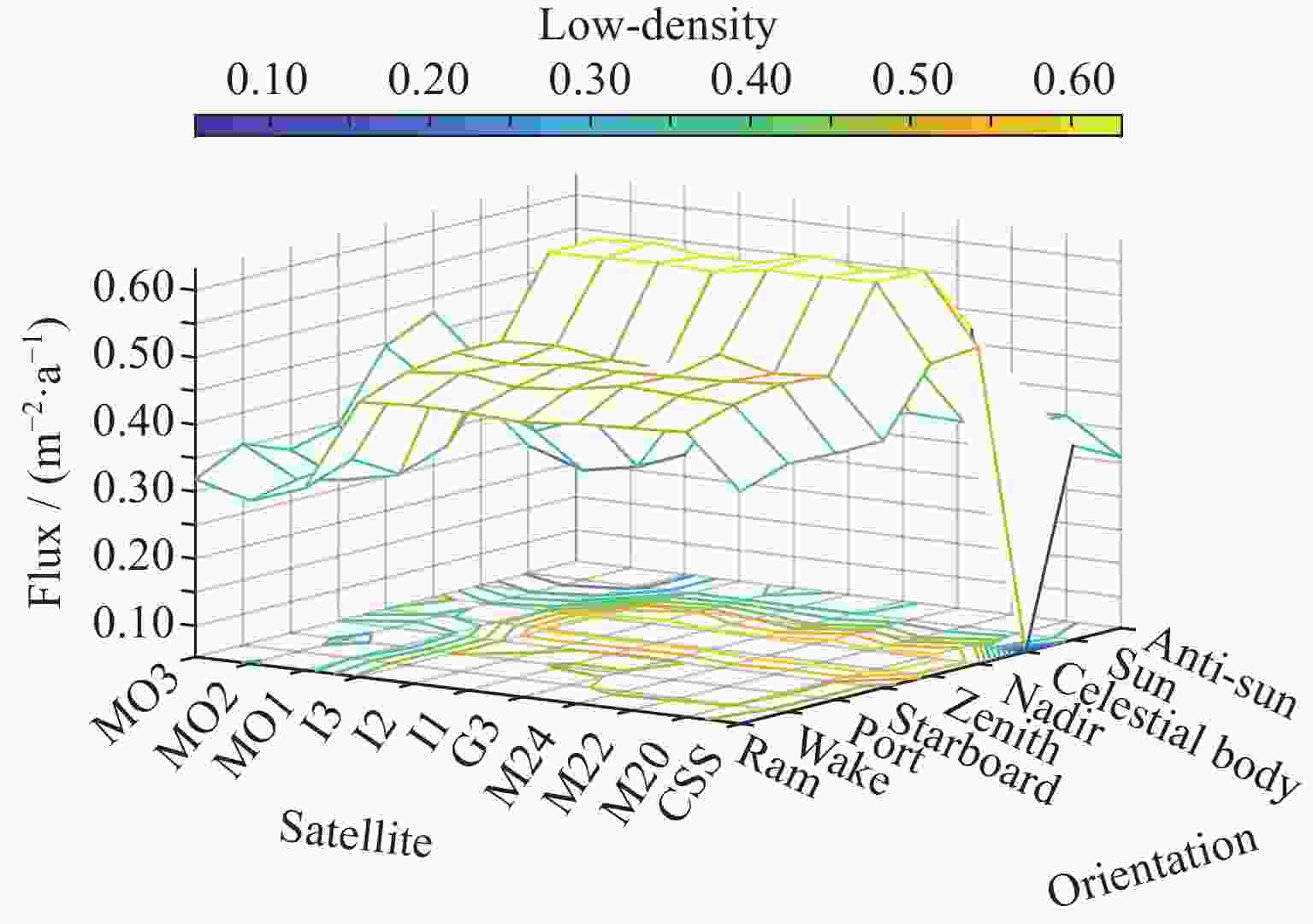

Figure 4. Averaged impact flux of the low-density meteoroid population in 9 directions for all the 11 satellites

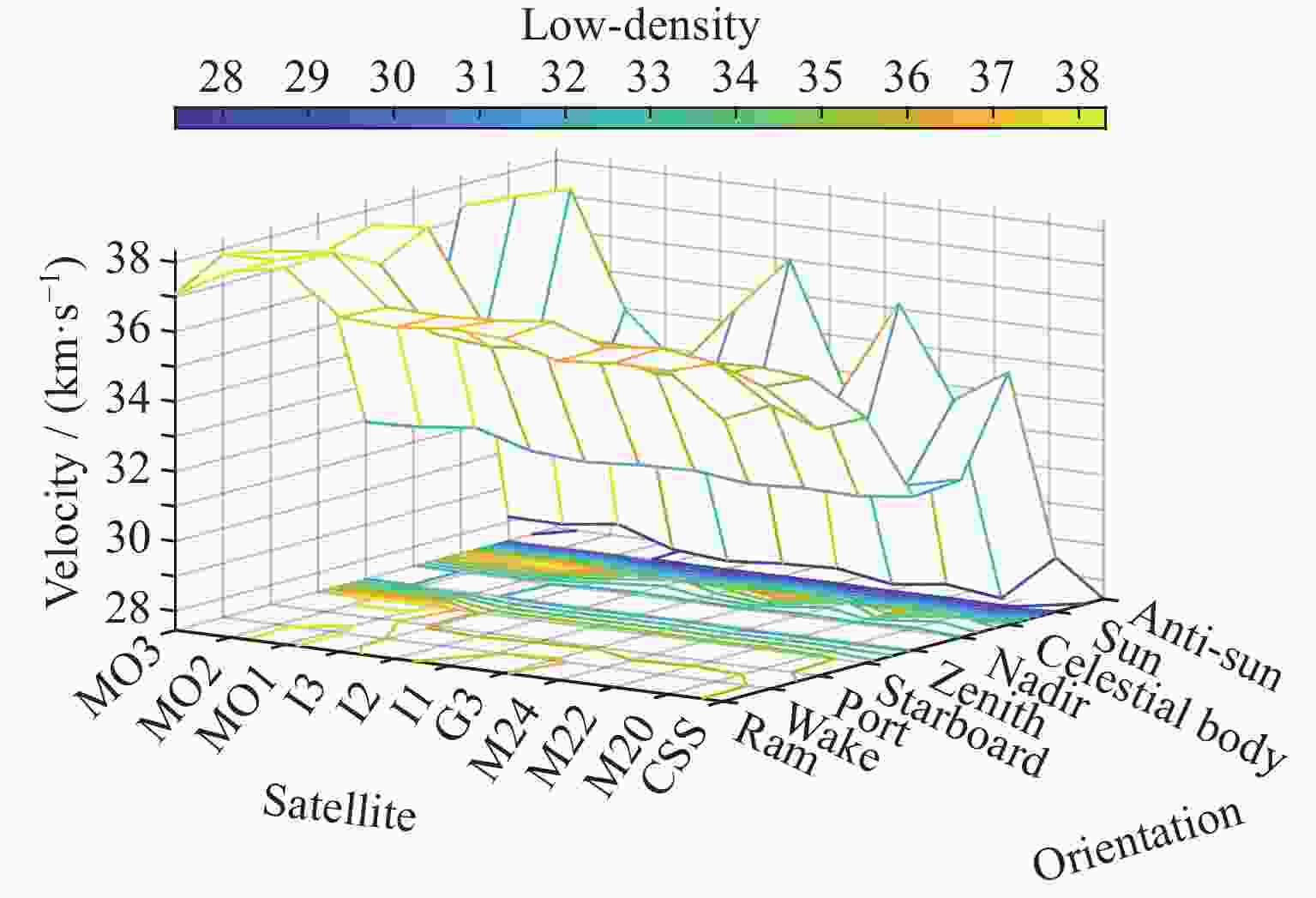

Figure 5. Averaged impact velocity of the low-density meteoroid population in 9 directions for all the 11 satellites

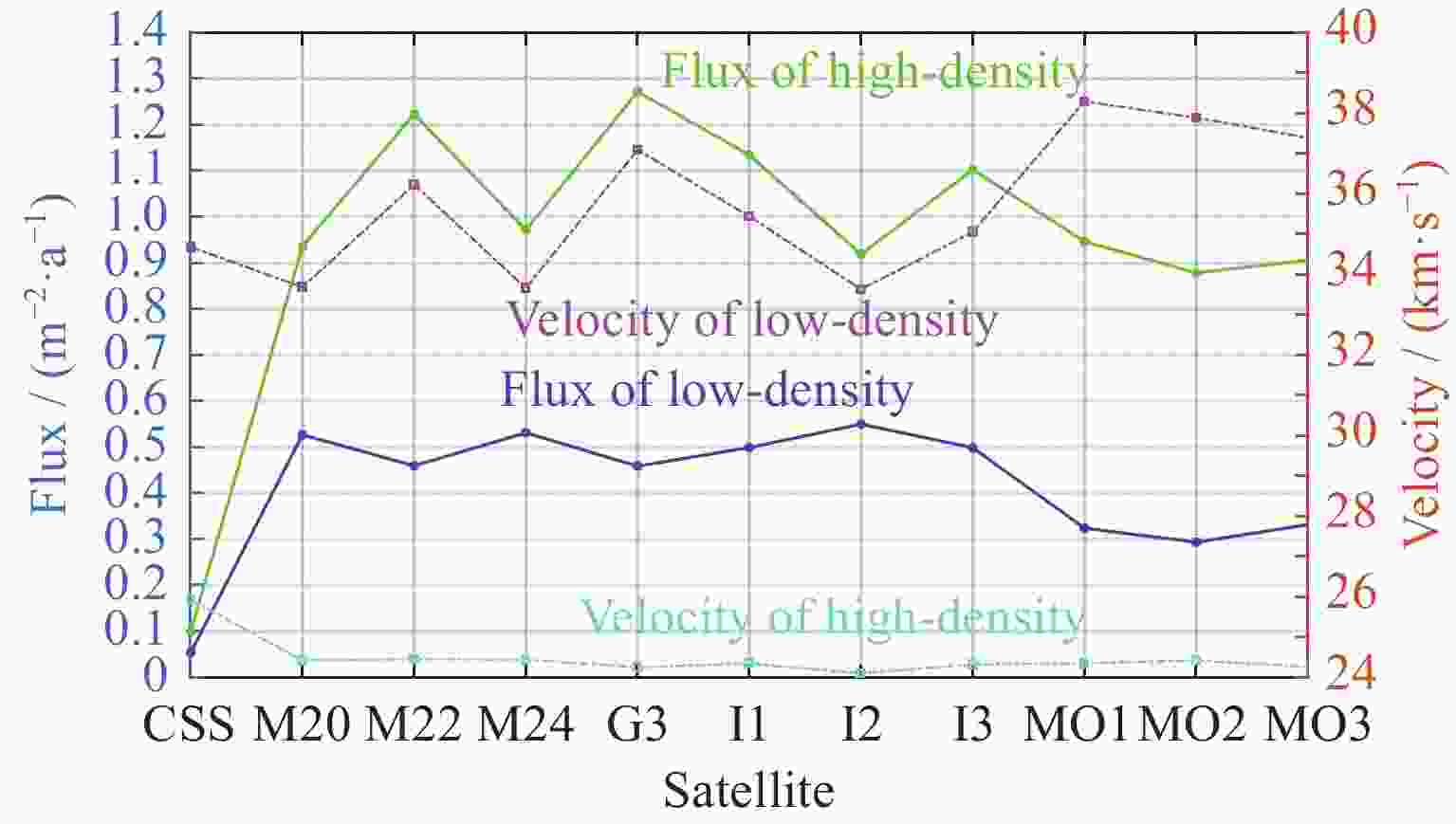

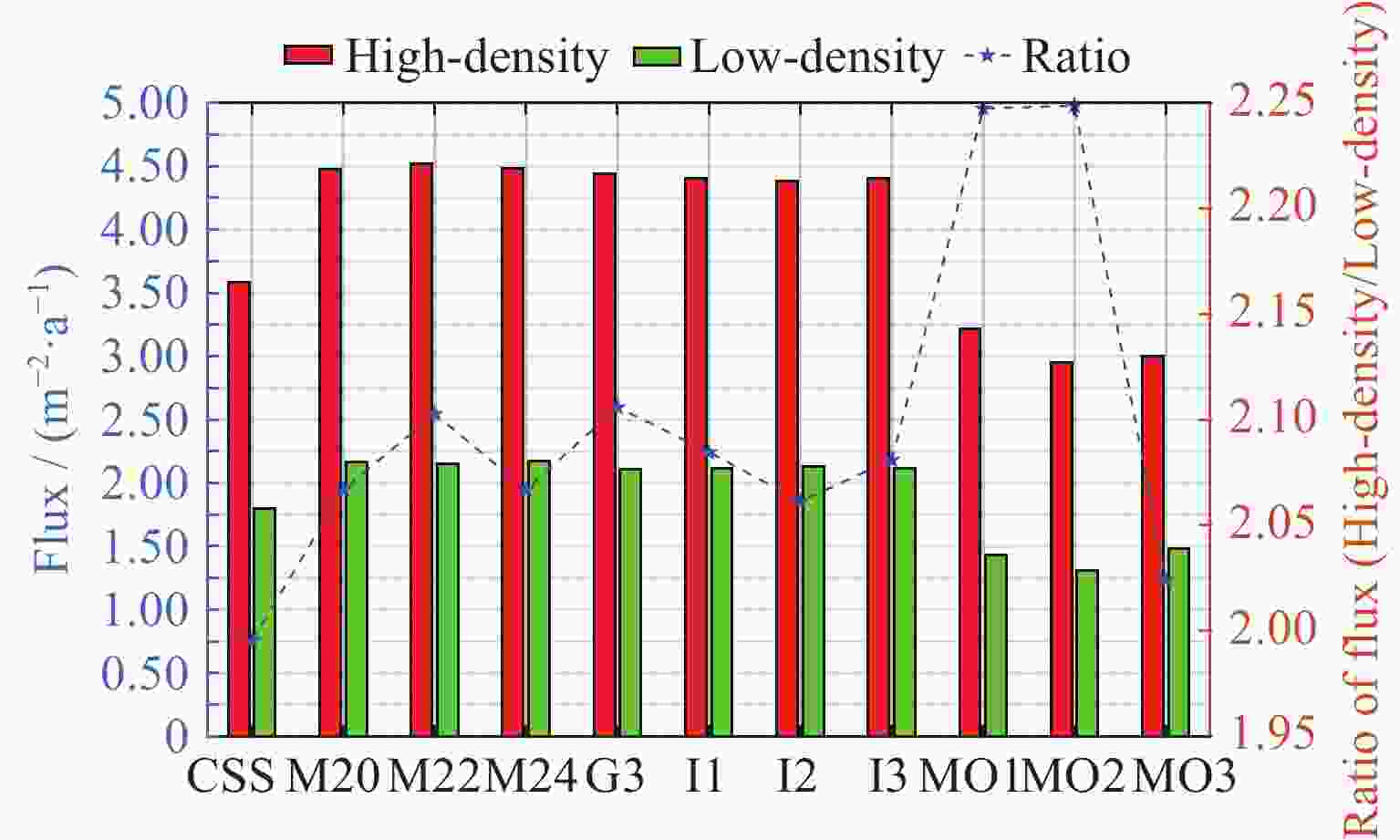

Figure 7. Averaged total flux for all 11 satellites encountering the high-density and low-density meteoroid populations (the red histogram is the average total flux of the high-density population, and the green histogram is the average total flux of the low-density population). The blue dashed line with the pentagram is the ratio of the total flux of the high-density population over the low-density population

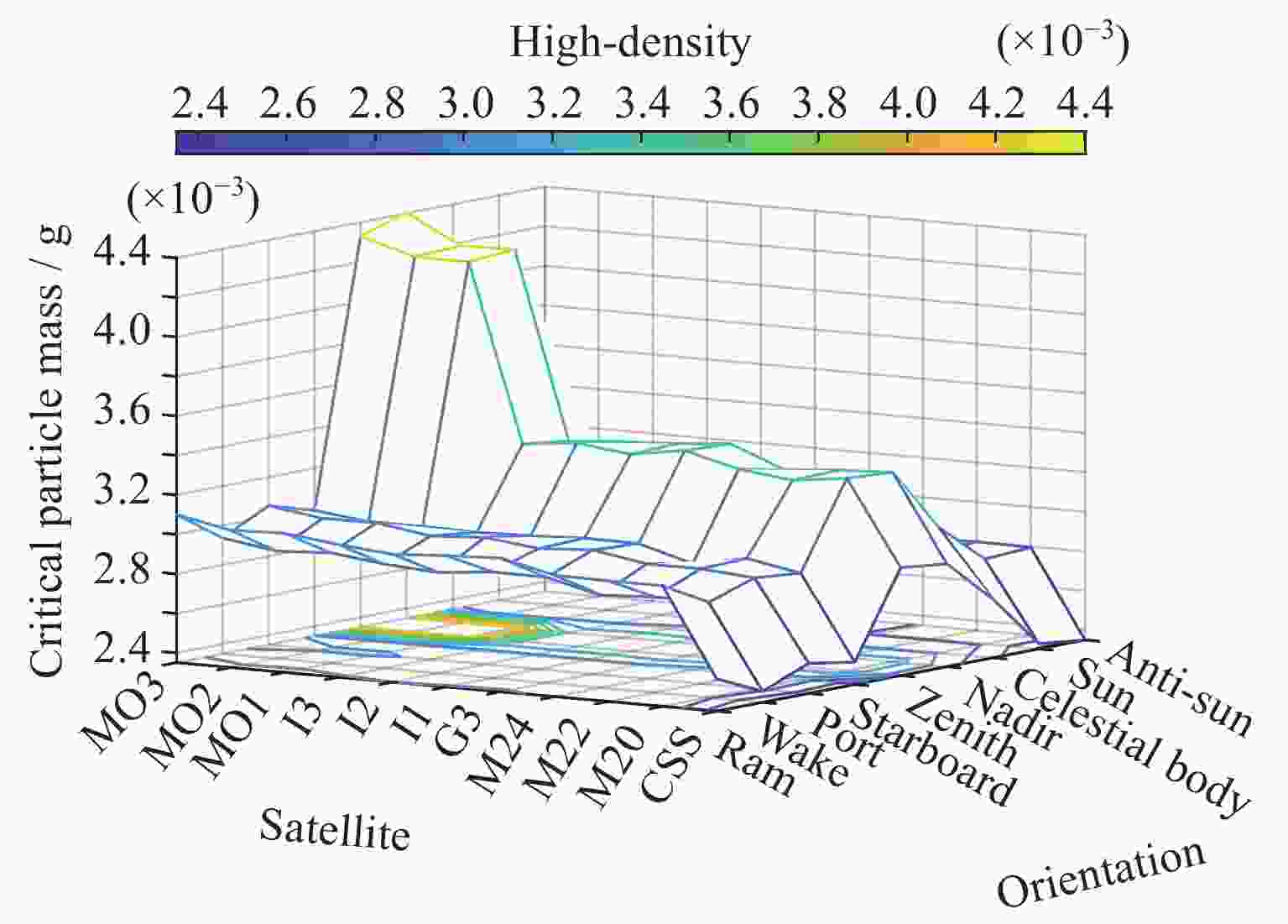

Figure 8. Critical meteoroid particle mass in 9 directions of 11 satellites encountering the high-density meteoroid populations

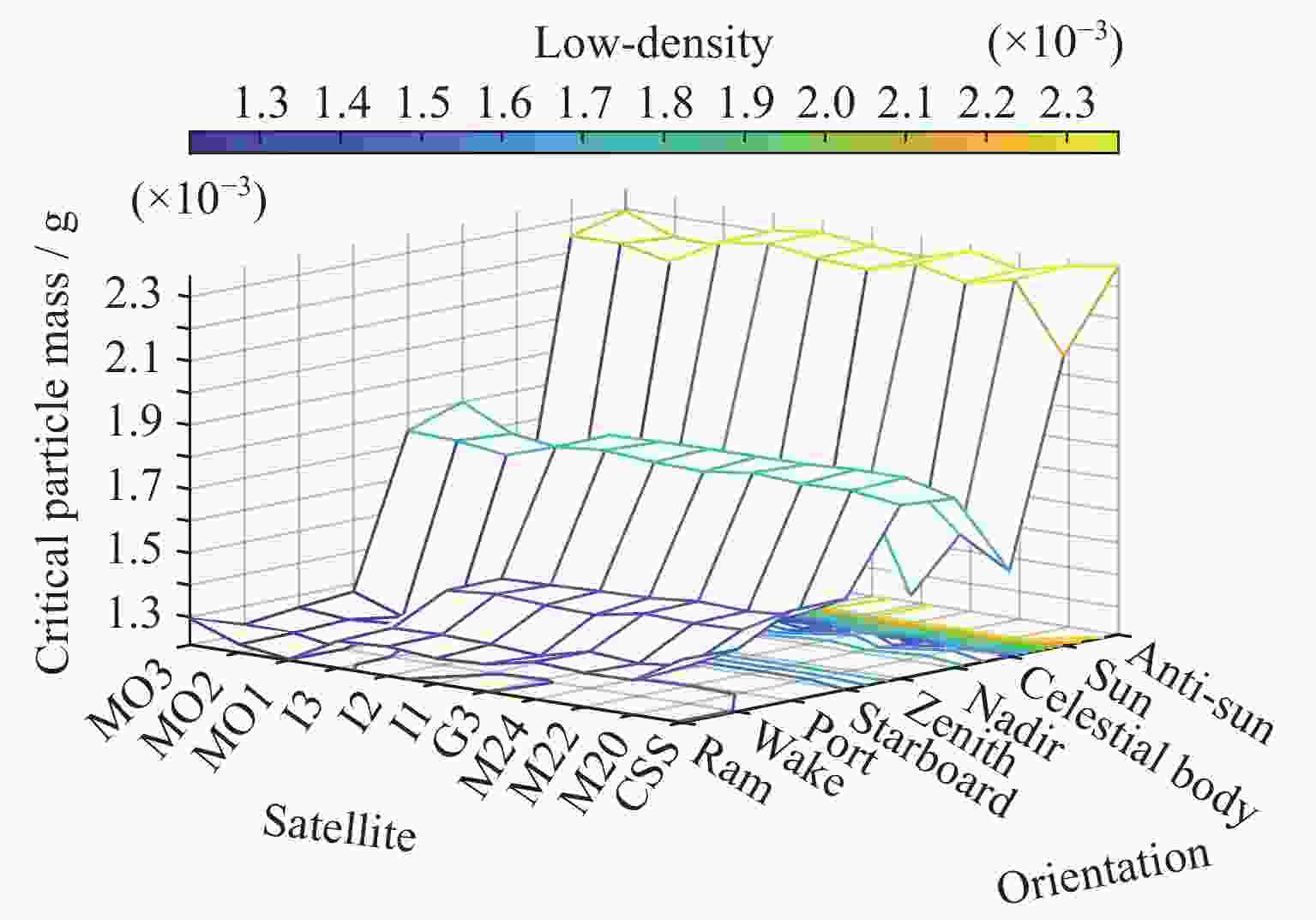

Figure 9. Critical meteoroid particle mass in 9 directions of 11 satellites encountering the low-density meteoroid populations

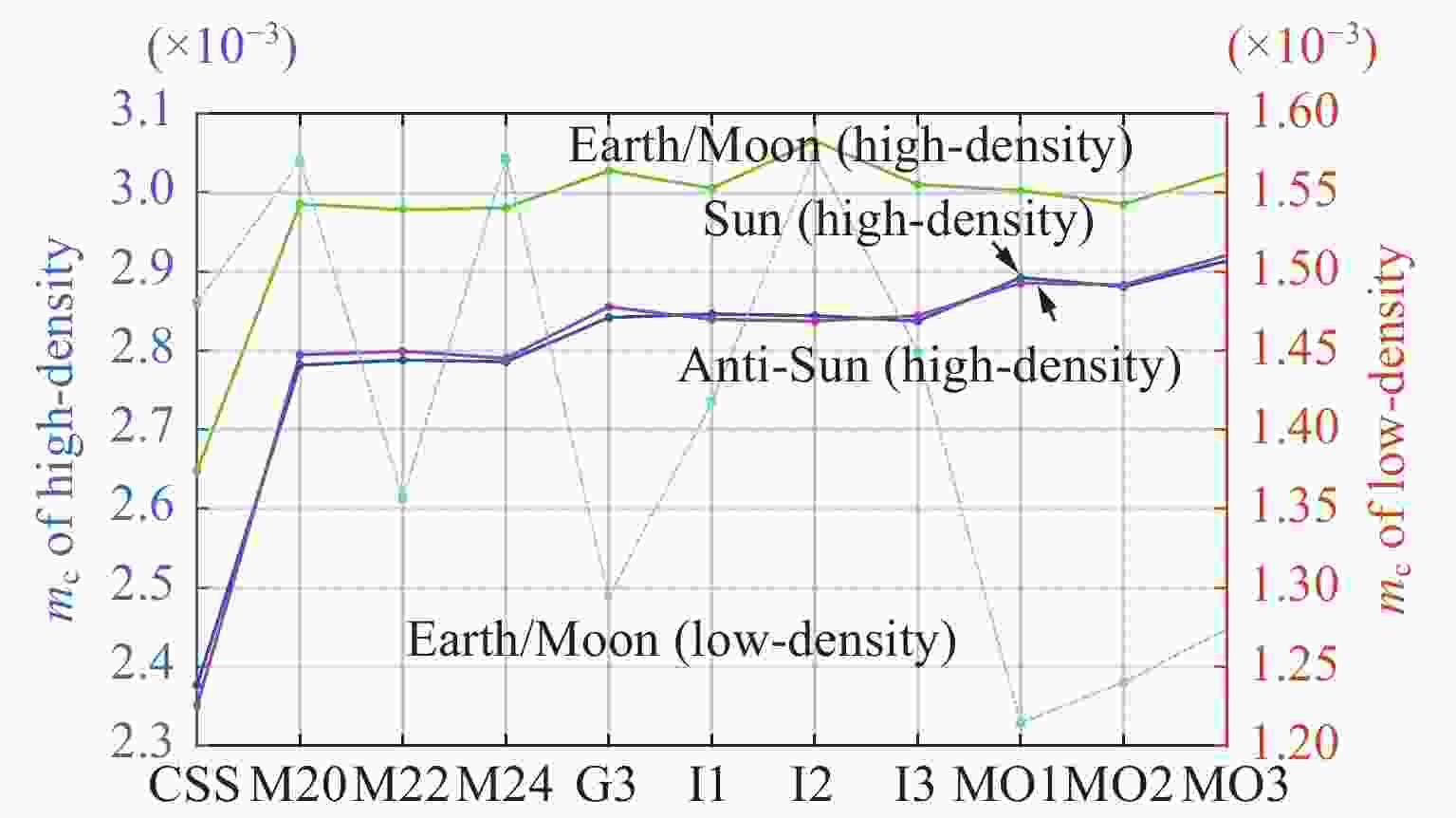

Figure 10. mc of the high-density meteoroid population in the directions facing the Earth/Moon, Sun and anti-Sun, and the mc of the low-density meteoroid population on the surfaces facing the Earth/Moon

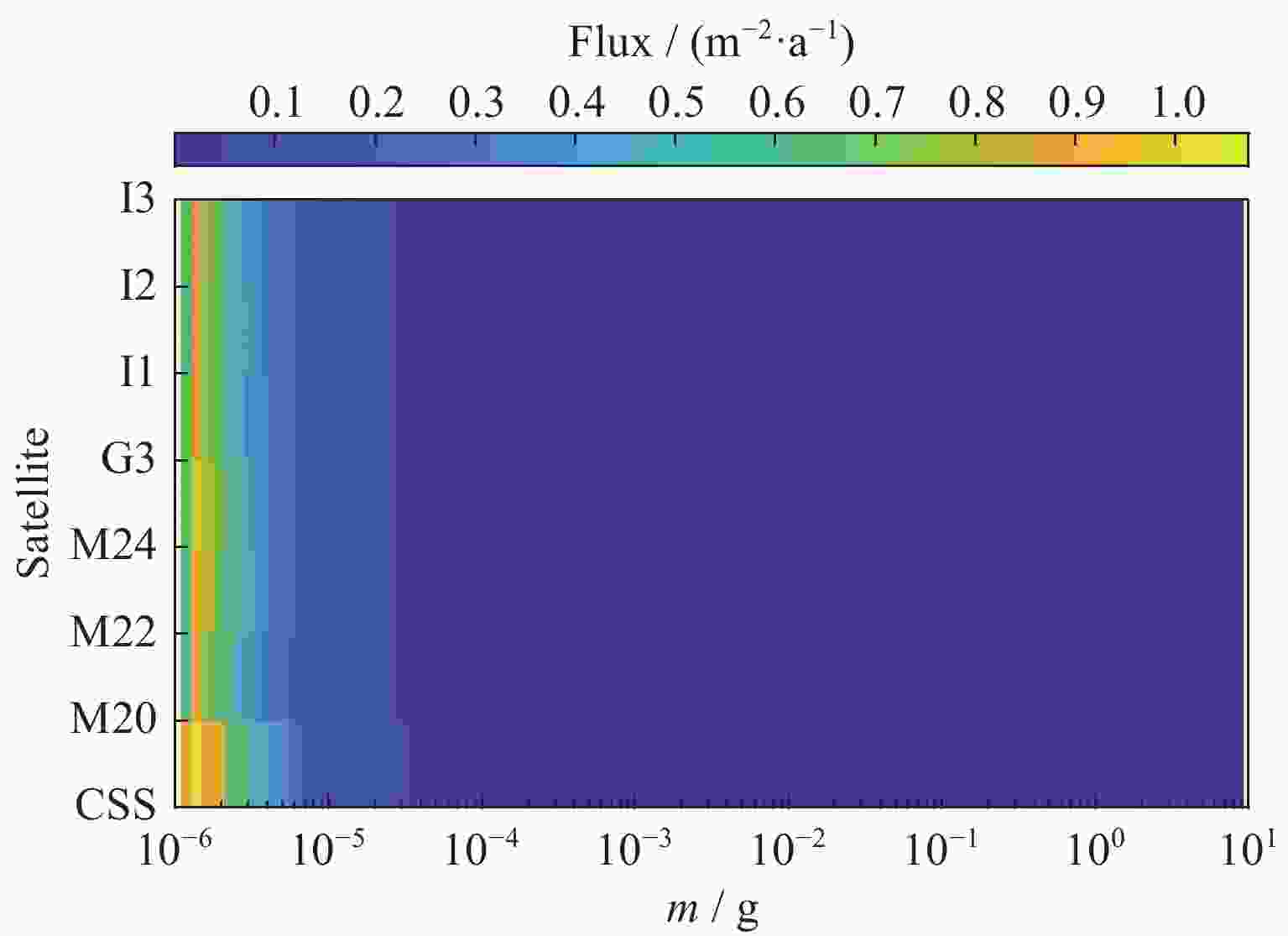

Figure 11. Dependence of flux on the meteoroid mass for each satellite orbiting the Earth

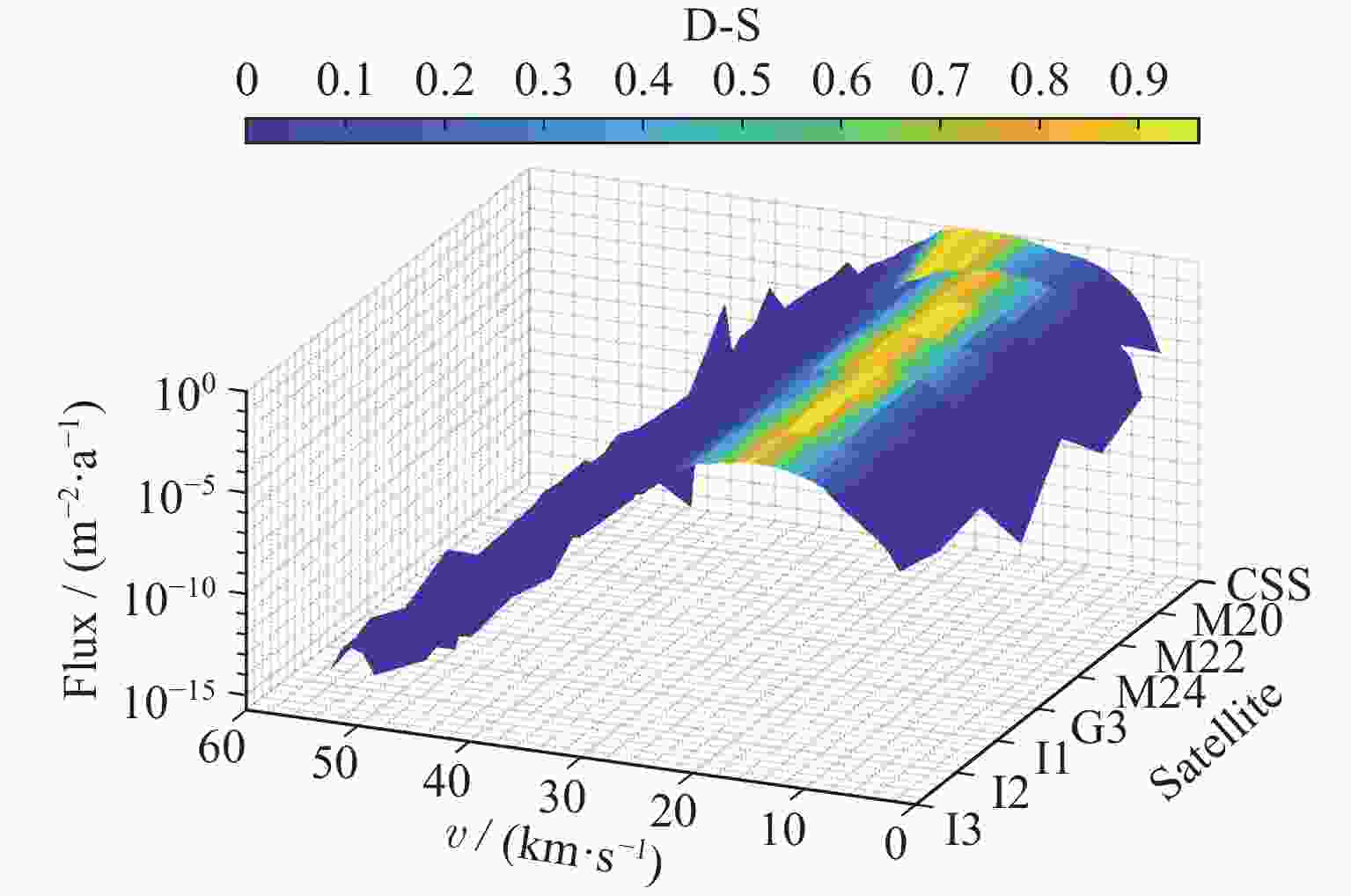

Figure 12. Dependence of flux on the impact velocity for each satellite orbiting the Earth

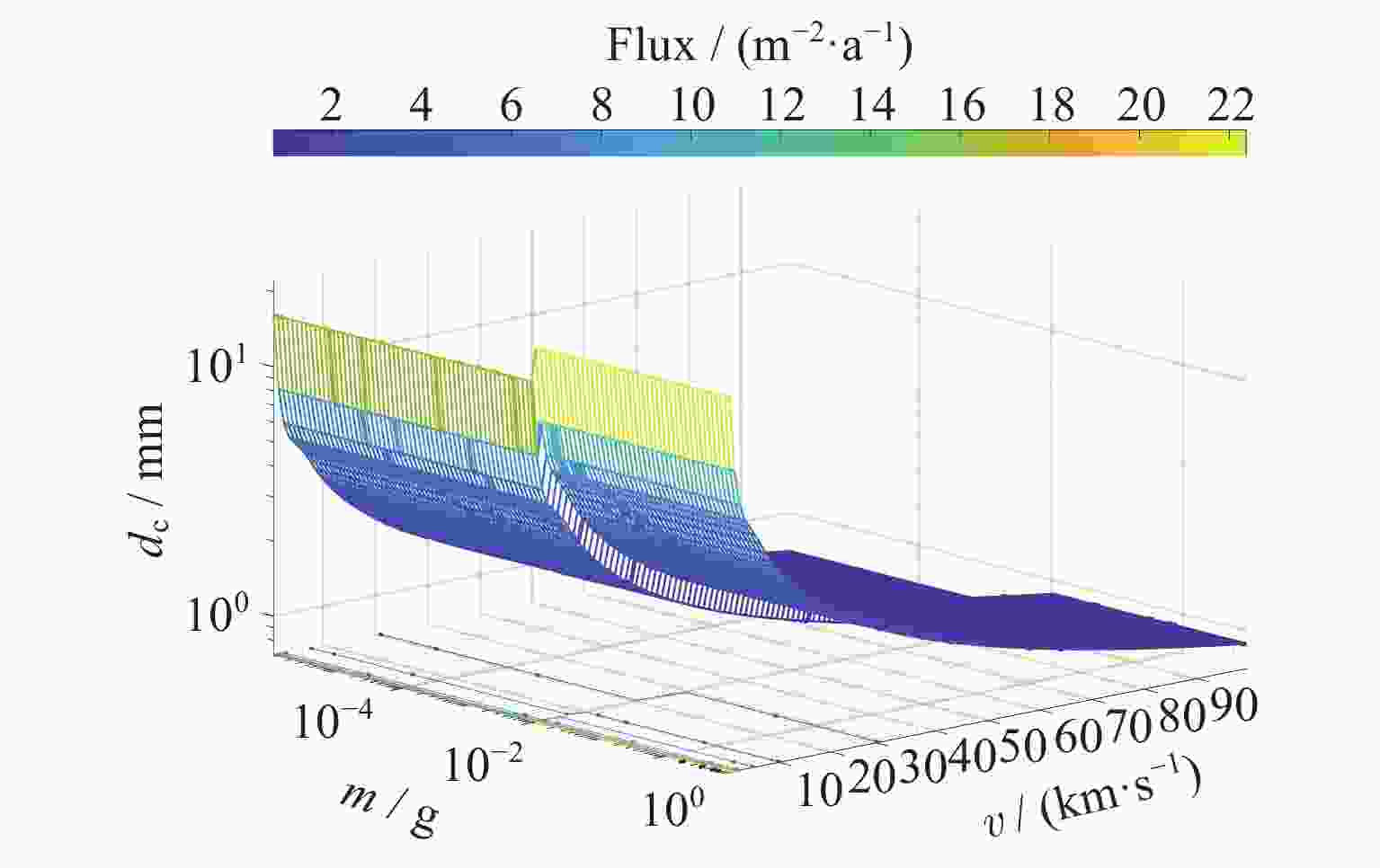

Figure 13. Critical diameter dc as a function of the meteoroid mass and impact velocity, where each line represents the critical diameter for a certain mass and velocity

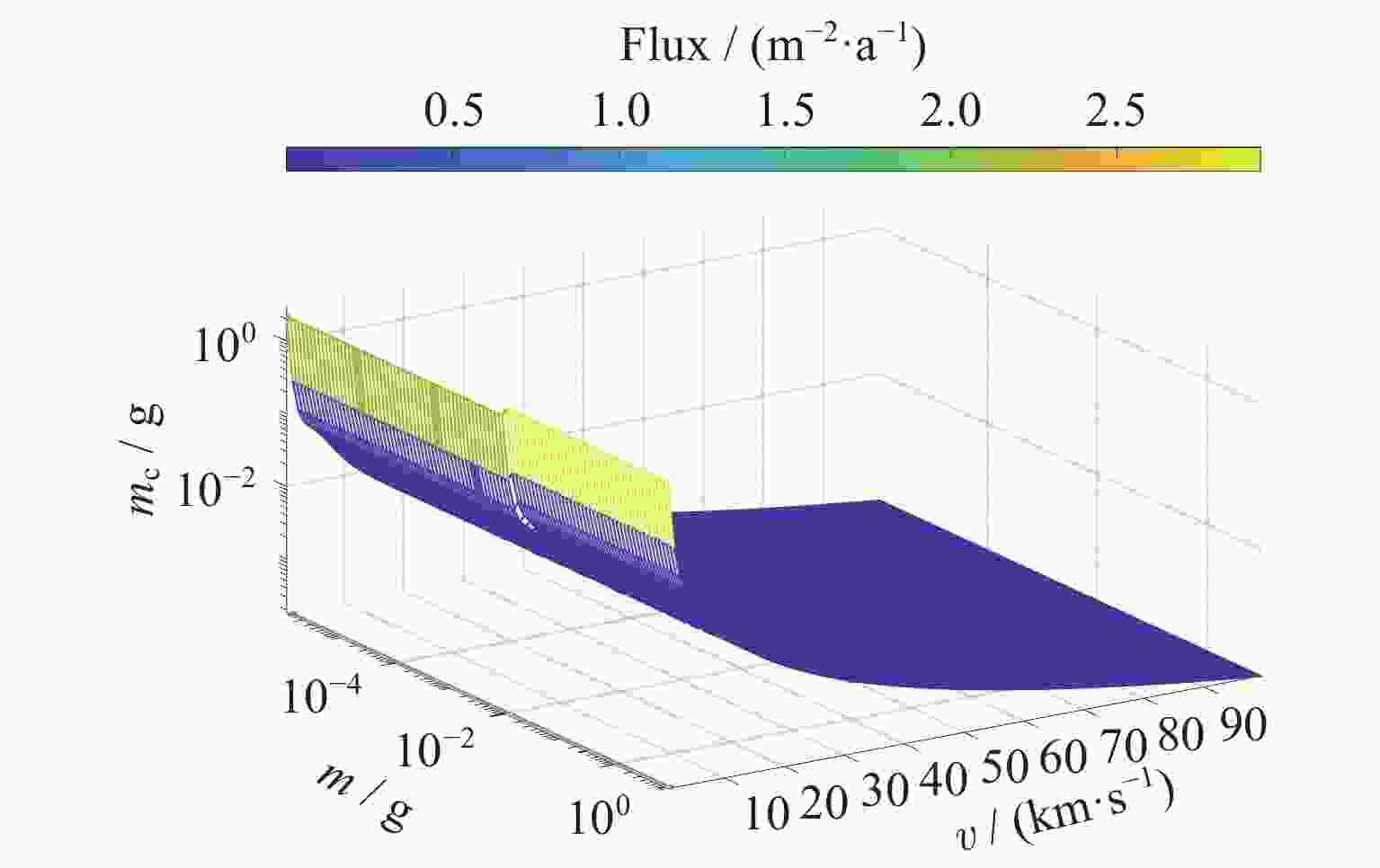

Figure 14. Critical mass mc as a function of the meteoroid mass and impact velocity, where each line represents the critical mass for a certain mass and velocity

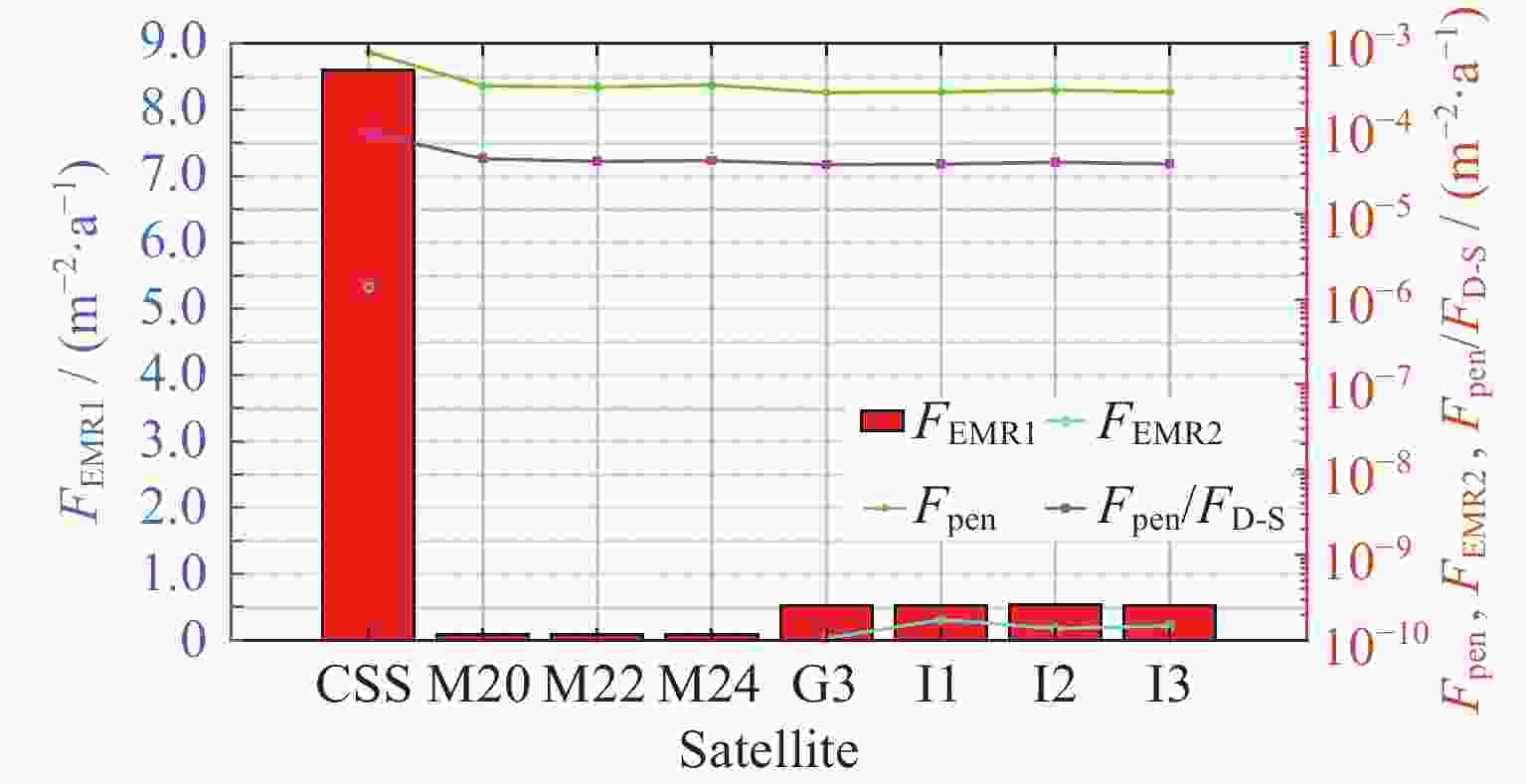

Figure 15. Catastrophic collision flux FEMR1 and FEMR2 for 8 satellites orbiting the Earth. The solid green dot indicates the penetrating flux Fpen and the magenta square is the ratio of Fpen over the total flux FD-S by the D-S model

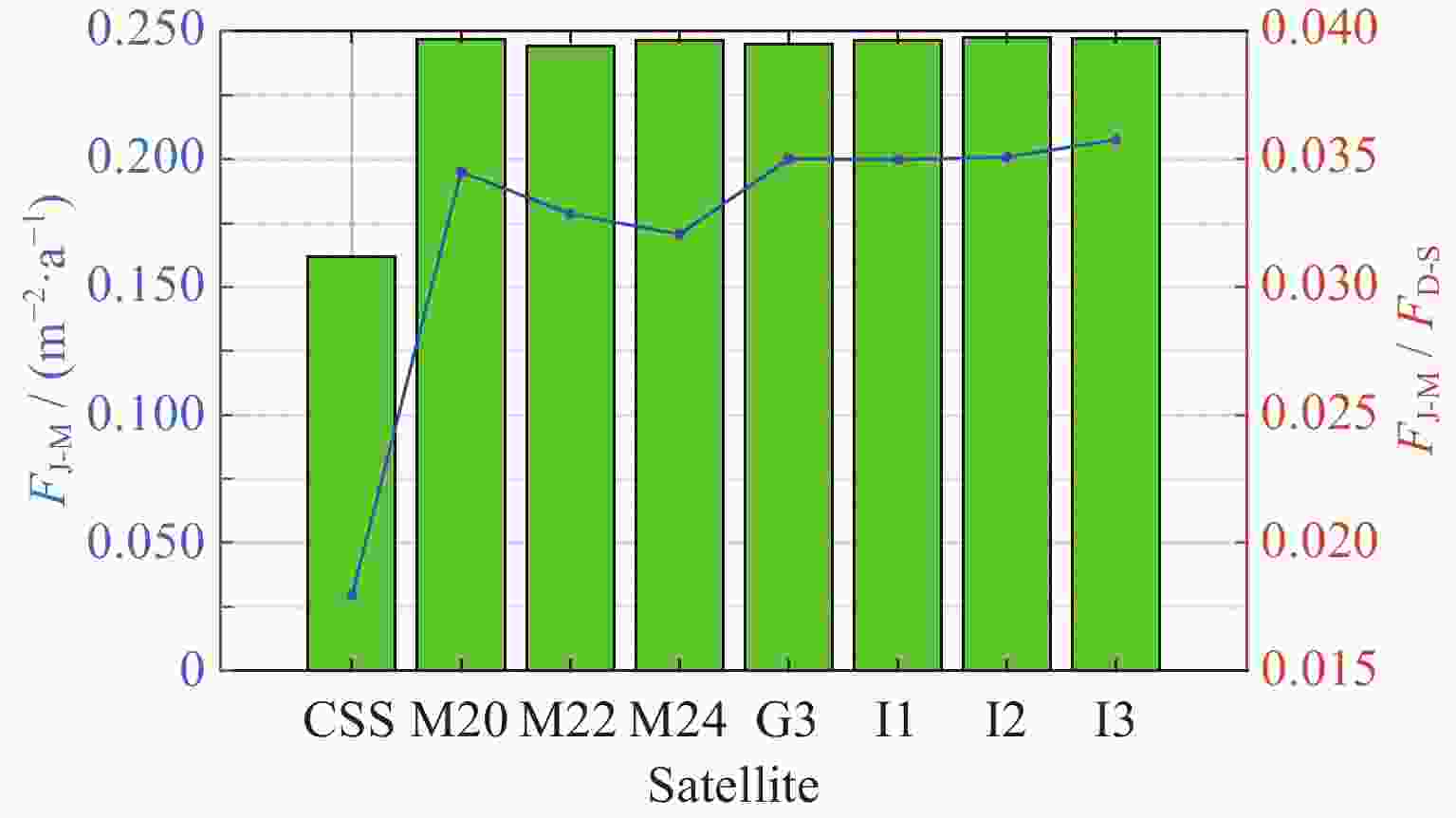

Figure 16. Total flux FJ-M derived from the J-M model for the 8 satellites (green histogram). The ratio of FJ-M over the total flux FD-S from the D-S model is demonstrated by the blue asterisk

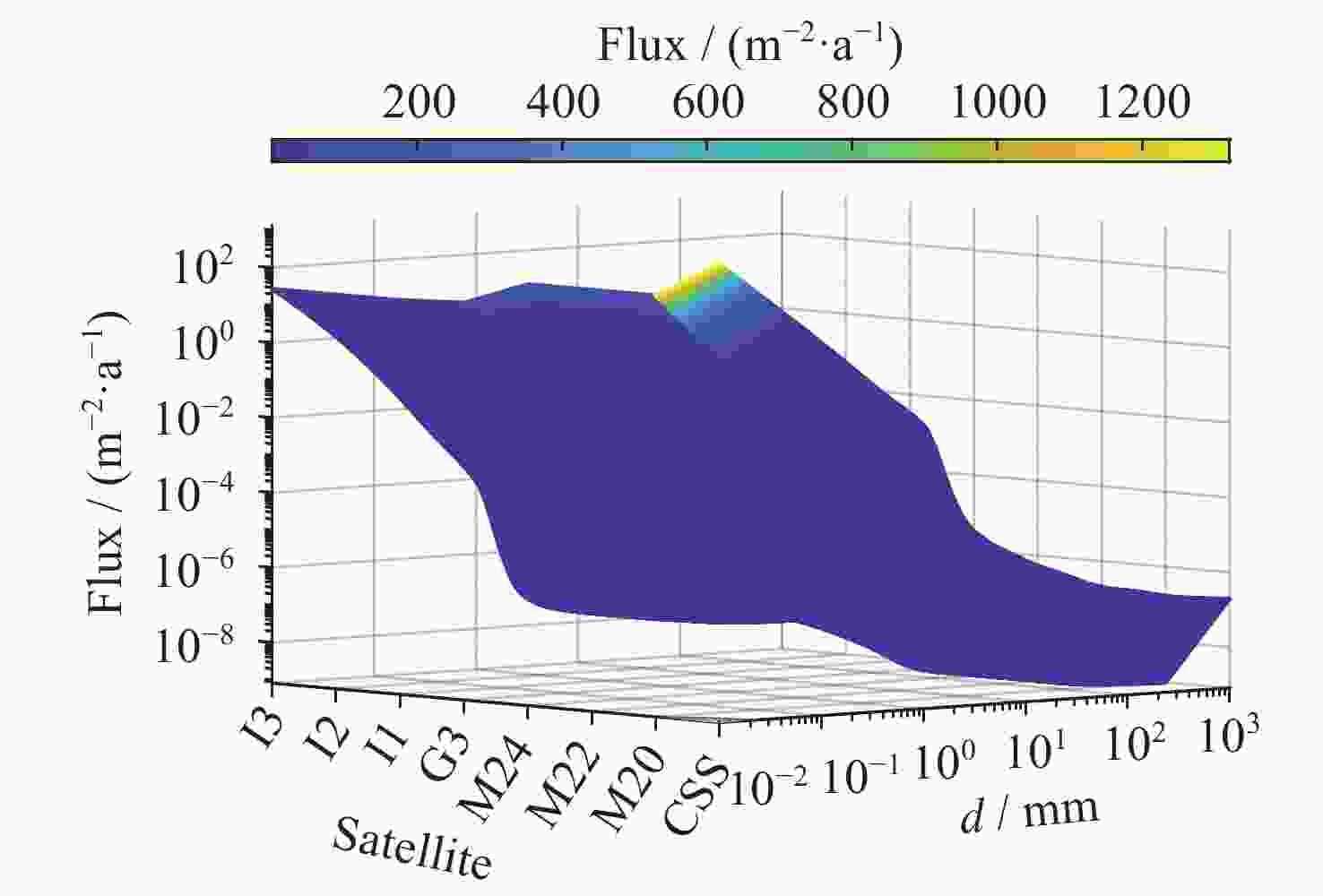

Figure 17. Space debris flux of the 8 satellites orbiting the Earth in terms of the debris size, where each line represents the flux for a certain satellite and size

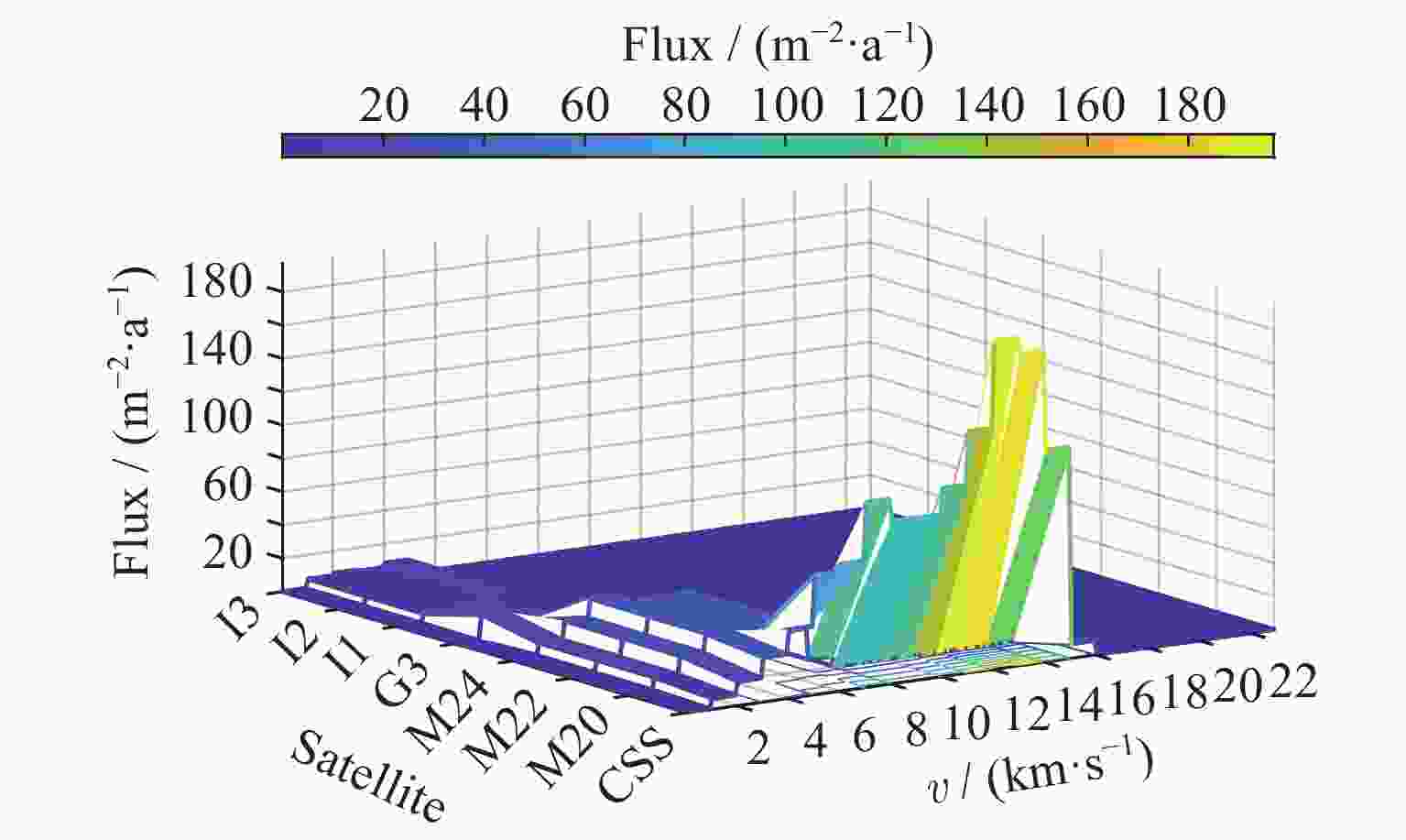

Figure 18. Fluxes of space debris with a size greater than 10 μm encountering the 8 satellites shown as the function of the impact velocity, where each line represents the flux for a certain satellite and velocity

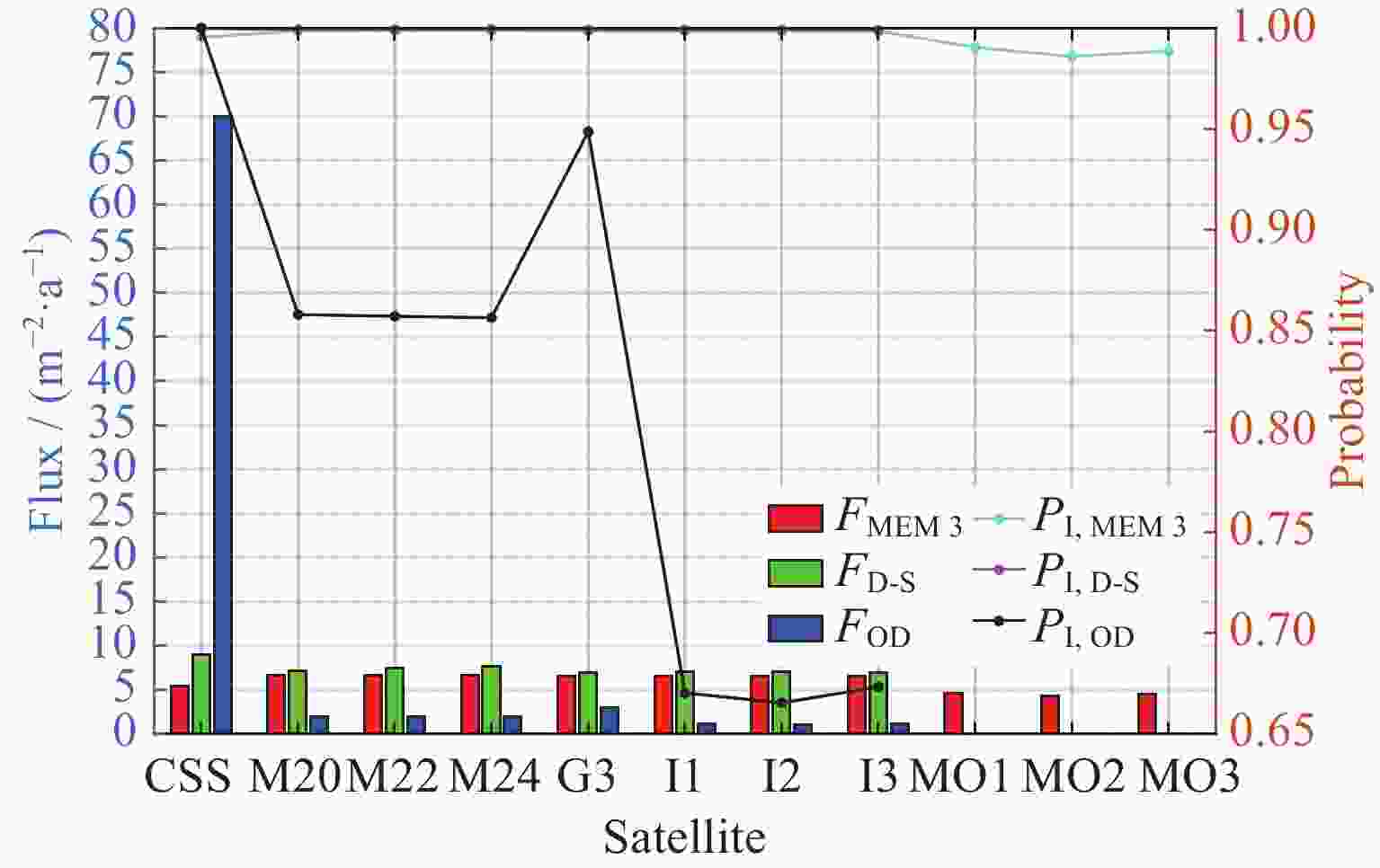

Table 1. Characteristic parameters of the 8 satellites in the Earth orbit space
Satellite Mass/kg Average altitude/km CSS 900 000 393 M20 1060 21528 M22 1060 21528 M24 1060 21528 G3 5400 35786 I1 5400 35786 I2 5400 35786 I3 5400 35786
下载: 导出CSV
Table 2. Characteristic parameters and initial Kepler orbital elements of the 3 satellites orbiting the Moon, where m is the mass, h is the average altitude, a is the semi-major axis, e is the eccentricity, i is the orbital inclination, Ω is the right ascension of ascending node,ω is the argument of perilune, and M is the mean anomaly
Satellite m /kg h /km a /km e i /(°) Ω /(°) ω/ (°) M /(°) MO1 2350 194.65 1932.85 0 90 104 0 296 MO2 2480 100 1837.83 0 90 104 0 296 MO3 2480 100 1944 0.01 31 104 74 296
下载: 导出CSV
Table 3. Material properties for aluminum Al-6061-T6
ρ /(kg·m–3) Brinell hardness σ /MPa 2713 95 276
下载: 导出CSV
-
[1] REN S Y, YANG X H, WANG R L, et al. The interaction between the LEO satellite constellation and the space debris environment[J]. Applied Sciences, 2021, 11(20): 9490 doi: 10.3390/app11209490 [2] ADAMIŠINOVÁ A. European Space Traffic Management System: Micrometeoroids and Space Debris as a Possible Threat for Future Missions[R]. Brno: Mendel University, 2022 [3] BOLEY A C, BYERS M. Satellite mega-constellations create risks in Low Earth Orbit, the atmosphere and on Earth[J]. Scientific Reports, 2021, 11(1): 10642 doi: 10.1038/s41598-021-89909-7 [4] DUZELLIER S, GORDO P, MELICIO R, et al. Space debris generation in GEO: Space materials testing and evaluation[J]. Acta Astronautica, 2022, 192: 258-275 doi: 10.1016/j.actaastro.2021.12.036 [5] OIKONOMIDOU X, BRAUN V, LEMMENS S. Guidelines for space debris and meteoroid impact risk assessment with DRAMA/MIDAS[C]//8 th European Conference on Space Debris. Darmstadt, Germany: ESA Space Debris Office, 2021 [6] COOKE W, MATNEY M, MOORHEAD A V, et al. A comparison of damaging meteoroid and orbital debris fluxes in earth orbit[C]//7 th European Conference on Space Debris. Darmstadt, Germany: ESA Space Debris Office, 2017 [7] MOORHEAD A V, MATNEY M. The ratio of hazardous meteoroids to orbital debris in near-earth space[J]. Advances in Space Research, 2021, 67(1): 384-392 doi: 10.1016/j.asr.2020.09.015 [8] KRAG H, SERRANO M, BRAUN V, et al. A 1 cm space debris impact onto the Sentinel-1 A solar array[J]. Acta Astronautica, 2017, 137: 434-443 doi: 10.1016/j.actaastro.2017.05.010 [9] HOFFMAN K D, HYDE J L, CHRISTIANSEN E L, et al. Extravehicular activity micrometeoroid and orbital debris risk assessment methodology[C]//Proceedings of the 2019 Hypervelocity Impact Symposium. Destin, FL, USA: American Society of Mechanical Engineers, 2019 [10] HOFFMAN K, HYDE J L, CHRISTIANSEN E L, et al. Comparison of risk from orbital debris and meteoroid environment models on the Extravehicular Mobility Unit (EMU)[C]//Proceedings of the 1 st International Orbital Debris Conference (IOC). Houston, Texas, United States, 2019 [11] EVANS H J, HYDE J L, CHRISTANSEN E L, et al. Consequences of micrometeoroid/orbital debris penetrations on the international space station[C]//Proceedings of the 2019 Hypervelocity Impact Symposium. Destin, FL, USA: American Society of Mechanical Engineers, 2019 [12] HYDE J L, CHRISTIANSEN E L, LEAR D M, et al. Surveys of returned ISS hardware for MMMOD impacts[C]//Proceedings of the 7 th European Conference on Space Debris. Darmstadt, Germany: ESA, 2017 [13] OLIVIERI L, FRANCESCONI A. Large constellations assessment and optimization in LEO space debris environment[J]. Advances in Space Research, 2020, 65(1): 351-363 doi: 10.1016/j.asr.2019.09.048 [14] PANOV D V, SILNIKOV M V, MIKHAYLIN A I, et al. Large-scale shielding structures in low earth orbits[J]. Acta Astronautica, 2015, 109: 153-161 doi: 10.1016/j.actaastro.2014.12.009 [15] Moorhead A V. NASA Meteoroid Engineering Model (MEM) Version 3[R]. 2020. [16] EHLERT S. Modeling meteoroid densities for spacecraft risk assessment[J]. Journal of Space Safety Engineering, 2020, 7(3): 249-254 doi: 10.1016/j.jsse.2020.06.001 [17] BRAUN V, HORSTMANN A, LEMMENS S, et al. Recent developments in space debris environment modelling, verification and validation with MASTER[C]//Proceedings of the 8 th European Conference on Space Debris. Darmstadt, Germany: ESA Space Debris Office, 2021 [18] BRAUN V. Impact of debris model updates on risk assessments[C]//Proceedings of the 1 st NEO and Space Debris Detection Conference. Darmstadt, Germany: ESA Space Debris Office, 2019 [19] Flegel S, Gelhaus J, Möckel M, et al. Maintenance of the ESA MASTER Model[J]. Final Report, 2011, 21705(08) [20] JENNISKENS P. Meteor stream activity I. The annual streams[J]. Astronomy and Astrophysics, 1994, 287: 990-1013 [21] Vavrin, Andrew B. , et al. NASA Orbital Debris Engineering Model ORDEM 3.1-Software User Guide. No. JSC-E-DAA-TN75767. 2019 [22] MANIS A, MATNEY M, ANZ-MEADOR P, et al. The Updated GEO Population for ORDEM 3.1[C]//Proceedings of the 1 st International Orbital Debris Conference. Houston, Texas, United States, 2019 [23] RODMANN J, MILLER A, TRAUD M, et al. Micrometeoroid impact risk assessment for interplanetary missions//8 th European Conference on Space Debris. Darmstadt, Germany: ESA Space Debris Office, 2021 [24] RYAN S, CHRISTIANSEN E L. A ballistic limit analysis programme for shielding against micrometeoroids and orbital debris[J]. Acta Astronautica, 2011, 69(5/6): 245-257 [25] CHRISTIANSEN E L. Design and performance equations for advanced meteoroid and debris shields[J]. International Journal of Impact Engineering, 1993, 14(1/4): 145-156 [26] MOORHEAD A V, KINGERY A, EHLERT S. NASA’s meteoroid engineering model 3 and its ability to replicate spacecraft impact rates[J]. Journal of Spacecraft and Rockets, 2020, 57(1): 160-176 doi: 10.2514/1.A34561 [27] BUSLOV E P, KOMAROV I S, SELIVANOV V V, et al. Protection of inflatable modules of orbital stations against impacts of particles of space debris[J]. Acta Astronautica, 2019, 163: 54-61 doi: 10.1016/j.actaastro.2019.04.046 [28] LE MAY S, GEHLY S, CARTER B A, et al. Space debris collision probability analysis for proposed global broadband constellations[J]. Acta Astronautica, 2018, 151: 445-455 doi: 10.1016/j.actaastro.2018.06.036 [29] TORKY M, HASSANEIN A E, EL FIKY A H, et al. Analyzing space debris flux and predicting satellites collision probability in LEO orbits based on petri nets[J]. IEEE Access, 2019, 7: 83461-83473 doi: 10.1109/ACCESS.2019.2922835 [30] Christiansen, Eric L. Meteoroid/debris shielding. No. S-898. Houston: National Aeronautics and Space Administration, Lyndon B. Johnson Space Center, 2003 [31] HU D Q, CHI R Q, LIU Y Y, et al. Sensitivity analysis of spacecraft in micrometeoroids and orbital debris environment based on panel method[J]. Defence Technology, 2023, 19: 126-142 doi: 10.1016/j.dt.2021.11.001 [32] MOORHEAD A V. Meteoroid environment modeling: The meteoroid engineering model and shower forecasting[C]//Proceedings of the Applied Space Environments Conference (ASEC) 2017: Measurements, Models, Testing & Tools. Huntsville, AL USA, 2017 [33] MURTAZOV A K. Assessing the meteoroid risk in near earth space[J]. Open Astronomy, 2018, 27(1): 144-149 doi: 10.1515/astro-2018-0025 [34] DROLSHAGEN G. Impact effects from small size meteoroids and space debris[J]. Advances in Space Research, 2008, 41(7): 1123-1131 doi: 10.1016/j.asr.2007.09.007 -
-
