Advance in Ocean Satellite Radar Altimetry Technology
-
摘要: 雷达高度计是一种主动式的微波遥感器，可以提供全球海面高度、有效波高和海面风速数据，利用雷达高度计测得的数据可以进一步用于海洋动力学、海面地形、海洋重力异常和海底地形等方面的研究。经过近50年的发展，雷达测高技术已取得巨大进展，从载荷设计、数据处理到实际应用都积累了大量成果，雷达测高数据不仅用于海洋研究，还广泛用于内陆水域水位变化、海冰厚度变化、冰川质量平衡和异常气候影响等方面研究。本文根据雷达测高技术的基本原理，分析了海洋卫星雷达测高技术发展的现状，并对未来的发展进行了展望。Abstract: Radar altimeter is an active microwave remote sensor, which is able to provide global Sea Surface Height (SSH), Significant Wave Height (SWH) and sea surface wind speed measurements. Radar altimetry data can be further used for study of ocean dynamics, sea surface topography, marine gravity anomalies, seafloor topography, global and regional sea level changes, etc. After decades of development, satellite radar altimetry has made great progress, from instrument design, data processing to application. Up to now, more than 20 radar altimetry satellites have been launched in the world. Radar altimetry data can be used not only for oceanographic research, but also widely used for inland water level changes, sea ice thickness changes, glacier mass balance and abnormal climate impacts. This paper mainly analyzes the basic principles, current development status and typical applications of satellite radar altimetry technology, and presents the prospects for future development.
-
Key words:
- Ocean satellite /
- Satellite altimetry /
- Radar altimeter /
- Sea surface height
-

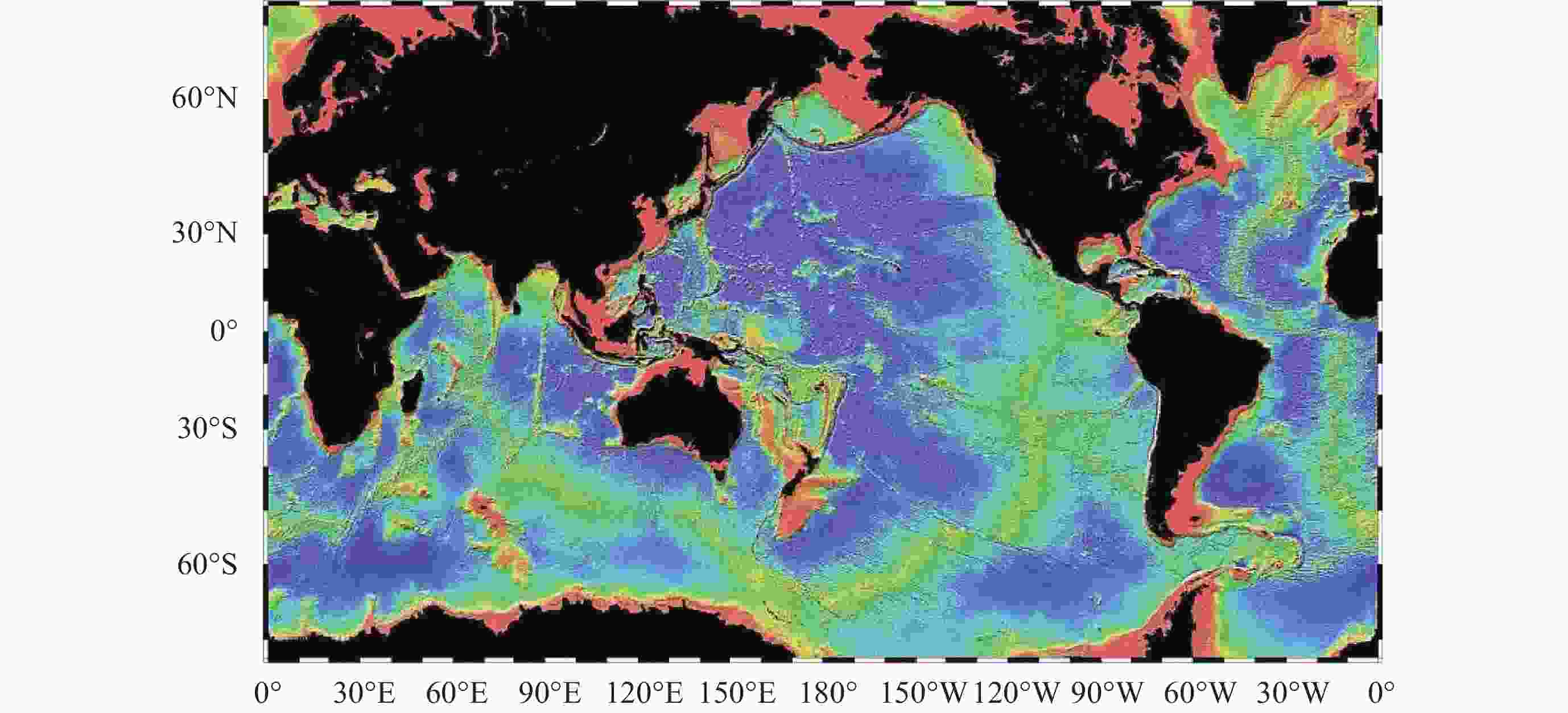

图 2 利用Geosat卫星雷达高度计得到的全球海底地形
Figure 2. Ocean seafloor map created from the Geosat altimetric data

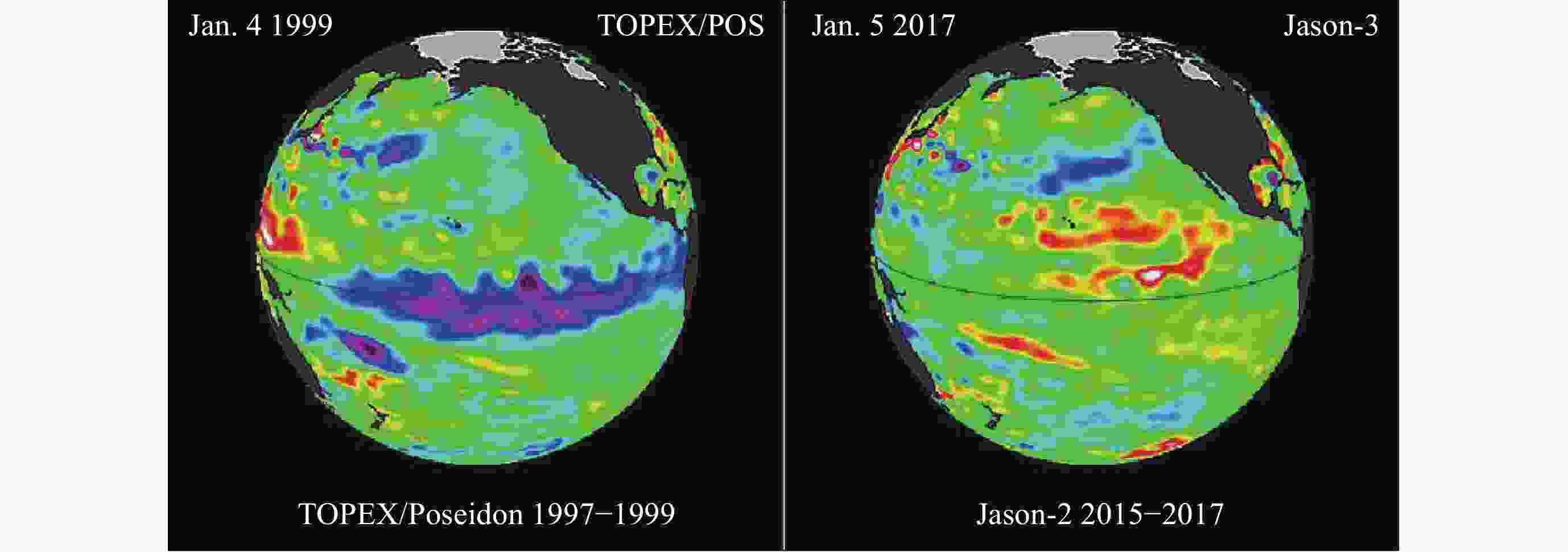

图 5 利用T/P卫星和Jason-2卫星雷达高度计监测到的1997－1999年和2015－2017年厄尔尼诺事件
Figure 5. El Niño events detected using the T/P and Jason-2 radar altimeters in 1997－1999 and 2015－2017

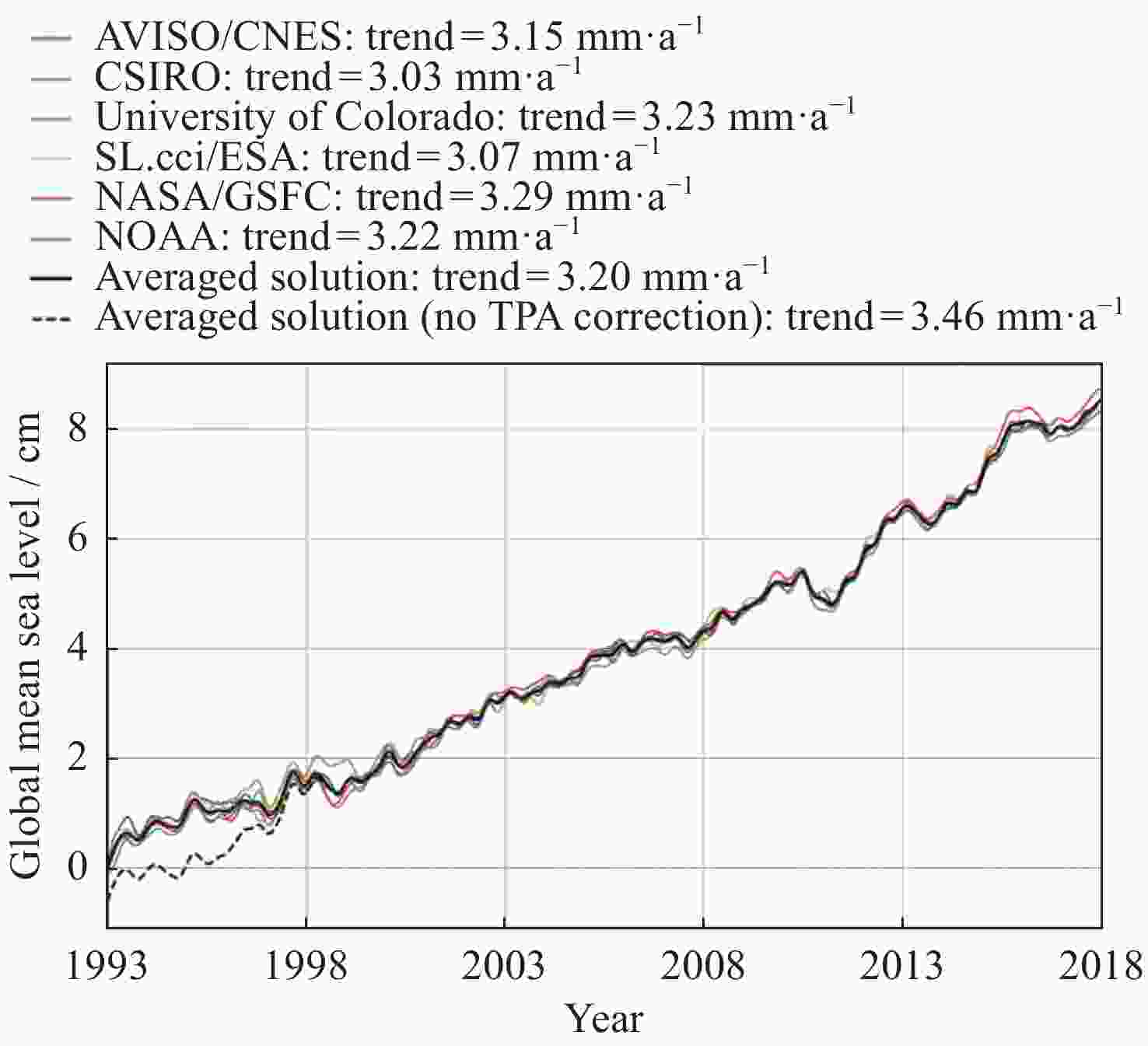

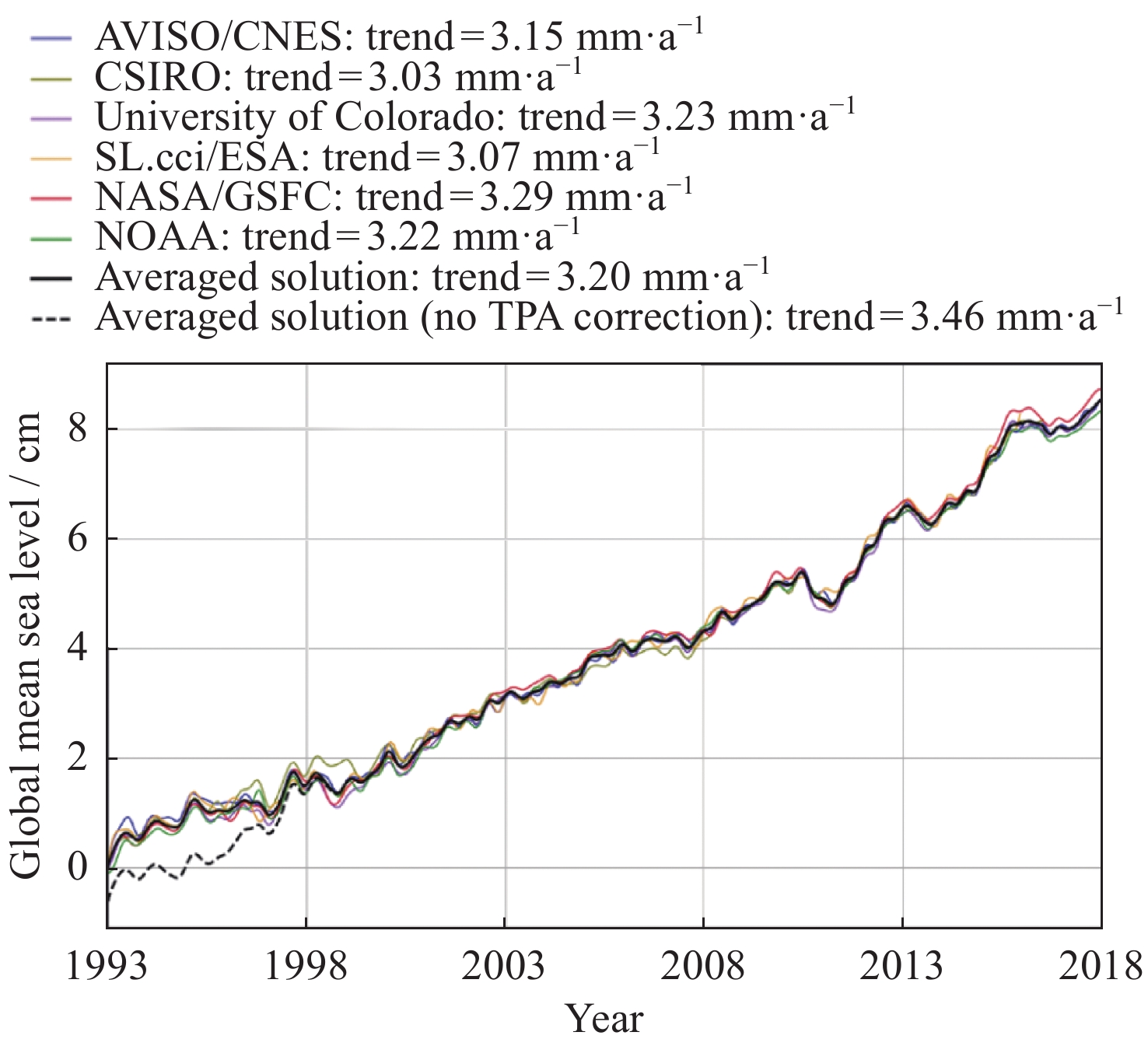

图 6 联合T/P，Jason-1，Jason-2和Jason-3卫星测高数据得到的全球海平面变化
Figure 6. Measuring global sea level rise derived from the Jason-1, Jason-2 and Jason-3 satellite altimetry data

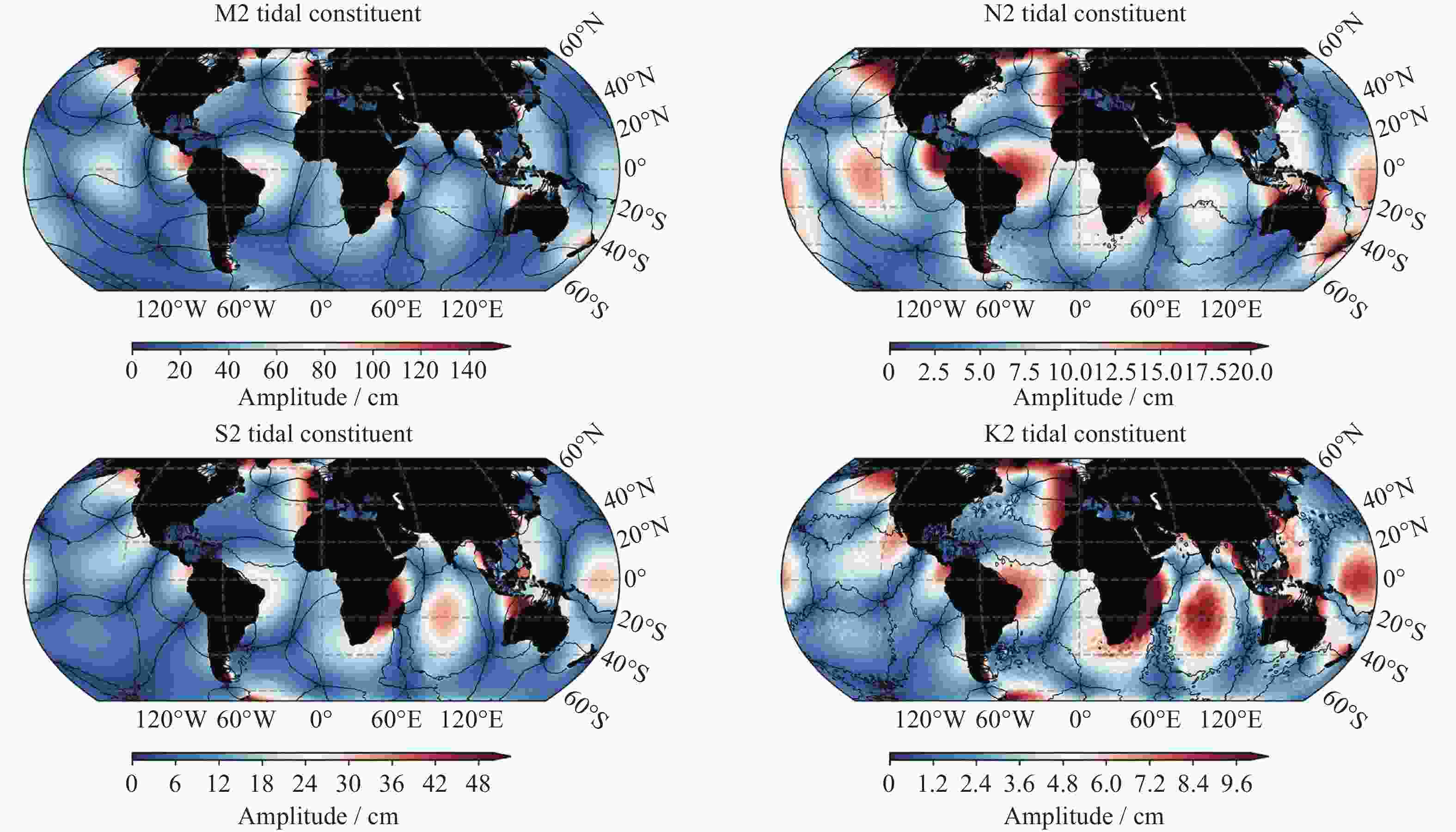

图 7 联合T/P，Jason-1，Jason-2和Jason-3等卫星测高数据得到的全球海洋潮汐模型
Figure 7. Global ocean tide model obtained by combining T/P, Jason-1, Jason-2, and Jason-3 satellite altimeter data

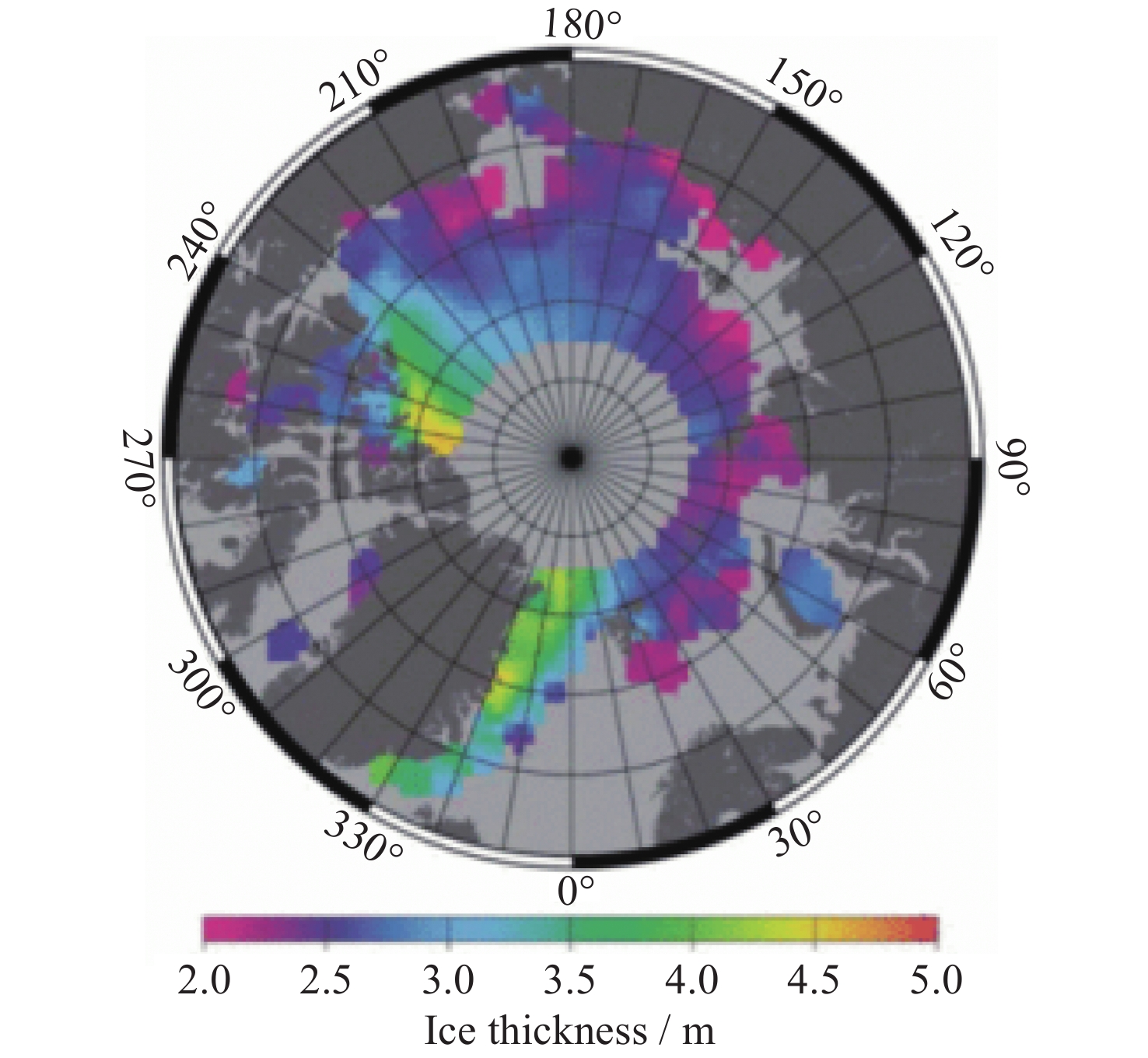

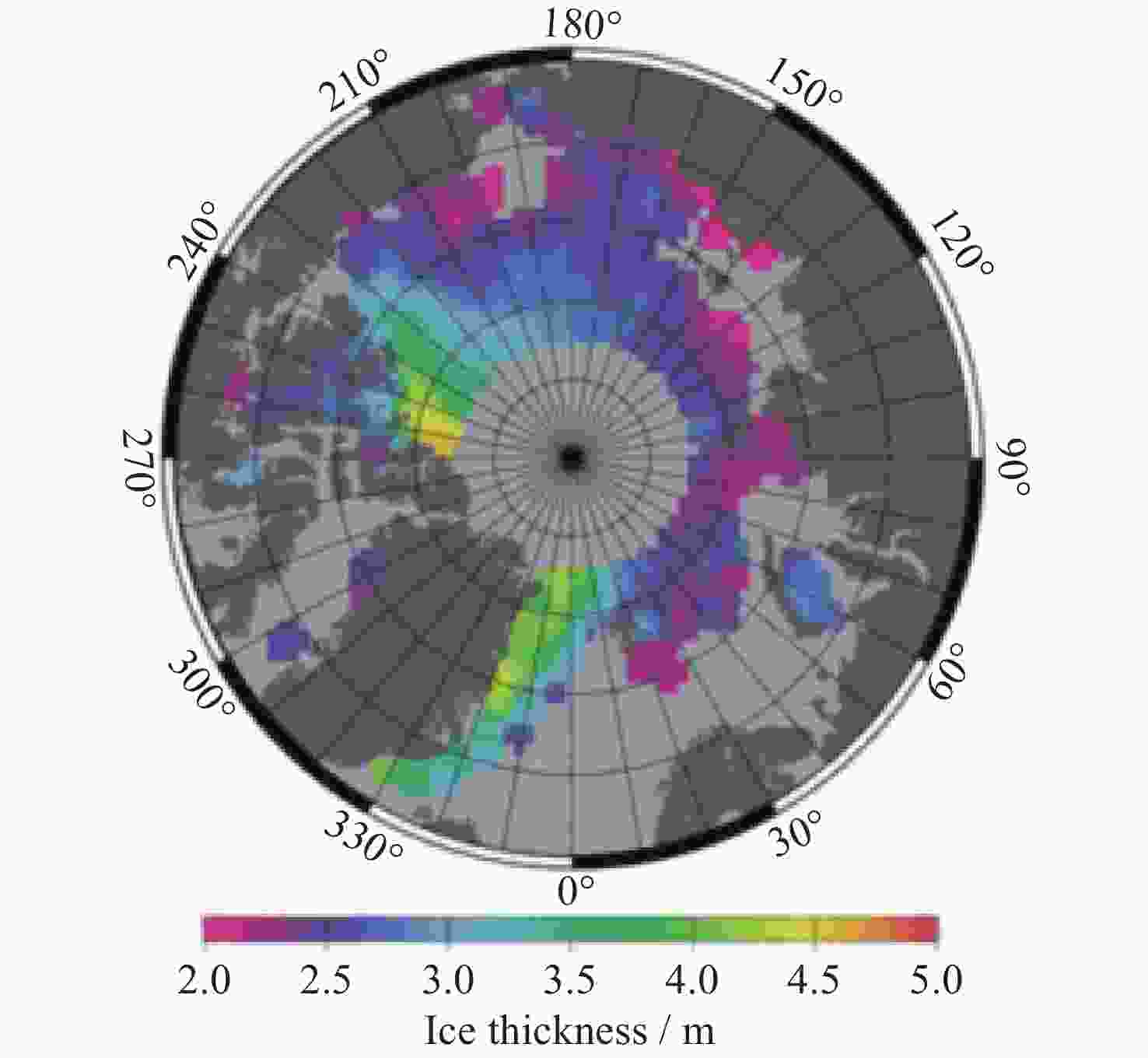

图 9 利用ERS-1和ERS-2卫星雷达高度计数据得到的北极海冰厚度
Figure 9. Arctic sea ice thickness derived from the ERS-1 and ERS-2 radar altimetry data

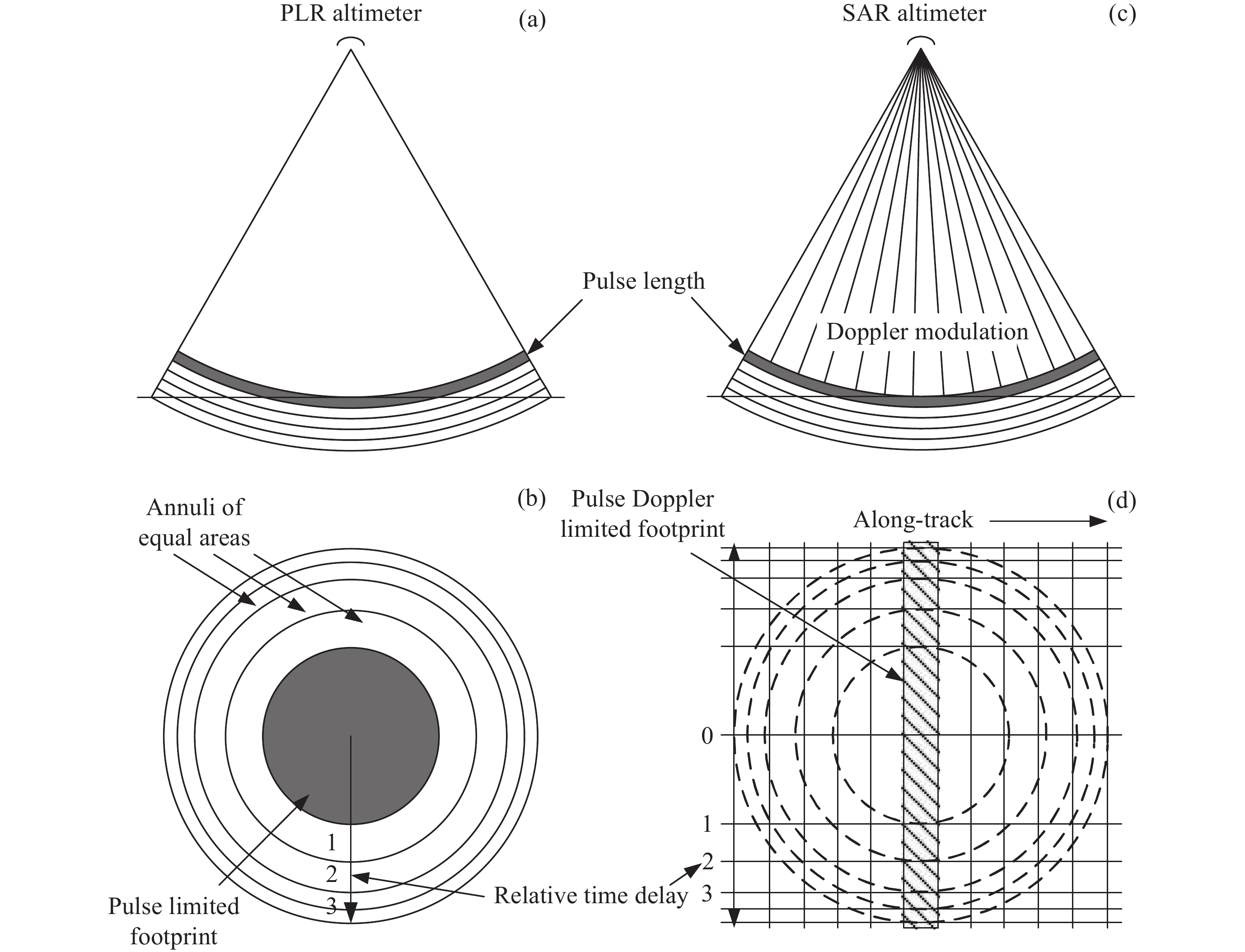

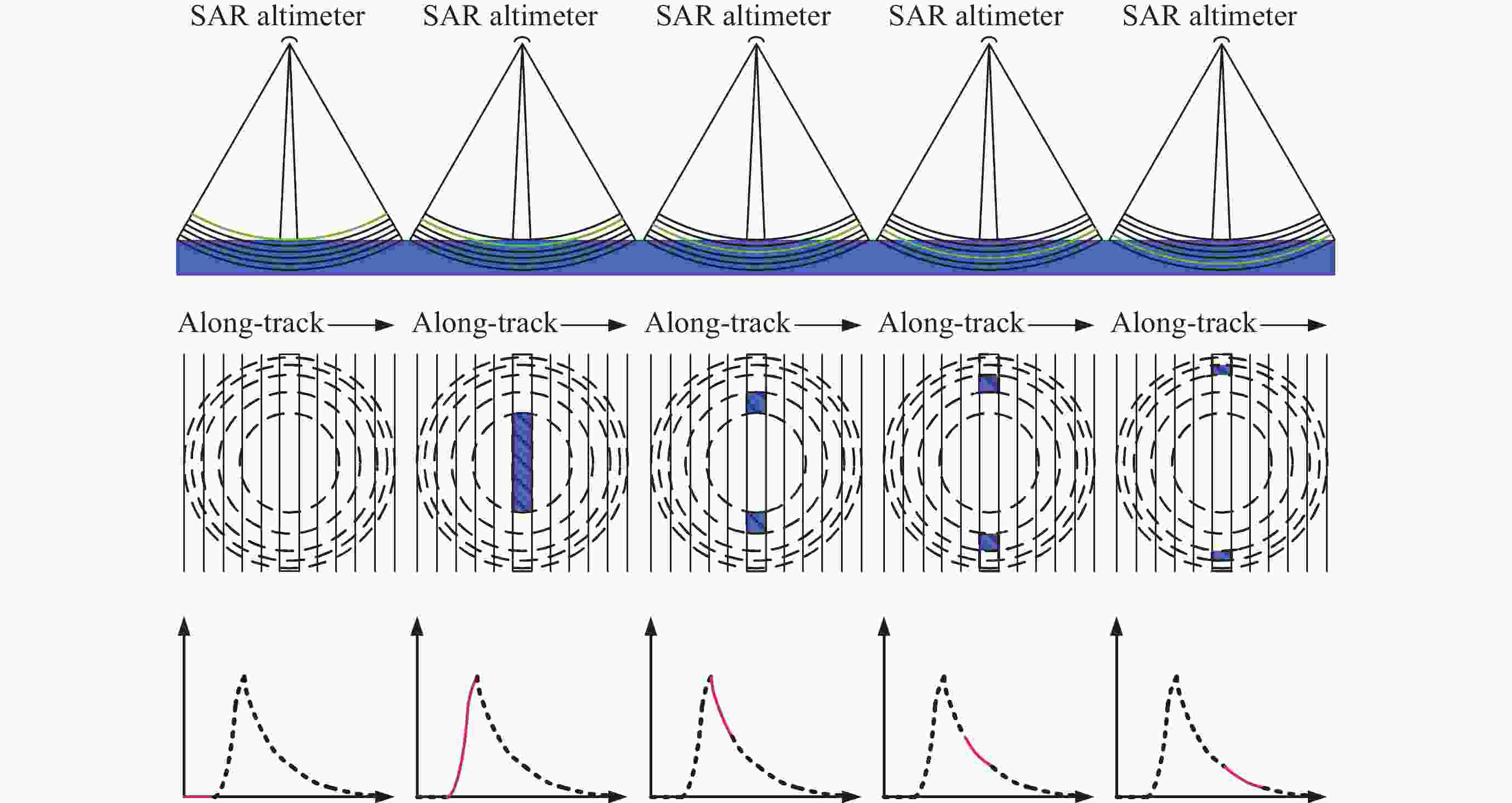

图 12 脉冲有限雷达高度计和合成孔径雷达高度计照亮足迹对比
Figure 12. Comparison of the footprint geometry between PLR altimeter and SAR altimeter

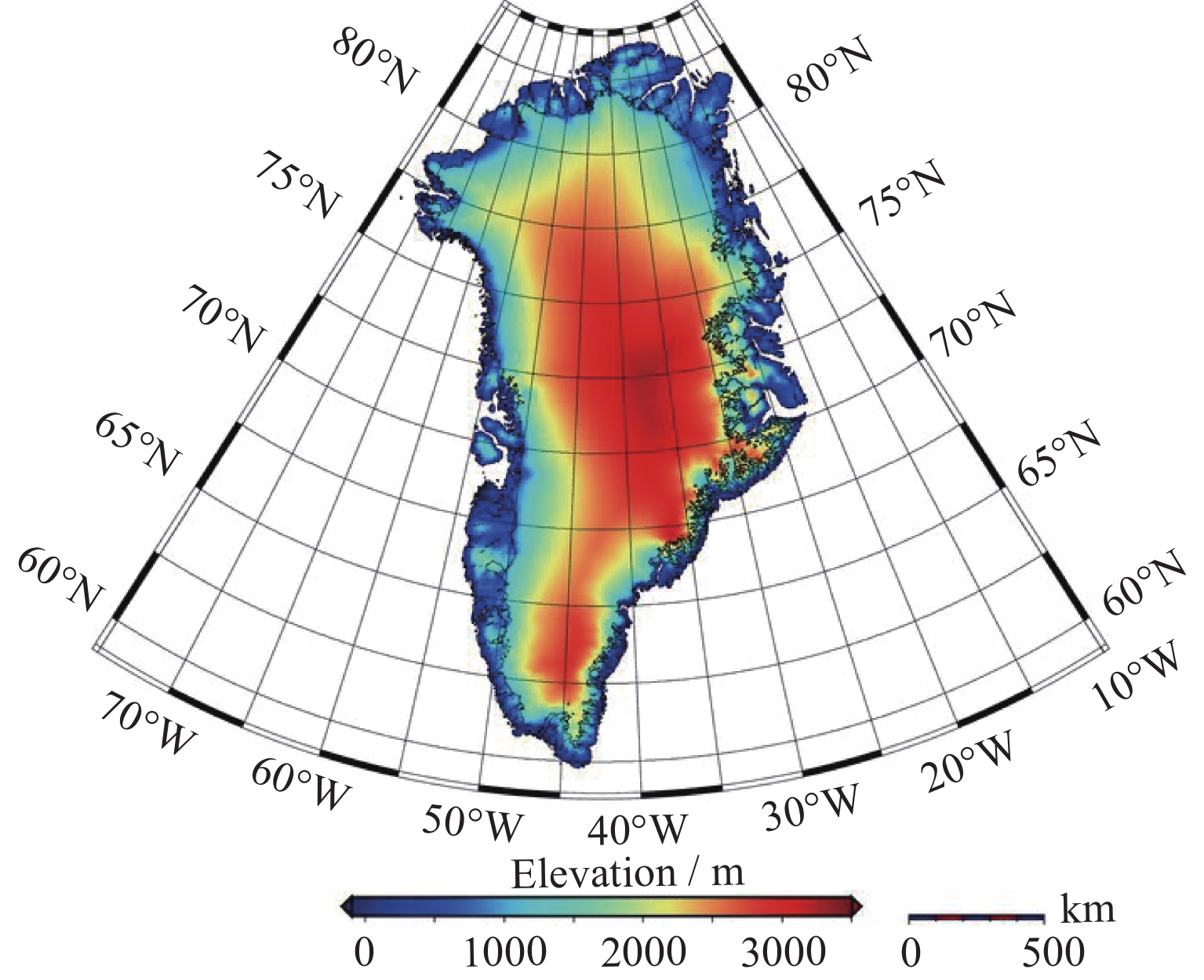

图 15 利用CryoSat-2雷达高度计数据生成的格陵兰岛冰盖数字高程模型
Figure 15. Ice elevation model of Greenland derived from CryoSat-2 radar altimetry data

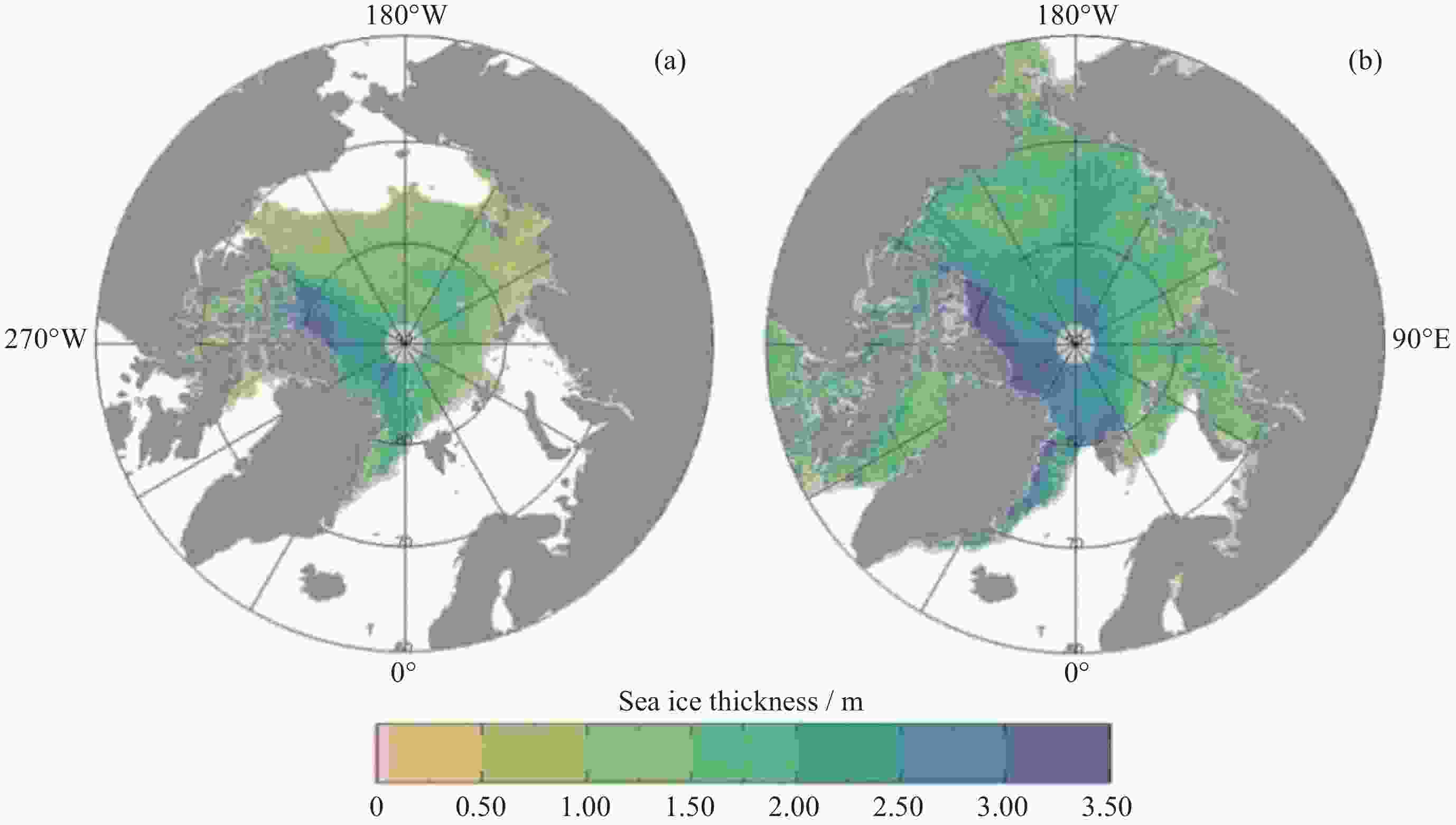

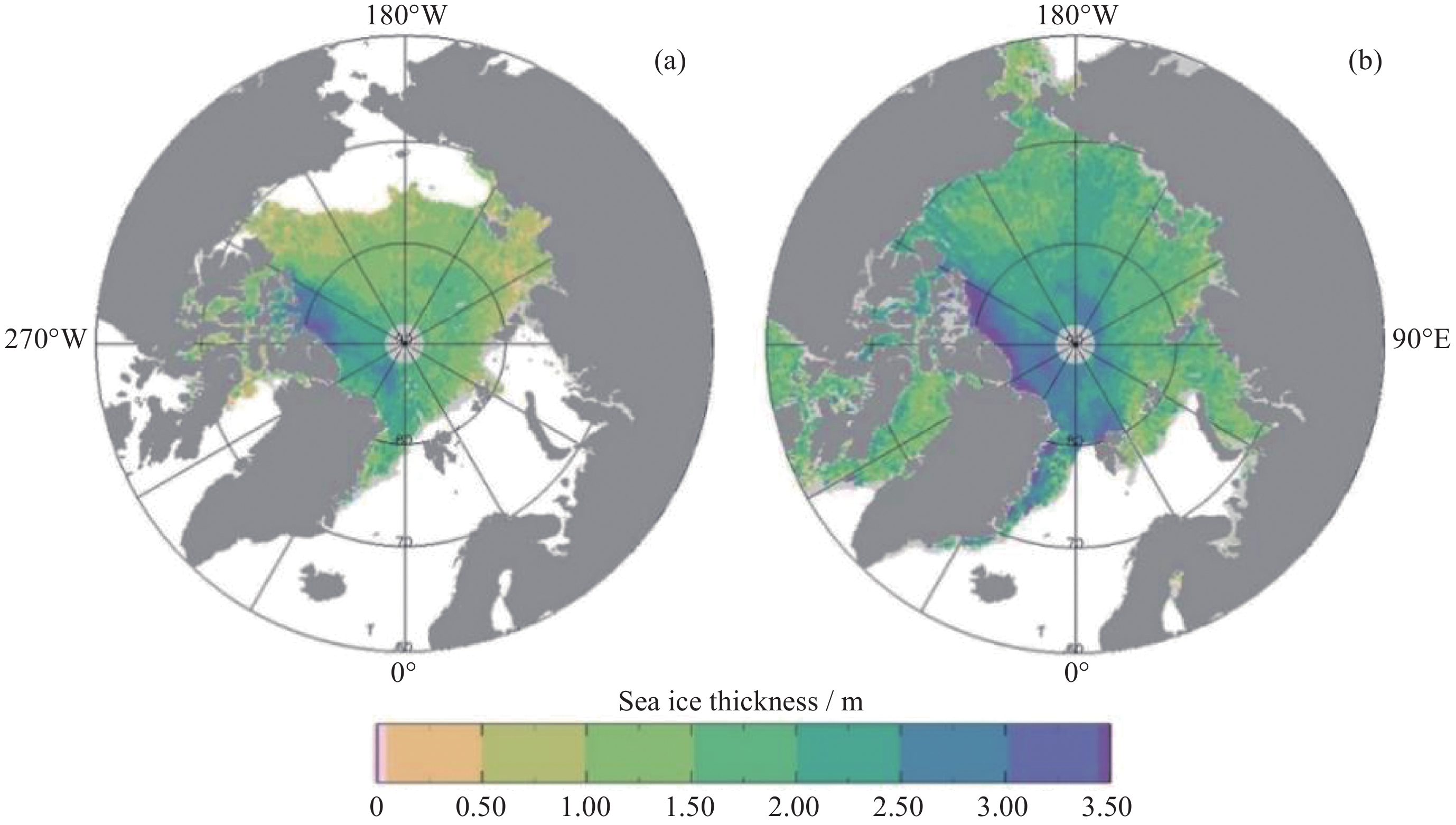

图 16 利用CryoSat-2雷达高度计数据反演的北极海冰厚度
Figure 16. Arctic sea ice thickness derived from the CryoSat-2 altimetry data

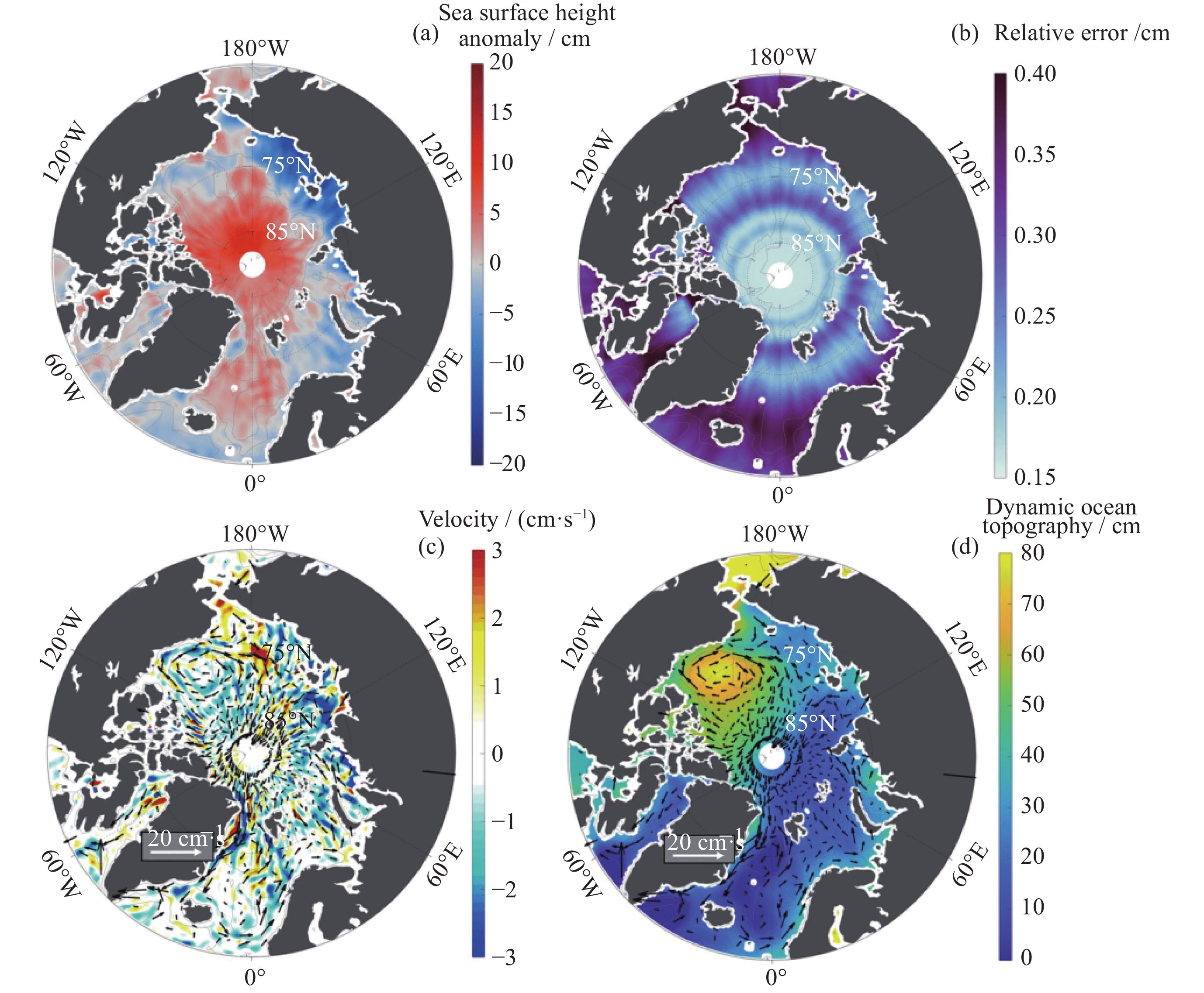

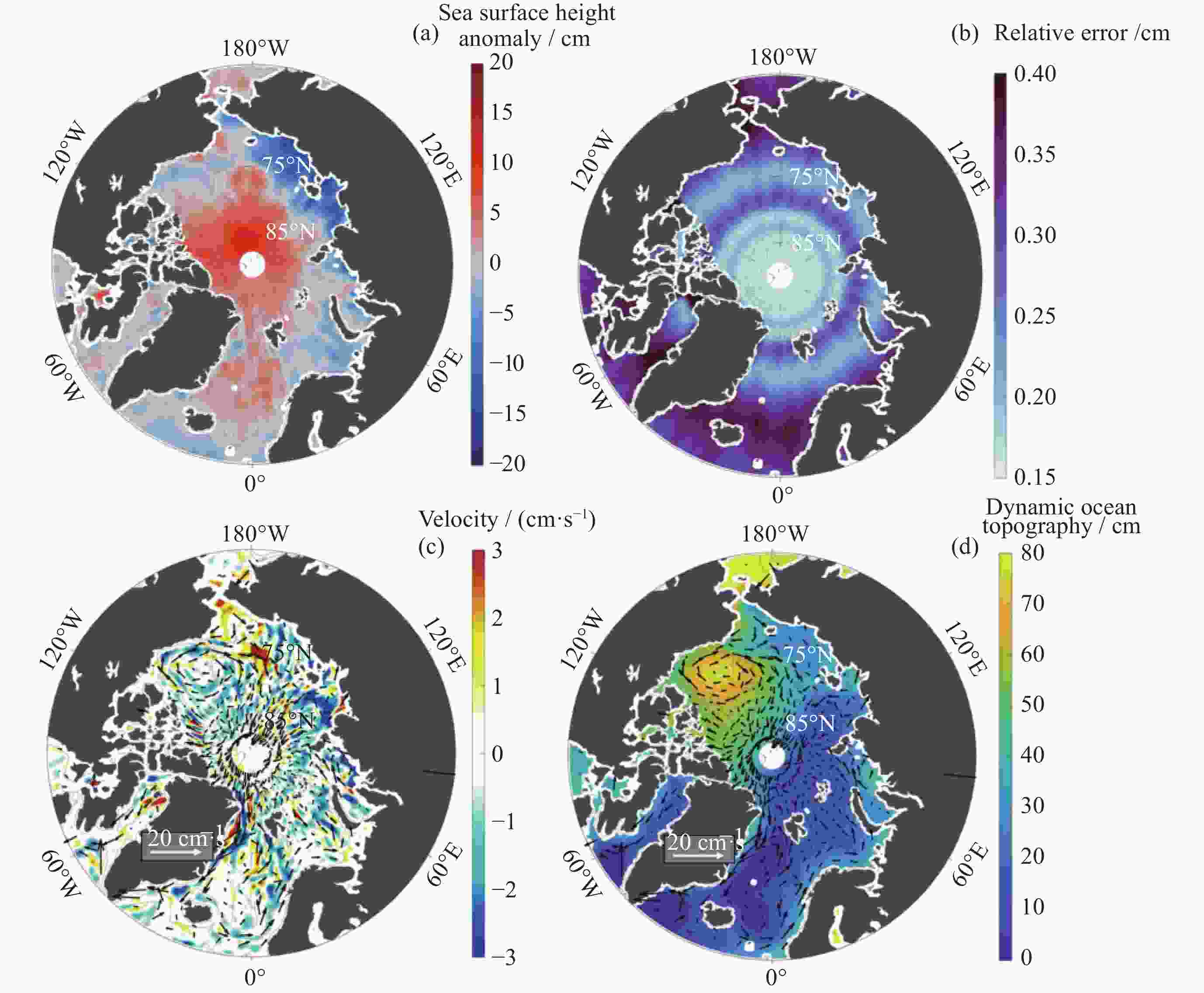

图 17 利用CryoSat-2测高数据获取的北极海面高度异常与地转流
Figure 17. Arctic sea level anomaly and geotrophic current derived from the CryoSat-2 radar altimetry data

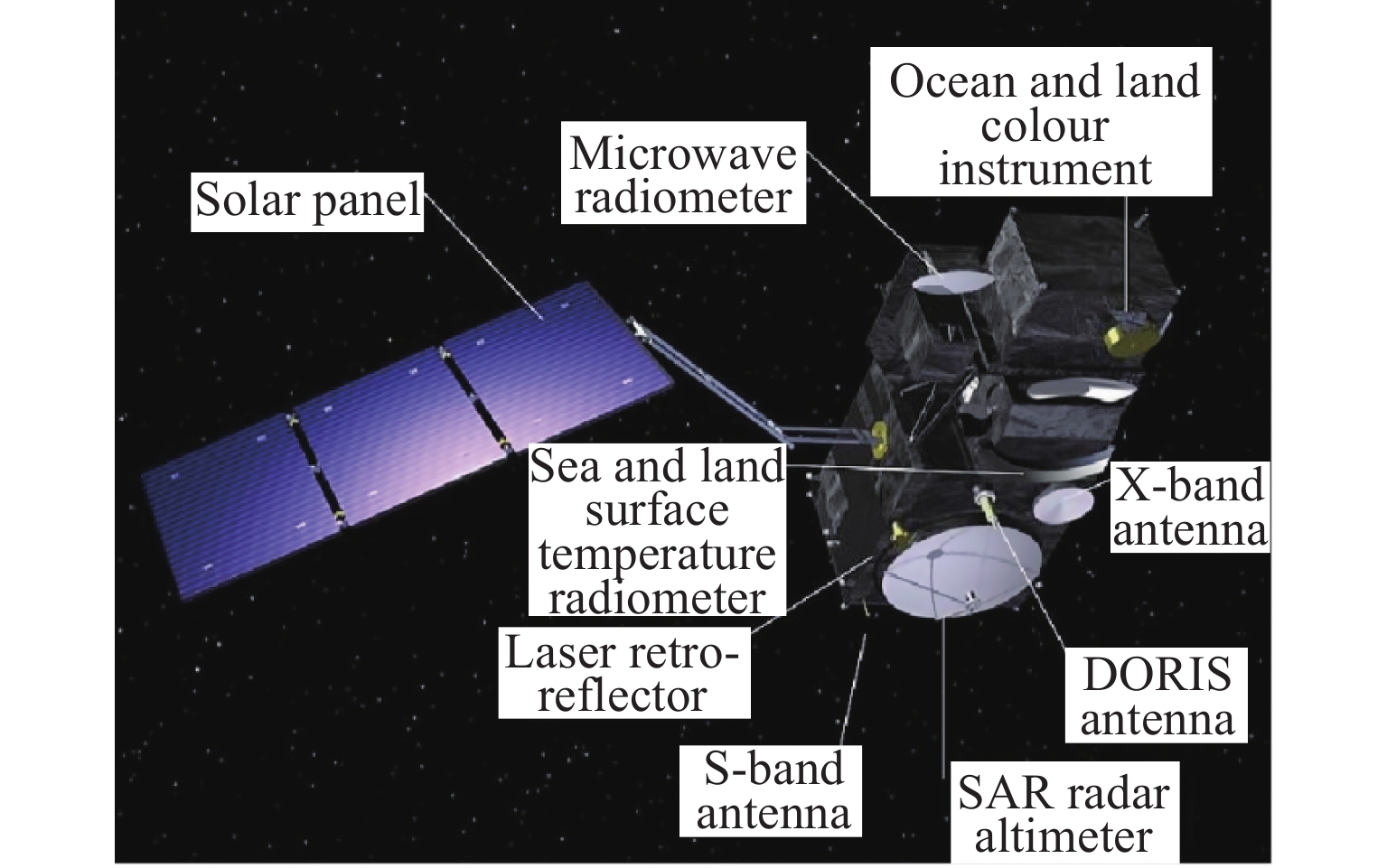

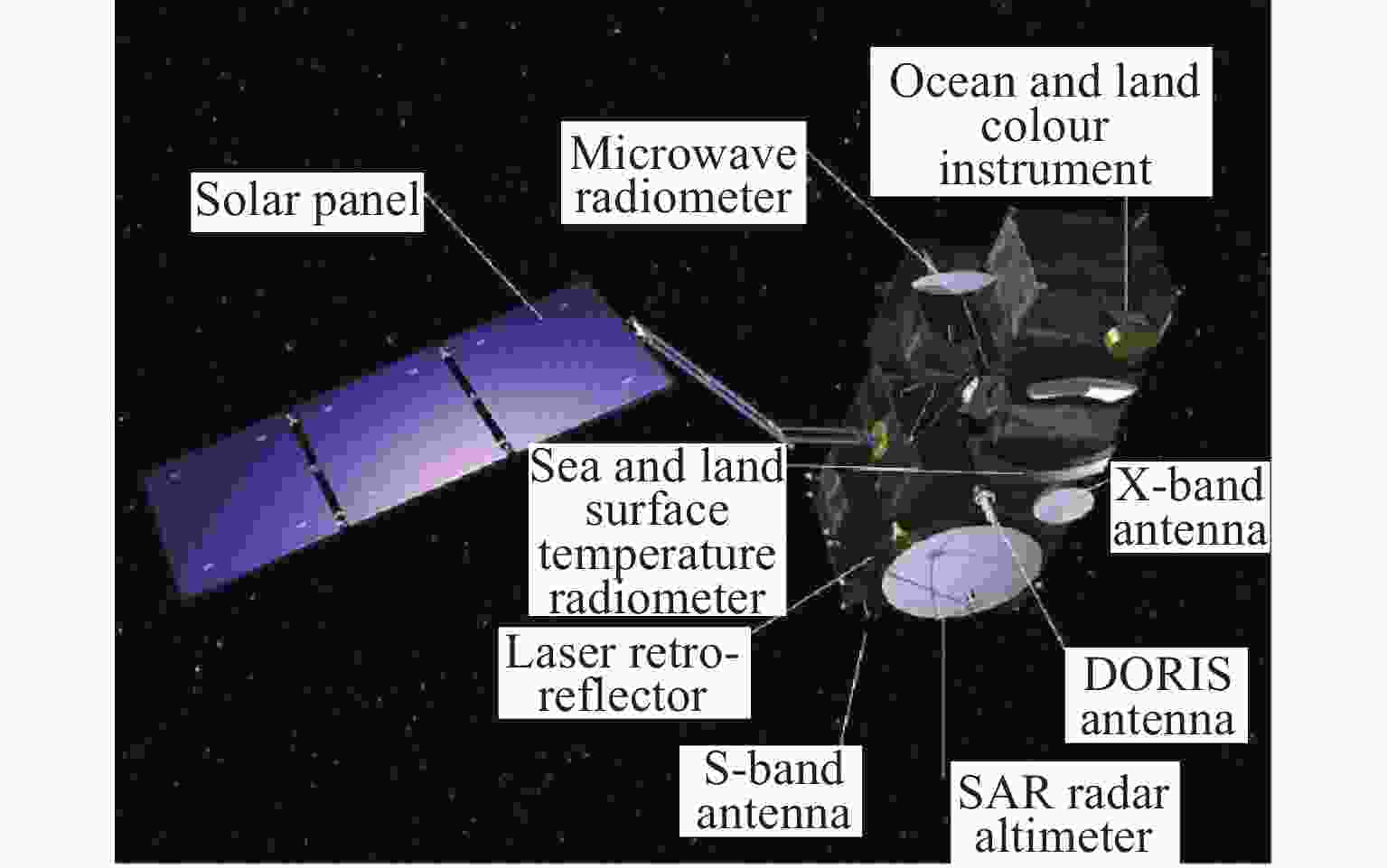

图 18 Sentinel-3卫星载荷分布
Figure 18. Alternate view of the Sentinel-3 spacecraft and the accommodation of the payload

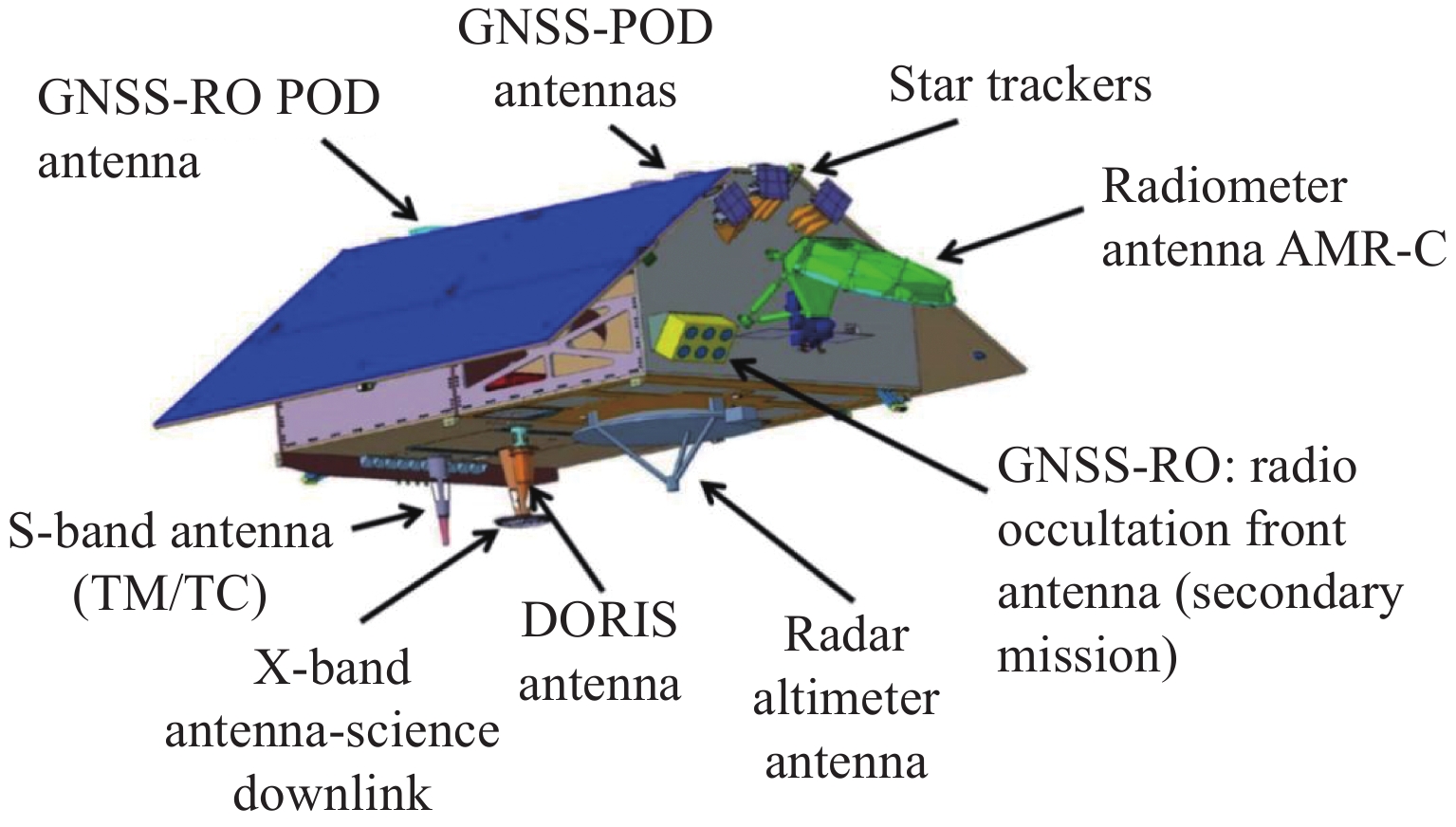

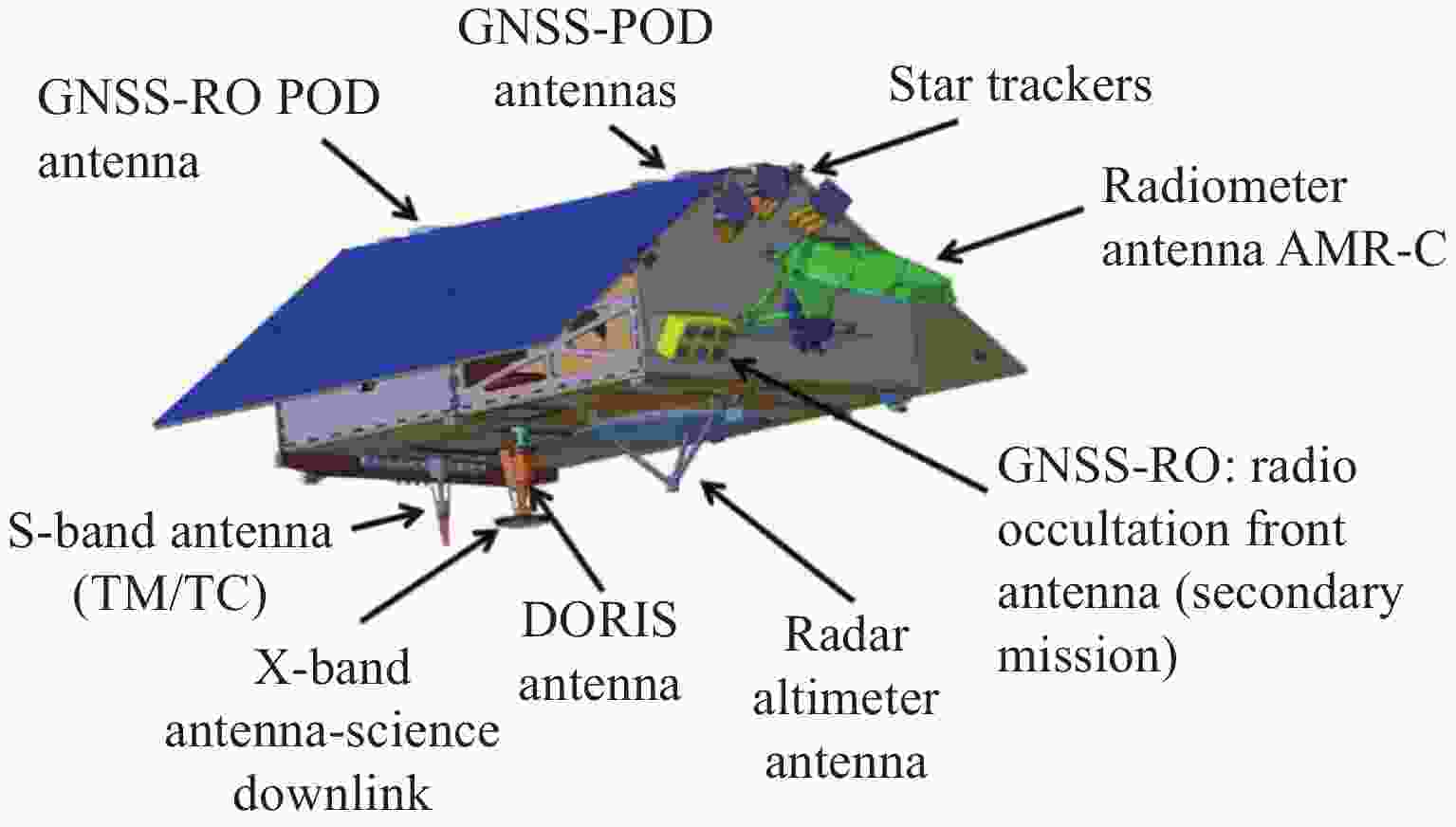

图 19 Sentinel-6 A卫星载荷分布
Figure 19. Alternate view of the Sentinel-6 A spacecraft and the accommodation of the payload

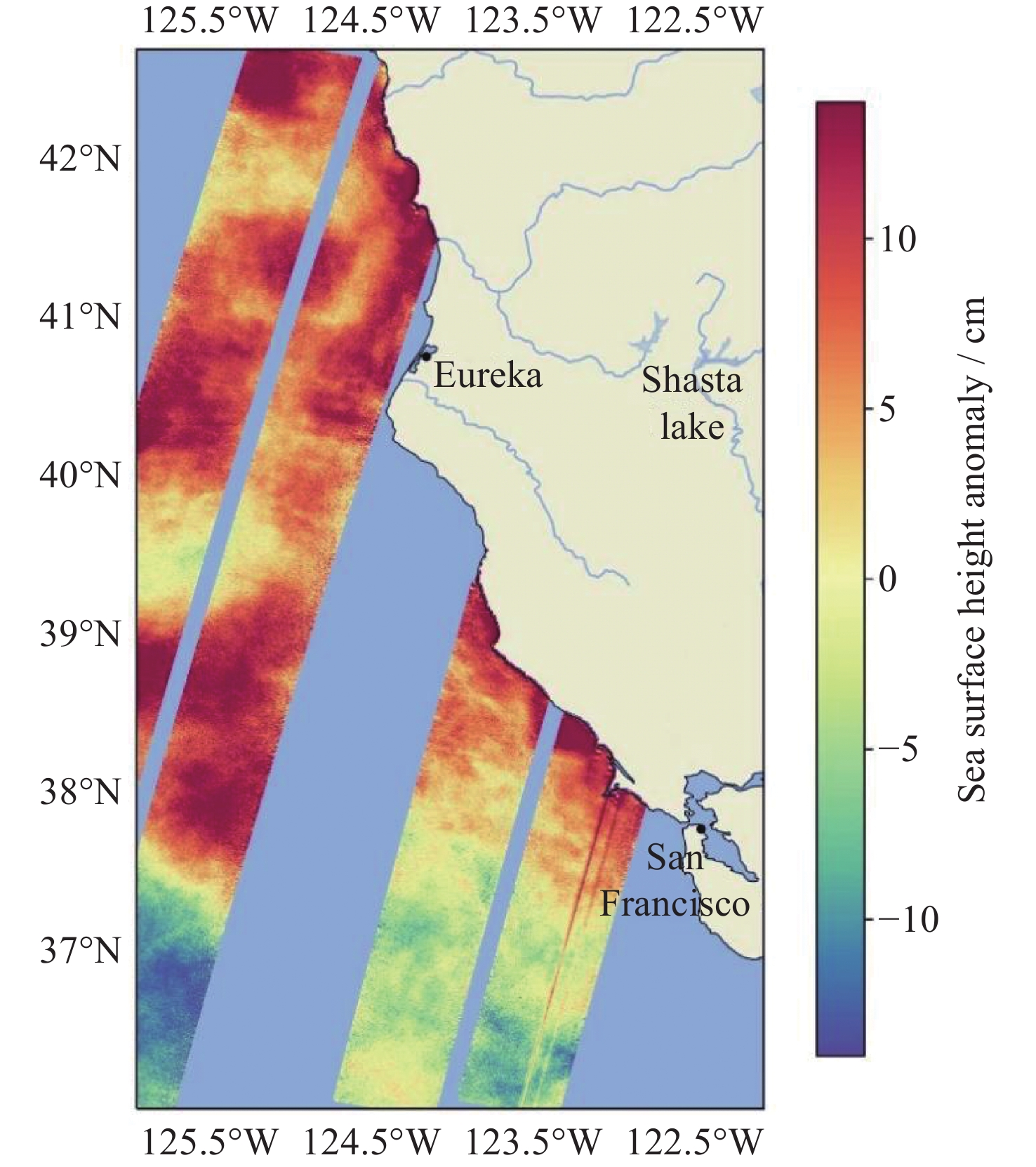

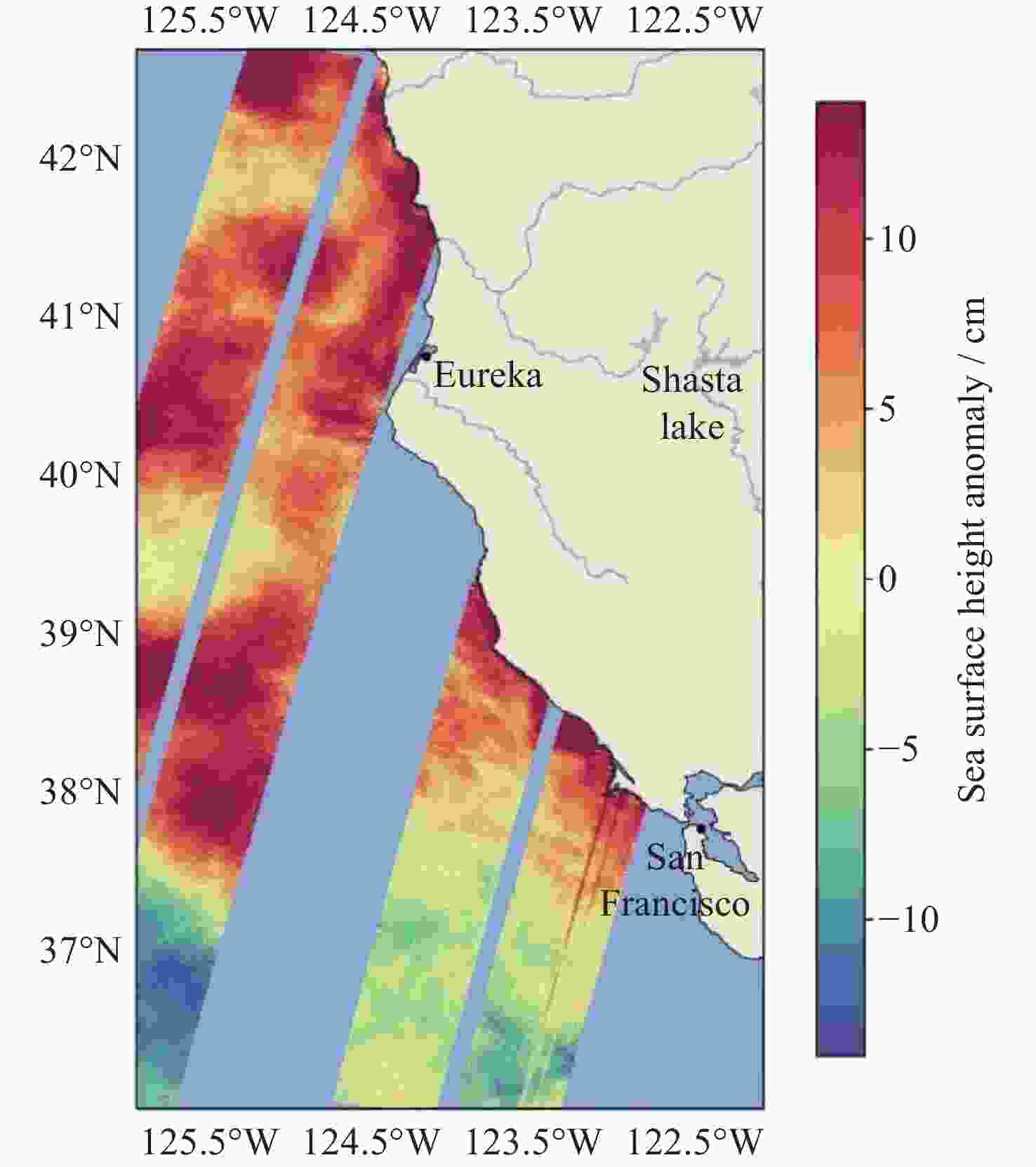

图 21 利用SWOT干涉测高仪获取的加利福尼亚州北部海岸海面高度异常
Figure 21. Sea surface height anomalies along the northern coast of California measured by the SWOT interferometric altimeter

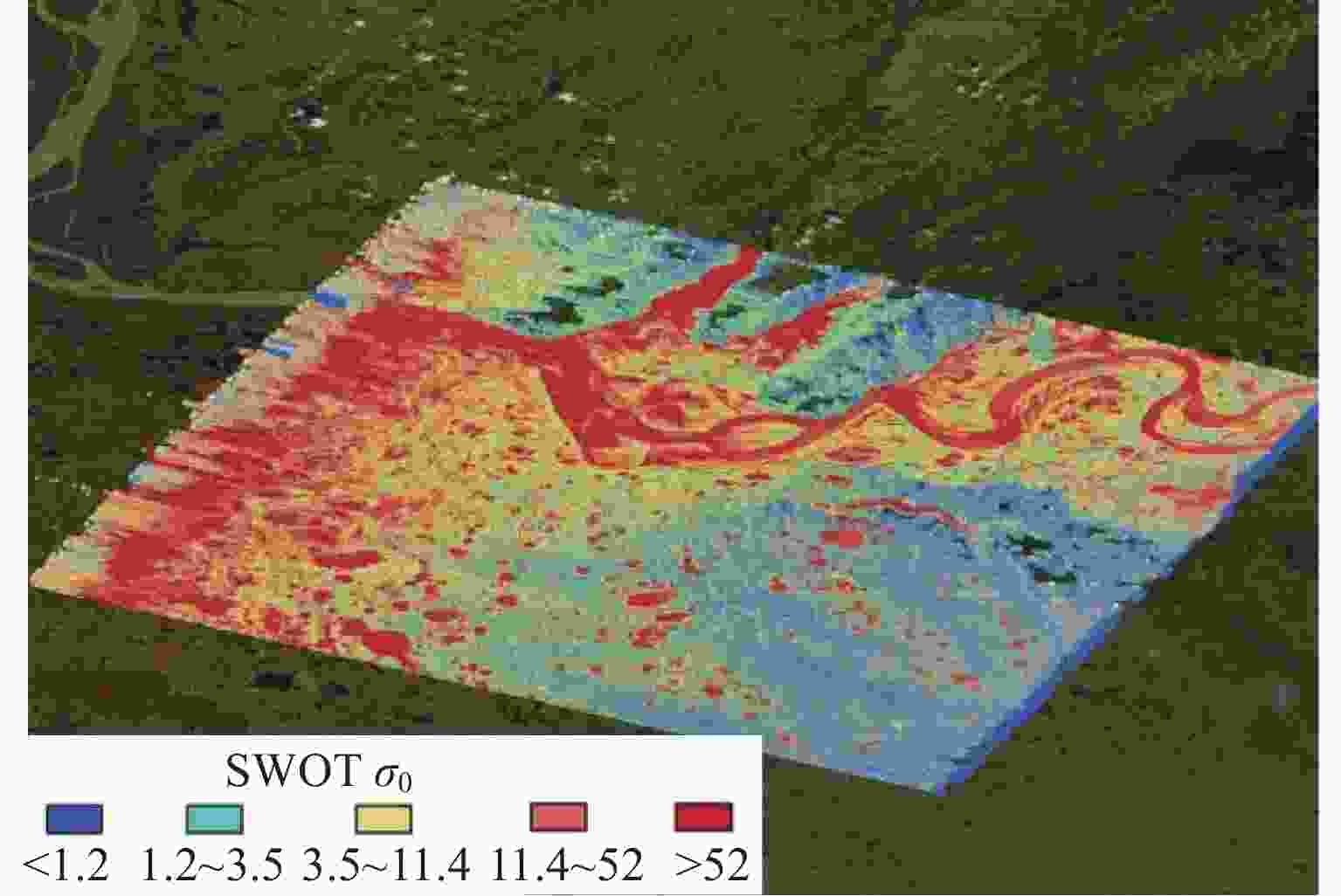

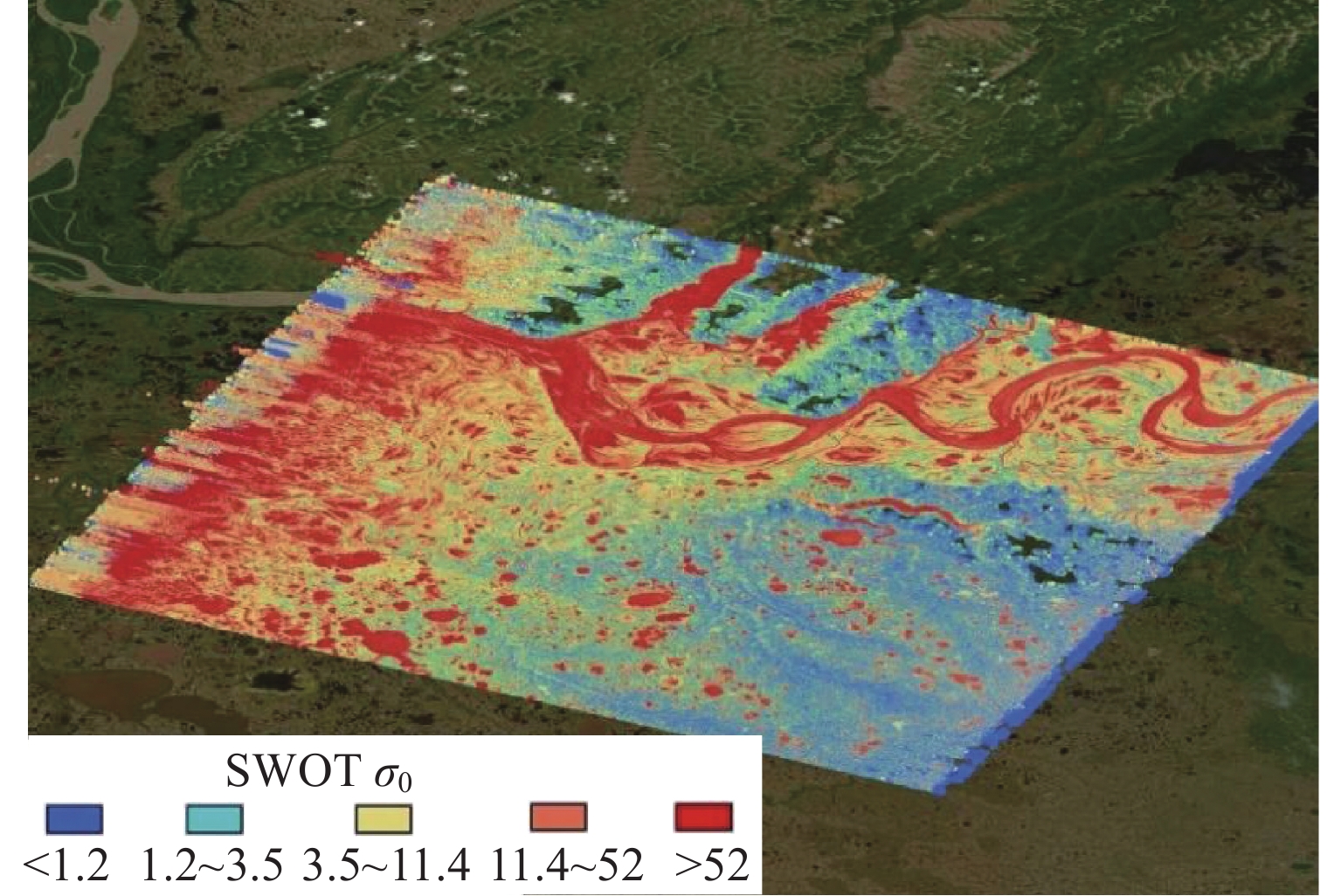

图 22 SWOT干涉测高仪捕捉到阿拉斯加的育空河（红色为育空河和附近的湖）
Figure 22. SWOT interferometric altimeter captured the Yukon River in Alaska (The red image showing the Yukon River and nearby lakes)

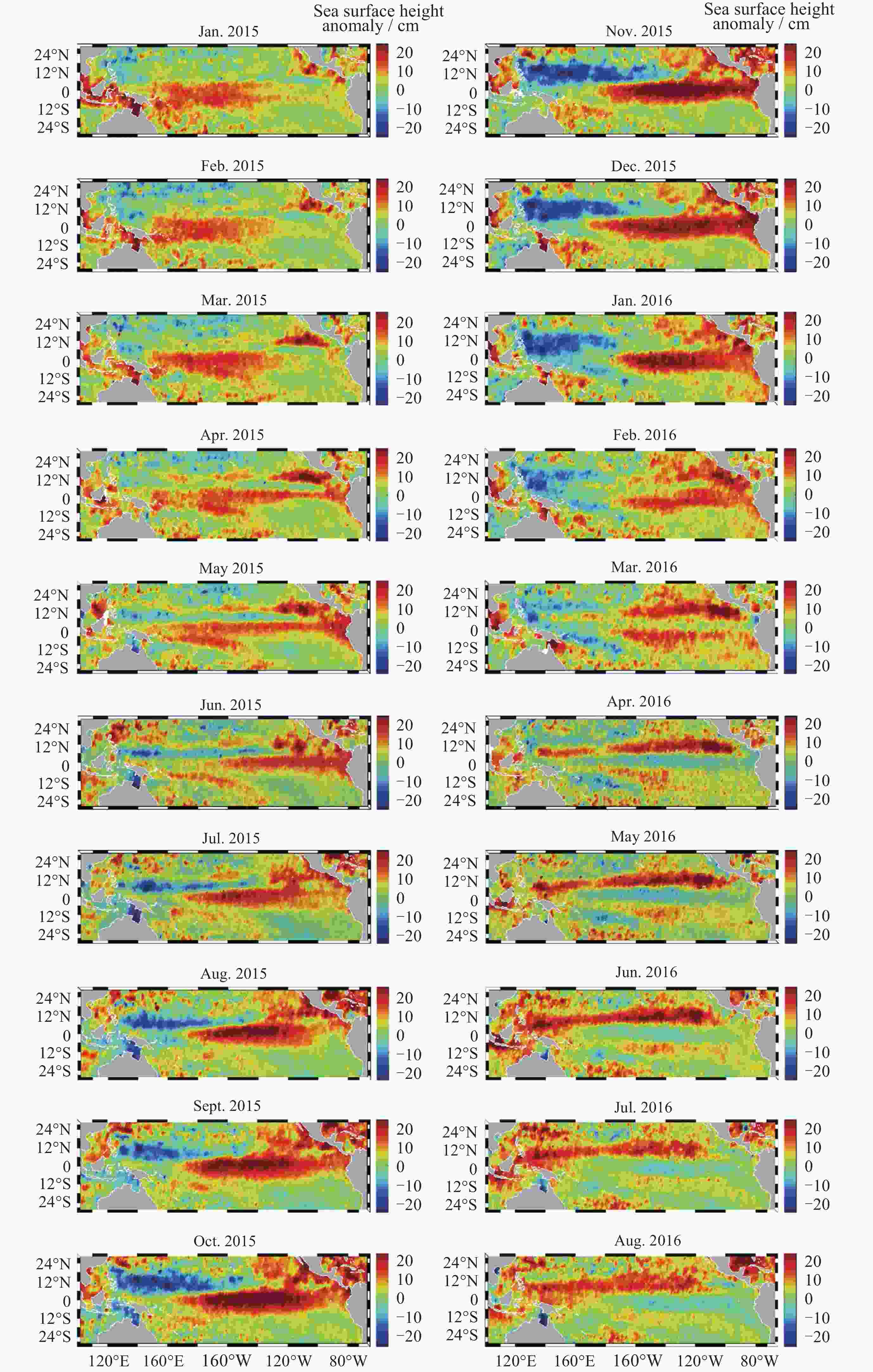

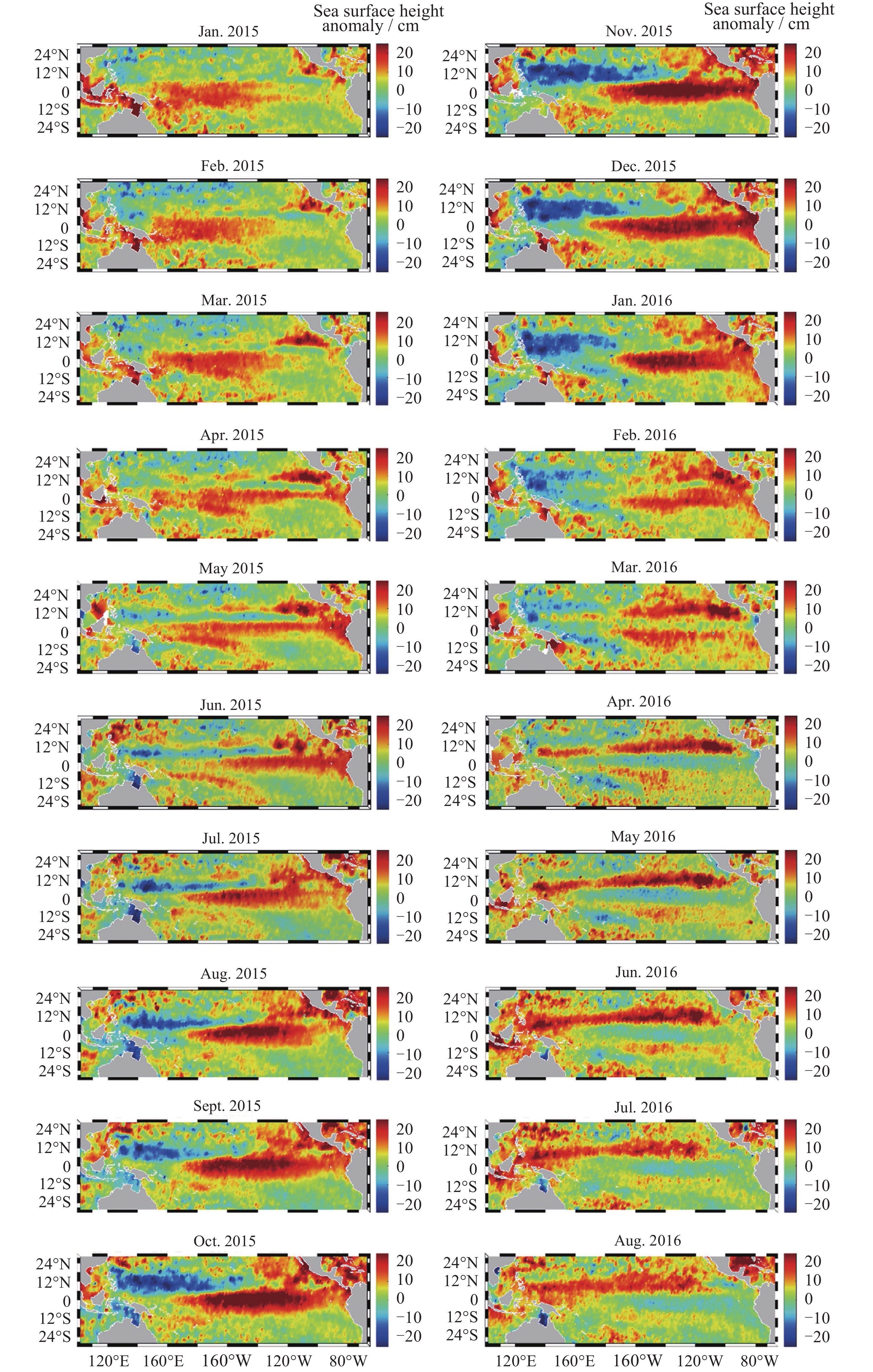

图 25 利用HY-2A高度计监测2015－2016年厄尔尼诺事件
Figure 25. El Niño events detected using the HY-2A altimeter data in 2015－2016

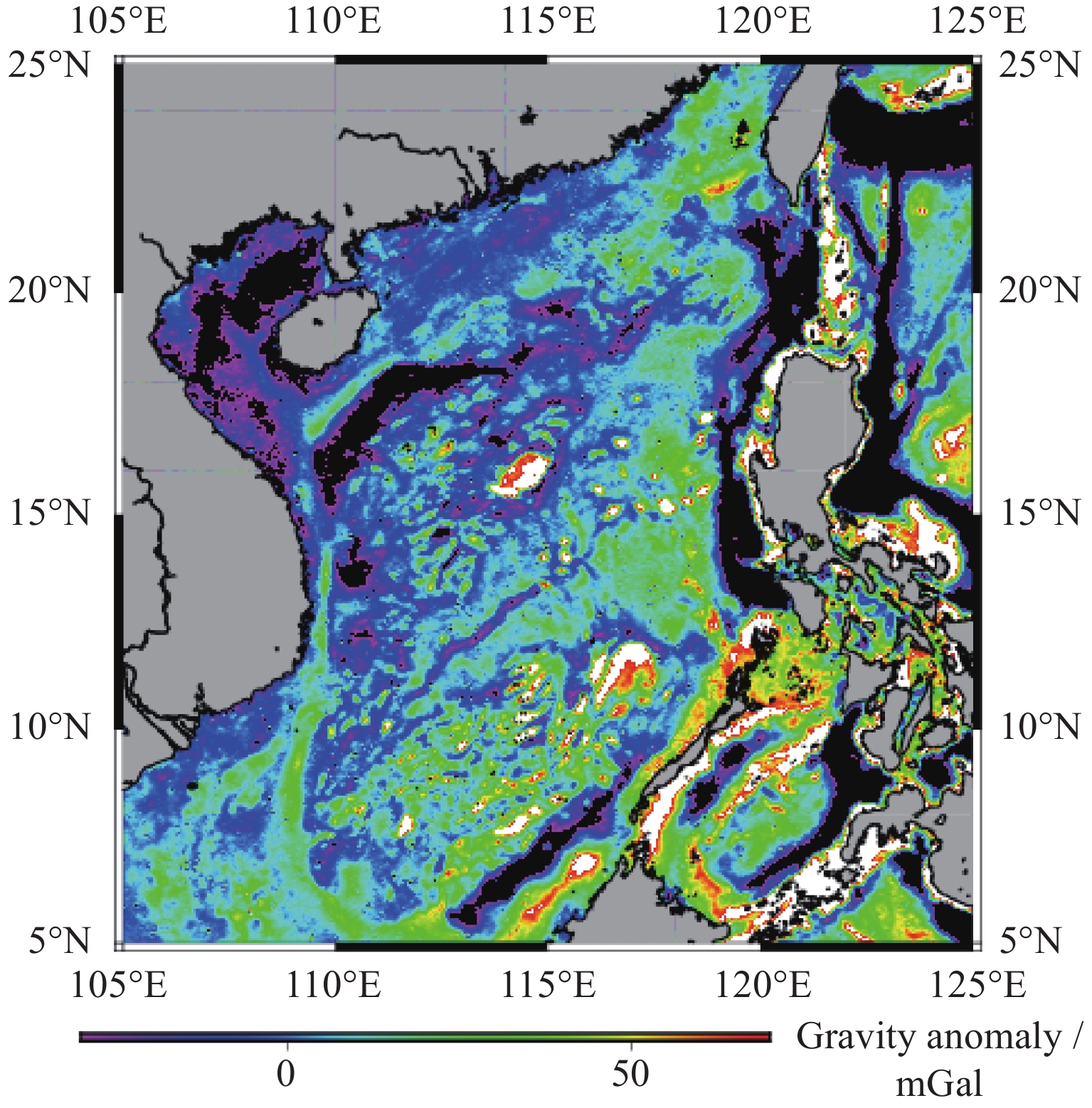

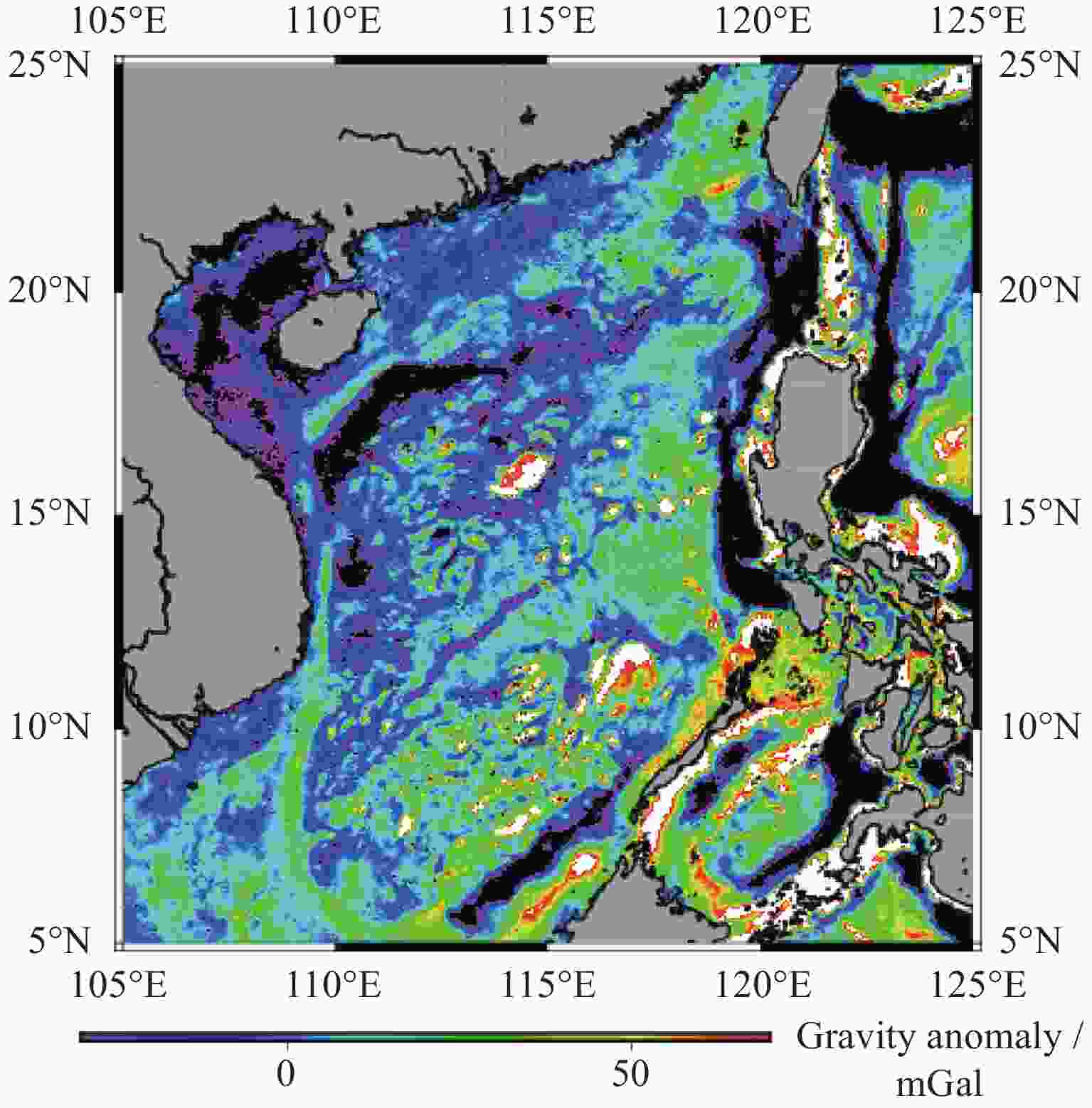

图 26 利用HY-2A测量获得的南海海域重力异常
Figure 26. Gravity anomalies in the South China Sea area obtained from HY-2A measurements

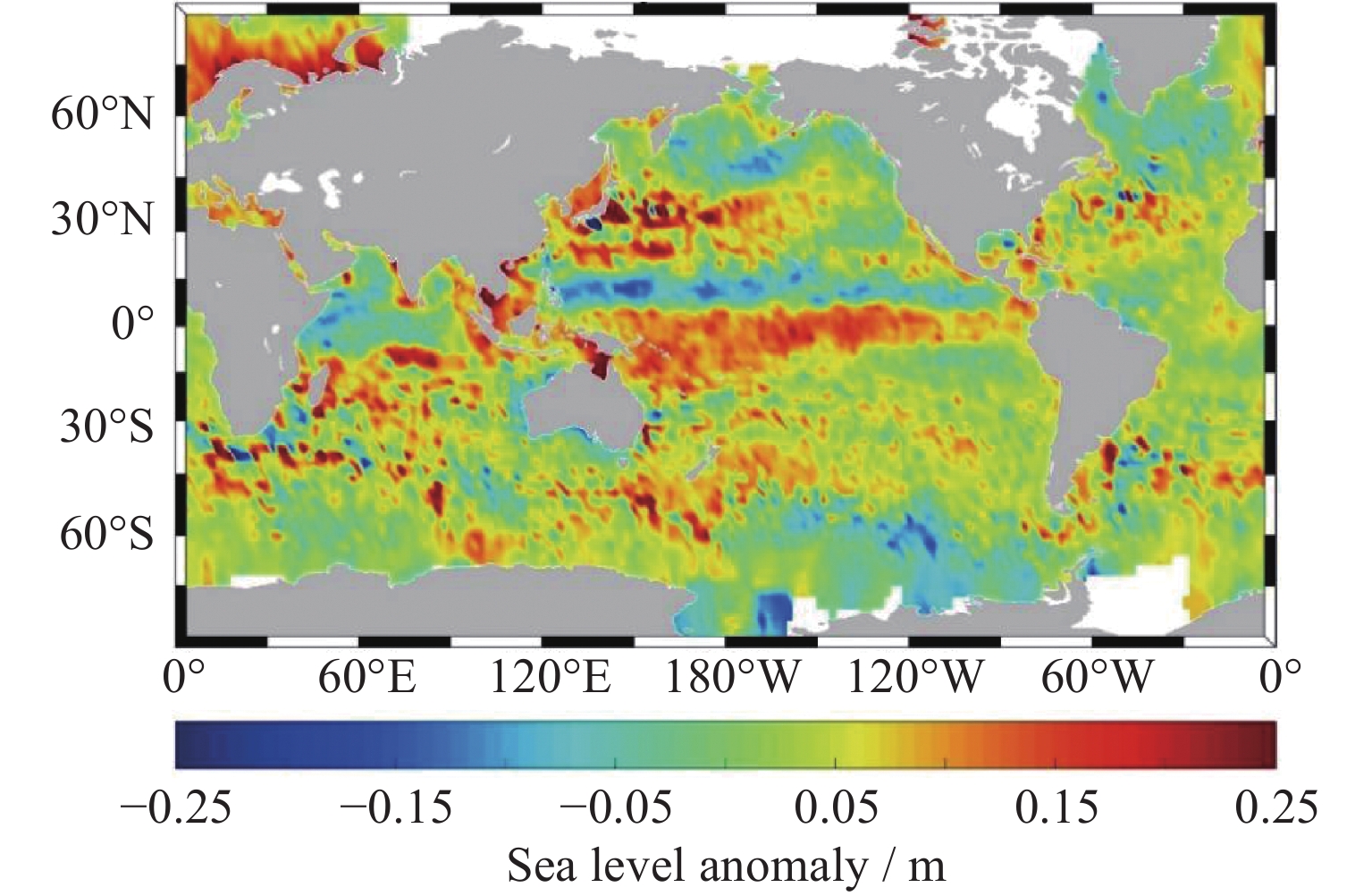

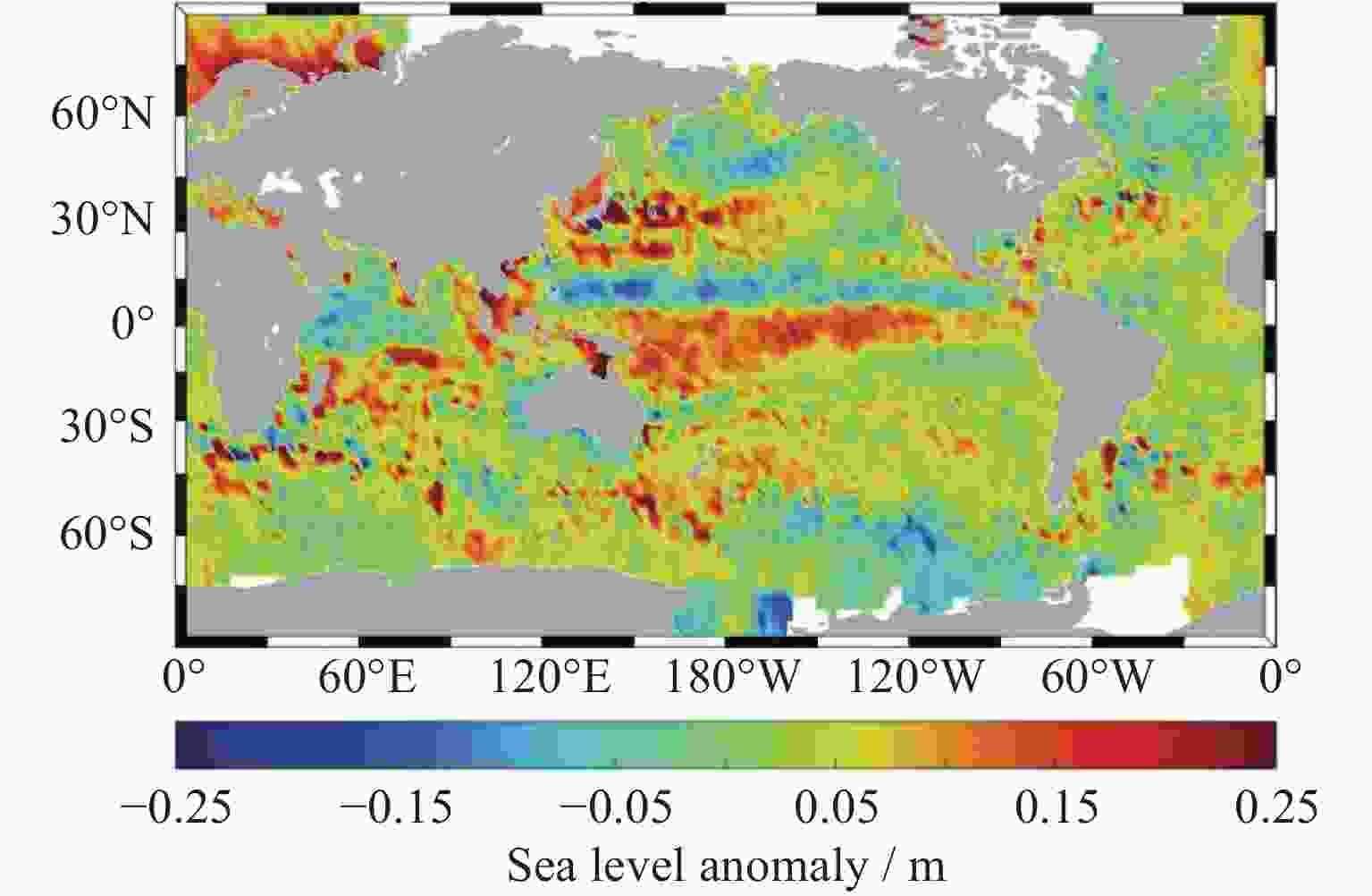

图 27 HY-2B测量的海面高度异常(2018年12月10－24日)
Figure 27. Sea level anomalies obtained from HY-2B measurements (10－24 December 2018)

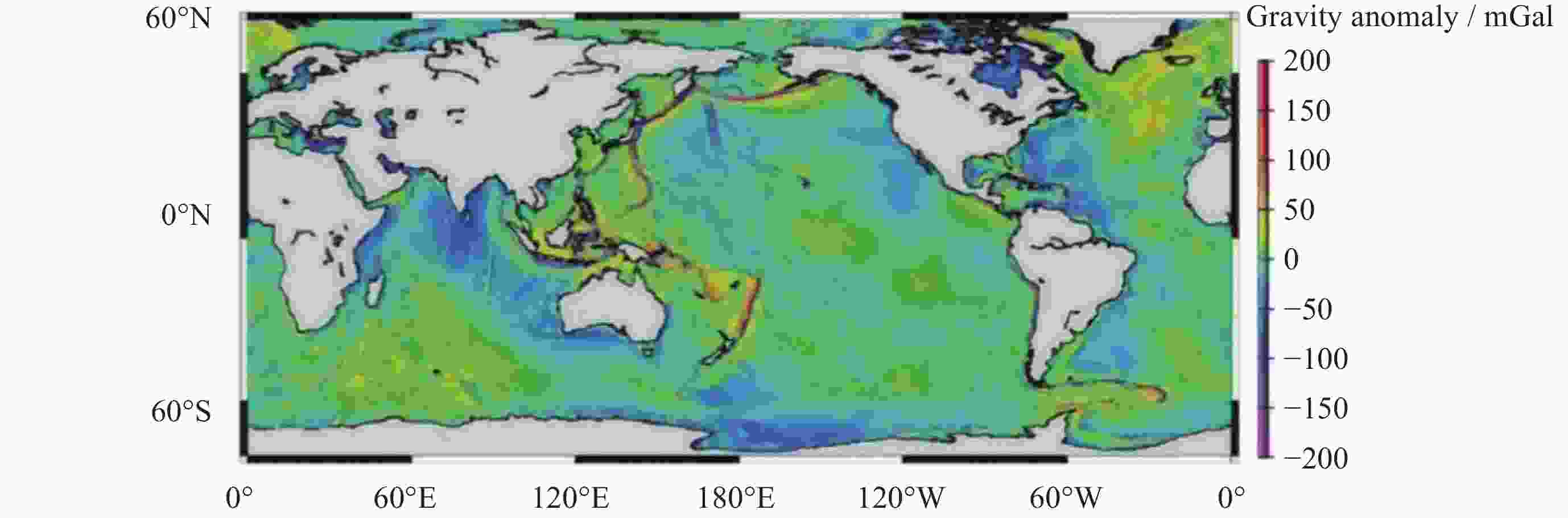

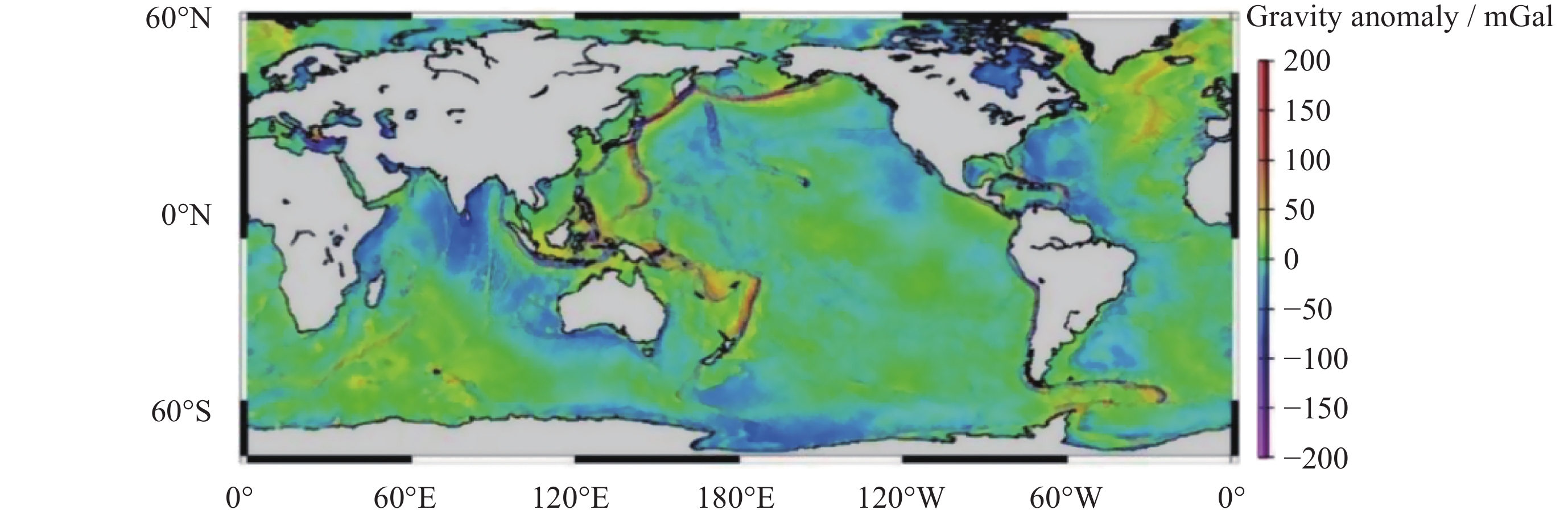

图 28 融合HY-2A/B/C/D高度计数据反演得到的全球重力异常
Figure 28. Global gravity anomaly obtained by fusing HY-2A/B/C/D altimeter data

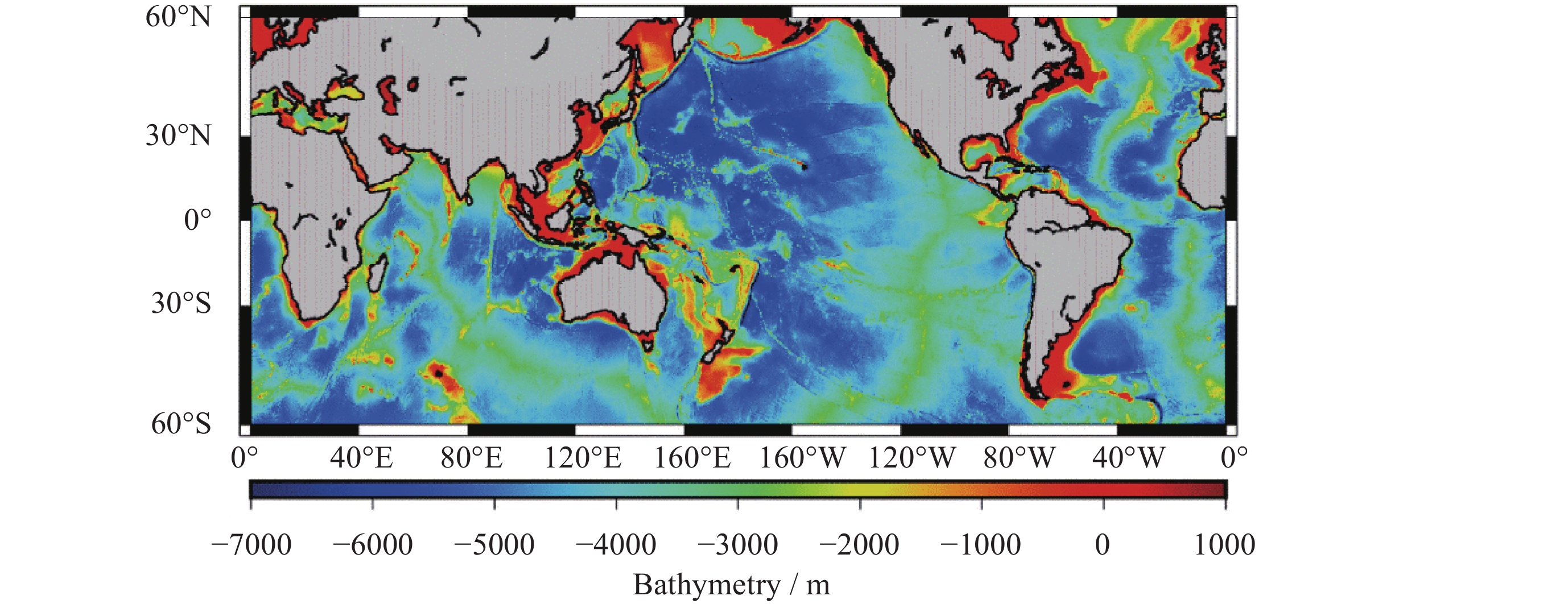

图 29 融合HY-2A/B/C/D高度计数据反演得到的全球海底地形
Figure 29. Global seafloor topography obtained by fusing HY-2A/B/C/D altimeter data

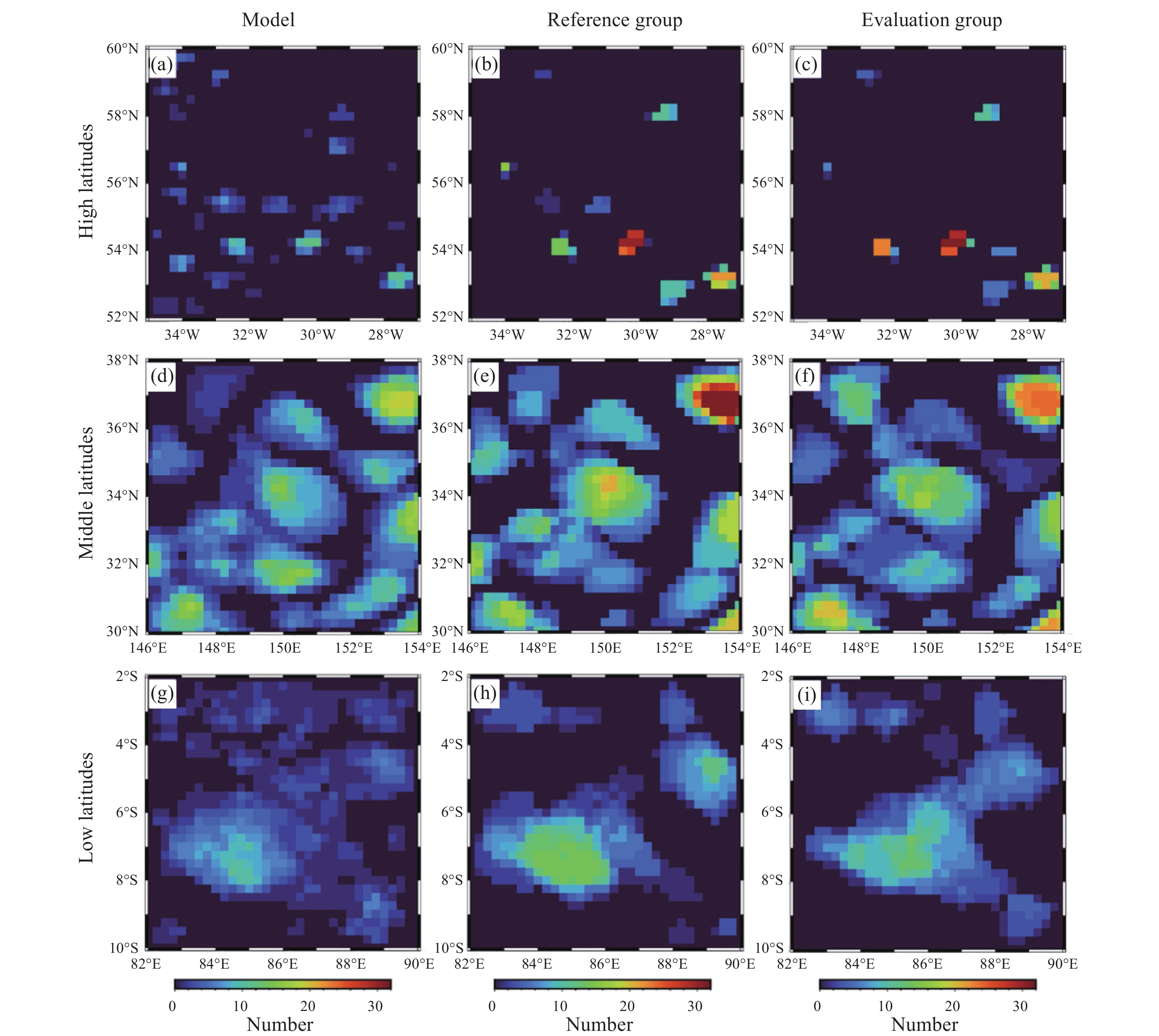

图 30 HY-2B/C/D高度计数据在中尺度涡监测中的应用
Figure 30. Application of HY-2B/C/D altimetry data in mesoscale eddies monitoring

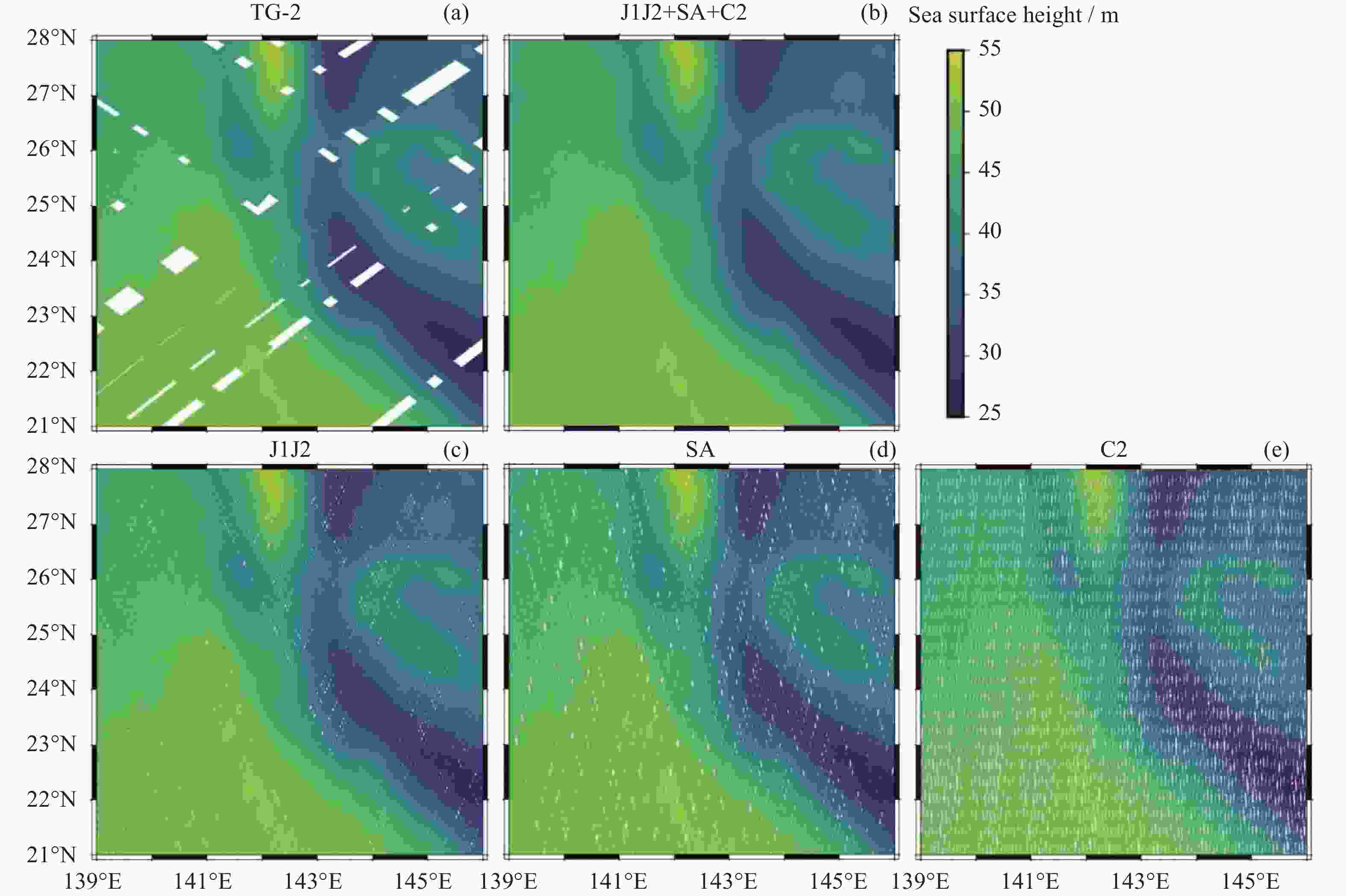

图 32 TG-2宽刈幅高度计数据得到的海面高度
Figure 32. Sea surface height measurements derived from the TG-2 interferometric imaging radar altimeter

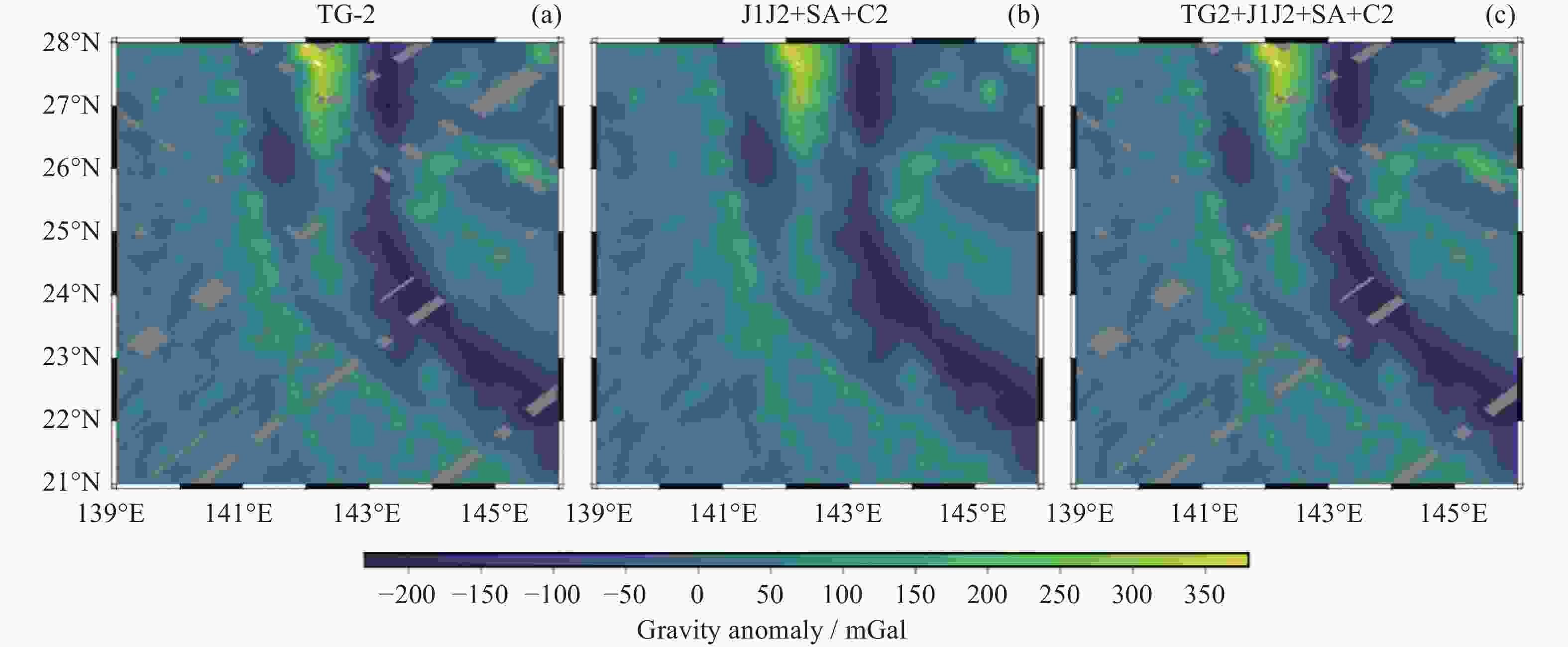

图 33 TG-2宽刈幅高度计数据反演得到的海洋重力异常
Figure 33. Gravity anomalies derived from the TG-2 interferometric imaging radar altimeter.
表 1 目前已发射的雷达测高卫星
Table 1. Past and current radar altimetry mission characteristics
卫星名称 研制国家或地区 发射/结束时间 雷达高度计类型 轨道高度/km Skylab 美国 1973/1974 Ku波段雷达高度计 425 Geos-3 美国 1975/1979 Ku波段雷达高度计 840 Seasat 美国 1978/1978 Ku波段雷达高度计 800 Geosat 美国 1985/1990 Ku波段雷达高度计 800 ERS-1 欧洲 1991/2000 Ku波段雷达高度计 785 T/P 美国/法国 1992/2006 Ku和C波段雷达高度计 1336 ERS-2 欧洲 1995/2011 Ku波段雷达高度计 785 GFO 美国 1998/2008 Ku波段雷达高度计 800 SZ-4 中国 2002/2003 Ku波段雷达高度计 340 Jason-1 美国/法国 2001/2013 Ku和C波段雷达高度计 1336 ENVISAT 欧洲 2002/2012 Ku和S波段雷达高度计 800 Jason-2 美国/法国 2008/2019 Ku和C波段雷达高度计 1336 CryoSat-2 欧洲 2010/－ Ku波段雷达高度计(LRM, SAR, InSAR模式) 717 HY-2A 中国 2011/2022 Ku和C波段雷达高度计 971 SARAL 印度/法国 2013/－ Ka波段雷达高度计 800 Jason-3 美国/法国 2016/－ Ku和C波段雷达高度计 1336 Sentinel-3 A 欧洲 2016/－ Ku和C波段雷达高度计(闭环合成孔径模式) 815 TG-2 中国 2016/2019 Ku波段干涉雷达高度计 378 HY-2B 中国 2018/－ Ku和C波段雷达高度计 971 Sentinel-3 B 欧洲 2018/－ Ku和C波段雷达高度计(闭环合成孔径模式) 815 HY-2C 中国 2020/－ Ku和C波段雷达高度计 957 Sentinel-6 A 欧洲/美国 2020/－ Ku和C波段雷达高度计(开环合成孔径模式) 1336 HY-2D 中国 2021/－ Ku和C波段雷达高度计 957 SWOT 美国/欧洲 2022/－ Ka波段干涉雷达高度计；
Ku和C波段底视雷达高度计890 注 “－”表示目前还处于在轨运行状态。
下载: 导出CSV
表 2 Topex雷达高度计仪器参数
Table 2. Specification of the Topex radar altimeter
参数 参数值 发射频率/GHz 13.575 (Ku), 5.3 (C) 脉冲重复频率/Hz 4200 (Ku), 1220 (C) 脉冲宽度/µs 102.4 (Ku), 102.4 或 32 (C) 带宽/MHz 320 (Ku), 320 或 100 (C) 天线直径/m 1.5 天线波束宽度/(º) 1.1 (Ku), 2.7 (C) 质量/kg 230 功耗/W 237
下载: 导出CSV
表 3 Poseidon-2雷达高度计仪器参数
Table 3. Poseidon-2 radar altimeter parameters
参数 参数值 发射频率/GHz 13.575 (Ku), 5.3 (C) 脉冲重复频率/Hz 2060 interlaced
(3 Ku-1 C-3 Ku-band)脉冲宽度/μs 105.6 带宽/MHz 320 (Ku, C) 天线直径/m 1.2 天线波束宽度/( º ) 1.28 (Ku), 3.4 (C) 质量/kg 70 功耗/W 78
下载: 导出CSV
表 4 RA-1雷达高度计仪器参数
Table 4. Specification of the RA-1 instrument
参数 参数值 发射频率/GHz 13.8 (Ku-band) 脉冲重复频率/Hz 1020 脉冲宽度/µs 100 带宽/MHz 330 (ocean mode)
82.5 (ice mode)回波采样点数 64 天线直径/m 1.2 天线波束宽度/(º) 1.3 质量/kg 96 功耗/W 134.5
下载: 导出CSV
表 5 RA-2雷达高度计仪器参数
Table 5. Specification of the RA-2 instrument
参数 参数值 发射频率/GHz 13.575 (Ku-band)
3.2 (S-band)脉冲重复频率/Hz 1795.33 (Ku-band)
448.83 (S-band)脉冲宽度/μs 100 带宽/MHz 320, 80, 20 (Ku-band)
160 (S-band)回波采样点数 128 天线直径/m 1.2 天线波束宽度/(º) 1.29 (Ku-band), 5.5 (S-band) 质量/kg 110 功耗/W 161
下载: 导出CSV
表 6 AltiKa雷达高度计参数
Table 6. Key parameters of the AltiKa radar altimeter
参数 参数值 发射频率/GHz 35.75 脉冲带宽/MHz 500 脉冲持续时间/µs 110 PRF/kHz 4 回波平均值/ms 25 回波采样点个数 128 天线直径/m 1
下载: 导出CSV
表 7 KaRIN雷达干涉仪参数
Table 7. Main parameters of KaRIN
参数 参数值 发射频率/GHz 35.75 发射带宽/MHz 200 发射脉冲宽度/µs 4.5 PRF/Hz 2 × 4420 (Average) 峰值发射功率/W 1500 基线长度/m 10 天线尺寸/m 5 × 0.25 极化方式 VV(右刈幅)和HH(左刈幅)
下载: 导出CSV
表 8 HY-2A卫星雷达高度计仪器硬件指标
Table 8. Main parameters of the HY-2A radar altimeter
硬件参数 硬件指标 工作频率/GHz 13.58，5.25 发射脉冲宽度/µs 102.4 线性调频信号带宽/MHz 320/80/20 发射峰值功率/W 10（Ku波段），20（C波段） Ku脉冲重复频率/kHz 2.3 天线口径/m 1.3 (Ku波段和C波段
共用一副天线)半功率波束宽度/(°) 1.2 (Ku波段)和 3.2 (C波段) 极化方式 线性同极化 天线增益/dBi 42 (Ku波段)，32 (C波段) AGC动态范围/dB 60 数据率/（kbit·s–1） 240 质量/kg 110 功耗/W 170
下载: 导出CSV
表 9 HY-2E星合成孔径雷达高度计参数
Table 9. Main parameters of the HY-2E radar altimeter
参数 参数值 工作频率/GHz 13.58 (Ku波段)，5.41 (C波段) 发射脉冲宽度/µs 51.2 线性调频信号带宽/MHz 320 发射峰值功率/W 10（Ku波段），20（C波段） Ku脉冲重复频率/kHz 9 合成孔径模式 开环合成孔径模式 天线口径/m 1.2 (Ku波段和C波段
共用一副天线)天线增益/dBi 41（Ku波段），31 dBi（C波段） AGC动态范围/dB 60 测距精度/cm 0.8
下载: 导出CSV
表 10 TG-2宽刈幅高度计主要系统参数
Table 10. Main parameters of the TG-2 wide swath altimeter
参数 参数值 工作频率/GHz 13.58 线性调频信号带宽/MHz 40 发射峰值功率/W 300 极化方式 VV 入射角/(°) 1～8 天线增益/dB 36 基线长度/m 2.3 方位向分辨率/m 30 距离向分辨率/m 30～200 飞行高度/km 379 刈幅宽度/km 35～40 海面高度相对测量精度/cm 5～10
下载: 导出CSV
-
