天基分布式光学合成孔径技术
doi: 10.11728/cjss2024.02.yg06 cstr: 32142.14.cjss2024.02.yg06
-
王小勇：男, 1972年11月生, 籍贯吉林省长春市. 现为北京空间机电研究所研究员, 博士生导师, 主要研究方向为高分辨率空间光学遥感技术等
作者简介:
Space-based Distributed Optical Synthetic Aperture Techniques
-
摘要: 宜居带行星探测研究是近年系外行星研究的热点领域之一, 探测太阳系附近的宜居行星对研究生命起源等具有重要意义, 成为系外行星探测的重要内容. 天基分布式合成孔径技术作为系外宜居行星探测的重要手段, 已经成为目前前沿光学技术研究的热点方向, 但是仍有诸多技术问题需解决. 本文从宜居行星搜寻计划的需求出发, 根据以迈克尔逊干涉成像为基础的天基分布式合成孔径系统技术原理, 介绍了国内外典型分布式合成孔径系统的技术发展, 重点分析了实现天基分布式干涉成像所需采用的控制系统和技术, 并阐述了解决高精度空间测距、高精度时间同步、多层级位相同步等关键问题的技术要点. 为未来大型柔性可重构空间望远系统的建造提供了参考.Abstract: The exploration and study of habitable zone planets is one of the hot research fields of exoplanets in recent years. The exploration of habitable planets near the solar system is of great significance to the study of the origin of life and has become the main theme of exoplanet exploration. As an important means of detecting exohabitable planets, space-based distributed synthetic aperture technology has become a hot spot in the research of advanced optical technology. In this paper, the technical principle of space-based distributed optical synthetic aperture system based on Michelson interferometric imaging is discussed in detail, and the development of typical distributed synthetic aperture systems at home and abroad is introduced. The technical challenges involved are demonstrated.
-
Key words:
- Habitable planet /
- Distributed /
- Synthetic aperture /
- Interference imaging
-

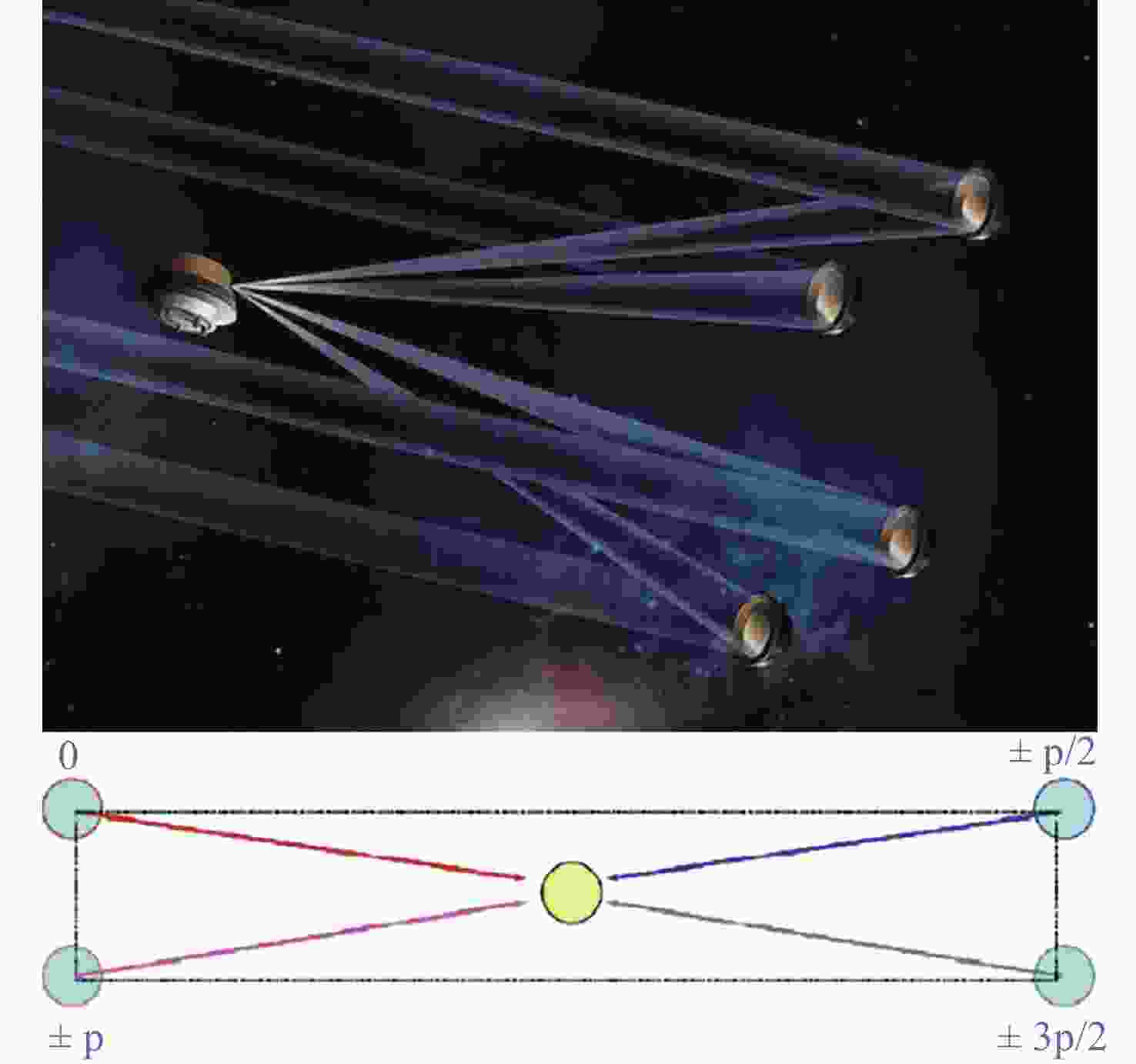

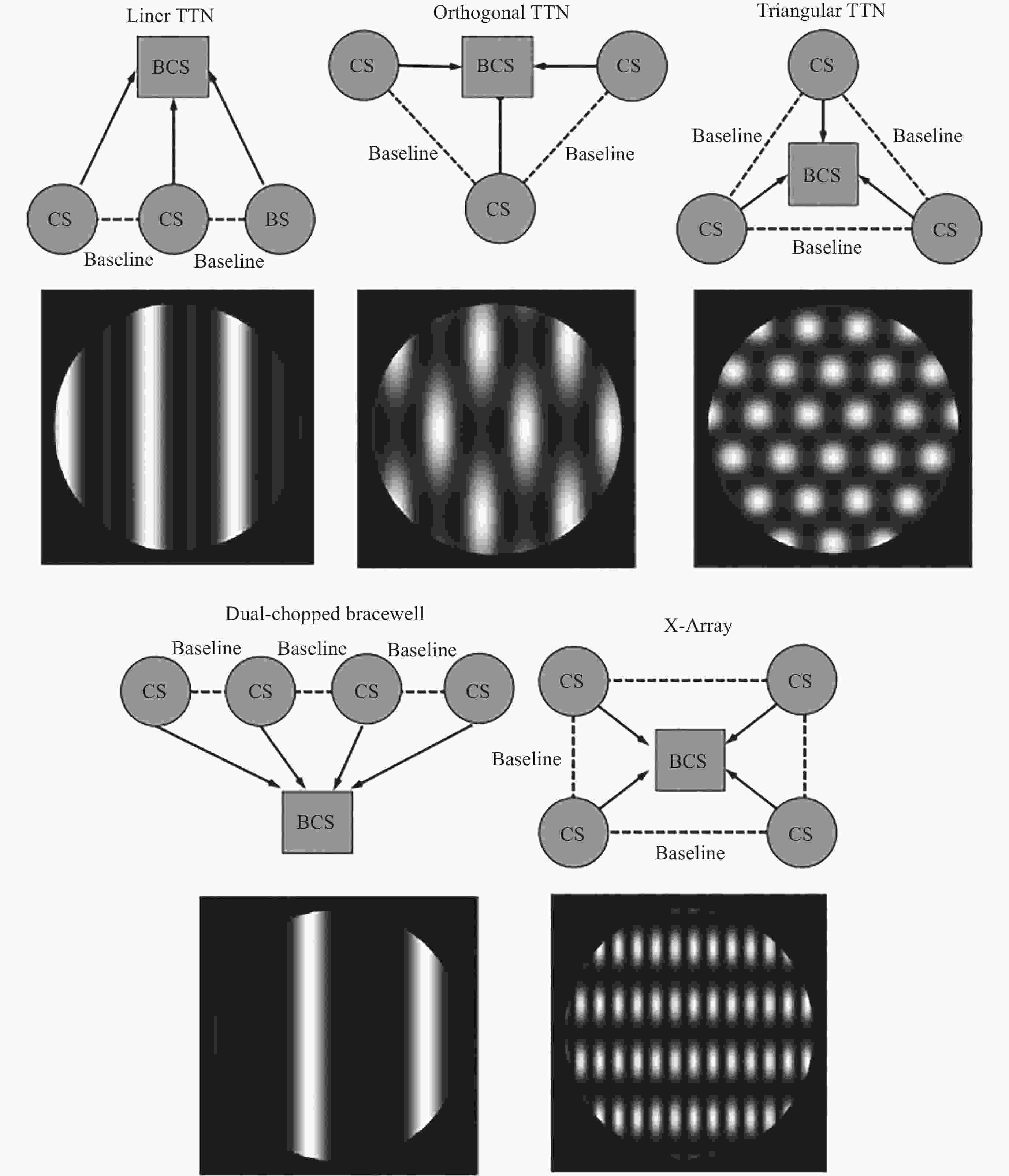

图 9 达尔文三台和四台望远镜编队的孔径配置和角度接收特性
Figure 9. Aperture configurations and angular receive characteristics for three and four telescope formations

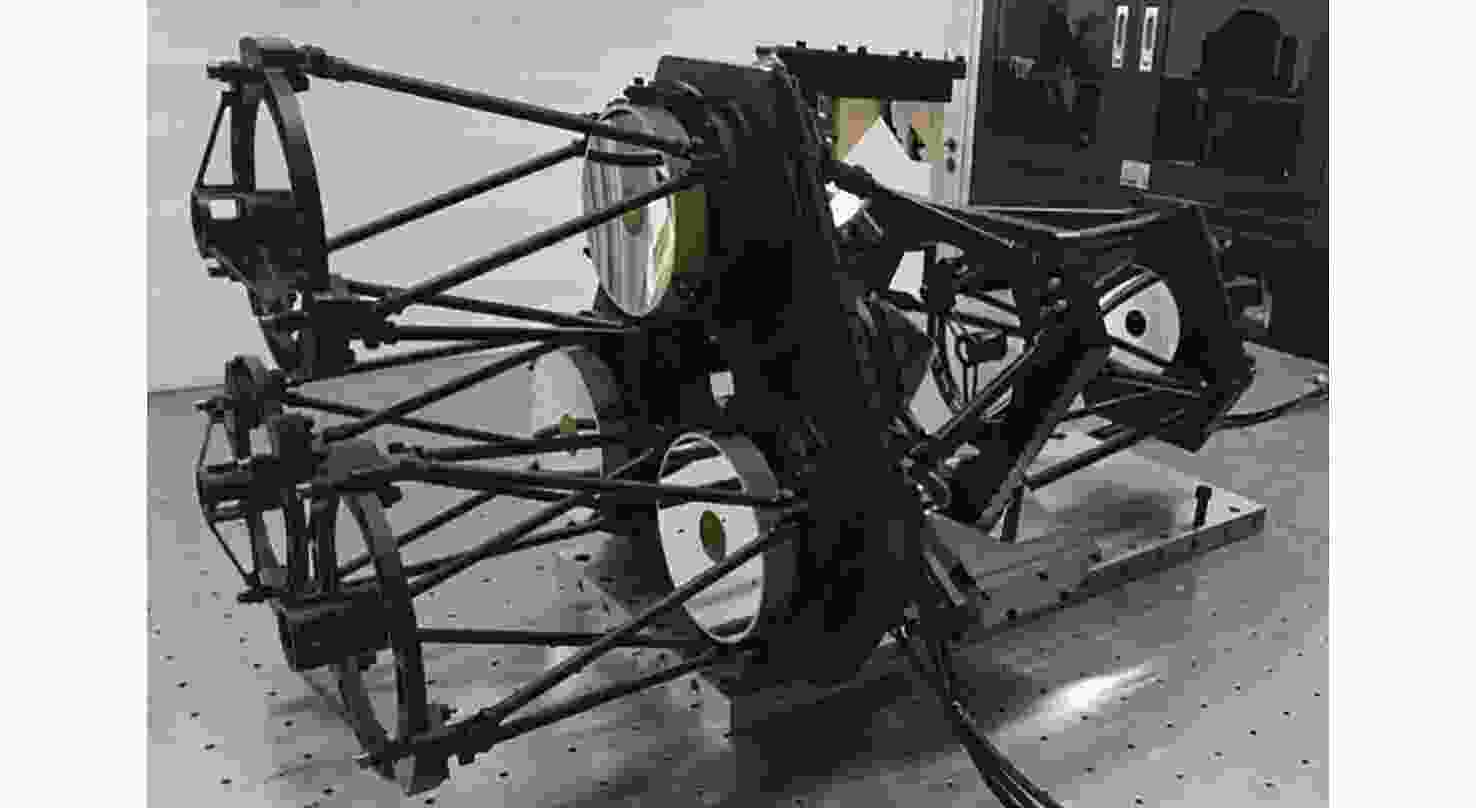

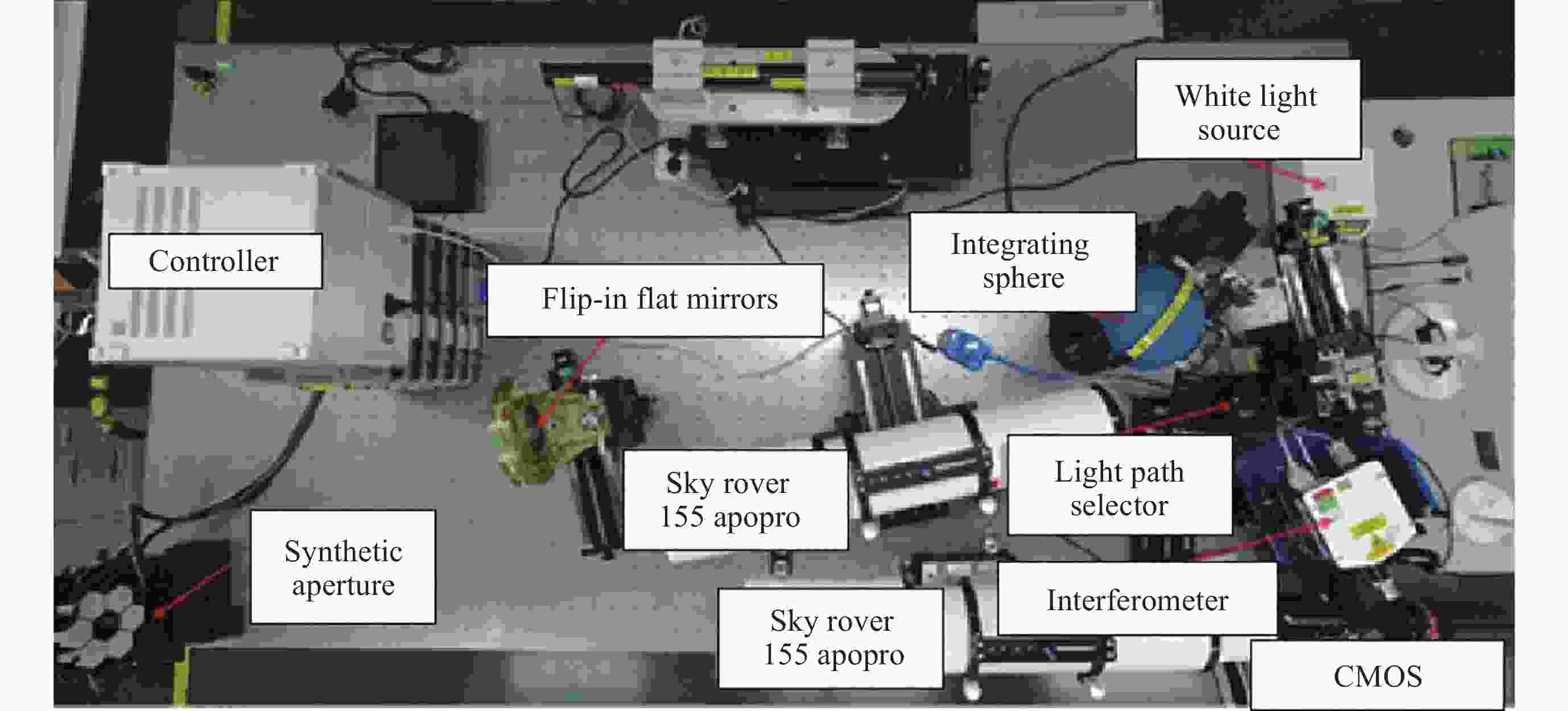

图 16 六孔径合成孔径光学探测系统样机
Figure 16. Prototype of six-aperture synthetic aperture optical detection system
-
