中国区域不同季节电离层修正对GPS系统SPP的影响
doi: 10.11728/cjss2025.03.2024-0073 cstr: 32142.14.cjss.2024-0073
-
张春 男, 1990年3月出生于宁夏回族自治区固原市, 现为中国地质调查局西安矿产资源调查中心工程师, 主要从事地质测绘、遥感解译等方面的工作. E-mail: 472671066@qq.com -
王格 女, 1994年12月出生于陕西省渭南市, 现为中国科学院国家授时中心工程师, 主要研究方向为GNSS卫星导航系统的定位与授时、电离层建模等. E-mail: wangge@ntsc.ac.cn
作者简介:
通讯作者:
Impact of Ionospheric Model Corrections in Different Seasons of China on the SPP of GPS Systems
-
摘要: 针对中国区域, 分别采用Klobuchar模型、BDGIM模型、IGS电离层格网数据, 以及区域建模生成的CHNION, 对2022年3月、6月、9月、12月共4个月不同纬度测站进行标准单点定位(Standard Point Positioning, SPP), 通过比较SPP结果精度, 对多种电离层模型或数据在中国区域内的修正精度进行分析. 研究结果表明: 中国区域采用Klobuchar模型修正的SPP精度最差, 相比之下, BDGIM模型4个测站平均提高定位精度20%. 在中低纬度测站BJF1, ZLTG, HKSL上, 采用CHINON进行电离层延迟修正后, 3个测站的每月平均定位精度依次为1.65, 1.27, 3.2, 2.87 m, 采用IGS最终电离层格网数据进行电离层修正后, 3个测站的每月平均定位精度依次为1.6, 1.37, 3.1, 2.73 m.
-
关键词:
- 电离层 /
- 单点定位 /
- Klobuchar模型 /
- BDGIM模型
Abstract: For GNSS satellite signals traveling from the satellite to the ground, the ionosphere is an unavoidable path. At the same time, the ionosphere is also a major error source in GNSS PNT applications. At present, both BDS and GPS broadcast ionospheric error correction model parameters to users via navigation information. The BDS broadcasts the BDGIM model with 9 parameters, while the GPS use the Klobuchar model with 8 parameters. A systematic analysis of the impact of different ionospheric models or products on the accuracy of standard Single Point Positioning (SPP) can serve as a valuable reference for global single-frequency satellite navigation users in selecting suitable ionospheric error correction methods. This paper focuses on the Chinese region and evaluates SPP performance at different latitude stations using the Klobuchar model, BDGIM model, IGS ionospheric grid products, and regionally modeled CHNION products in March, June, September, and December 2022. By comparing SPP accuracy, the correction performance of various ionospheric models and products in China is analyzed. The results show that the Klobuchar model provides the lowest SPP accuracy in China. The BDGIM model improves the average positioning accuracy by 20% across four stations. For mid-latitude and low-latitude stations BJF1, ZLTG, and HKSL, using the CHINON product for ionospheric correction results in a monthly average precision is 1.65, 1.27, 3.2, and 2.87 m, respectively. with the IGS final product, the monthly average positioning precision is 1.6, 1.37, 3.1, and 2.73 m.-
Key words:
- Ionosphere /
- SPP(Single Point Positioning) /
- Klobuchar model /
- BDGIM model
-

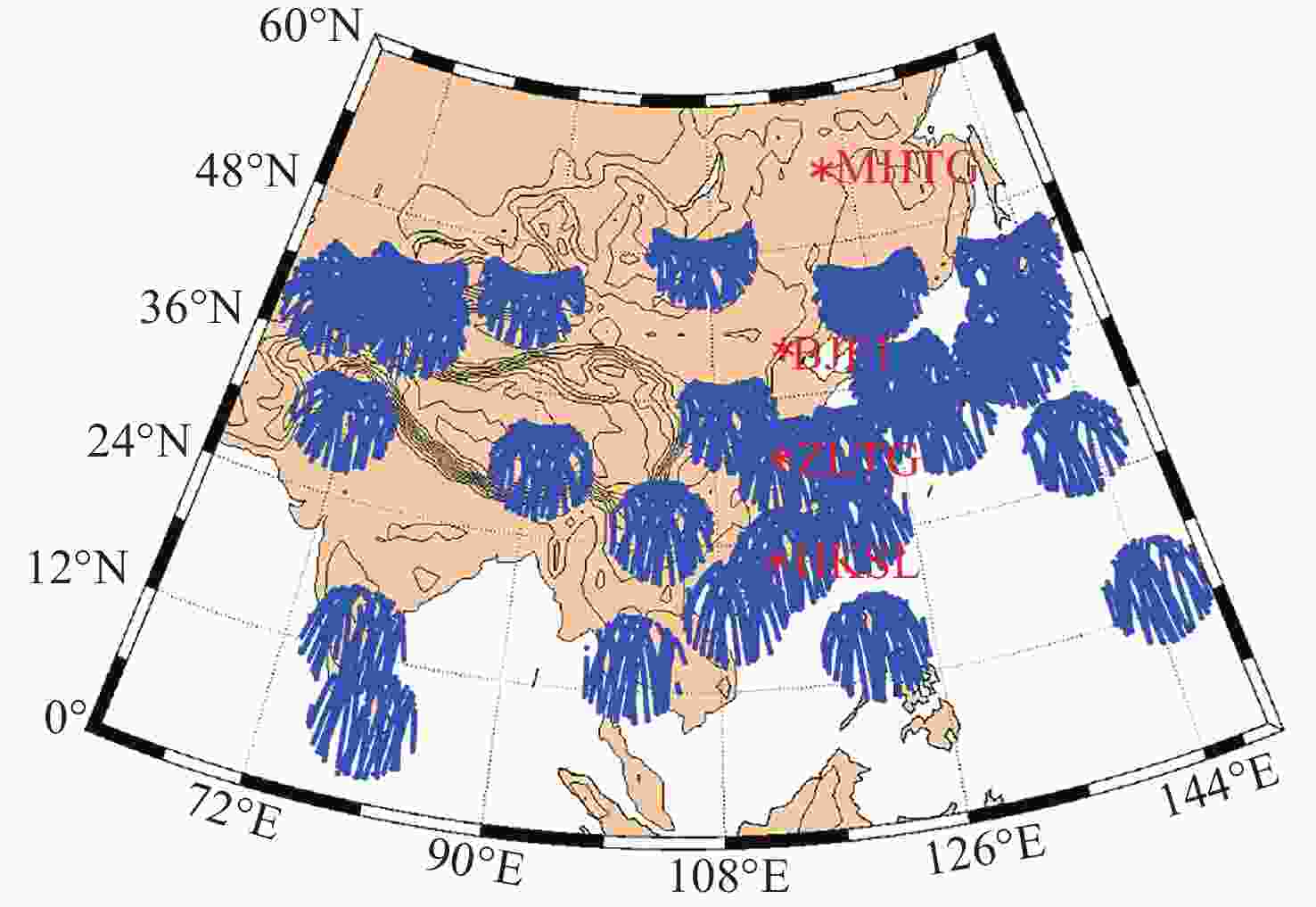

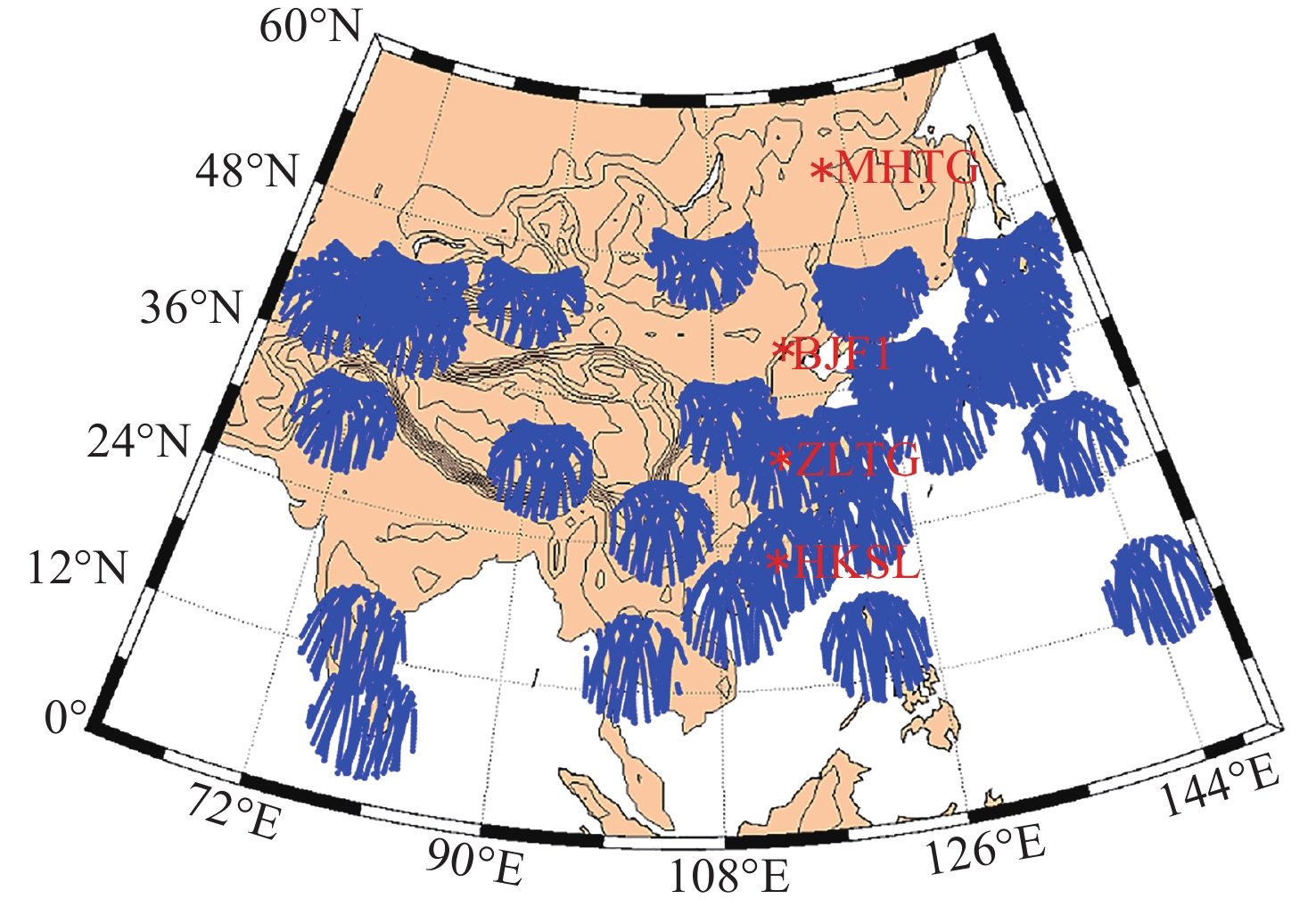

图 1 CHINION生成时穿刺点(蓝色)与试验站分布
Figure 1. Distribution of pierce points (blue) and test stations during the generation of CHINION products

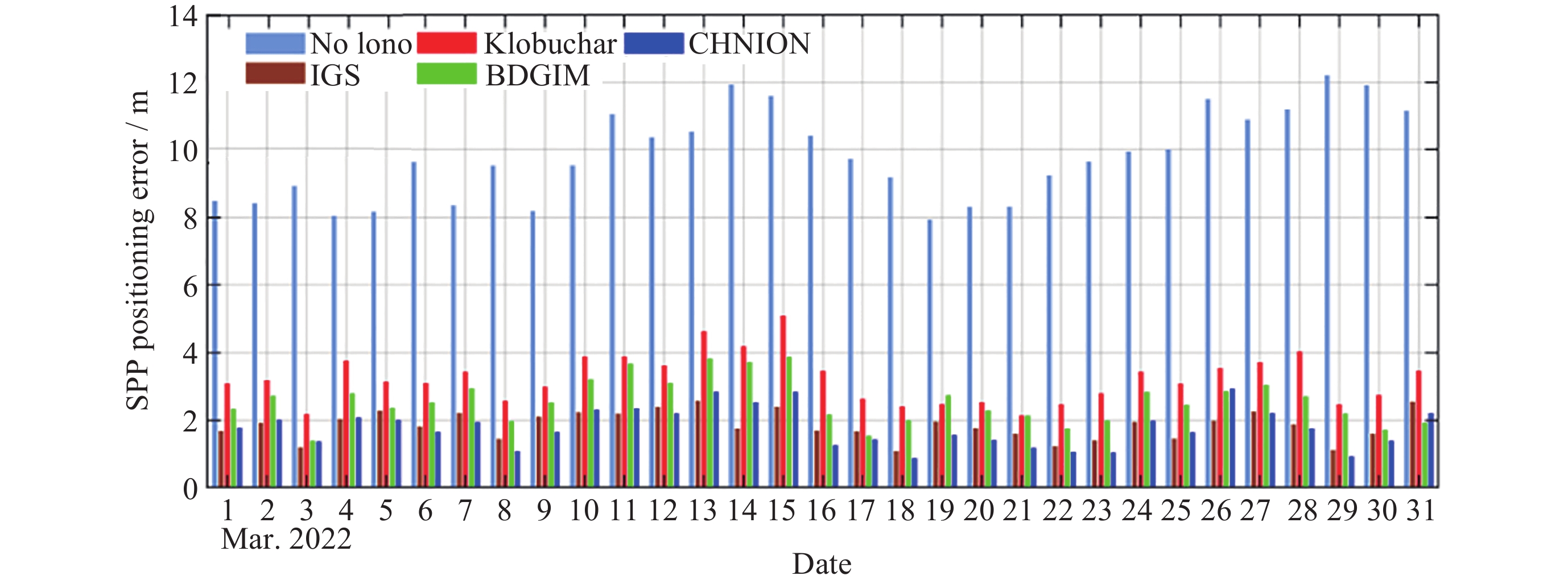

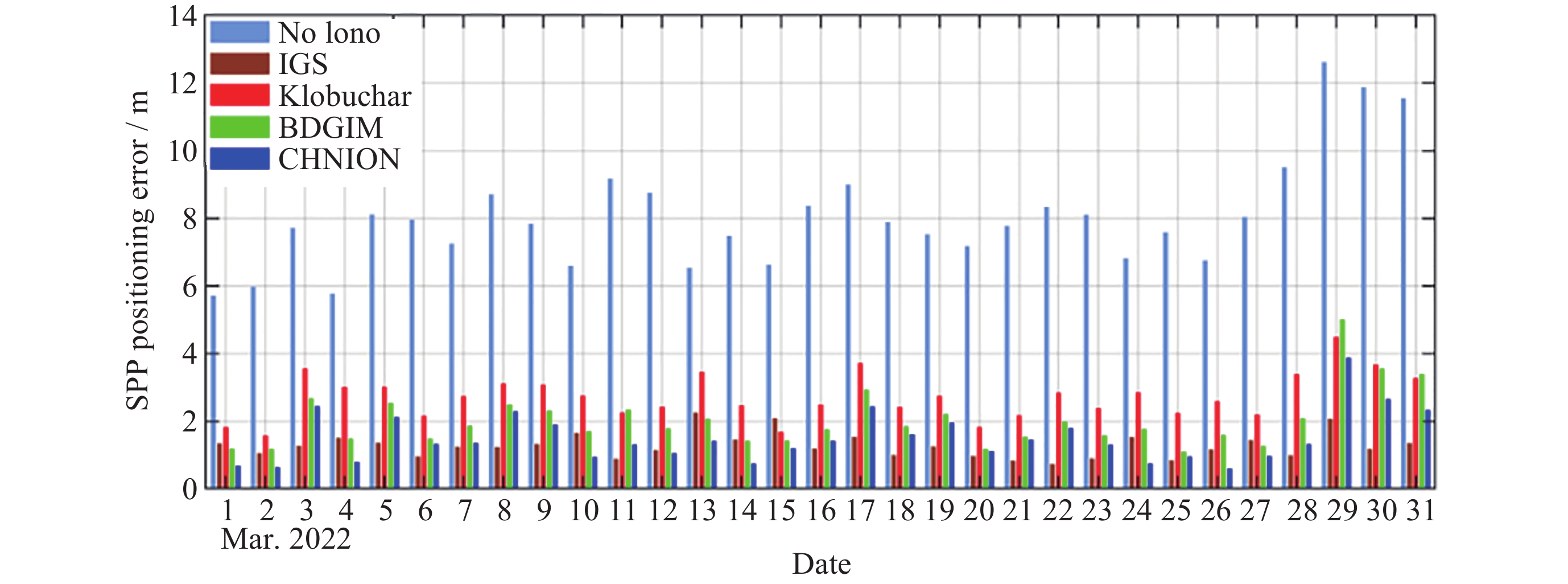

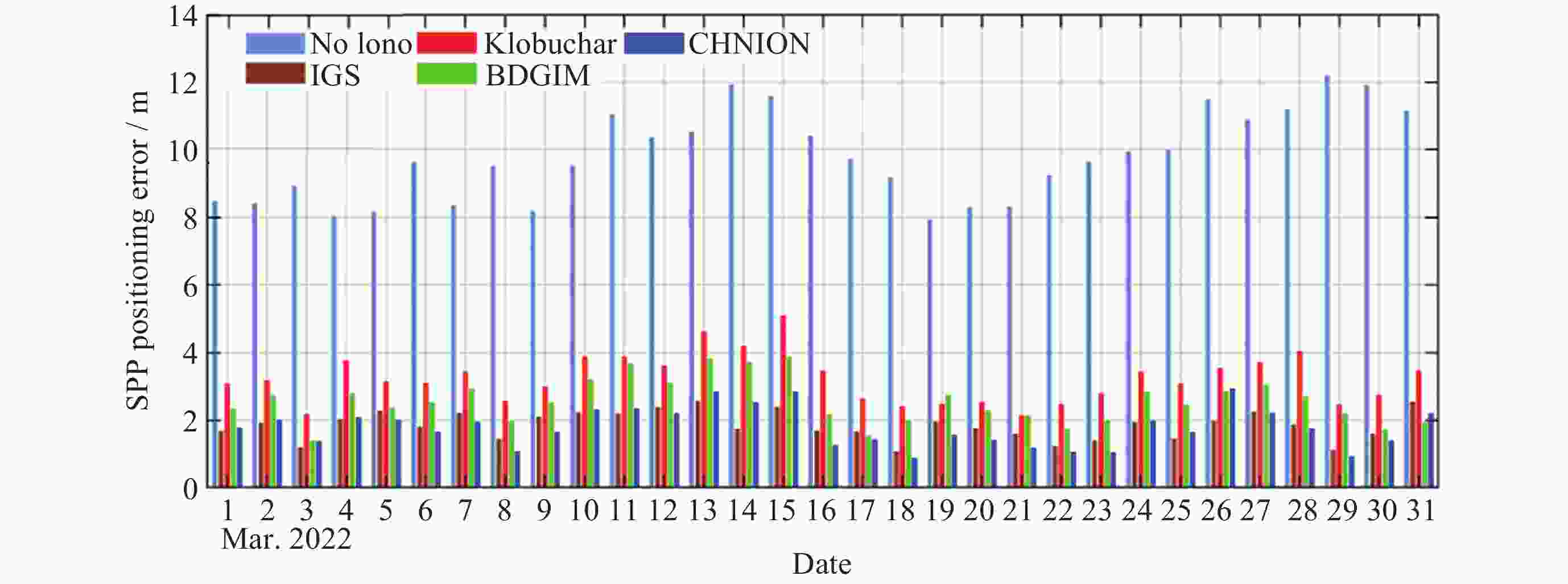

图 2 2022年3月HKSL测站不同电离层模型修正后的标准定位误差
Figure 2. Standard positioning errors at HKSL station after correction with different ionospheric models in March 2022

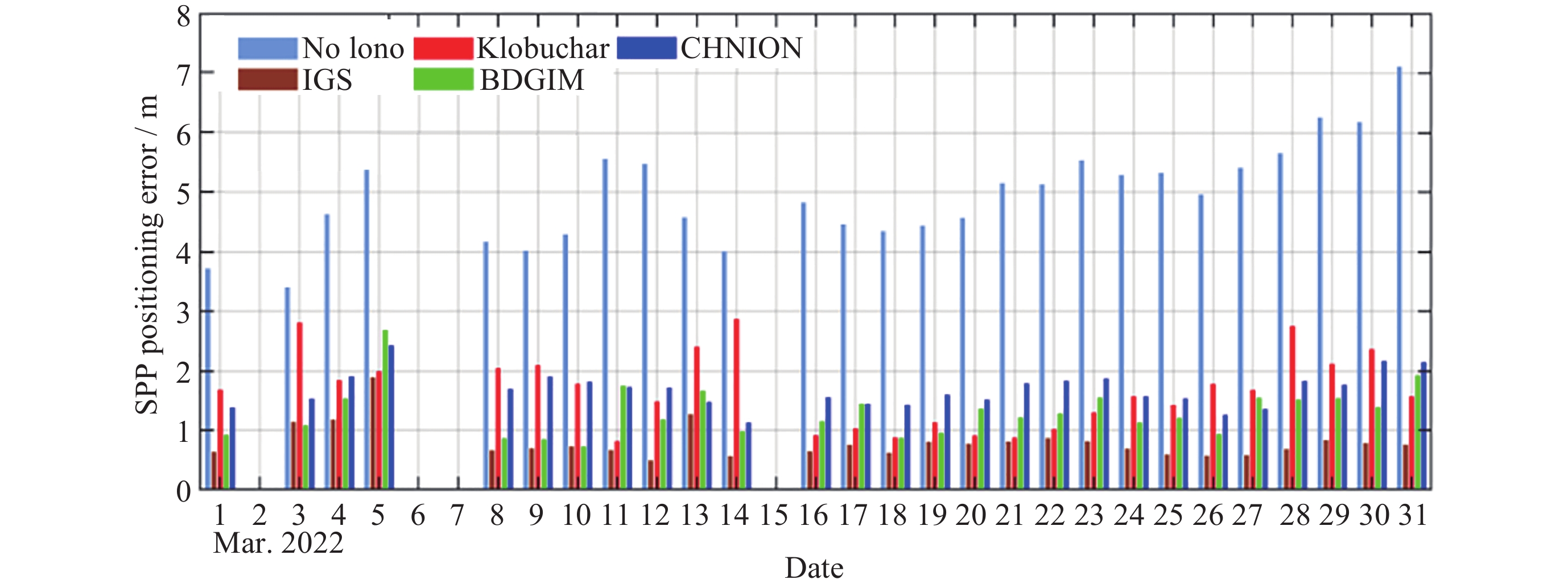

图 3 2022年3月ZLTG测站不同电离层模型修正后的标准定位误差
Figure 3. Standard positioning errors at ZLTG station after correction with different ionospheric models in March 2022
图 4 2022年3月MHTG测站不同电离层模型修正后的标准定位误差
Figure 4. Standard positioning errors at MHTG station after correction with different ionospheric models in March 2022

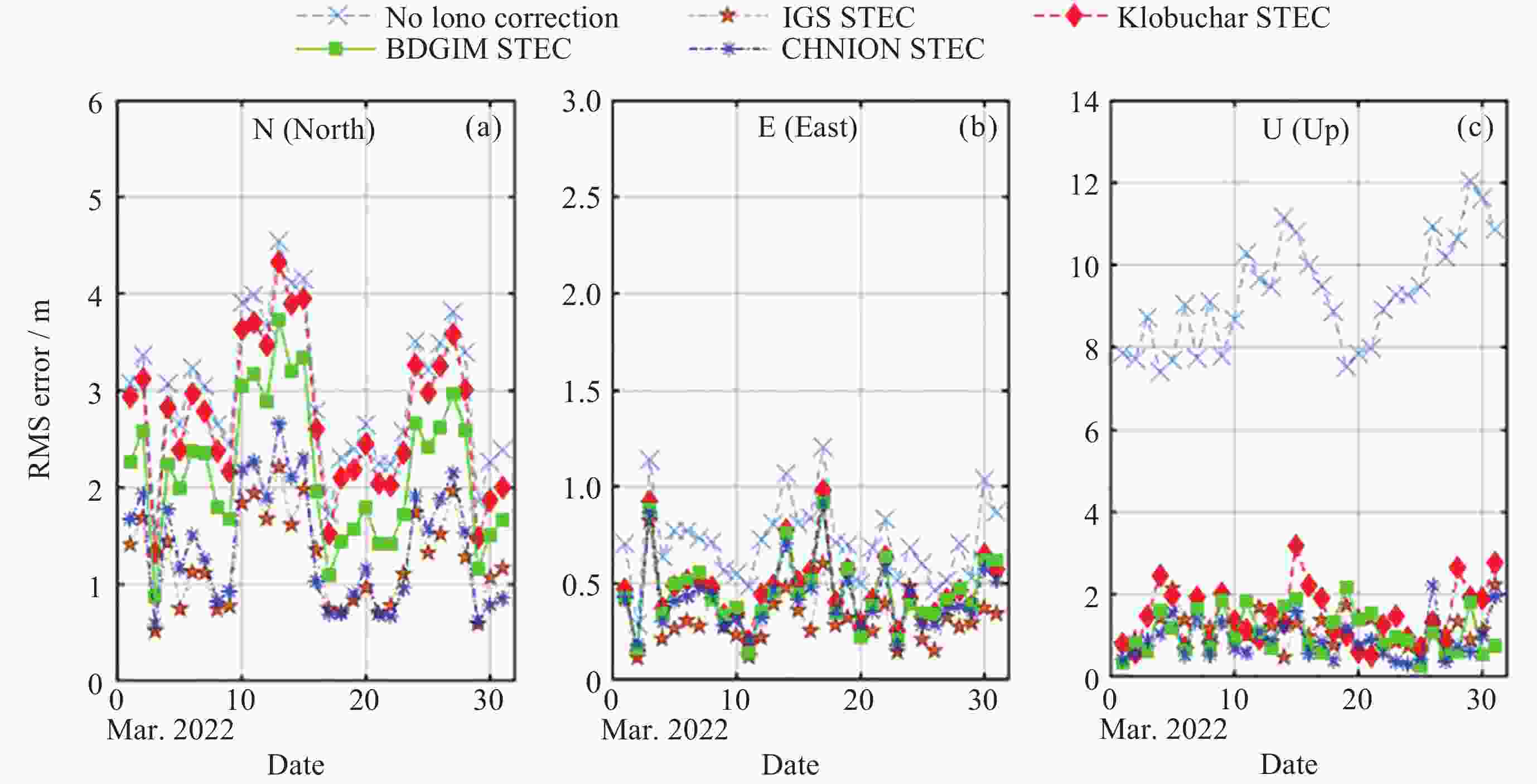

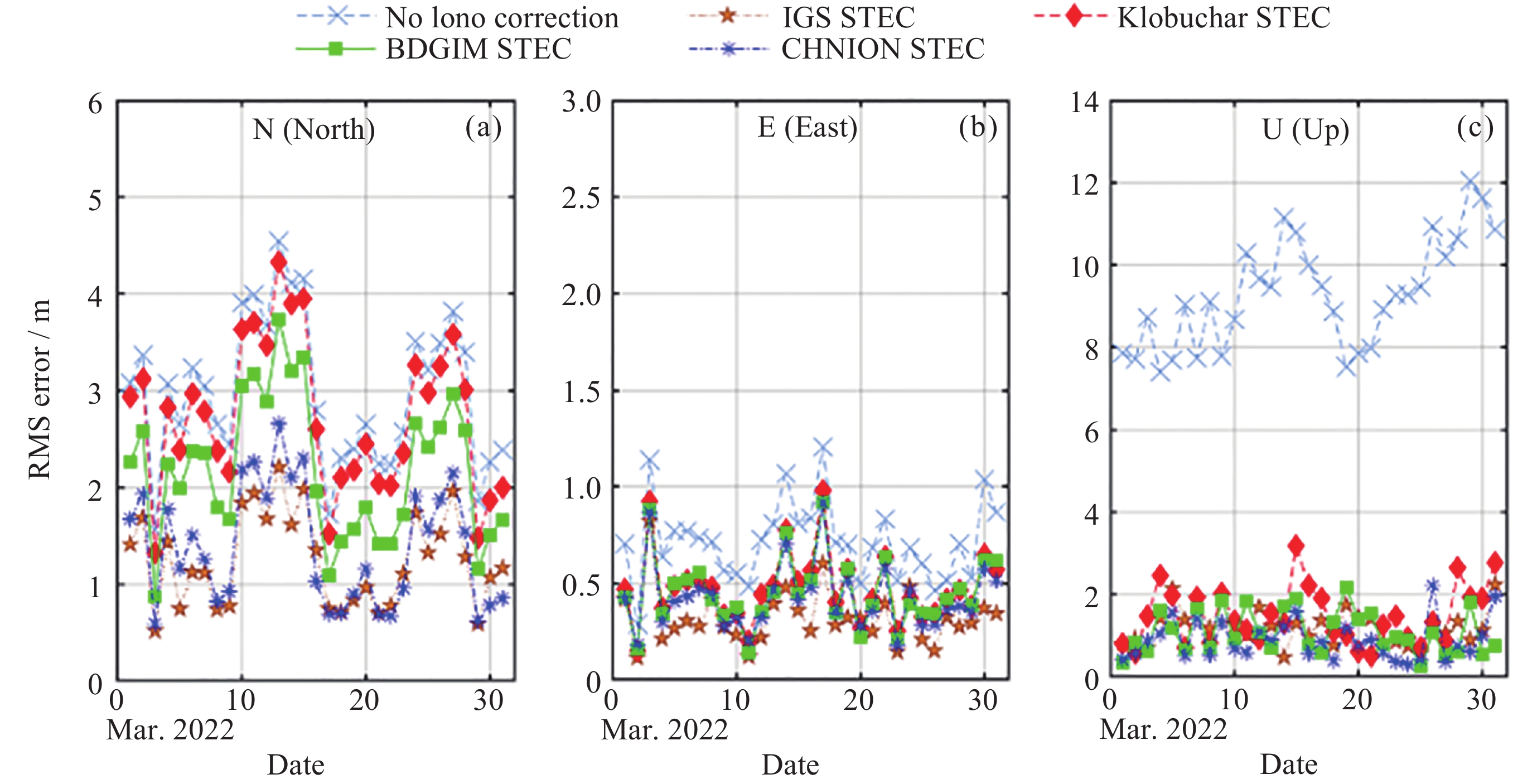

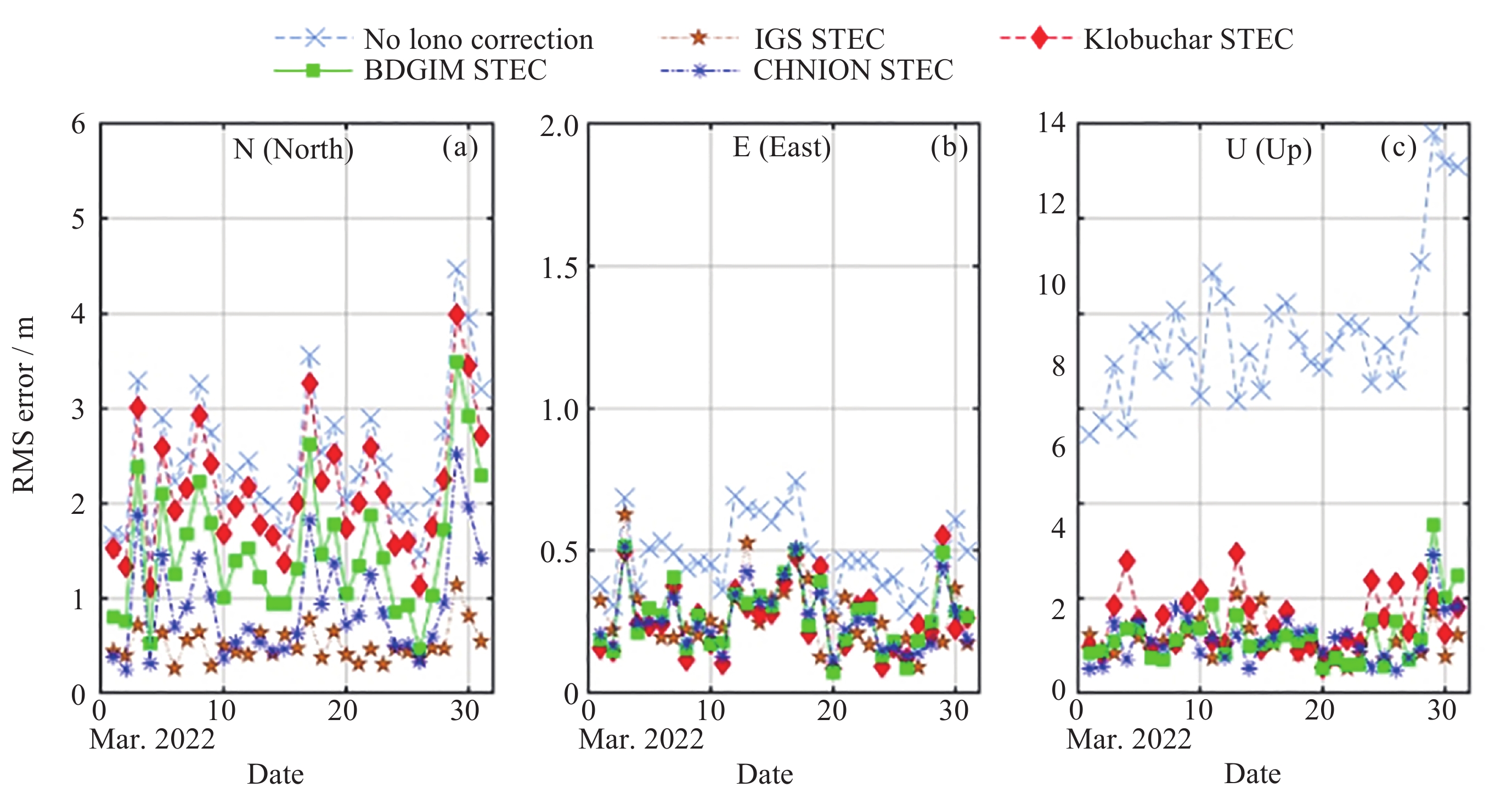

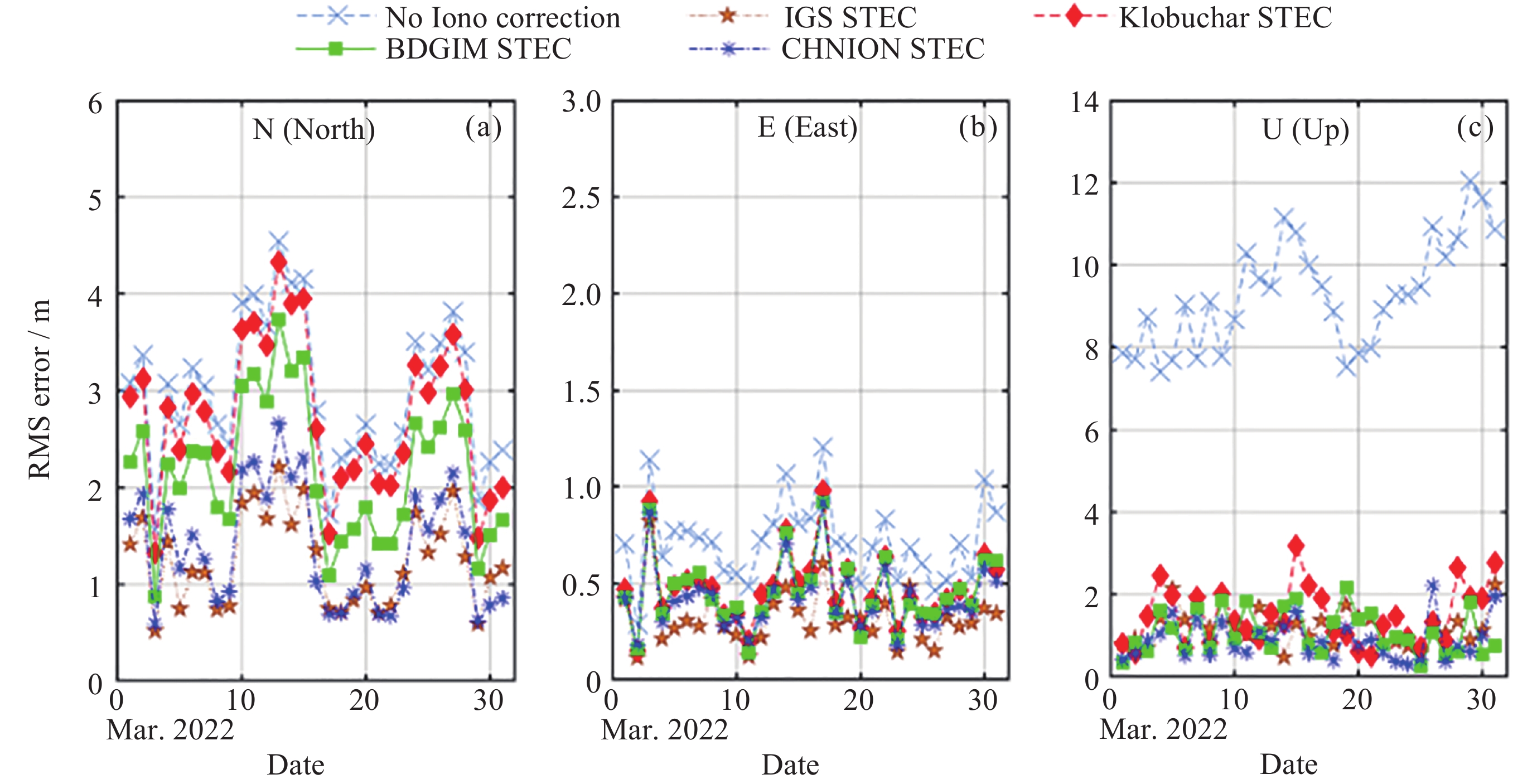

图 5 2022年3月HKSL测站不同电离层模型修正后N, E, U三个方向定位误差
Figure 5. Position errors in the N, E, and U directions at HKSL station after correction with different ionospheric models in March 2022

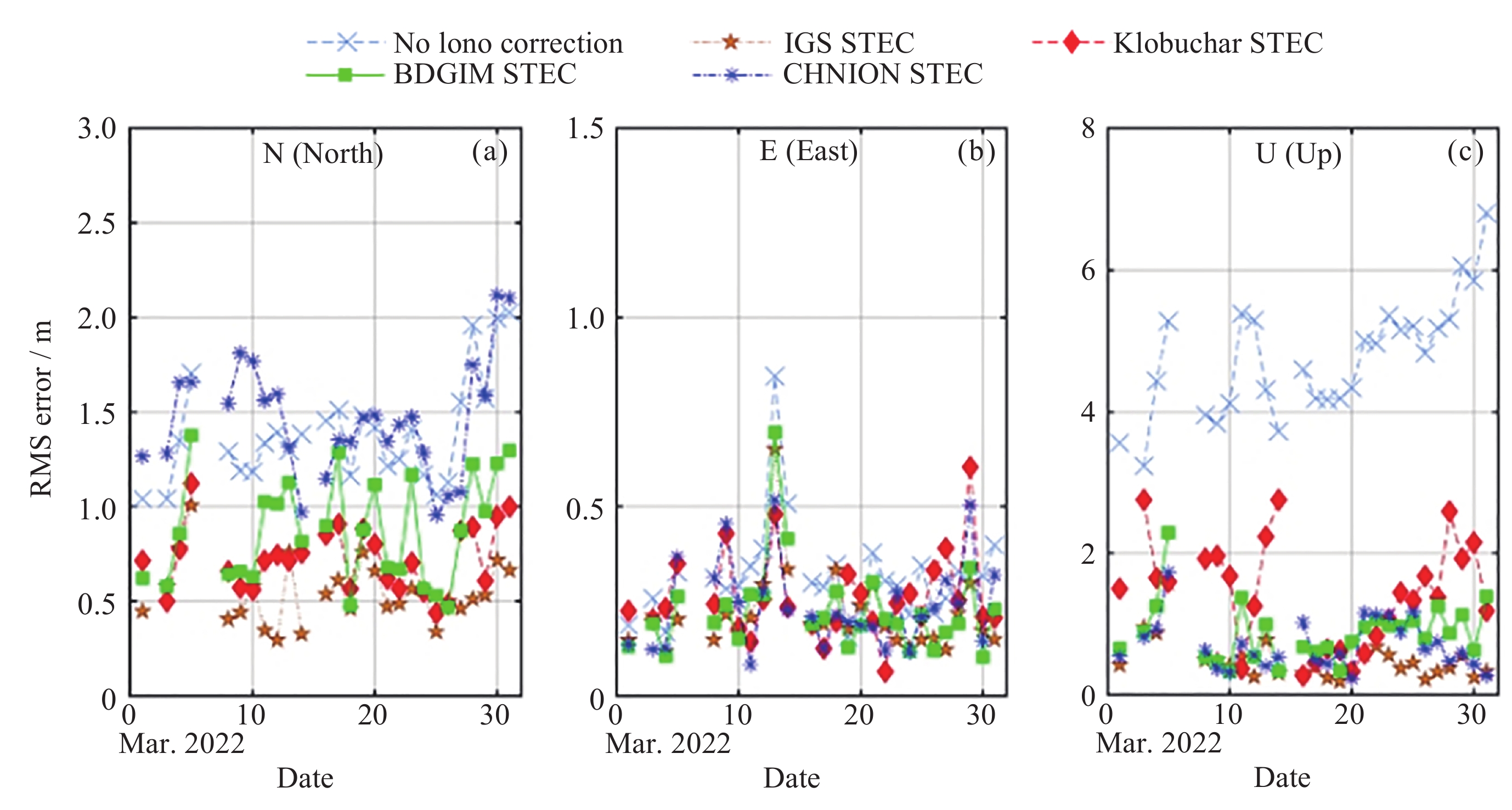

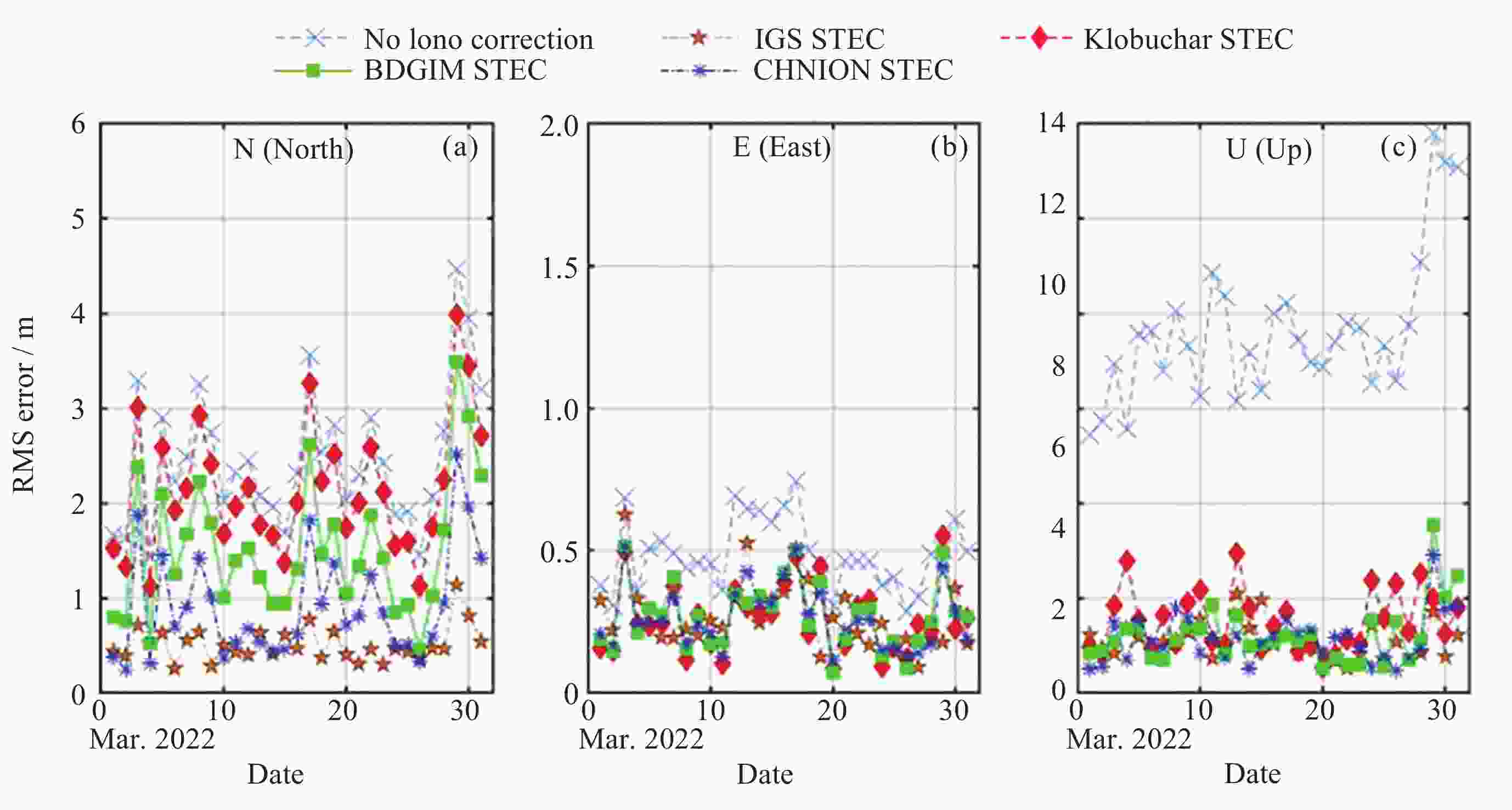

图 6 2022年3月ZLTG测站不同电离层模型修正后N, E, U三个方向定位误差
Figure 6. Position errors in the N, E, and U directions at ZLTG station after correction with different ionospheric models in March 2022
图 7 2022年3月MHTG测站不同电离层模型修正后N, E, U三个方向定位误差
Figure 7. Position errors in the N, E, and U directions at MHTG station after correction with different ionospheric models in March 2022

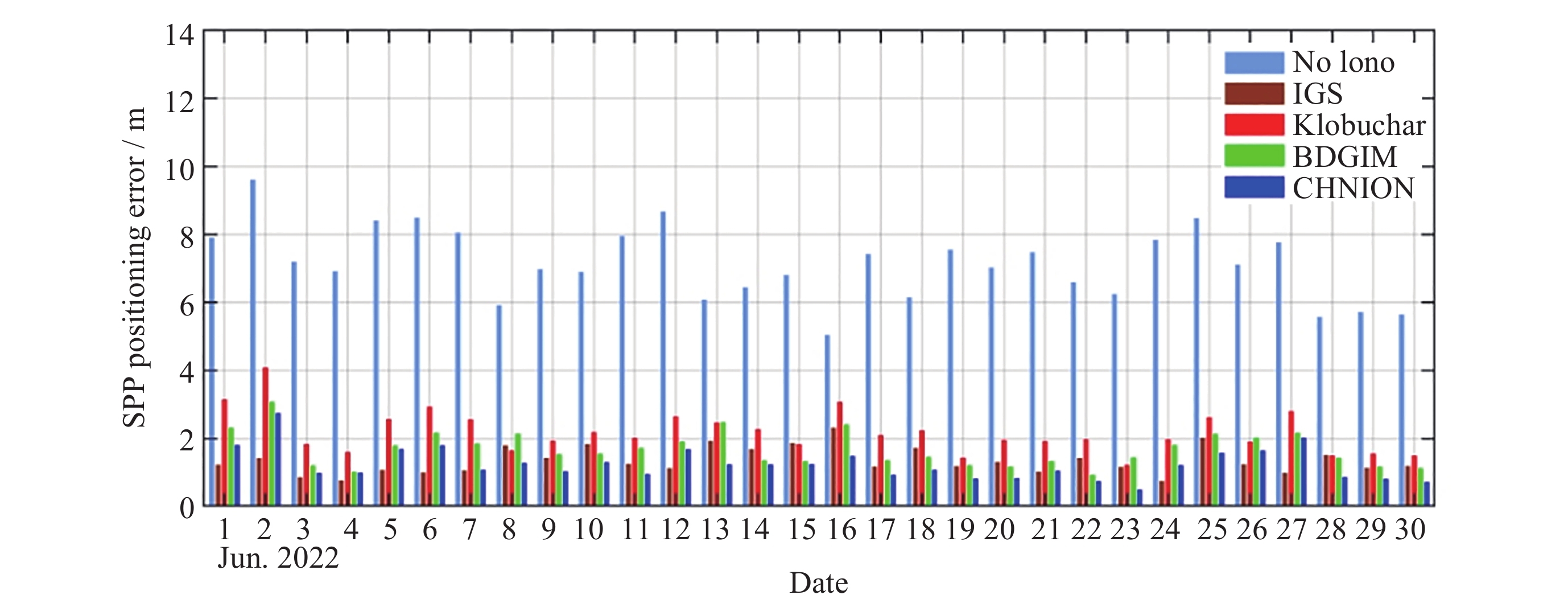

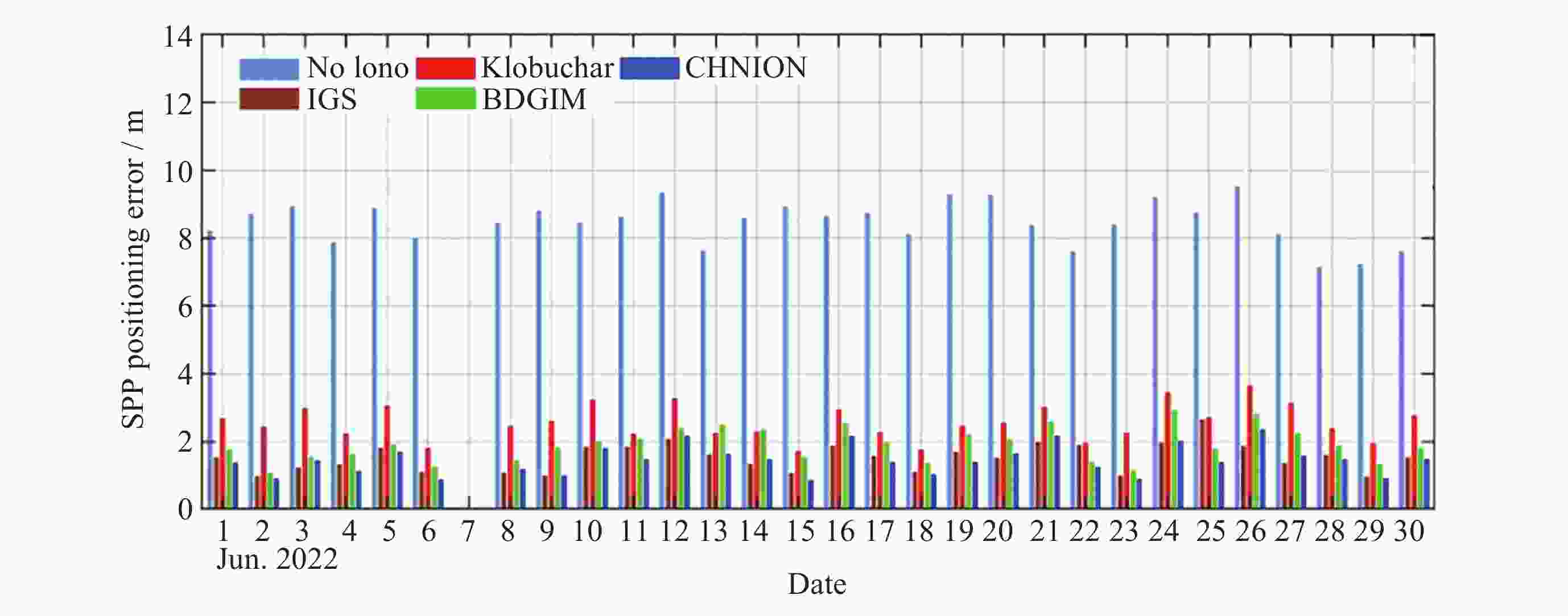

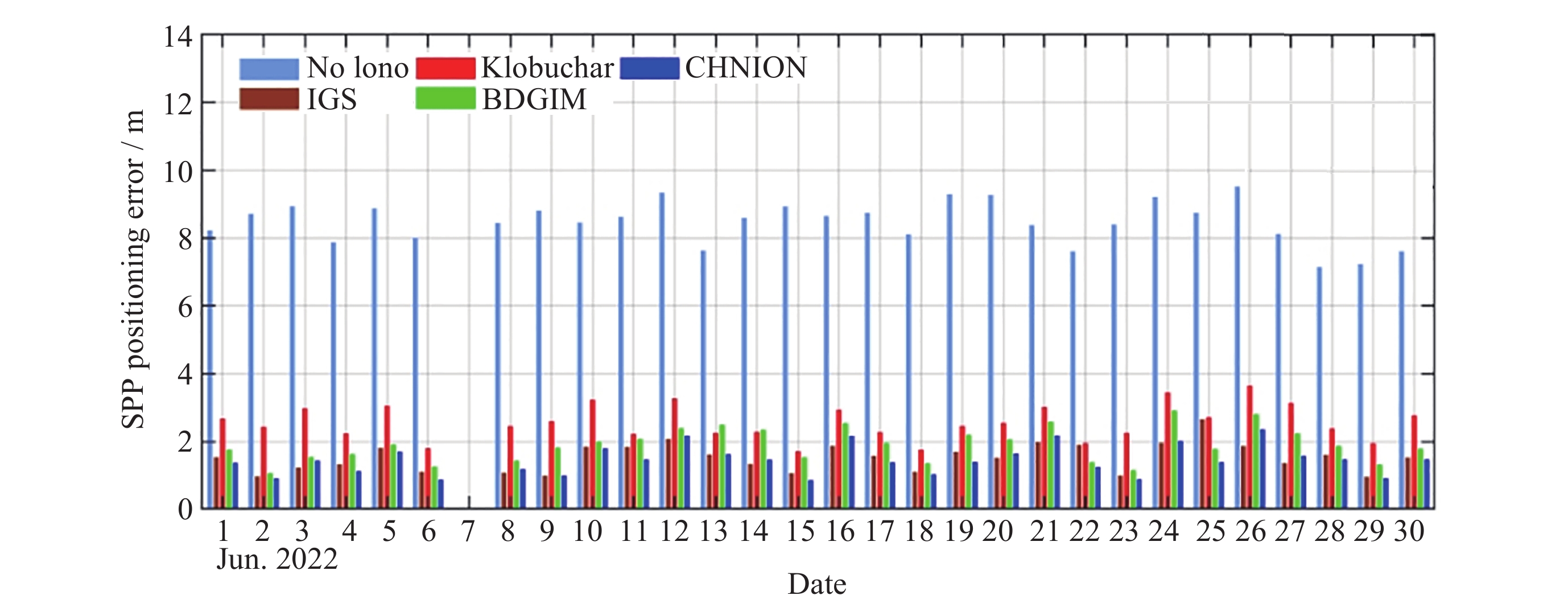

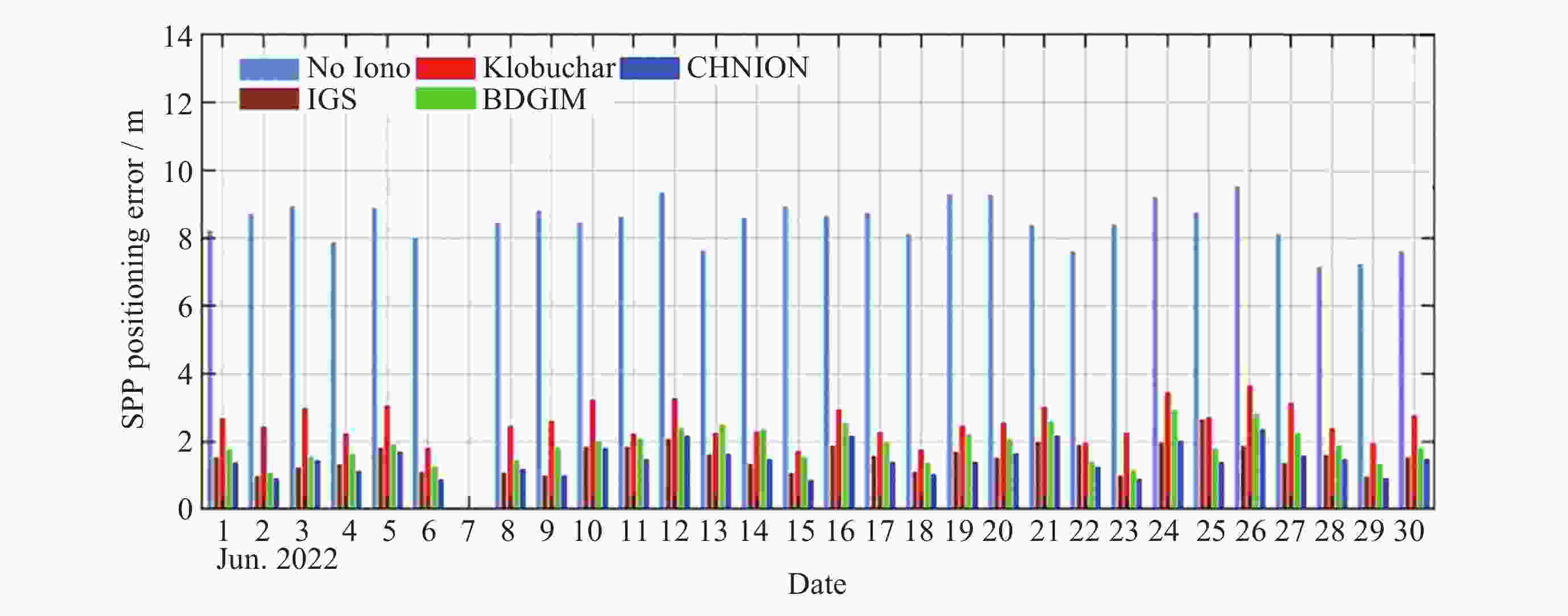

图 8 2022年6月HKSL测站不同电离层模型修正后的标准定位误差
Figure 8. Standard positioning errors at HKSL station after correction with different ionospheric models in June 2022

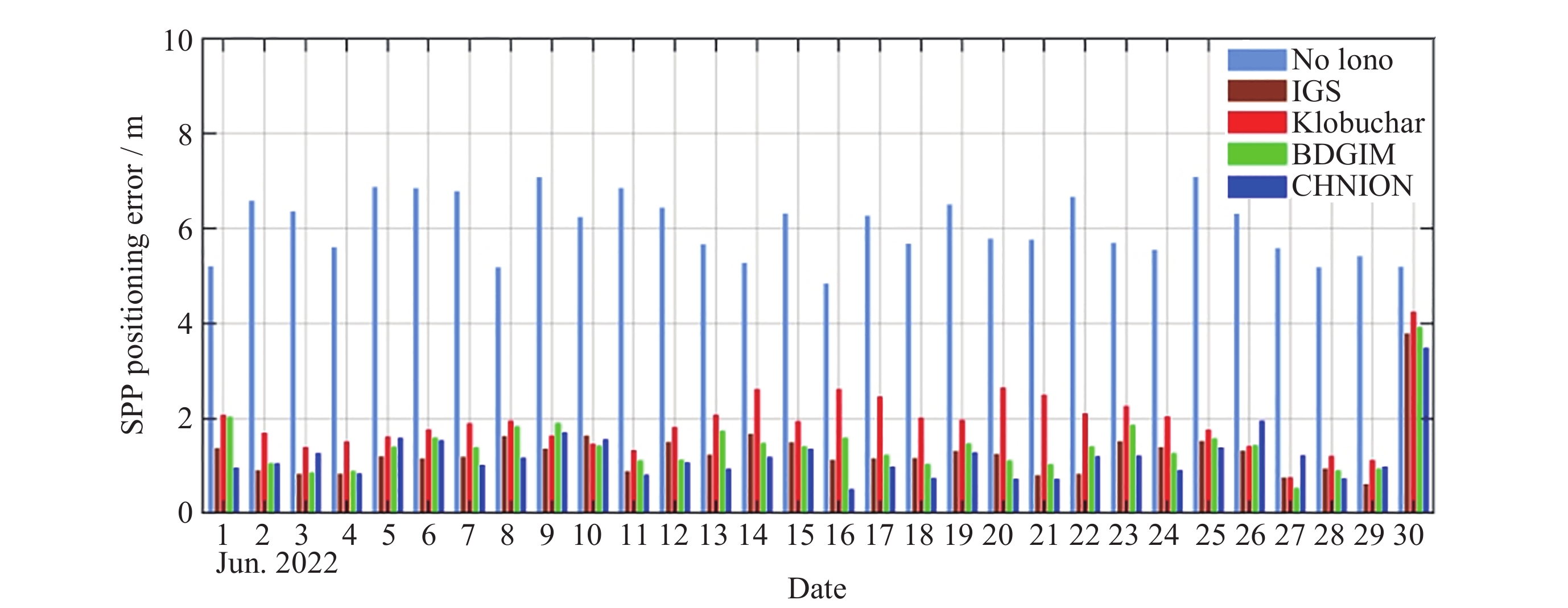

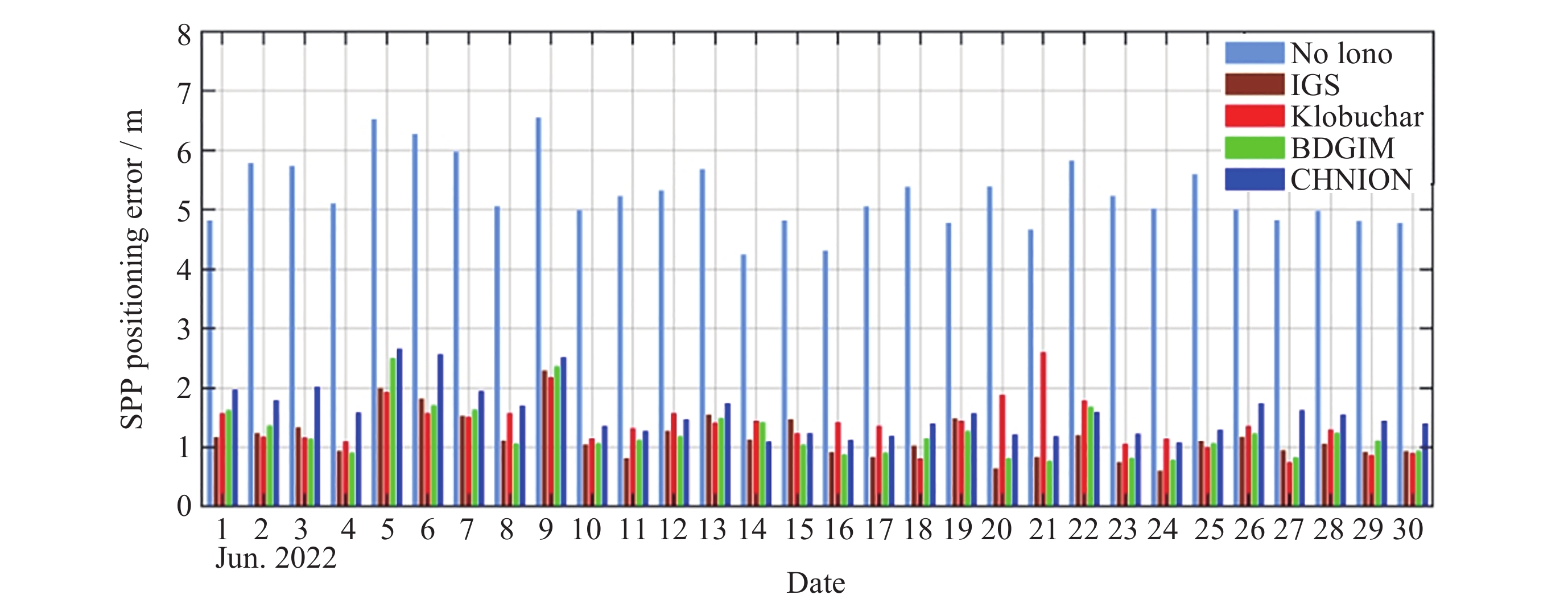

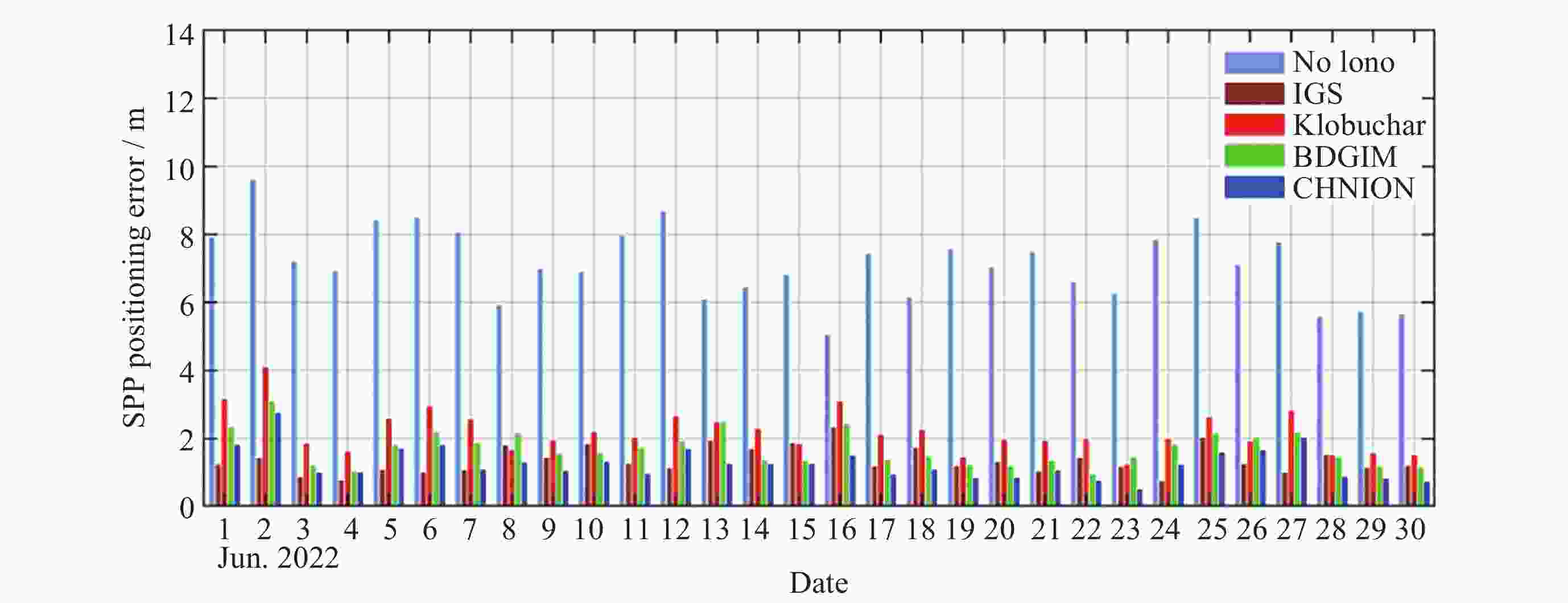

图 9 2022年6月ZLTG测站不同电离层模型修正后的标准定位误差
Figure 9. Standard positioning errors at ZLTG station after correction with different ionospheric models in June 2022
图 10 2022年6月BJF1测站不同电离层模型修正后的标准定位误差
Figure 10. Standard positioning errors at BJF1 station after correction with different ionospheric models in June 2022
图 11 2022年6月MHTG测站不同电离层模型修正后的标准定位误差
Figure 11. Standard positioning errors at MHTG station after correction with different ionospheric models in June 2022

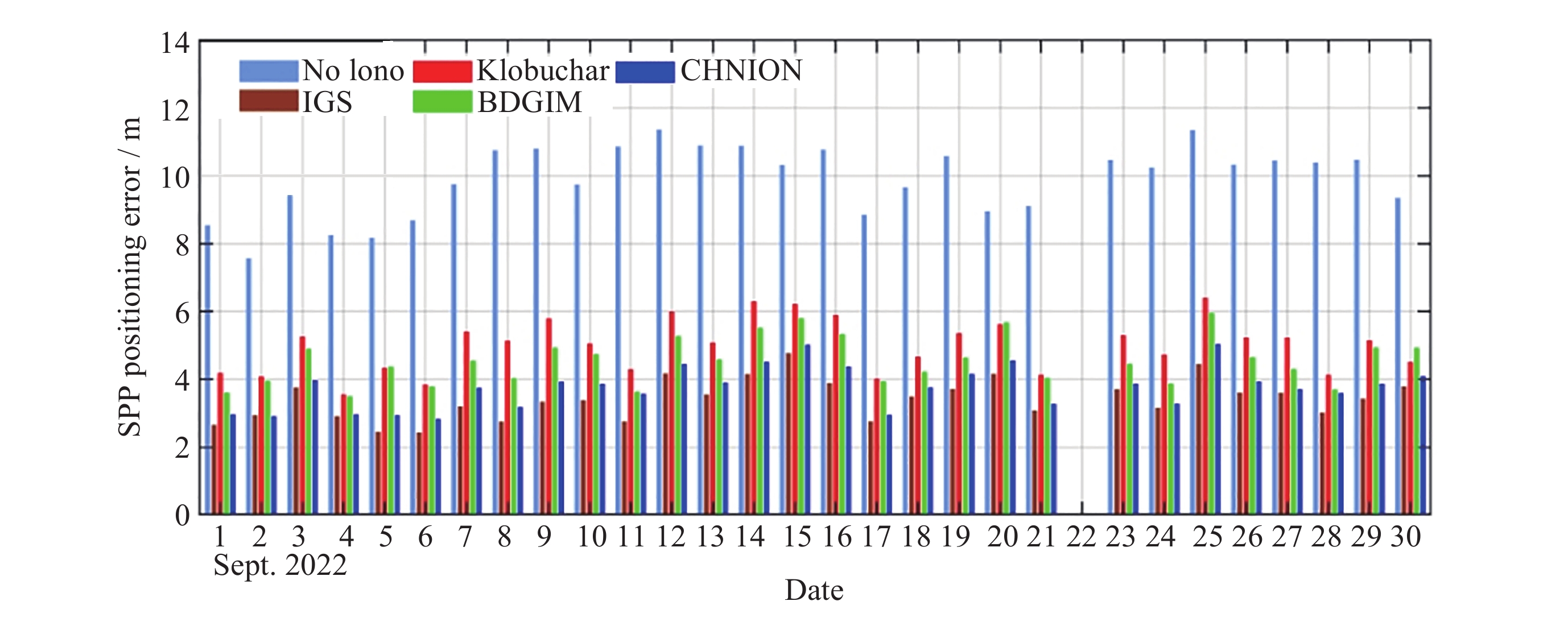

图 12 2022年9月HKSL测站不同电离层模型修正后的标准定位误差
Figure 12. Standard positioning errors at HKSL station after correction with different ionospheric models in September 2022
图 13 2022年9月ZLTG测站不同电离层模型修正后的标准定位误差
Figure 13. Standard positioning errors at ZLTG station after correction with different ionospheric models in September 2022

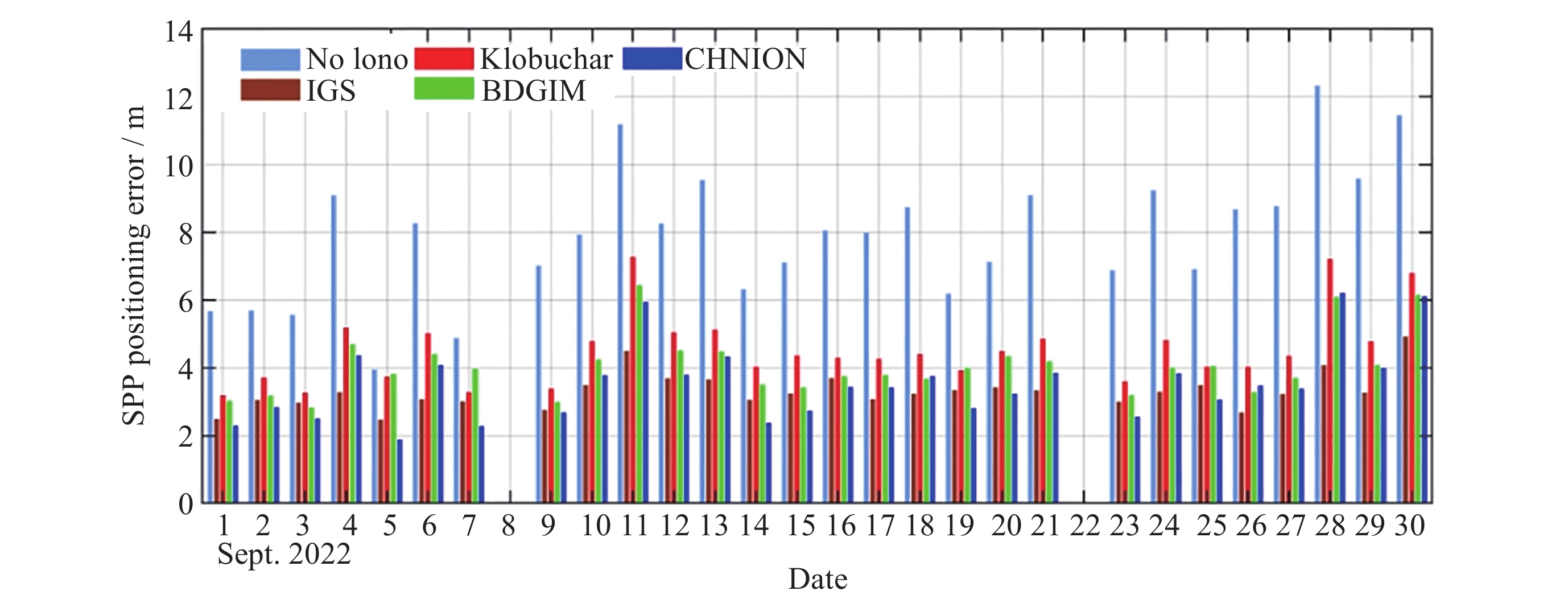

图 14 2022年9月BJF1测站不同电离层模型修正后的标准定位误差
Figure 14. Standard positioning errors at BJF1 station after correction with different ionospheric models in September 2022

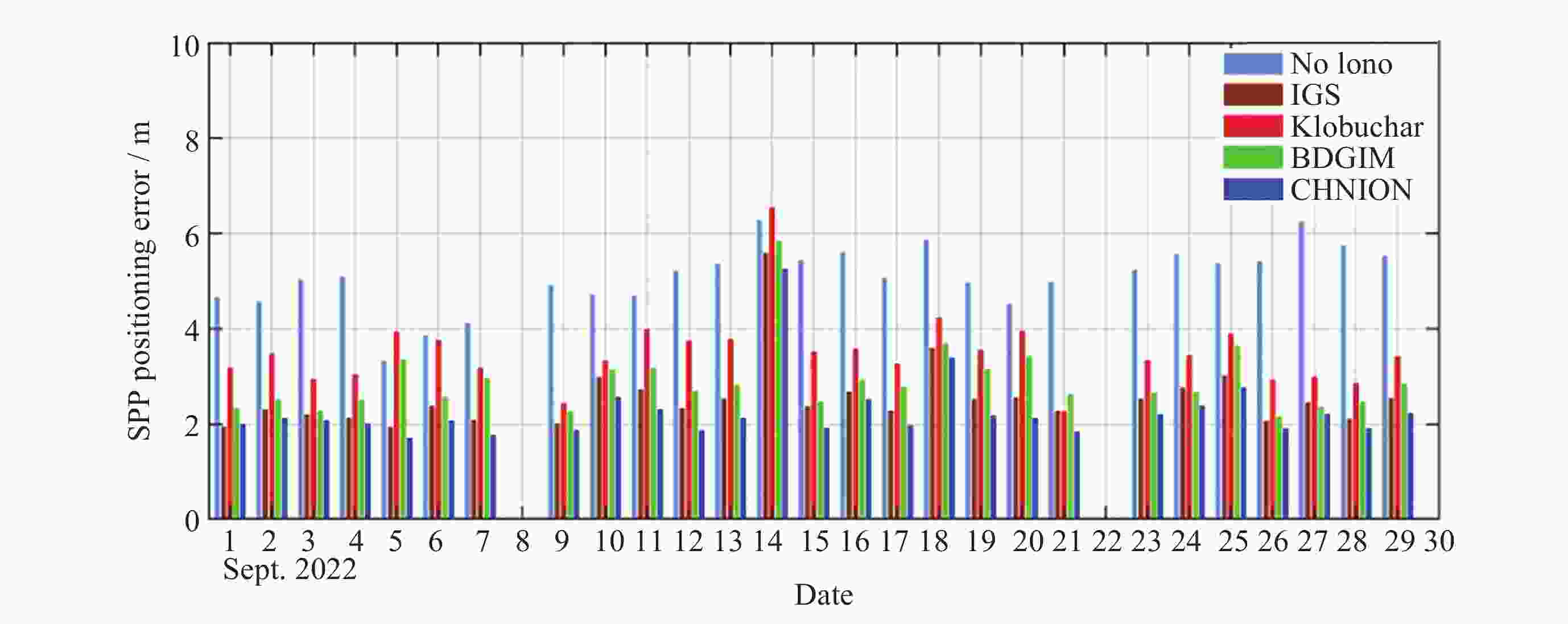

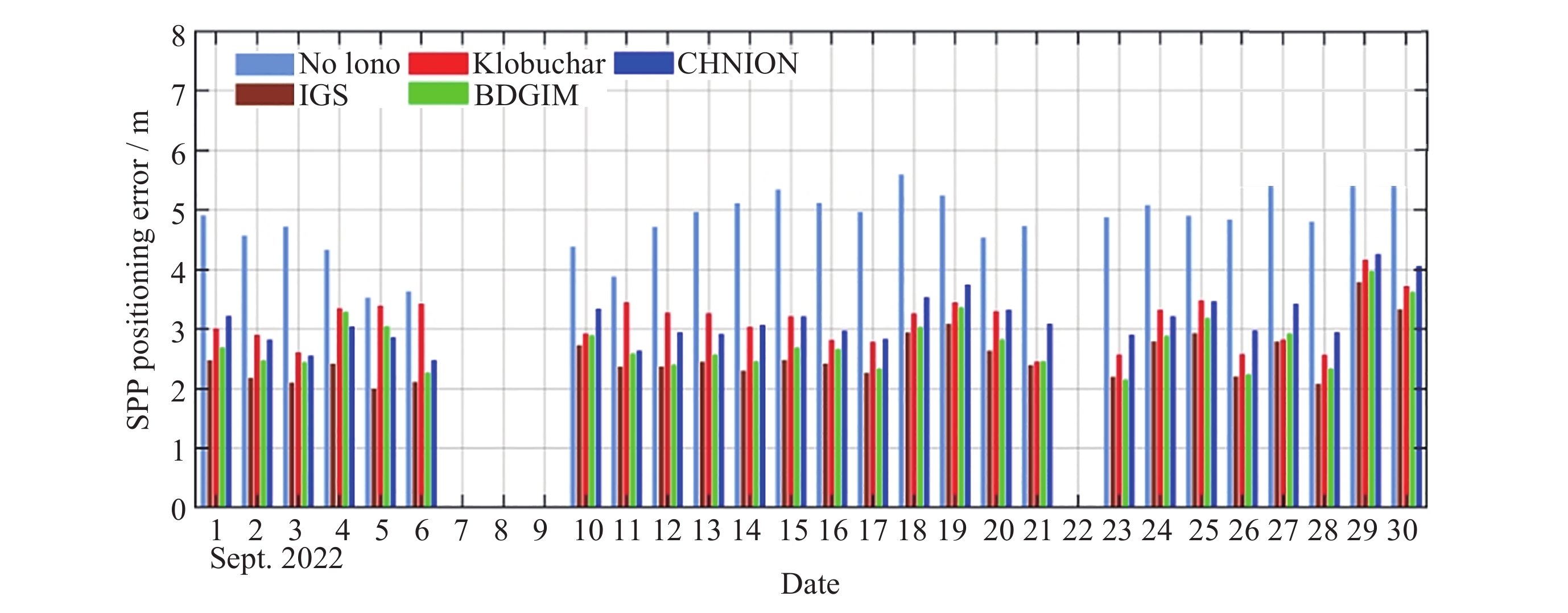

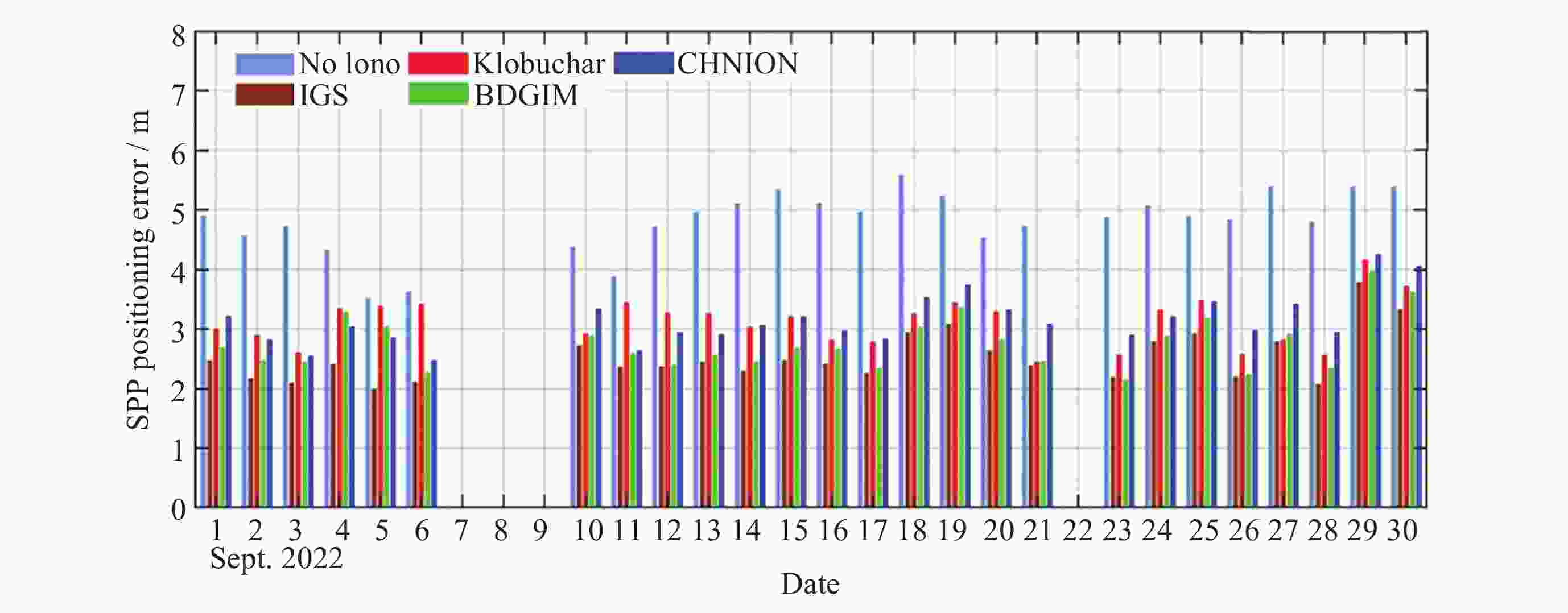

图 15 2022年9月MHTG测站不同电离层模型修正后的标准定位误差
Figure 15. Standard positioning errors at MHTG station after correction with different ionospheric models in September 2022
图 16 2022年12月HKSL测站不同电离层模型修正后的标准定位误差
Figure 16. Standard positioning errors at HKSL station after correction with different ionospheric models in December 2022

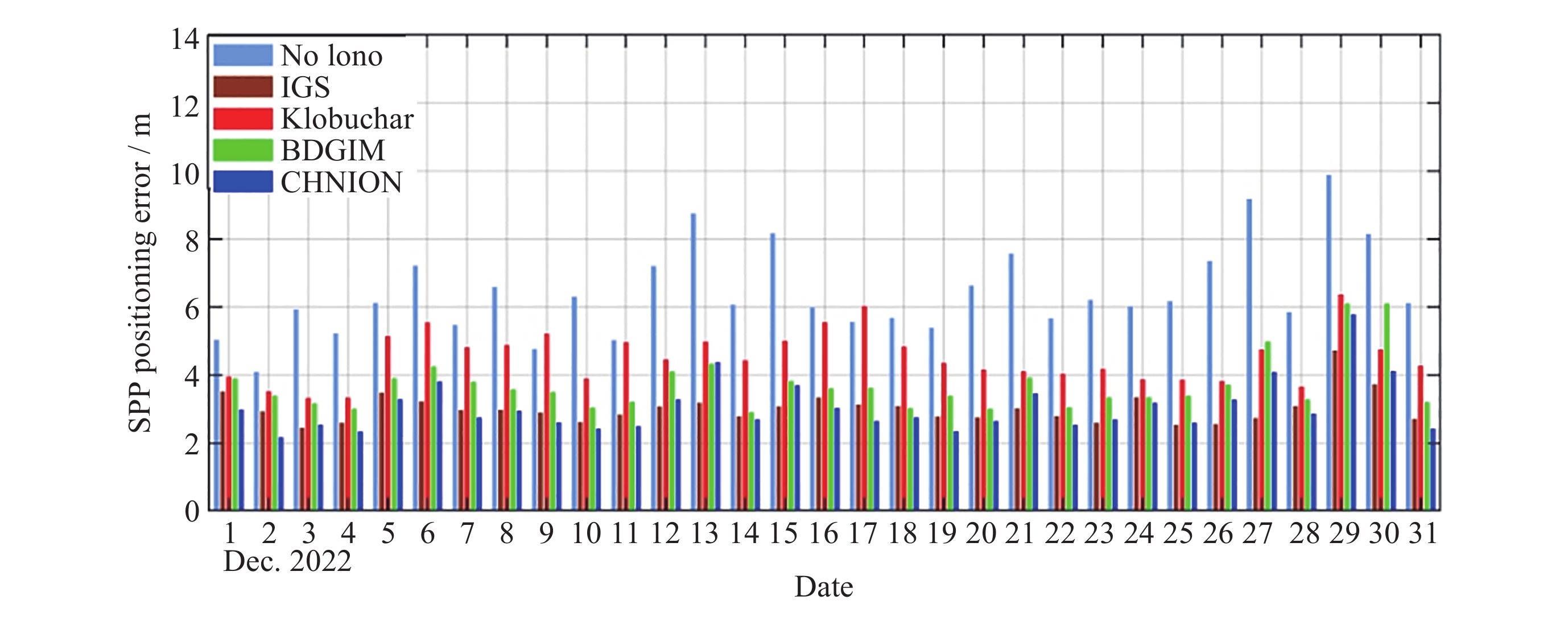

图 17 2022年12月ZLTG测站不同电离层模型修正后的标准定位误差
Figure 17. Standard positioning errors at ZLTG station after correction with different ionospheric models in December 2022

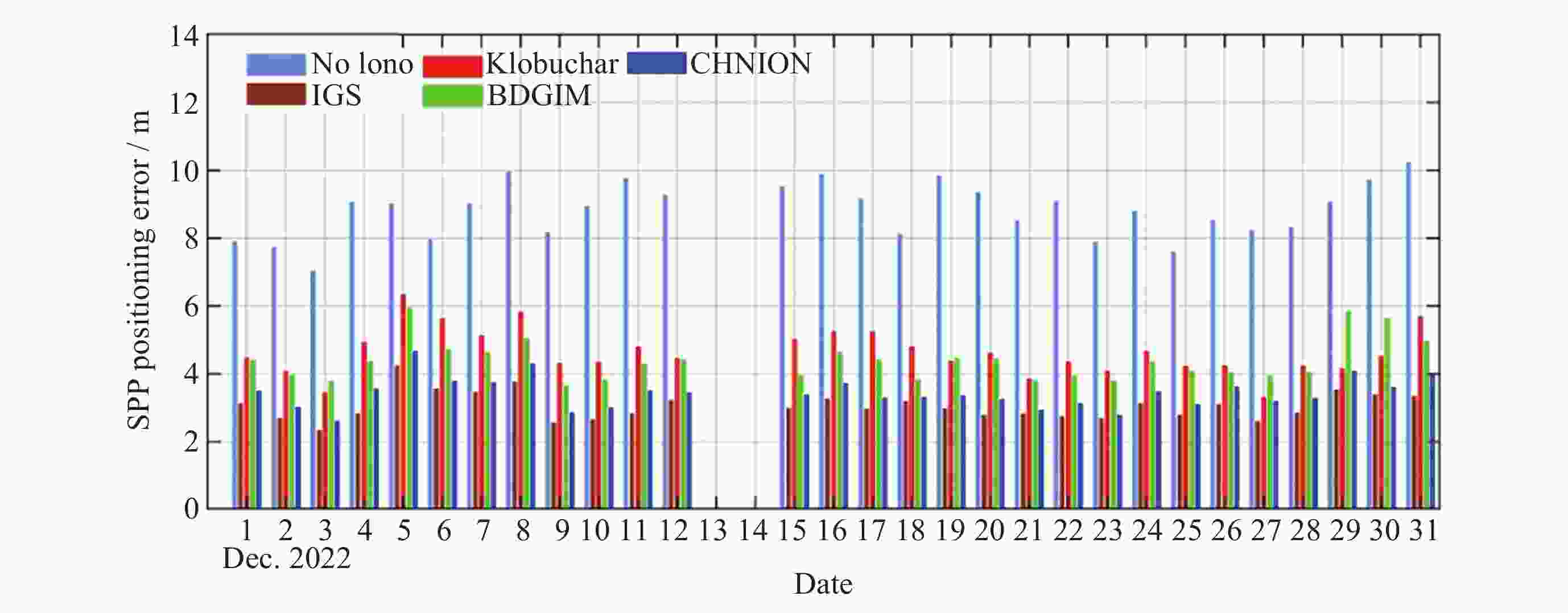

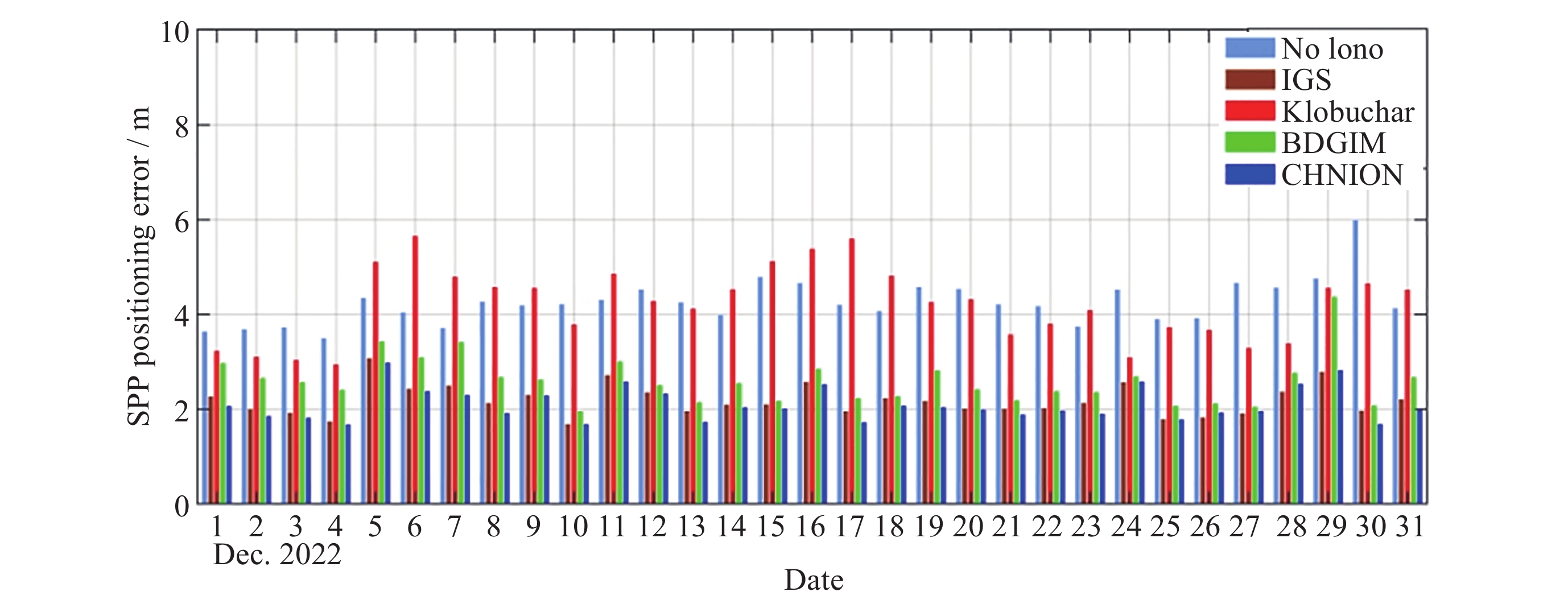

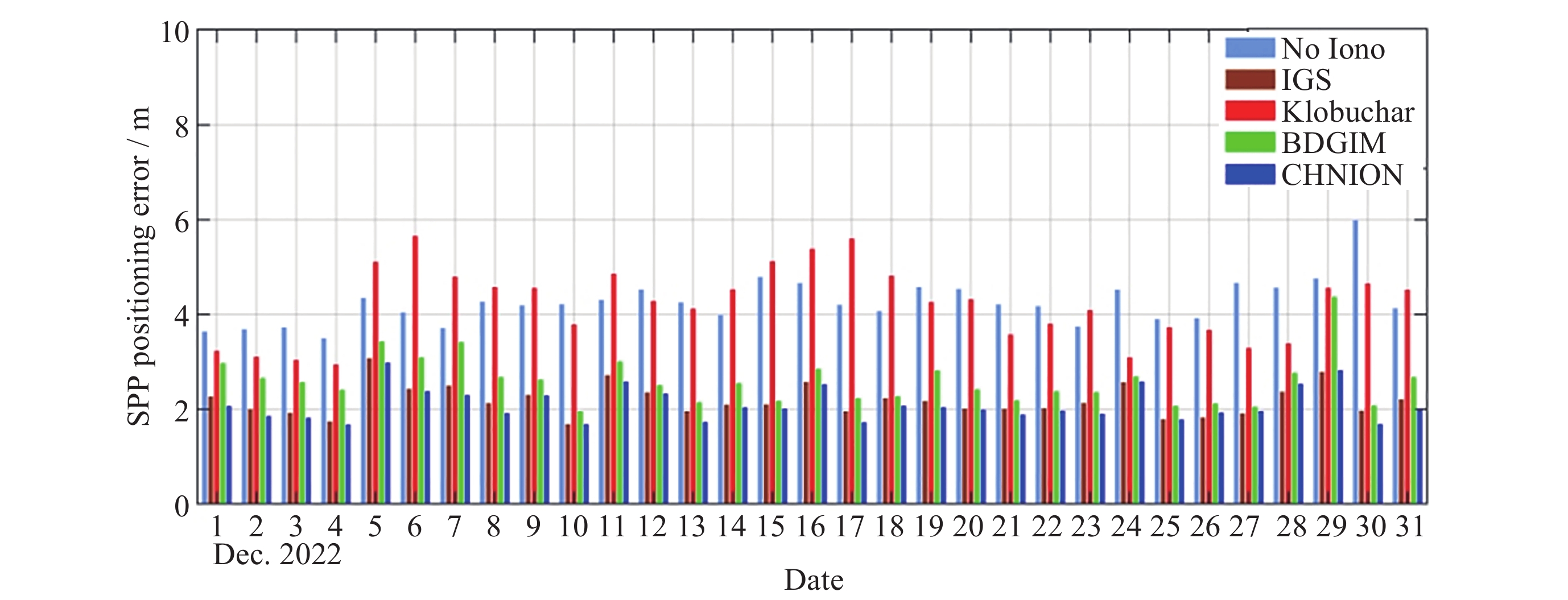

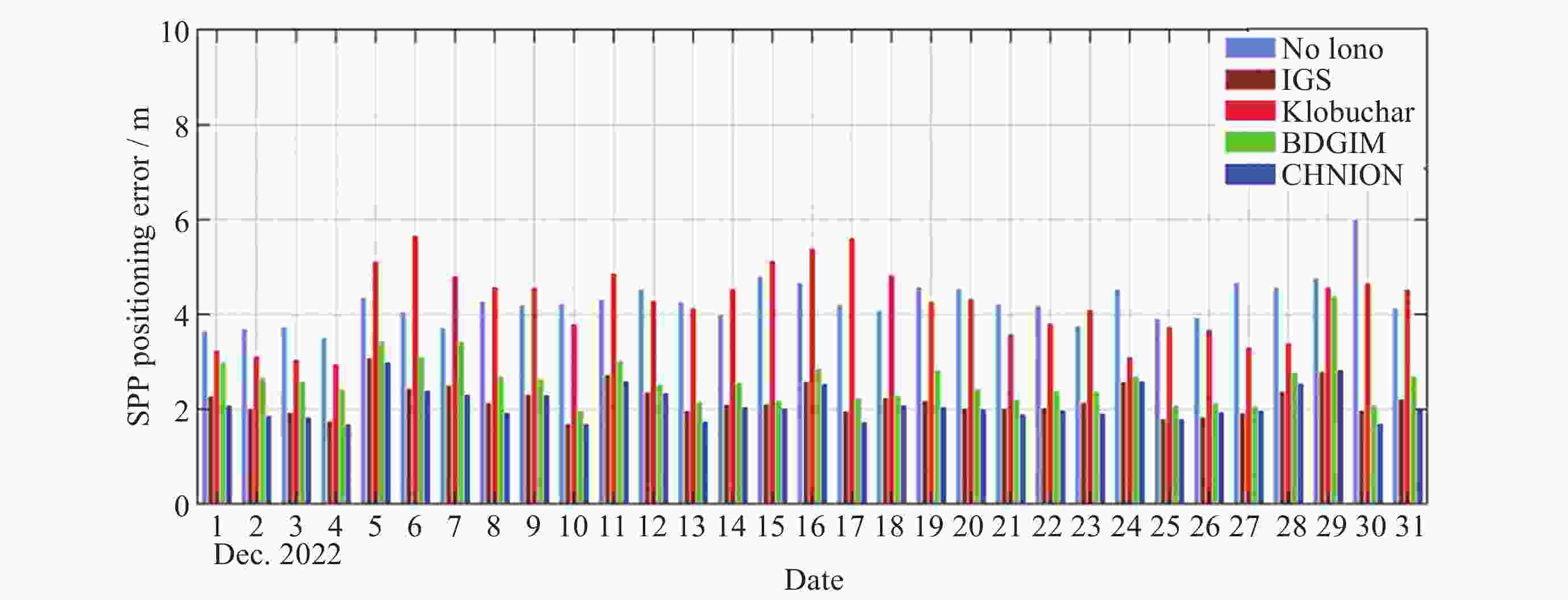

图 18 2022年12月BJF1测站不同电离层模型修正后的标准定位误差
Figure 18. Standard positioning errors at BJF1 station after correction with different ionospheric models in December 2022

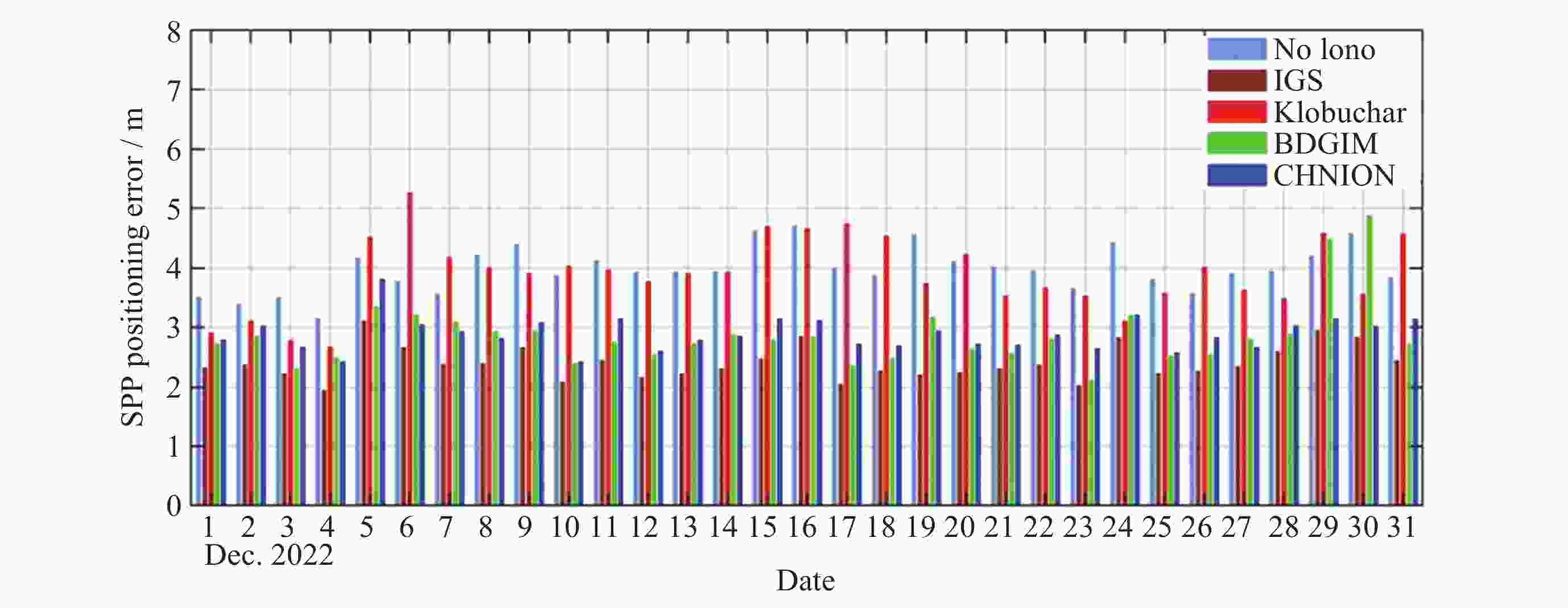

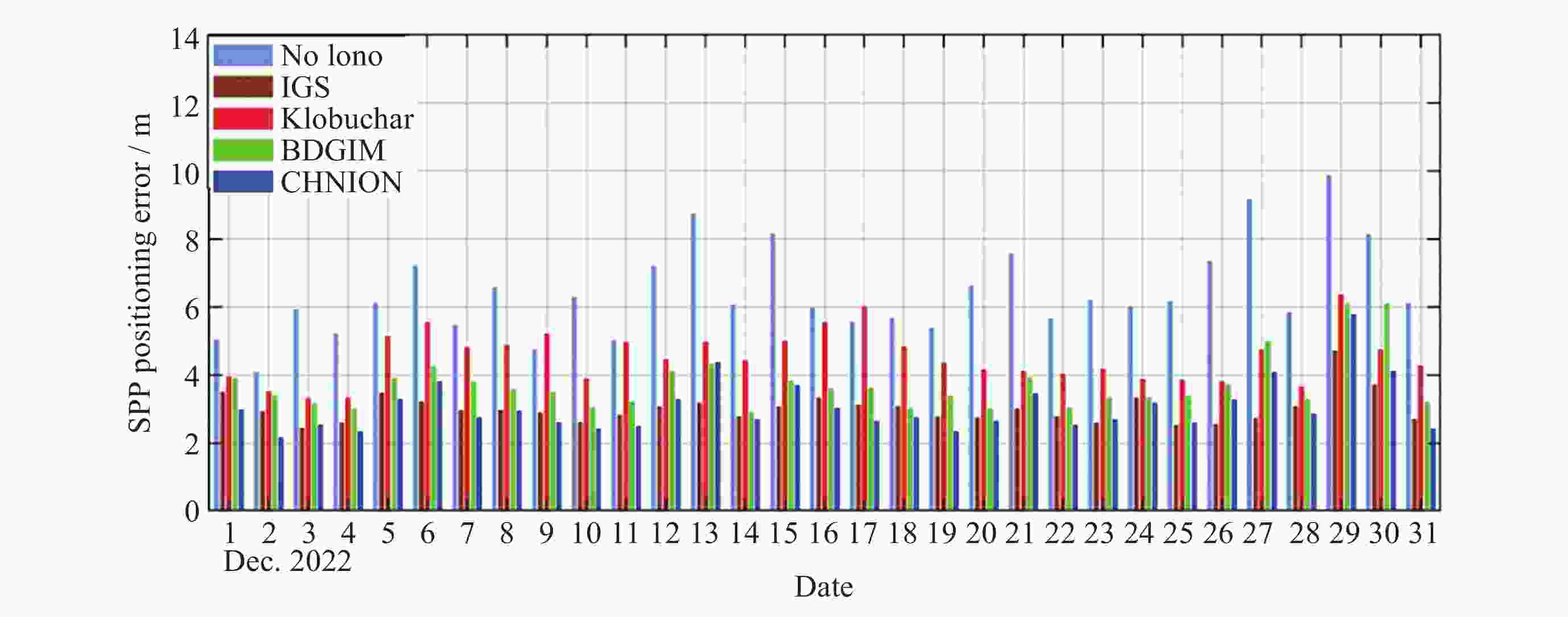

图 19 2022年12月MHTG测站不同电离层模型修正后的标准定位误差
Figure 19. Standard positioning errors at MHTG station after correction with different ionospheric models in December 2022

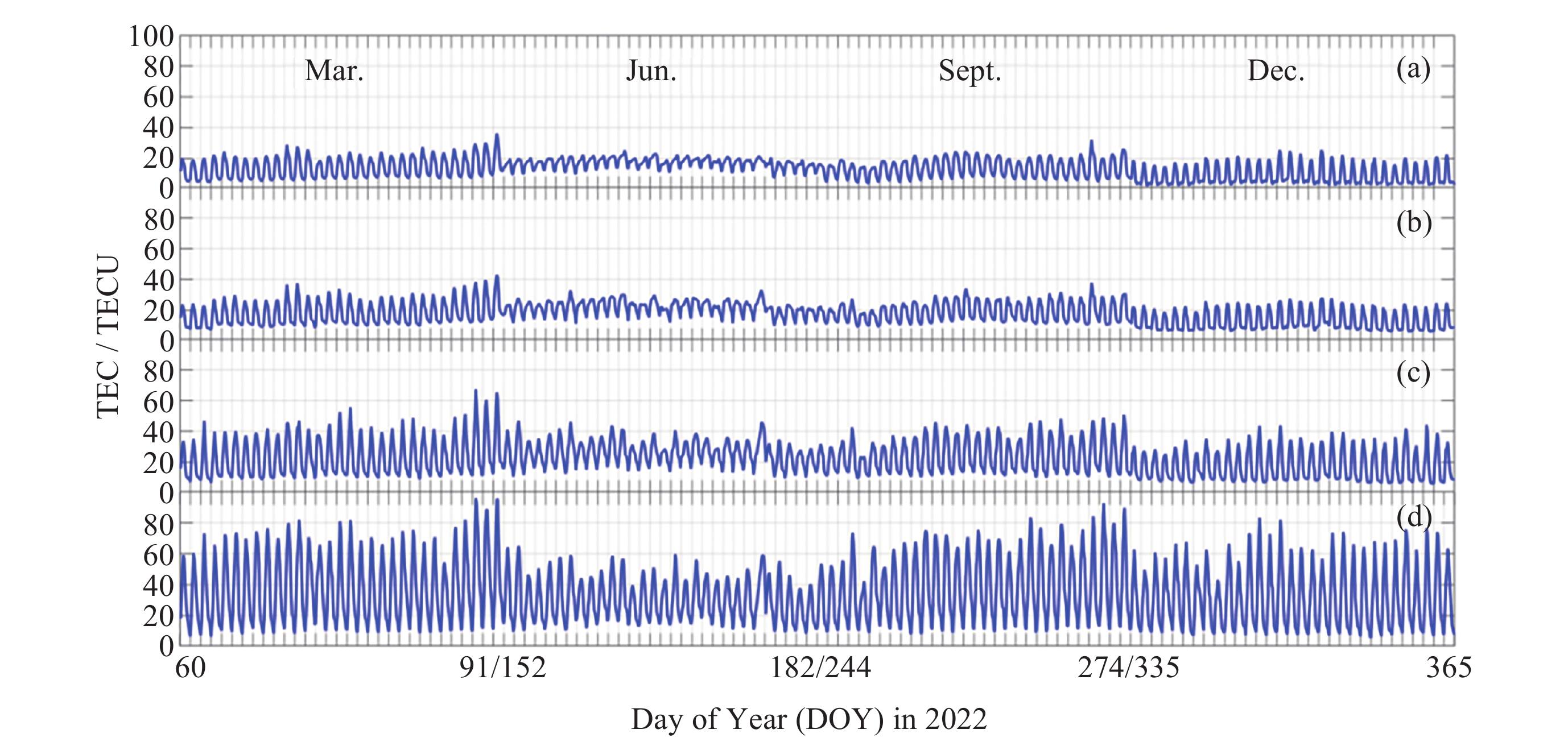

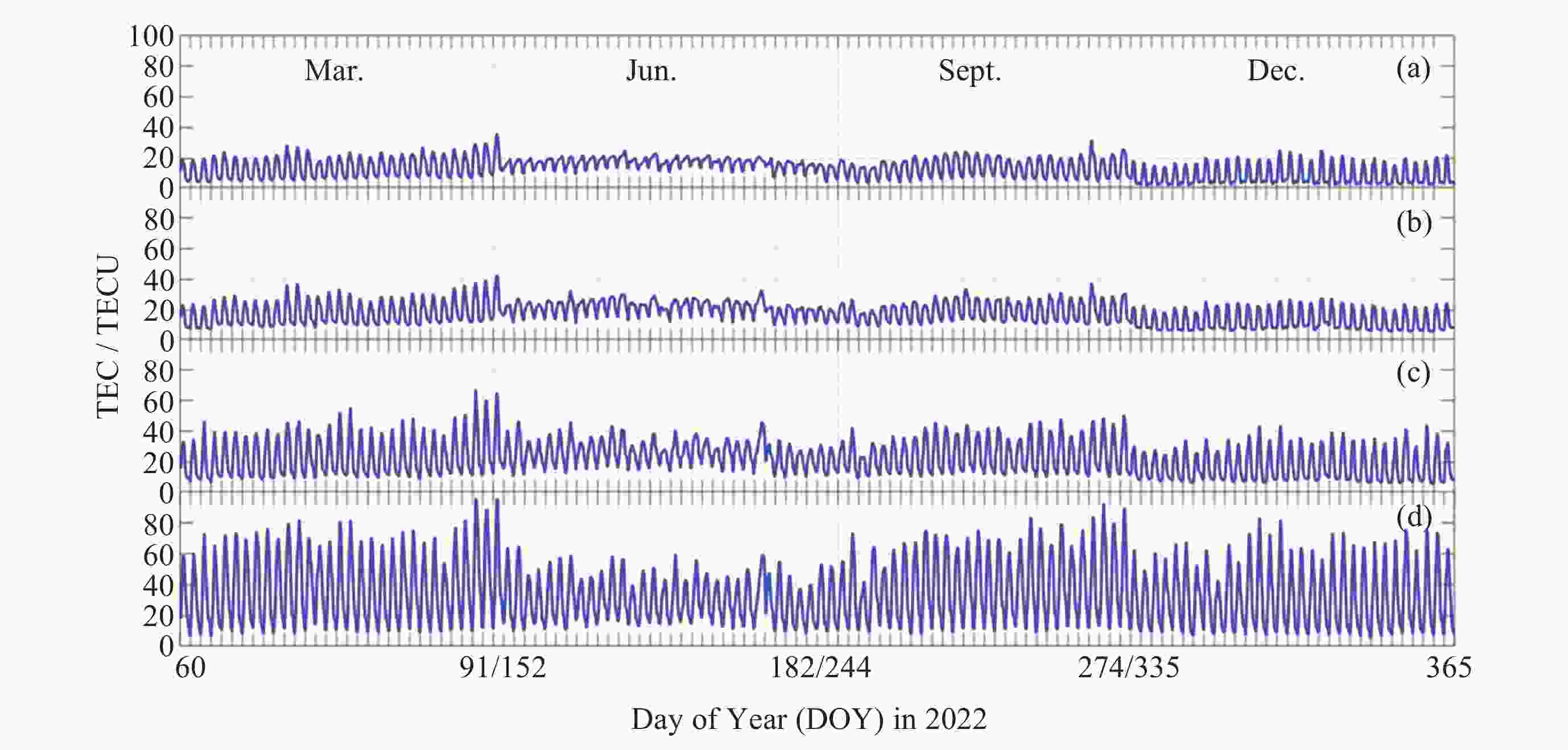

图 20 四个测站上空电离层TEC时间序列
Figure 20. Time series of ionospheric Total Electron Content (TEC) above four monitoring stations

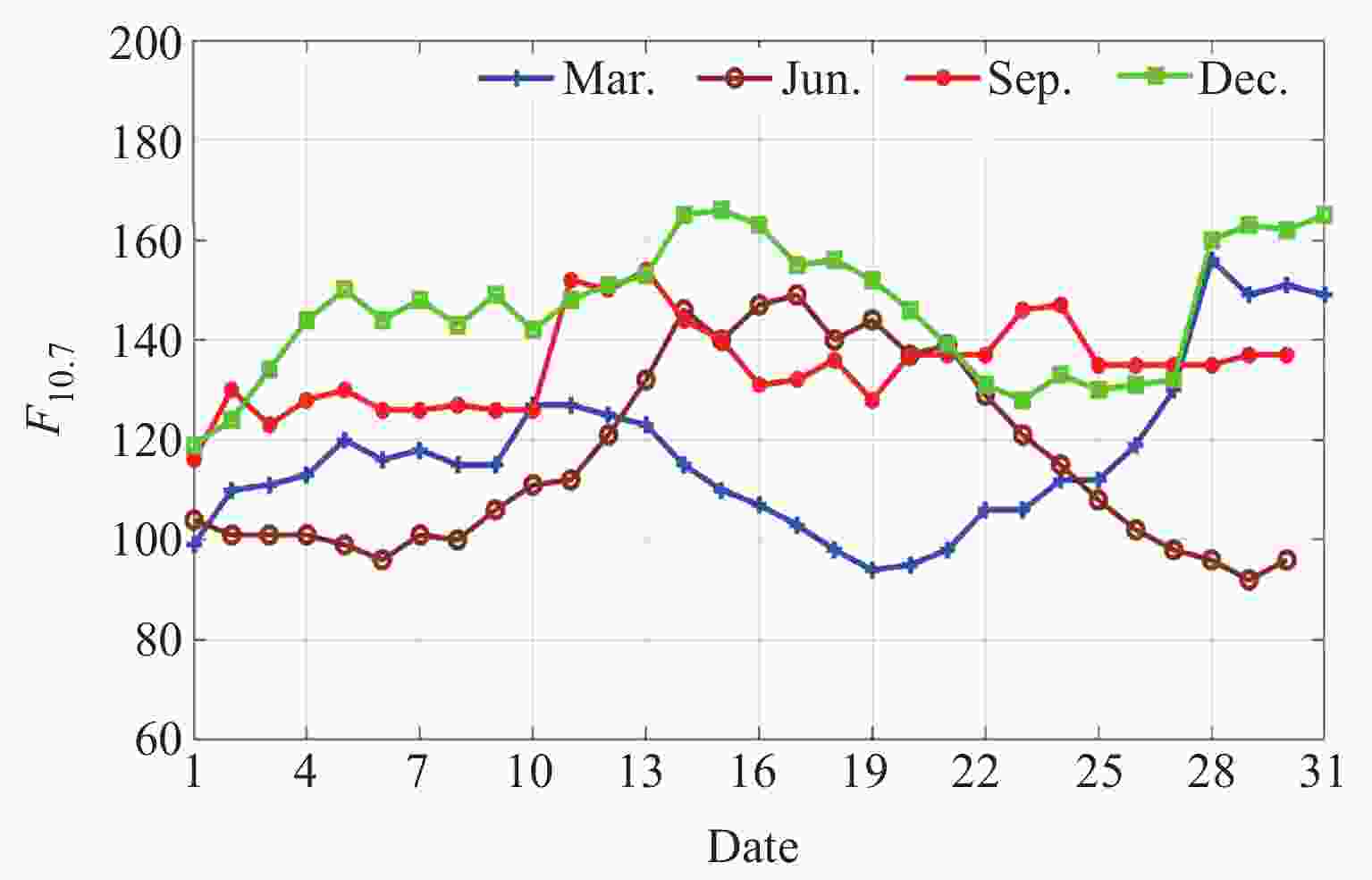

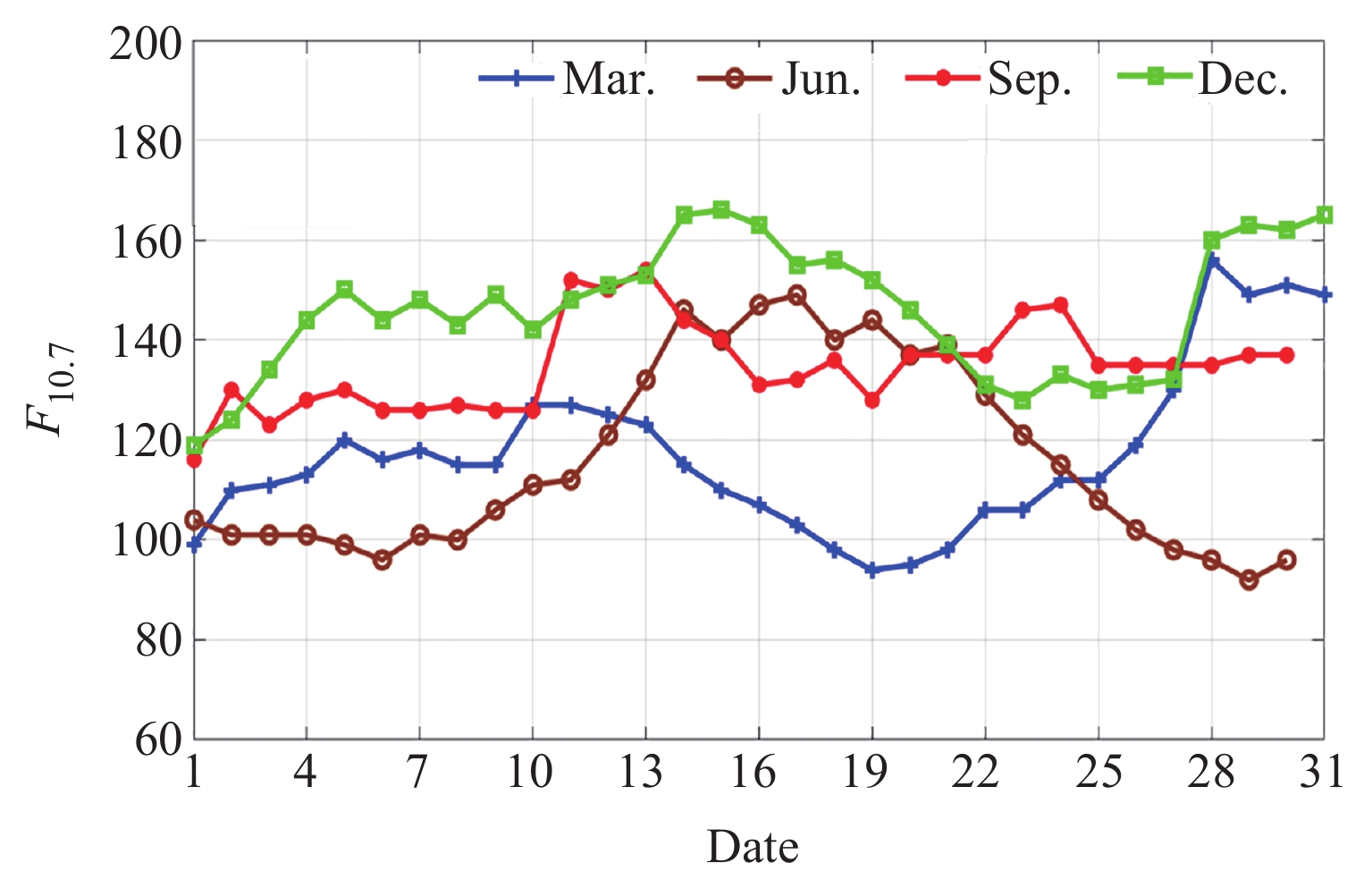

图 21 2022年3月、6月、9月、12月F10.7指数变化时间序列
Figure 21. Time series of F10.7 index variations in March, June, September, and December 2022
表 1 2022年各测站SPP平均均方根误差统计(单位: m)
Table 1. Statistics of average RMS error of SPP at each station in 2022 (Unit: m)
Model HKSL ZLTG BJF1 MHTG 3 6 9 12 3 6 9 12 3 6 9 12 3 6 9 12 No Iono 9.8 8.5 9.9 8.8 8.0 7.1 7.9 6.4 － 6.0 5.1 4.3 5.0 5.3 4.9 4.0 IGS 1.9 1.5 3.4 3.0 1.3 1.3 3.3 3.0 － 1.3 2.6 2.2 0.8 1.2 2.5 2.4 Klobuchar 3.2 2.6 5.0 4.6 2.7 2.2 4.5 4.5 － 1.9 3.5 4.2 1.7 1.7 3.1 3.9 BDGIM 2.6 1.9 4.5 4.4 2.0 1.7 4.1 3.7 － 1.4 2.9 2.6 1.3 1.3 2.8 2.9 CHNION 1.8 1.4 3.8 3.4 1.5 1.2 3.5 3.1 － 1.2 2.3 2.1 1.7 1.6 3.1 2.9
