高轨电磁频谱监测载荷应用及资源管控

孙正波; 周晓光; 义余江

doi:10.11728/cjss2025.06.2024-0096

高轨电磁频谱监测载荷应用及资源管控

doi: 10.11728/cjss2025.06.2024-0096 cstr: 32142.14.cjss.2024-0096

西南电子电信技术研究所　成都　610041

详细信息

作者简介:

孙正波　男, 1975年出生于山东省青岛市, 博士, 现在西南电子电信技术研究所正高级工程师、重点实验室主任、博士生导师, 主要研究方向为卫星系统设计应用、信号处理与定位技术. E-mail: szb_57@sina.com

周晓光　男, 1981年出生于云南省昭通市, 博士, 现为西南电子电信技术研究所高级工程师, 主要研究方向为信号处理、卫星载荷应用管理、卫星地面系统设计. E-mail: xguang.zhou@foxmail.com

中图分类号: V44, V474
计量
- 文章访问数: 0
- HTML全文浏览量: 0
- PDF下载量: 0
- 被引次数:
  0(来源:Crossref)

  0(来源:其他)
出版历程
- 收稿日期: 2024-07-30
- 修回日期: 2024-12-23
- 网络出版日期: 2025-12-03

Payload Application and Resource Management for GEO Satellite-based Electromagnetic Spectrum Monitoring

Southwest Electronics and Telecommunication Technology Research Institute, Chengdu, 610041

摘要

摘要: 电磁频谱监测是对电磁频谱这种重要战略资源进行分配、应用和管理的关键环节, 是政府无线电管理部门的一项重要任务. 电磁频谱监测的手段较多, 但多以地基为主, 存在较大的局限性. 基于天基平台的电磁频谱监测系统(Electromagnetic Spectrum Monitoring Systems)是广域电磁频谱监测的有效途径和研究热点, 相关产业随着航天、电子和信息等技术的发展逐渐规模化. 与低轨电磁频谱监测相比, 高轨电磁频谱监测具有任务响应速度快、数据接收处理时效性高、可全天时全天候连续监测等优点. 与高轨电磁频谱监测相关的公开报道很少. 本文从高轨电磁频谱监测的体制特点出发, 对载荷资源应用模式、载荷资源管控技术、应用系统等进行研究和针对性设计, 并提出需要进一步攻研的关键技术, 以期对该类卫星的设计和应用有一定指导意义.
- 电磁频谱监测 /
- 高轨卫星 /
- 载荷应用模式 /
- 载荷资源管控 /
- 任务规划
Abstract: The electromagnetic spectrum is a vital strategic resource. Electromagnetic spectrum monitoring is a crucial aspect of the allocation, utilization, and management of this resource, serving as a key responsibility of government radio regulatory authorities. Although multiple methods are employed for electromagnetic spectrum monitoring, the predominant reliance on ground-based systems introduces significant limitations.The satellite-based Electromagnetic Spectrum Monitoring (ESM) systems is an effective approach and a research hotspot for wide area surveillance. The space-based electromagnetic spectrum monitoring industry has gradually scaled up with the development of aerospace, electronic, and information technologies. Compared to Low Earth Orbiting (LEO) ESM, Geostationary Earth Orbiting (GEO) ESM has the advantages of fast task response speed, high timeliness of data reception and processing, and ability for long-time continuous surveillance. There is scarce pubilic reporting on GEO satellite-based ESM. Starting from the features of GEO satellite-based ESM, this paper, operation modes of payload resources, payload resource management and control technology, and application systems are studied. Besides, some key technologies deserving deep research are briefly described. It is hoped that this paper will provide some guidance for the design and application of such satellites.
- Spectrum monitoring /
- GEO satellite /
- Payload application mode /
- Payload resource management /
- Mission planning
注释:

1) 1US reconnaissance satellites: http://en.wikipedia.org/wiki/. Military Spacecraft – USA: http://space.skyrocket.de/doc_sdat/. Jonathan’s Space Report News: http://spaceref.com/

HTML全文

图 1 电磁频谱监测卫星信号接收

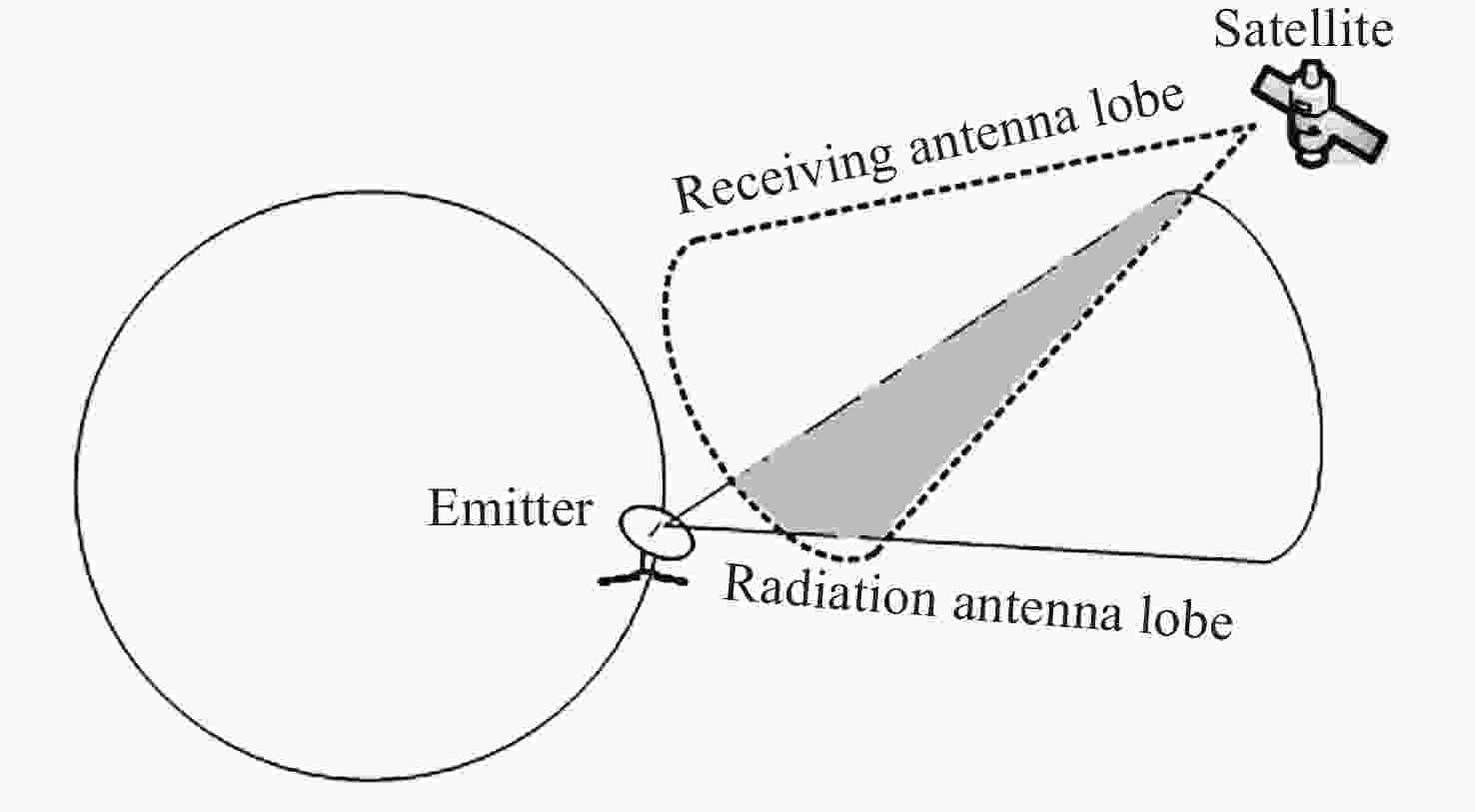

Figure 1. Satellite-based signal reception for electromagnetic spectrum monitoring

下载: 全尺寸图片幻灯片

图 2 多星协同定位原理

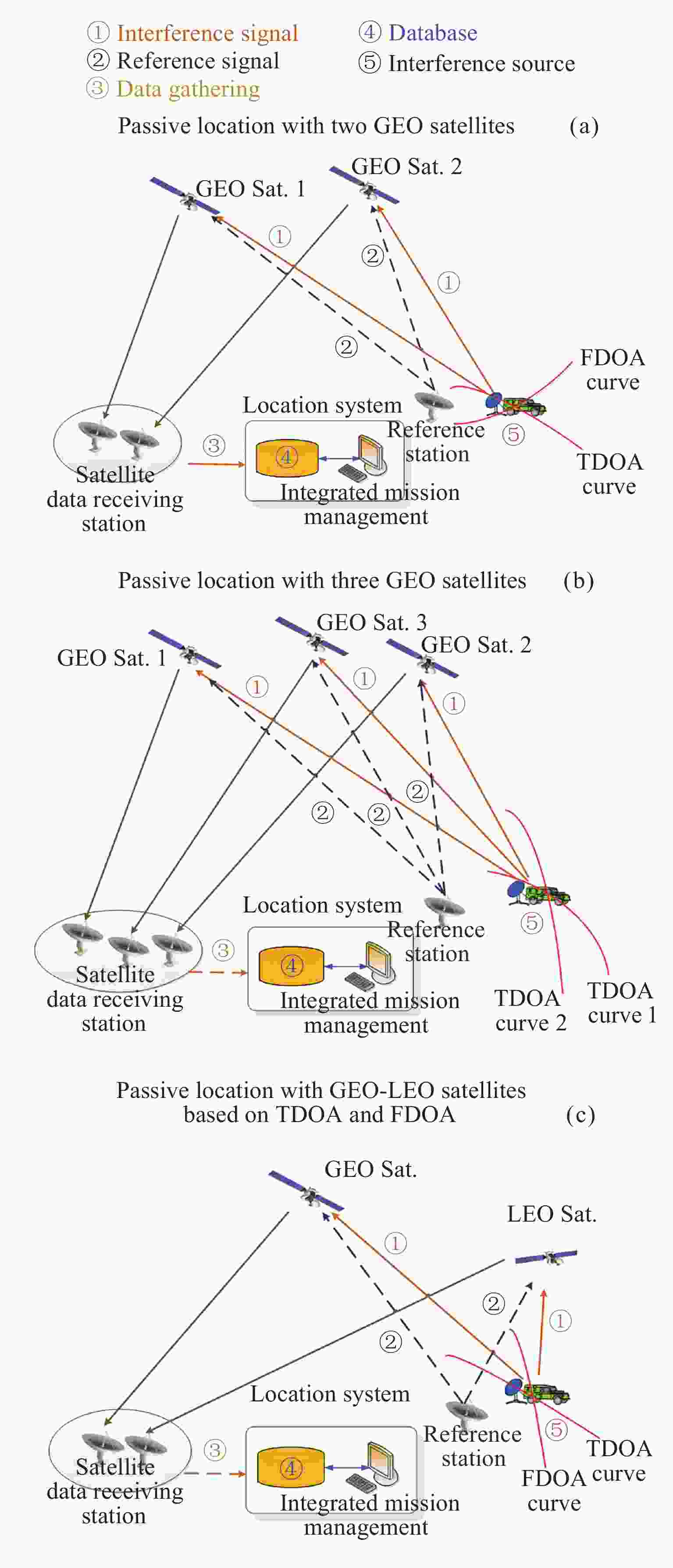

Figure 2. Satellite-satellite-collaborative location of interference sources

下载: 全尺寸图片幻灯片

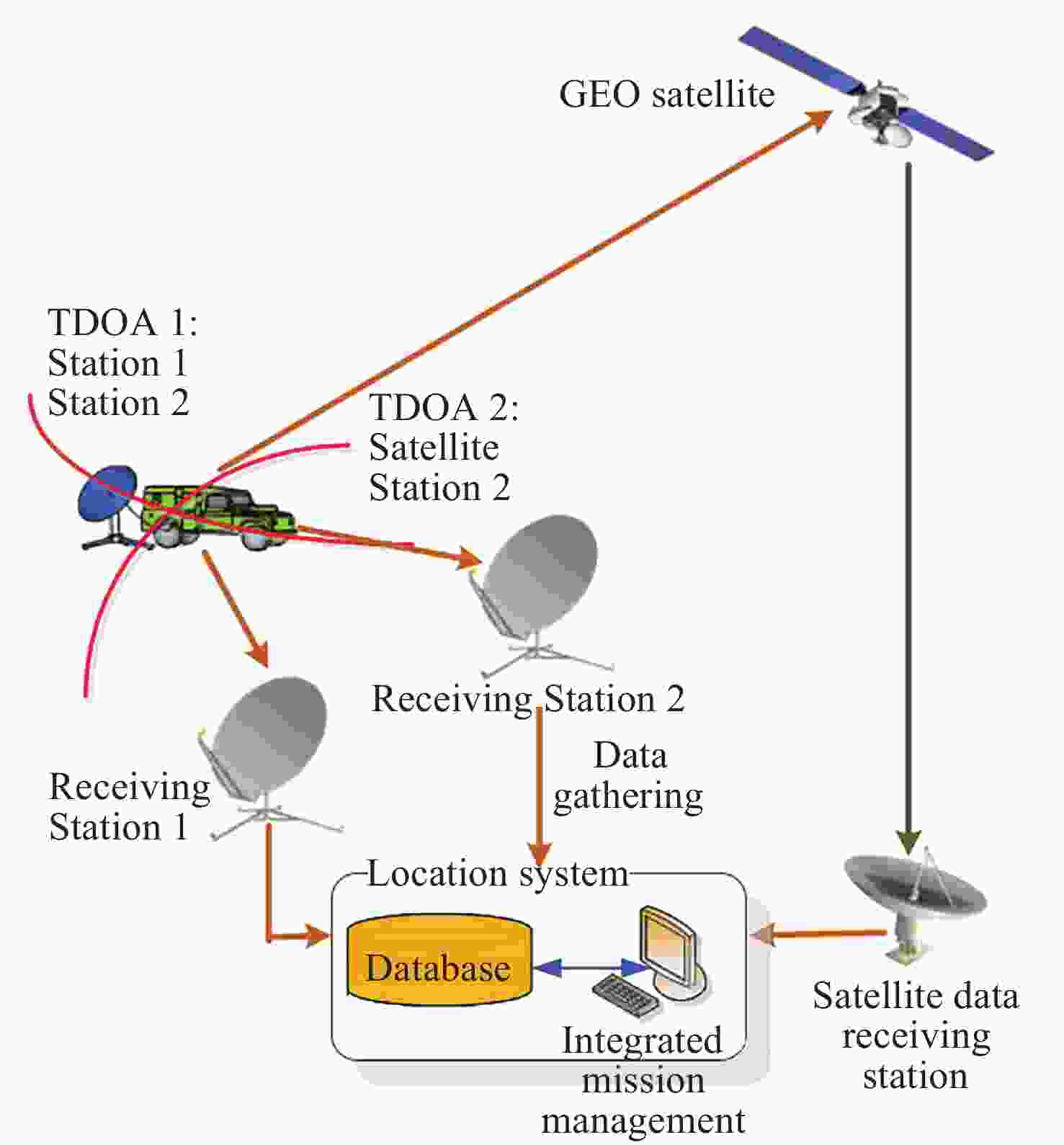

图 3 星地联合时差定位原理

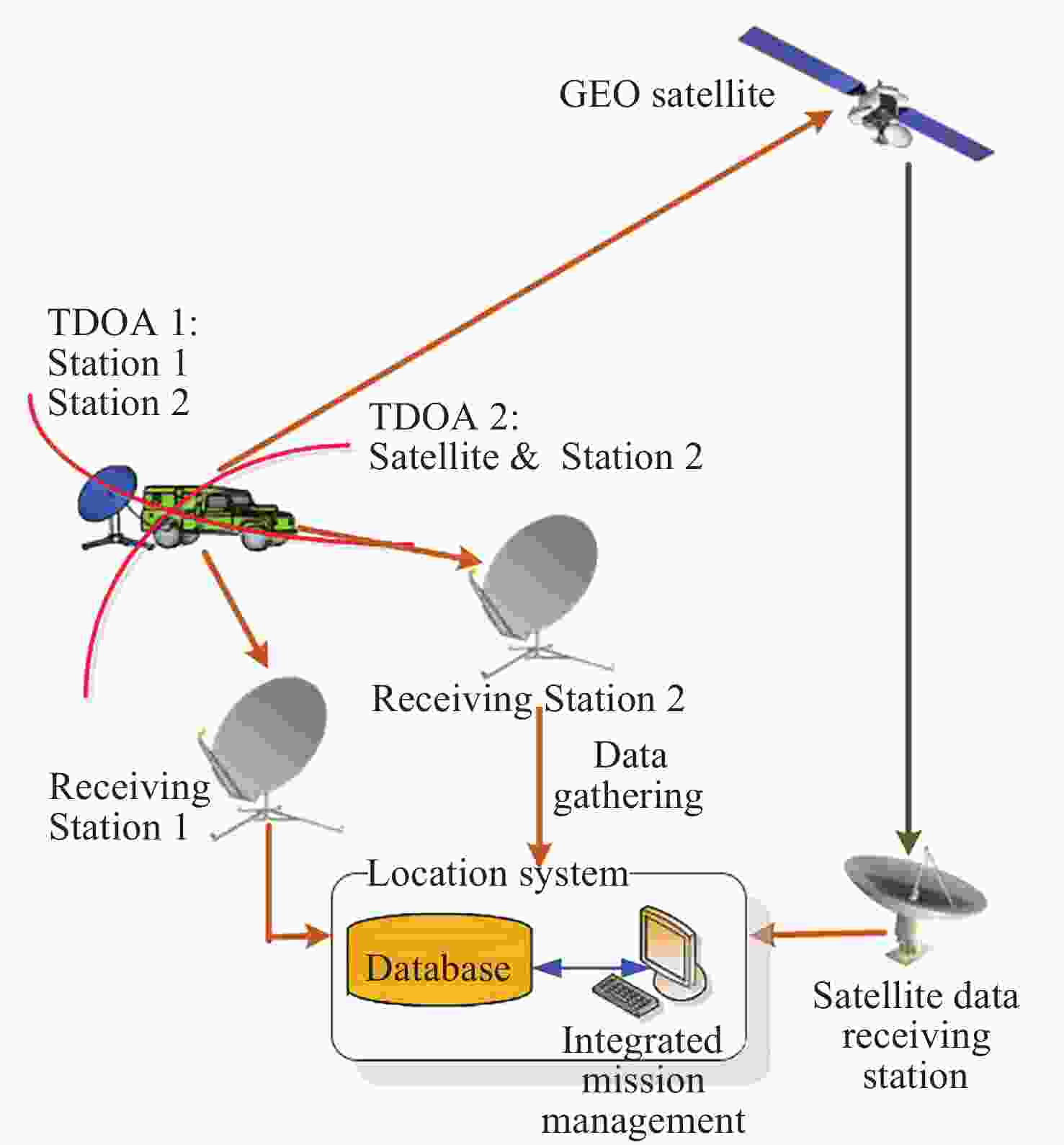

Figure 3. Satellite-ground-collaborative location based on TDOA

下载: 全尺寸图片幻灯片

图 4 需求统筹与任务生成流程

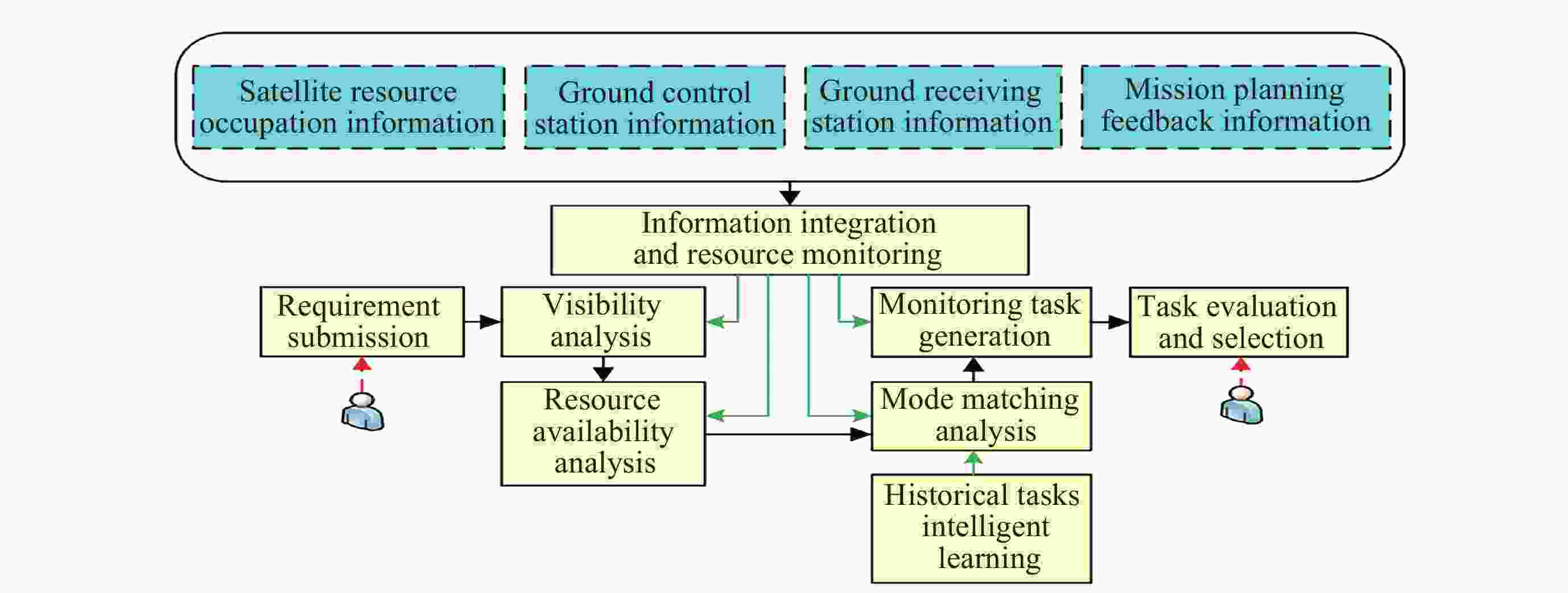

Figure 4. Requirements analysis and tasks generation

下载: 全尺寸图片幻灯片

图 5 任务动态集散式拆分合并

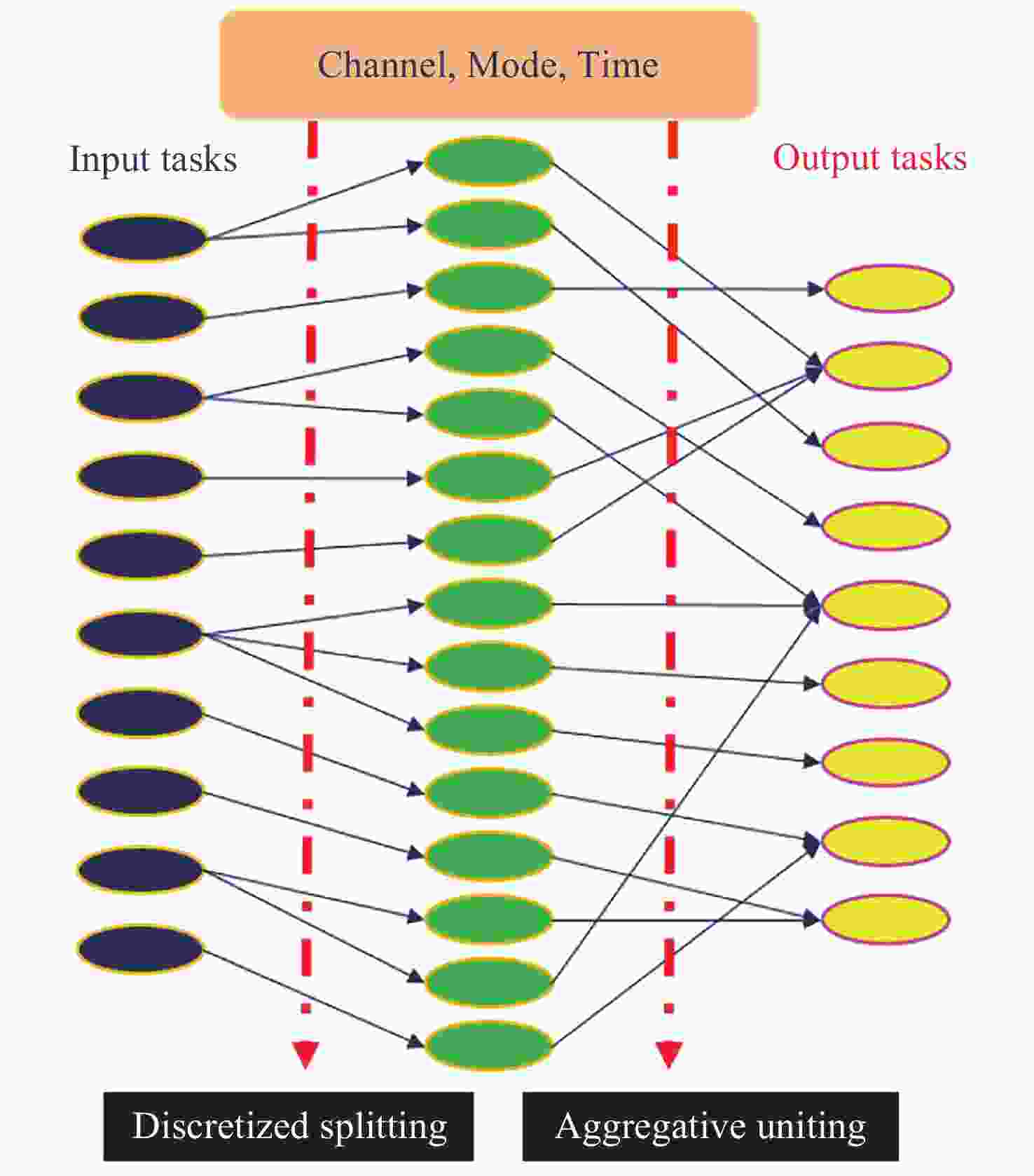

Figure 5. Dynamic splitting and uniting for task scheduling

下载: 全尺寸图片幻灯片

图 6 任务空间分布

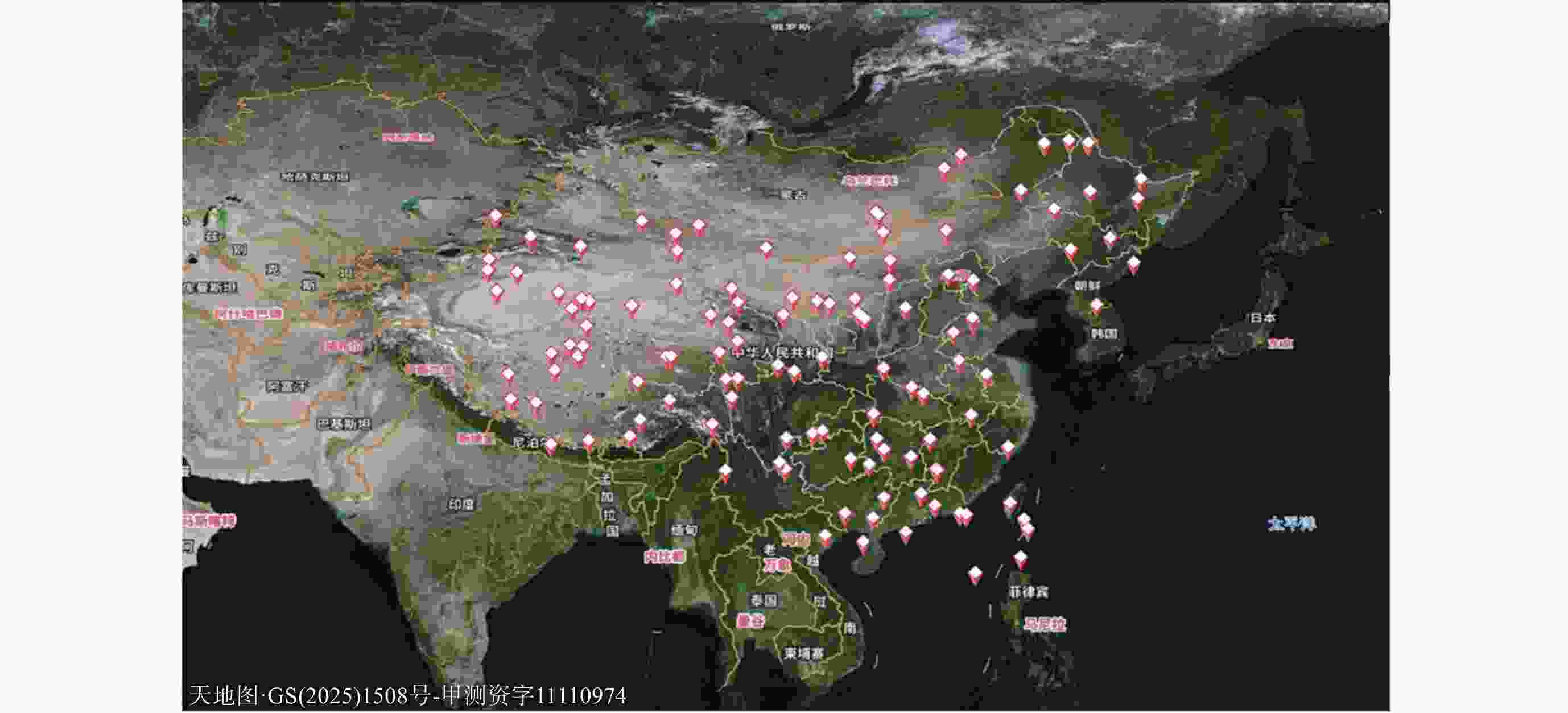

Figure 6. Distribution of tasks

下载: 全尺寸图片幻灯片

图 7 任务规划收益率

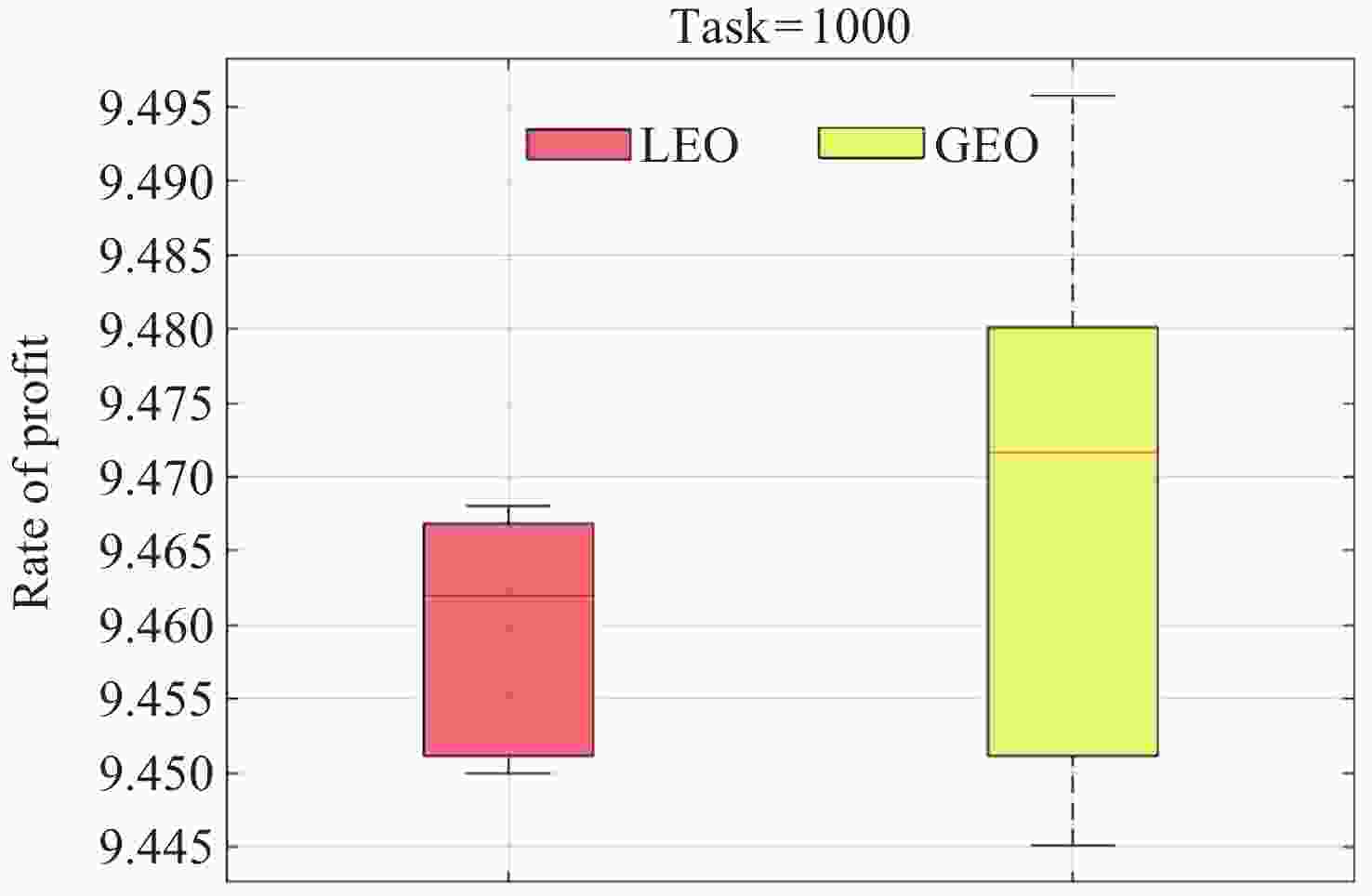

Figure 7. Rate of profit for task scheduling

下载: 全尺寸图片幻灯片

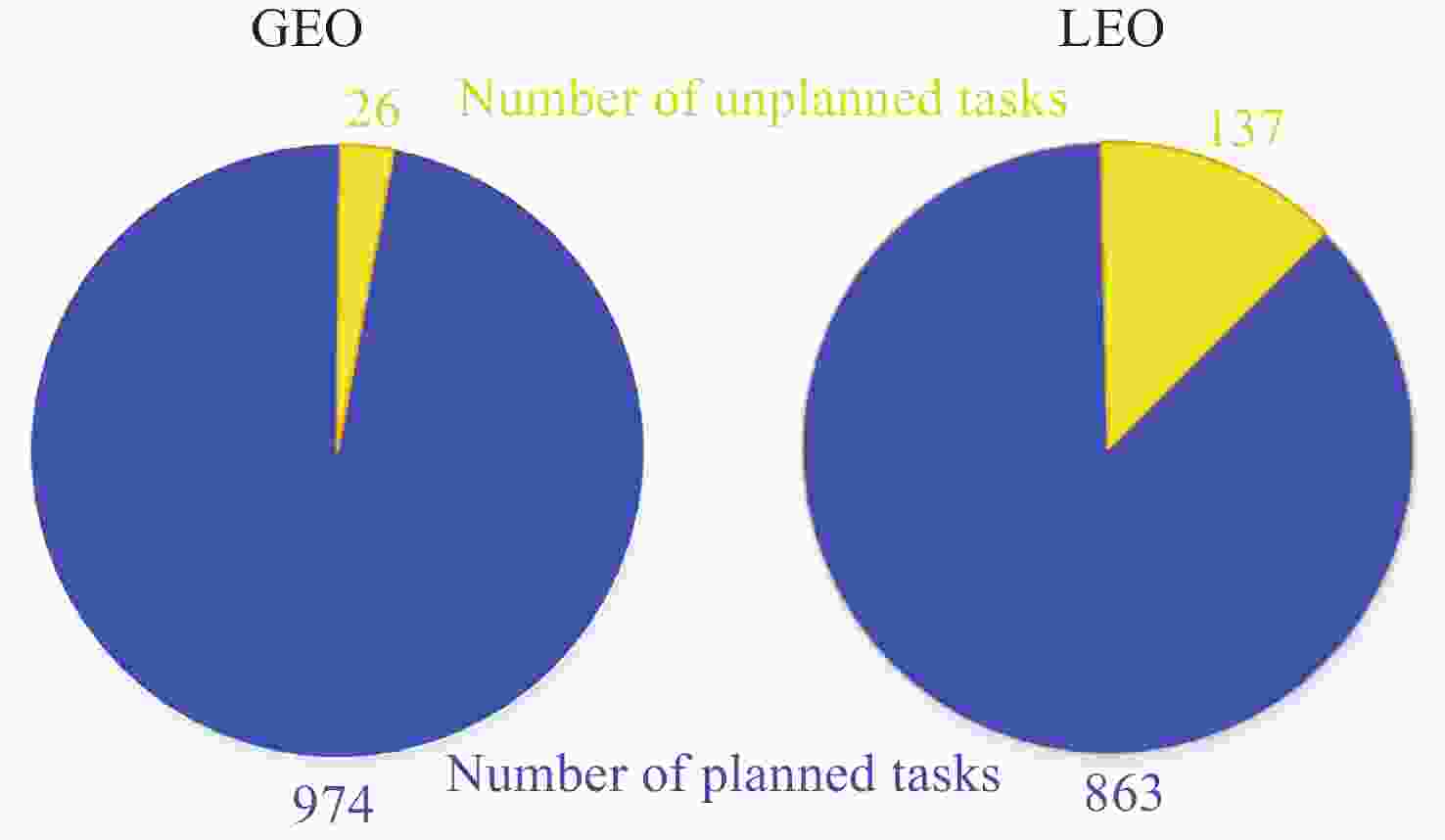

图 8 任务规划完成情况
