金星着陆器长寿命生存技术研究进展
doi: 10.11728/cjss2025.06.2024-0178 cstr: 32142.14.cjss.2024-0178
-
王虎军 男, 1986年2月出生于山东省威海市, 现为深空探测实验室总体技术研究院高级工程师, 主要研究方向为航天器热控设计和极端环境热控技术研究. E-mail: wang_hujun945@163.com
作者简介:
Research Progress on Long-lived Survival Technology of Venus Lander
-

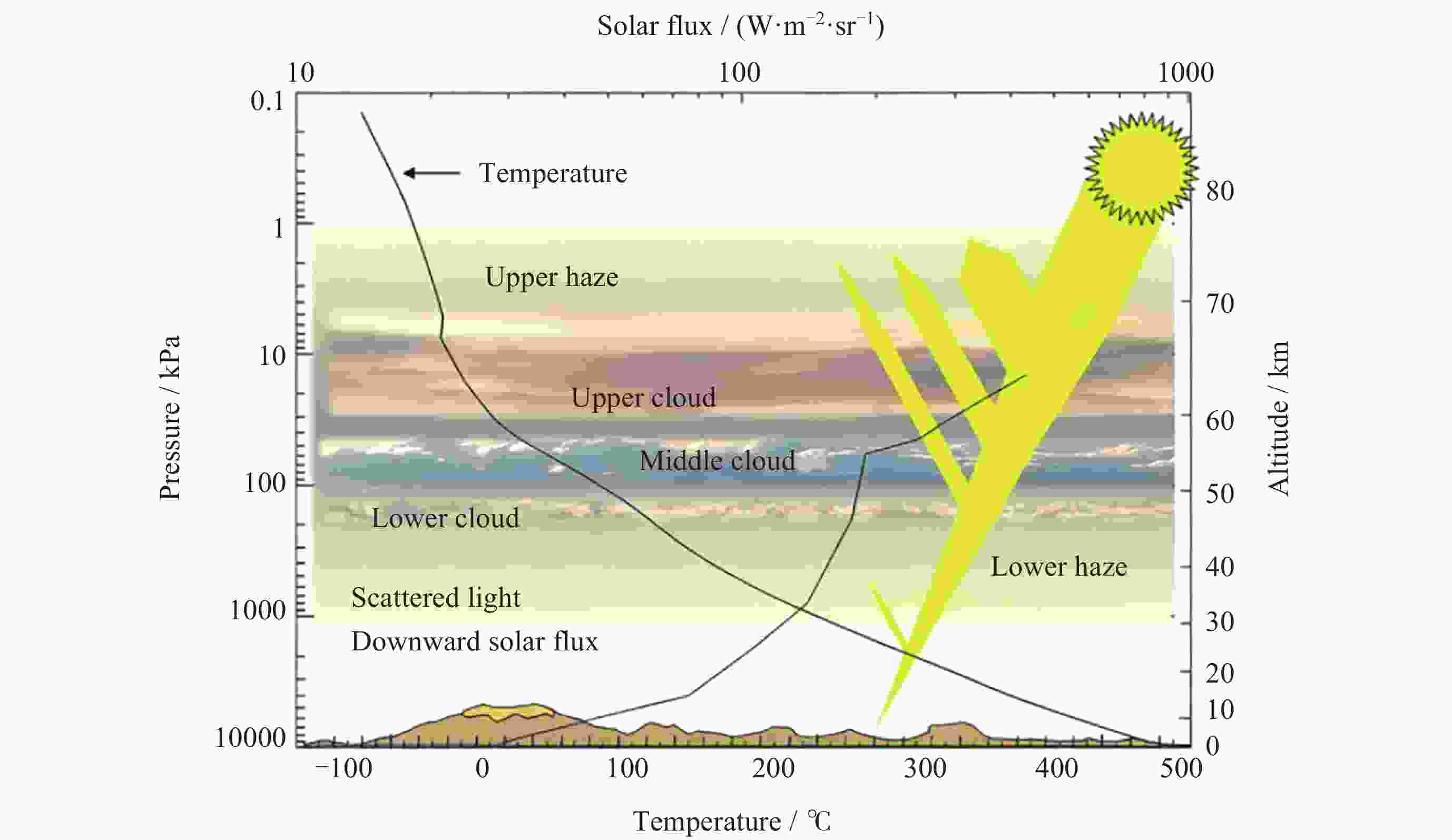

摘要: 金星是类地行星的重要组成部分, 金星的探测和研究对于理解行星的形成与演化、地球的宜居性及寻找系外宜居行星等具有重要的科学意义. 近年来, 欧洲及美、俄、印等国均计划在2030年前后开展新的金星探测任务. 金星表面高温、高压和腐蚀性的极端环境限制了人类对其的原位探索. 面向未来金星表面长时间探测的需求, 本文根据金星环境特点分析了着陆器长寿命生存面临的挑战, 从轻质抗高压结构设计、耐高温电子设备、能源系统和热控技术四个方面梳理了金星着陆器长寿命生存技术的研究进展, 给出了金星着陆器的设计建议, 为未来中国可能开展的金星着陆探测提供了参考.Abstract: Venus, as a major component of terrestrial planets, is of great scientific significance for exploration and research. Understanding Venus can enhance our knowledge of the formation and evolution of terrestrial planets, the development of Earth's habitability, and the strategies for searching habitable exoplanets. Recently, Venus exploration has witnessed a resurgence, with Europe, the US, Russia, and India planning new missions around 2030. However, its infernal surface conditions, a scorching 462°C, crushing 9.3 MPa pressure (equivalent to 900 m underwater on Earth), and corrosive CO2 atmosphere laden with sulfuric acid aerosols, which have limited prior missions to mere hours of operation, exemplified by the Soviet Venera 13’s 127-minute survival record. To address the need for long-duration Venus surface missions, this paper analyzes the challenges of lander long-life survival based on Venus’s environment, i.e., energy acquisition and environmental adaptation. It reviews the research progress in four areas: lightweight pressure-resistant structures, high-temperature electronics, power systems, and thermal control technology, while offering design recommendations. Lightweight pressure-resistant structures, represented by honeycomb structures, lattice structures, and composite materials, show promise in effectively reducing the lander’s weight while maintaining structural integrity. High-temperature electronics, based on materials like Silicon Carbide (SiC), can significantly enhance the performance and service life of electronic devices in extreme heat. Efficient energy systems, including radioisotope Stirling generators and high-temperature batteries, are expected to supply stable power to the lander and lessen the energy system’s demand on thermal control resources. In terms of thermal control technology, building on high-performance heat storage and insulation materials, employing high-temperature Stirling cooling or compression cooling techniques can effectively tackle the heat dissipation issues for landers in high-temperature settings. The design recommendations outlined in this paper aim to provide valuable references for potential future Venus lander exploration missions, aiding in the development of more advanced and durable lander systems capable of withstanding Venus’s challenging environment for extended periods.
-
Key words:
- Lander /
- Long-lived survival /

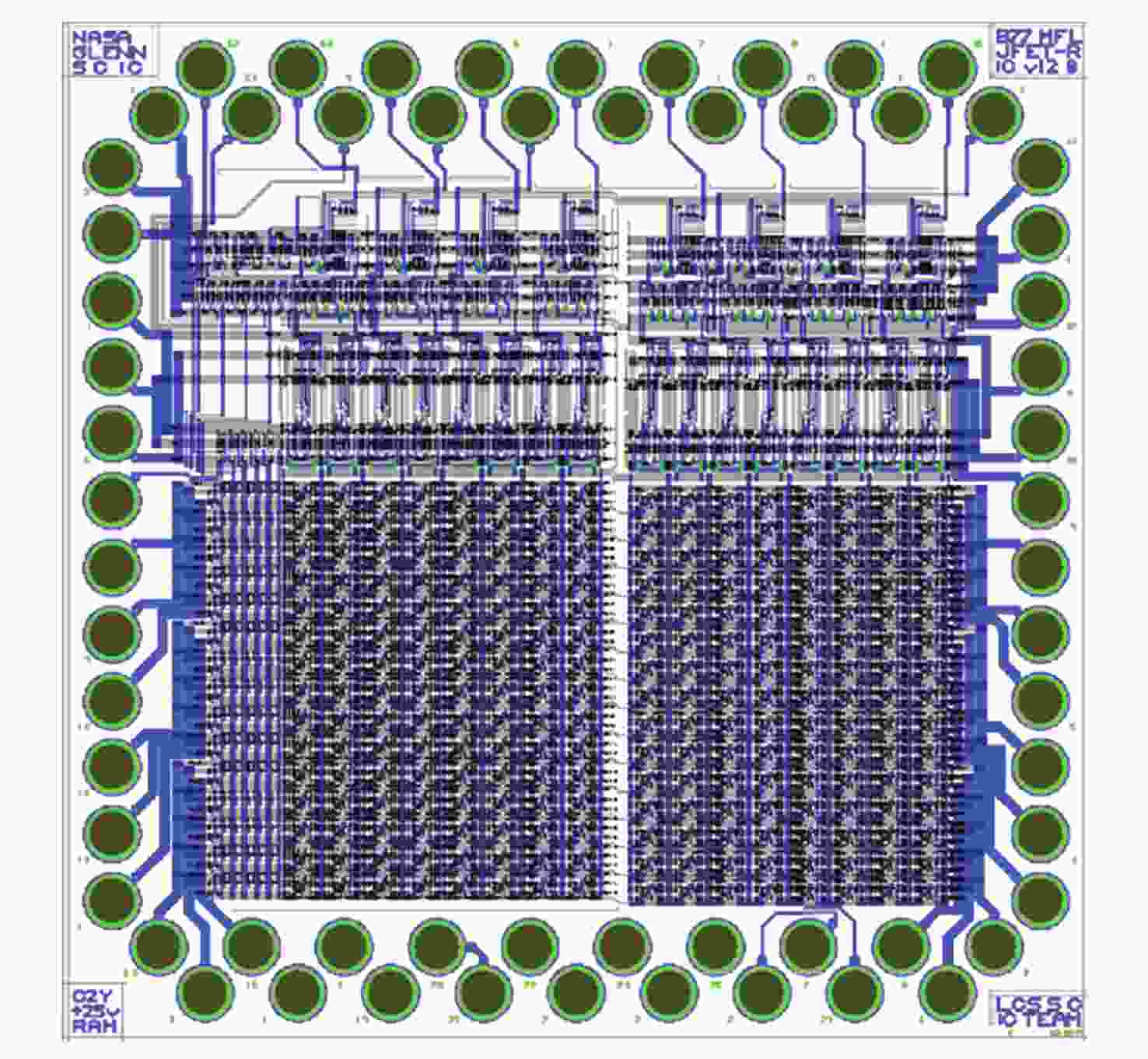

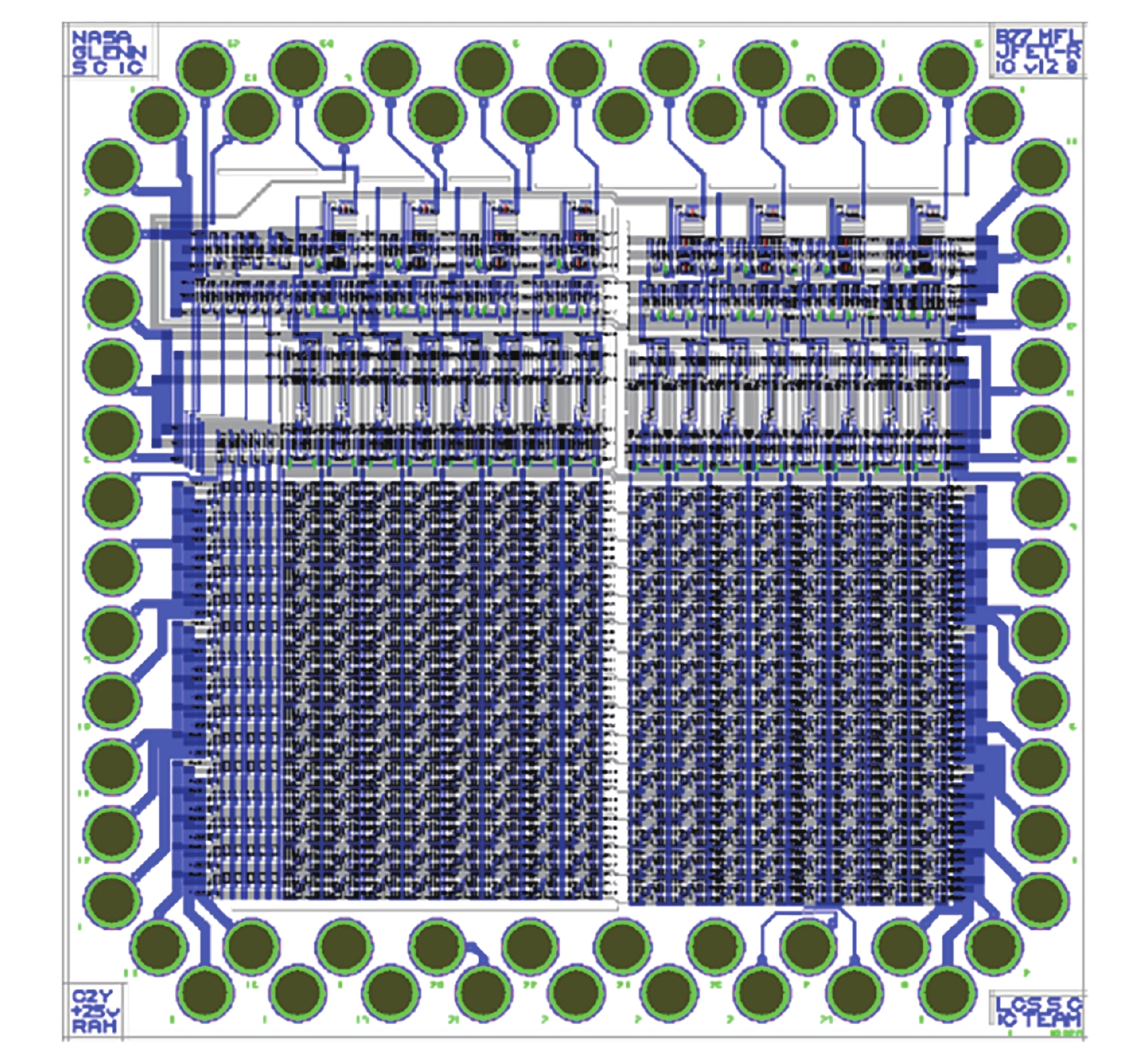

- High temperature electronics /

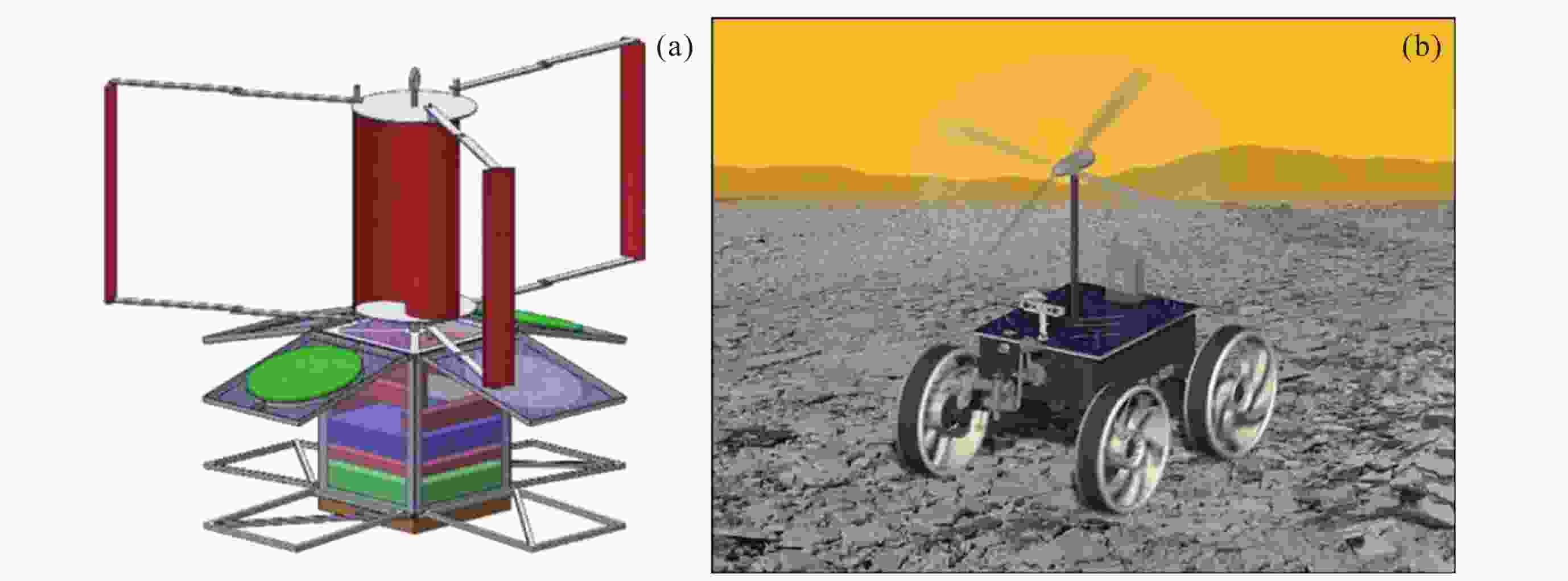

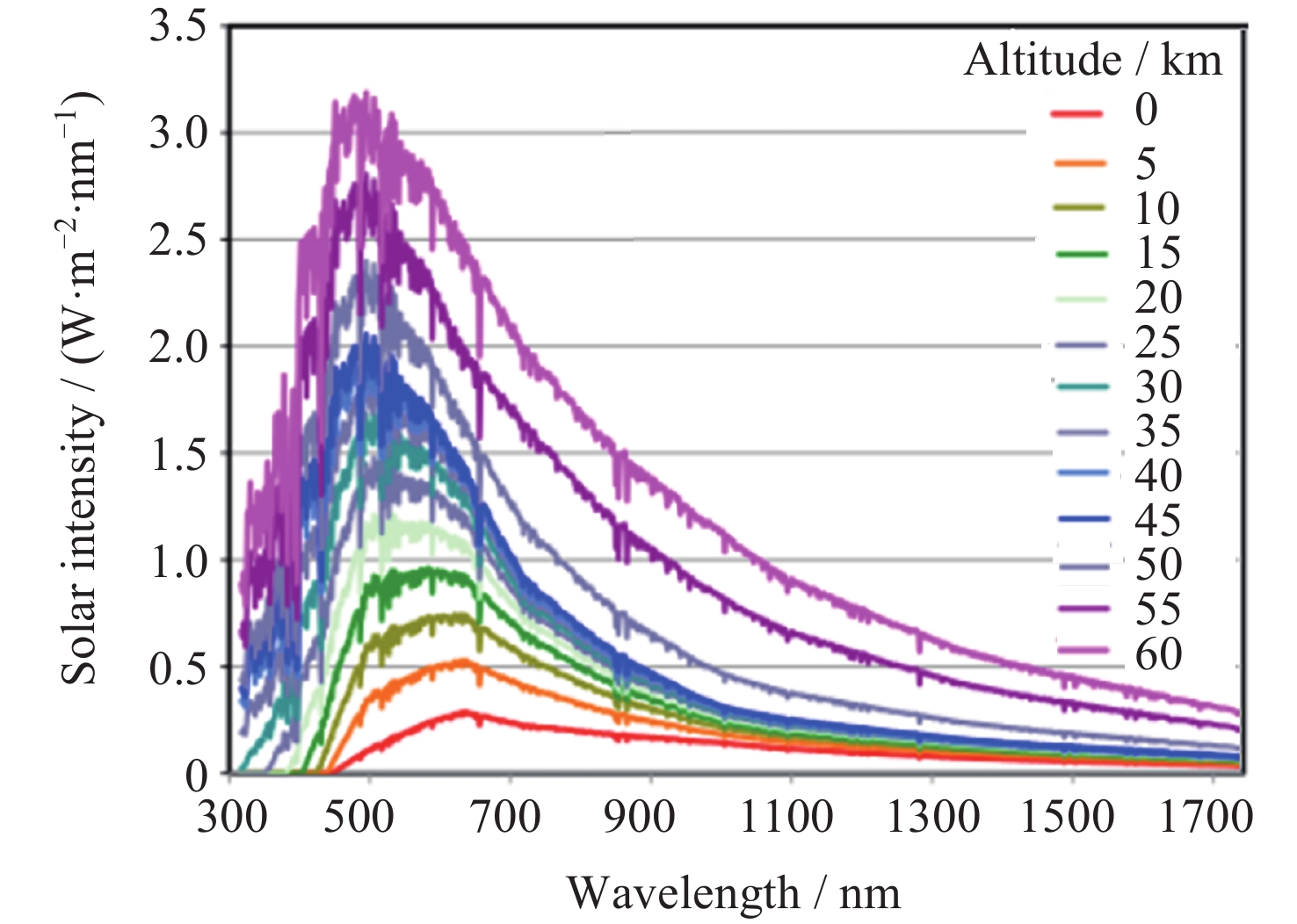

- Power system /

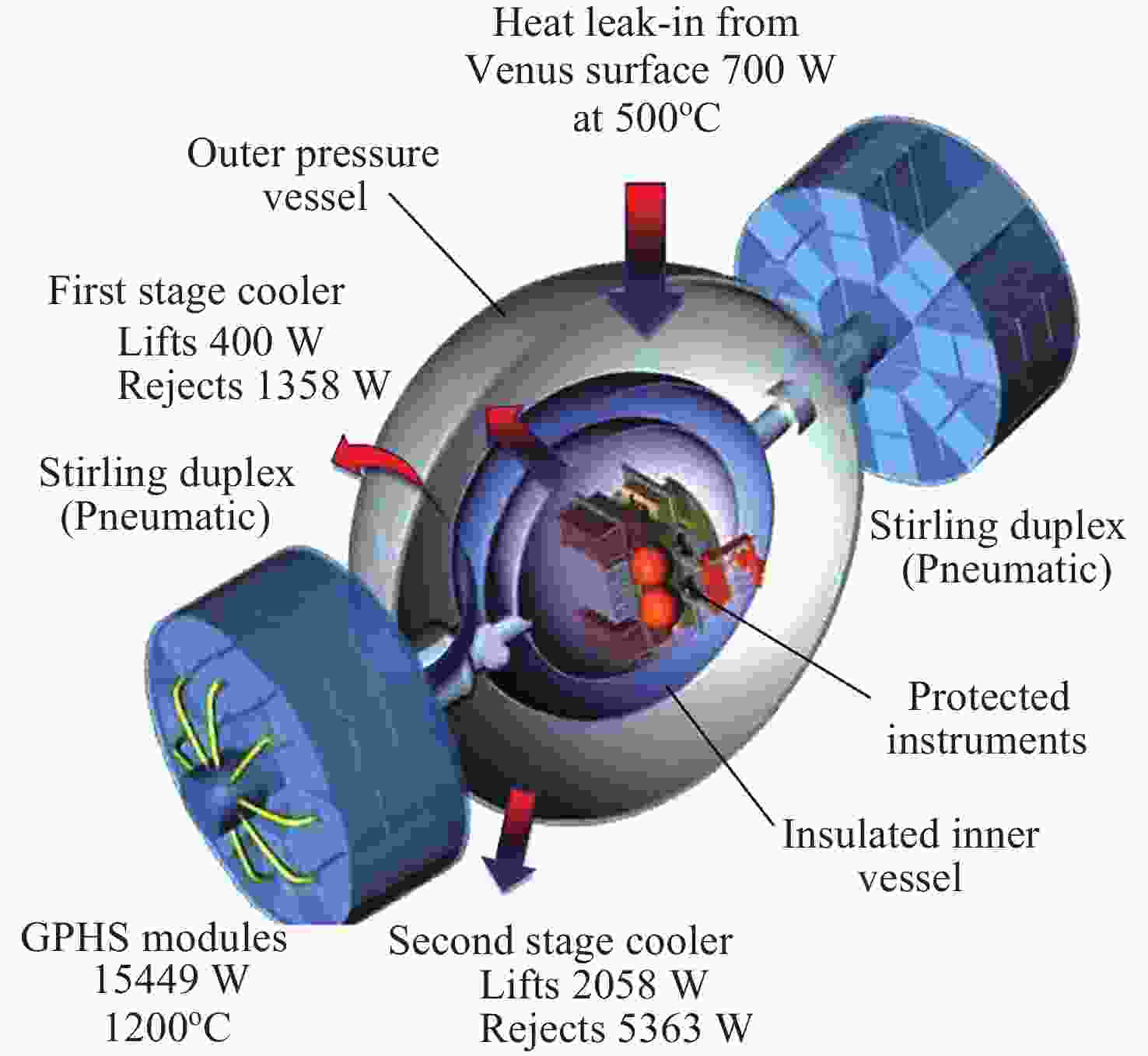

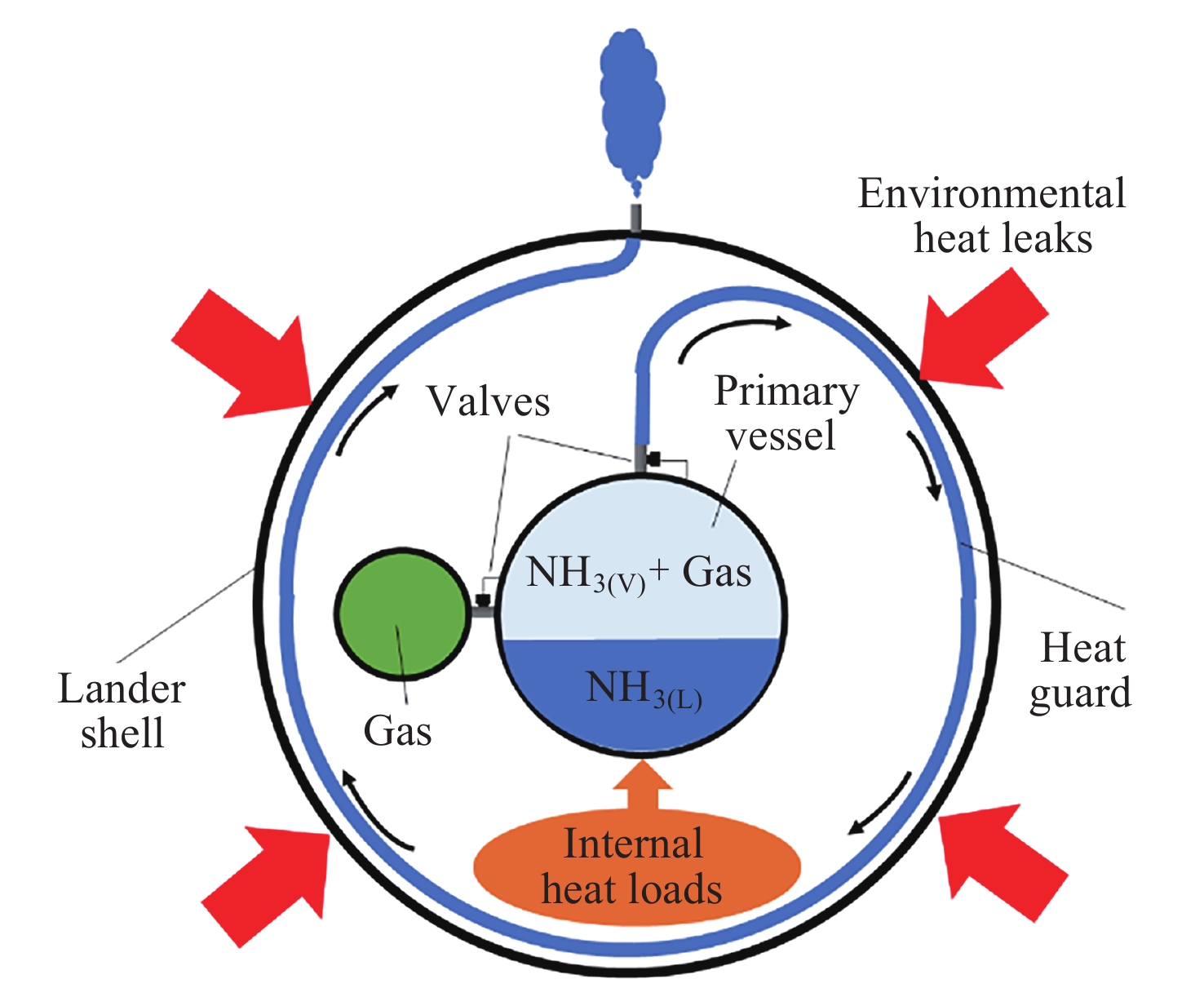

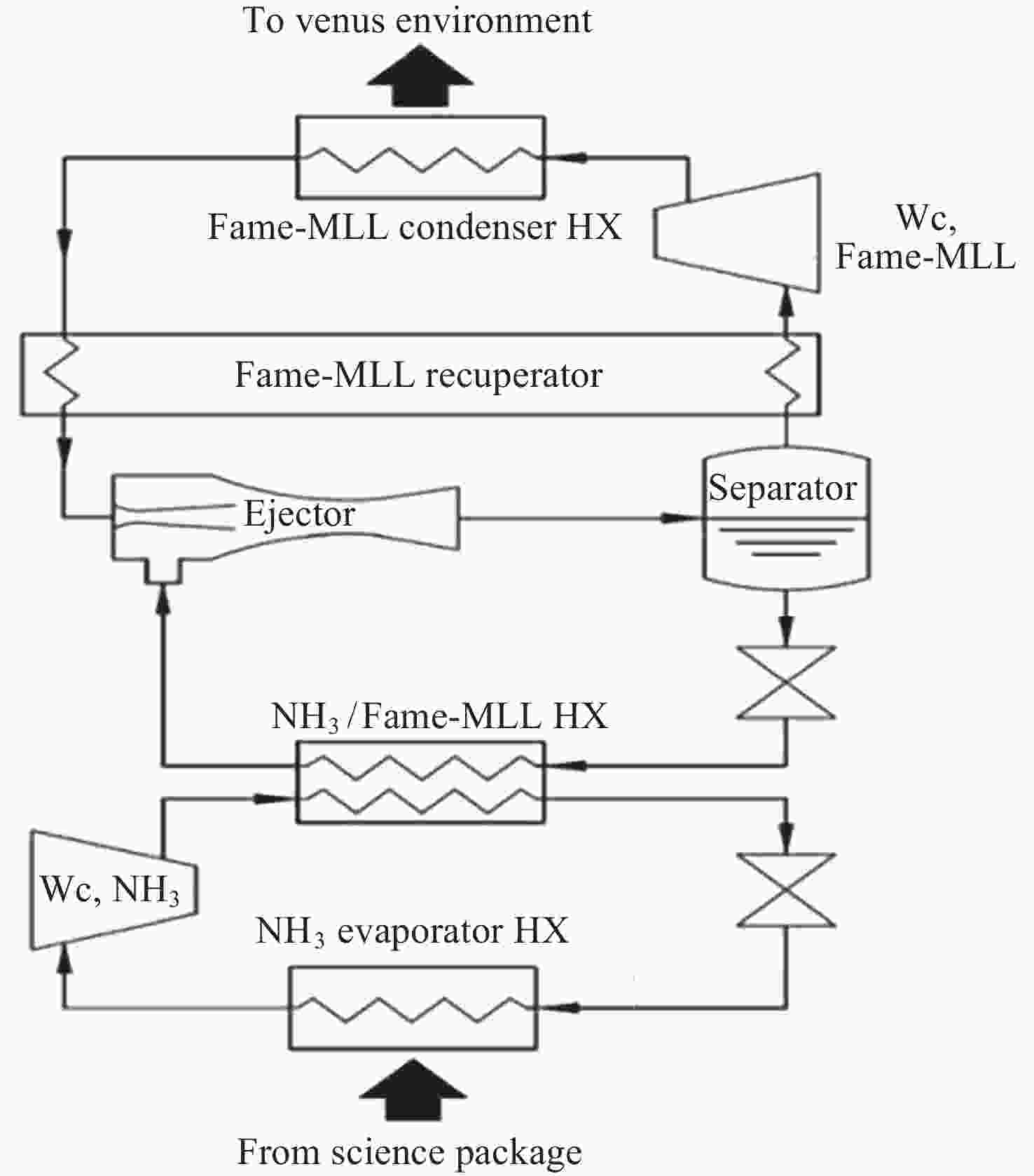

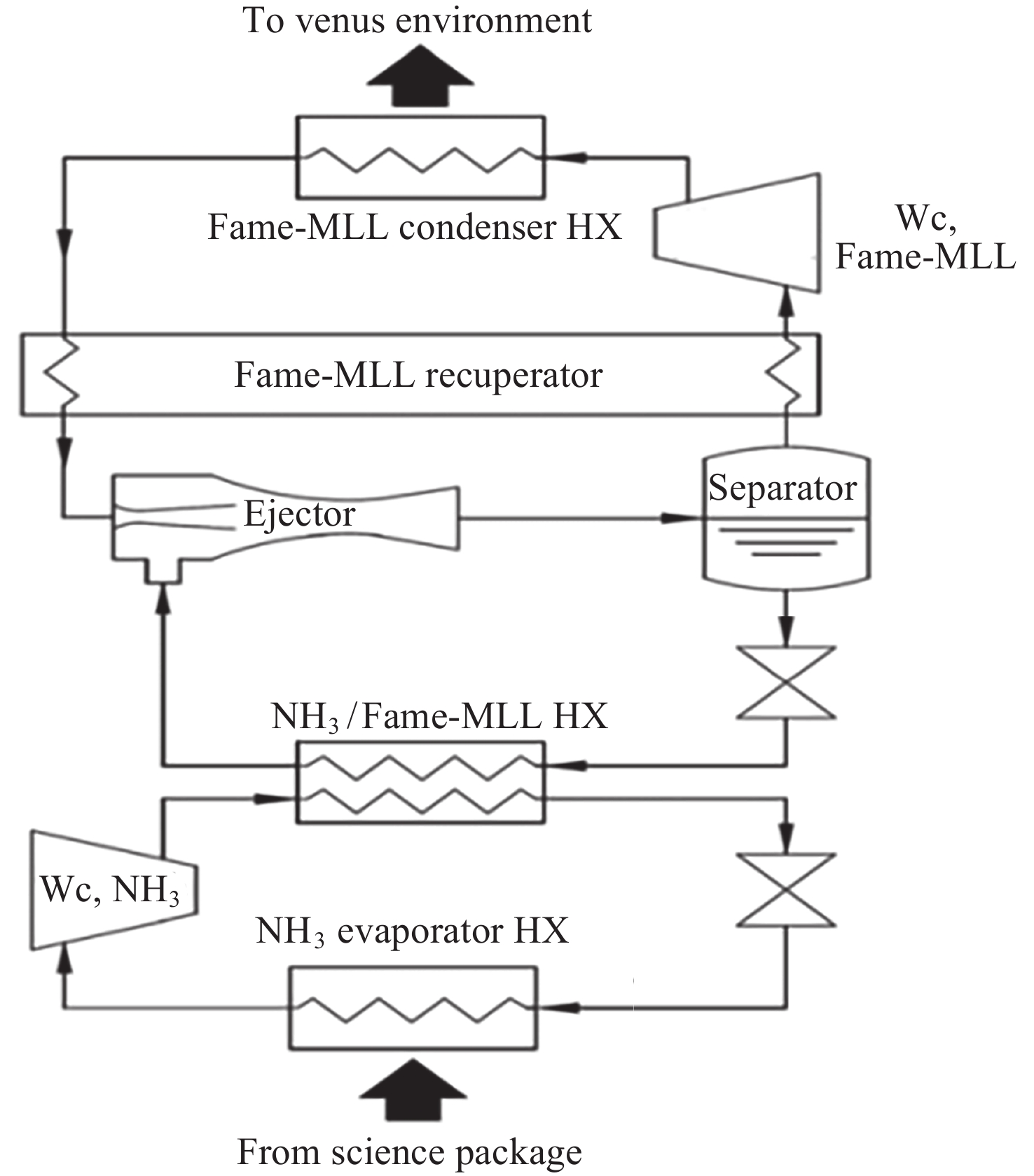

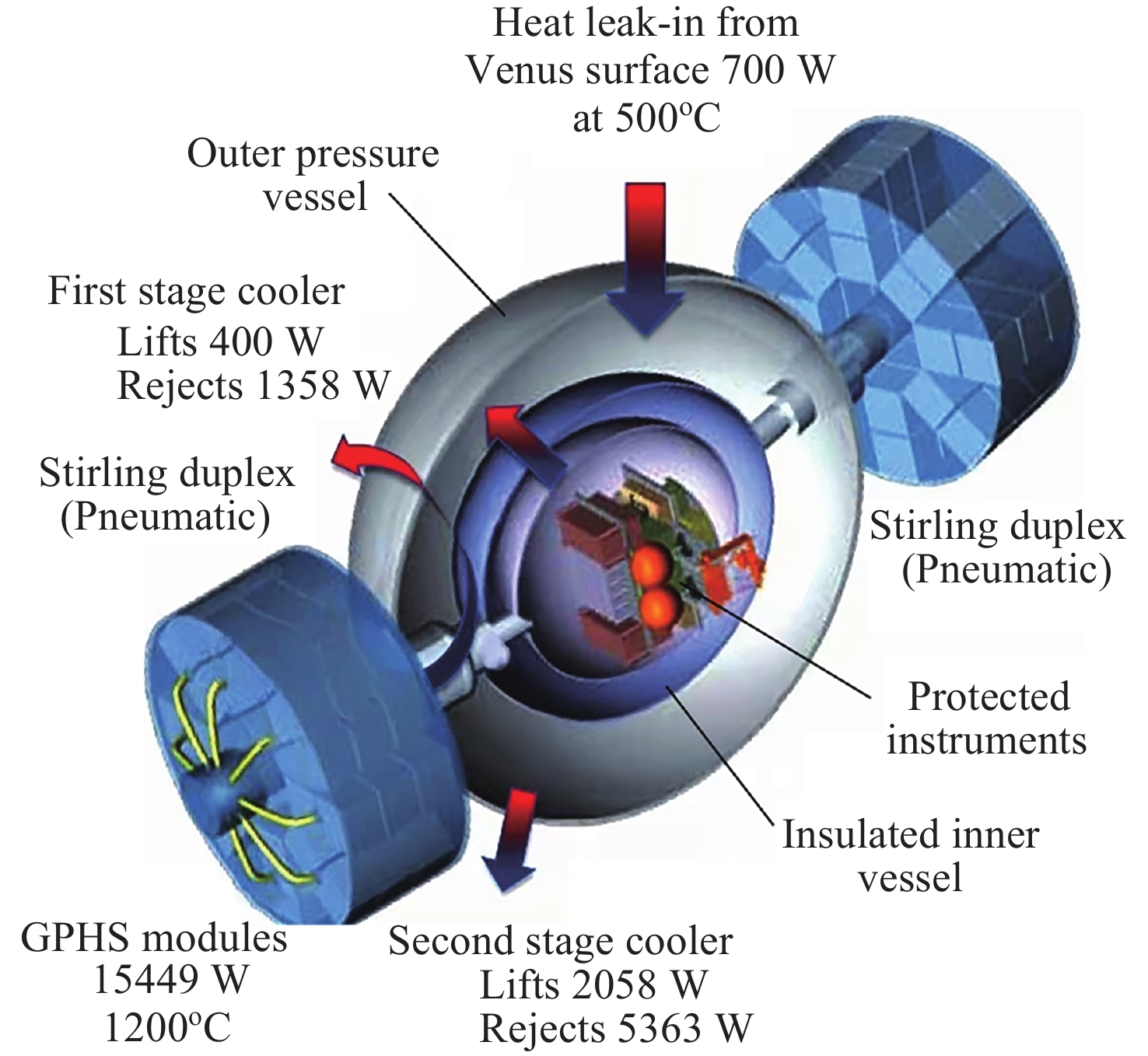

- Thermal control
-

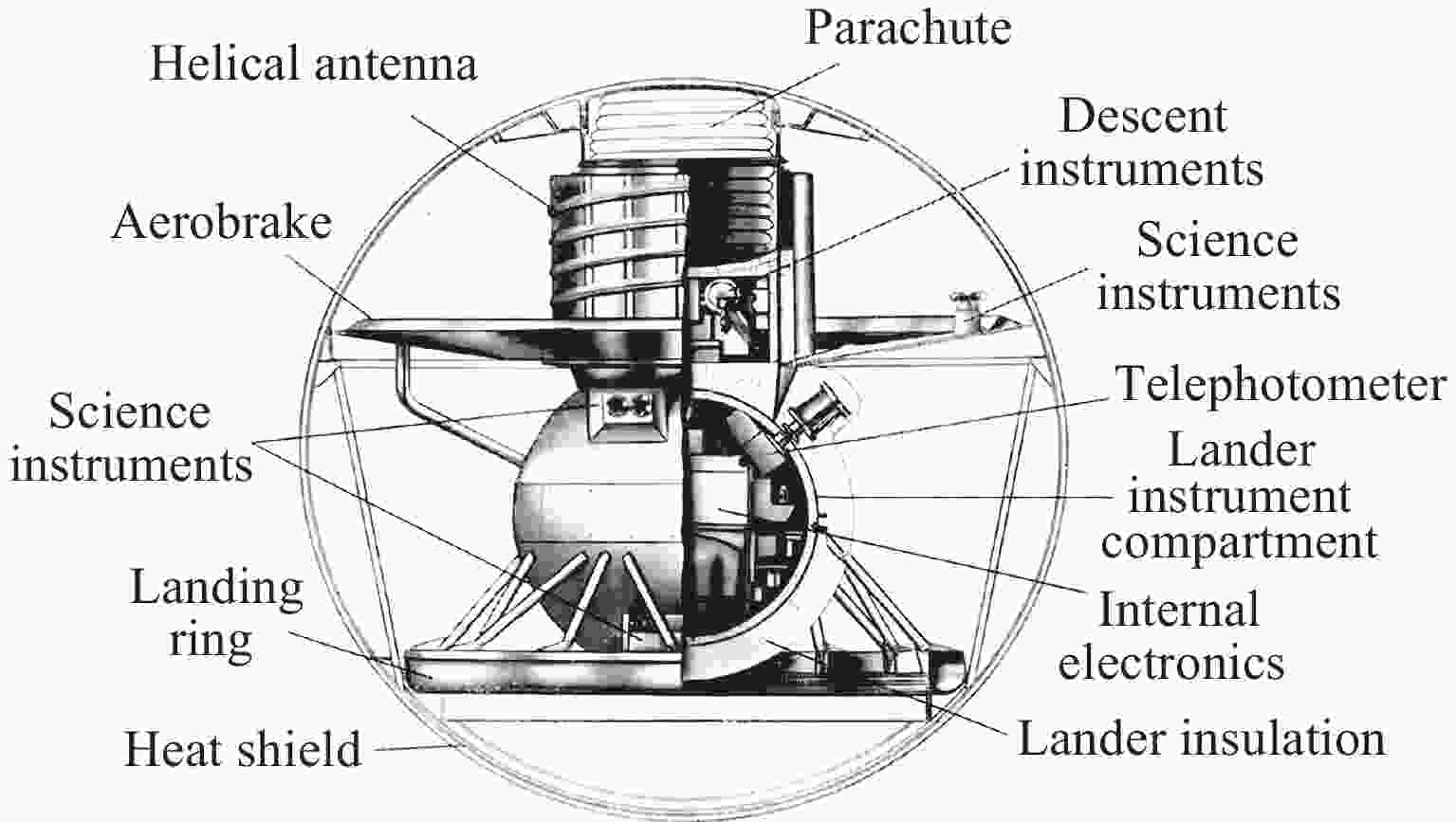

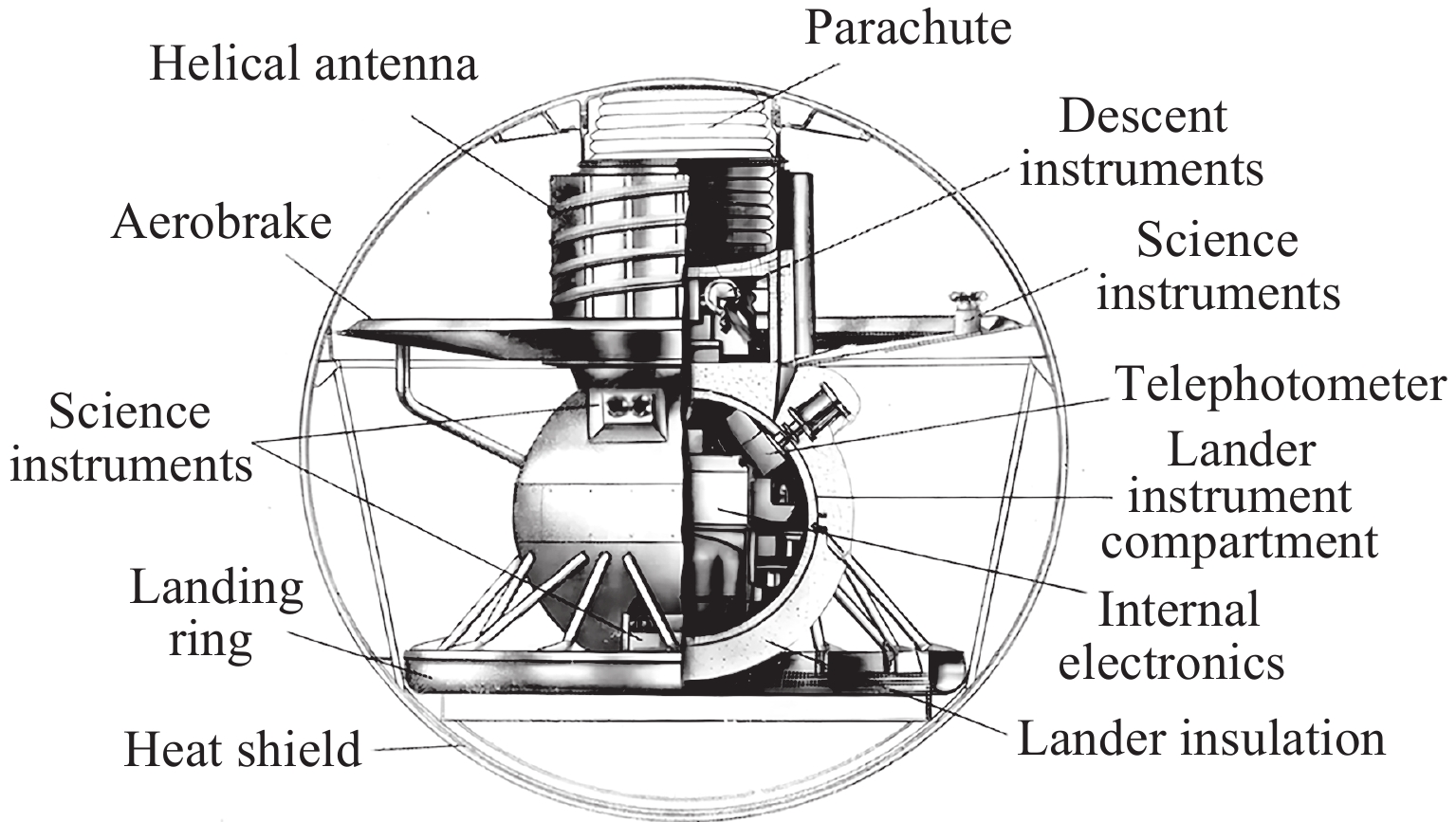

表 1 金星着陆器概况[9]
Table 1. Overview of the Venus lander
序号 着陆器名称 着陆日期 着陆点坐标 着陆点温度/℃ 着陆点压力/MPa 工作时长/min 1 Venera 7 1970-08-17 5°N, 351°E 475 9.2 23 2 Venera 8 1972-07-22 10.70°S, 335.25°E 470 9.0 50 3 Venera 9 1975-08-22 31.01°N, 291.64°E 455 8.5 53 4 Venera 10 1975-08-25 15.42°N, 291.51°E 464 9.1 65 5 Venera 11 1978-12-25 14°N, 299°E 452 9.26 95 6 Venera 12 1978-12-21 7°N, 294°E 468 9.36 110 7 Venera 13 1982-01-03 7.55°S, 303.69°E 457 8.9 127 8 Venera 14 1982-03-05 13.05°S, 310.19°E 470 9.4 57 9 Vega 1 1985-06-11 8.10°N, 175.85°E 467 9.5 56 10 Vega 2 1985-06-15 7.14°S, 117.67°E 463 9.1 56 11 Pioneer Venus 2 1978-12-09 32°N, 318°E (day) 约459 约9.45 67
下载: 导出CSV
表 2 放射性同位素电源性能
Table 2. Performance of radioisotope power source
下载: 导出CSV
电池 LiAl-FeS2 Na-NiCl2 Na-S 工作温度/℃ 400～475 250～500 290～450 电压/V 1.73/1.33 2.58 2.08 比能量/(W·h·kg–1) 100 90～100 80～120
下载: 导出CSV

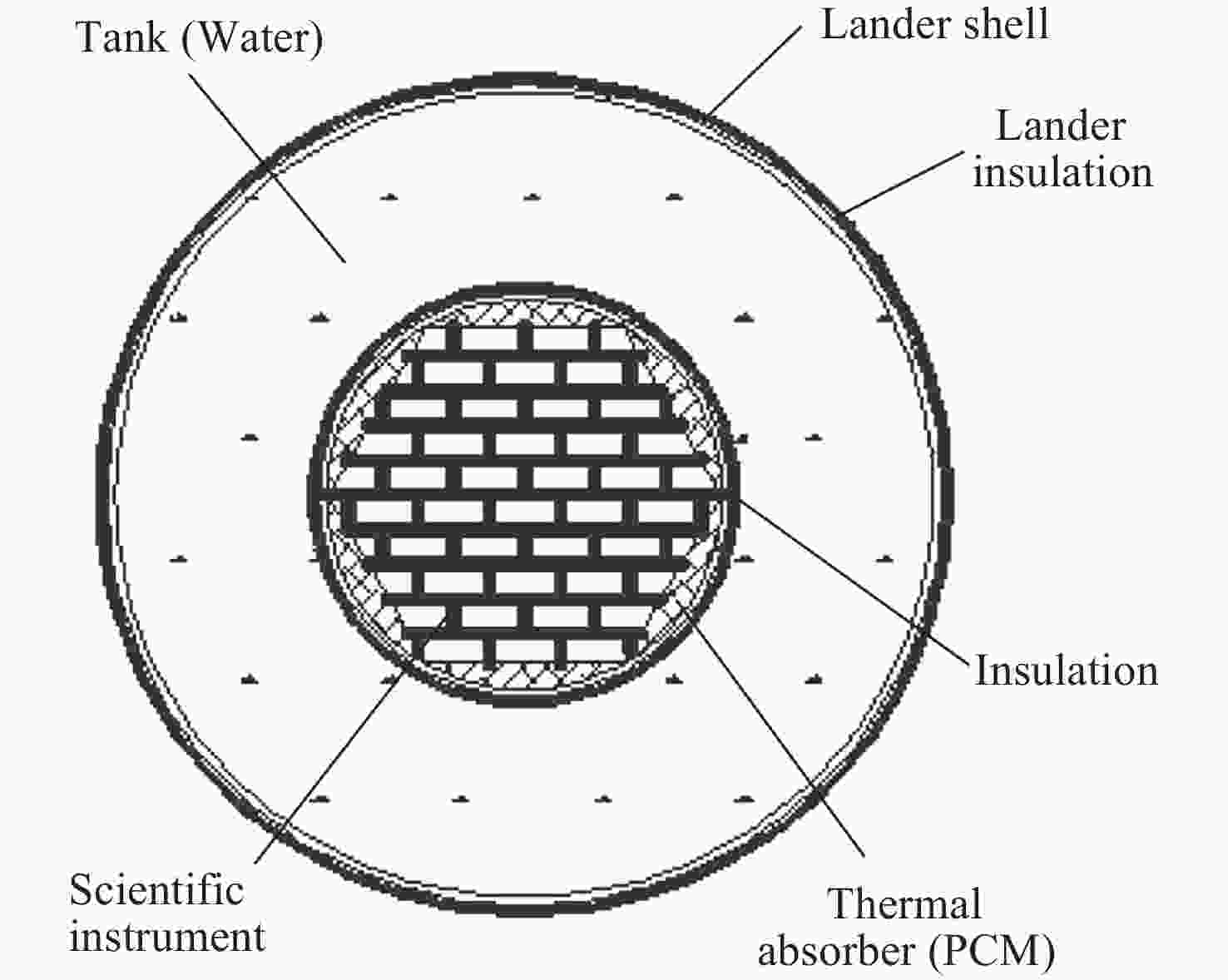

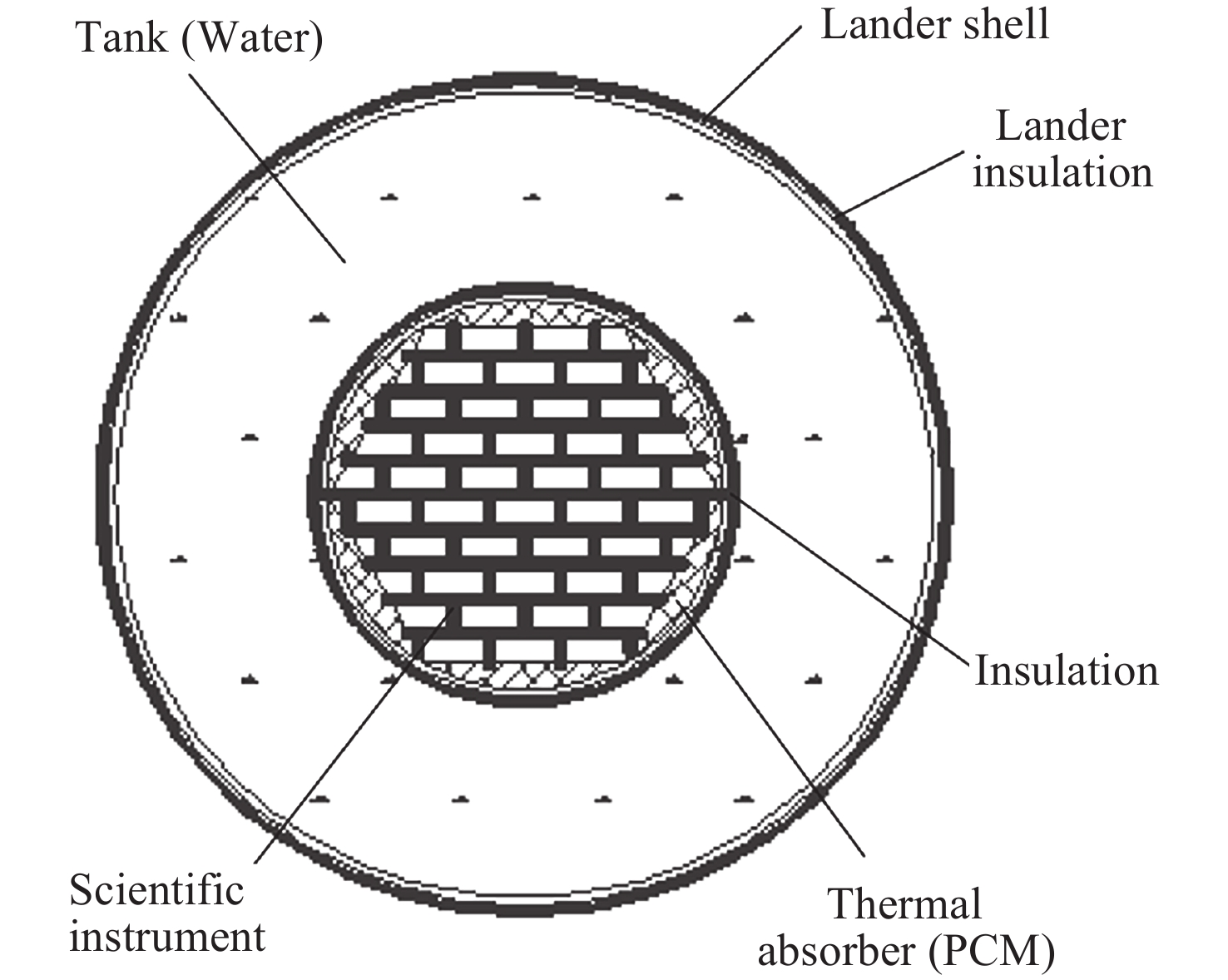

表 4 常用于电子设备温控的相变材料的热物性
Table 4. Thermal physical properties of phase change materials commonly used for temperature control in electronic devices
序号 名称 密度/(kg·m–3) 潜热/(kJ·kg–1) 相变温度/℃ 1 LiNO3·3 H2O 1500 235 30 2 CH3COONa·3 H2O 1450 254 58 3 CaCl2·6 H2O 1710 191 29 4 Na2SO4·10 H2O 1490 254 32.4 5 石蜡类 (十八烷～二十八烷) 约810 244～254 28～61 6 聚乙二醇 1 212 190 66 7 硬脂酸 840 200 56 8 Ga-Sn 6010 78 20 9 Cerrolow-136 8600 91 57.8 10 Cerrobend 9400 33 70 11 H2O(冰) 917 335 0
下载: 导出CSV
-
[1] ZHAO Yuyan, LIU Jianzhong, ZOU Yongliao, et al. Progress and future prospects of Venus exploration[J]. Acta Geologica Sinica, 2021, 95(9): 2703-2724 (赵宇鴳, 刘建忠, 邹永廖等. 金星探测研究进展与未来展望[J]. 地质学报, 2021, 95(9): 2703-2724ZHAO Yuyan, LIU Jianzhong, ZOU Yongliao, et al. Progress and future prospects of Venus exploration[J]. Acta Geologica Sinica, 2021, 95(9): 2703-2724 [2] ZORZANO M P, OLSSON-FRANCIS K, DORAN P T, et al. The COSPAR planetary protection requirements for space missions to Venus[J]. Life Sciences in Space Research, 2023, 37: 18-24 doi: 10.1016/j.lssr.2023.02.001 [3] GHAIL R C, HALL D, MASON P J, et al. VenSAR on EnVision: taking earth observation radar to Venus[J]. International Journal of Applied Earth Observation and Geoinformation, 2017, 64: 365-376 [4] ZASOVA L V, GORINOV D A, EISMONT N A, et al. Venera-D: a design of an automatic space station for venus exploration[J]. Solar System Research, 2019, 53(7): 506-510 doi: 10.1134/S0038094619070244 [5] HAN Lin, YANG Fan, FAN Weiwei, et al. Trends and strategic planning researches of venus exploration abroad[J]. Chinese Journal of Space Science, 2024, 44(5): 753-762 (韩淋, 杨帆, 范唯唯等. 国外金星探测发展态势及战略规划解析[J]. 空间科学学报, 2024, 44(5): 753-762 doi: 10.11728/cjss2024.05.2024-yg08HAN Lin, YANG Fan, FAN Weiwei, et al. Trends and strategic planning researches of venus exploration abroad[J]. Chinese Journal of Space Science, 2024, 44(5): 753-762 doi: 10.11728/cjss2024.05.2024-yg08 [6] VEXAG. Roadmap for Venus exploration[EB/OL]. (2019-10-01)[2024-03-27]. https://www.lpi.usra.edu/vexag/documents/reports/VEXAG_Venus_Roadmap_2019.pdf [7] COLLETTE J P, ROCHUS P, PEYROU-LAUGA R, et al. Phase change material device for spacecraft thermal control[C]//Proceedings of the 62nd International Astronautical Congress. Cape Town, South Africa, 2011: 6020-6031 [8] BIENSTOCK B J. Pioneer Venus and Galileo entry probe heritage[C]//Proceedings of the International Workshop Planetary Probe Atmospheric Entry and Descent Trajectory Analysis and Science. Lisbon, Portugal: ESA Publications Division, 2004: 37-45 [9] ABDRAKHIMOV A M, BASILEVSKY A T. Geology of the venera and vega landing-site regions[J]. Solar System Research, 2002, 36(2): 136-159 doi: 10.1023/A:1015222316518 [10] ANDO H, IMAMURA T, TELLMANN S, et al. Thermal structure of the Venusian atmosphere from the sub-cloud region to the mesosphere as observed by radio occultation[J]. Scientific Reports, 2020, 10(1): 3448 doi: 10.1038/s41598-020-59278-8 [11] GRANDIDIER J, KIRK A P, JAHELKA P, et al. Photovoltaic operation in the lower atmosphere and at the surface of Venus[J]. Progress in Photovoltaics: Research and Applications, 2020, 28(6): 545-553 doi: 10.1002/pip.3214 [12] TITOV D V, BULLOCK M A, CRISP D, et al. Radiation in the atmosphere of venus[J]. Washington Dc American Geophysical Union Geophysical Monograph, 2007, 176: 121-138 [13] SINGH D. Venus nightside surface temperature[J]. Scientific Reports, 2019, 9(1): 1137 doi: 10.1038/s41598-018-38117-x [14] LANDIS G A, MELLOTT K C. Venus surface power and cooling systems[J]. Acta Astronautica, 2007, 61(11/12): 995-1001 [15] DELITSKY M L, BAINES K H. Cloud chemistry on Venus: sulfuric acid reactions and supercooling in Venus liquid cloud droplets[J]. Planetary and Space Science, 2023, 237: 105750 [16] KRASNOPOLSKY V A. Vertical profiles of H2O, H2SO4, and sulfuric acid concentration at 45–75 km on Venus[J]. Icarus, 2015, 252: 327-333 doi: 10.1016/j.icarus.2015.01.024 [17] LANDIS G A, HAAG E. Analysis of solar cell efficiency for venus atmosphere and surface missions[C]//Proceedings of the 11th International Energy Conversion Engineering Conference. San Jose: AIAA, 2013: 4028 [18] GRANDIDIER J, KIRK A P, OSOWSKI M L, et al. Low-Intensity High-Temperature (LIHT) solar cells for venus atmosphere[J]. IEEE Journal of Photovoltaics, 2018, 8(6): 1621-1626 doi: 10.1109/JPHOTOV.2018.2871333 [19] BERMUDEZ-GARCIA A, VOARINO P, RACCURT O. Environments, needs and opportunities for future space photovoltaic power generation: a review[J]. Applied Energy, 2021, 290(5): 116757 [20] LANDIS G A. Power systems for Venus surface missions: a review[J]. Acta Astronautica, 2020, 187: 492-497 [21] GLASS D E, JONES J P, SHEVADE A V, et al. High temperature primary battery for Venus surface missions[J]. Journal of Power Sources, 2019, 449: 227492 [22] LUKCO D, SPRY D J, HARVEY R P, et al. Chemical analysis of materials exposed to Venus temperature and surface atmosphere[J]. Earth and Space Science, 2018, 5(7): 270-284 doi: 10.1029/2017EA000355 [23] HUNTRESS W T JR, MAROV M Y. Soviet Robots in the Solar System[M]. New York: Springer, 2011 [24] PAUKEN M, KOLAWA E, MANVI R, et al. Pressure vessel technology development[C]//Proceedings of the 4th International Planetary Probe Workshop. Pasadena, CA, USA: California Institute of Technology, 2006 [25] YANG Rui, MA Yingjie. Status and prospect of key materials for deep submergence facilities[J]. Science and Technology Foresight, 2022, 1(2): 145-156 (杨锐, 马英杰. 深潜装备用关键材料现状与展望[J]. 前瞻科技, 2022, 1(2): 145-156YANG Rui, MA Yingjie. Status and prospect of key materials for deep submergence facilities[J]. Science and Technology Foresight, 2022, 1(2): 145-156 [26] LUO Shan, LI Yongsheng, WANG Weibo. Development and prospects of non-metallic submersible pressure hull[J]. Chinese Journal of Ship Research, 2020, 15(4): 9-18 (罗珊, 李永胜, 王纬波. 非金属潜水器耐压壳发展概况及展望[J]. 中国舰船研究, 2020, 15(4): 9-18LUO Shan, LI Yongsheng, WANG Weibo. Development and prospects of non-metallic submersible pressure hull[J]. Chinese Journal of Ship Research, 2020, 15(4): 9-18 [27] LUO Ningsheng, CAO Jianwu. Development status and prospects of high-temperature SOI technology[J]. Electronics :Times New Roman;">& Packaging, 2022, 22(12): 85-93 (罗宁胜, 曹建武. 高温SOI技术的发展现状和前景[J]. 电子与封装, 2022, 22(12): 85-93LUO Ningsheng, CAO Jianwu. Development status and prospects of high-temperature SOI technology[J]. Electronics & Packaging, 2022, 22(12): 85-93 [28] PETROSYANTS K O, LEBEDEV S V, SAMBURSKY L M, et al. High temperature submicron SOI CMOS technology characterization for analog and digital applications up to 300°C[C]//Proceedings of the 2017 33rd Thermal Measurement, Modeling & Management Symposium. San Jose: IEEE, 2017: 229-234 [29] NEUDECK P G, SPRY D J, KRASOWSKI M J, et al. Recent progress in extreme environment durable SiC JFET-R integrated circuit technology[C]//Proceedings of the IMAPS 2023 Joint Conferences. Albuquerque: International Microelectronics Assembly & Packaging Society, 2023 [30] NEUDECK P G, SPRY D J, CHEN L Y, et al. Demonstration of 4H-SiC digital integrated circuits above 800°C[J]. IEEE Electron Device Letters, 2017, 38(8): 1082-1085 doi: 10.1109/LED.2017.2719280 [31] NEUDECK P G, SPRY D J, KRASOWSKI M J, et al. Year-long 500°C operational demonstration of up-scaled 4H-SiC JFET integrated circuits[J]. Journal of Microelectronics and Electronic Packaging, 2018, 15(4): 163-170 doi: 10.4071/imaps.729648 [32] SPRY D J, NEUDECK P G, LUKCO D, et al. Prolonged 500°C operation of 100+ Transistor silicon carbide integrated circuits[J]. Materials Science Forum, 2018, 924: 949-952 doi: 10.4028/www.scientific.net/MSF.924.949 [33] KIM H, BAGHERZADEH J, DRESLINSKI R G. SiC processors for extreme high-temperature venus surface exploration[C]//Proceedings of the 2022 Design, Automation & Test in Europe Conference & Exhibition. Antwerp: IEEE, 2022: 406-411 [34] TIAN Y, LANNI L, RUSU A, et al. Silicon carbide fully differential amplifier characterized up to 500°C[J]. IEEE Transactions on Electron Devices, 2016, 63(6): 2242-2247 doi: 10.1109/TED.2016.2549062 [35] NEUDECK P G, MEREDITH R D, CHEN L , et al. Prolonged silicon carbide integrated circuit operation in Venus surface atmospheric conditions[J]. AIP Advances, 2016, 6(12): 125119 [36] NIU Changlei, LUO Zhifu, LEI Yingjun, et al. Advanced power source technology of deep space exploration[J]. Journal of Deep Space Exploration, 2020, 7(1): 24-34 (牛厂磊, 罗志福, 雷英俊, 等. 深空探测先进电源技术综述[J]. 深空探测学报, 2020, 7(1): 24-34NIU Changlei, LUO Zhifu, LEI Yingjun, et al. Advanced power source technology of deep space exploration[J]. Journal of Deep Space Exploration, 2020, 7(1): 24-34 [37] GRANDIDIER J, GOGNA P K, ERRICO M, et al. Solar cell measurements at high temperature[C]//Proceedings of 2015 IEEE 42nd Photovoltaic Specialist Conference. New Orleans: IEEE, 2015: 1-3 [38] PERL E E, SIMON J, FRIEDMAN D J, et al. (Al) GaInP/GaAs tandem solar cells for power conversion at elevated temperature and high concentration[J]. IEEE Journal of Photovoltaics, 2018, 8(2): 640-645 doi: 10.1109/JPHOTOV.2017.2783853 [39] SALAZAR D, LANDIS G A, COLOZZA A J. Non-cooled power system for Venus lander[C]//Proceedings of the 12th International Energy Conversion Engineering Conference. Cleveland: American Institute of Aeronautics and Astronautics, 2014: 3459 [40] MONTAGUE G T, BROWN G V, MORRISON C R, et al. High-temperature switched-reluctance electric motor[R]. Cleveland: NASA Tech Briefs, 2003 [41] LORENZ R D. Surface winds on Venus: probability distribution from in-situ measurements[J]. Icarus, 2016, 264: 311-315 doi: 10.1016/j.icarus.2015.09.036 [42] BENIGNO G, HOZA K, MOTIWALA S, et al. A wind-powered rover for a low-cost Venus mission[C]//Proceedings of the 51st AIAA Aerospace Sciences Meeting including the New Horizons Forum and Aerospace Exposition. Grapevine: AIAA, 2013: 586 [43] KREMIC T, HUNTER G W. Long-Lived In-situ Solar System Explorer (LLISSE) potential contributions to solar system exploration[J]. Bulletin of the American Astronomical Society, 2021, 53(4): 151 [44] SAUDER J, WILCOX B, CUTTS J. An Airborne Turbine for Power Generation on Venus[C]//Proceedings of the 15th Meeting of the Venus Exploration and Analysis Group (VEXAG). Maryland: Lunar and Planetary Institute, 2017, 15(2061): 8037 [45] MASSET P, SCHOEFFERT S, POINSO J Y, et al. Retained molten salt electrolytes in thermal batteries[J]. Journal of Power Sources, 2005, 139(1/2): 356-365 [46] LU X C, LEMMON J P, SPRENKLE V, et al. Sodium-beta alumina batteries: status and challenges[J]. JOM, 2010, 62(9): 31-36 doi: 10.1007/s11837-010-0132-5 [47] MASSET P, SCHOEFFERT S, POINSO J Y, et al. LiF-LiCl-LiI vs. LiF-LiBr-KBr as molten salt electrolyte in thermal batteries[J]. Journal of the Electrochemical Society, 2005, 152(2): A405 doi: 10.1149/1.1850861 [48] LANDIS G A, HARRISON R. Batteries for Venus surface operation[J]. Journal of Propulsion and Power, 2010, 26(4): 649-654 doi: 10.2514/1.41886 [49] LIN X R, SALARI M, ARAVA L M R, et al. High temperature electrical energy storage: advances, challenges, and frontiers[J]. Chemical Society Reviews, 2016, 45(21): 5848-5887 doi: 10.1039/C6CS00012F [50] MILLER T F, PAUL M V, OLESON S R. Combustion-based power source for Venus surface missions[J]. Acta Astronautica, 2016, 127: 197-208 doi: 10.1016/j.actaastro.2016.05.006 [51] GRANDIDIER J, AKINS A, CRISP D, et al. Feasibility of power beaming through the Venus atmosphere[J]. Acta Astronautica, 2023, 211: 376-381 doi: 10.1016/j.actaastro.2023.06.042 [52] LEE K L, TARAU C. 24 Hours consumable-based cooling system for venus lander[C]//Proceedings of the 49th International Conference on Environmental Systems. Boston: 49th International Conference on Environmental Systems, 2019 [53] EKONOMOV A P, KSANFOMALITY L V. On the thermal protection systems of landers for venus exploration[J]. Solar System Research, 2018, 52(1): 37-43 doi: 10.1134/S0038094617060016 [54] ANDERSON K R, GROSS T, MCNAMARA C, et al. Venus lander electronics payload thermal management using a multistage refrigeration system[J]. Journal of Thermophysics and Heat Transfer, 2018, 32(3): 659-668 doi: 10.2514/1.T5286 [55] TARAU C, ANDERSON W, PETERS C. Thermal management system for long-lived venus landers[C]//Proceedings of the 9th Annual International Energy Conversion Engineering Conference. San Diego: AIAA, 2011: 5643 [56] DYSON R W, SCHMITZ P C, PENSWICK L B, et al. Long-lived venus lander conceptual design: how to keep it cool[C]//Proceedings of the 7th International Energy Conversion and Engineering Conference. Denver: American Institute of Aeronautics and Astronautics, 2009: 4631 [57] FUGLESANG C, ZETTERLING C, WILSON C. Venus long-life surface package (VL2SP)[C]//Proceedings of the 68th International Astronautical Congress. Adelaide, Australia: Curran Associates, 2018: 3035-3043 -
-
