基于最小最大凹惩罚的综合孔径射电望远镜成像方法
doi: 10.11728/cjss2025.06.2024-0186 cstr: 32142.14.cjss.2024-0186
-
范小艺 女, 2000年5月出生于浙江杭州, 浙江理工大学信息科学与工程学院(网络空间安全学院)硕士研究生. 主要研究方向为综合孔径射电望远镜成像算法. E-mail: jkajhfdkhalkdj@foxmail.com -
杨晓城 男, 1988年12月出生于江西九江, 浙江理工大学计算机科学与技术学院讲师. 主要研究方向为干涉与综合孔径技术、图像处理、天文技术与方法等. E-mail: yangxiaoch209@163.com
作者简介:
通讯作者:
Imaging Method of Synthetic Aperture Radio Telescope Based on Minimax Concave Penalty
-
摘要: 在综合孔径射电望远镜中, 从测量的可见度函数重构出图像是一个病态的反问题. 虽然压缩感知技术已成功地应用于综合孔径射电望远镜成像中, 但是传统的压缩感知算法利用L1范数最小化, 近似取代L0范数最小化, 带来了一定的偏差. 针对此问题, 本文提出了一种基于最小最大凹惩罚的综合孔径射电望远镜成像方法. 该方法利用最小最大凹惩罚来近似L0范数, 并利用近端梯度算法求解最小化模型. 在求解过程中, 采用最大似然估计来自适应选取正则化参数, 提高重构结果的准确性. 并采用重启和自适应策略, 以避免迭代过程中的振荡, 并提高算法的收敛速度. 实验结果表明, 该方法在重建精度和对噪声鲁棒性方面优于目前典型的压缩感知算法, 证明了其有效性.Abstract: In the synthetic aperture radio telescope, the reconstruction of an image from the measured visibility function is an ill-posed inverse problem on account of limitations in the visibility sampling scheme. Although compressed sensing technology has been successfully applied in interferometric imaging of a synthetic aperture radio telescope, the traditional compressed sensing algorithms make use of L1 norm minimization to approximately replace L0 norm minimization, which brings a certain deviation. To address this issue, a new imaging method of a synthetic aperture radio telescope based on a minimax concave penalty is proposed in this paper. This method approximates the L0 norm by the minimax concave penalty, and efficiently solves the non-convex minimization model by the proximal gradient algorithm. Compared with the L1 norm, the minimax concave penalty is a closer approximation of the L0 norm. In the iterative process, the maximum likelihood estimation is employed to adaptively select the regularization parameter, thereby enhancing the accuracy of the reconstruction results. In addition, the restart and adaptive strategies are adopted to avoid the oscillations during the iteration process and improve the convergence speed of the algorithm. Based on a simulated general array using a random sampling pattern of variable density and the Square Kilometer Array, numerical simulation experiments have been conducted to compare the performance of the proposed method in terms of reconstruction quality and computation speed with respect to classical imaging methods such as the Sparsity Averaging Reweighted Analysis (SARA) and Artificial Intelligence for Regularization in radio-interferometric Imaging (AIRI). The numerical experiment results indicate that compared with the SARA and AIRI approaches, the proposed approach can effectively reduce the reconstruction error and improve the reconstruction quality. The computation speed of the proposed approach is markedly faster than the SARA and slightly slower than the AIRI. Furthermore, the proposed approach exhibits superior robustness to noise interference than the SARA and AIRI approaches.
-
Key words:
- Radio telescope /
- Aperture synthesis /
- Compressed sensing /
- Minimax concave penalty
-

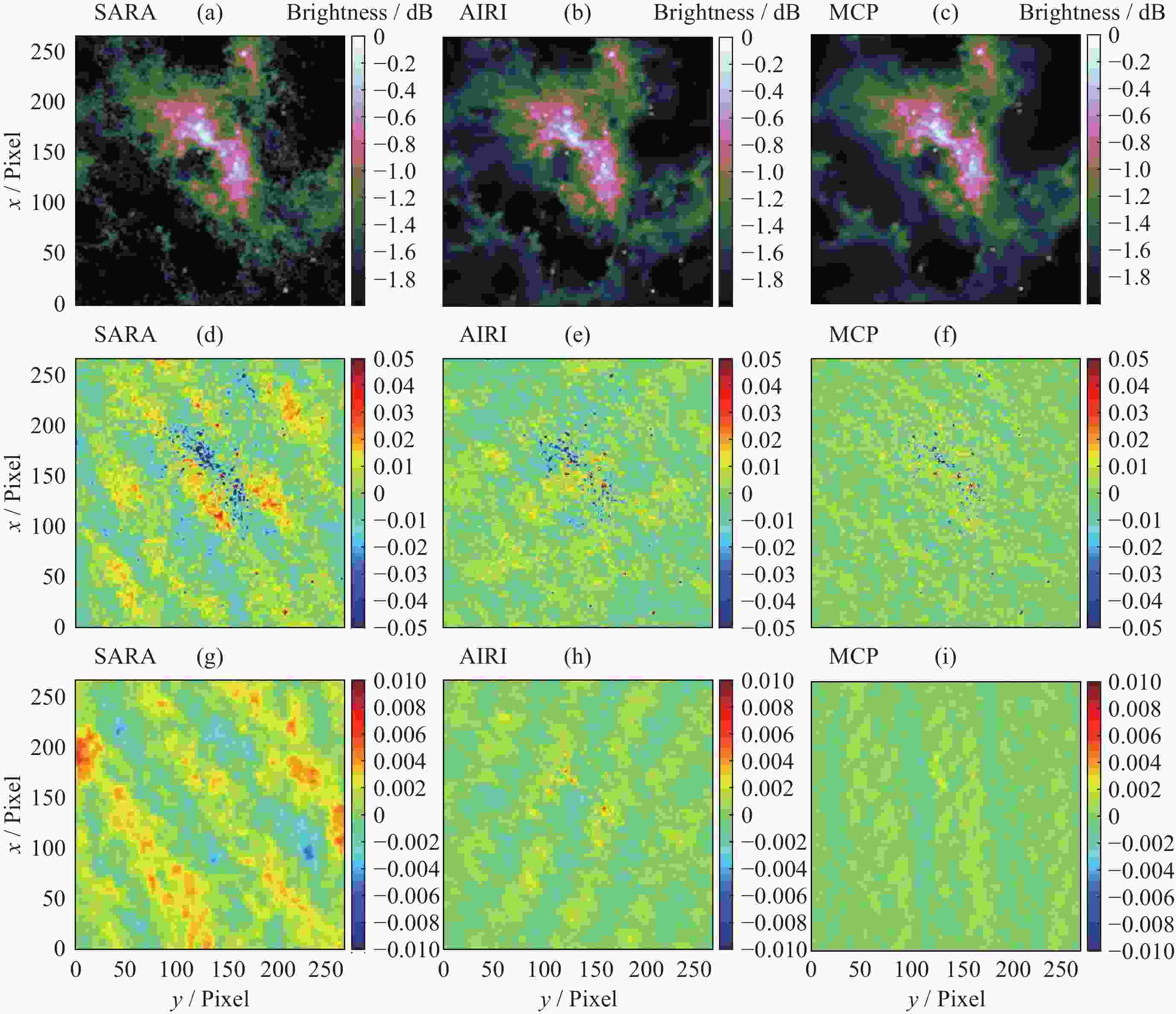

图 3 SARA, AIRI和MCP算法在10%欠采样率条件下的重构结果. (a)～(c)重构图像, (d)～(f)重构误差图像, (g)～(i)残差图像
Figure 3. Reconstructed results of SARA, AIRI and MCP algorithms at 10% undersampling rate. (a)～(c) Reconstructed images, (d)～(f) reconstructed error images, (g)～(i) residual images

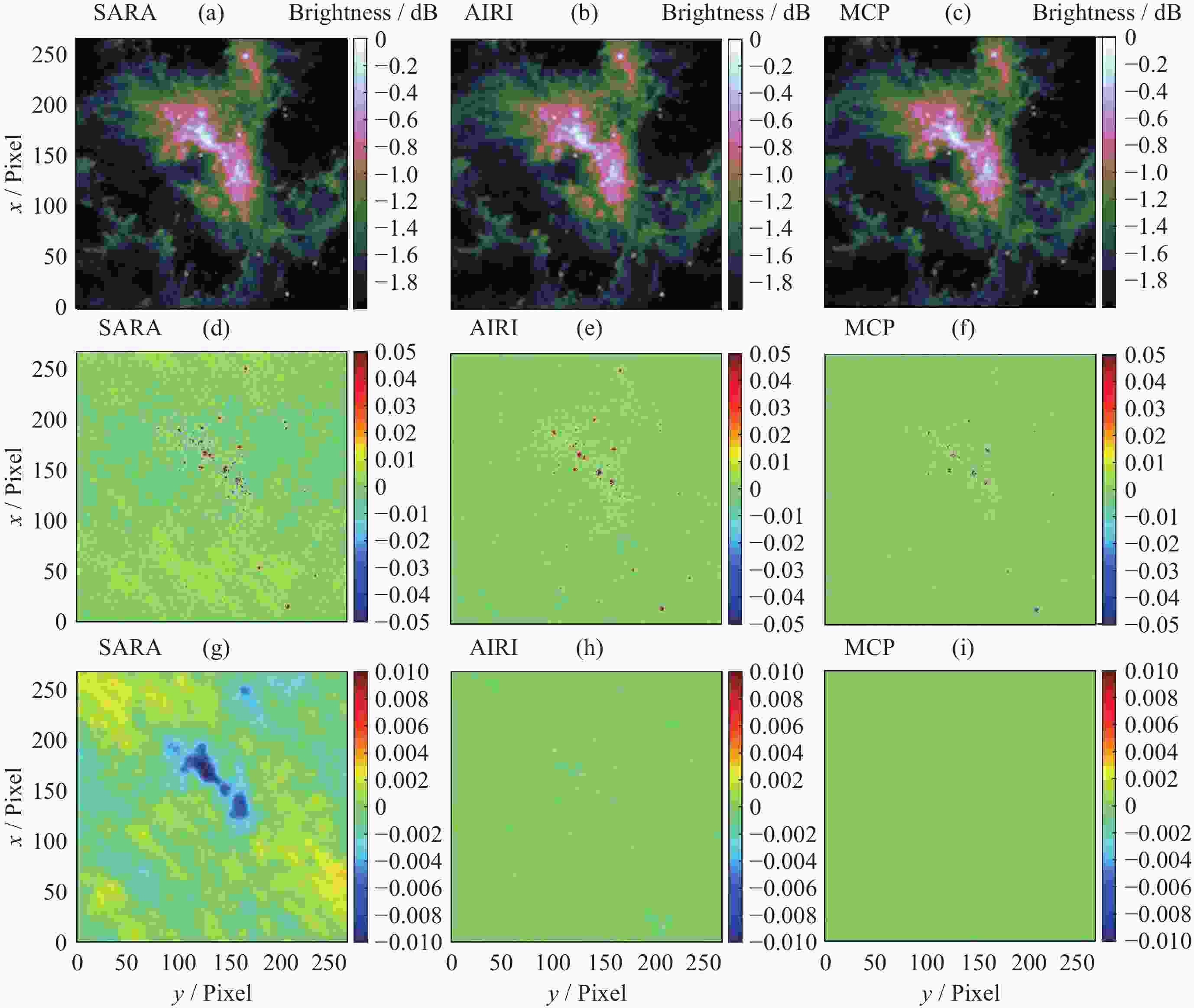

图 4 SARA, AIRI和MCP算法在 50%欠采样率条件下的重构结果. (a)～(c)重构图像, (d)～(f)重构误差图像, (g)～(i)残差图像
Figure 4. Reconstructed results of of SARA, AIRI and MCP algorithms at 50% undersampling rate. (a)～(c) Reconstructed images of SARA, (d)～(f) reconstructed error images, (g)～(i) residual images

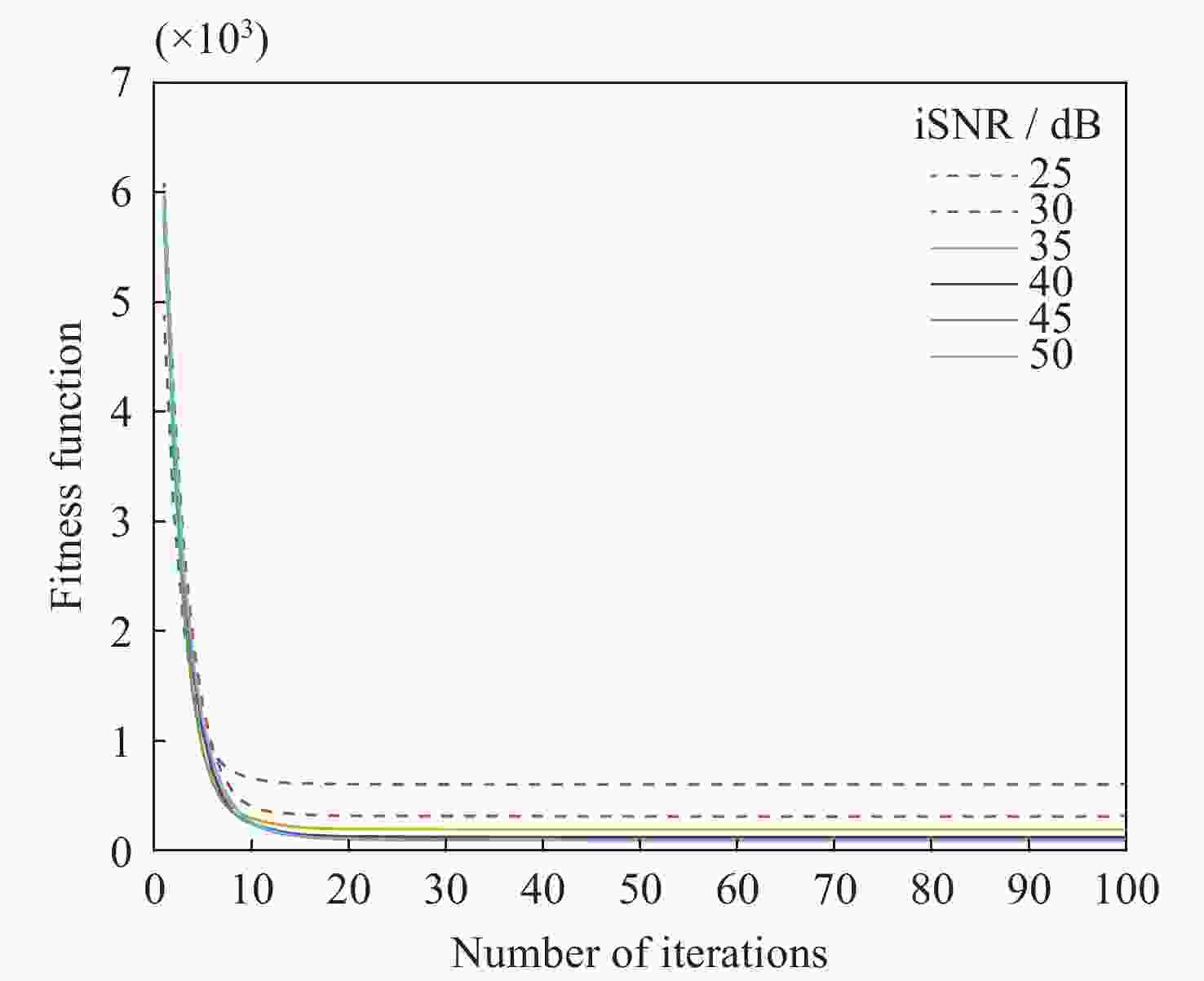

图 5 不同噪声水平下收敛性能
Figure 5. Convergence performance under noise interference of different levels

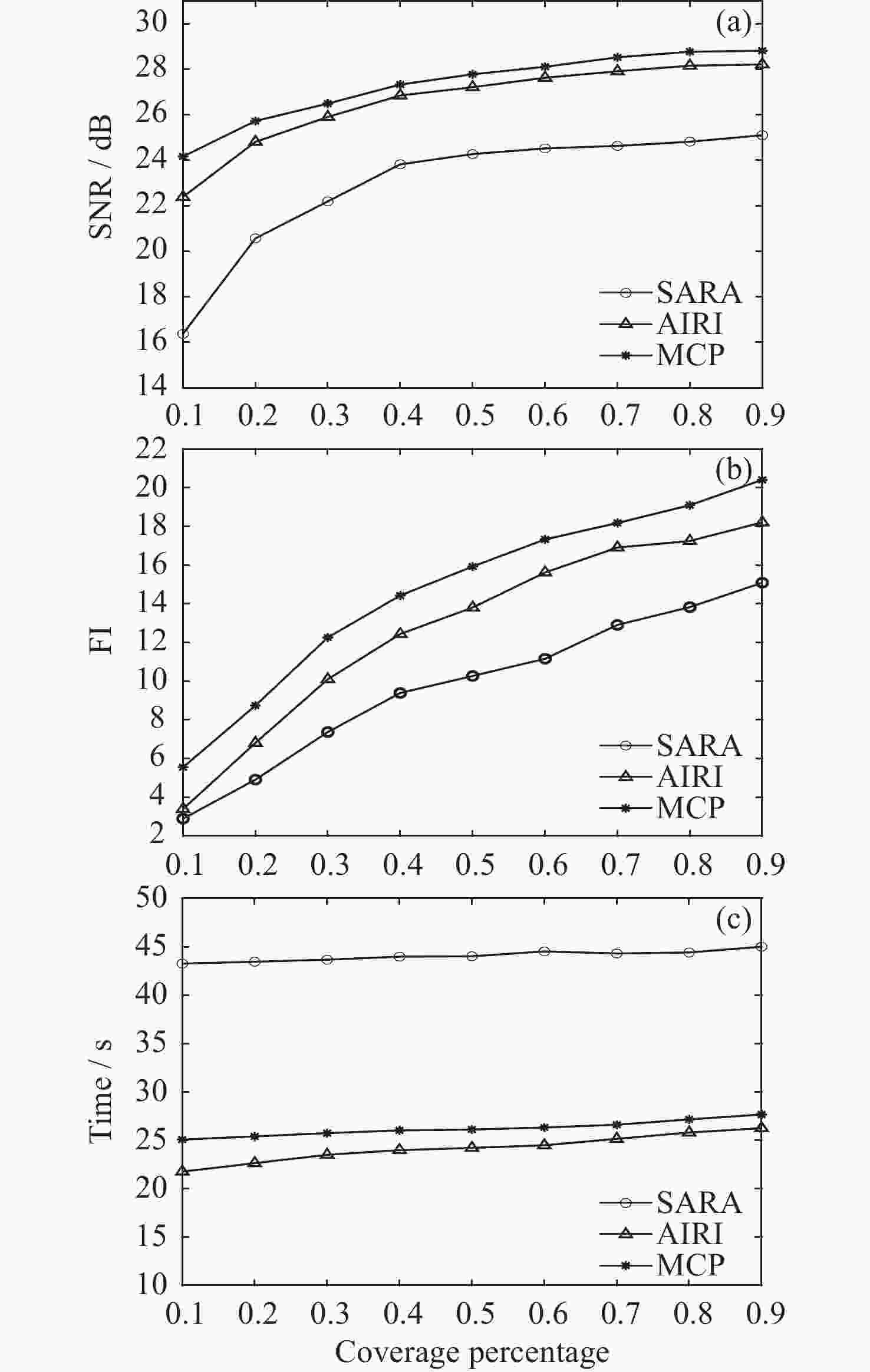

图 6 不同欠采样率下重构性能比较
Figure 6. Reconstruction performance comparison at different undersampling rates

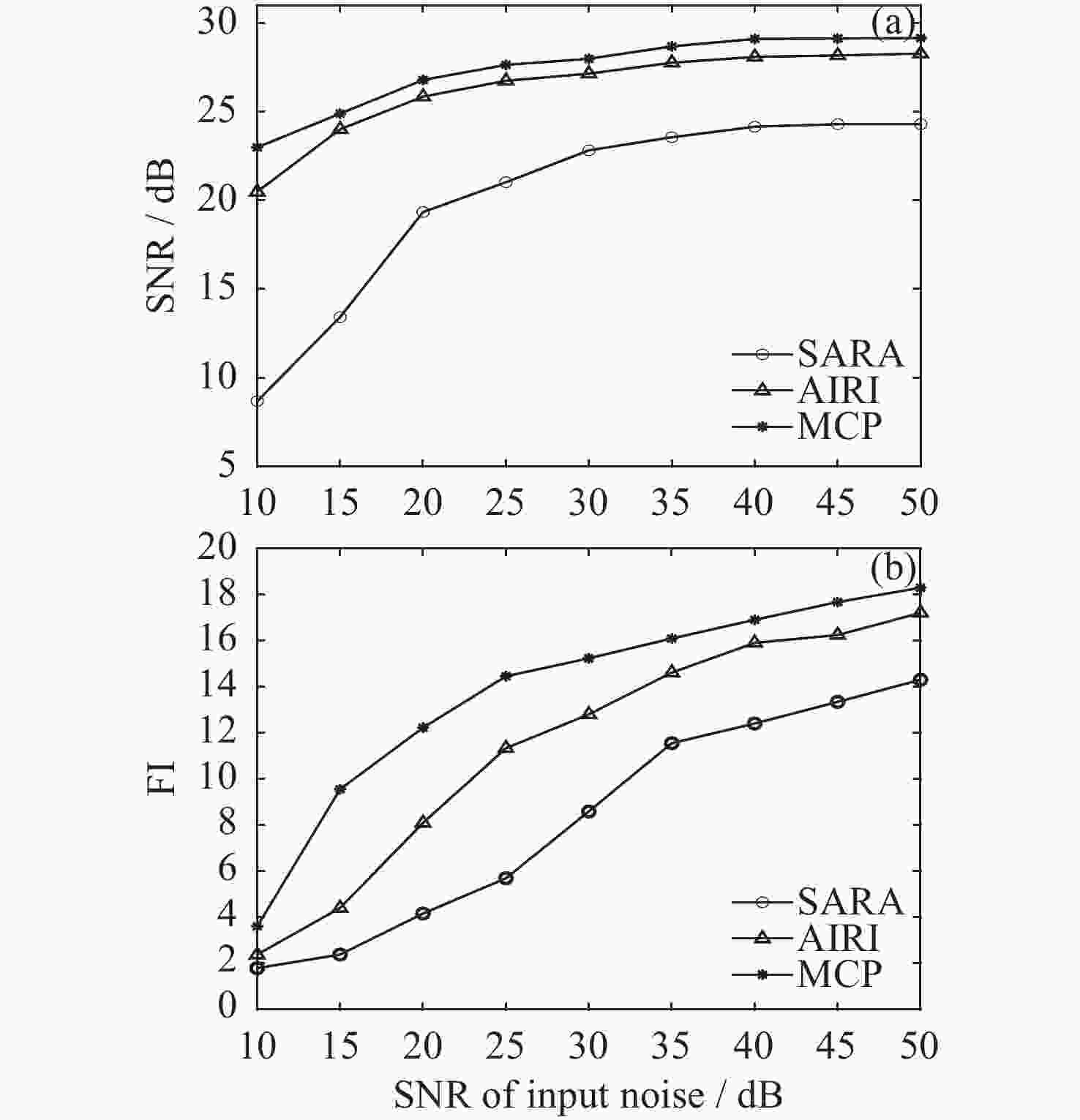

图 7 重构方法对噪声干扰的性能
Figure 7. Performance of reconstruction methods against noise interference

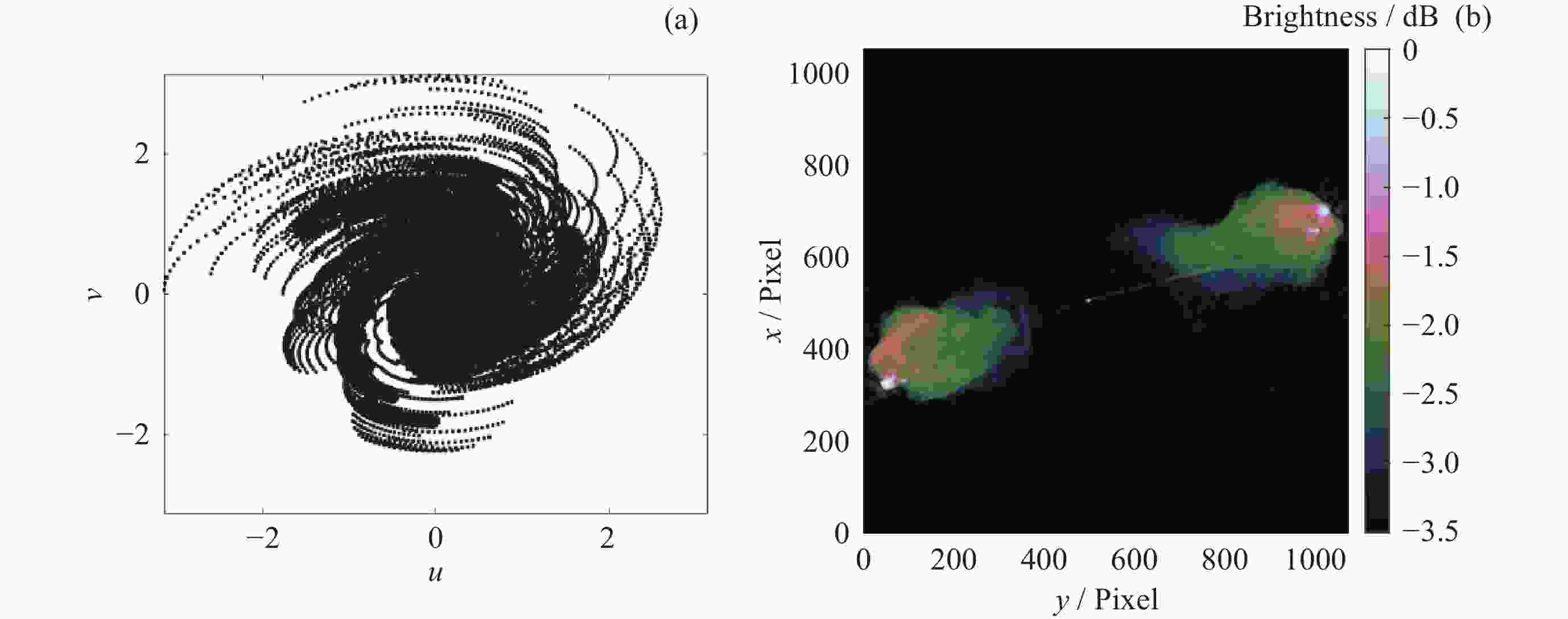

图 8 SKA阵列的基线覆盖(a)与 Cygnus-A测试图像(b)
Figure 8. Baseline coverage of the SKA array (a) and test image of Cygnus-A (b)

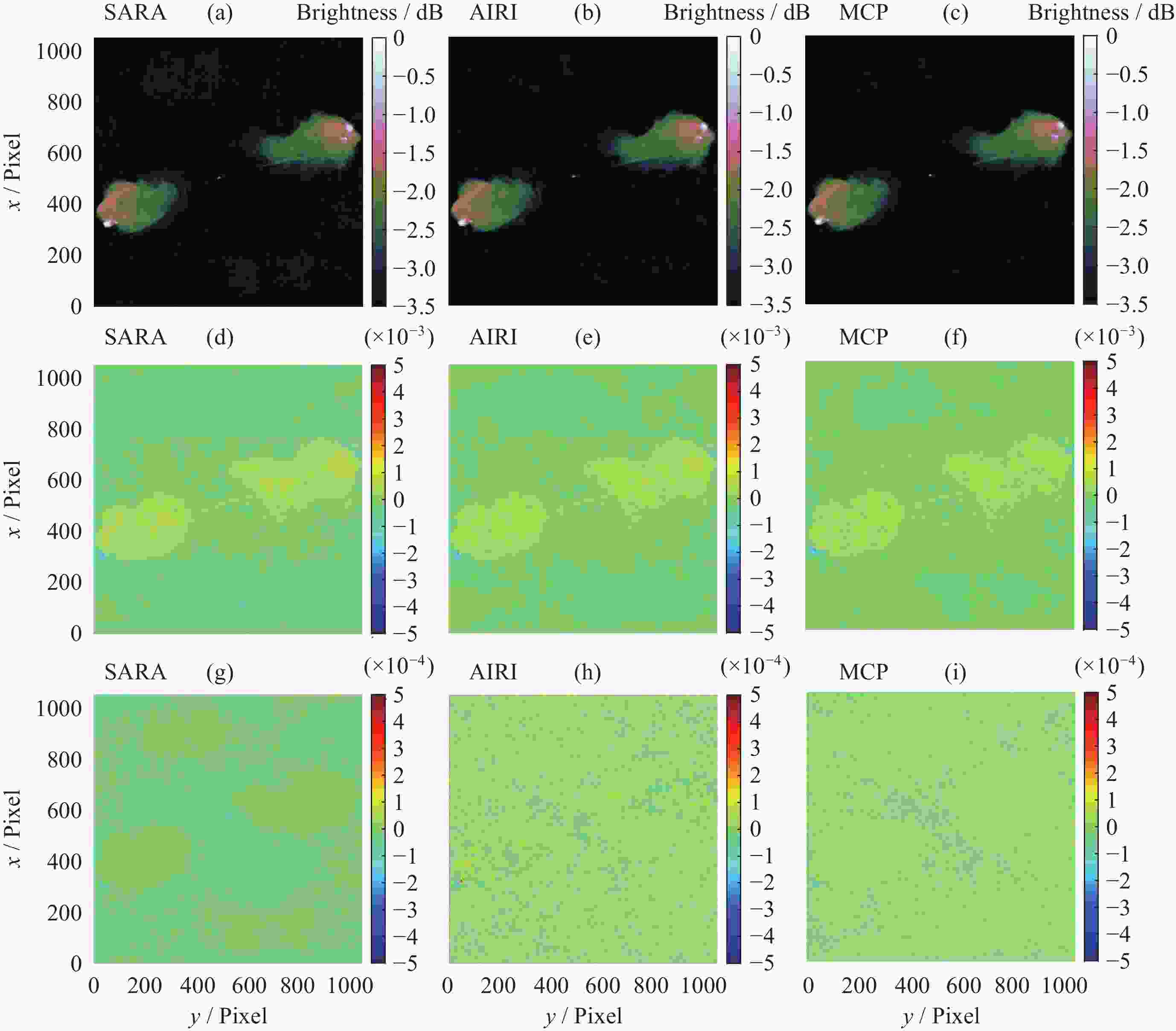

图 9 SARA, AIRI和MCP算法在SKA阵列的重构结果. (a)～(c)重构图像, (d)～(f)误差图像, (g)～(i)残差图像
Figure 9. Reconstructed results of of SARA , AIRI and MCP algorithms for the SKA array. (a)～(c) Reconstructed images, (d)～(f) reconstructed error images, (g)～(i) residual images
表 1 重构结果的性能对比
Table 1. Performance comparison of reconstruction results
Undersampling rates Algorithms SNR/dB FI Time/s 10% SARA 16.37 2.89 43.27 AIRI 22.39 3.39 21.76 MCP 24.16 5.55 25.07 50% SARA 24.27 10.27 44.03 AIRI 27.21 13.81 24.21 MCP 27.78 15.93 26.11
下载: 导出CSV
表 2 重构结果的性能对比
Table 2. Performance comparison of reconstruction results
Algorithms SNR/dB FI Time/s SARA 32.83 0.85 342.75 AIRI 34.52 0.97 175.32 MCP 35.73 1.09 189.62
下载: 导出CSV
-
