面向星载应用的高性能图像压缩核设计与实现
doi: 10.11728/cjss2026.01.2025-0021 cstr: 32142.14.cjss.2025-0021
-
傅志宇 男, 2000年1月出生于重庆市大足区, 现为中国科学院国家空间科学中心硕士研究生, 专业为计算机应用技术, 主要研究方向为星载图像处理. E-mail: fuzhiyu22@mails.ucas.ac.cn -
张学全 男, 1979年1月出生于吉林省白城市, 现为中国科学院国家空间科学中心高级工程师, 硕士生导师, 主要研究方向为空间综合电子技术与星上信息处理等. E-mail: zxq_cas@163.com
作者简介:
通讯作者:
Design and Implementation of a High-performance Image Compression Core for Spaceborne Applications
-

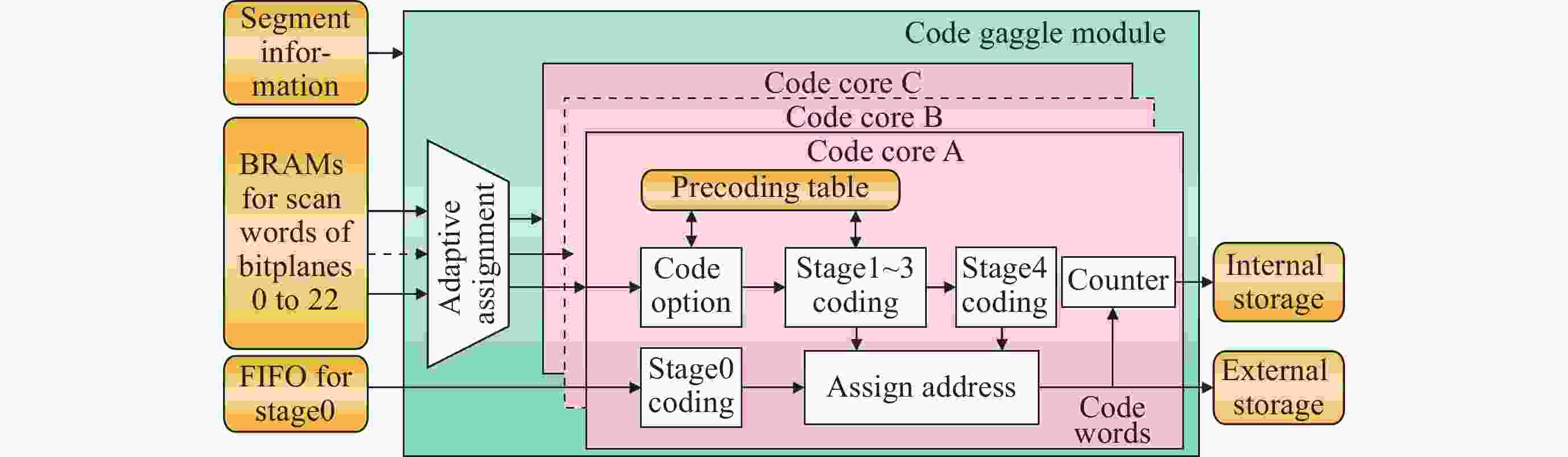

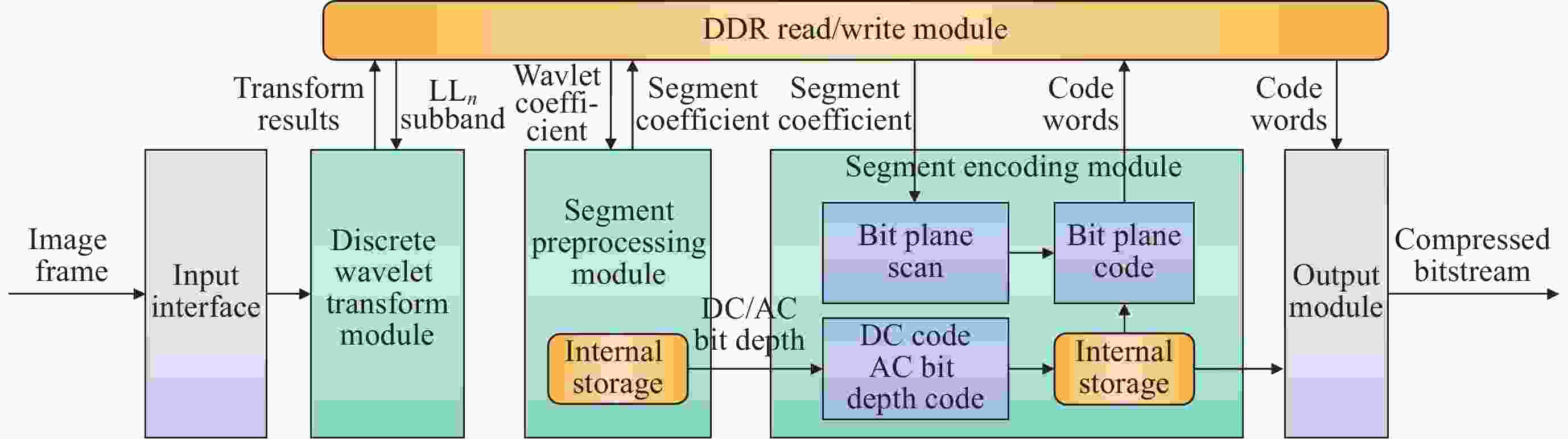

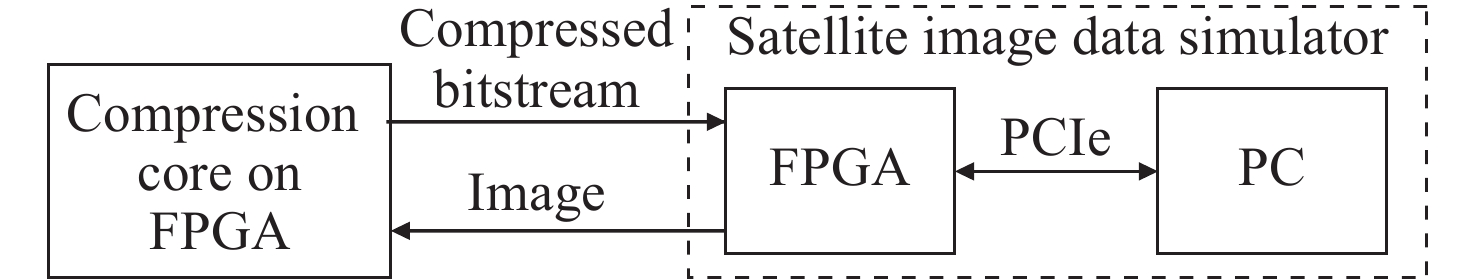

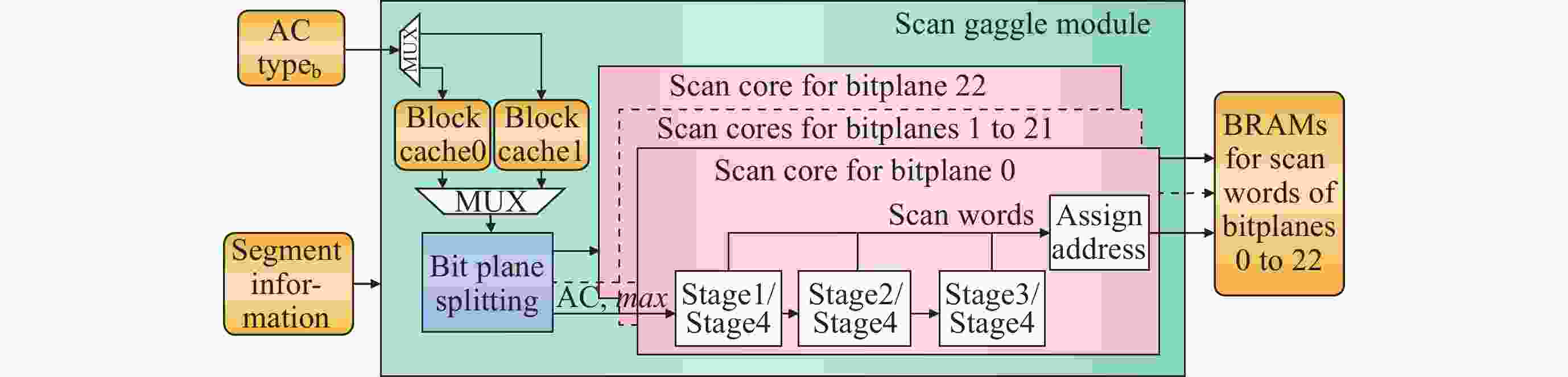

摘要: 为了满足航天应用中图像数据高效存储与传输的需求, 基于FPGA设计并实现了一种符合CCSDS 122.0-B-1标准的星载高性能图像压缩核. 充分考虑算法特性与实现平台特点, 设计了新颖的编码控制逻辑与数据组织结构. 针对压缩效率这一关键指标, 设计了段大小为256的算法实现架构, 压缩效率处于同类应用前列. 通过分段压缩机制, 有效防止了误码扩散, 并支持压缩质量连续调节与图像渐进传输. 针对扫描与编码环节的性能瓶颈, 提出了全并行扫描及动态优化并行编码方法, 实测编码效率提高约50%. 压缩核支持图像最大尺寸4096×4096 pixel, 最大位深度16 bit. 通过实际测试, 压缩核吞吐率可达90.64 ×106 sample·s–1, 可满足大部分航天任务的图像压缩需求.Abstract: To address the critical need for efficient image storage and transmission in aerospace applications, this study presents a CCSDS 122.0-B-1-compliant compression core implemented on FPGA. The design incorporates innovative encoding control logic and optimized data organization through co-optimization of algorithmic features and hardware constraints. A segment-based architecture with 256-pixel blocks achieves superior compression efficiency among existing solutions, while effectively containing error propagation through segmented compression. The architecture further enables continuous quality adaptation and progressive image transmission. To resolve performance bottlenecks in scanning and encoding processes, fully parallelized scanning with adaptive parallel encoding was developed, and a 50% efficiency improvement was demonstrated in validation tests. Supporting images up to 4096×4096 pixel with 16-bit depth, the core delivers 90.64×106sample·s–1 throughput, meeting operational requirements for diverse space missions.
-
Key words:
- Image compression /
- FPGA /
- CCSDS /

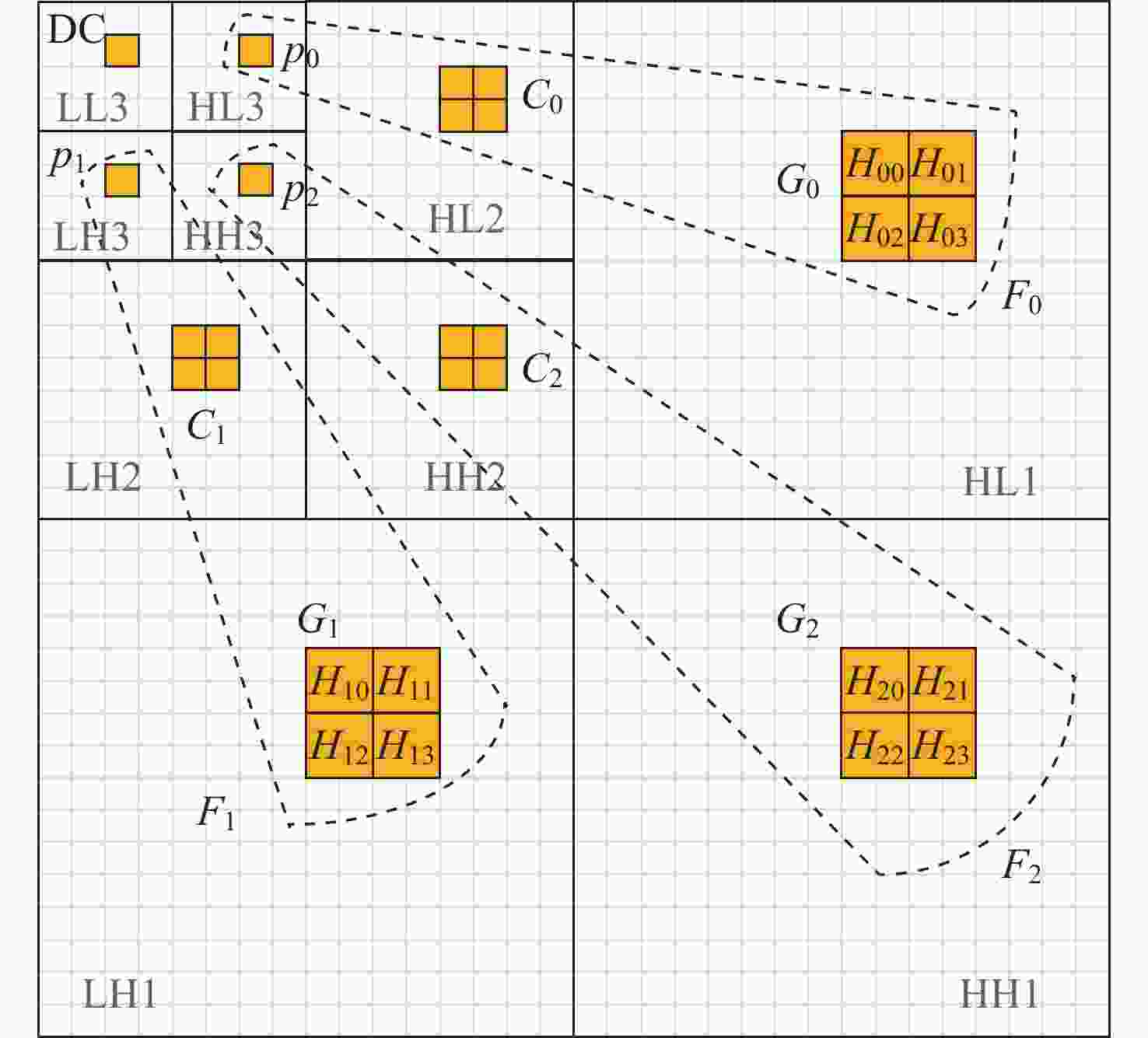

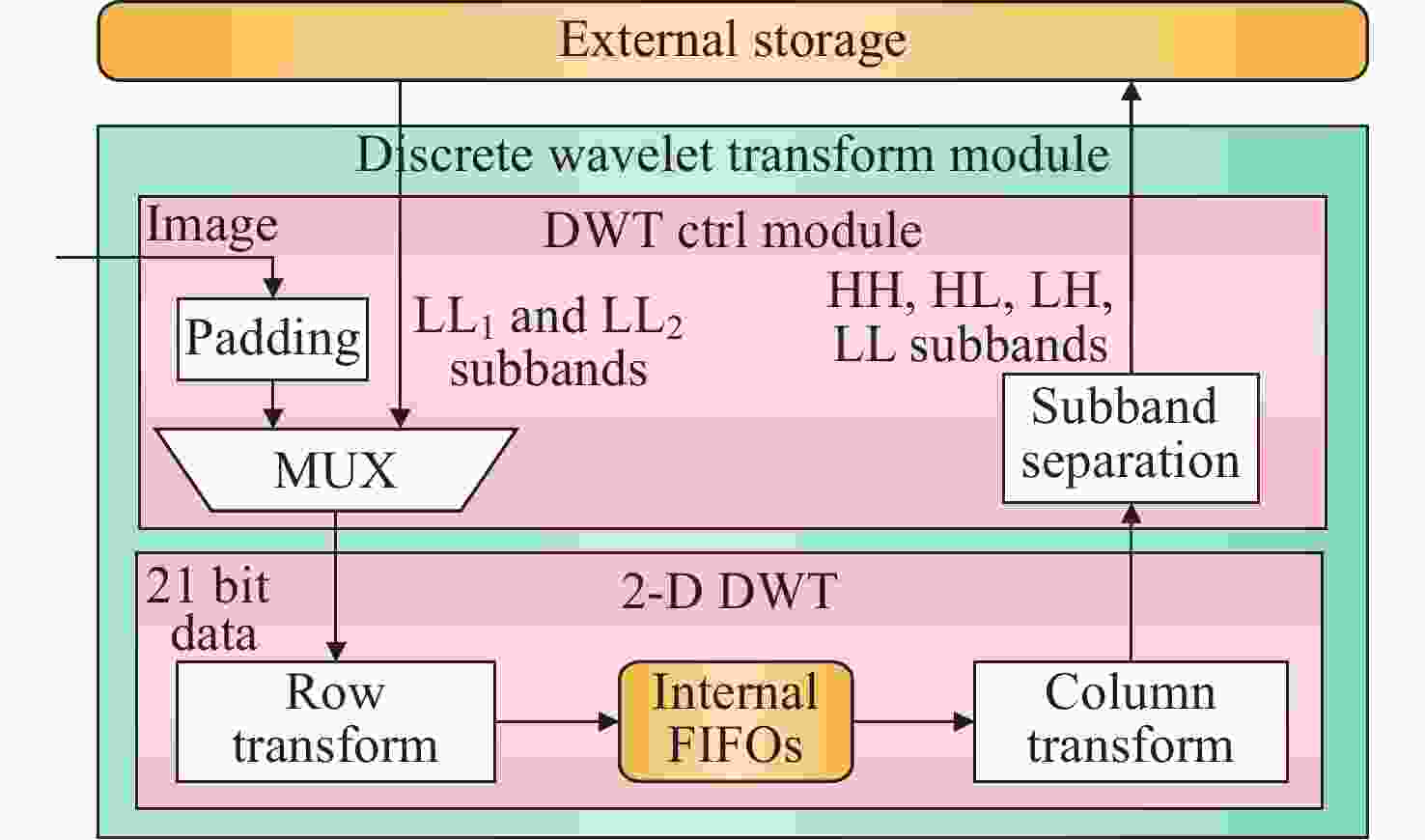

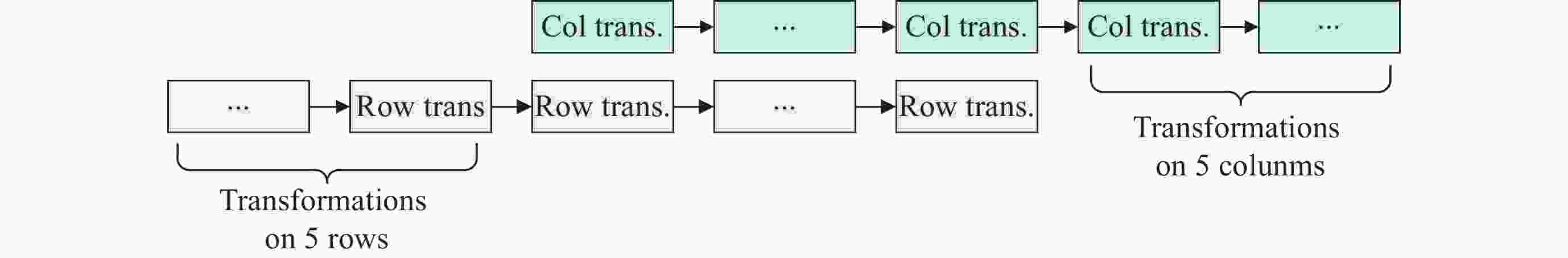

- Wavelet transform /
- Bit-plane encoding
-

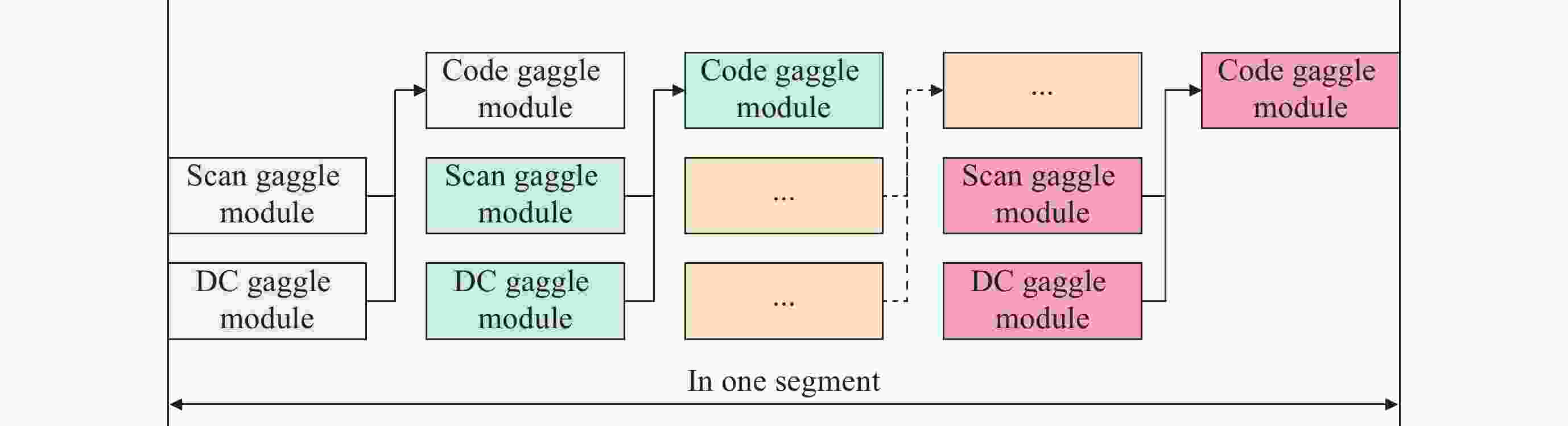

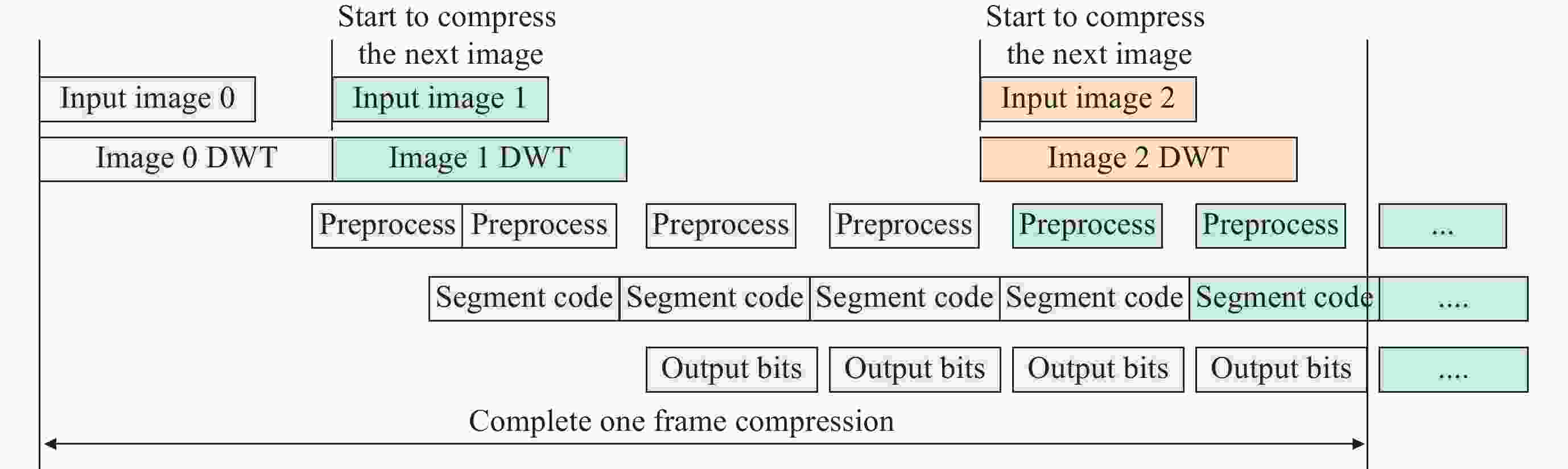

图 7 段编码模块内部流水线机制
Figure 7. Schematic diagram of the internal pipeline of the segment encoding module

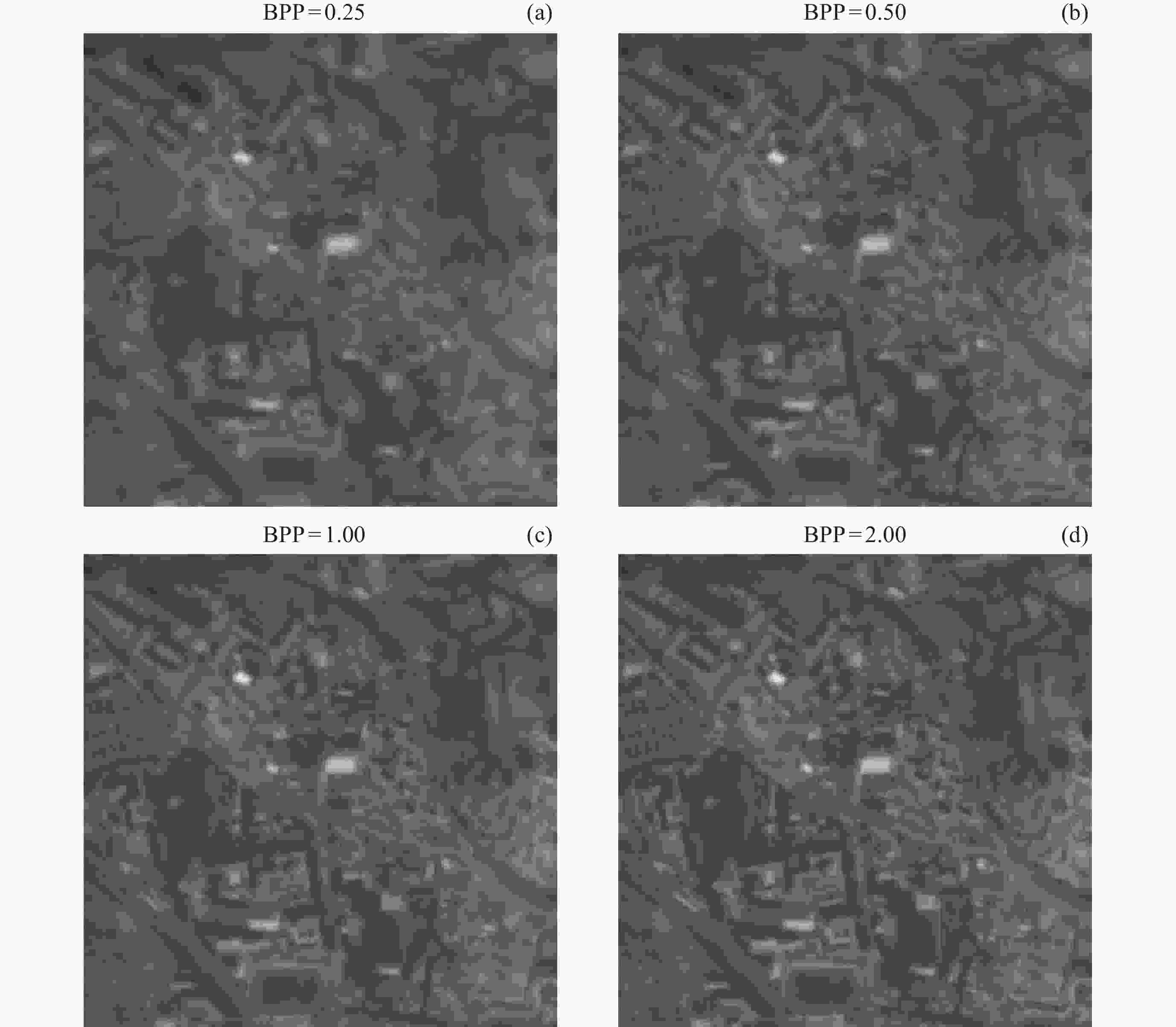

图 14 marseille_G6_10 b在不同BPP条件下的压缩结果对比
Figure 14. Comparison of compression results of marseille_G6_10 b at different BPP levels

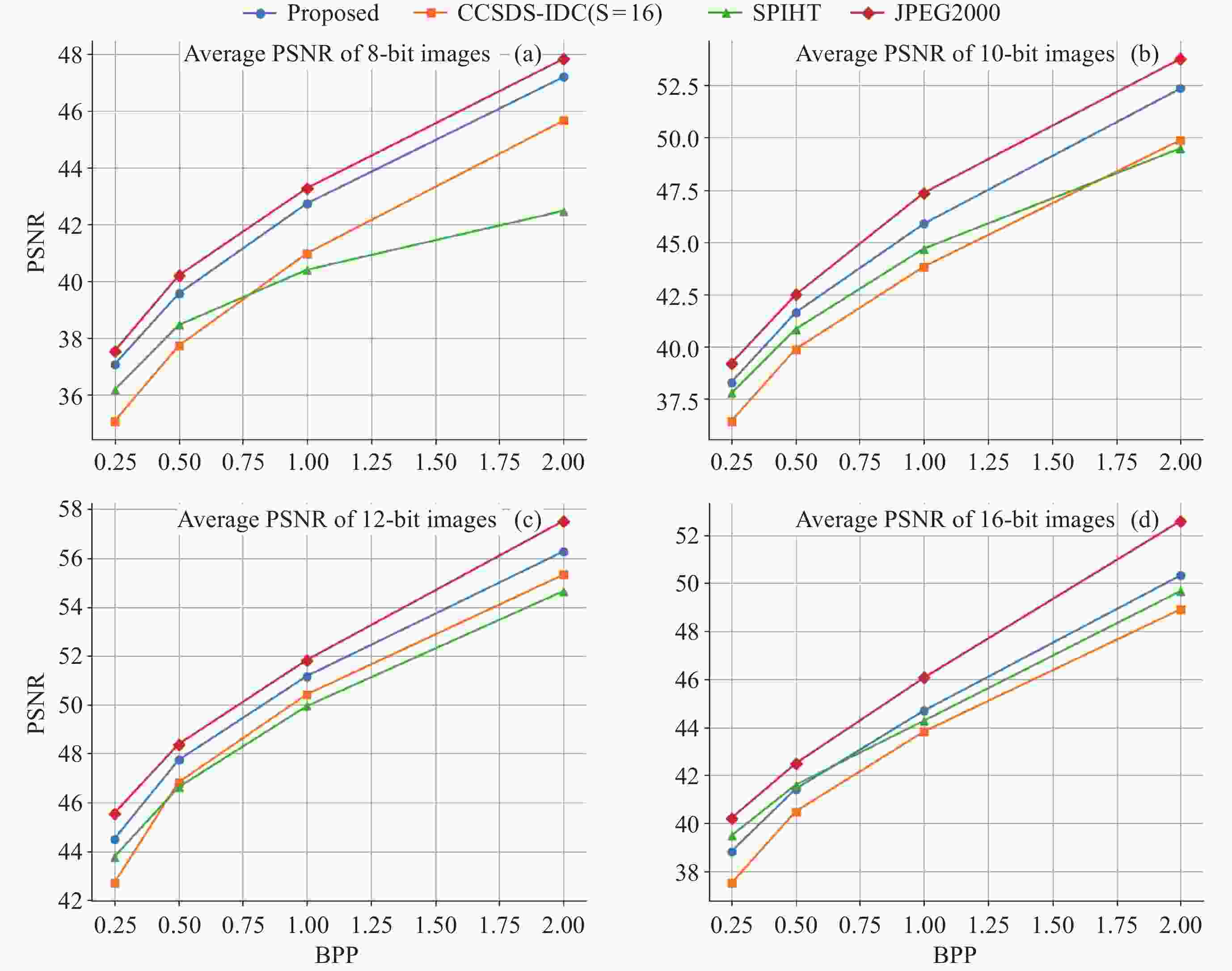

图 15 不同算法压缩效率对比
Figure 15. Comparison of compression efficiency of different algorithms

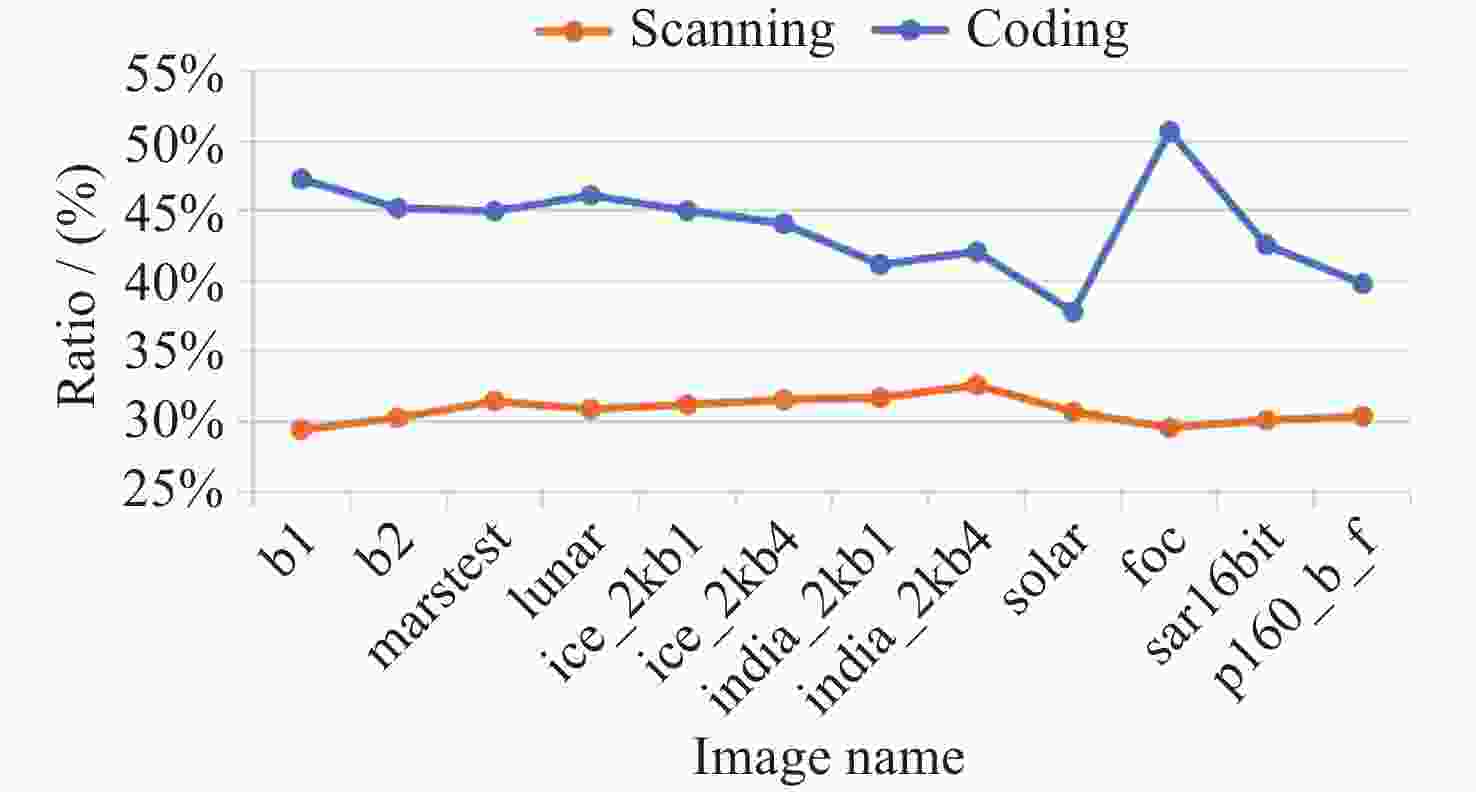

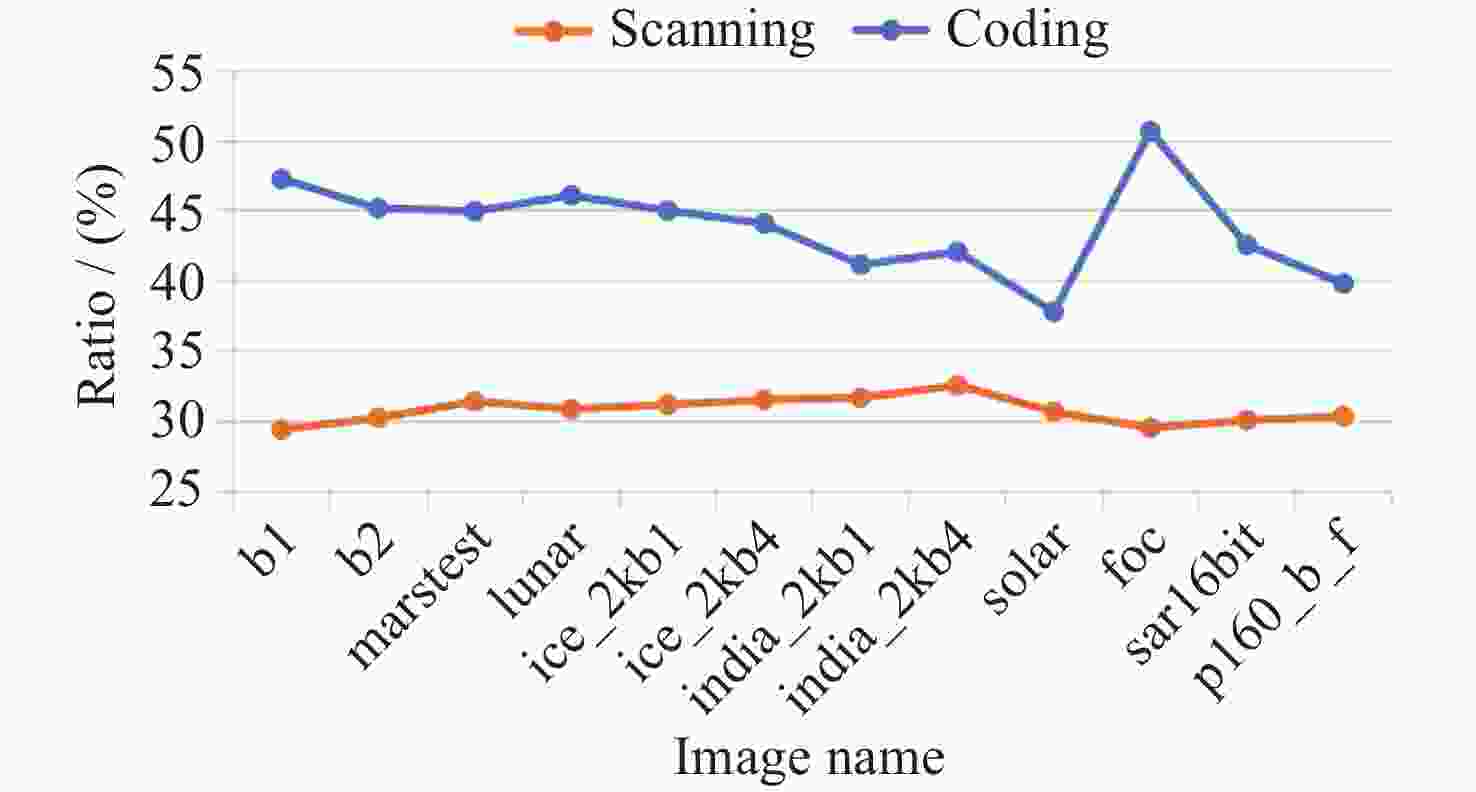

图 16 扫描与编码环节优化后时间减少百分比
Figure 16. Time reduction percentage after optimization of the scanning and encoding processes

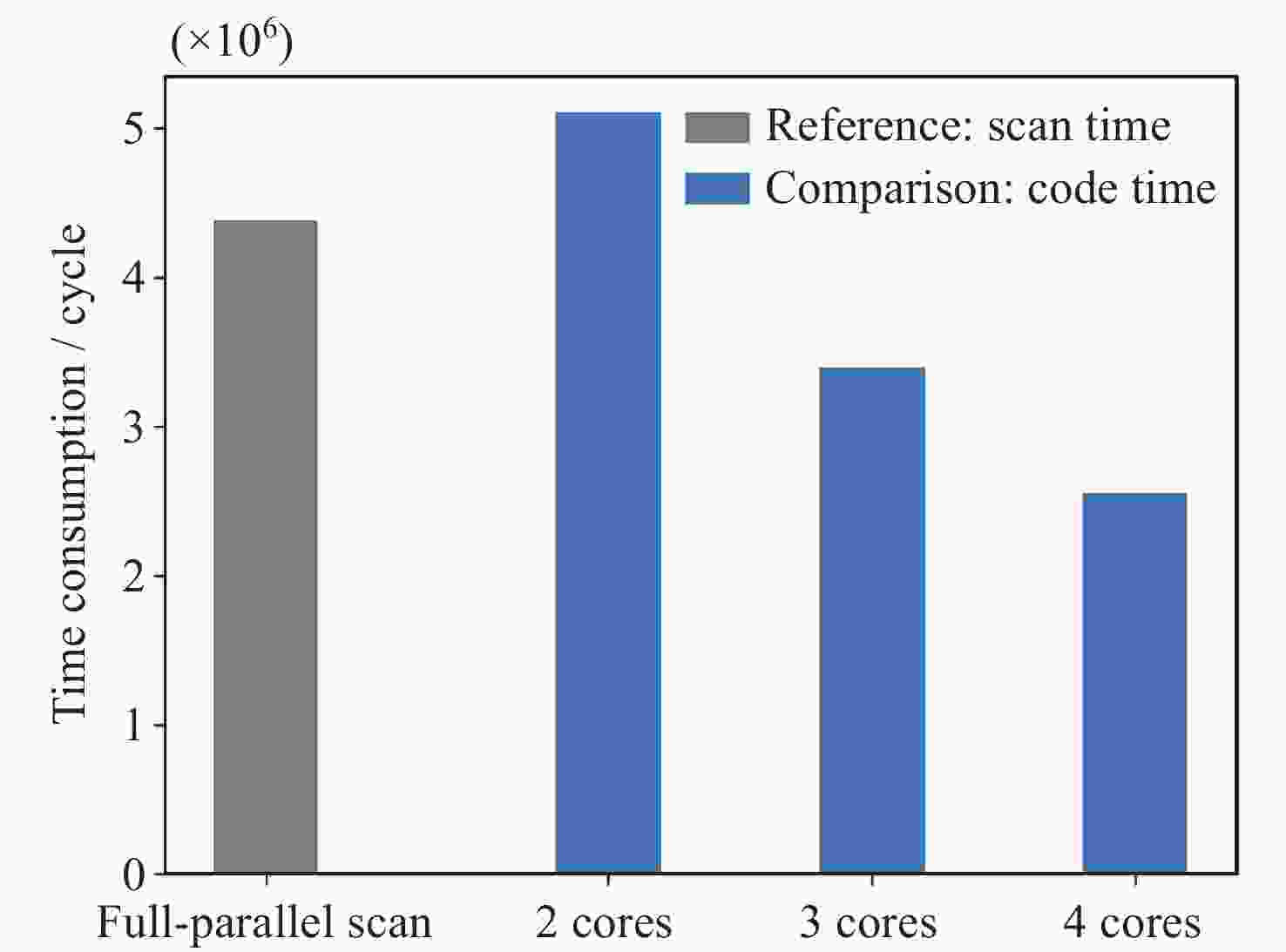

图 17 扫描环节与多核编码环节耗时
Figure 17. Time consumption for the scanning process and multi-core encoding process
表 1 不同目标比特率下压缩图像的PSNR值(单位: dB)
Table 1. PSNR values of compressed images at different target BPP (Unit: dB)
图像名称 位深度/bit BPP=0.25 BPP=0.5 BPP=1 BPP=2 b1 8 40.35 42.59 45.20 48.90 b2 8 40.34 42.84 45.73 49.75 lunar 8 27.64 30.68 35.07 41.10 ocean_2 kb1 10 36.03 39.42 43.89 50.71 landesV_G7_10 b 10 40.98 42.88 45.70 51.88 marseille_G6_10 b 10 28.35 31.53 35.35 41.55 solar 12 41.92 45.01 48.73 54.67 sun_spot 12 48.97 52.61 55.50 59.68 sar16 bit 16 47.64 49.76 52.88 58.50 p160_b_f 16 30.02 33.09 36.50 42.13
下载: 导出CSV
表 2 测试图像段编码耗时及吞吐率
Table 2. Time consumption of segment encoding and throughput for test images
图像名称 位深度/bit 像素/pixel 段编码耗时/cycle 处理速度/(sample·cycle–1) 200 MHz时的吞吐率/
(×106 sample·s–1)b1 8 1048576 2399590 0.437 87.40 b2 8 1048576 2393047 0.438 87.64 marstest 8 262144 569853 0.460 92.00 lunar 8 262144 559553 0.468 93.70 ice_2 kb1 10 4194304 9220637 0.455 90.98 ice_2 kb4 10 4194304 8851466 0.474 94.77 india_2 kb1 10 4194304 8934049 0.469 93.89 india_2 kb4 10 4194304 8524784 0.492 98.40 solar 12 1048576 2375073 0.441 88.30 foc 12 524288 1202098 0.436 87.23 sar16 bit 16 262144 602975 0.435 86.95 p160_b_f 16 4194304 9700596 0.432 86.48
下载: 导出CSV
-
