空间站高温柜材料实验过程中的传热分析
doi: 10.11728/cjss2026.02.2024-0175 cstr: 32142.14.cjss.2024-0175
-
鲁鹏飞 男, 博士研究生, 1998年2月出生于河南省安阳市, 主要研究方向微重力科学实验技术、空间传热学. 参与空间站高温材料科学实验柜相关科学实验、高温柜热仿真实验, 高温柜样品盒实验数据采集与处理. E-mail: lupengfei20@mails.ucas.ac.cn -
于强 男, 研究员, 博士生导师, 主要研究方向空间科学实验技术. E-mail: yuqiang@nssc.ac.cn
作者简介:
通讯作者:
Heat Transfer Analysis of High Temperature Rack Material in Space Station
-

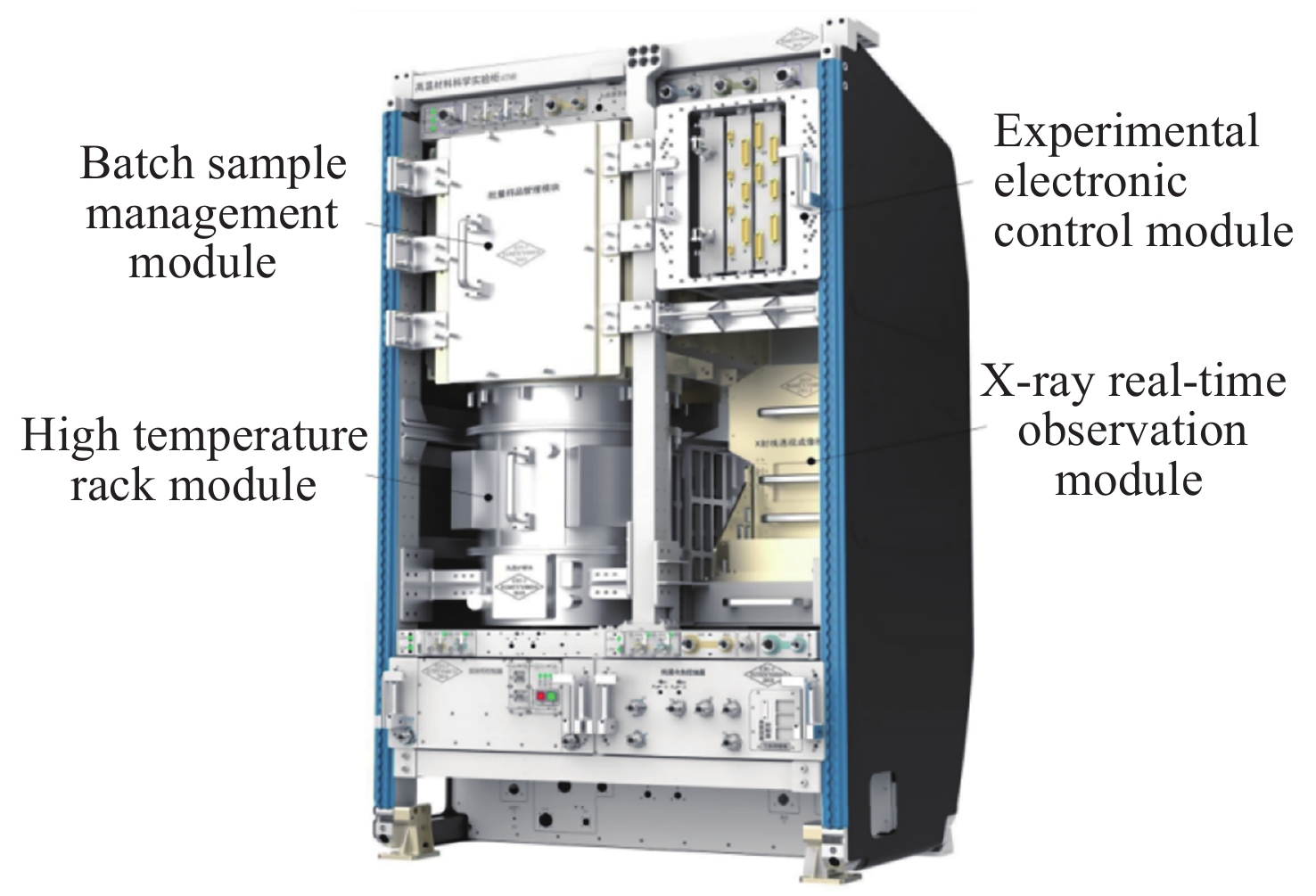

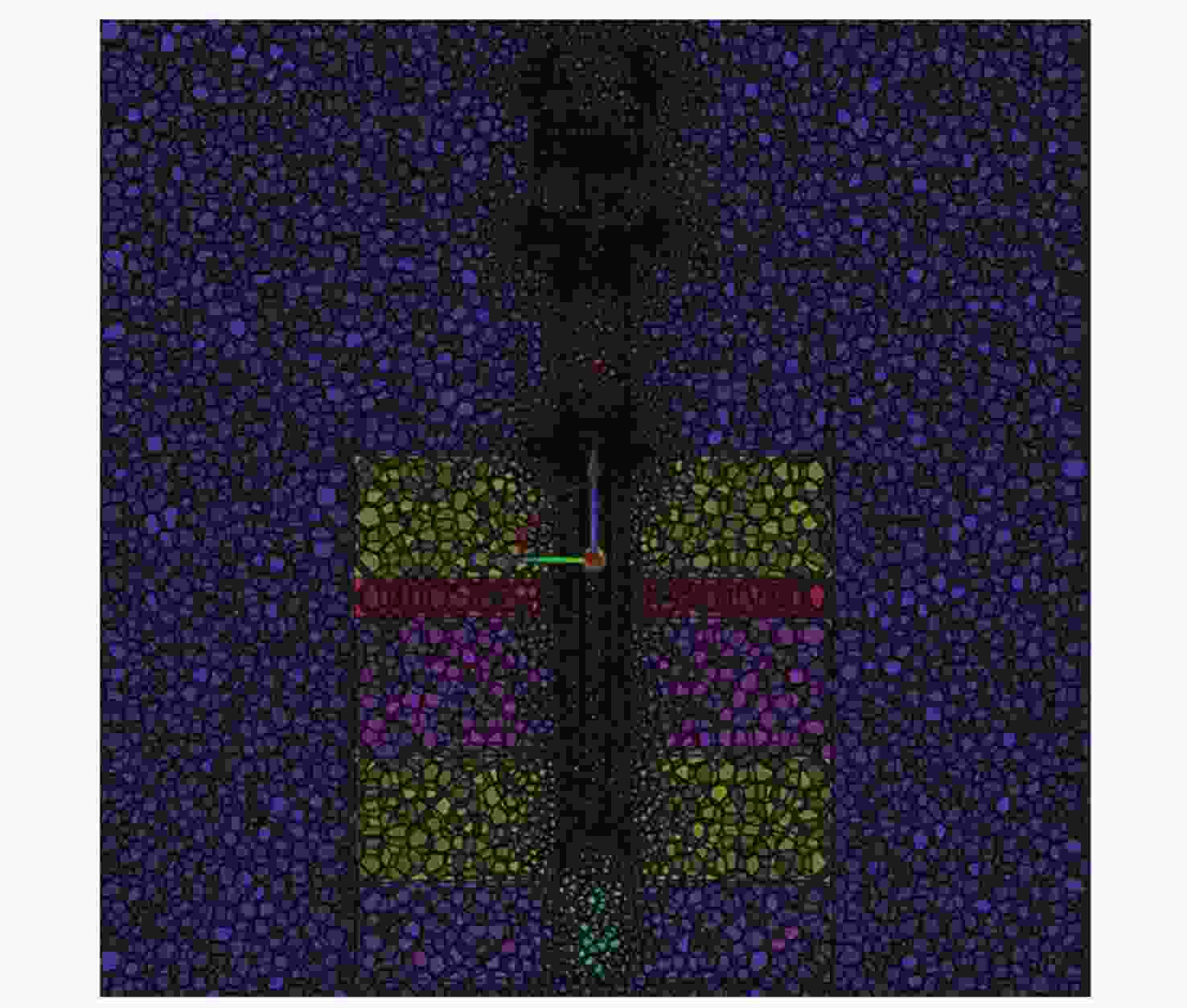

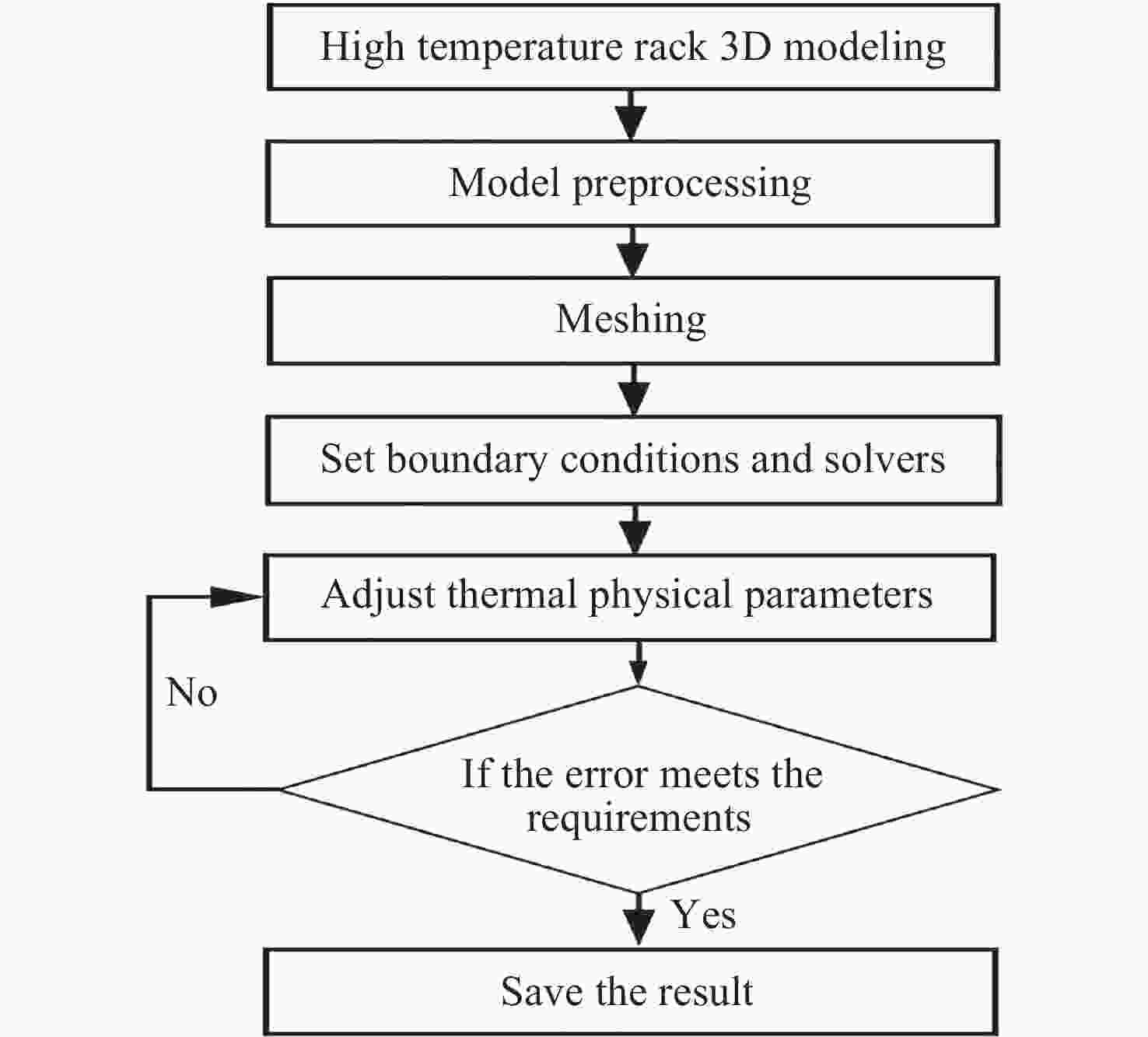

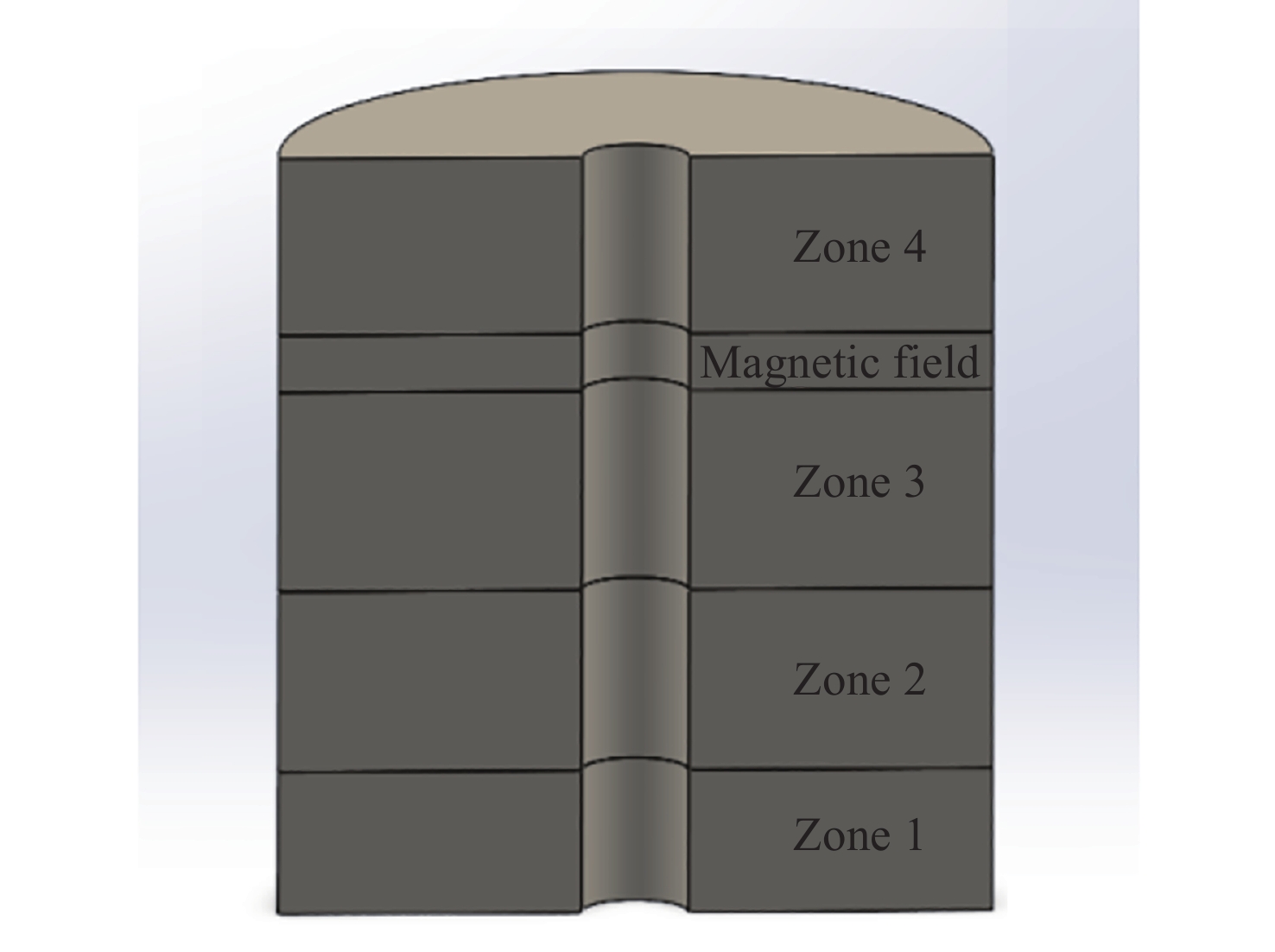

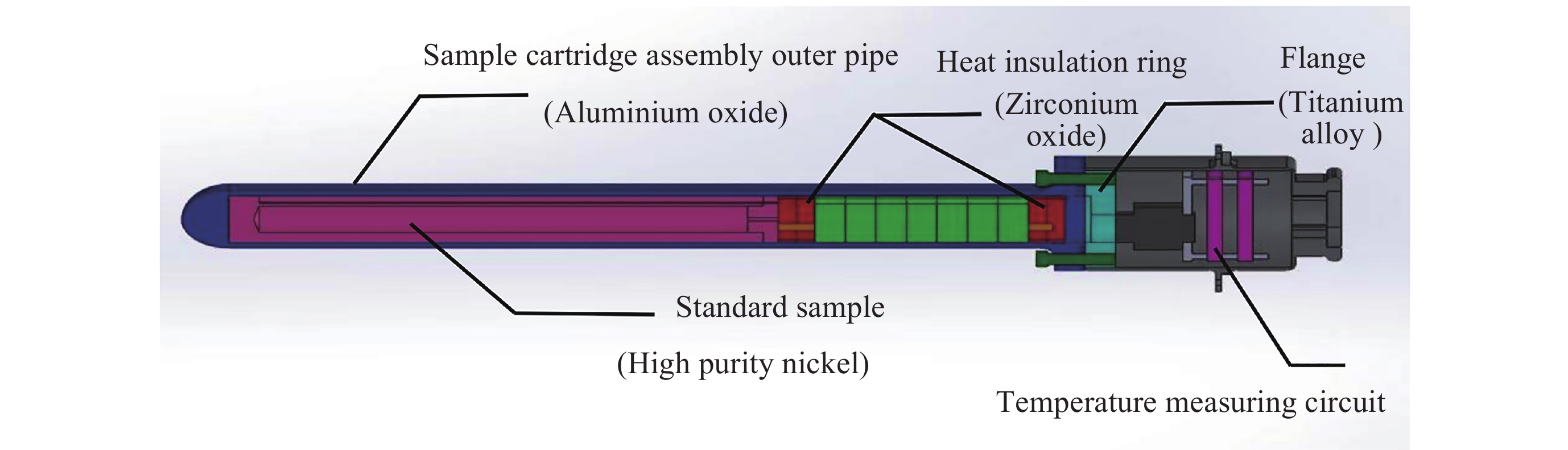

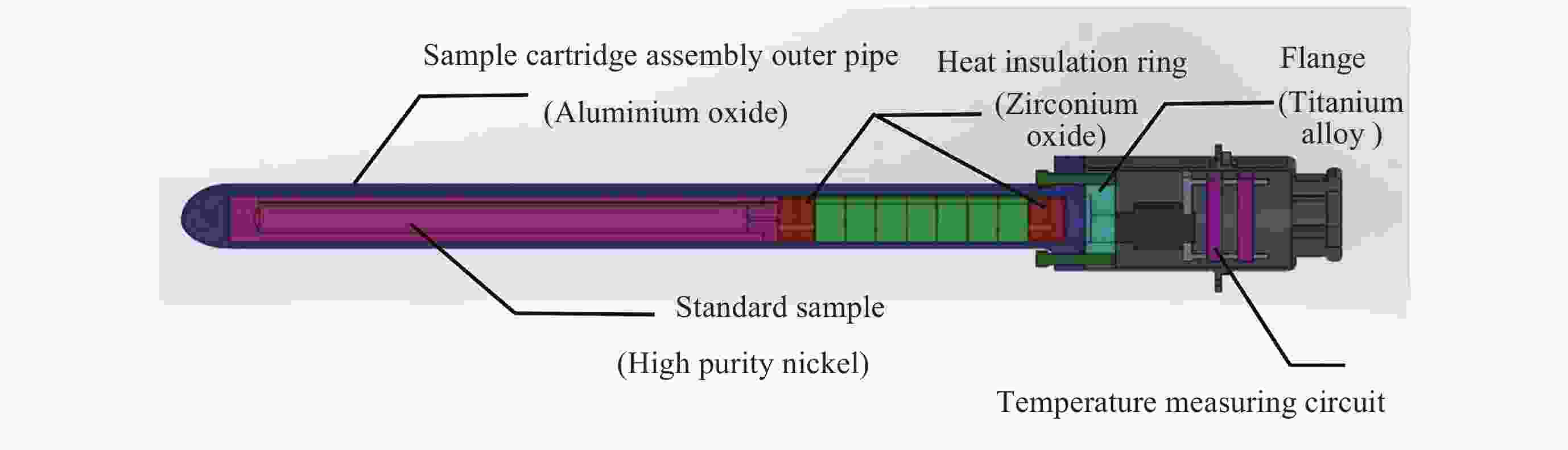

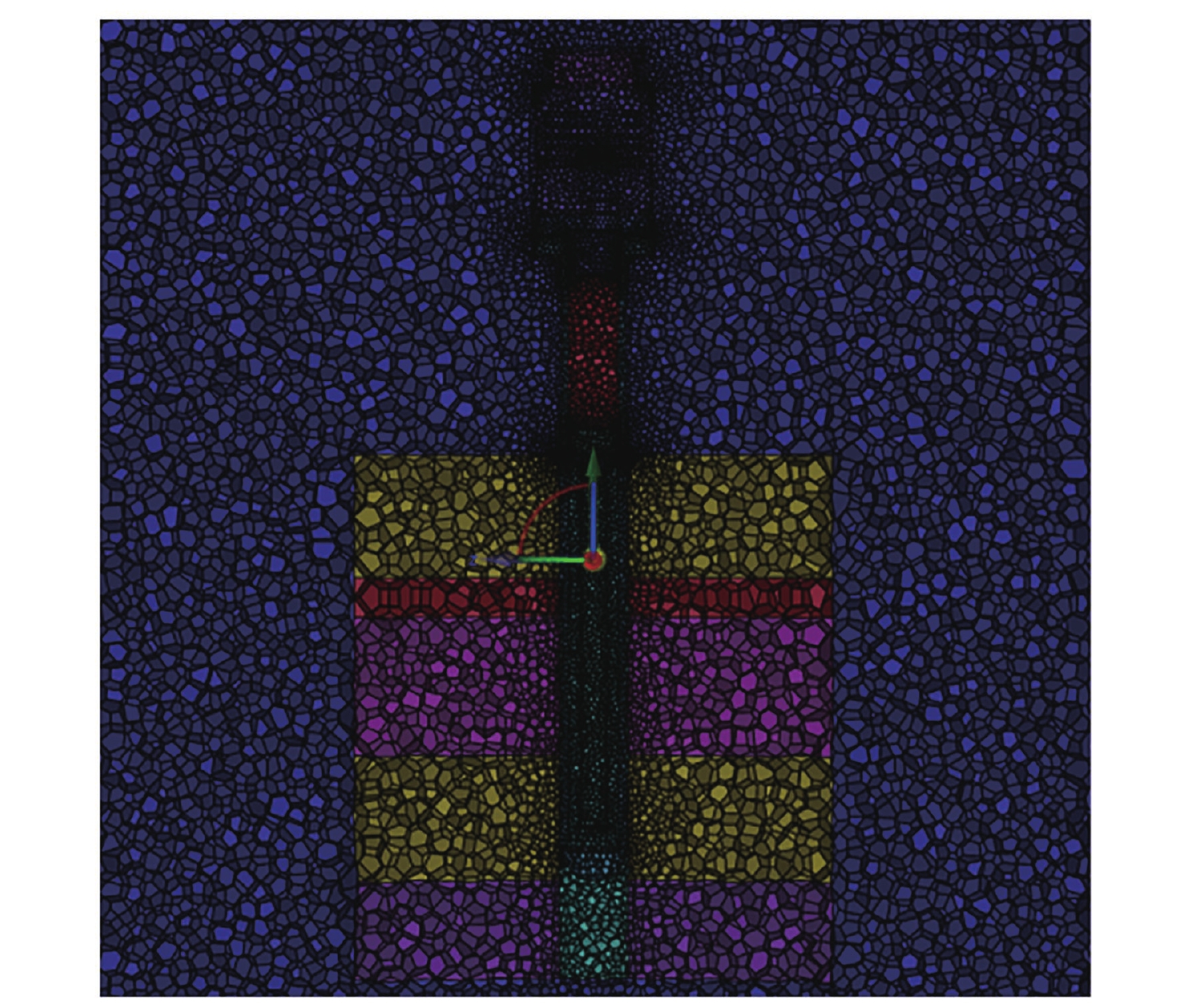

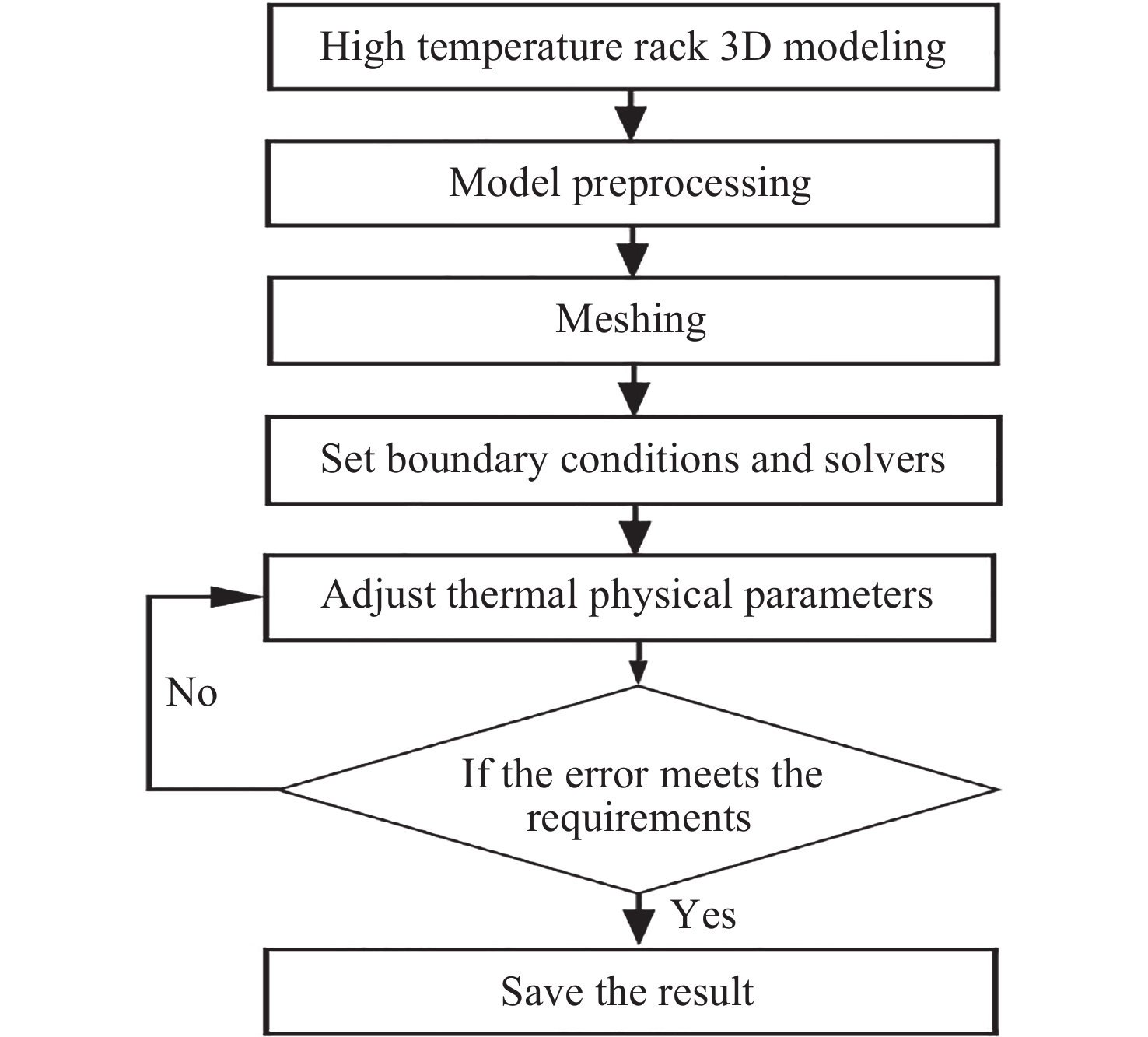

摘要: 材料凝固过程中的温场对其最终的组织与性能有着重要影响. 由于空间与地面环境下热对流的不同, 其传热特性存在一定差异, 从而导致材料实验炉内温场分布也存在差异. 这使得在地面获得的控温参数无法直接应用到空间实验中, 进而对空间与地面材料实验条件的对等性造成影响. 为获得空间传热特征, 本文建立了空间站高温材料实验炉三维传热数值计算模型并进行合理简化, 对地面实验和空间实验进行了温场的仿真模拟, 得到样品盒温度分布, 分析了在空间微重力环境与地面重力环境下传热参数的变化, 得出与实验条件相似的传热规律. 研究结果可为基于高温柜材料实验炉地基实验结果预测其空间温场分布提供研究参考.Abstract: The temperature field during solidification has an important influence on the microstructure and properties of the material. Due to the difference of heat convection in space and ground environment, natural convection driven by gravity plays an important role in heat transfer in ground environment. However, in space, the microgravity environment almost eliminates the influence of gravity-dominated natural convection, which will lead to certain differences in the heat transfer characteristics between space and ground, resulting in differences in the temperature field distribution in the material experimental furnace. As a result, the temperature field obtained on the ground is different from that in space under the same temperature control conditions, thus affecting the equivalence of experimental conditions between space and ground materials. The heat transfer characteristics obtained from ground experiments cannot be directly applied to space experiments. This mismatch has a major impact on the space materials experiments. In order to obtain the heat transfer characteristics under microgravity conditions, a three-dimensional numerical model of heat transfer in the high temperature material experimental rack of the space station is established. In the modeling process, reasonable simplification is carried out according to the actual physical conditions, some minor heat transfer factors which have little influence on the overall temperature field are ignored. The temperature field simulation of the ground experiment and the space experiment was carried out respectively, and the temperature distribution of the sample box was obtained. The temperature obtained by simulation was compared with the measured temperature. Through comprehensive analysis of the changes of heat transfer parameters in the space microgravity environment and the normal gravity environment on the ground, the heat transfer law similar to the space condition was obtained. The research results provide a new way to predict the space temperature field distribution based on the ground experiment results of high temperature materials experiment rack and have important guiding significance for the future research of space materials.
-

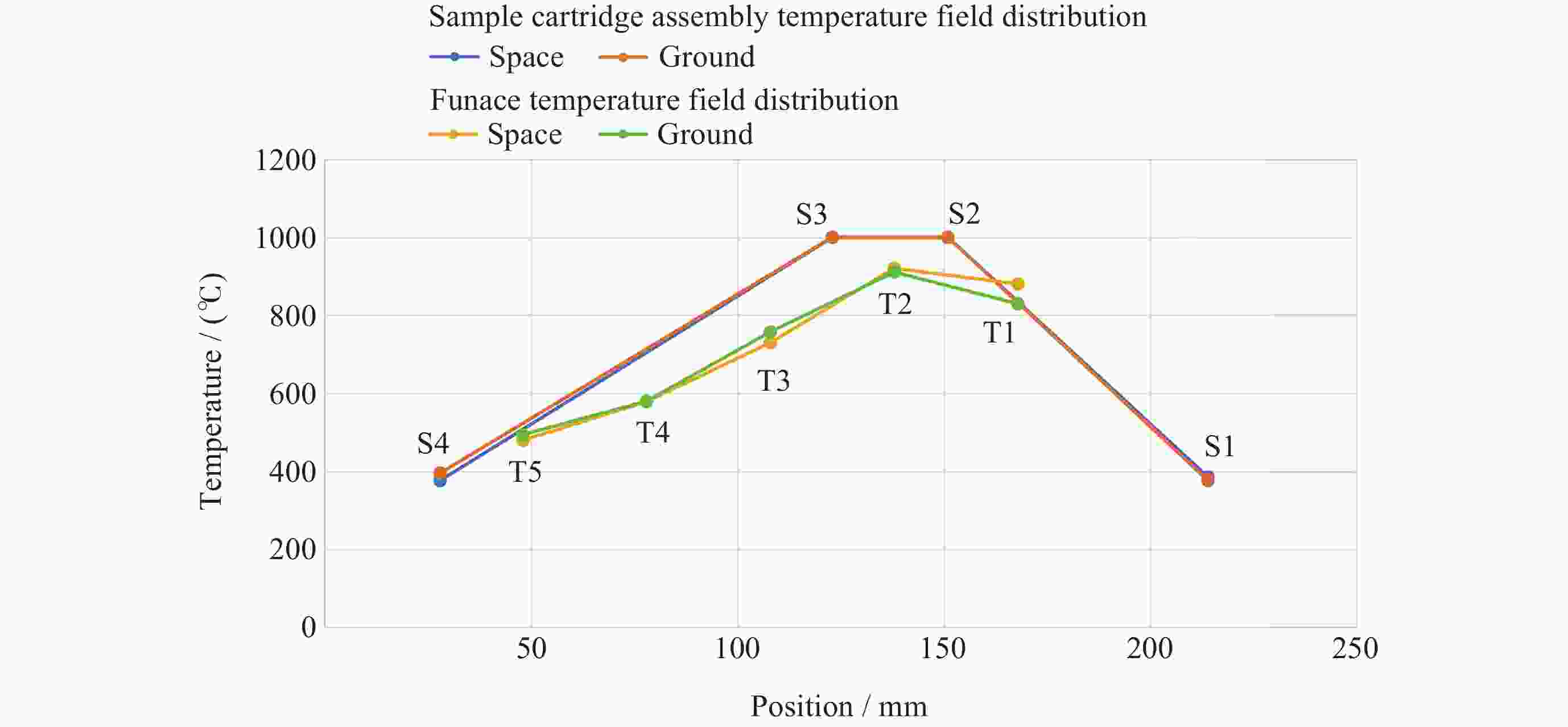

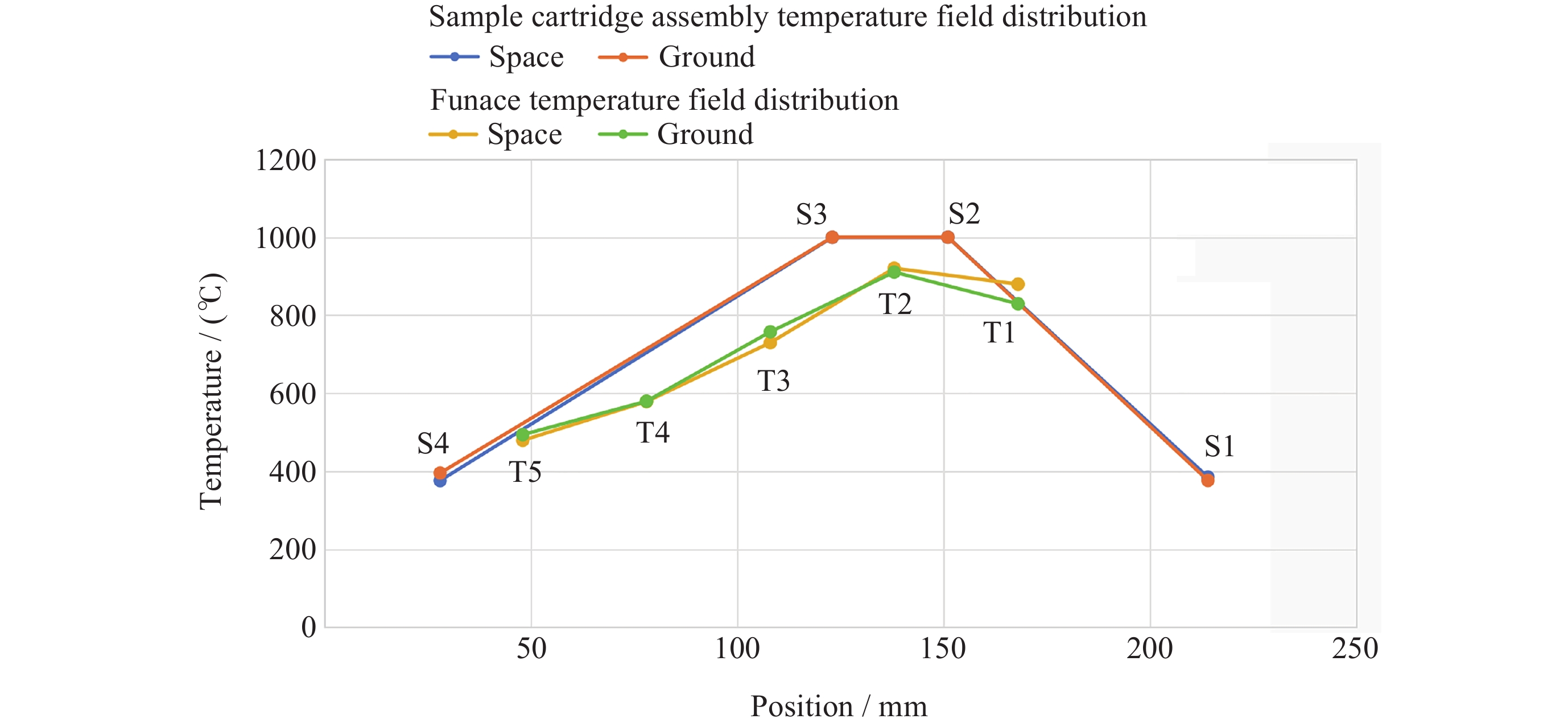

图 5 空间与地面环境下炉膛与样品盒温度分布
Figure 5. Temperature distribution of furnace and sample cartridge assembly in space and ground environment

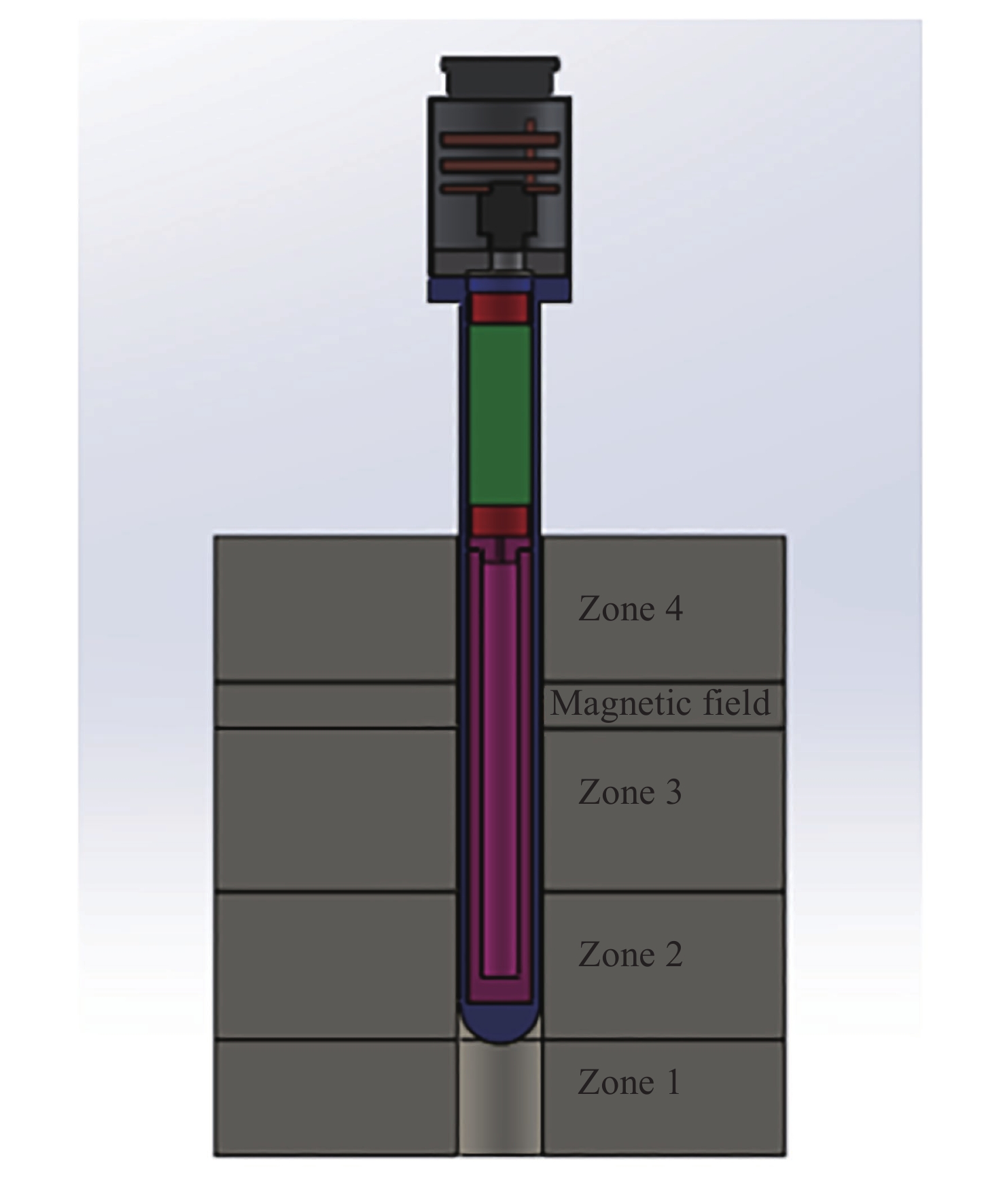

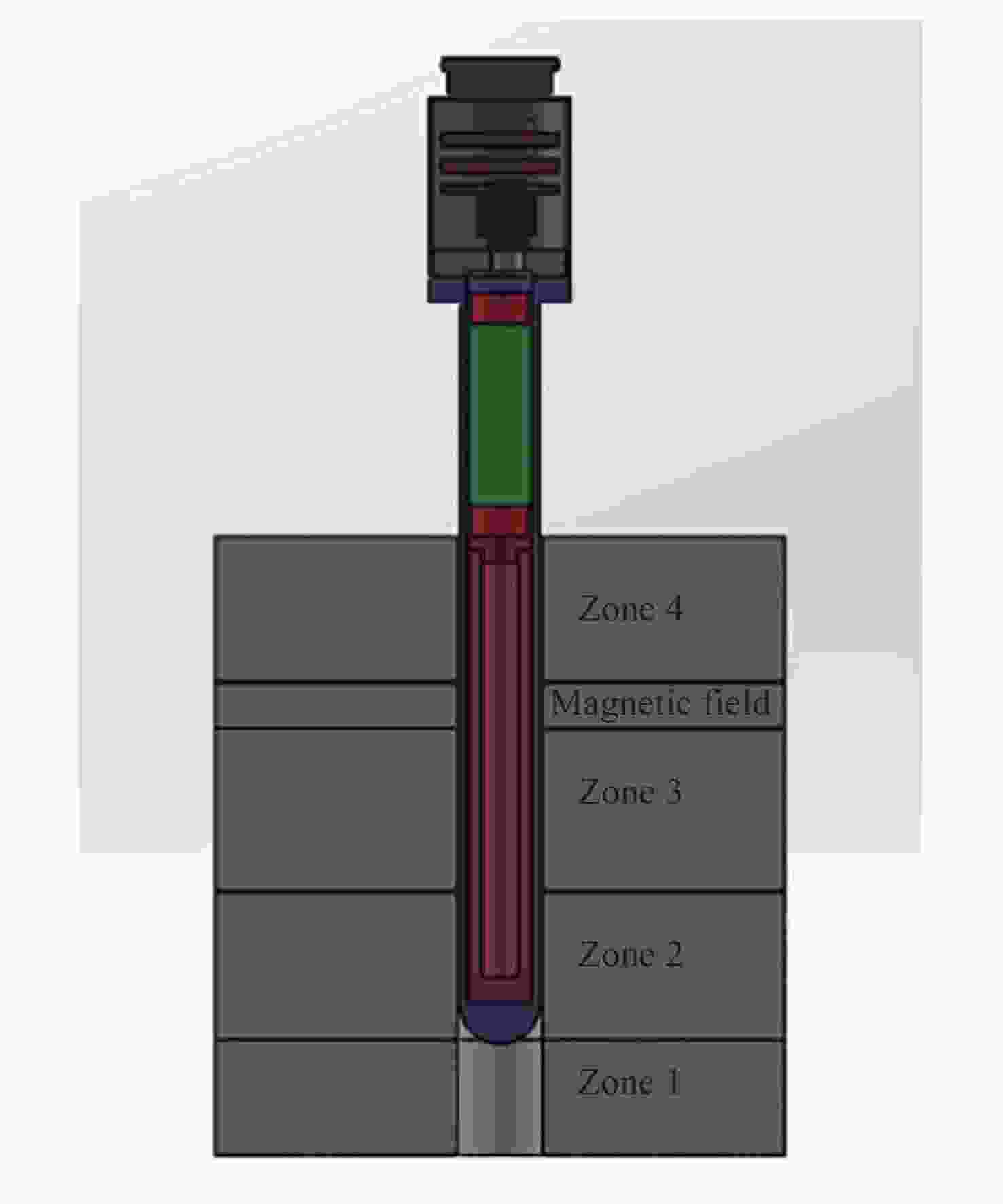

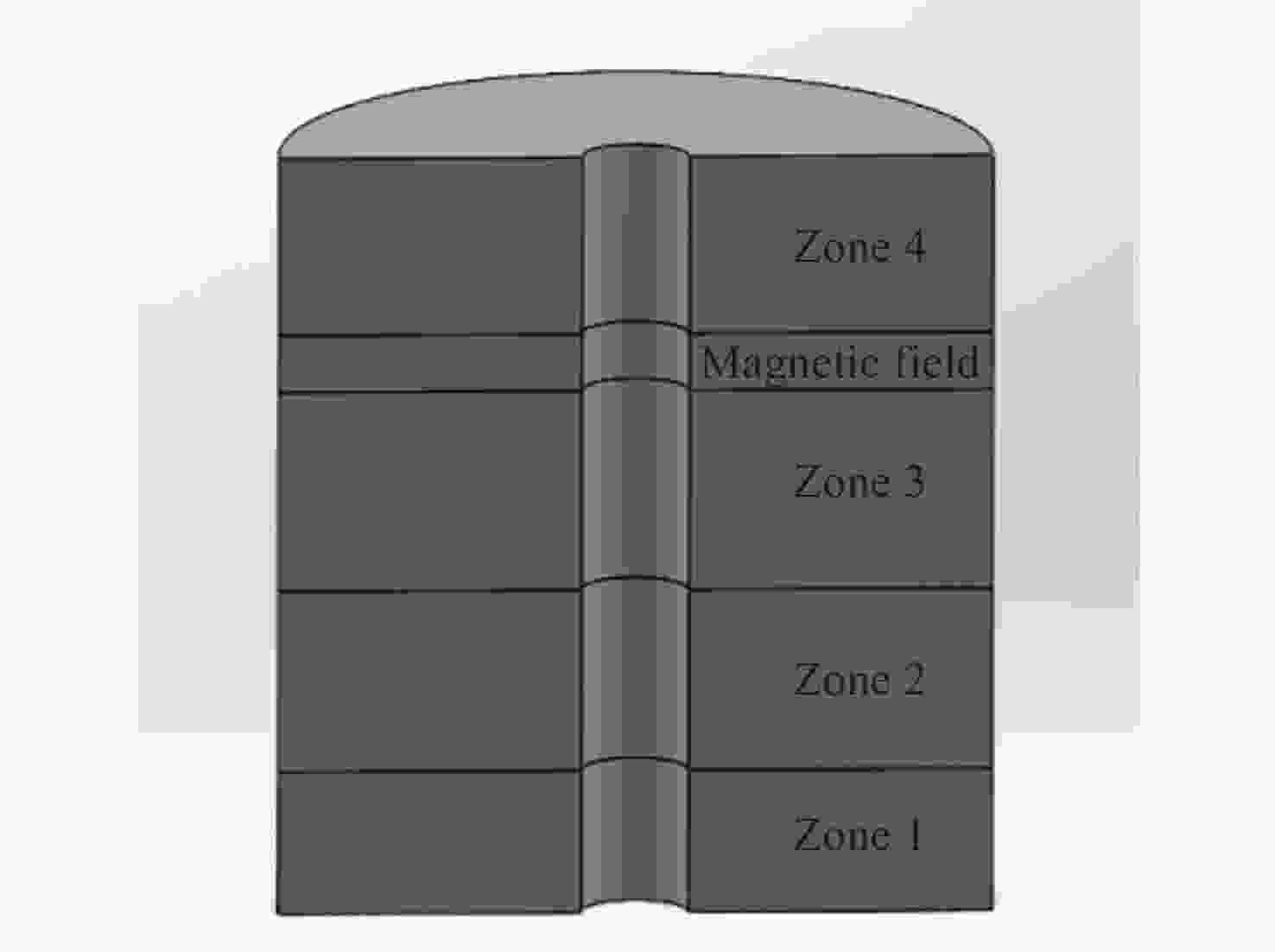

图 8 样品盒与高温炉三维实验模型
Figure 8. Three-dimensional experimental model of sample box and high temperature furnace

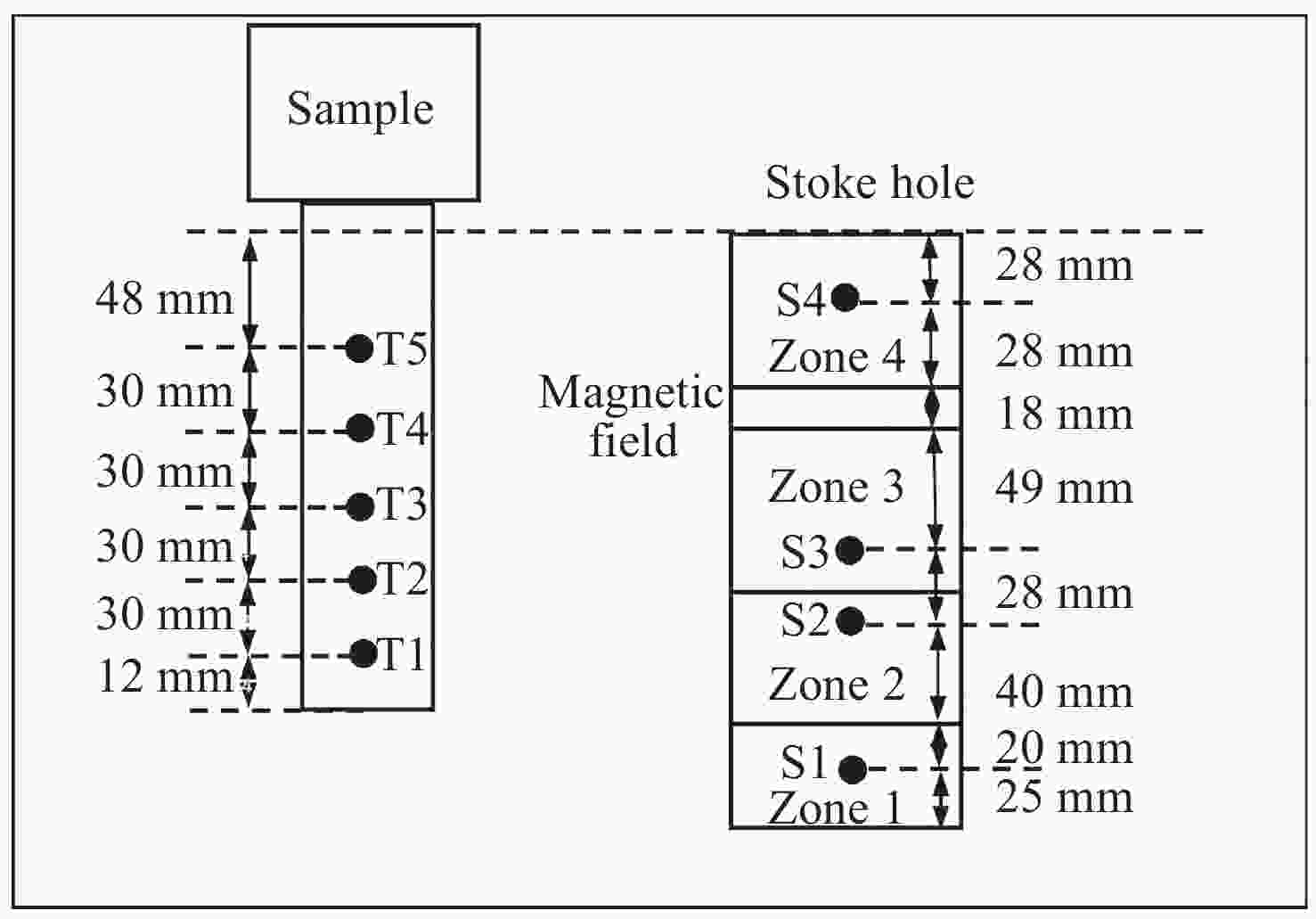

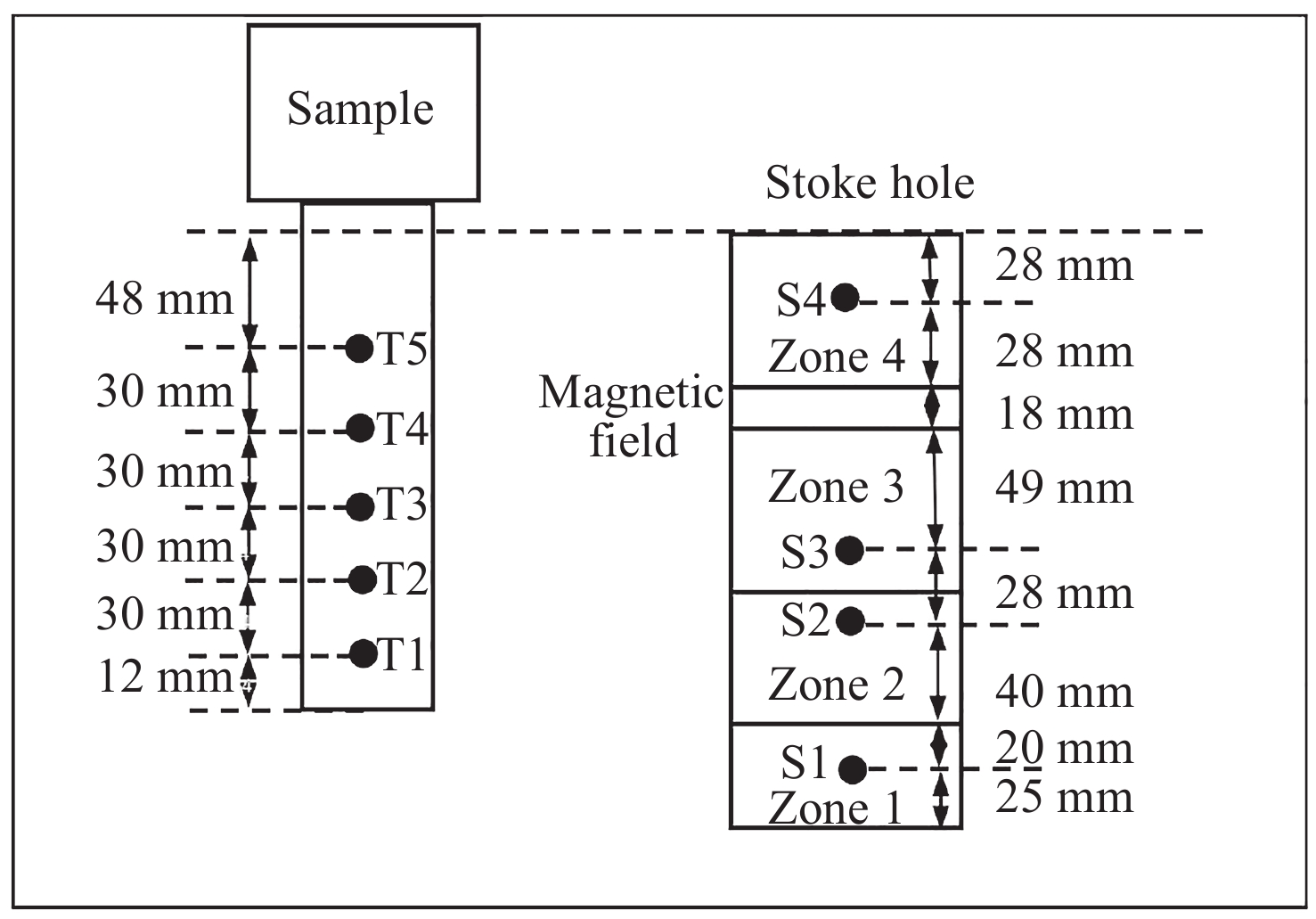

表 1 地基实验与空间实验温度误差值 (单位: ℃ )
Table 1. Heat transfer parameters of ground experiment and space experiment (Unit: ℃)
热电偶编号 地基仿真值 地基真实值 地基差值 空间仿真值 空间真实值 空间差值 T1 827 826 1 880 879 1 T2 911 911 0 920 920 0 T3 752 753 –1 729 730 –1 T4 570 569 1 578 579 –1 T5 481 481 0 478 479 –1
下载: 导出CSV

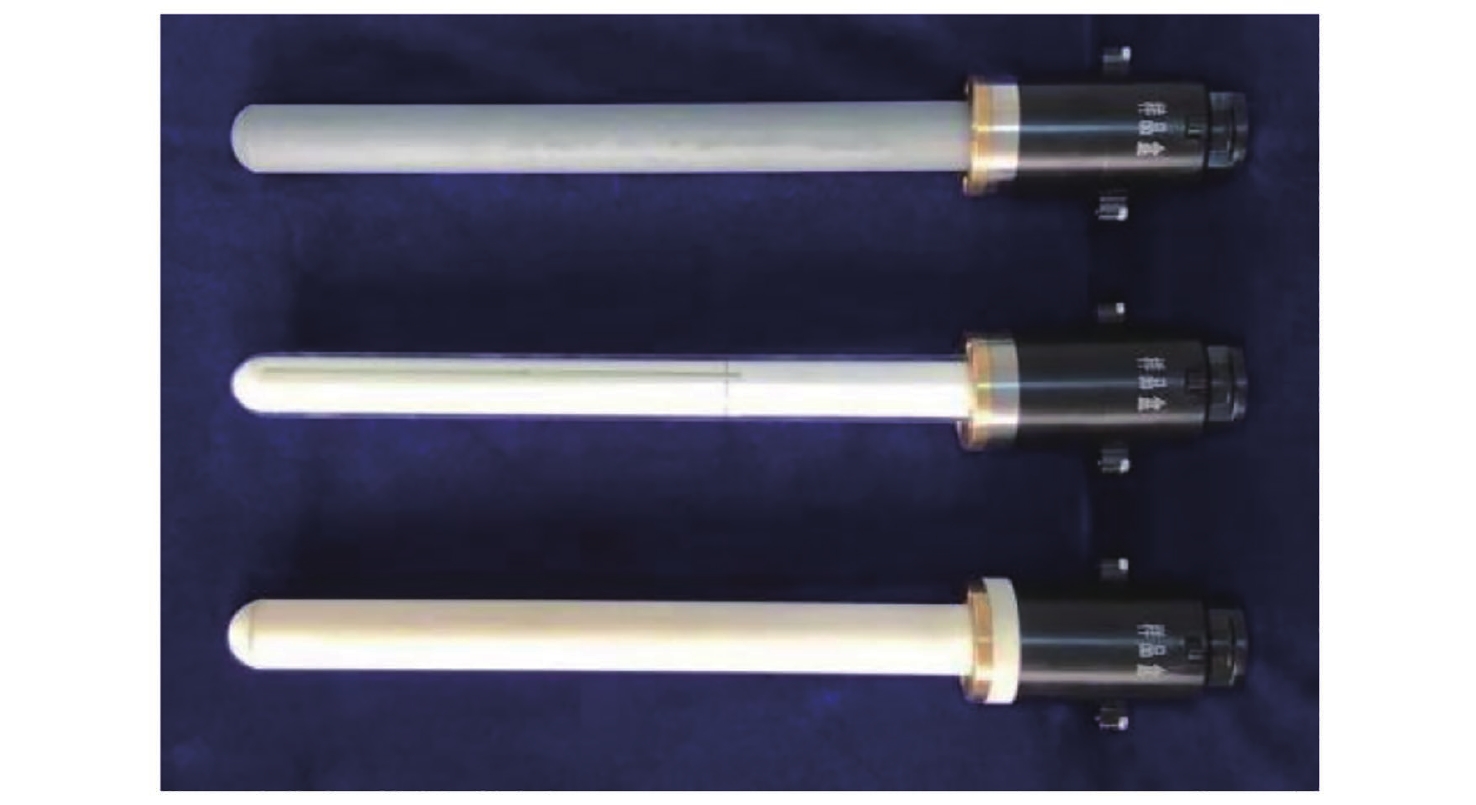

表 2 地基实验与空间实验传热参数
Table 2. Heat transfer parameters of ground experiment and space experiment
材料 钛合金 氧化锆 氧化铝 地基实验 辐射率 0.6 0.78 0.45 热导率/(W·m–1·K–1) 10.8 9.8 25.9 空间实验 辐射率 0.683 0.82 0.487 热导率/(W·m–1·K–1) 12.83 11.4 29.75
下载: 导出CSV
-
[1] 崔晓杰, 陆登柏, 马动涛, 等. 空间高温材料科学实验设备研究进展[J]. 载人航天, 2023, 29(4): 455-463 doi: 10.3969/j.issn.1674-5825.2023.04.005CUI Xiaojie, LU Dengbai, MA Dongtao, et al. Research progress of high temperature material science experimental equipment for space application[J]. Manned Spaceflight, 2023, 29(4): 455-463 doi: 10.3969/j.issn.1674-5825.2023.04.005 [2] 阮莹, 胡亮, 闫娜, 等. 空间材料科学研究进展与未来趋势[J]. 中国科学: 技术科学, 2020, 50(6): 603-649 doi: 10.1306/SST-2020-0019RUAN Ying, HU Liang, YAN Na, et al. Recent advances and future perspectives of space materials science[J]. SCIENTIA SINICA Technologica, 2020, 50(6): 603-649 doi: 10.1306/SST-2020-0019 [3] 陶冶, 杨莉萍, 钟秋, 等. 空间材料实验炉的模拟热分析与地面试验分析[J]. 空间科学学报, 2016, 36(4): 464-468 doi: 10.11728/cjss2016.04.464TAO Ye, YANG Liping, ZHONG Qiu, et al. Simulation and ground experiment investigation of material experimental furnace in space[J]. Chinese Journal of Space Science, 2016, 36(4): 464-468 doi: 10.11728/cjss2016.04.464 [4] WANG H P, WEI B B. Understanding atomic-scale phase separation of liquid Fe-Cu alloy[J]. Chinese Science Bulletin, 2011, 56(32): 3416-3419 doi: 10.1007/s11434-011-4739-x [5] 崔红保, 郭景杰, 毕维生, 等. 高温度梯度下Al-In偏晶合金定向凝固组织的演化规律[J]. 金属学报, 2004, 40(12): 1253-1256 doi: 10.3321/j.issn:0412-1961.2004.12.005CUI Hongbao, GUO Jingjie, BI Weisheng, et al. The evolution of unidirectional solidification microstructure of the Al-In monotectic alloys in high temperature gradient[J]. Acta Metallurgica Sinica, 2004, 40(12): 1253-1256 doi: 10.3321/j.issn:0412-1961.2004.12.005 [6] 罗心越, 陆道纲, 冯佳琪, 等. 基于缩比实验模型的快堆主容器内氩气空间传热特性数值研究[J]. 核科学与工程, 2023, 43(5): 961-970 doi: 10.3969/j.issn.0258-0918.2023.05.001LUO Xinyue, LU Daogang, FENG Jiaqi, et al. Numerical simulation of the argon space for the heat transfer characteristics in the main vessel based on the scaled-down test model[J]. Nuclear Science and Engineering, 2023, 43(5): 961-970 doi: 10.3969/j.issn.0258-0918.2023.05.001 [7] 吴强, 张东辉, 刘云焰. 快堆主容器内氩气空间传热实验原理及分析[J]. 核科学与工程, 2009, 29(1): 27-32 doi: 10.3321/j.issn:0258-0918.2009.01.005WU Qiang, ZHANG Donghui, LIU Yunyan. Simulation principle and analysis for heat transfer of argon space in the main vessel of China Experimental Fast Reactor[J]. Chinese Journal of Nuclear Science and Engineering, 2009, 29(1): 27-32 doi: 10.3321/j.issn:0258-0918.2009.01.005 [8] LU D G, FENG J Q, YU Z Y, et al. Heat transfer in the argon space of pool-type sodium-cooled fast reactor: numerical simulation and experimental validation[J]. Annals of Nuclear Energy, 2024, 197: 110282 doi: 10.1016/j.anucene.2023.110282 [9] YANG H M, PU Z M, GUO Z P, et al. A study of metal/die interfacial heat transfer behavior of vacuum die cast pure copper[J]. China Foundry, 2020, 17(3): 206-211 doi: 10.1007/s41230-020-9157-8 [10] 孙佳怡, 董龙沛, 赵云松, 等. 镍基单晶涡轮叶片定向凝固过程温度场数值模拟研究进展[J]. 特殊钢, 2024, 45(4): 34-40 doi: 10.20057/j.1003-8620.2024-00058SUN Jiayi, DONG Longpei, ZHAO Yunsong, et al. Research progress on numerical simulation of temperature field during directional solidification of nickel-based single crystal turbine blades[J]. Special Steel, 2024, 45(4): 34-40 doi: 10.20057/j.1003-8620.2024-00058 [11] 周玉辉, 黄清民, 林荣川. 单晶高温合金叶片定向凝固过程数值模拟[J]. 特种铸造及有色合金, 2021, 41(11): 1361-1365 doi: 10.15980/j.tzzz.2021.11.008ZHOU Yuhui, HUANG Qingmin, LIN Rongchuan. Numerical simulation of directional solidification process of single crystal superalloy blade[J]. Special Casting & Nonferrous Alloys, 2021, 41(11): 1361-1365 doi: 10.15980/j.tzzz.2021.11.008 [12] 杨振宇, 陈昊, 胡松松, 等. 镍基单晶高温合金定向凝固初期温度场演化过程[J]. 铸造, 2020, 69(11): 1180-1184YANG Zhenyu, CHEN Hao, HU Songsong, et al. Evolution of temperature field of Ni-based single crystal superalloy at early stage of directional solidification[J]. Foundry, 2020, 69(11): 1180-1184 [13] 李佳浩. 直拉硅单晶生长过程逆传热研究[D]. 西安: 西安理工大学, 2023LI Jiahao. Research on Inverse Heat Conduction Problem of Czochralski Silicon Single Crystal Growth Process[D]. Xi'an: Xi'an University of Technology, 2023 [14] 蒋琼艳. 板式换热器结构优化及传热流动特性分析[D]. 济南: 山东大学, 2023JIANG Qiongyan. Analysis of Flow and Heat Transfer Characteristics and Structural Optimization of Plate Heat Exchanger[D]. Ji’nan: Shandong University, 2023 [15] 金煜俊, 李宁, 廖敦明, 等. 钛合金熔模铸造型壳焙烧温度场数值模拟[J]. 特种铸造及有色合金, 2024, 44(4): 571-576 doi: 10.15980/j.tzzz.2024.04.026JIN Yujun, LI Ning, LIAO Dunming, et al. Numerical simulation of sintering temperature field in titanium alloy investment casting shell[J]. Special Casting & Nonferrous Alloys, 2024, 44(4): 571-576 doi: 10.15980/j.tzzz.2024.04.026 [16] 张浩. 某乘用车油冷式永磁同步电机温度场分析[D]. 重庆: 重庆理工大学, 2023ZHANG Hao. Temperature Field Analysis of Oil-Cooled Permanent Magnet Synchronous Motor for Passenger Car[D]. Chongqing: Chongqing University of Technology, 2023 [17] 高佳徐, 任智彬, 赵明. 微重力条件下列管相变蓄热器的传热特性研究及拓扑优化[J]. 上海理工大学学报, 2023, 45(1): 78-86GAO Jiaxu, REN Zhibin, ZHAO Ming. Heat transfer characteristics and topology optimization of tubular phase change regenerator under microgravity[J]. Journal of University of Shanghai for Science and Technology, 2023, 45(1): 78-86 [18] 夏建芳, 姚恒, 陈思雨, 等. 基于CFD方法的高线速度齿轮最优喷嘴布置角度设计[J]. 润滑与密封, 2023, 48(9): 178-186XIA Jianfang, YAO Heng, CHEN Siyu, et al. Design of optimal nozzle angle for high-speed gears based on CFD method[J]. Lubrication Engineering, 2023, 48(9): 178-186 [19] 张野. 热风炉换热器多目标优化及强化传热性能分析[D]. 合肥: 安徽农业大学, 2023ZHANG Ye. Multi-Objective Optimization and Heat Transfer Enhancement Performance Analysis of Hot Blast Stove Heat Exchanger[D]. Hefei: Anhui Agricultural University, 2023 [20] 中华人民共和国国家质量监督检验检疫总局, 中国国家标准化管理委员会. GB/T 1598-2010 铂铑10-铂热电偶丝、铂铑13-铂热电偶丝、铂铑30-铂铑6热电偶丝[S]. 北京: 中国标准出版社, 2011General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People’s Republic of China. GB/T 1598-2010 Platinum-10%Rhodium/Platinum -thermocomouplewires-Platinum-13%Rhodium/Platinem-thermocomouplewires-Platinum-30%Rhodium/Platinem-6%Rhodi-um thermocomouplewires[S]. Beijing: Standards Press of China, 2011 -
-
