基于自适应增强算法的卷积神经网络单粒子翻转容错方法
doi: 10.11728/cjss2026.02.2025-0025 cstr: 32142.14.cjss.2025-0025
-
罗熙 男, 2000年5月出生于湖南省永州市. 现为中国科学院国家空间科学中心硕士研究生, 专业为计算机技术, 主要研究方向为星载人工智能. E-mail: chellyluoxi@foxmail.com -
周晴 女, 1972年2月出生于湖南省醴陵市, 现为中国科学院国家空间科学中心正研级高级工程师, 硕士生导师, 主要研究方向为空间信息与数据处理技术, 高可信嵌入式软件技术等. E-mail: zhouqing@nssc.ac.cn
作者简介:
通讯作者:
Single Event Upsets Fault Tolerance of Convolutional Neural Networks Based on Adaptive Boosting
-
摘要: 空间辐射环境下的单粒子翻转效应严重威胁着星载智能系统的可靠性, 传统的三模冗余和周期性擦写等容错方法存在资源开销大、功耗高等问题. 提出一种基于自适应增强算法的轻量化容错方法(AB-FTM), 通过该方法构建ResNet20/32/44异构弱模型集成架构, 结合动态权重调整机制, 不仅显著减少参数规模(相比于原始ResNet110缩减18.2%), 而且提升了分类精度与鲁棒性, 增强了容错能力. 在CIFAR-10, MNIST, EuroSAT和Galaxy10 DECals数据集上的实验验证表明, 当0.032‰ 比例的参数发生单粒子翻转时, 该方法较ResNet110三模冗余的准确率分别提升53.25%, 63.49%, 57.67%和47.43%, 显著优于传统三模冗余方案. 该方法为未来空间科学卫星使用星载智能系统提供了兼顾可靠性、轻量化与计算效能的新型解决方案.Abstract: Single-Event Upsets (SEUs) in the space radiation environment pose a serious threat to the reliability of satellite-borne intelligent systems. Traditional fault-tolerance methods such as Triple Modular Redundancy (TMR) and periodic scrubbing face challenges including excessive resource overhead and high power consumption. This paper presents a lightweight fault-tolerance method based on Adaptive Boosting-based Fault-Tolerance Method (AB-FTM) to address SEU vulnerabilities in convolutional neural networks. The proposed approach constructs a heterogeneous ensemble architecture comprising three weak models (ResNet20, ResNet32, ResNet44) and integrated with a dynamic weight adjustment mechanism. By integrating a dynamic weight adjustment mechanism, the method not only significantly reduces the parameter scale (achieving an 18.2% reduction compared to ResNet110) but also enhances classification accuracy, robustness, and fault tolerance. Experimental validation on datasets including CIFAR-10, MNIST, EuroSAT, and Galaxy10 DECals demonstrates that when 0.032‰ of parameters are affected by single-event upsets, the proposed method improves classification accuracy by 53.25%, 63.49%, 57.67%, and 47.43% respectively compared to the TMR-based ResNet110, significantly outperforming traditional triple modular redundancy solutions. This approach provides a novel solution for future space science satellites employing satellite-borne intelligent systems, balancing reliability, lightweight design, and computational efficiency.
-
Key words:
- Single event upset /
- Adaptive boosting /
- Convolutional neural network /
- Fault tolerance /
- Spacecraft
-

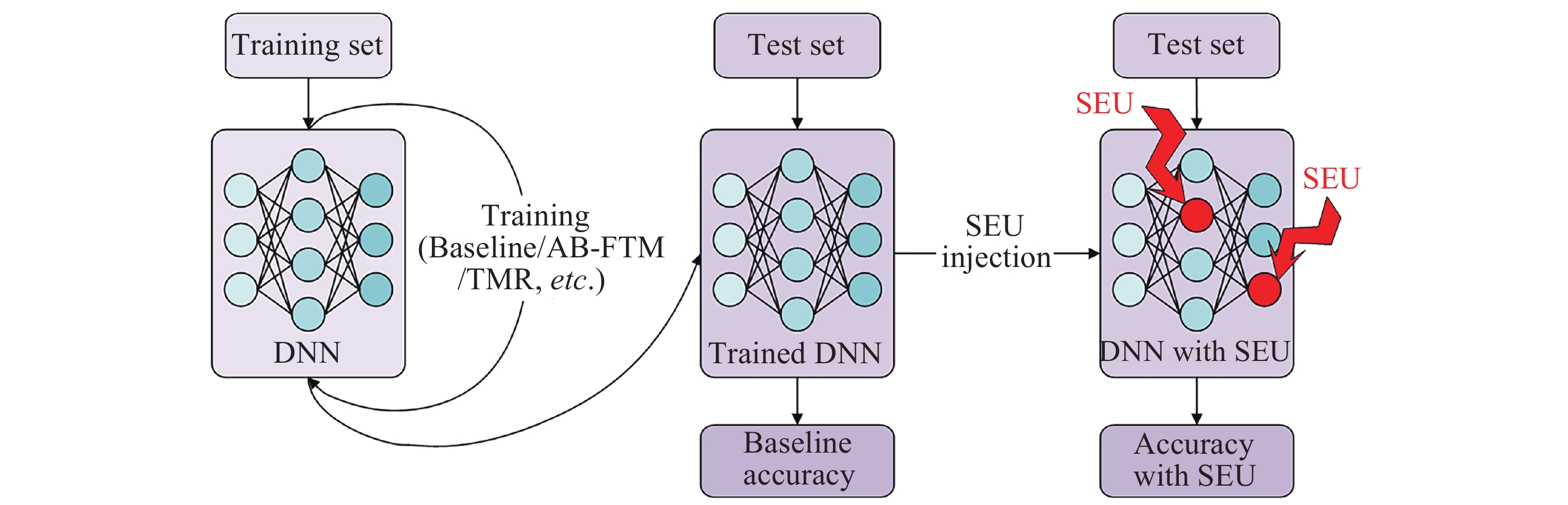

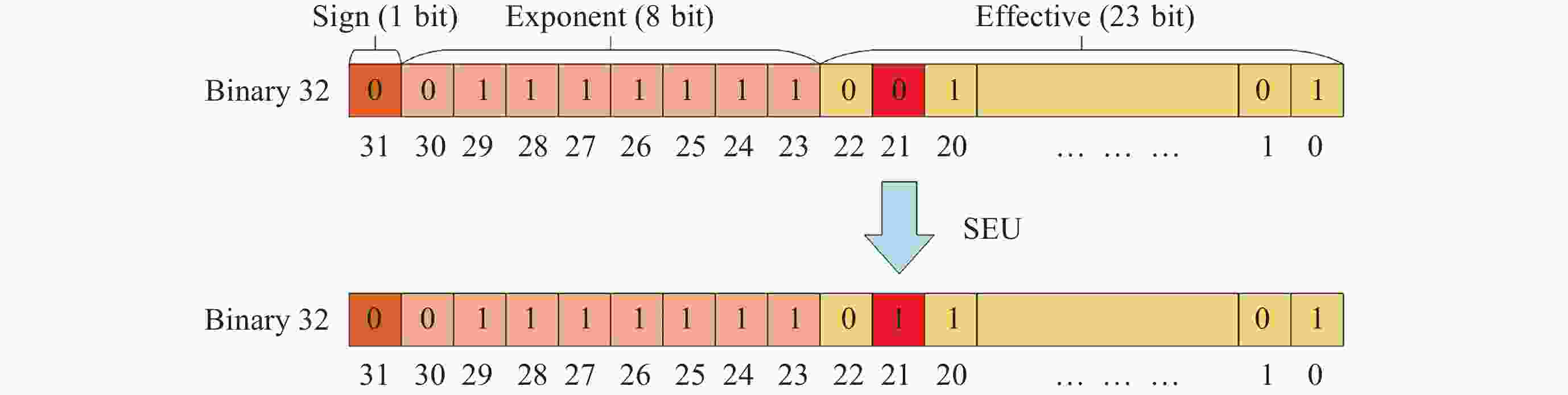

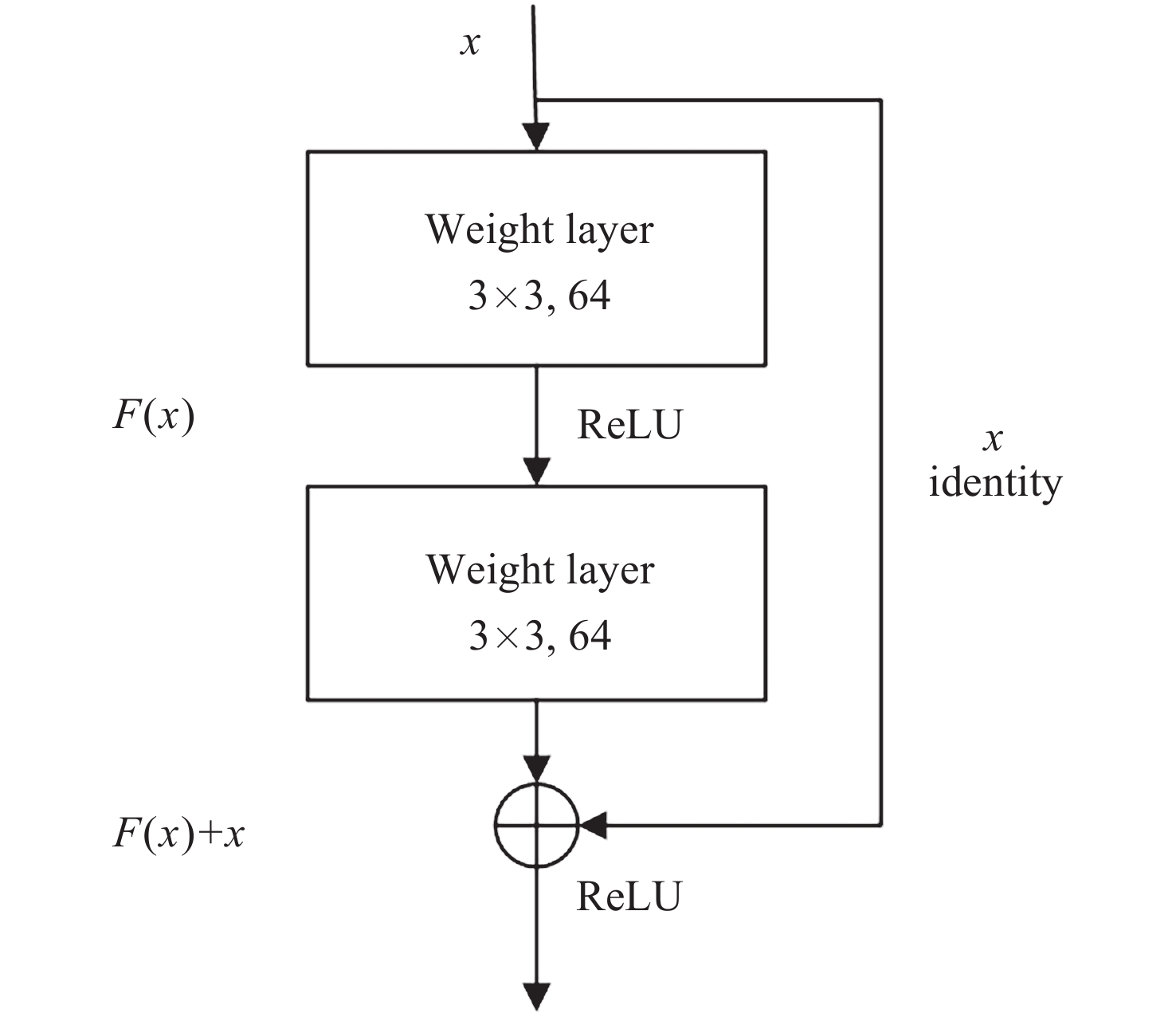

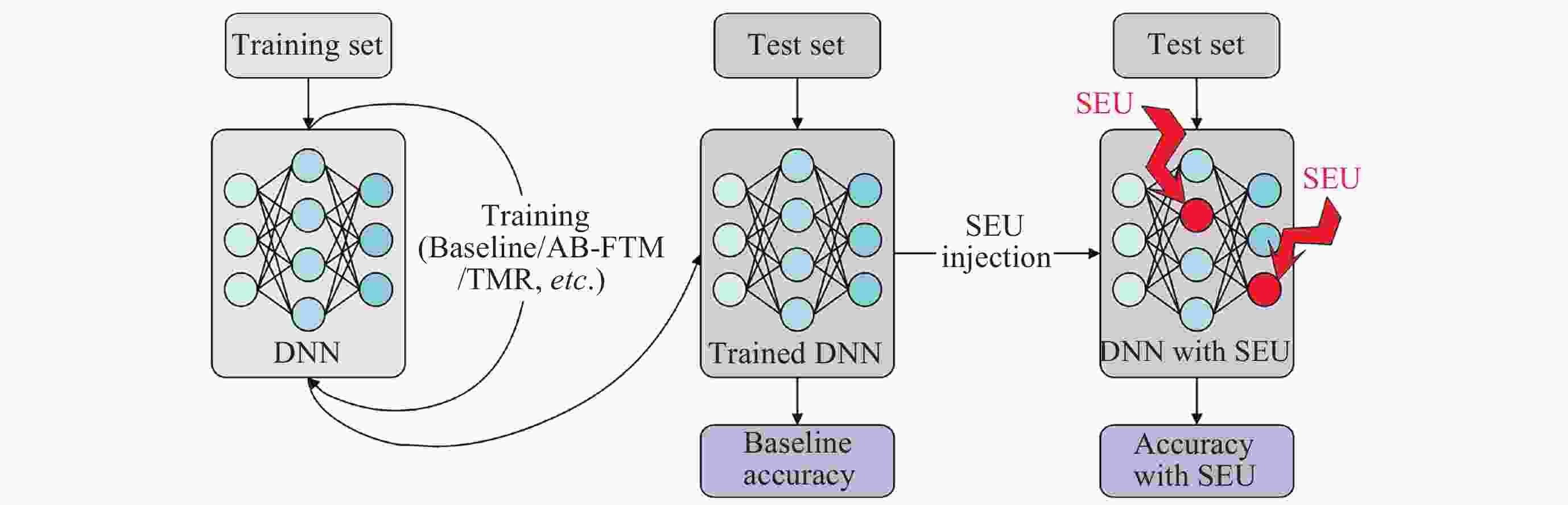

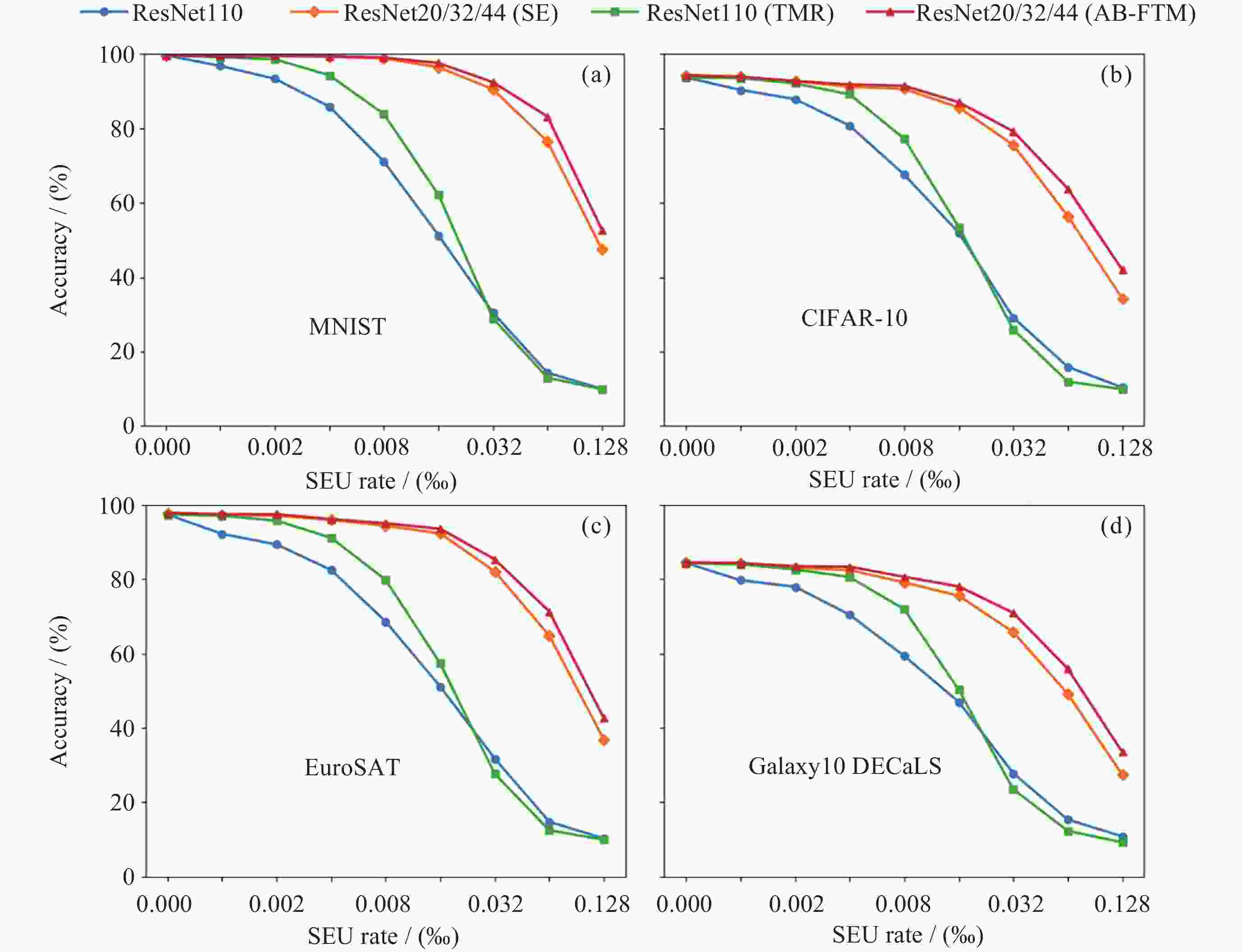

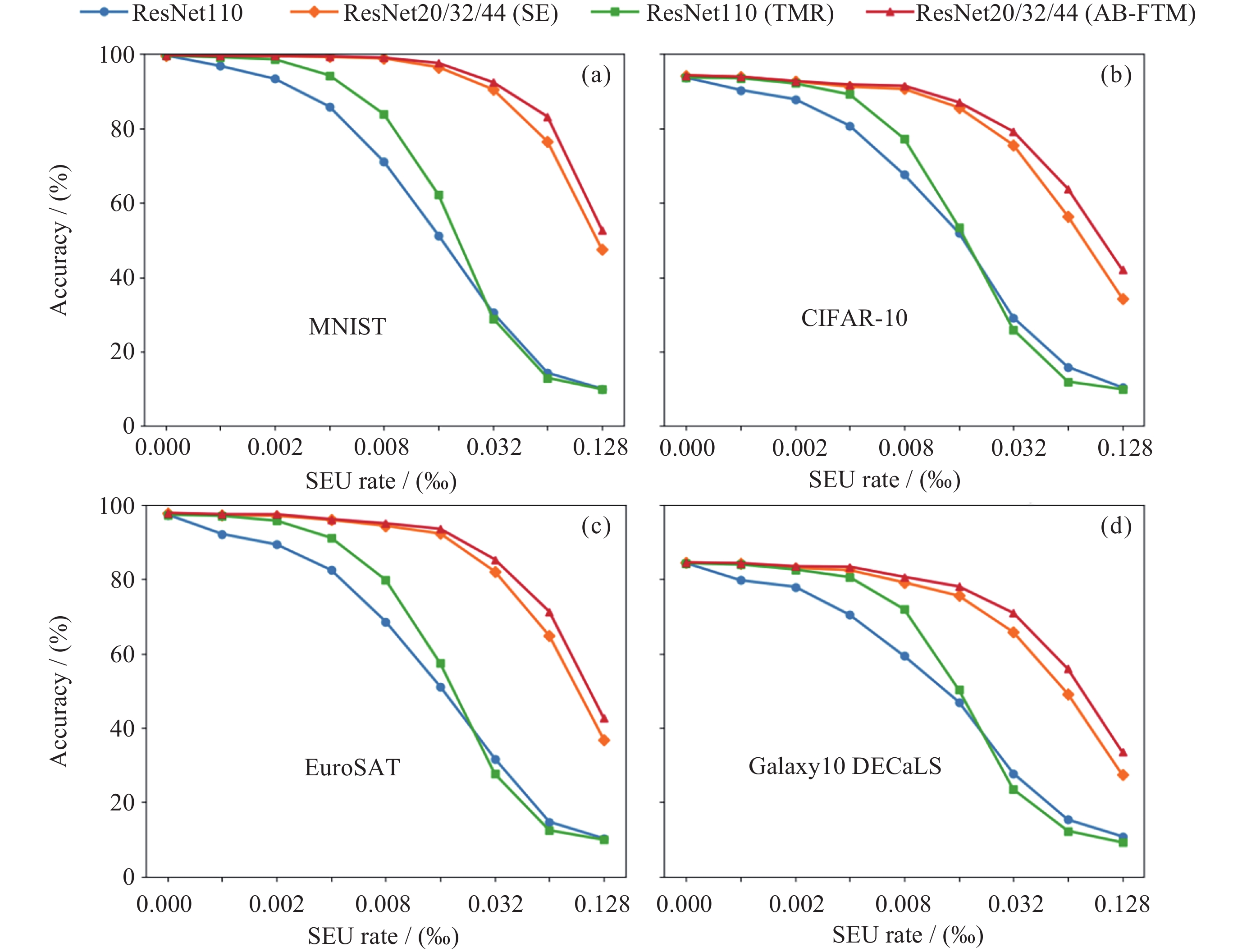

图 4 单粒子翻转容错性能评估(SEU比例)
Figure 4. Single Event Upset (SEU) fault tolerance performance evaluation (SEU rate)

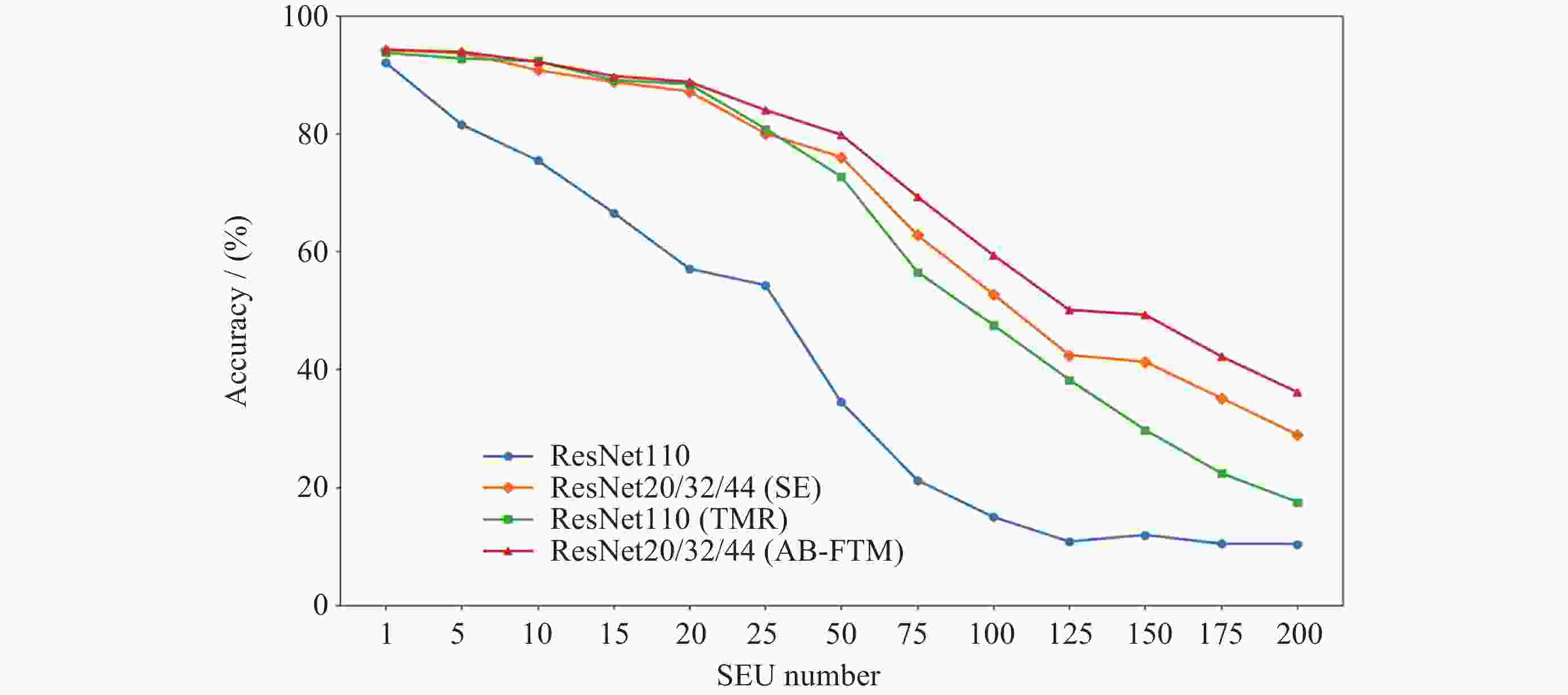

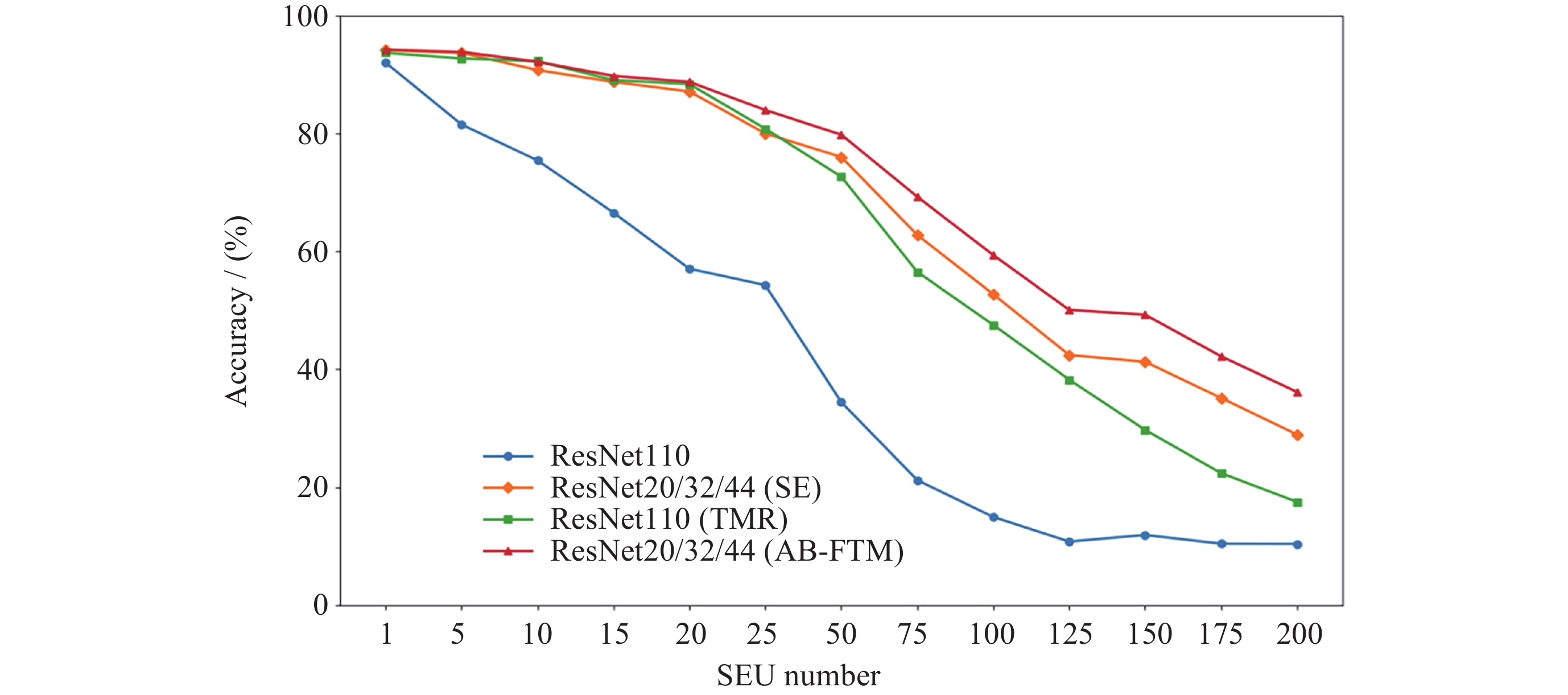

图 5 单粒子翻转容错性能评估(SEU数量)
Figure 5. Single Event Upset (SEU) tolerance performance evaluation (SEU number)

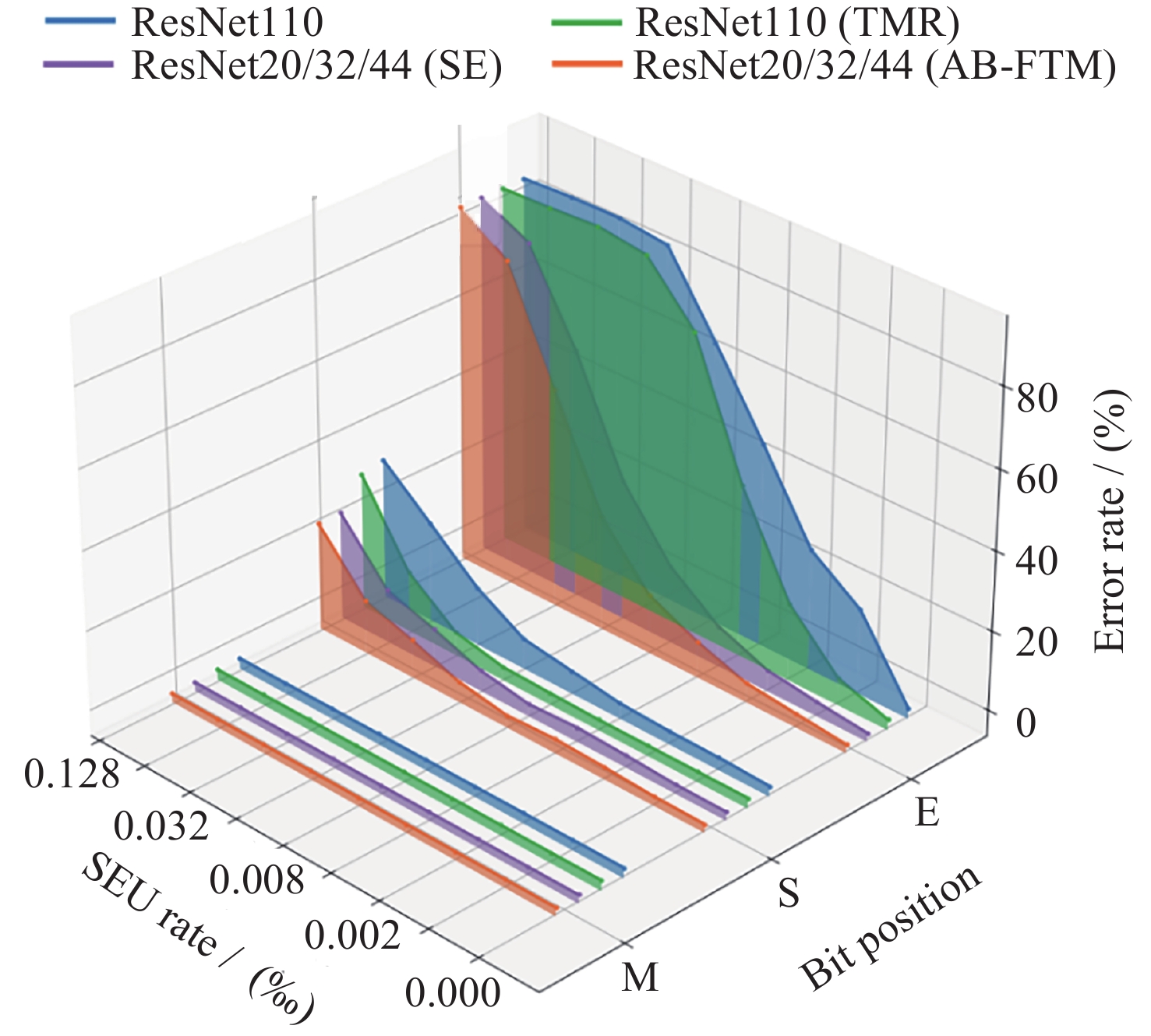

图 6 不同位发生单粒子翻转容错性能评估(SEU比例)
Figure 6. Evaluation of SEU tolerance performance at different bit positions (SEU injection rate)

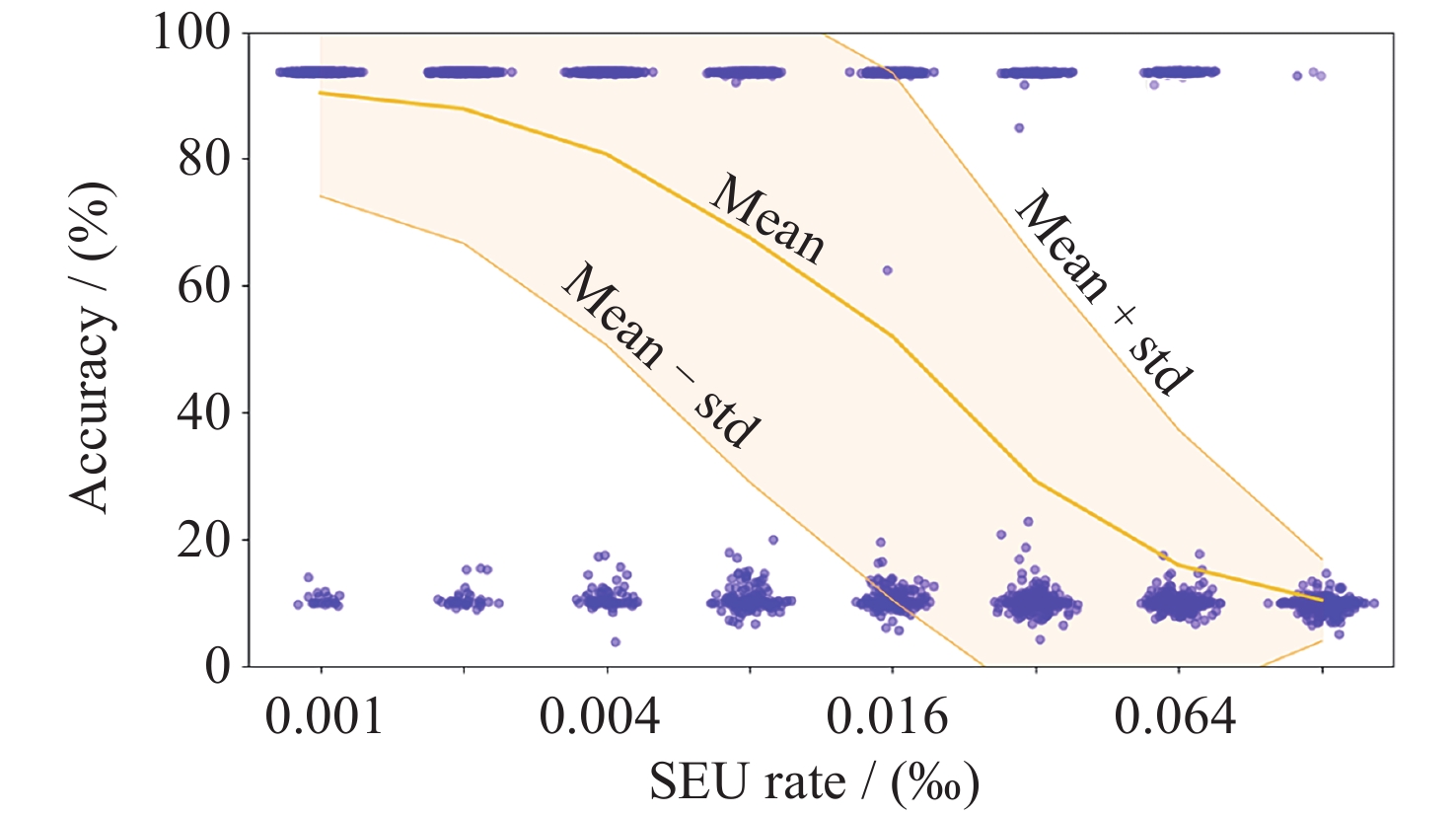

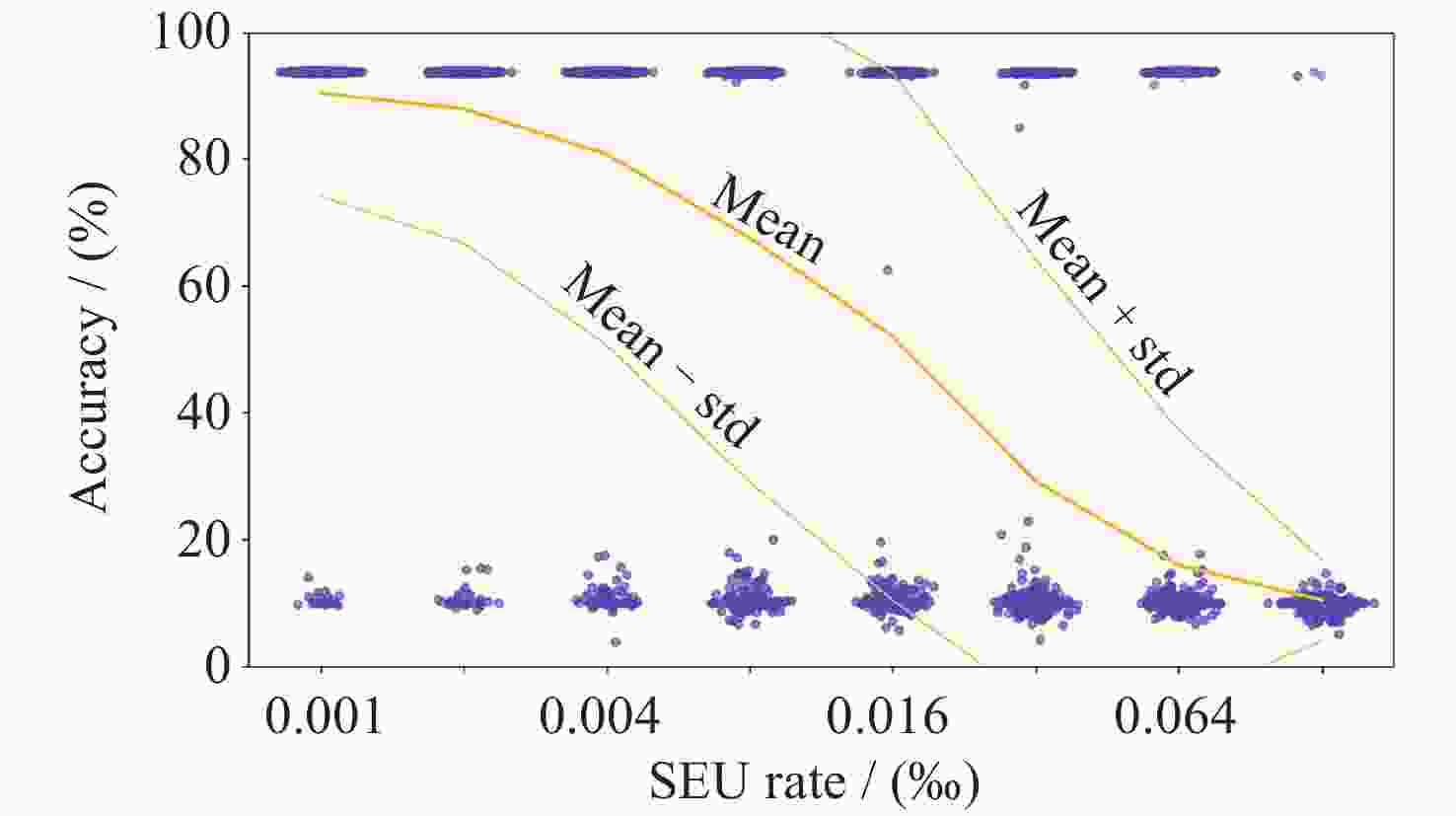

图 7 ResNet110在CIFAR-10上不同翻转比例的准确率分布
Figure 7. Accuracy distribution of ResNet110 at different SEU ratios on CIFAR-10

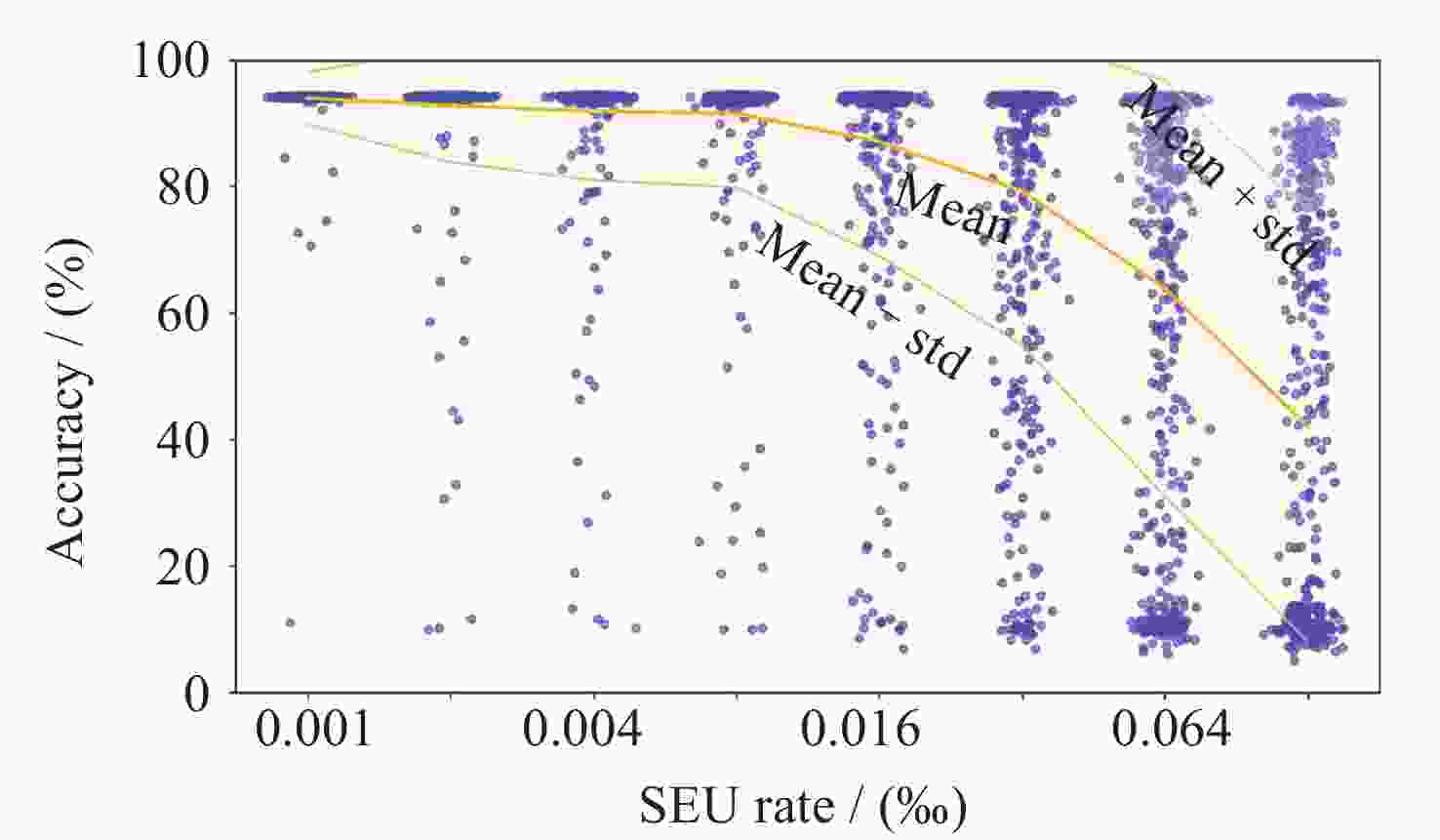

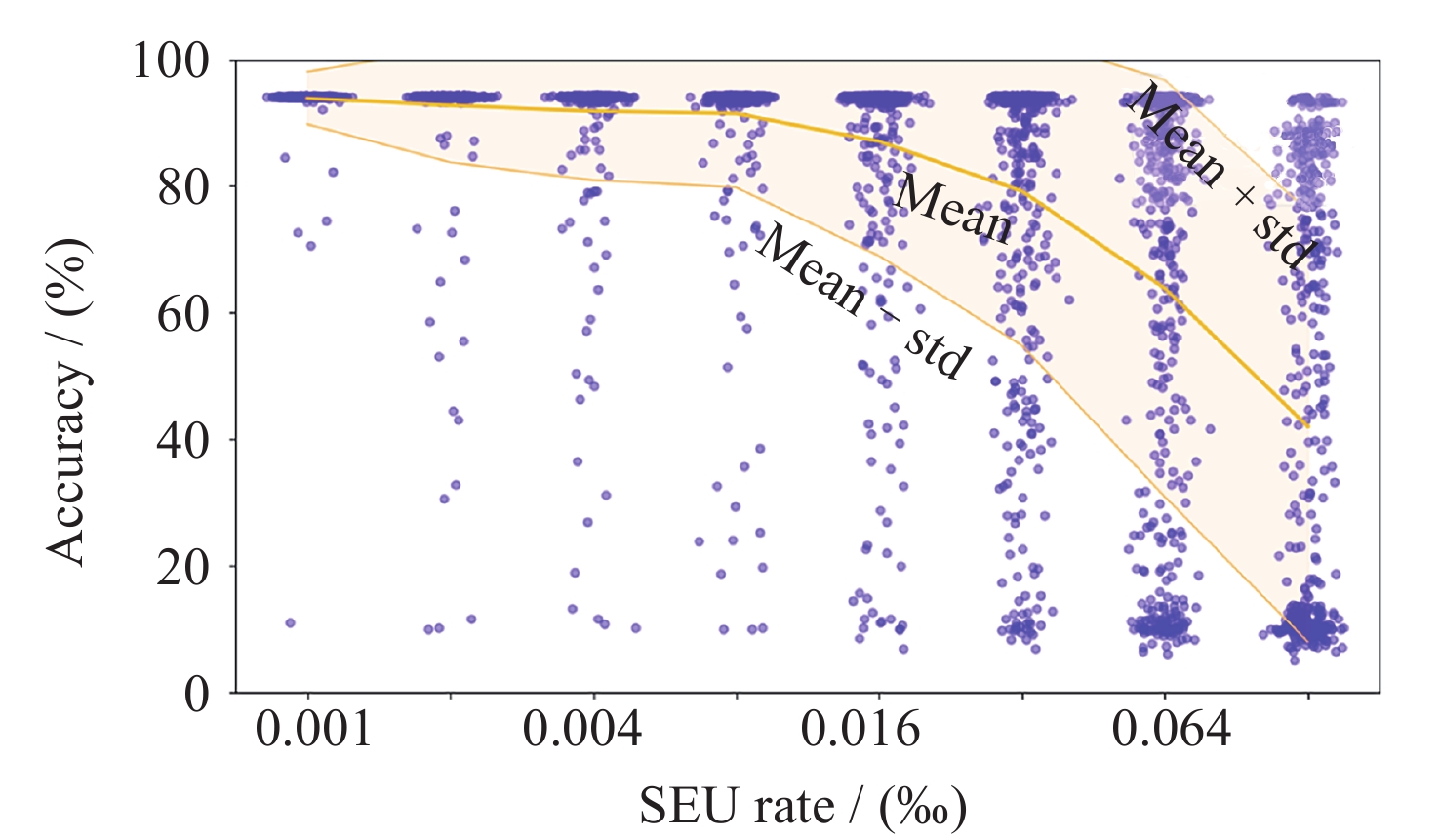

图 8 AB-FTM在CIFAR-10上不同翻转比例的准确率分布
Figure 8. Accuracy distribution of AB-FTM at different SEU ratios on CIFAR-10
表 1 基于不同数据集任务的ResNet架构对比
Table 1. Comparison of ResNet architectures based on different dataset tasks
架构 数据集 数据集
尺寸/pixel参数量/
(×106)浮点运算
次数ResNet18 ImageNet $ 256\times 256 $ $ 11.69 $ $ 1.8\times {10}^{9} $ ResNet34 ImageNet $ 256\times 256 $ $ 21.80 $ $ 3.6\times {10}^{9} $ ResNet50 ImageNet $ 256\times 256 $ $ 25.56 $ $ 3.8\times {10}^{9} $ ResNet101 ImageNet $ 256\times 256 $ $ 44.55 $ $ 7.6\times {10}^{9} $ ResNet20 CIFAR-10 $ 32\times 32 $ $ 0.27 $ $ 4.0\times {10}^{7} $ ResNet32 CIFAR-10 $ 32\times 32 $ $ 0.46 $ $ 6.9\times {10}^{7} $ ResNet44 CIFAR-10 $ 32\times 32 $ $ 0.66 $ $ 9.7\times {10}^{7} $ ResNet110 CIFAR-10 $ 32\times 32 $ $ 1.72 $ $ 2.5\times {10}^{8} $
下载: 导出CSV
表 2 不同错误注入比例下发生单粒子翻转的参数数量
Table 2. Number of parameters with SEU under different error injection rates
方法 0.001‰ 0.002‰ 0.004‰ 0.008‰ 0.016‰ 0.032‰ 0.064‰ 0.128‰ 单一模型ResNet110 2 3 7 14 27 54 109 218 三模冗余ResNet110(TMR) 5 10 20 41 82 163 326 653 静态集成ResNet20/32/44(SE) 1 3 6 11 22 45 90 179 AB-FTM 1 3 6 11 22 45 90 179
下载: 导出CSV
表 3 各方法在无错误注入情况下的分类准确率
Table 3. Classification accuracy of each method without error injection
方法 MNIST/(%) CIFAR-10/(%) EuroSAT/(%) Galaxy10 DECals/(%) 单一模型ResNet110 99.65 93.68 97.37 84.33 三模冗余ResNet110(TMR) 99.65 93.68 97.37 84.33 静态集成ResNet20/32/44(SE) 99.68 93.83 97.56 84.49 AB-FTM 99.68 94.27 97.81 84.50
下载: 导出CSV
表 4 四种方法的资源开销对比
Table 4. Comparison of resource cost among four methods
方法 模型 参数量/(×106) 存储空间/MByte 浮点运算次数 单一模型ResNet110 1×ResNet110 $ 1.70 $ $ 6.78 $ $ 2.5\times {10}^{8} $ 三模冗余ResNet110(TMR) 3×ResNet110 $ 5.10 $ $ 20.34 $ $ 7.5\times {10}^{8} $ 静态集成ResNet20/32/44(SE) ResNet20+32+44 $ 1.39 $ $ 5.56 $ $ 2.1\times {10}^{8} $ AB-FTM ResNet20+32+44 $ 1.39 $ $ 5.56 $ $ 2.1\times {10}^{8} $
下载: 导出CSV
表 5 动态权重调整机制贡献分析
Table 5. Contribution analysis of dynamic weight adjustment mechanism
数据集 静态集成 AB-FTM 动态权重调整机制提高的
准确率/(%)准确率/(%) 准确率下降率/(%) 准确率/(%) 准确率下降率/(%) MNIST 76.47 23.21 83.17 16.51 6.70 CIFAR-10 56.43 37.40 63.82 30.45 7.39 EuroSAT 64.80 32.76 71.30 26.51 6.50 Galaxy10 DECals 49.17 35.32 55.90 28.60 6.73
下载: 导出CSV
-
