基于SimVP的赤道等离子体泡演化预测模型
doi: 10.11728/cjss2026.02.2025-0046 cstr: 32142.14.cjss.2025-0046
-
钟佳 男, 中国科学院国家空间科学中心, 高级工程师, 主要研究方向为空间天气数据挖掘与机器学习建模、科学可视化技术 -
邹自明 男, 中国科学院国家空间科学中心研究员, 国家空间科学数据中心主任, 中国科学院大学博士生导师, 主要从事空间科学与数据科学交叉领域研究, 在科学数据治理理论、标准研制、空间信息组织与互操作、日地空间大数据系统工程、空间天气领域数据挖掘与知识发现等方面开展研究
作者简介:
通讯作者:
Evolution Prediction Model of Equatorial Plasma Bubbles Based on SimVP
-
摘要: 赤道等离子体泡是日落后低纬电离层中形成的低电子密度空腔结构, 其演化过程会导致无线电信号闪烁与衰减. 对赤道等离子体泡的演化进行精准预测, 在空间天气研究及卫星通信领域意义重大. 提出一个基于SimVP(Simpler yet Better Video Prediction)框架的EPB演化预测模型, 通过曲靖站历史气辉观测图像学习EPB时空演化特征, 实现对未来演化的精准预测, 通过系统实验分析了关键参数对模型性能的影响. 结果表明, 时间分辨率设为3 min, 采用6 帧输入图和6 帧输出图的架构时模型性能最优(结构相似度为0.989, 峰值信噪比为34.704). 实验显示, EPB空间形态复杂度对预测精度影响显著, 而光污染干扰相对有限. 提出的模型具有较好的跨台站应用鲁棒性, 该模型不仅为EPB演化提供了数据驱动的高效预测工具, 还可为受污染气辉观测数据的修复提供技术支撑.Abstract: Equatorial Plasma Bubbles (EPBs) are large-scale depletion structures characterized by significantly reduced electron density, which frequently emerge in the low-latitude ionosphere during post-sunset hours. These dynamic plasma irregularities play a crucial role in space weather phenomena, as their evolution can induce severe amplitude and phase scintillations in radio signals, leading to disruptions in satellite communications, global navigation systems, and radar operations. Given their substantial impact on technological systems, accurate prediction of EPB evolution has become a critical challenge in both space physics research and operational space weather forecasting.. To address this challenge, this study introduces a novel data-driven approach for EPB evolution prediction by leveraging the SimVP (Simpler yet Better Video Prediction) framework, an advanced deep learning architecture designed for spatiotemporal sequence forecasting. The proposed model learns the complex nonlinear dynamics of EPB structures from historical airglow image sequences, capturing both their morphological transformations and drift patterns. Through extensive experimentation, we systematically evaluate the influence of key parameters—including time resolution, input/output sequence length, and environmental noise—on prediction performance. Our findings demonstrate that an optimal configuration with a 3 min temporal resolution and a 6-frame input/output structure achieves superior predictive accuracy, as evidenced by high Structural Similarity (SSIM=0.989) and Peak Signal-to-Noise Ratio (PSNR=34.704) metrics. Further analysis reveals that the spatial complexity of EPB structures, such as bifurcation events and irregular boundary deformations, significantly affects prediction fidelity, whereas the impact of light pollution—a common issue in ground-based airglow observations—is comparatively minor. The model proposed in this paper demonstrates robust cross-station applicability. Beyond forecasting, the model also exhibits potential for reconstructing corrupted airglow data, offering a computational solution to enhance observational datasets affected by atmospheric or instrumental noise. This work not only establishes a robust, machine learning-based tool for EPB evolution analysis but also contributes to the broader development of Artificial Intelligence (AI) applications in space weather modeling and ionospheric research.
-
Key words:
- Equatorial Plasma Bubble /
- Video prediction /
- SimVP /
- Spatiotemporal dependency
-
图 1 覆盖不同时间尺度的EPB图像序列数量分布情况
Figure 1. Number distribution of EPB image sequences covering different time scales

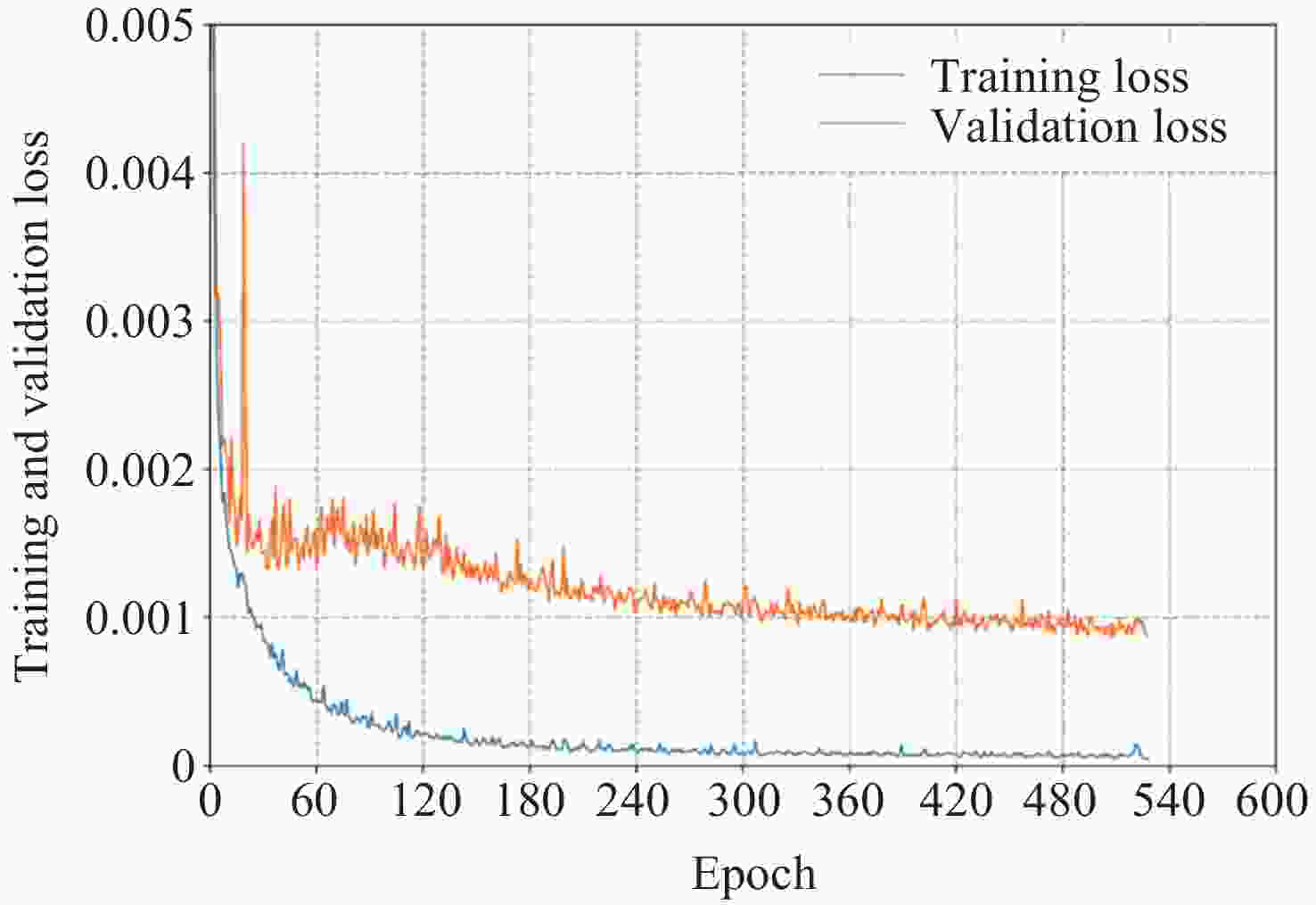

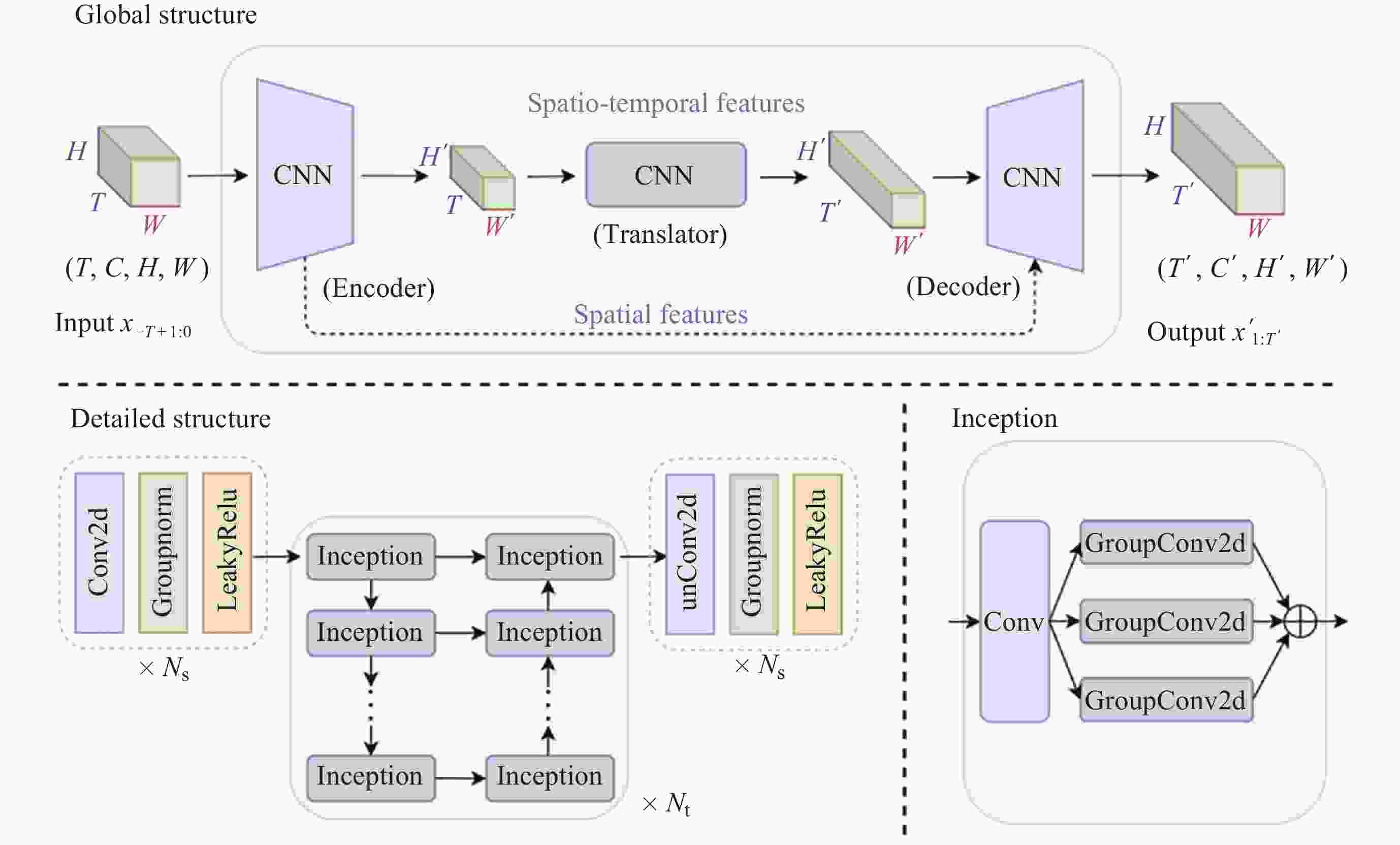

图 3 EPB演化预测模型损失函数值(Loss)随训练周期(Epoch)的变化
Figure 3. Variation of loss function value with training epochs for the EPB evolution prediction model

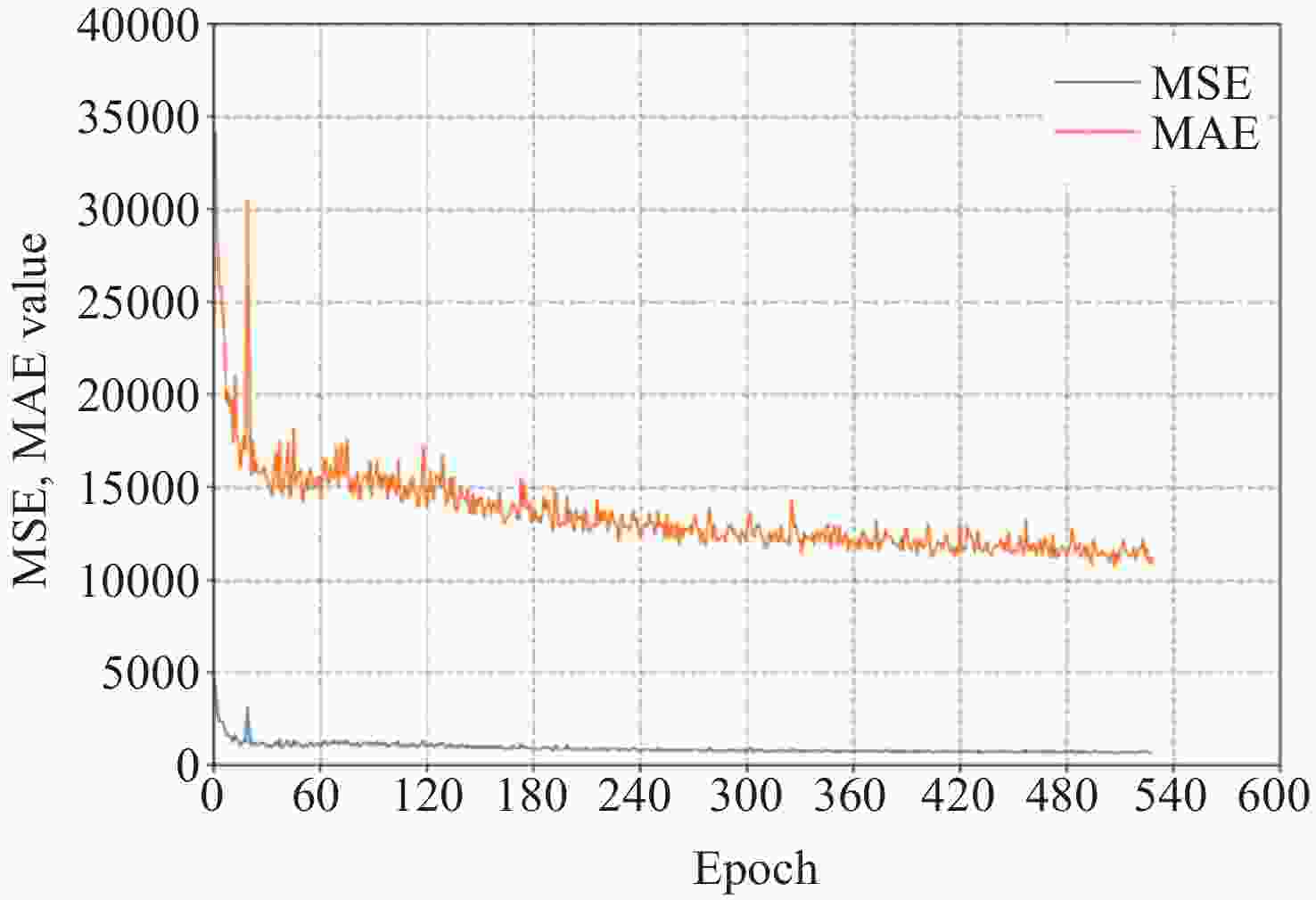

图 4 EPB演化预测模型在验证集上的均方差(MSE)和平均绝对误差(MAE)随训练周期(Epoch)的变化
Figure 4. Variations of MSE and MAE on the validation set versus training epochs for the EPB evolution prediction model

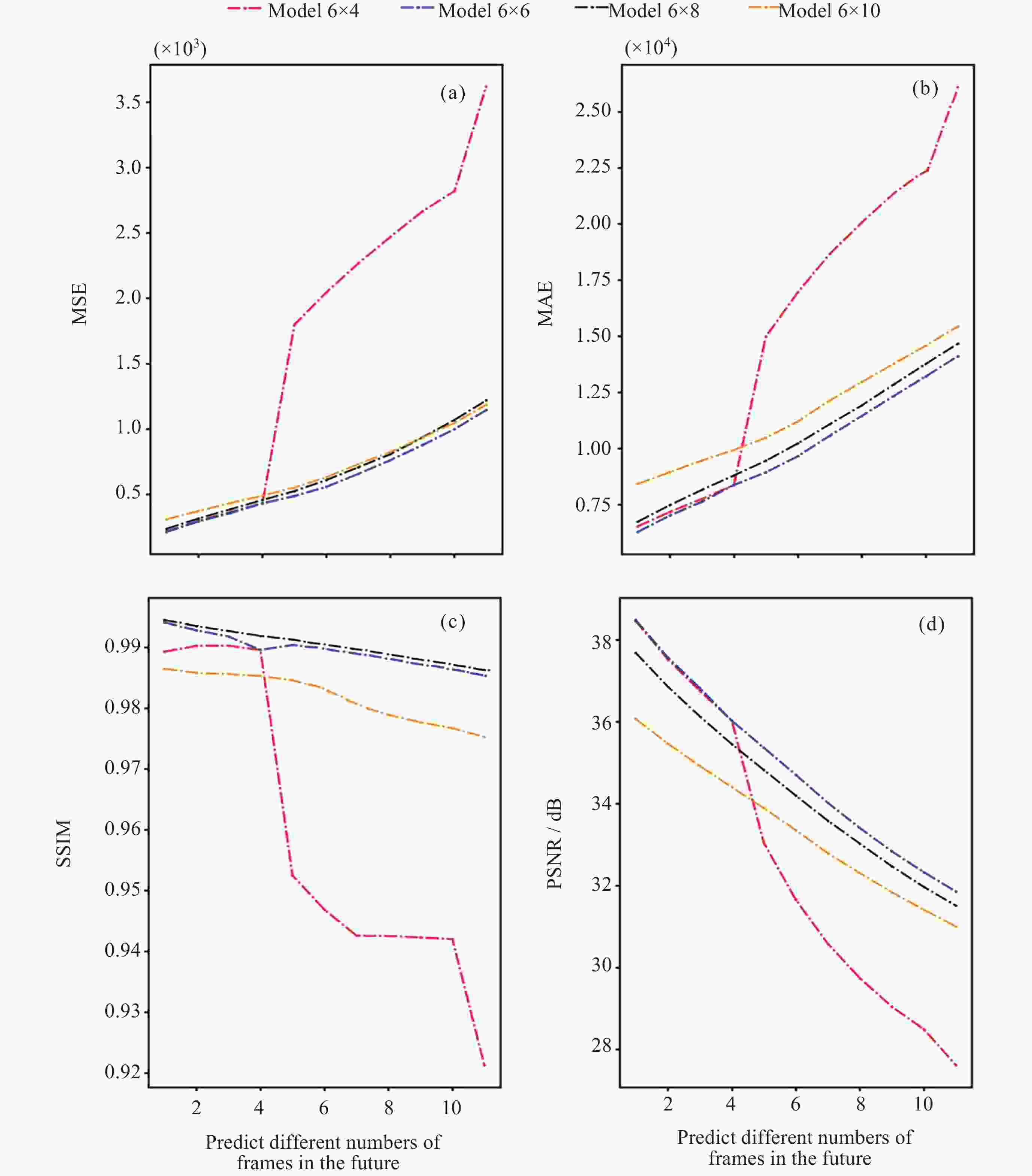

图 5 不同数量输出帧构建的EPB演化预测模型预测未来不同数量EPB图像帧时的性能比较
Figure 5. Performance comparison of EPB evolution models with different output frame configurations for forecasting varying numbers of future EPB image frames

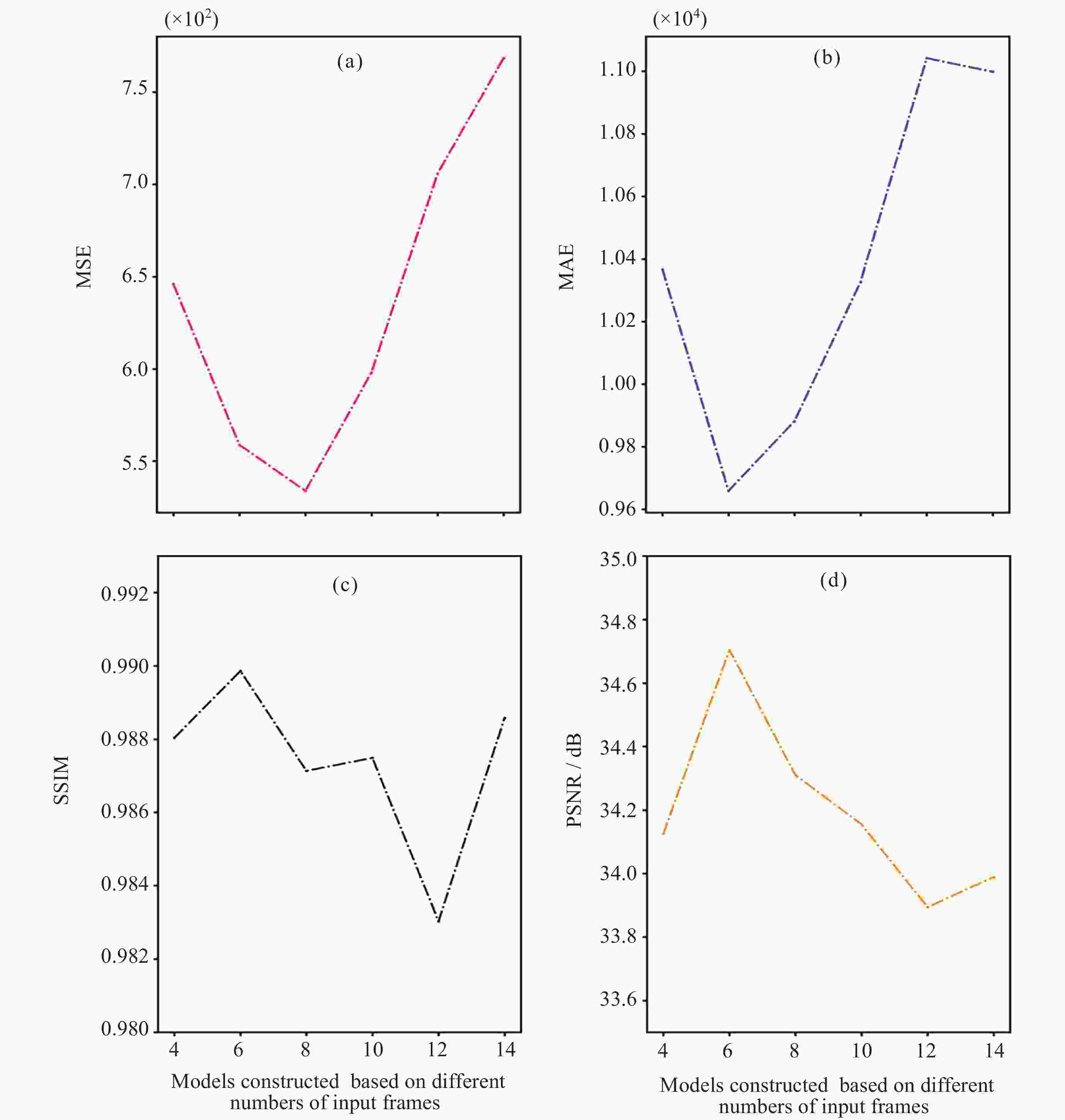

图 6 预测未来6帧EPB图像时不同数量输入帧构建的EPB演化预测模型性能比较
Figure 6. Performance comparison of EPB evolution prediction models with different input frame configurations for predicting the next six frames of EPB images

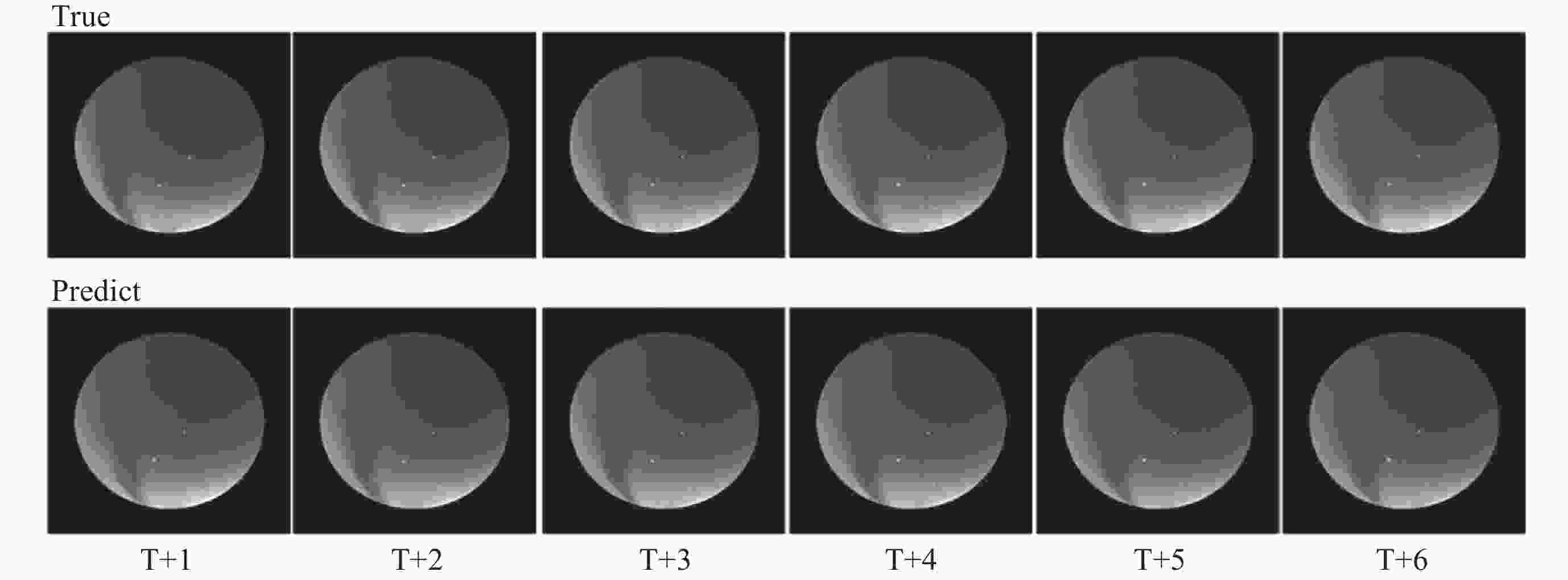

图 7 模型预测小尺度且结构简单EPB的未来6帧(18 min)图像
Figure 7. Model predicts six future frames (18 min) of a small-scale EPB with simple structures

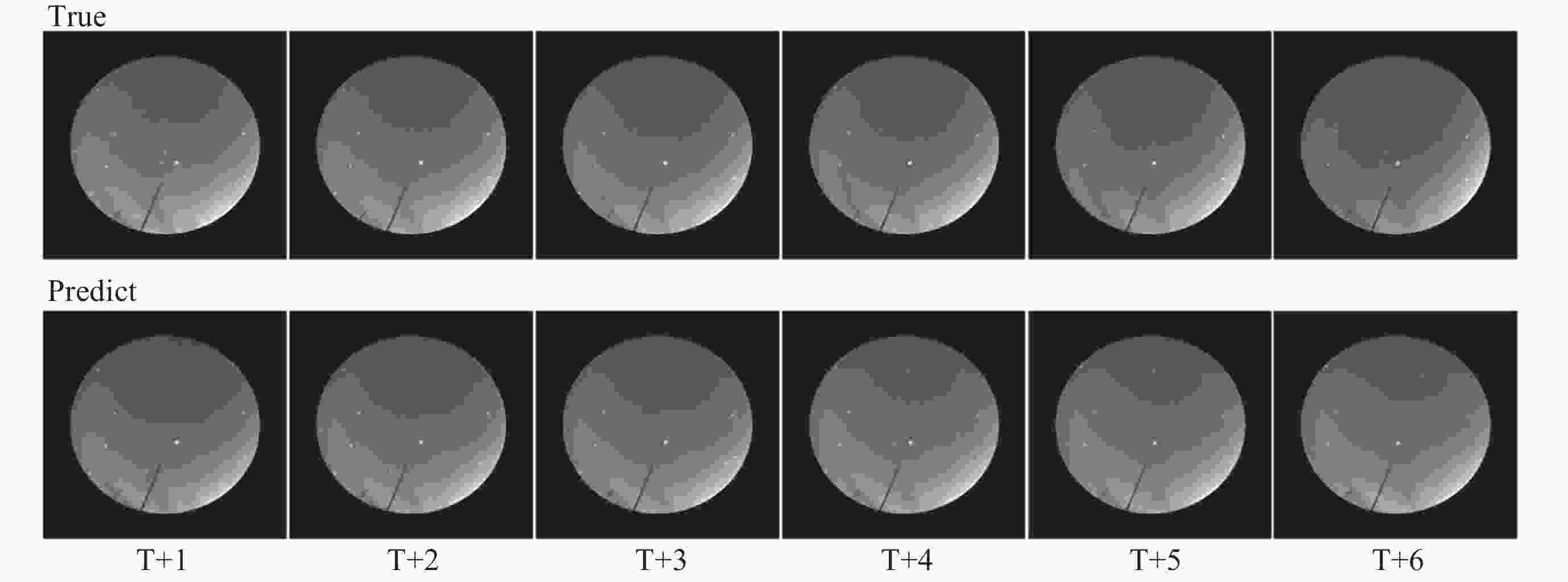

图 10 模型预测没有光污染的弱EPB未来6帧(18 min)图像,
Figure 10. Model predicts six future frames (18 min) of weak EPBs

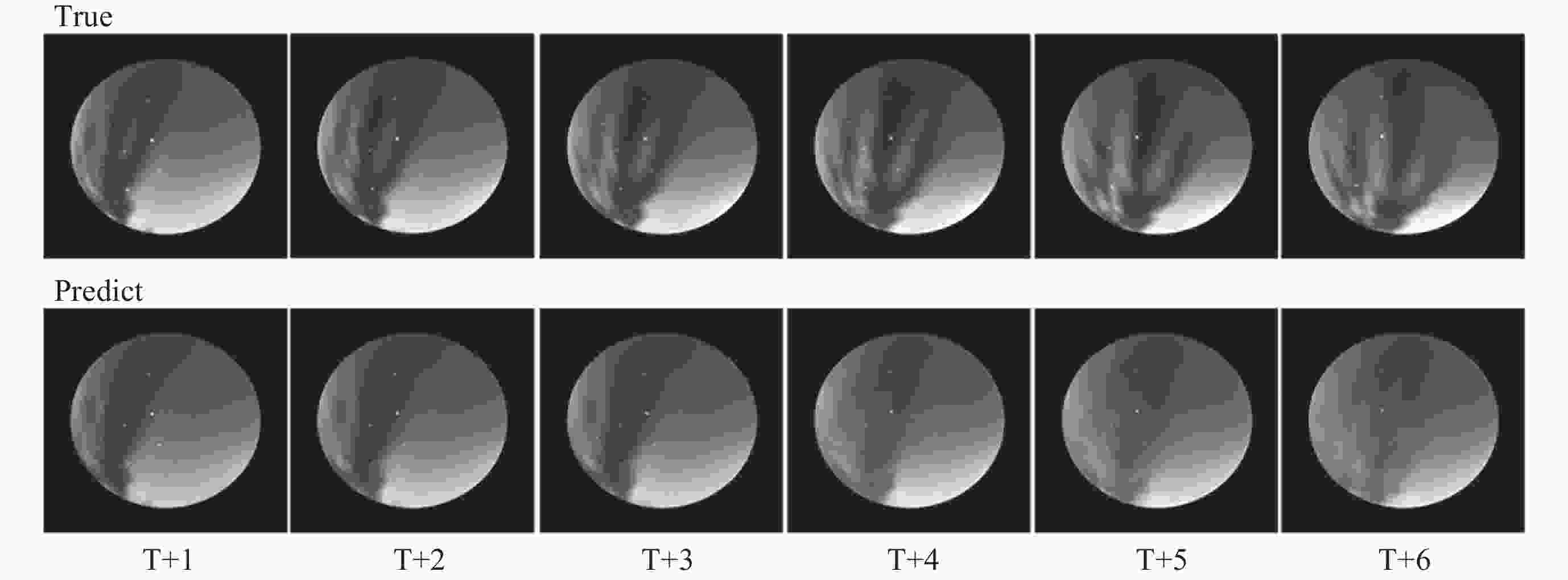

图 8 模型预测大尺度且结构复杂EPB的未来6帧(18 min)图像
Figure 8. Model predicts six future frames (18 min) of a large-scale EPB with complex structures

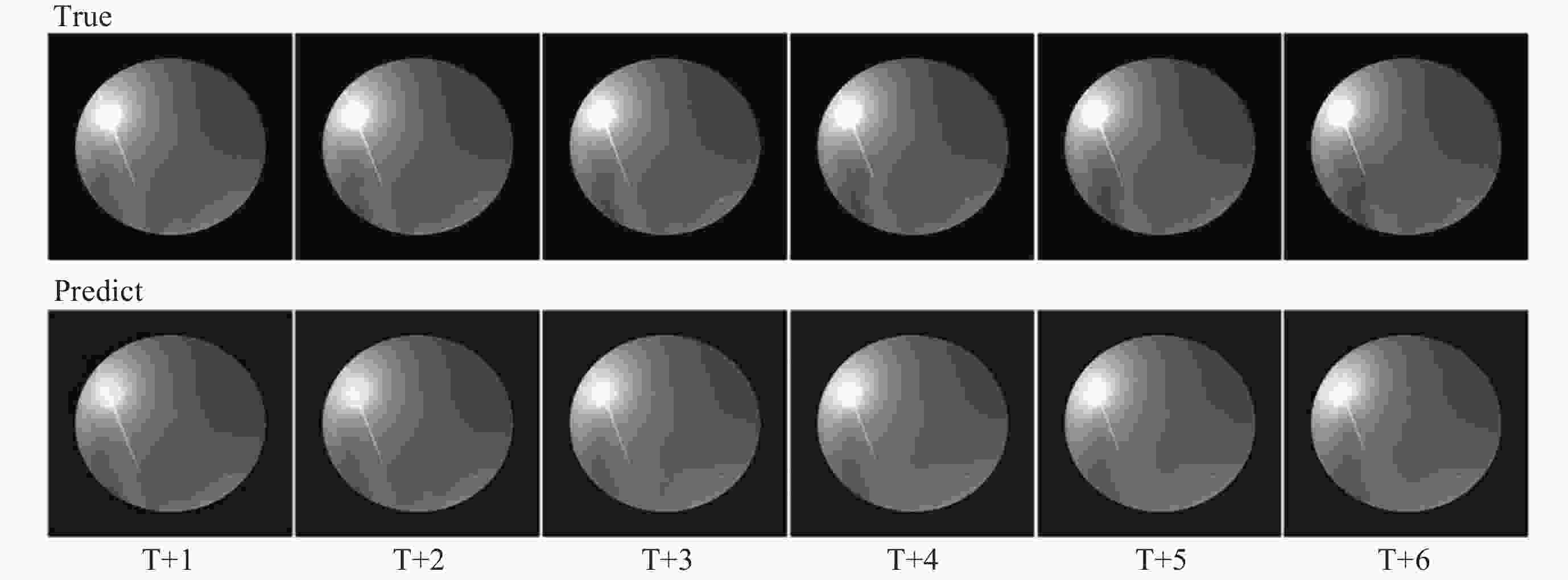

图 9 模型预测强光污染条件下EPB的未来6帧(18 min)图像
Figure 9. Model predicts six future frames (18 min) of EPBs under strong light pollution conditions.

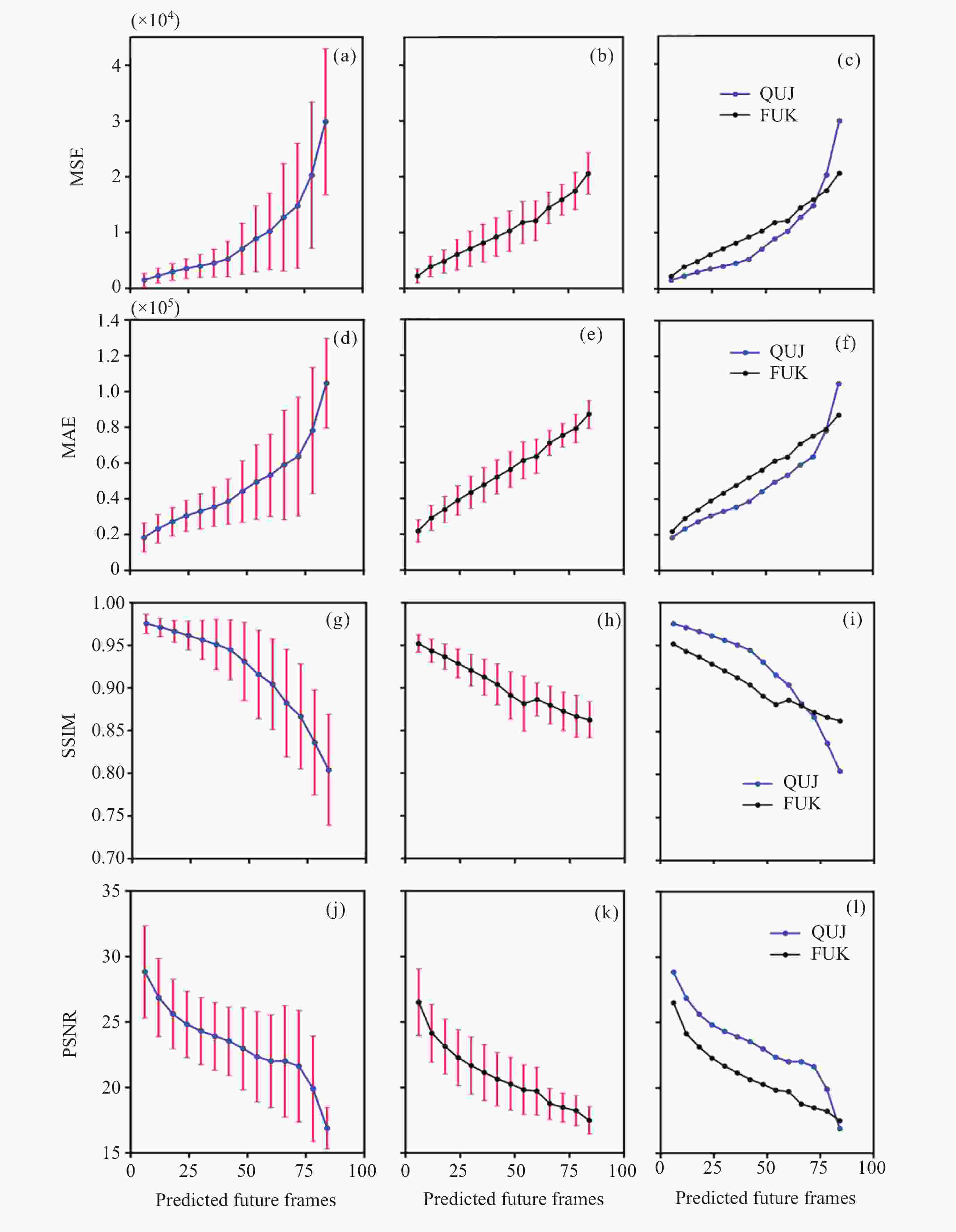

图 11 模型针对曲靖站和富克站气辉观测数据的预测性能比较(红色竖线代表一个标准误差大小)
Figure 11. Comparison of model prediction performance for airglow observation data between Qujing Station and Fuke Station (red vertical bars indicating one standard error)
表 1 实验变量设计
Table 1. Design of experimental variables
实验维度 研究目标 参数设置 时间分辨率($ t $)/ min 最优观测时间间隔 $ t $∈ {3, 3.8, 5.18, 8.14} 输入帧长度($ {{N}}_{\text{pre}} $)/ frame 前序观测时长的影响 $ {{N}}_{\text{pre}} $∈ {4, 6, 8, 10, 12, 14} 输出帧长度($ {{N}}_{\text{aft}} $)/ frame 预测时间跨度的极限 $ {{N}}_{\text{aft}} $∈ {4, 6, 8,10}
下载: 导出CSV
表 2 不同时间分辨率的模型输入输出参数设置
Table 2. Configuration of input/output parameters for models with different temporal resolutions
模型名称 $ {{N}}_{\text{pre}} $ $ {{N}}_{\text{aft}} $ $ t $ /min $ {{(T}}_{\text{1}}-{{T}}_{\text{0}} $)/min $ {{(T}}_{\text{2}}-{{T}}_{\text{1}} $)/min Model 4×4 4 4 8.14 24.42 32.56 Model 6×6 6 6 5.18 25.9 31.08 Model 8×8 8 8 3.8 26.6 30.4 Model 10×10 10 10 3 27 30
下载: 导出CSV
表 3 不同输出时间尺度的模型参数设置
Table 3. Parameter configuration for models with varying output time scales
模型名称 $ {{N}}_{\text{pre}} $ $ {{N}}_{\text{aft}} $ $ t $/min $ {{(T}}_{\text{1}}-{{T}}_{\text{0}} $)/min $ {{(T}}_{2}-{{T}}_{1} $)/min Model 6×4 6 4 3 15 12 Model 6×6 6 6 15 18 Model 6×8 6 8 15 24 Model 6×10 6 10 15 30
下载: 导出CSV
表 4 不同时间尺度输入的模型参数设置
Table 4. Parameter configuration for models with varying input time scales
模型名称 $ {{N}}_{\text{pre}} $ $ {{N}}_{\text{aft}} $ $ t $/min $ ({{T}}_{\text{1}}-{{T}}_{\text{0}} $)/min $ {{(T}}_{2}-{{T}}_{1} $)/min Model 4×6 4 6
39 18 Model 6×6 6 6 15 18 Model 8×6 8 6 21 18 Model 10×6 10 6 27 18 Model 12×6 12 6 33 18 Model 14×6 14 6 39 18
下载: 导出CSV
表 5 EPB演化预测模型训练中使用的部分超参数
Table 5. Some hyperparameters used in the training of the EPB evolution prediction model
Parameter Value Loss function MSE $ {{N}}_{\text{pre}} $ 6 $ {{N}}_{\text{aft}} $ 6 Epoch 1000 Scheduler 0.001 N_S 4 N_T 8 Hid_S 64 Hid_T 256 Batchsize 1
下载: 导出CSV
表 6 不同时间分辨率模型的性能比较
Table 6. Performance comparison of models with different temporal resolutions
预测类型 MSE MAE SSIM PSNR Model 4×4 1586.788 17551.615 0.978 29.843 Model 6×6 1477.651 16772.386 0.976 30.038 Model 8×8 1152.504 14463.274 0.977 31.518 Model 10×10 1120.877 13889.469 0.982 31.860
下载: 导出CSV
-
[1] OTT E. Theory of Rayleigh-Taylor bubbles in the equatorial ionosphere[J]. Journal of Geophysical Research: Space Physics, 1978, 83(A5): 2066-2070. doi: 10.1029/JA083iA05p02066 [2] KELLEY M C, HEELIS R A. The Earth’s Ionosphere: Plasma Physics and Electrodynamics[M]. 2nd ed. New York: Academic Press, 2009 [3] TAKAHASHI H, TAYLOR M J, PAUTET P D, et al. Simultaneous observation of ionospheric plasma bubbles and mesospheric gravity waves during the spreadfex campaign[J]. Annales Geophysicae, 2009, 27(4): 1477-1487. doi: 10.5194/angeo-27-1477-2009 [4] WU K, XU J Y, ZHU Y J, et al. Occurrence characteristics of branching structures in equatorial plasma bubbles: a statistical study based on all-sky imagers in China[J]. Earth and Planetary Physics, 2021, 5(5): 407-415. doi: 10.26464/EPP2021044 [5] YOKOYAMA T. A review on the numerical simulation of equatorial plasma bubbles toward scintillation evaluation and forecasting[J]. Progress in Earth and Planetary Science, 2017, 4(1): 37 doi: 10.1186/s40645-017-0153-6 [6] SULTAN P J. Linear theory and modeling of the Rayleigh-Taylor instability leading to the occurrence of equatorial spread F[J]. Journal of Geophysical Research: Space Physics, 1996, 101(A12): 26875-26891. doi: 10.1029/96JA00682 [7] RETTERE J M. Forecasting low-latitude radio scintillation with 3-D ionospheric plume models: 1. plume model[J]. Journal of Geophysical Research: Space Physics, 2010, 115(A3): A03306 doi: 10.1029/2008ja013839 [8] HUBA J D, JOYCE G. Global modeling of equatorial plasma bubbles[J]. Geophysical Research Letters, 2010, 37(17): L17104. doi: 10.1029/2010GL044281 [9] AARONS J. Global morphology of ionospheric scintillations[J]. Proceedings of the IEEE, 1982, 70(4): 360-378 doi: 10.1109/proc.1982.12314 [10] SU S Y, CHAO C K, LIU C H. On monthly/seasonal/longitudinal variations of equatorial irregularity occurrences and their relationship with the postsunset vertical drift velocities[J]. Journal of Geophysical Research: Space Physics, 2008, 113(A5): A05307 doi: 10.1029/2007ja012809 [11] REDDY S A, FORSYTH C, ARULIAH A, et al. Predicting swarm equatorial plasma bubbles via machine learning and shapley values[J]. JGR Space Physics, 2023, 128(6): e2022JA031183 doi: 10.1029/2022JA031183 [12] GITHIO L, LIU H X, ARAFA A A, et al. A machine learning approach for estimating the drift velocities of equatorial plasma bubbles based on all-sky imager and GNSS observations[J]. Advances in Space Research, 2024, 74(11): 6047-6064 doi: 10.1016/j.asr.2024.08.067 [13] ZHAO X K, LI G Z, XIE H Y, et al. A novel short-term prediction model for regional equatorial plasma bubble irregularities in East and Southeast Asia[J]. Space Weather, 2025, 23(2): e2024SW004224. doi: 10.1029/2024SW004224 [14] GAO Z Y, TAN C, WU L R, et al. SimVP: simpler yet better video prediction[C]//Proceedings of the 2022 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR). New Orleans: IEEE, 2022: 3160-3170 [15] HU Z J, HAN B, ZHANG Y S, et al. Modeling of ultraviolet aurora intensity associated with interplanetary and geomagnetic parameters based on neural networks[J]. Space Weather, 2021, 19(11): e2021SW002751. doi: 10.1029/2021SW002751 [16] JIANG J N, ZOU Z M, LU Y. A ConvLSTM-based prediction model of aurora evolution during the substorm expansion phase[J]. Earth and Space Science, 2023, 10(4): e2022EA002721. doi: 10.1029/2022EA002721 [17] LIU L, ZOU S S, YAO Y B, et al. Forecasting global ionospheric TEC using deep learning approach[J]. Space Weather, 2020, 18(11): e2020SW002501. doi: 10.1029/2020SW002501 [18] LIU P, YOKOYAMA T, SORI T, et al. Channel mixer layer: multimodal fusion toward machine reasoning for spatiotemporal predictive learning of ionospheric total electron content[J]. Space Weather, 2024, 22(12): e2024SW004121. doi: 10.1029/2024SW004121 [19] SHIH C Y, LIN C Y T, LIN S Y, et al. Forecasting of global ionosphere maps with multi-day lead time using Transformer-based neural networks[J]. Space Weather, 2024, 22(2): e2023SW003579. doi: 10.1029/2023SW003579 [20] GAO P D, CAI J H, WANG Z, et al. Prediction of ionograms with/without Spread-F at Hainan by a combined spatio-temporal neural network[J]. Space Weather, 2024, 22(1): e2023SW003727. doi: 10.1029/2023SW003727 [21] DOSOVITSKIY A, BEYER L, KOLESNIKOV A, et al. An image is worth 16x16 words: transformers for image recognition at scale[OL]. arXiv preprint arXiv: 2010.11929, 2020. DOI:10.48550/arXiv.2010.11929 [22] KIRANYAZ S, AVCI O, ABDELJABER O, et al. 1D convolutional neural networks and applications: a survey[J]. Mechanical Systems and Signal Processing, 2021, 151: 107398 doi: 10.1016/j.ymssp.2020.107398 [23] AARONS J. The longitudinal morphology of equatorial f‐layer irregularities relevant to their occurrence[J]. Space Science Reviews, 1993, 63(3-4): 209-243. doi: 10.1007/BF00750769 [24] Singh, S, Bamgboye, D. K., Mcclure, J. P., & Johnson, F. S. Morphology of equatorial plasma bubbles[J]. Journal of Geophysical Research: Space Physics, 1997, 102(A9): 20019-20029 doi: 10.1029/97JA01724 [25] GHEINI M, REN X, MAY J. Cross-attention is all you need: adapting pretrained transformers for machine translation[OL]. arXiv preprint arXiv: 2104.08771, 2021 [26] CHEN Z, LIU Y, SUN H. Physics-informed learning of governing equations from scarce data[J]. Nature Communications, 2021, 12(1): 6136. doi: 10.1038/s41467-021-26434-1 -
-
