面向空间应用的10 THz焦平面成像系统冷光学设计
doi: 10.11728/cjss2026.03.2025-0088 cstr: 32142.14.cjss.2025-0088
-
李家辉 男, 2000 年8 月出生于山东省临沂市, 研究生就读于中国科学院国家空间科学中心, 主要研究方向为太赫兹星载辐射计冷光学和准光学技术. E-mail: lijiahui221@mails.ucas.ac.cn -
朱皓天 男, 1989年10月出生于江苏省南京市, 现为中国科学院国家空间科学中心研究员, 博士生导师, 主要研究方向为太赫兹科学与技术, 从事太赫兹星载辐射计系统及其关键技术研究. E-mail: zhuhaotian@nssc.ac.cn
作者简介:
通讯作者:
Cold Optical Design of 10 THz Focal Plane Imaging System for Space Applications
-
摘要: 空间被动探测的目标信号通常非常微弱, 并且探测系统需要实现高灵敏度和低噪声的要求. 此时, 冷光学的引入成为必然——通过将光学器件(例如透镜和反射镜)集成到低温环境中, 并结合低温探测器, 实现探测需求. 但由于星载设备的冷量有限, 对传统的光学设计提出了约束与实现难度. 基于冷光学理论, 提出了一种基于多重反射的冷光学模型, 并依据该模型对窗口尺寸进行了优化. 完成了10 THz焦平面阵列成像系统方案设计与漏热计算, 系统采用脉冲管耦合节流制冷的空间制冷技术. 完成了冷光学实验, 理论模型与实验结果相互印证.Abstract: In passive space exploration, the target signals are typically extremely weak and the detection system needs to achieve high sensitivity and low noise requirements. To satisfy these demands, cold optics has become indispensable. This method integrates optical components (such as lenses and mirrors) into cryogenic environments and combines them with cryogenic detectors to fulfill the detection needs. However, conventional optical design is constrained by the limited cooling capacity of spaceborne instruments. The research presents a cold optical model based on multi-reflection and optimizes the window size design according to this model. The cold optical experiment conducted in this research demonstrates a strong correlation between the predicted results and the experimental results, thereby confirming the effectiveness of the proposed model. The optimization of the window size is a critical factor in reducing thermal leakage and improving the overall performance of the system. From an optical perspective, the optical path delivers the desired signal; however, from a thermal perspective, it also introduces heat, imposing a thermal load on the cryogenic system. Engineering design must therefore strike a balance between these competing optical and thermal constraints. This research not only advances the field of cold optics but also provides a practical solution for the design of high sensitivity, low-noise detection systems in space applications. The proposed model and experimental validation offer a robust foundation for the development of more efficient and reliable cold optical systems, contributing to the advancement of space exploration technology. The method and results presented in this paper can serve as a reference for further research and development in the field of cold optical systems.
-
Key words:
- Terahertz /
- Cold optical /
- Space refrigeration technology /
- Heat leakage calculation
-

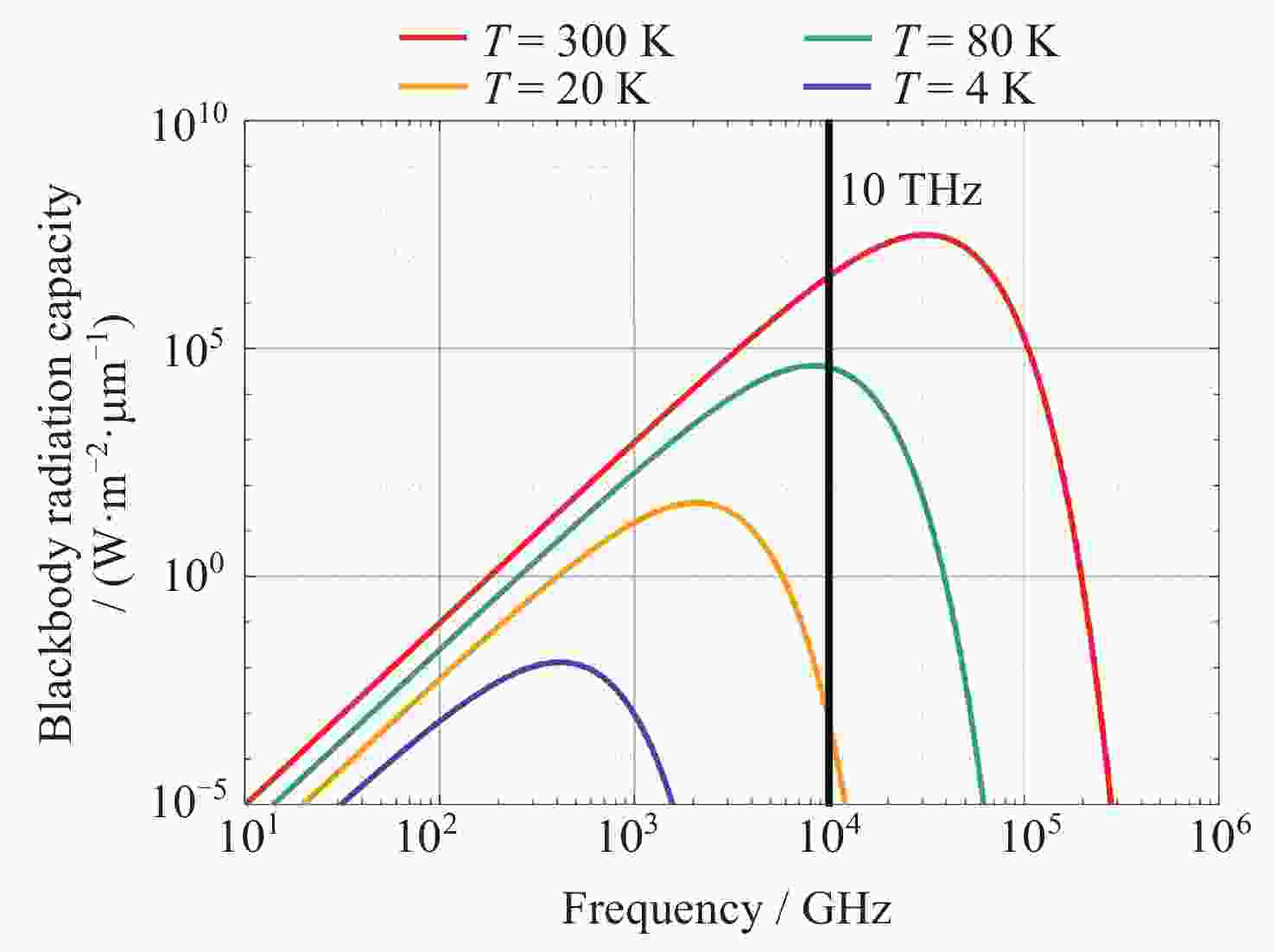

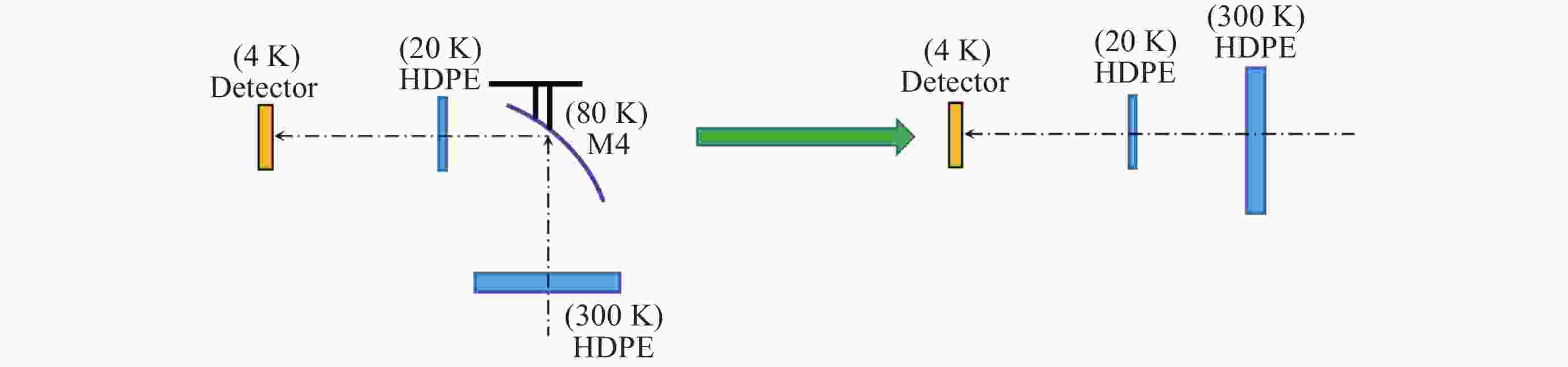

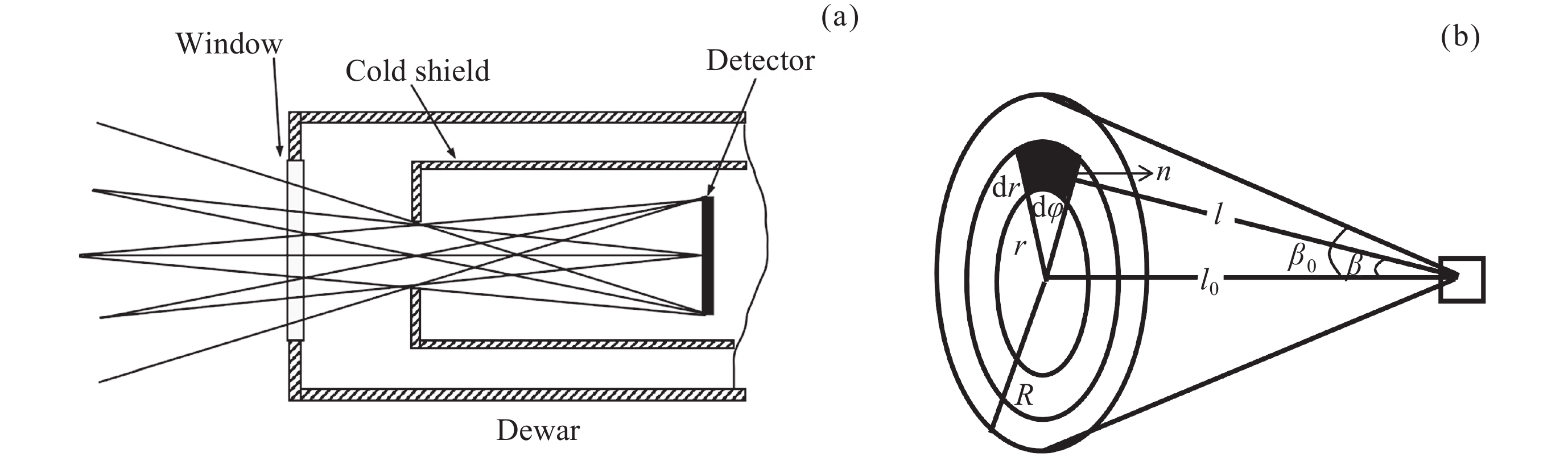

图 2 冷光学焦平面系统 (a)与辐射传输等效模型(b)
Figure 2. Cold optical focal plane system model (a) and Radiation transfer equivalent model (b)

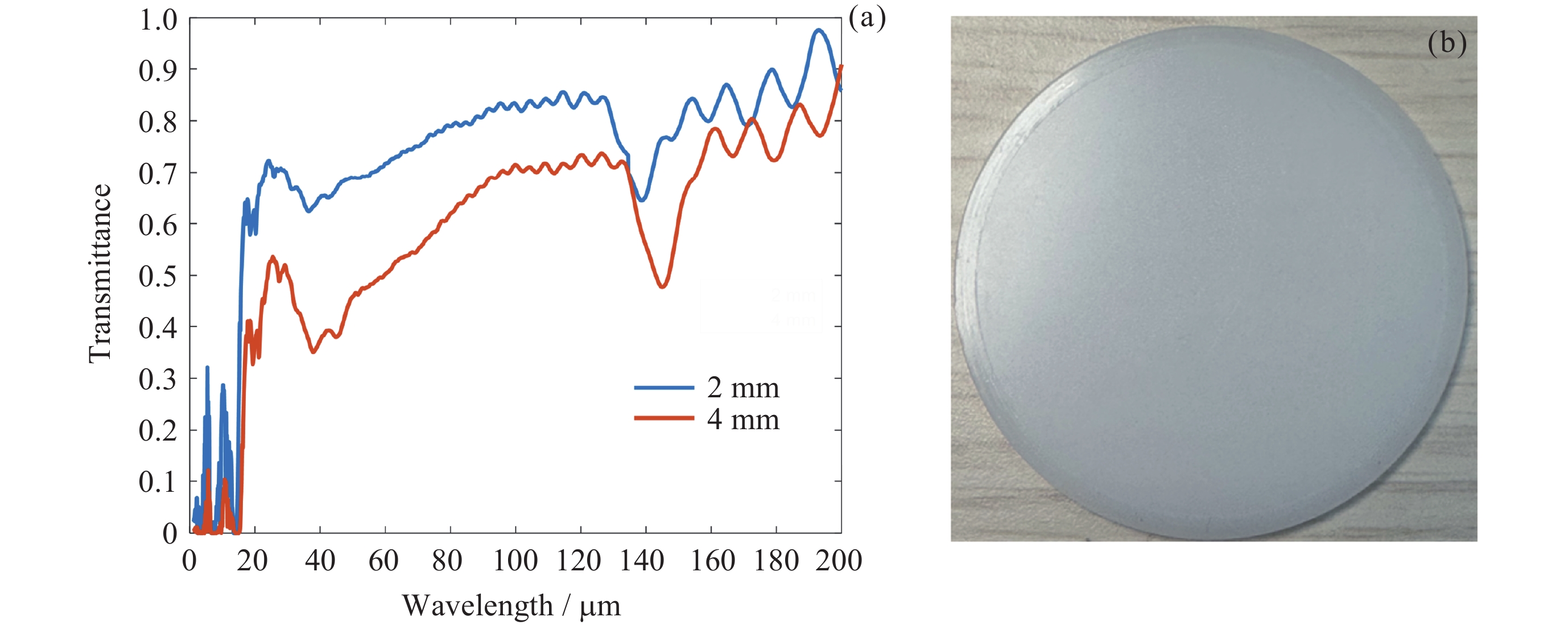

图 3 2 mm和4 mm厚HDPE太赫兹波段的透过率 (a)与 HDPE实物 (b)
Figure 3. Transmittance of 2 mm and 4 mm thick HDPE in terahertz band (a) and physical picture of HDPE (b)

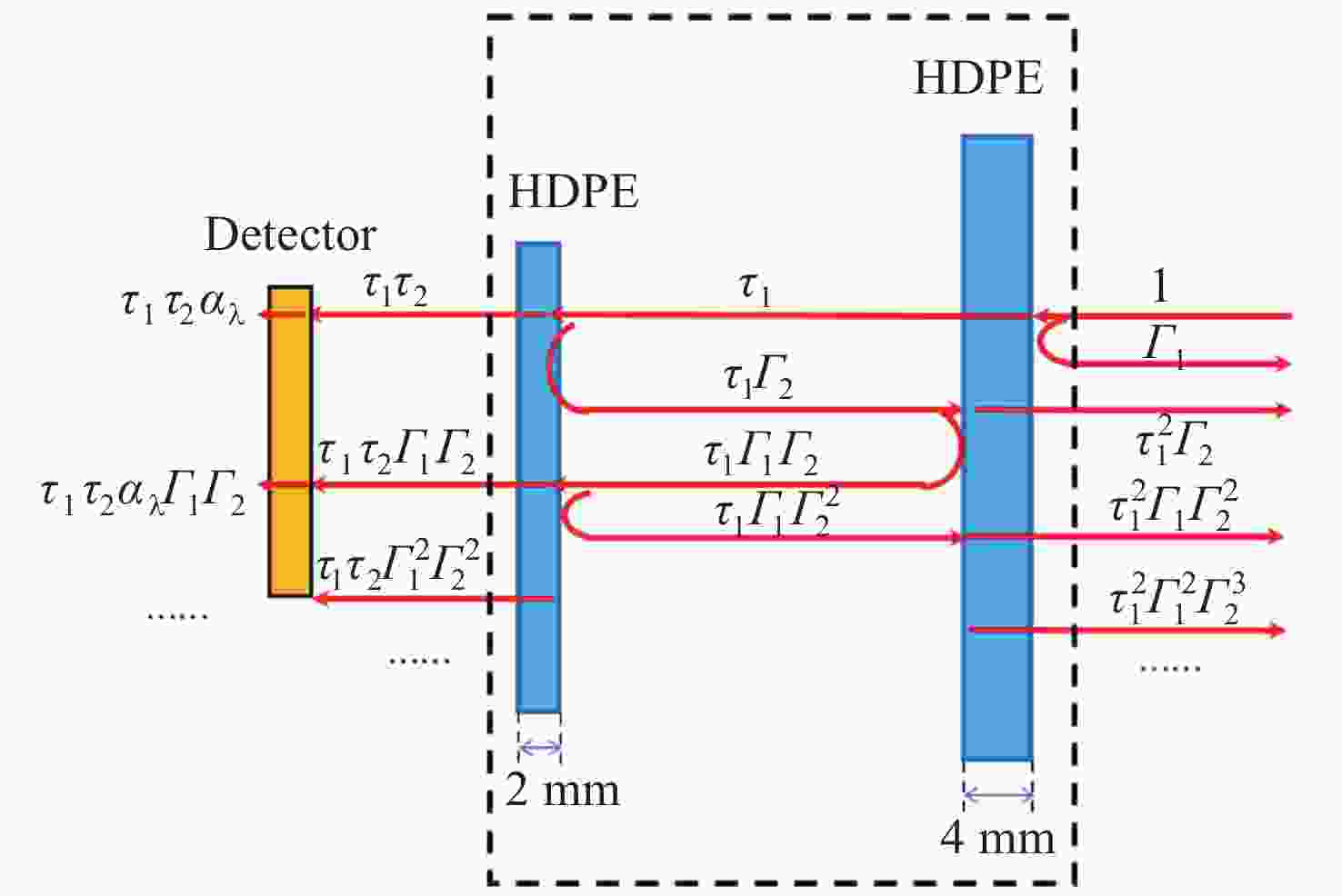

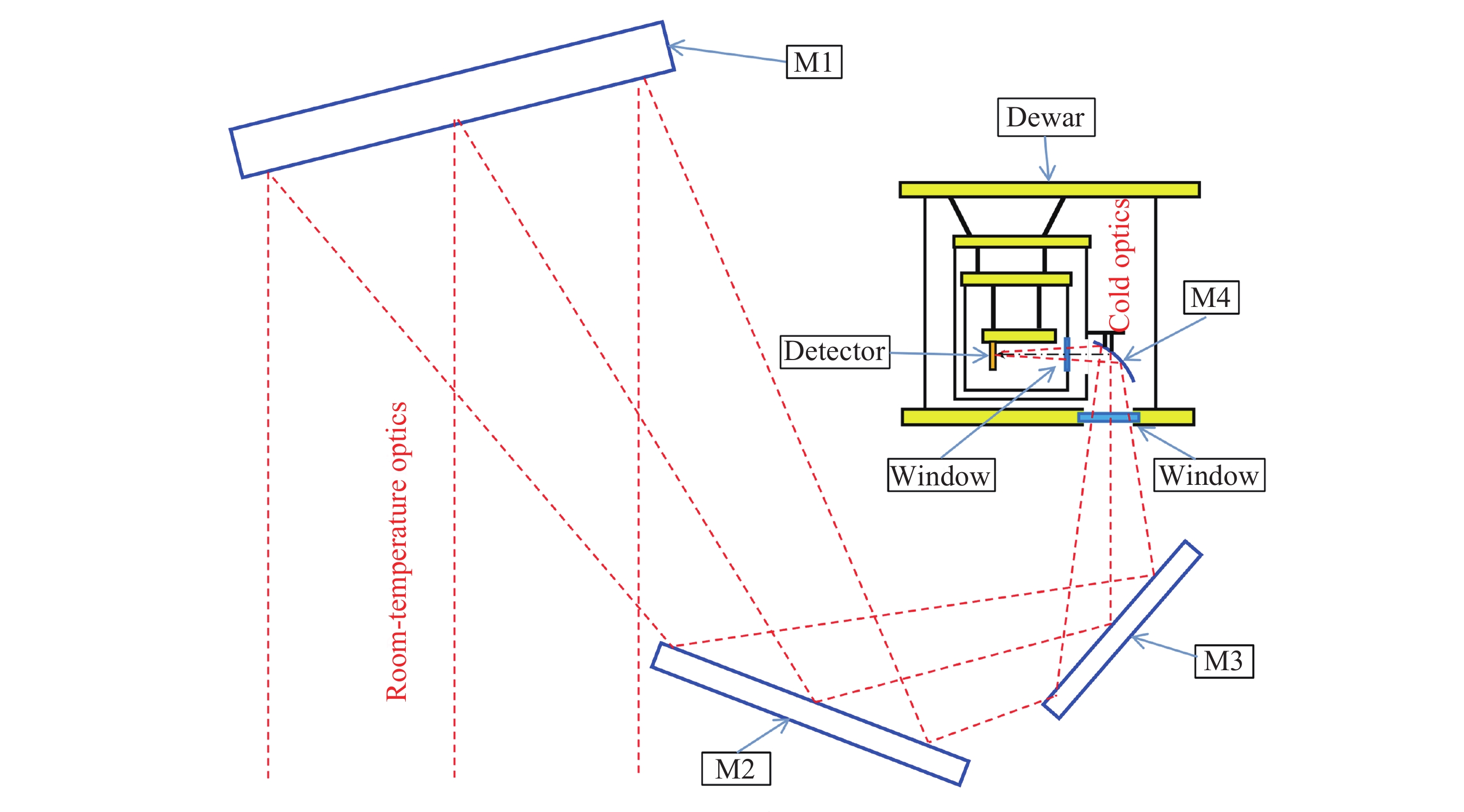

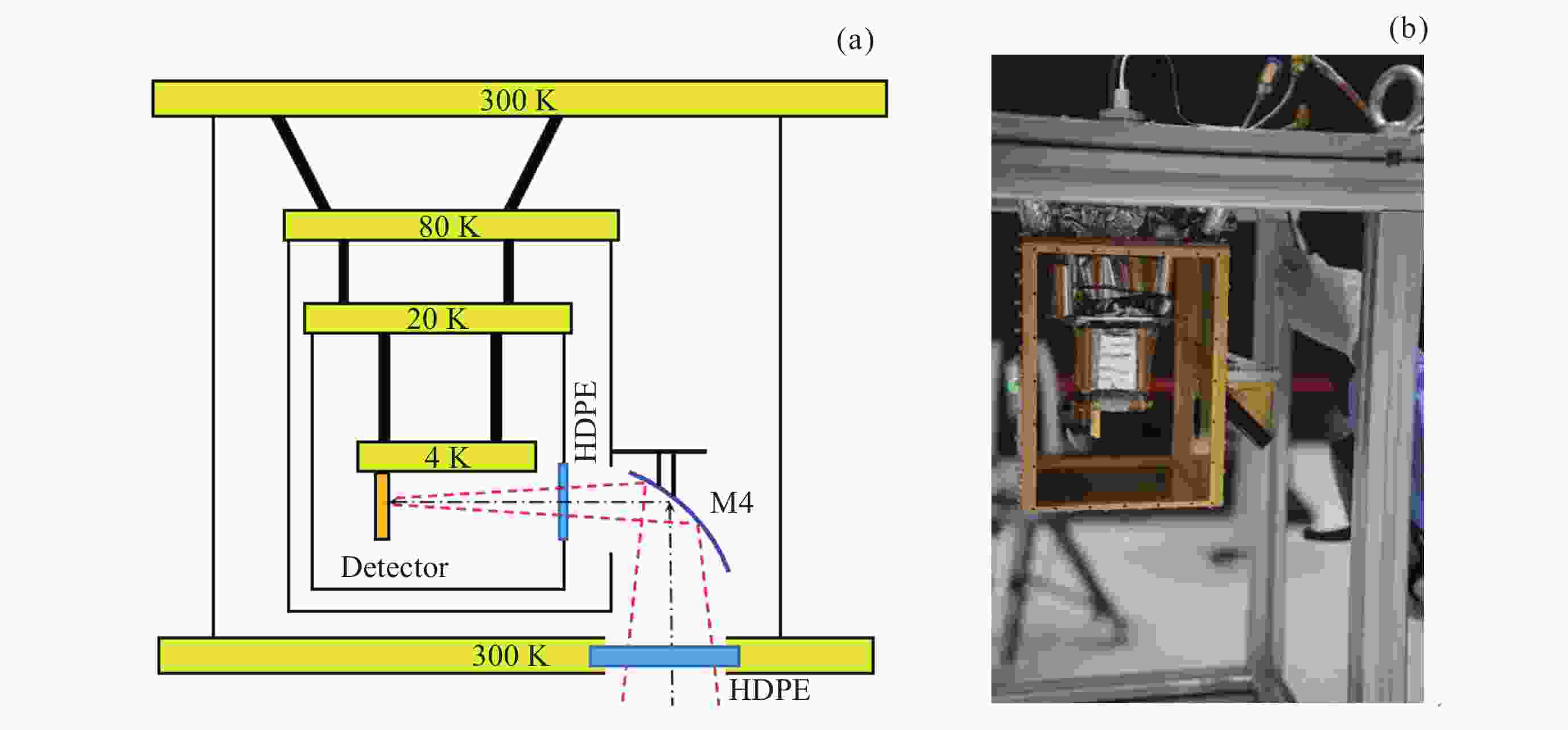

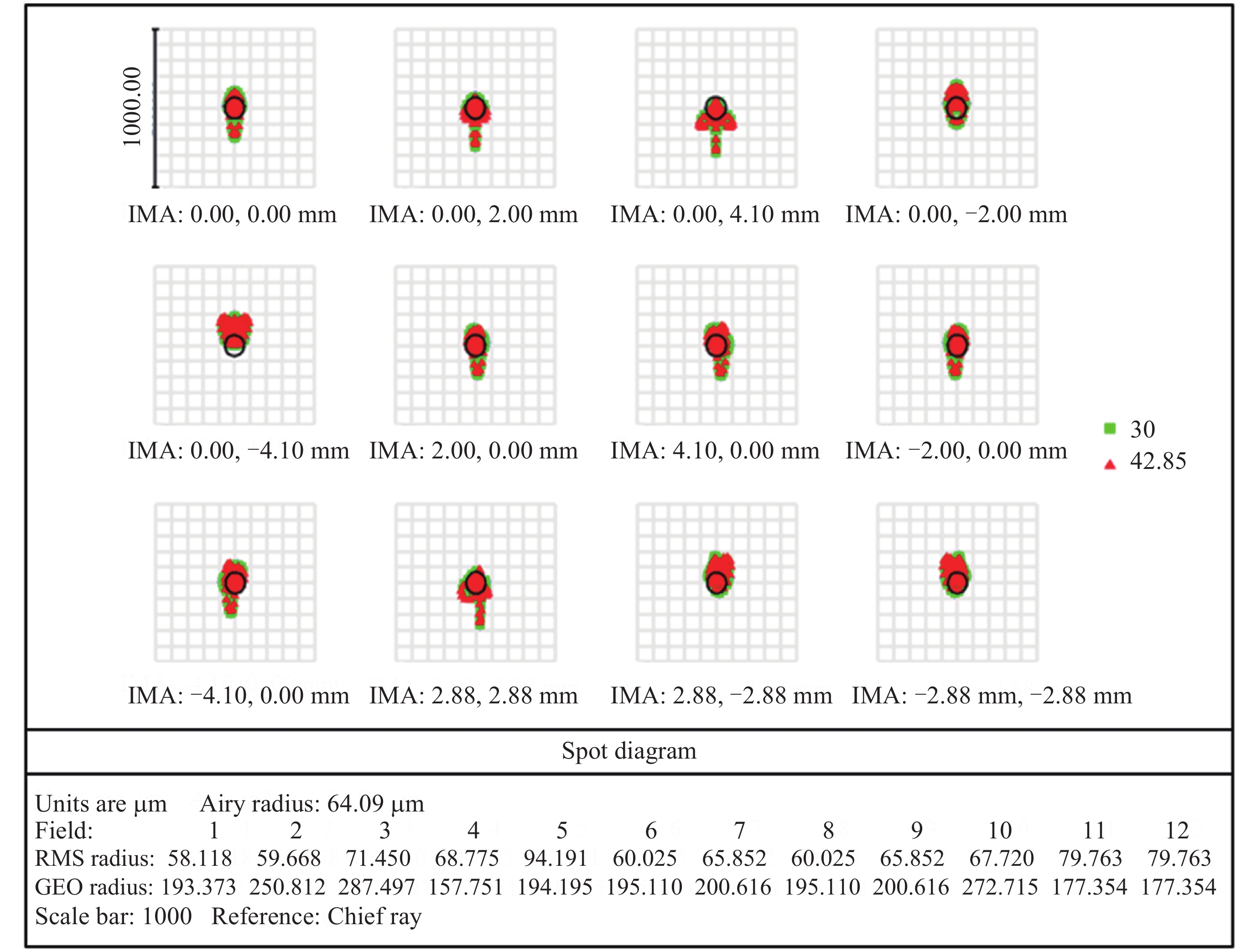

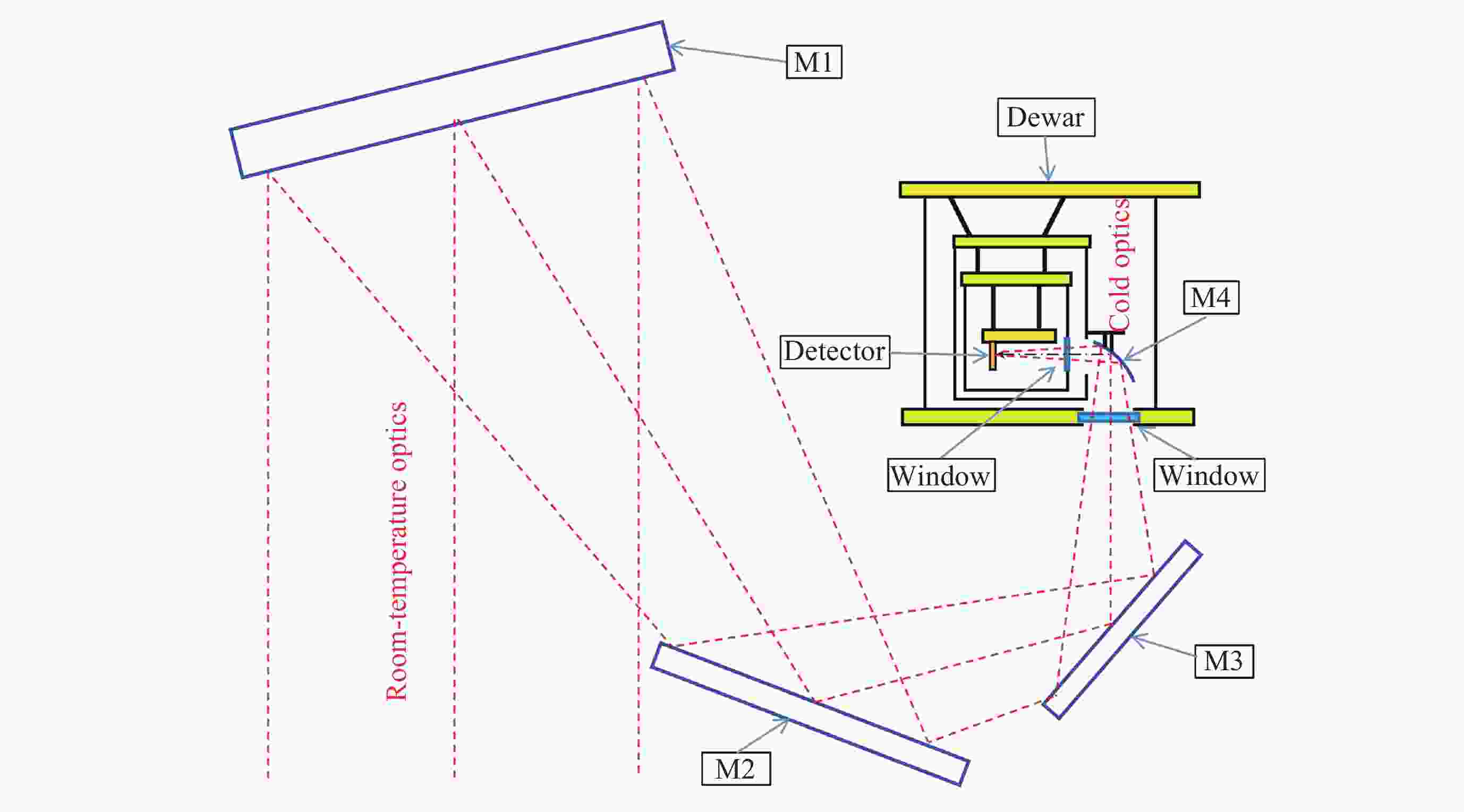

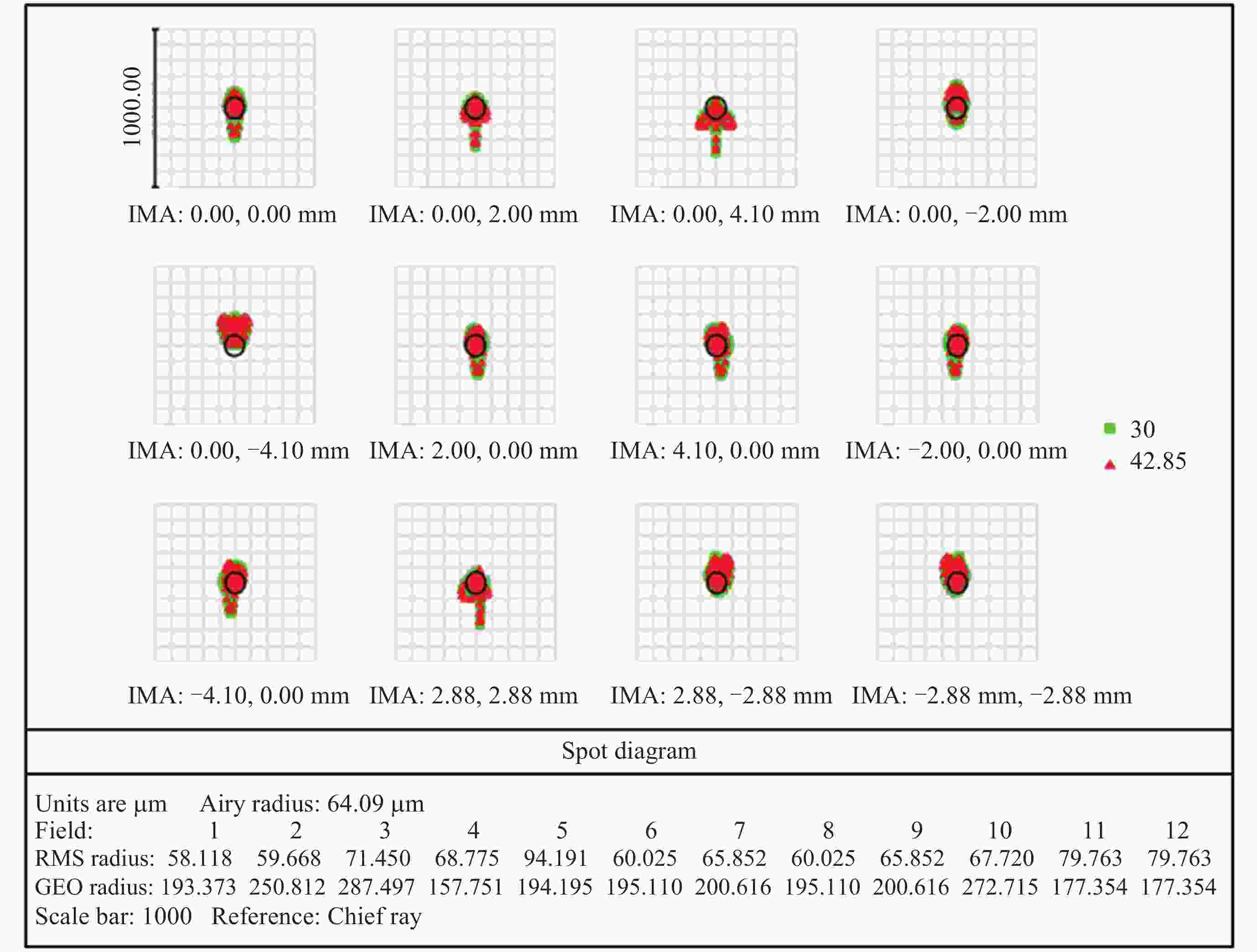

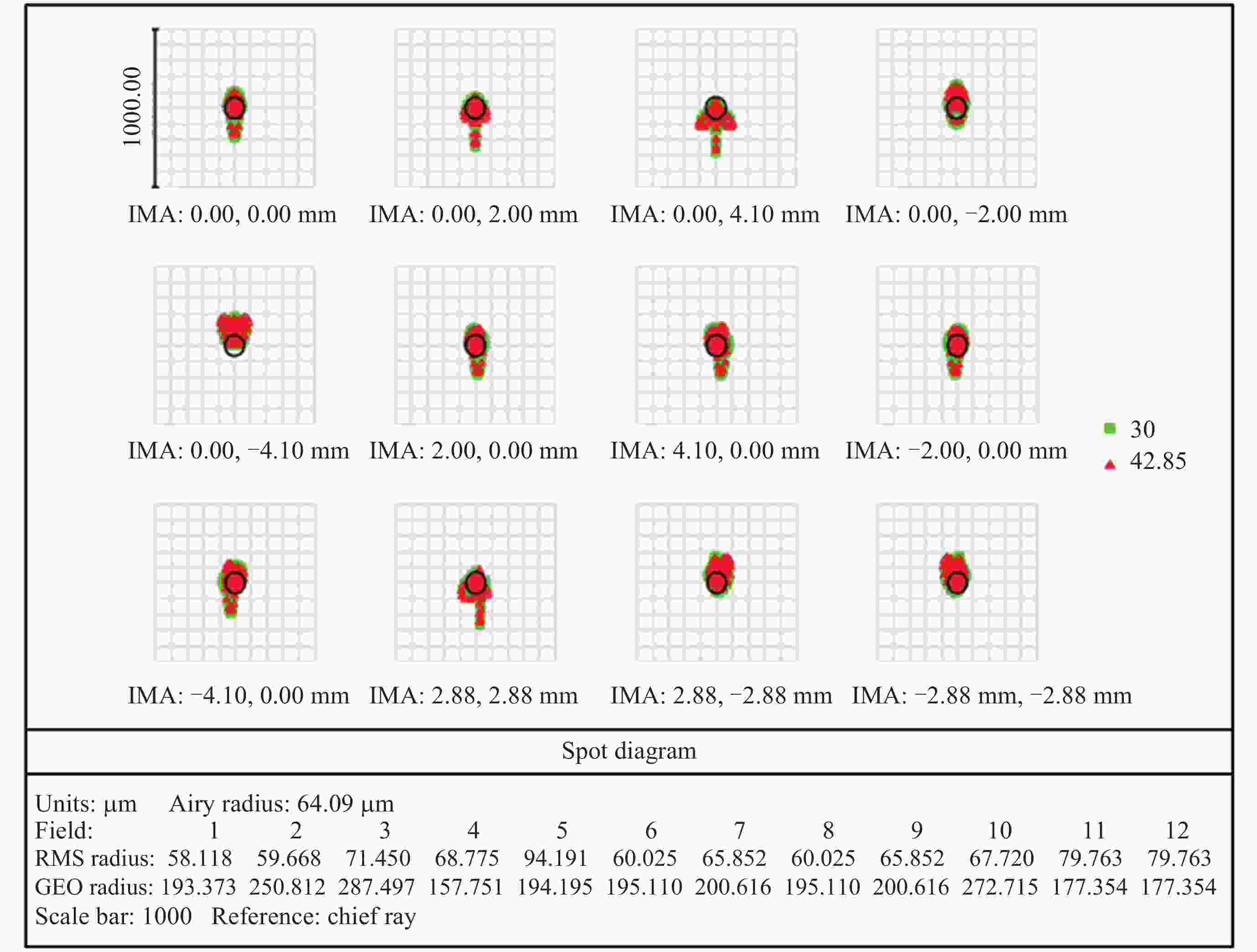

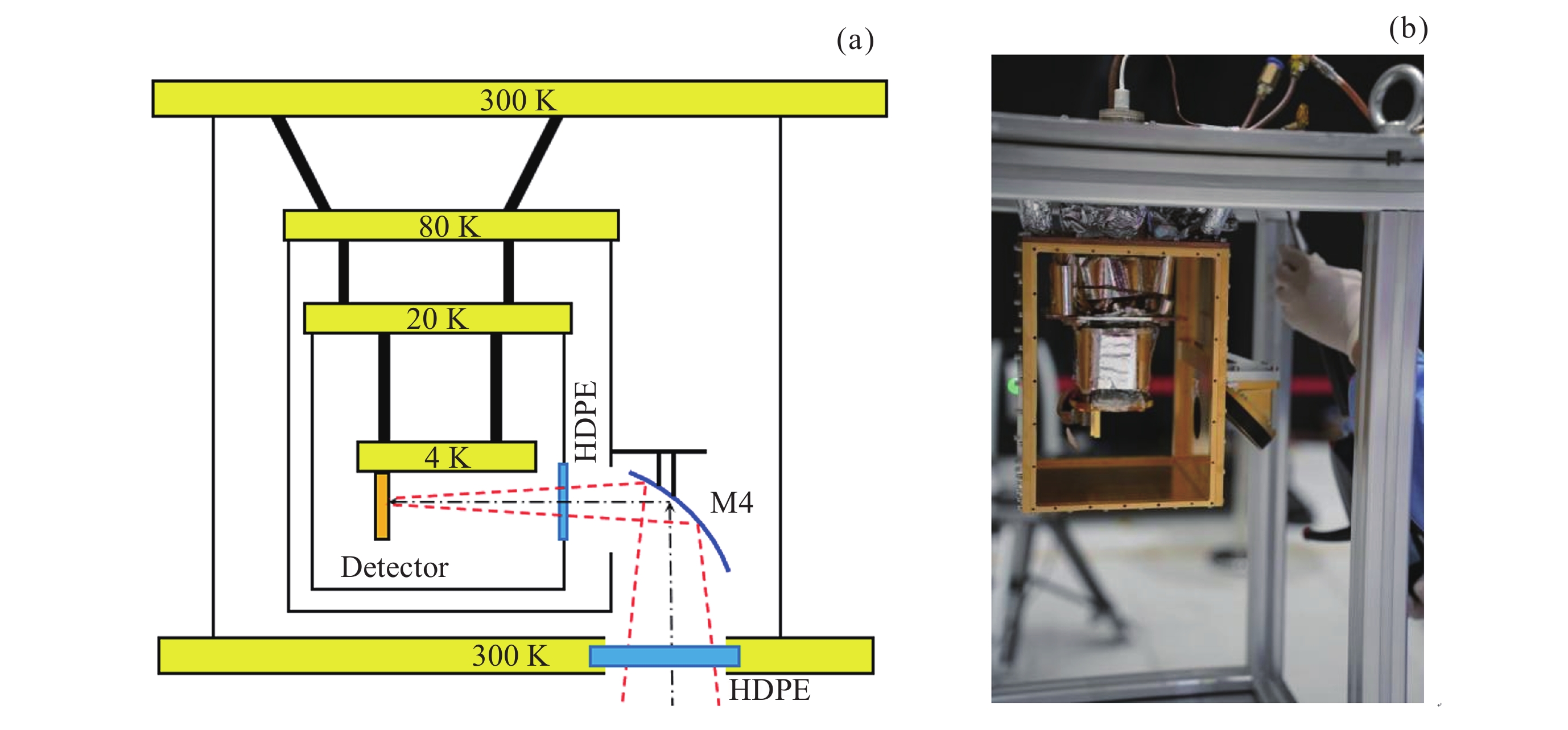

图 6 10 THz冷光学部分 (a) 与系统实物 (b)
Figure 6. 10 THz cold optical part (a) and physical diagram of the system (b)

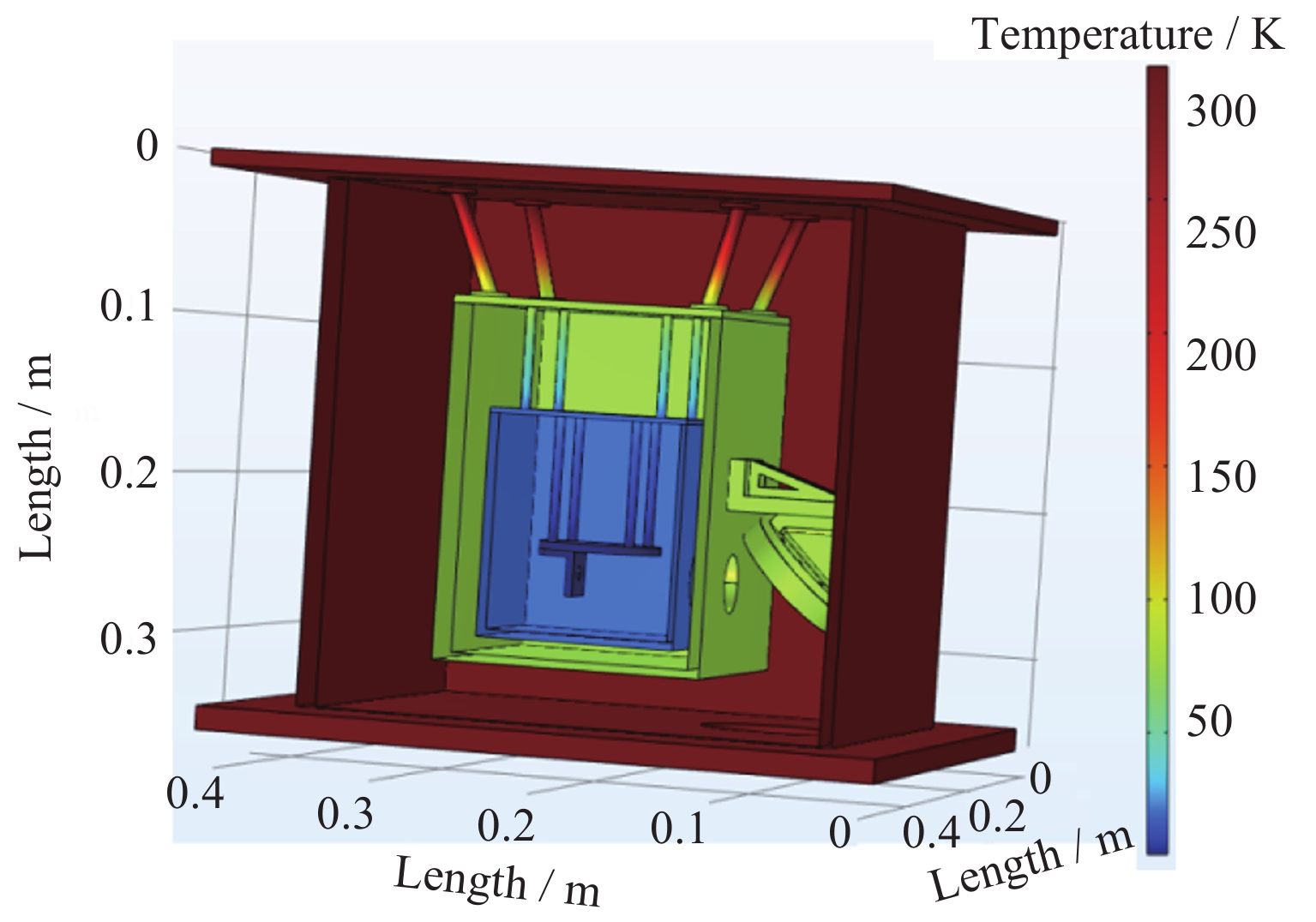

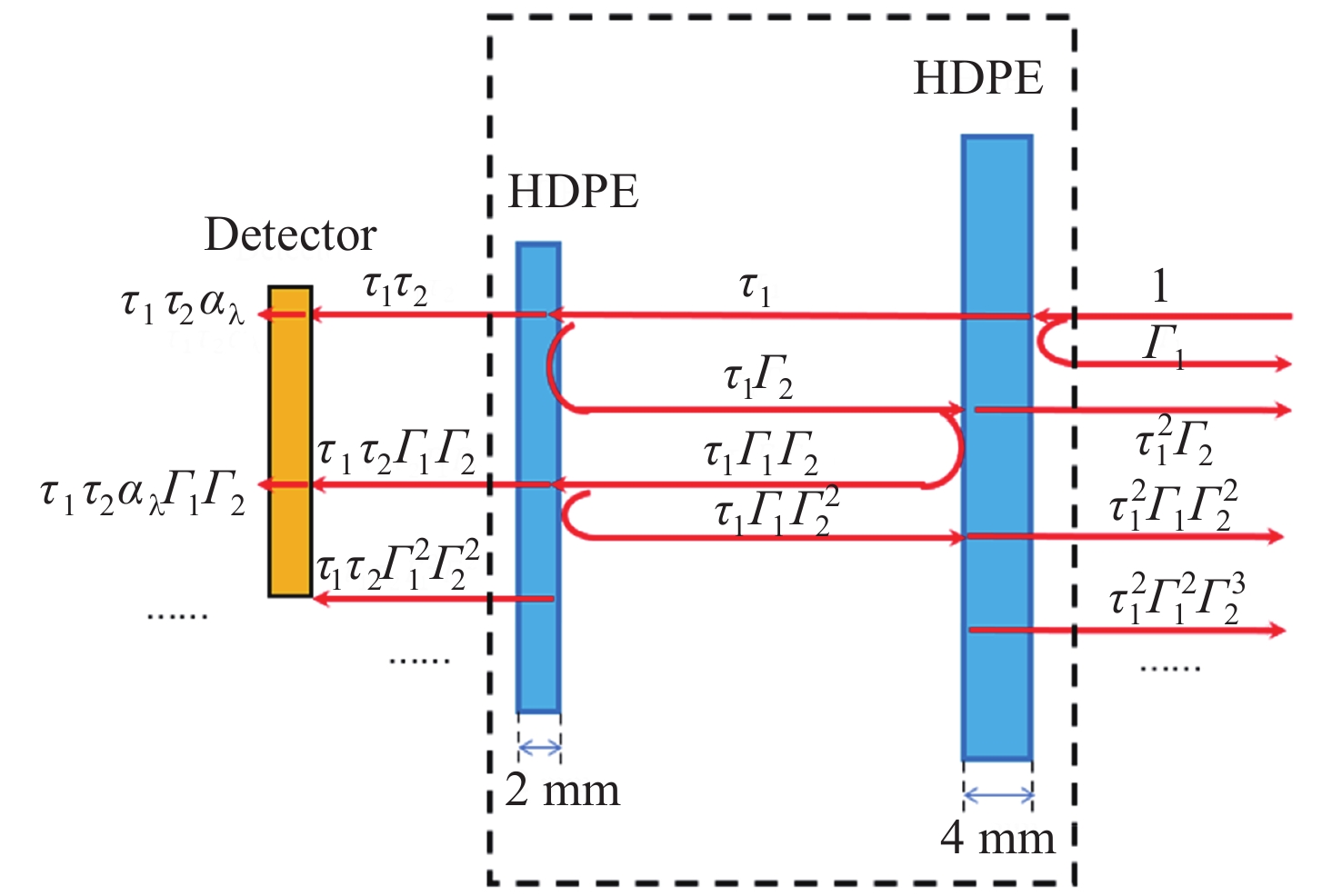

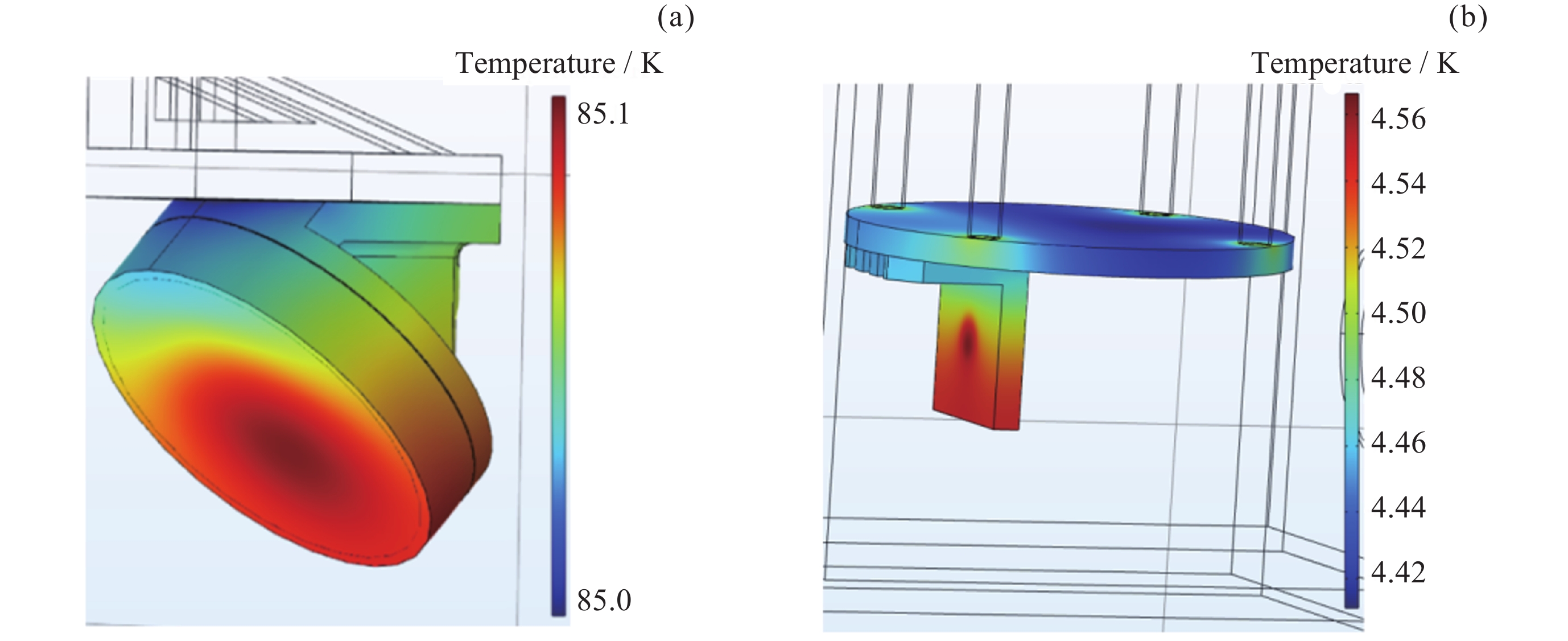

图 10 M4计算结果 (a) 与4 K温区计算结果 (b)
Figure 10. Calculation results of M4 (a) and 4 K temperature zone (b)

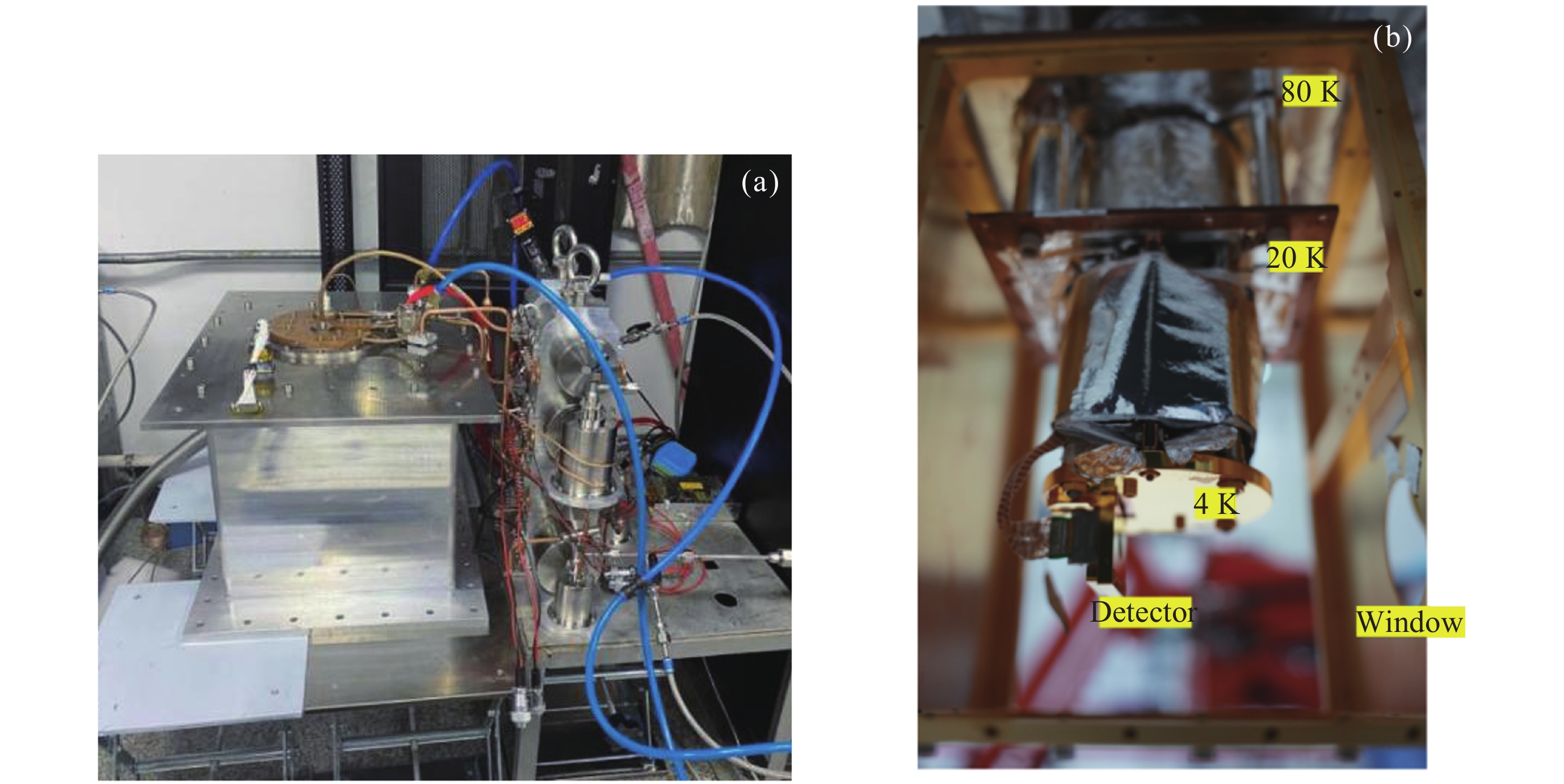

图 11 实验测试平台 (a) and 杜瓦内部结构 (b)
Figure 11. Experimental test platform (a), and internal structure of the Dewar (b)

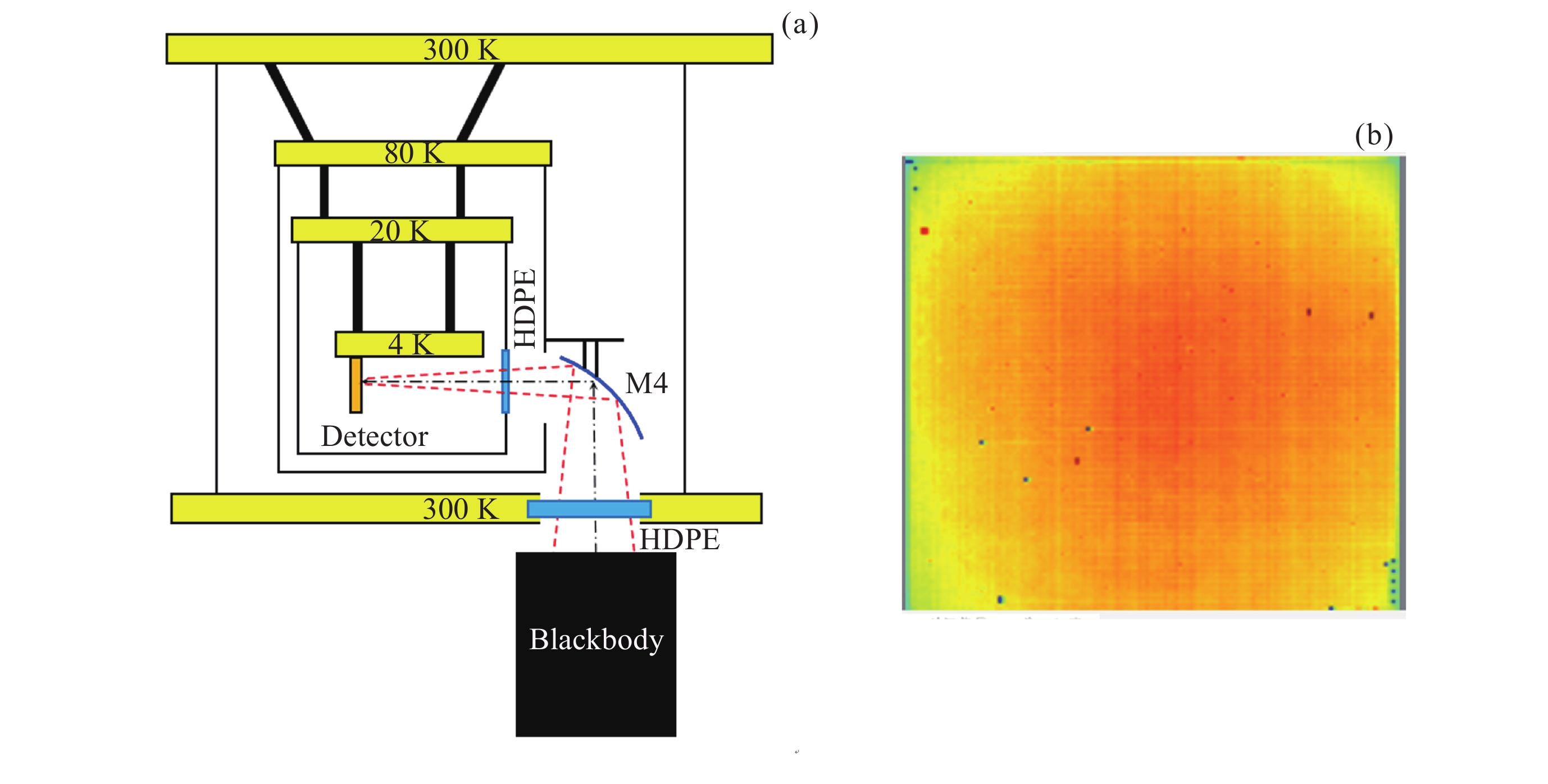

图 13 测试系统结构 (a)与成像结果(b)
Figure 13. Structural diagram of the test system (a) and imaging results (b)

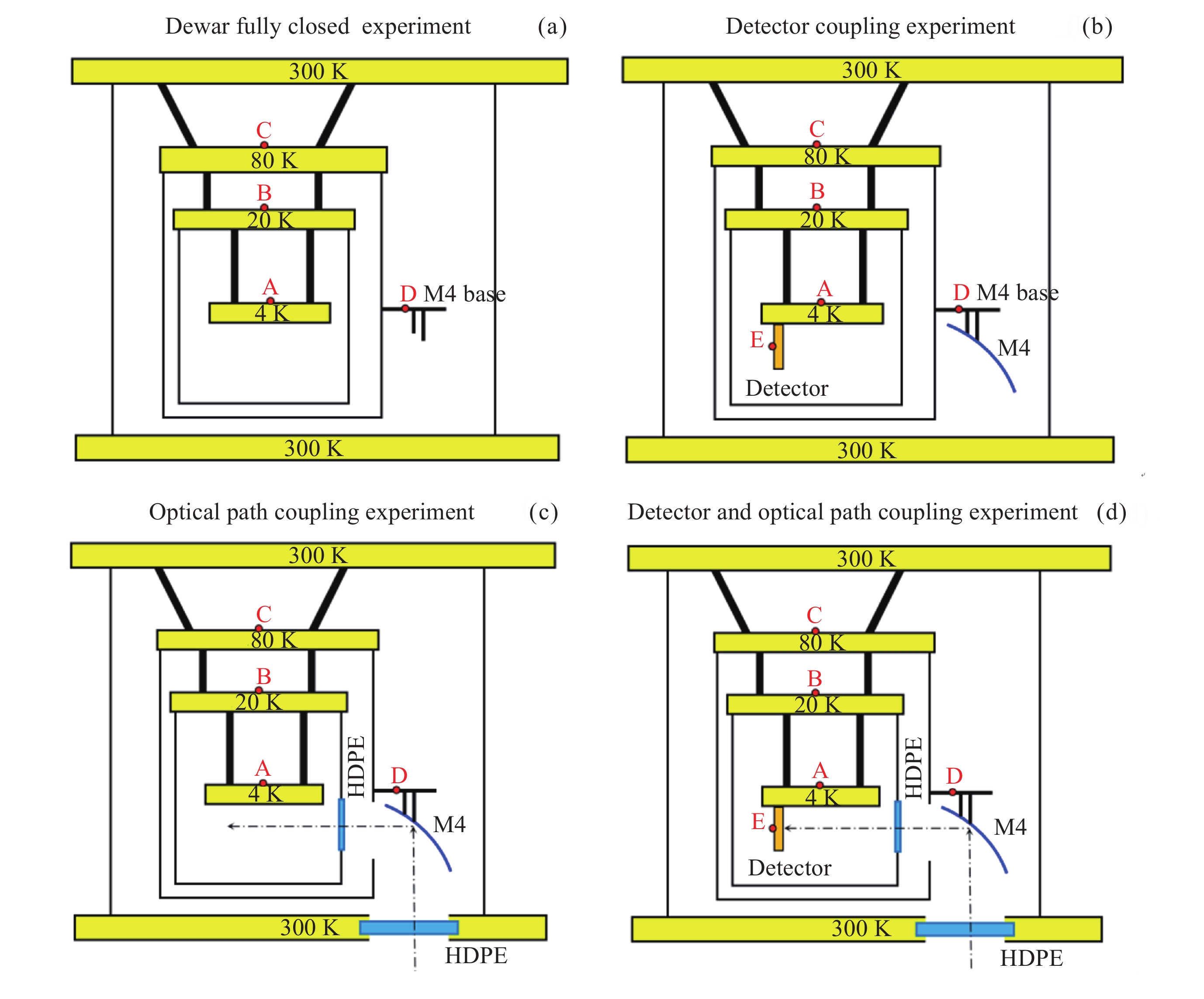

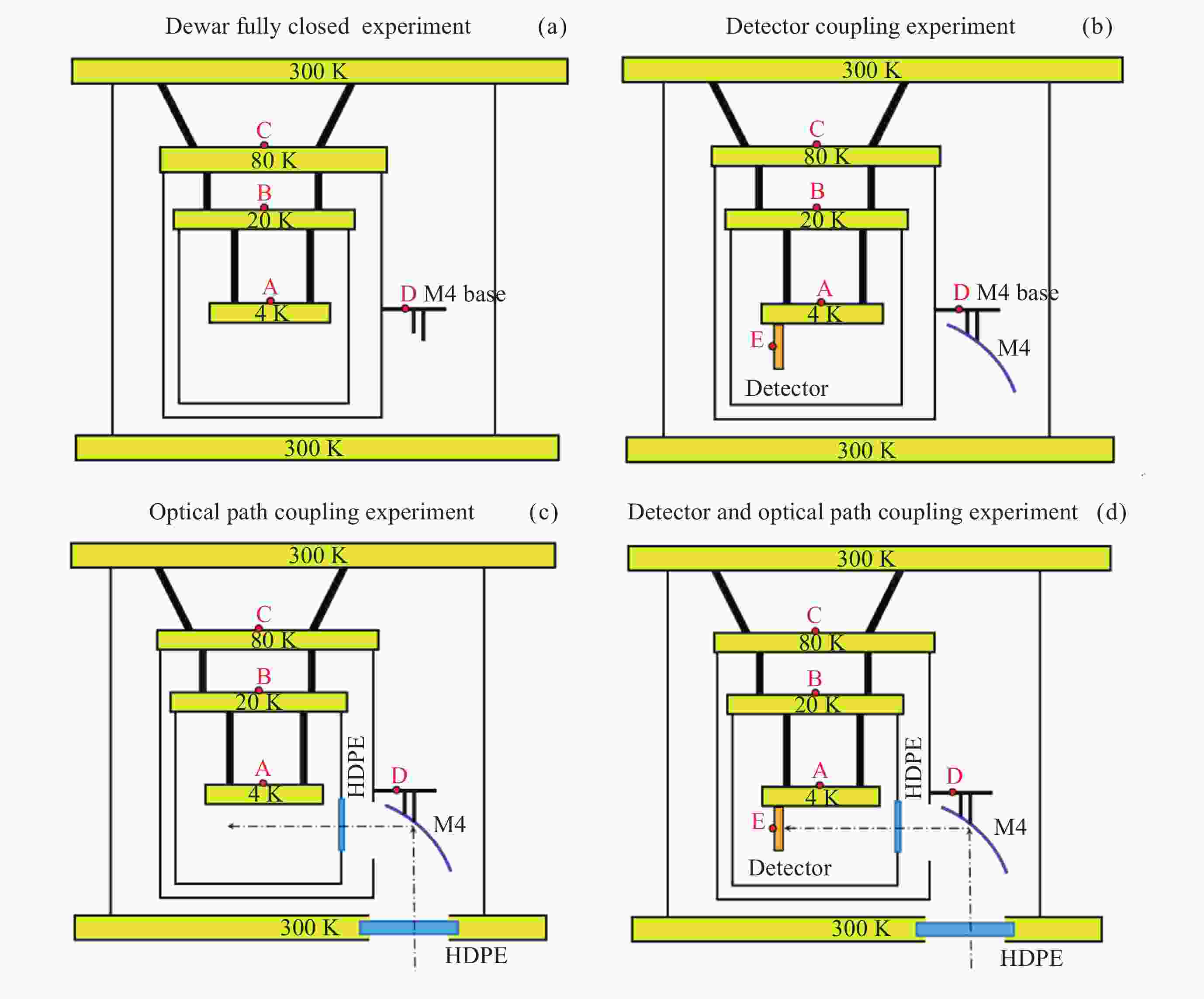

表 1 实验结果和仿真结果对比
Table 1. Comparison of experimental measurement results and simulating results
4 K cold plate
(Point A)20 K cold plate
(Point B)80 K cold plate
(Point C)M4
(Point D)Detector
(Point E)Fully closed Simulation/K 4.4 － 88.2 88.7 － Experiment/K 4.5 － 89.0 92.0 － Detector coupling Simulation/K 4.4 19.5 88.2 － － Experiment/K 4.6 20.6 89.0 － － Optical path coupling Simulation/K 4.4 19.8 83.0 85.0 － Experiment/K 4.4 20.2 88.0 90.0 － Detector and optical
path couplingSimulation/K 4.4 19.2 83.0 85.1 4.5 Experiment/K 4.7 19.6 88.0 90.4 4.4
下载: 导出CSV
表 2 4 K温区的模型计算结果与实验结果比较
Table 2. Comparison of theoretical calculations and experimental measurements at 4 K
Project Detector and optical path coupling Model calculation/mW 124.8 Experiment/mW 128.0 Cooling power/mW 130.0
下载: 导出CSV
-
[1] SIEGEL P H. Terahertz technology[J]. IEEE Transactions on Microwave Theory and Techniques, 2002, 50(3): 910-928 doi: 10.1109/22.989974 [2] 王振占, 王文煜, 董晓龙, 等. 太赫兹火星大气临边探测仿真研究[J]. 空间科学学报, 2021, 41(5): 778-786WANG Zhenzhan, WANG Wenyu, DONG Xiaolong, et al. Martian atmosphere study using THz limb sounder[J]. Chinese Journal of Space Science, 2021, 41(5): 778-786 [3] WERNER M W. The spitzer space telescope[J]. Optical Engineering, 2012, 51(1): 011008 doi: 10.1117/1.OE.51.1.011008 [4] GOLDSMITH P F, LIS D C. Early science results from the heterodyne instrument for the far infrared (HIFI) on the herschel space observatory[J]. IEEE Transactions on Terahertz Science and Technology, 2012, 2(4): 383-392 doi: 10.1109/TTHZ.2012.2200553 [5] GARDNER J P, MATHER J C, CLAMPIN M, et al. The James Webb space telescope[J]. Space Science Reviews, 2006, 123(4): 485-606 doi: 10.1007/s11214-006-8315-7 [6] PONTOPPIDAN K M, BARRIENTES J, BLOME C, et al. The JWST early release observations[J]. The Astrophysical Journal Letters, 2002, 936(1): L14 [7] 陈永和. 应用于中短波红外天文观测的空间低温光学系统研究[D]. 上海: 中国科学院大学, 2017CHEN Yonghe. Research on Space Cryogenic Optical System for SWIR/MWIR Astronomical Observation[D]. Shanghai: University Chinese Academy of Sciences, 2017 [8] 朱海勇, 陈俊林, 曾智江, 等. 长波红外制冷杜瓦组件杂散光分析[J]. 中国激光, 2024, 51(8): 223-233ZHU Haiyong, CHEN Junlin, ZENG Zhijiang, et al. Stray light analysis of long-wave infrared refrigeration dewar components[J]. Chinese Journal of Lasers, 2024, 51(8): 223-233 [9] 张智南. 基于利特罗结构的红外光谱成像仪低温光学关键技术研究[D]. 西安: 中国科学院大学, 2023ZHANG Zhinan. Key Technology of Cryogenic Optics of Littrow Infrared Imaging Spectrometer[D]. Xi’an: University Chinese Academy of Sciences, 2023 [10] 李明旭, 王书新, 刘强, 等. 空间冷光学长波红外相机的设计与验证[J]. 红外, 2022, 43(7): 21-28 doi: 10.3969/j.issn.1672-8785.2022.07.004LI Mingxu, WANG Shuxin, LIU Qiang, et al. Design and verification of the space-cold optical long-wave infrared camera[J]. Infrared, 2022, 43(7): 21-28 doi: 10.3969/j.issn.1672-8785.2022.07.004 [11] 刘庆志, 易桦, 江海, 等. 星载低温光学系统热控设计与飞行验证[J]. 中国光学(中英文), 2023, 16(3): 542-549 doi: 10.37188/CO.2022-0200LIU Qingzhi, YI Hua, JIANG Hai, et al. Thermal control design and flight test of a satellite-borne cryogenic optical system[J]. Chinese Optics, 2023, 16(3): 542-549 doi: 10.37188/CO.2022-0200 [12] LIU Ziyao, YANG Bin, PAN Zijie, et al. The thermal performance model of a 105 mW@4.41 K4He Joule-Thomson cryocooler designed for space applications[J]. Cryogenics, 2024, 144: 103965 doi: 10.1016/j.cryogenics.2024.103965 [13] 陈吴玉婷, 韩鹏昱, LING Kuomei, 等. 具有缓变折射率的太赫兹宽带增透器件[J]. 物理学报, 2012, 61(8): 088401 doi: 10.7498/aps.61.088401CHEN Wuyuting, HAN Pengyu, LING Kuomei, et al. Terahertz broadband antireflection photonic device with graded refractive indices[J]. Acta Physica Sinica, 2012, 61(8): 088401 doi: 10.7498/aps.61.088401 [14] TUTTLE J, CANAVAN E, DIPIRRO M. Thermal and electrical conductivity measurements of Cda 510 phosphor bronze[J]. AIP Conference Proceedings, 2010, 1219(1): 55-62 doi: 10.1063/1.3402333 -
-
