多组分离子镜像与回旋不稳定性研究进展
doi: 10.11728/cjss2026.05.2025-0176 cstr: 32142.14.cjss.2025-0176
-
马玉端 女, 1977年8月出生于河南省周口市, 北京航空航天大学空间与地球科学学院副教授, 主要研究方向为地球磁尾离子高速流、磁暴和亚暴. E-mail: ydma@buaa.edu.cn
作者简介:
Progress in Research on Mirror and Electromagnetic Cyclotron Instabilities of Multi-component Ions
-
摘要: 由离子垂直温度各向异性驱动的镜像(mirror)不稳定性和电磁离子回旋(EMIC)不稳定性在空间等离子体中普遍存在, 且在亚暴、磁暴的演化过程中具有非常重要的作用. 本文概述了磁流体力学和动理论下两种不稳定性物理机制, 回顾了单一离子成分(质子)条件下两种不稳定性的基础理论研究成果; 进一步梳理了多组分离子中两种不稳定性的研究进展, 重点探讨了地球磁层中重离子(He+, O+)的引入对两种不稳定性产生的影响; 总结了多组分等离子体中不稳定性阈值与增长率的理论推导及数值模拟成果, 分析了当前研究中存在的挑战, 并对未来理论研究、数值模拟和卫星观测提出展望, 以期全面揭示多离子组分中该两种不稳定性的调控作用及其在全局动理学中的意义.
-
关键词:
- 多组分离子 /
- 温度各向异性 /
- 镜像不稳定性 /
- 电磁离子回旋不稳定性 /
- 增长率
Abstract: The mirror instability and Electromagnetic Ion Cyclotron (EMIC) instability, driven by ion perpendicular temperature anisotropy, are ubiquitous in space plasmas and play important roles in the evolution of substorms and storms. This paper outlines the physical mechanisms of these two instabilities based on Magnetohydrodynamics (MHD) and kinetic theory, and reviews the fundamental theoretical research results on the two instabilities under the condition of a single ion component (proton). EMIC waves are propagating waves below the proton cyclotron frequency along field-line resonances. In an electron- proton plasma, the waves are left-hand circularly polarized, or more generally left-hand elliptically polarized for propagation at an angle to the background field. In a multi-ion plasma, such as the magnetosphere, there are stop bands where no left-hand polarized waves are possible and bands where the waves are right-hand or right-hand elliptically polarized. Mirror modes are magnetic and plasma pressure fluctuations that are driven by proton temperature anisotropy instabilities. The wave magnetic pressure and plasma pressure are 180° out of phase with each other so there is a total pressure balance across the train of structures. Progress on the two types of instabilities in multi-component ions was further reviewed with a focus on exploring the impact of the heavy ions (He+,O+) in the terrestrial magnetosphere on these two types of instability. The theoretical derivation and numerical simulation related to instability thresholds and growth rates in multi-ion plasmas were summarized, and challenges in current research were analyzed including but not limited to non-Maxwellian ion distributions and nonlinear evolution of instability. To comprehensively reveal the regulatory effects of multi-ion components on these two types of instability and their significance in global kinetics, future research requires a combination of more systematic theories, advanced numerical simulations, and more satellite observations, which will provide important basis for a deeper understanding of energy transport and wave particle interactions in space plasma. -

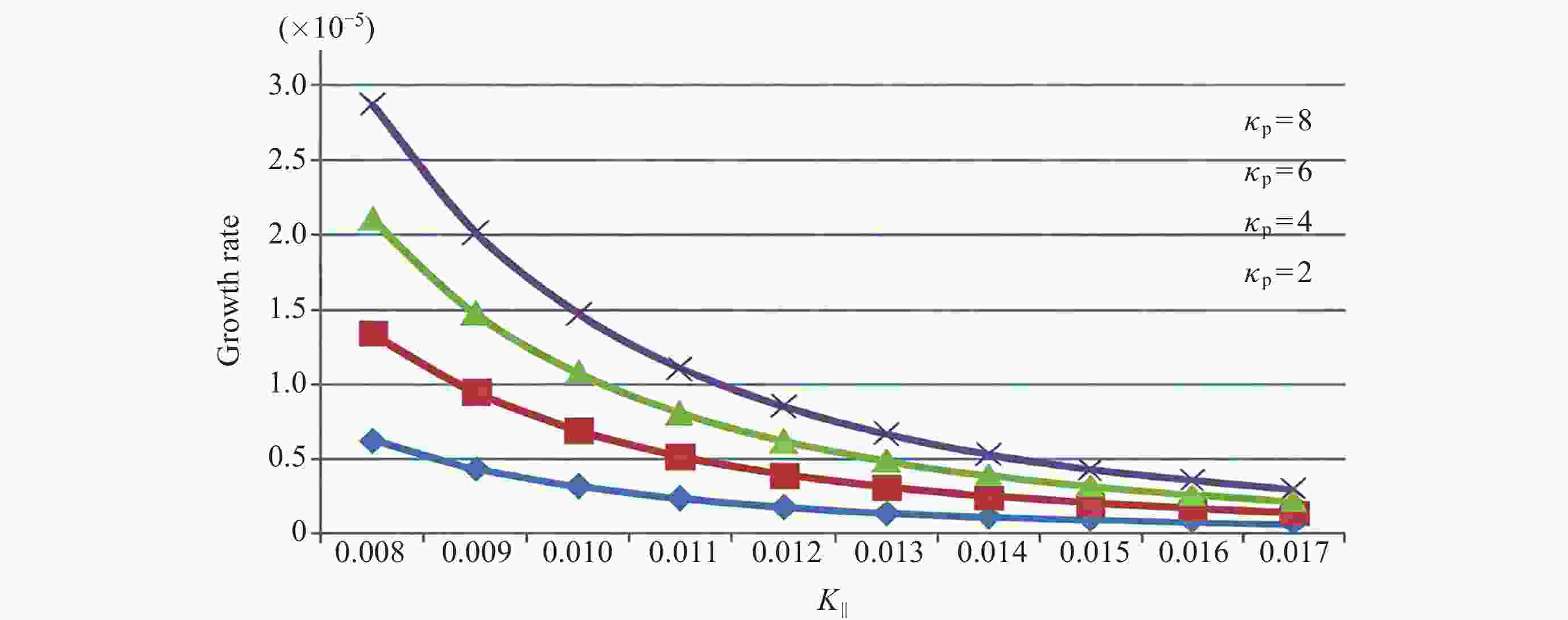

图 3 在$ {n}_{{{\text{H}}^{+}}}=0.9 $, $ {n}_{{{\text{He}}^{+}}}=0.9 $, $ {n}_{{{\text{o}}^{+}}}=0.9 $和$ {T}_{\bot }/{T}_{\parallel }=8 $时不同$ {\kappa }_{\text{p}} $指数下增长率与波矢$ {K}_{\parallel } $的变化[51]
Figure 3. Variation of growth rate versus wave vector $ {K}_{\parallel } $ for different values of distribution indices $ {\kappa }_{\text{p}} $, at particle density $ {n}_{{{\text{H}}^{+}}}=0.9 $, $ {n}_{{{\text{He}}^{+}}}=0.9 $, $ {n}_{{{\text{o}}^{+}}}=0.9 $ and $ {T}_{\bot }/{T}_{\parallel }=8 $[51]

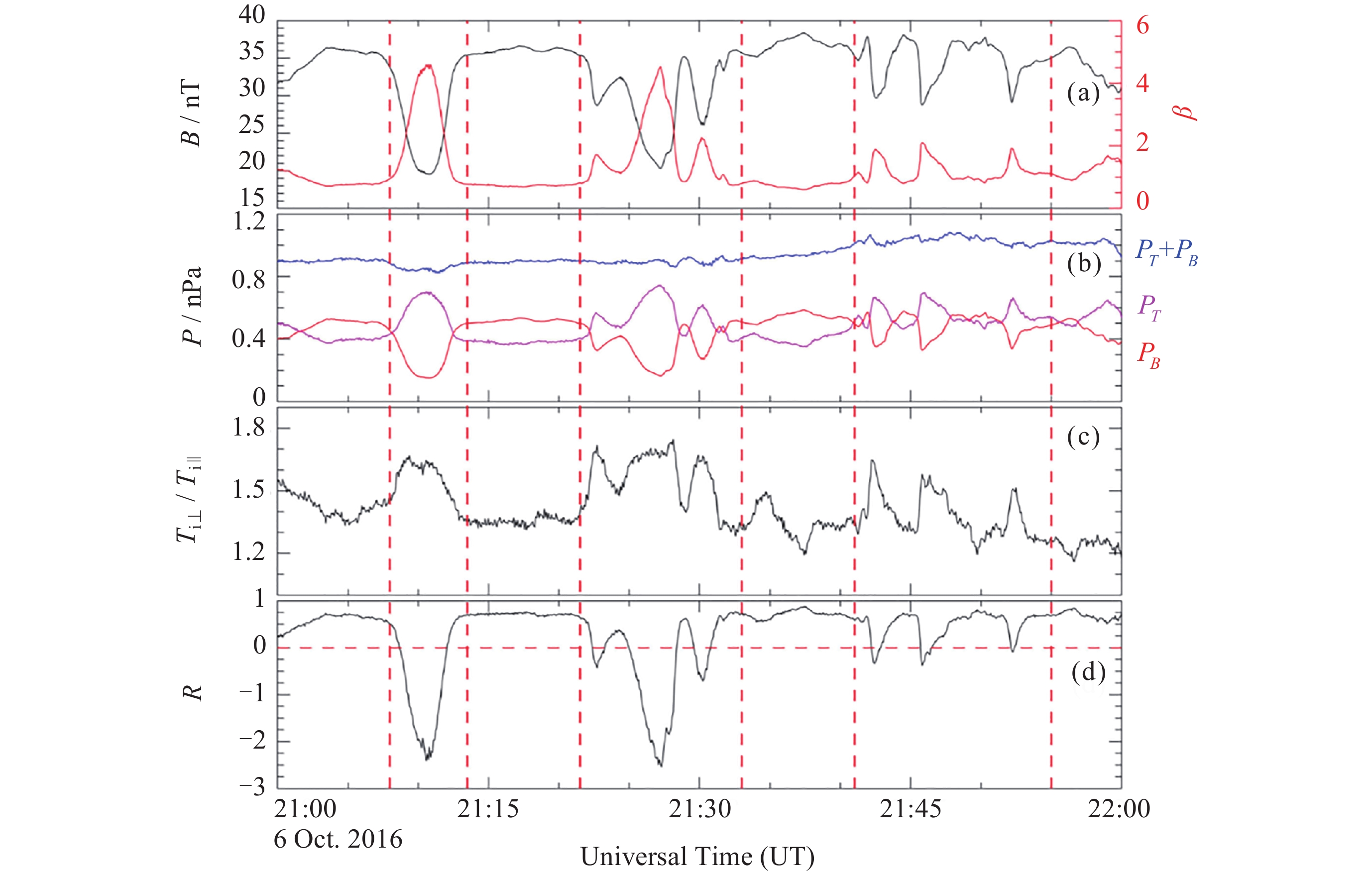

图 4 (a)磁场强度(黑线)和离子$ \beta $值(红线); (b)热压(品红线), 磁压(红线)和总压(蓝线); (c)离子温度各向异性; (d)镜像不稳定性阈值$ R $[57]
Figure 4. (a) Magnetic field strength (black) and ion plasma β (red), (b) thermal pressure (magenta), magnetic pressure (red), and their summation (blue), (c) temperature anisotropy of ions, (d) threshold of mirror mode instability[57]
-
[1] HASEGAWA A. Drift mirror instability in the magnetosphere[J]. Physics of Fluids, 1969, 12(12): 2642-2650 doi: 10.1063/1.1692407 [2] KENNEL C F, PETSCHEK H E. Limit on stably trapped particle fluxes[J]. Journal of Geophysical Research: Space Physics, 1966, 71(1): 1-28 doi: 10.1029/JZ071i001p00001 [3] KENNEL C F, SCARF F L. Thermal anisotropies and electromagnetic instabilities in the solar wind[J]. Journal of Geophysical Research: : Space Physics, 1968, 73(19): 6149-6165 doi: 10.1029/JA073i019p06149 [4] LIU W, JIA H Y, LIU S M. Effects of ion temperature anisotropy on ion-scale waves’ generation in the near-sun solar wind: parker solar probe observations[J]. The Astrophysical Journal Letters, 2025, 983(2): L35 doi: 10.3847/2041-8213/adbdcc [5] YOON P H, LAZAR M, SALEM C, et al. Boundary of the distribution of solar wind proton beta versus temperature anisotropy[J]. The Astrophysical Journal, 2024, 969(2): 77 doi: 10.3847/1538-4357/ad47f1 [6] DIMMOCK A P, YORDANOVA E, GRAHAM D B, et al. Mirror mode storms observed by Solar Orbiter[J]. Journal of Geophysical Research: Space Physics, 2022, 127(11): e2022JA030754 doi: 10.1029/2022JA030754 [7] POKHOTELOV O A, TREUMANN R A, SAGDEEV R Z, et al. Linear theory of the mirror instability in non-Maxwellian space plasmas[J]. Journal of Geophysical Research: Space Physics, 2002, 107(A10): 1312 doi: 10.1029/2001JA009125 [8] GU S J, COWEE M, FU X R, et al. The role of cold oxygen ions in the EMIC wave growth[J]. Journal of Geophysical Research: Space Physics, 2025, 130(6): e2024JA033661 doi: 10.1029/2024JA033661 [9] SIMON WEDLUND C, MAZELLE C, MEZIANE K, et al. Local generation of mirror modes by pickup protons at Mars[J]. Journal of Geophysical Research: Space Physics, 2025, 130(1): e2024JA033275 doi: 10.1029/2024JA033275 [10] POKHOTELOV O A, SAGDEEV R Z, BALIKHIN M A, et al. Nonlinear mirror waves in non-Maxwellian space plasmas[J]. Journal of Geophysical Research: Space Physics, 2008, 113(A4): A04225 doi: 10.1029/2007JA012642 [11] HESSE M, BIRN J. MHD modeling of magnetotail instability for anisotropic pressure[J]. Journal of Geophysical Research: Space Physics, 1992, 97(A7): 10643-10654 doi: 10.1029/92JA00793 [12] MCKEAN M E, GARY S P, WINSKE D. Kinetic physics of the mirror instability[J]. Journal of Geophysical Research: Space Physics, 1993, 98(A12): 21313-21321 doi: 10.1029/93JA01993 [13] SOUTHWOOD D J, KIVELSON M G. Mirror instability: 1. Physical mechanism of linear instability[J]. Journal of Geophysical Research: Space Physics, 1993, 98(A6): 9181-9187 doi: 10.1029/92JA02837 [14] AHMADI N, GERMASCHEWSKI K, RAEDER J. Effects of electron temperature anisotropy on proton mirror instability evolution[J]. Journal of Geophysical Research: Space Physics, 2016, 121(6): 5350-5365 doi: 10.1002/2016JA022429 [15] POKHOTELOV O A, SAGDEEV R Z, BALIKHIN M A, et al. Mirror instability at finite ion-Larmor radius wavelengths[J]. Journal of Geophysical Research: Space Physics, 2004, 109(A9): A09213 doi: 10.1029/2004JA010568 [16] SHAABAN S M, LAZAR M, ASTFALK P, et al. Stimulated mirror instability from the interplay of anisotropic protons and electrons, and their suprathermal populations[J]. Journal of Geophysical Research: Space Physics, 2018, 123(3): 1754-1766 doi: 10.1002/2017JA025066 [17] LEUBNER M P, SCHUPFER N. Mirror instability thresholds in suprathermal space plasmas[J]. Journal of Geophysical Research: Space Physics, 2000, 105(A12): 27387-27391 doi: 10.1029/1999JA000447 [18] JUN C W, MIYOSHI Y, HORI T, et al. Arase in situ observations of high-frequency electromagnetic ion cyclotron (EMIC) waves in regions close to the Earth during the May 2024 storm[J]. Geophysical Research Letters, 2025, 52(7): e2024GL112489 doi: 10.1029/2024GL112489 [19] REMYA B, HALFORD A J, NOH S J, et al. (Un)explained EMIC waves: understanding quiet time EMIC wave drivers[J]. Journal of Geophysical Research: Space Physics, 2025, 130(8): e2024JA033125 doi: 10.1029/2024JA033125 [20] XUE Z X, YUAN Z G, YU X D, et al. Enhanced solar wind dynamic pressure as a driver of low-energy proton temperature anisotropies and high-frequency EMIC waves[J]. Journal of Geophysical Research: Space Physics, 2023, 128(9): e2023JA031929 doi: 10.1029/2023JA031929 [21] ENGEBRETSON M J, POSCH J L, CAPMAN N S S, et al. MMS, Van Allen Probes, GOES 13, and ground-based magnetometer observations of EMIC wave events before, during, and after a modest interplanetary shock[J]. Journal of Geophysical Research: Space Physics, 2018, 123(10): 8331-8357 doi: 10.1029/2018JA025984 [22] THORNE R M, HORNE R B. The contribution of ion-cyclotron waves to electron heating and SAR-arc excitation near the storm-time plasmapause[J]. Geophysical Research Letters, 1992, 19(4): 417-420 doi: 10.1029/92GL00089 [23] YUAN Z G, XIONG Y, HUANG S Y, et al. Cold electron heating by EMIC waves in the plasmaspheric plume with observations of the Cluster satellite[J]. Geophysical Research Letters, 2014, 41(6): 1830-1837 doi: 10.1002/2014GL059241 [24] KIM K H, JUN C W, KWON J W, et al. Observation and numerical simulation of cold ions energized by EMIC waves[J]. Journal of Geophysical Research: Space Physics, 2024, 129(5): e2023JA032361 doi: 10.1029/2023JA032361 [25] JORDANOVA V K, FARRUGIA C J, THORNE R M, et al. Modeling ring current proton precipitation by electromagnetic ion cyclotron waves during the May 14-16, 1997, storm[J]. Journal of Geophysical Research: Space Physics, 2001, 106(A1): 7-22 doi: 10.1029/2000JA002008 [26] MA Q, LI W, BORTNIK J, et al. Diffusive and nonlinear scattering of ring current protons by electromagnetic ion cyclotron waves in the earth's inner magnetosphere[J]. Journal of Geophysical Research: Space Physics, 2025, 130(8): e2025JA034078 doi: 10.1029/2025JA034078 [27] GRACH V S, ARTEMYEV A V, DEMEKHOV A G, et al. Electron precipitation driven by EMIC waves: Two types of energy dispersion[J]. Geophysical Research Letters, 2024, 51(9): e2023GL107604 doi: 10.1029/2023GL107604 [28] YAN Y, YUE C, YIN Z F, et al. Amplitude-dependent properties and excitation mechanisms of EMIC waves in the Earth's inner magnetosphere[J]. Journal of Geophysical Research: Space Physics, 2023, 128(7): e2023JA031451 doi: 10.1029/2023JA031451 [29] GARY S P, FUSELIER S A, ANDERSON B J. Ion anisotropy instabilities in the magnetosheath[J]. Journal of Geophysical Research: Space Physics, 1993, 98(A2): 1481-1488 doi: 10.1029/92JA01844 [30] GARY S P, LEE M A. The ion cyclotron anisotropy instability and the inverse correlation between proton anisotropy and proton beta[J]. Journal of Geophysical Research: Space Physics, 1994, 99(A6): 11297-11301 doi: 10.1029/94JA00253 [31] GOMBEROFF L, VEGA P. Effect of He+ temperature and thermal anisotropy on the electromagnetic ion cyclotron instability in the geosynchronous region of GEOS‐2[J]. Journal of Geophysical Research: Space Physics, 1987, 92(A7): 7728-7732 doi: 10.1029/JA092iA07p07728 [32] FRASER B J, SAMSON J C, HU Y D, et al. Electromagnetic ion cyclotron waves observed near the oxygen cyclotron frequency by ISEE 1 and 2[J]. Journal of Geophysical Research: Space Physics, 1992, 97(A3): 3063-3074 doi: 10.1029/91JA02447 [33] GEDALIN M, BALIKHIN M, STRANGEWAY R J, et al. Long-wavelength mirror modes in multispecies plasmas with arbitrary distributions[J]. Journal of Geophysical Research: Space Physics, 2002, 107(A2): 1018 doi: 10.1029/2001JA000178 [34] HELLINGER P. Comment on the linear mirror instability near the threshold[J]. Physics of Plasmas, 2007, 14(8): 082105 doi: 10.1063/1.2768318 [35] GARY S P. The mirror and ion cyclotron anisotropy instabilities[J]. Journal of Geophysical Research: Space Physics, 1992, 97(A6): 8519-8529 doi: 10.1029/92JA00299 [36] CHENG I, ACHILLEOS N, BLANCO-CANO X, et al. Waves and instabilities in Saturn's magnetosheath: 2. Dispersion relation analysis[J]. Journal of Geophysical Research: Space Physics, 2024, 129(10): e2024JA032585 doi: 10.1029/2024JA032585 [37] HUDDLESTON D E, STRANGEWAY R J, BLANCO-CANO X, et al. Mirror-mode structures at the Galileo-Io flyby: Instability criterion and dispersion analysis[J]. Journal of Geophysical Research: Space Physics, 1999, 104(A8): 17479-17489 doi: 10.1029/1999JA900195 [38] REMYA B, REDDY R V, TSURUTANI B T, et al. Ion temperature anisotropy instabilities in planetary magnetosheaths[J]. Journal of Geophysical Research: Space Physics, 2013, 118(2): 785-793 doi: 10.1002/jgra.50091 [39] GUO X D, WANG T Y, ZHAO J S, et al. Excitation of mirror mode waves and whistler waves in space plasmas[J]. Journal of Geophysical Research: Space Physics, 2025, 130(8): e2025JA034084 doi: 10.1029/2025JA034084 [40] NOWROUZI N, KISTLER L M, ZHAO K, et al. The variation of ionospheric O+ and H+ outflow on storm timescales[J]. Journal of Geophysical Research: Space Physics, 2023, 128(11): e2023JA031786 doi: 10.1029/2023JA031786 [41] YOUNG D T, PERRAUT S, ROUX A, et al. Wave-particle interactions near ΩHe+ observed on GEOS 1 and 2: 1. Propagation of ion cyclotron waves in He+-rich plasma[J]. Journal of Geophysical Research: Space Physics, 1981, 86(A8): 6755-6772 doi: 10.1029/JA086iA08p06755 [42] GOMBEROFF L, NEIRA R. Convective growth rate of ion cyclotron waves in a H+− He+ and H+− He+− O+ plasma[J]. Journal of Geophysical Research: Space Physics, 1983, 88(A3): 2170-2174 doi: 10.1029/JA088iA03p02170 [43] KOZYRA J U, CRAVENS T E, NAGY A F, et al. Effects of energetic heavy ions on electromagnetic ion cyclotron wave generation in the plasmapause region[J]. Journal of Geophysical Research: Space Physics, 1984, 89(A4): 2217-2233 doi: 10.1029/JA089iA04p02217 [44] GARY S P, THOMSEN M F, YIN L, et al. Electromagnetic proton cyclotron instability: interactions with magnetospheric protons[J]. Journal of Geophysical Research: Space Physics, 1995, 100(A11): 21961-21972 doi: 10.1029/95JA01403 [45] HU Y, DENTON R E, JOHNSON J R. Two-dimensional hybrid code simulation of electromagnetic ion cyclotron waves of multi-ion plasmas in a dipole magnetic field[J]. Journal of Geophysical Research: Space Physics, 2010, 115(A9): A09218 doi: 10.1029/2009JA015158 [46] OMIDI N, BORTNIK J, THORNE R, et al. Impact of cold O+ ions on the generation and evolution of EMIC waves[J]. Journal of Geophysical Research: Space Physics, 2013, 118(1): 434-445 doi: 10.1029/2012JA018319 [47] DENTON R E, JORDANOVA V K, FRASER B J. Effect of spatial density variation and O+ concentration on the growth and evolution of electromagnetic ion cyclotron waves[J]. Journal of Geophysical Research: Space Physics, 2014, 119(10): 8372-8395 doi: 10.1002/2014JA020384 [48] OFMAN L, DENTON R E, BORTNIK J, et al. Growth and nonlinear saturation of electromagnetic ion cyclotron waves in multi-ion species magnetospheric plasma[J]. Journal of Geophysical Research: Space Physics, 2017, 122(6): 6469-6484 doi: 10.1002/2017JA024172 [49] ZHU M H, YU Y Q, JORDANOVA V K. Simulating the effects of warm O+ ions on the growth of electromagnetic ion cyclotron (EMIC) waves[J]. Journal of Atmospheric and Solar-Terrestrial Physics, 2021, 224: 105737 doi: 10.1016/j.jastp.2021.105737 [50] SAUER K, DUBININ E. Multi-ion oscillations—Origin of coherent magnetospheric EMIC waves[J]. Journal of Geophysical Research: Space Physics, 2022, 127(10): e2022JA030925 doi: 10.1029/2022JA030925 [51] BHAISANIYAR, AHIRWARG. The Kappa distribution function's impact on EMIC waves in multi-ions magneto-plasma[J]. Indian Journal of Physics, 2025, 99(13): 5275-5283 doi: 10.1007/s12648-025-03665-2 [52] RIZWAN S T, QURESHI M N S. Investigation of EMIC instability in the inner magnetosphere using observed ion velocity distributions from cluster observations[J]. Physics of Plasmas, 2025, 32(10): 102103 doi: 10.1063/5.0283467 [53] LOU Y Q, CAO X, WU M Y, et al. Scalings for the Alfvén-cyclotron instability in a bi-kappa plasma[J]. Earth and Planetary Physics, 2023, 7(6): 631-639 doi: 10.26464/epp2023080 [54] BORTNIK J, OMIDI N, CHEN L, et al. Saturation characteristics of electromagnetic ion cyclotron waves[J]. Journal of Geophysical Research: Space Physics, 2011, 116(A9): A09219 doi: 10.1029/2011JA016638 [55] NOH S J, LEE D Y, KIM H, et al. Upper limit of proton anisotropy and its relation to electromagnetic ion cyclotron waves in the inner magnetosphere[J]. Journal of Geophysical Research: Space Physics, 2021, 126(5): e2020JA028614 doi: 10.1029/2020JA028614 [56] SIMON WEDLUND C, VOLWERK M, MAZELLE C, et al. Making waves: mirror mode structures around mars observed by the maven spacecraft[J]. Journal of Geophysical Research: Space Physics, 2022, 127(1): e2021JA029811 doi: 10.1029/2021JA029811 [57] LIU X M, YU J, CHEN ZZ, et al. Simultaneous observations of mirror mode structures and electromagnetic ion cyclotron waves in the Earth's outer magnetosphere[J]. Journal of Geophysical Research: Space Physics 2024, 129(11): e2024JA032951. DOI: 10.1029/2024JA032951 [58] SHREEDEVI P R, YU Y Q, MIYOSHI Y, et al. Global distribution of EMIC waves and its association to subauroral proton precipitation during the 27 May 2017 storm: modeling and multipoint observations[J]. Journal of Geophysical Research: Space Physics, 2024, 129(6): e2023JA032337 doi: 10.1029/2023JA032337 [59] LEE J H, TURNER D L, TOLEDO-REDONDO S, et al. MMS measurements and modeling of peculiar electromagnetic ion cyclotron waves[J]. Geophysical Research Letters, 2019, 46(21): 11622-11631 doi: 10.1029/2019GL085182 [60] LIU X, CHEN L J, SUN J C, et al. A parametric study of oxygen ion cyclotron harmonic wave excitation and polarization by an oxygen ring distribution[J]. Journal of Geophysical Research: Space Physics, 2022, 127(11): e2022JA030828 doi: 10.1029/2022JA030828 [61] JIANG W C, LI H, YANG Z W, et al. Spatial dependence of ion-kinetic instabilities in the Earth's magnetosheath: MMS observations[J]. Journal of Geophysical Research: Space Physics, 2025, 130(3): e2024JA033463 doi: 10.1029/2024JA033463 [62] COOPER M B, GERRARD A J, LANZEROTTI L J, et al. Mirror instabilities in the inner magnetosphere and their potential for localized ULF wave generation[J]. Journal of Geophysical Research: Space Physics, 2021, 126(2): e2020JA028773 doi: 10.1029/2020JA028773 [63] BILAL M, AMAN-UR-REHMAN, SHAHZAD M A, et al. EMIC mode instability stimulated by non-thermal non-extensive particles in non-equilibrium bi-Cairns–Tsallis distributed magnetized plasmas[J]. The European Physical Journal Plus, 2024, 139(11): 1029 doi: 10.1140/epjp/s13360-024-05826-4 [64] CHEN H Y, GAO X L, LU Q M, et al. Analyzing EMIC waves in the inner magnetosphere using long-term Van Allen Probes observations[J]. Journal of Geophysical Research: Space Physics, 2019, 124(9): 7402-7412 doi: 10.1029/2019JA026965 -
-
