基于子午工程GNSS数据的中国电离层空间天气同化系统
doi: 10.11728/cjss2026.05.2025-0182 cstr: 32142.14.cjss.2025-0182
-
阿尔察 蒙古族, 1984年11月出生于内蒙古呼和浩特, 中国科学院国家空间科学中心研究员, 主要研究方向为电离层物理与空间天气. E-mail: aercha@nssc.ac.cn
作者简介:
An Ionospheric Space-Weather Data Assimilation System over China Based on Meridian Project GNSS Measurements
-
摘要: 国家重大科技基础设施子午工程二期的建成并通过国家验收, 为电离层空间天气研究和业务应用提供了有力支撑. 基于子午工程GNSS观测, 构建了中国电离层空间天气新一代同化系统. 该系统依托子午工程及国际GNSS服务组织等85个稳定运行的观测台站, 融合GPS、GLONASS、北斗、伽利略四大GNSS系统多模观测数据作为驱动, 采用三维变分同化方法, 生成覆盖中国及周边区域(15°－55°N, 70°－140°E)的高精度空间天气业务化地图, 有效提升了对电离层扰动特征的精细化重构能力. 该同化系统可以提供网格点TEC、差分TEC、ROTI指数等电离层空间天气数据, 时空分辨率1°×1°×15 min, 并在中国科学院国家空间科学中心——空间环境预报中心网站(
http://www.sepc.ac.cn/TEC_chn.php )发布. 该同化系统可用于中国区域电离层空间环境精细化监测, 也为精准分析电离层空间天气多尺度变化特性和机理提供了重要支撑, 同时还为短波通信、雷达成像、卫星导航、空间环境现报等工程和应用领域提供了及时、准确、有效的电离层空间天气变化信息与误差修正.Abstract: The successful deployment and national acceptance of the second phase of the Chinese Meridian Project (CMP), a major national scientific and technological infrastructure, signify a substantial leap forward in China’s space environment monitoring capabilities. In particular, CMP’s ionospheric monitoring network has greatly strengthened both research and operational capabilities in ionospheric space weather. This study presents a new-generation ionospheric space weather data assimilation system for China and adjacent regions, based on GNSS observations from the CMP. Leveraging stable and robust data from 85 GNSS stations from CMP and the International GNSS Service, the system integrates multi-constellation GNSS measurements from GPS, GLONASS, BeiDou, and Galileo as input and employs a three-dimensional variational assimilation approach. It generates high-precision and operational ionospheric space weather products, represented by ionospheric TEC, covering China and adjacent regions (15°－55°N, 70°－140°E), which significantly improves the ability to reconstruct and characterize ionospheric disturbances over China. This data assimilation system can provide diverse ionospheric space weather products, including gridded TEC, ΔTEC, and the Rate of TEC change Index (ROTI), with a high spatial-temporal resolution of 1°×1°×15 min. These ionospheric products are routinely updated and publicly available via the website of the Space Environment Prediction Center (http://www.sepc.ac.cn/TEC_chn.php ) at the National Space Science Center, Chinese Academy of Sciences. Beyond enabling high-fidelity monitoring of the ionospheric space environment over China and adjacent regions, this system also supports in-depth investigation of multi-scale ionospheric variations and irregularity characteristics. In addition, it delivers timely, accurate, and effective ionospheric space weather information and error correction for shortwave communication, radar imaging, satellite navigation, and space weather nowcasting.-
Key words:
- Ionospheric TEC /
- Meridian Project /
- Data assimilation /
- Space weather /
- China and adjacent regions
-

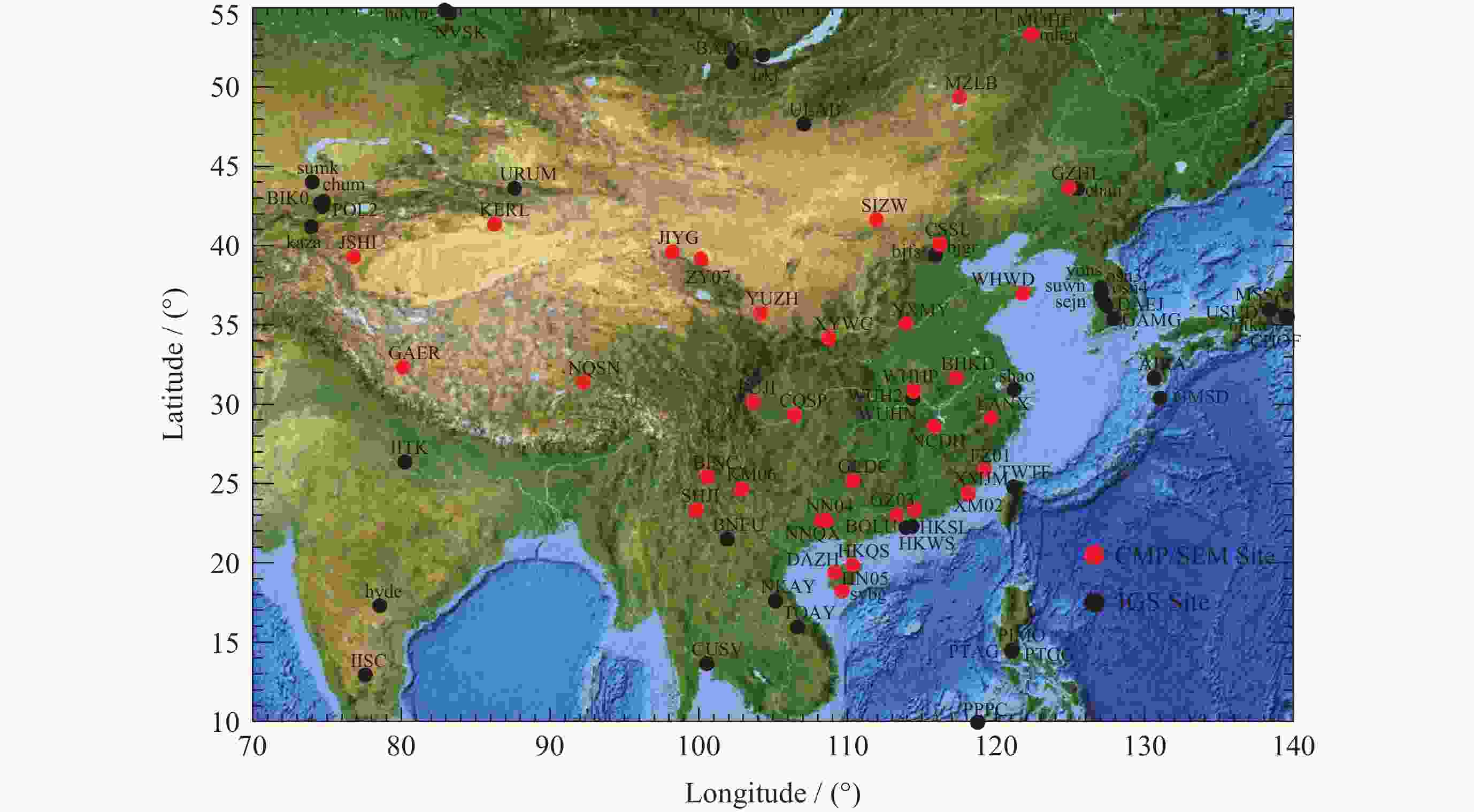

图 1 电离层同化系统使用的中国及周边区域GNSS台站分布
Figure 1. GNSS Stations used in ionospheric data assimilation over China and its adjacent regions

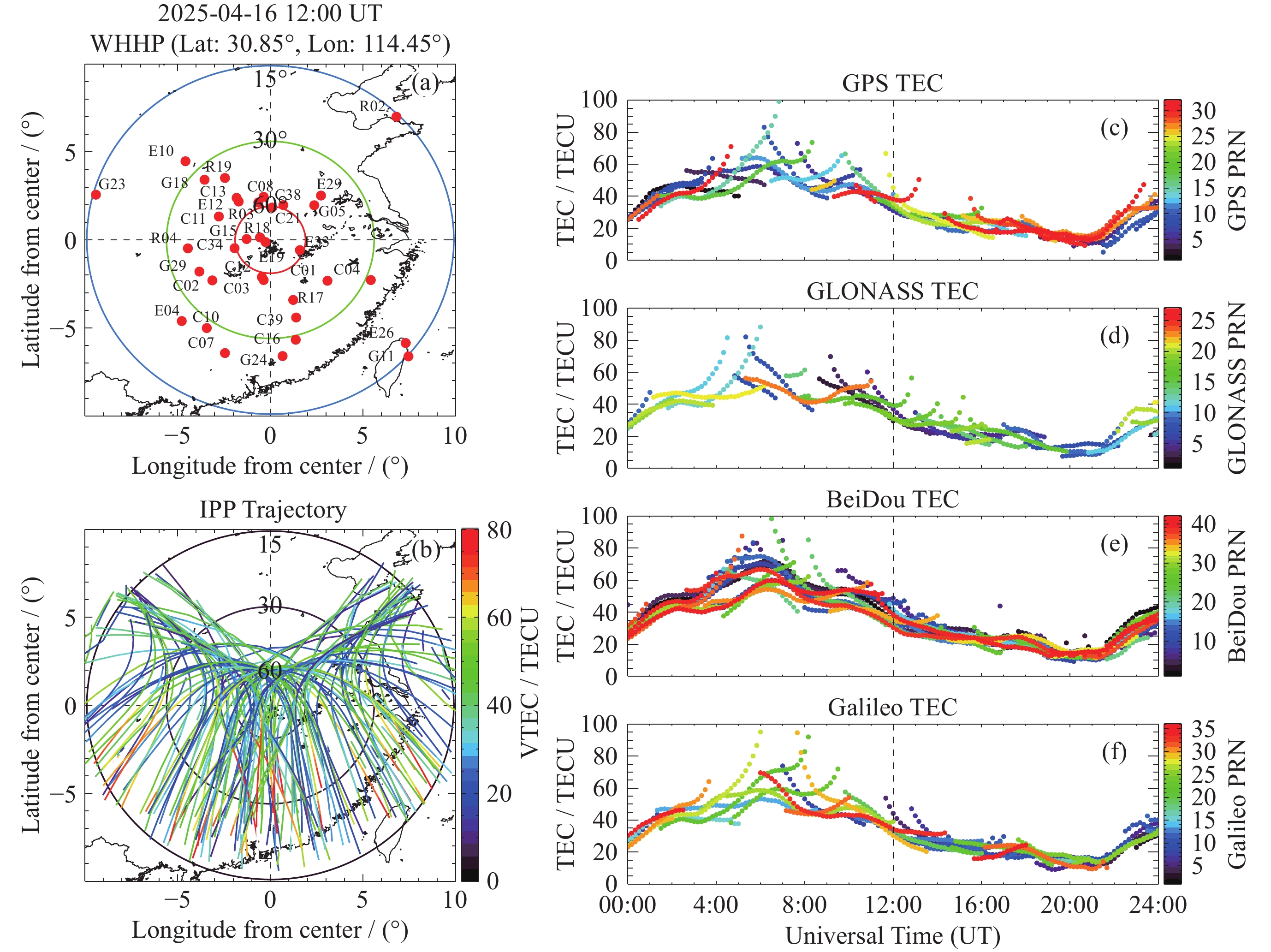

图 2 以WHHP台站为例的GNSS多系统电离层穿刺点(IPP)与TEC观测. (a) 2025年4月16日12:00 UT的IPP分布; (b) 当日电离层穿刺点轨迹叠加; (c)～(f) GPS, GLONASS, 北斗, Galileo观测的垂直TEC日变化
Figure 2. Schematic diagram of Ionospheric Pierce Points (IPPs) and TEC observations from multiple GNSS systems at the WHHP station. (a) Spatial distribution of IPPs at 12:00 UT on 16 April 2025, (b) superposition of diurnal IPP trajectories for the day, (c)～(f) diurnal variation of vertical TEC derived from GPS, GLONASS, BeiDou, and Galileo systems, respectively

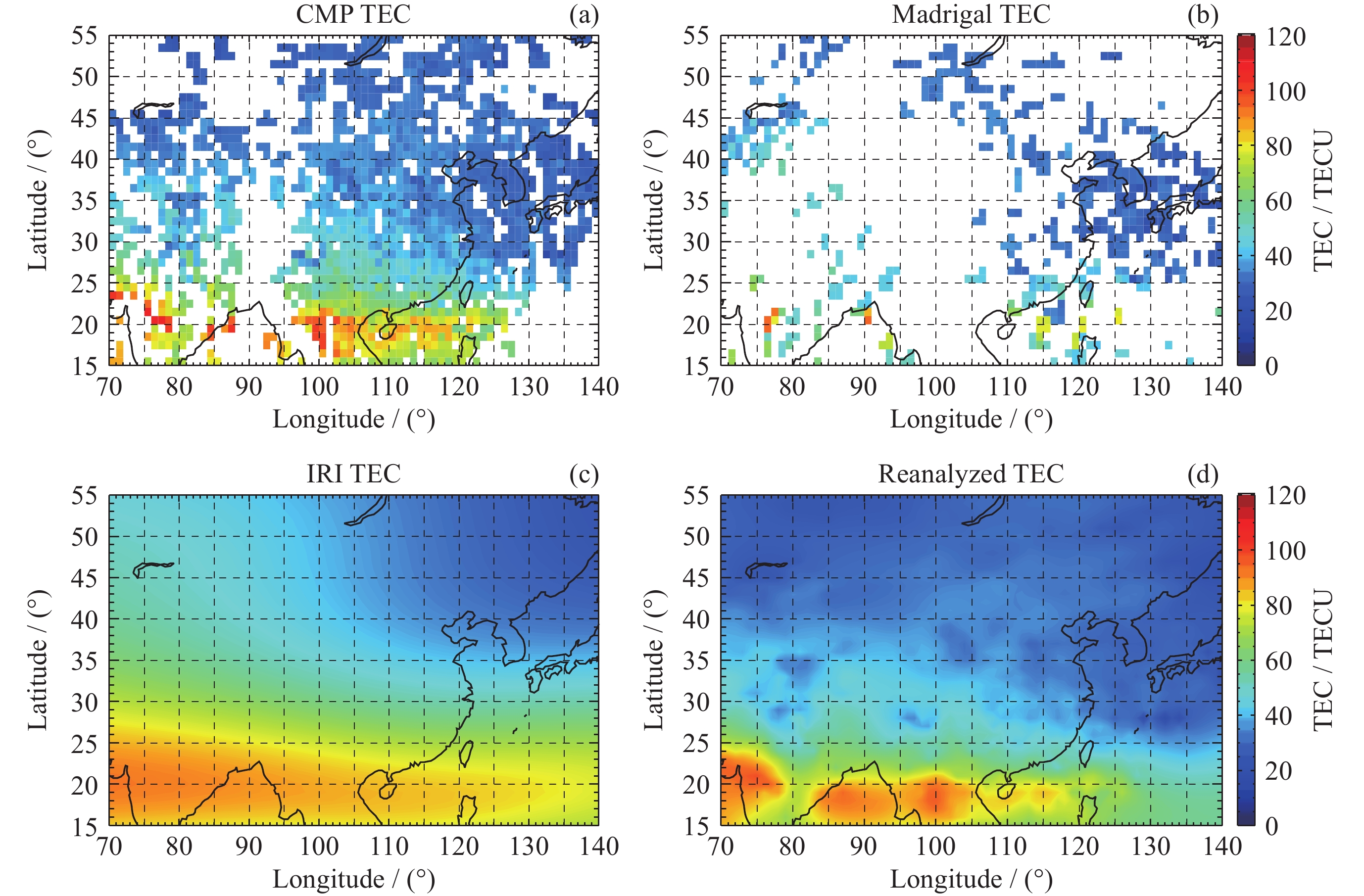

图 3 2025年4月16日12:00 UT中国区域数据同化结果示例. (a) 基于子午工程等GNSS观测解算的电离层TEC网格点分布, (b) Madrigal TEC网格点分布, (c) IRI模型背景TEC地图, (d)数据同化再分析的TEC地图
Figure 3. An example of ionospheric TEC observations and data-assimilation results over China and adjacent regions at 12:00 UT on 16 April 2025. (a) Gridded GNSS TEC map derived from CMP measurements, (b) madrigal TEC map, (c) IRI TEC map, (d) reanalyzed TEC map from data assimilation

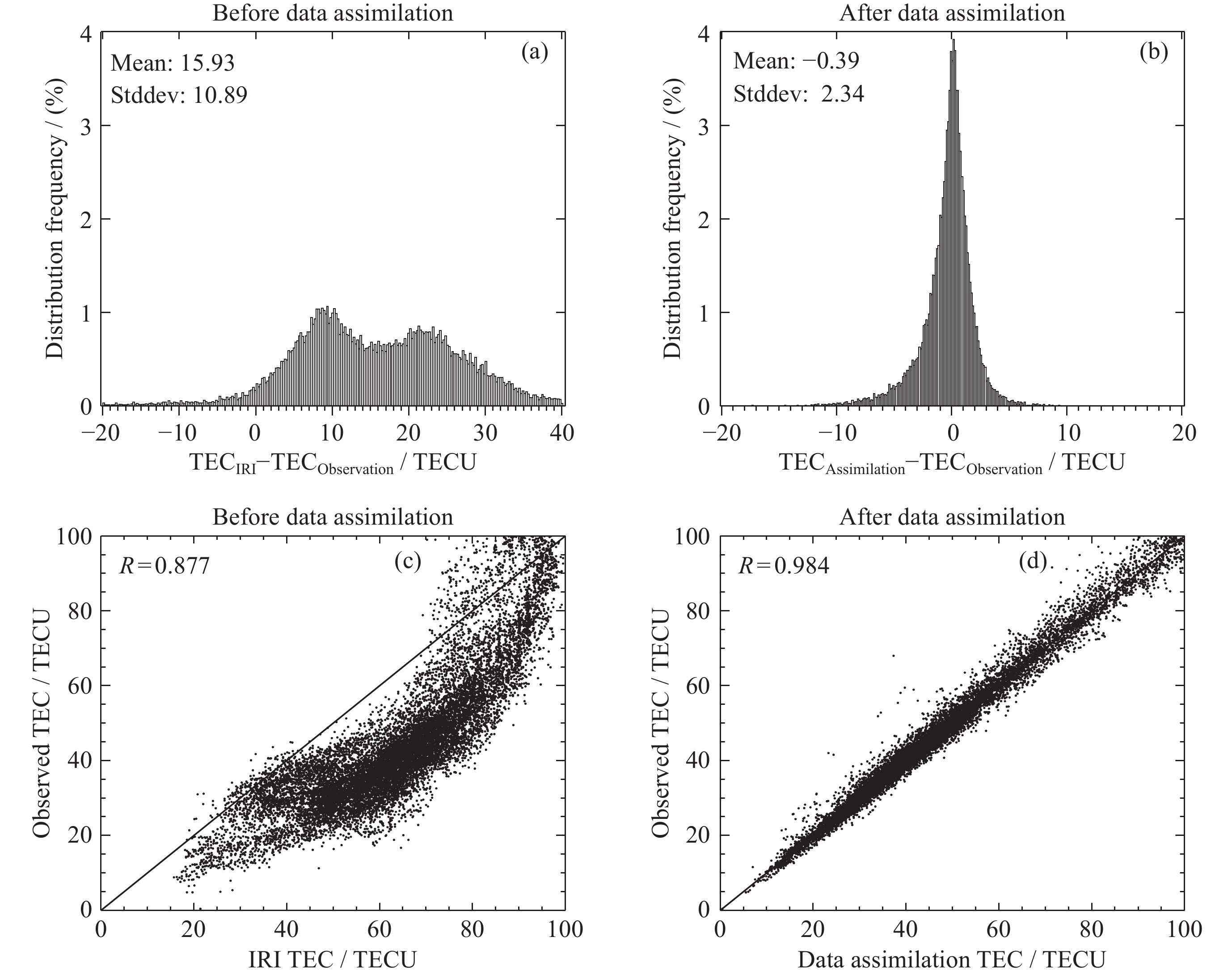

图 4 数据同化前后的TEC残差直方图分析(a)和(b)以及散点对比图(c)和(d)
Figure 4. (a) and (b) are Histogram of the TEC residuals before and after data assimilation, (c) and (d) are scatter points comparison of TEC before and after data assimilation

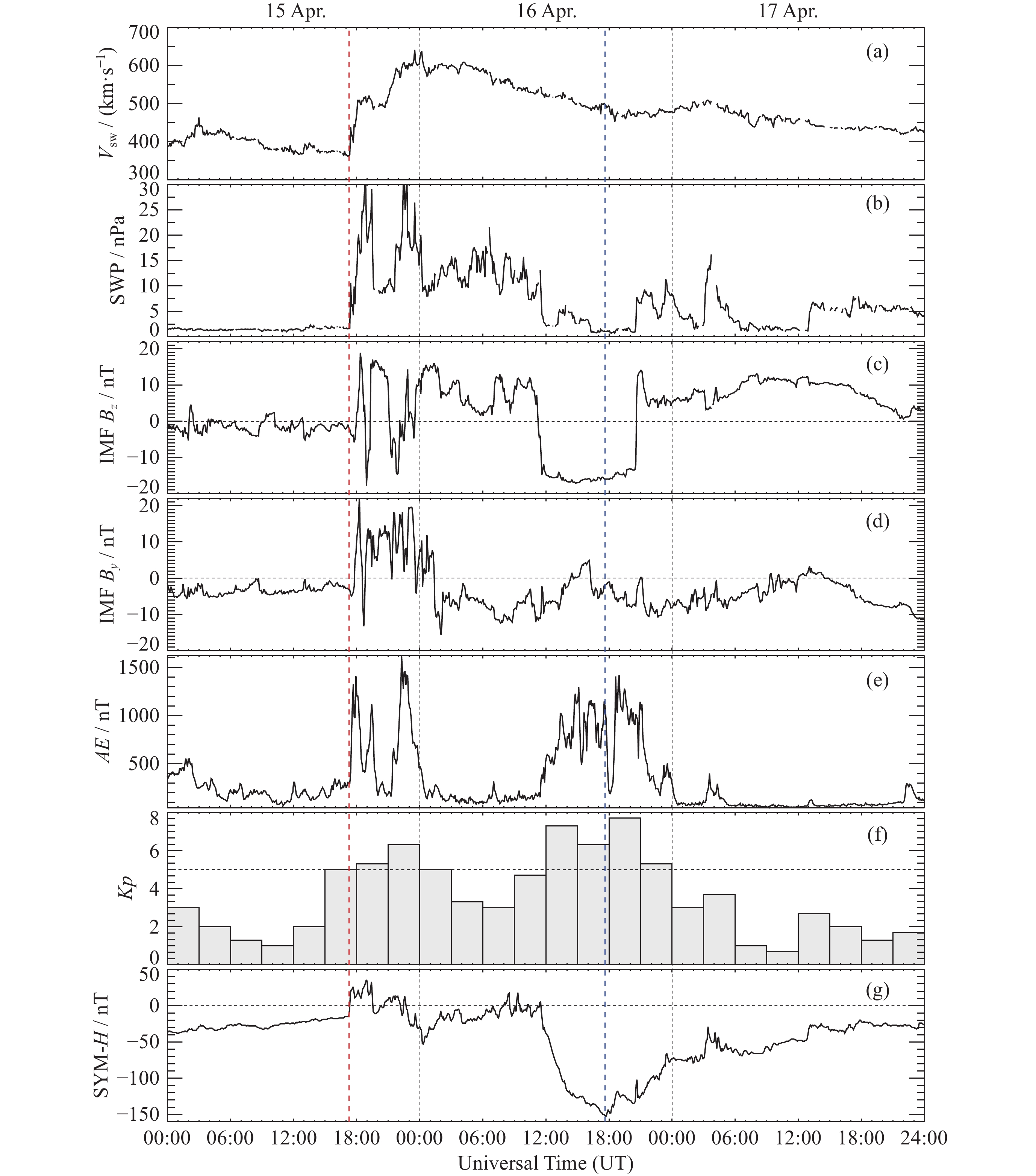

图 5 2025年4月15－17日期间的太阳风速度、太阳风动压、行星际磁场Bz分量、行星际磁场By分量、AE指数、Kp指数、SYM-H指数变化 (红色虚线表示磁暴急始开始时间, 蓝色虚线表示SYM-H下降至最小值时间)
Figure 5. Changes in solar wind speed, Solar wind dynamic pressure, IMF Bz, IMF By, AE index, Kp index, and SYM-H index during 15-17 April 2025 (Red dashed line indicates the start time of the magnetic storm onset, and the blue dashed line indicates the time when SYM-H reaches its value)

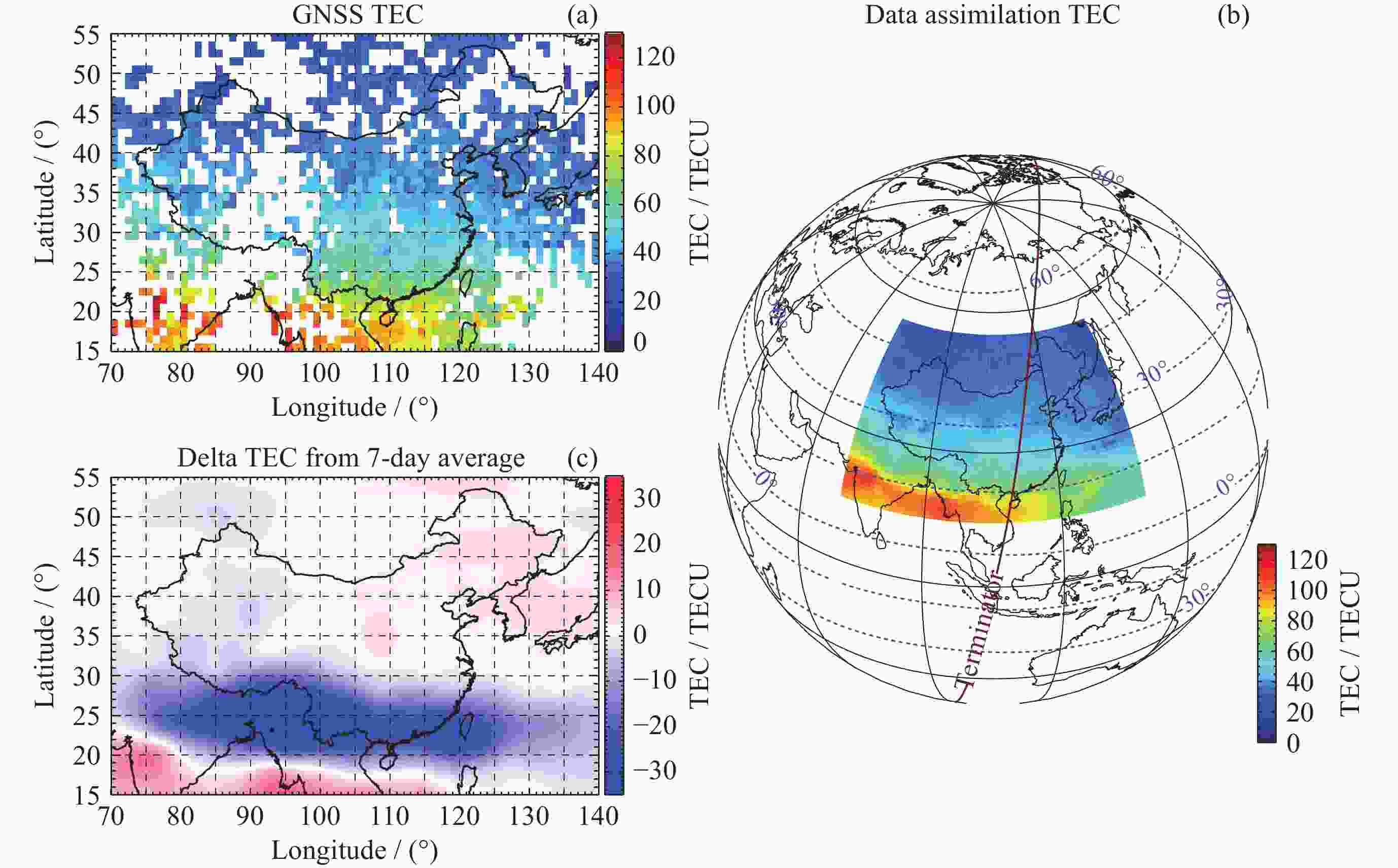

图 6 2025年4月16日11:00 UT中国区域电离层数据同化结果示例. (a)基于子午工程GNSS观测的网格点TEC分布, (b)数据同化给出的TEC地图, (c)相对于7日平均值的差分TEC地图
Figure 6. An example of ionospheric data assimilation results over China and adjacent region at 11:00 UT on 16 April 2025. (a) Gridded GNSS TEC derived from CMP observations, (b) reanalyzed TEC map given by data assimilation, (c) Delta TEC map with respect to the 7-day average

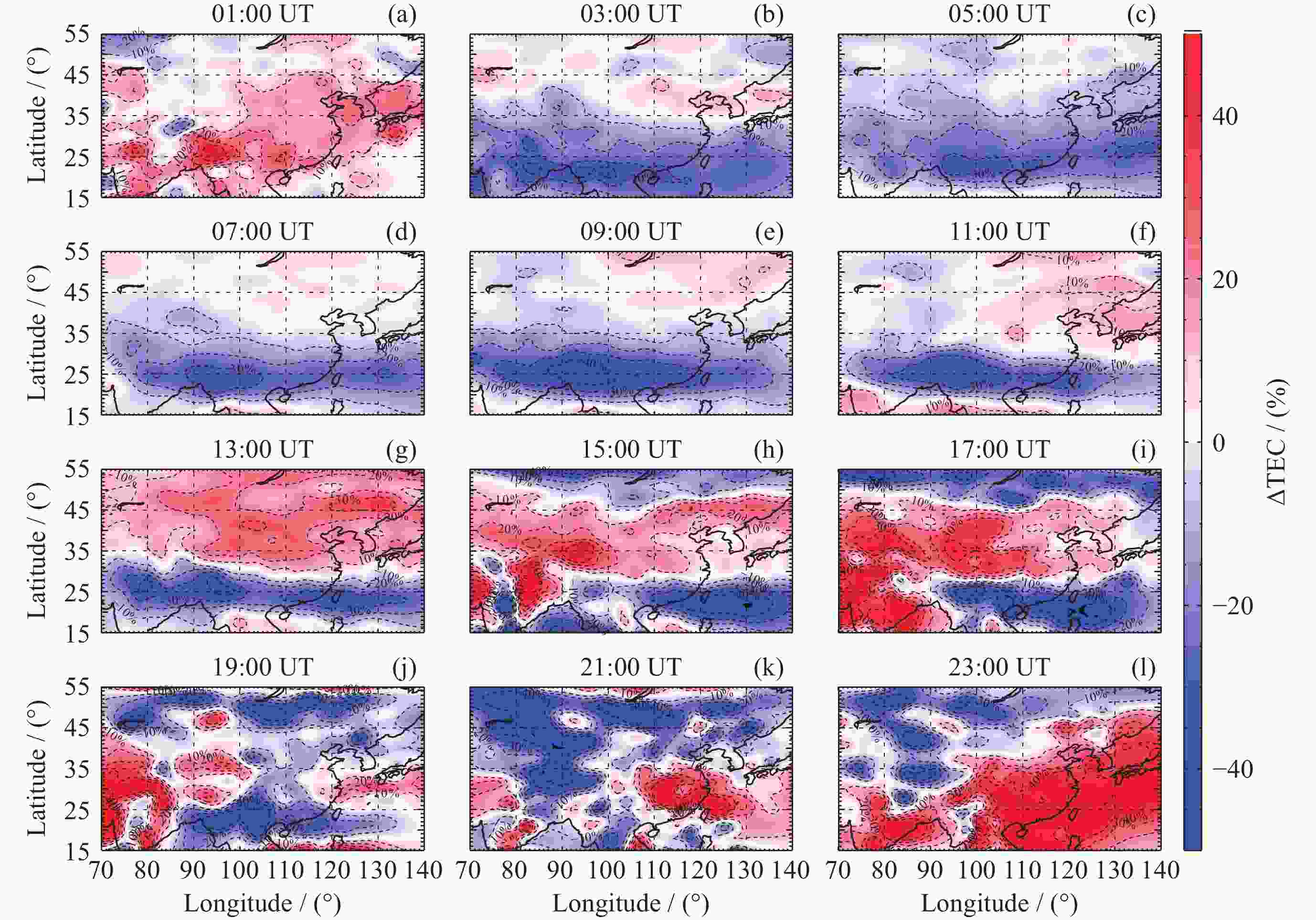

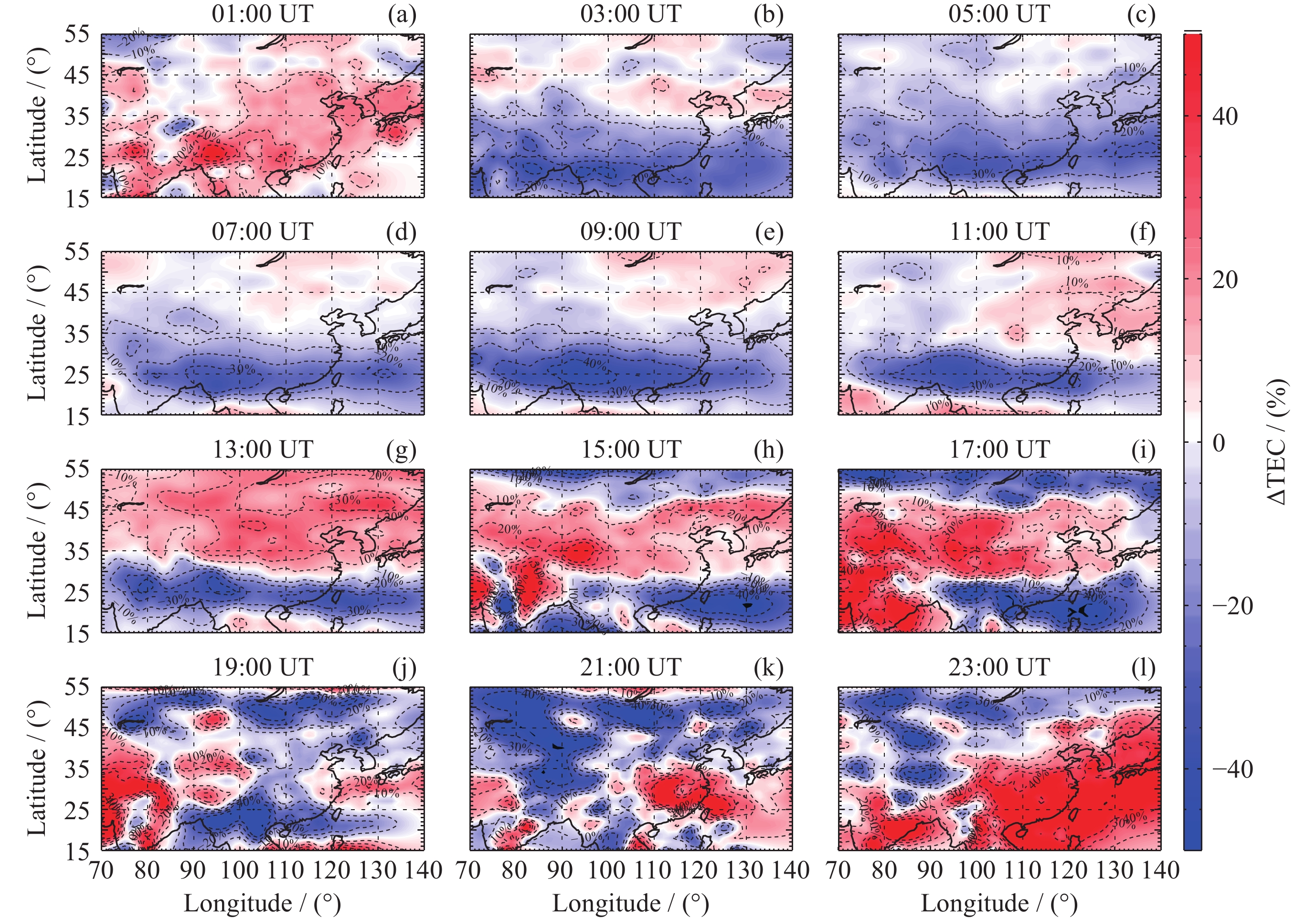

图 7 基于数据同化结果得到的2025年4月16日中国及周边区域电离层TEC的相对变化
Figure 7. Ionospheric delta TEC variation from data assimilation over China and adjacent regions on 16 April 2025

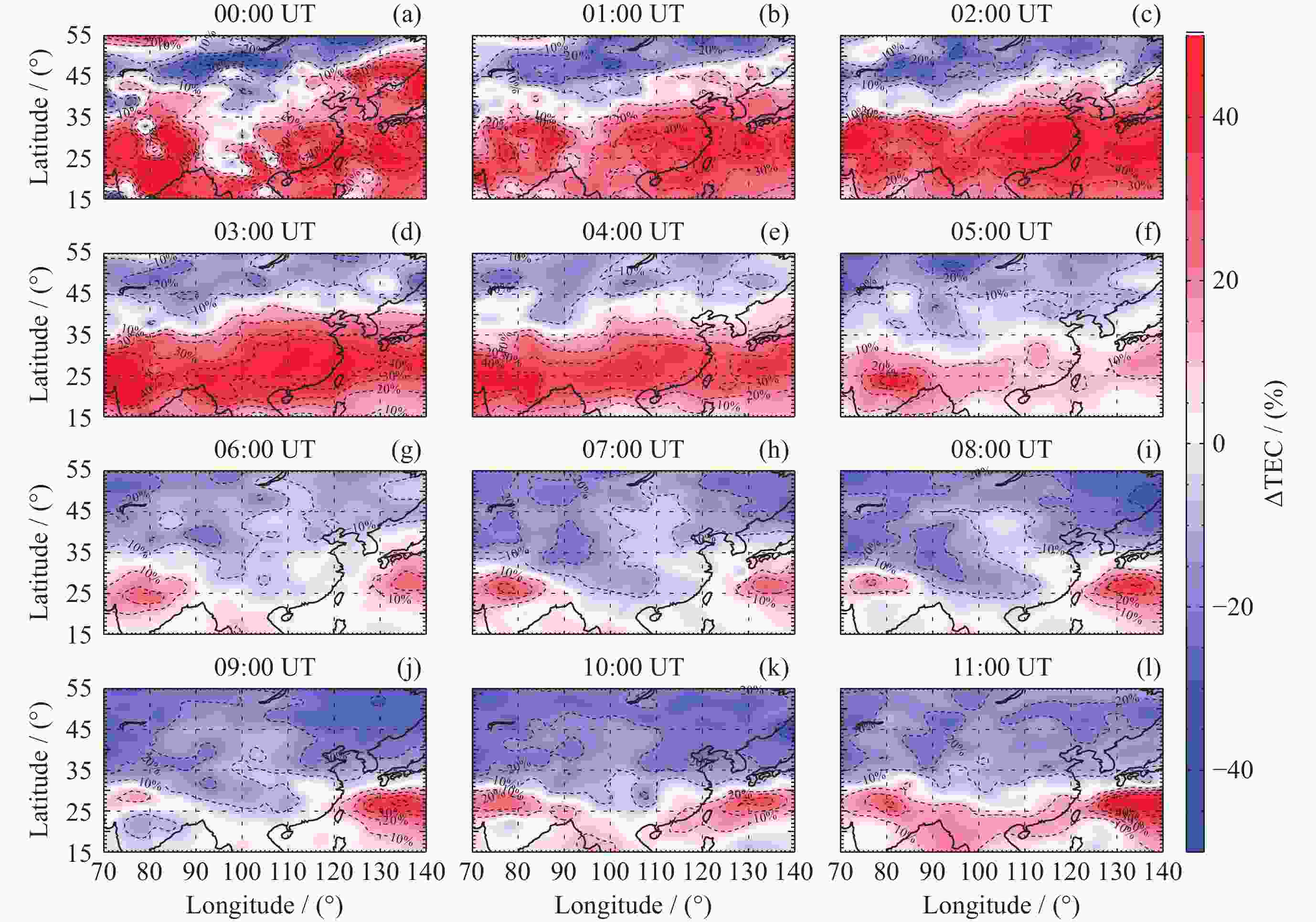

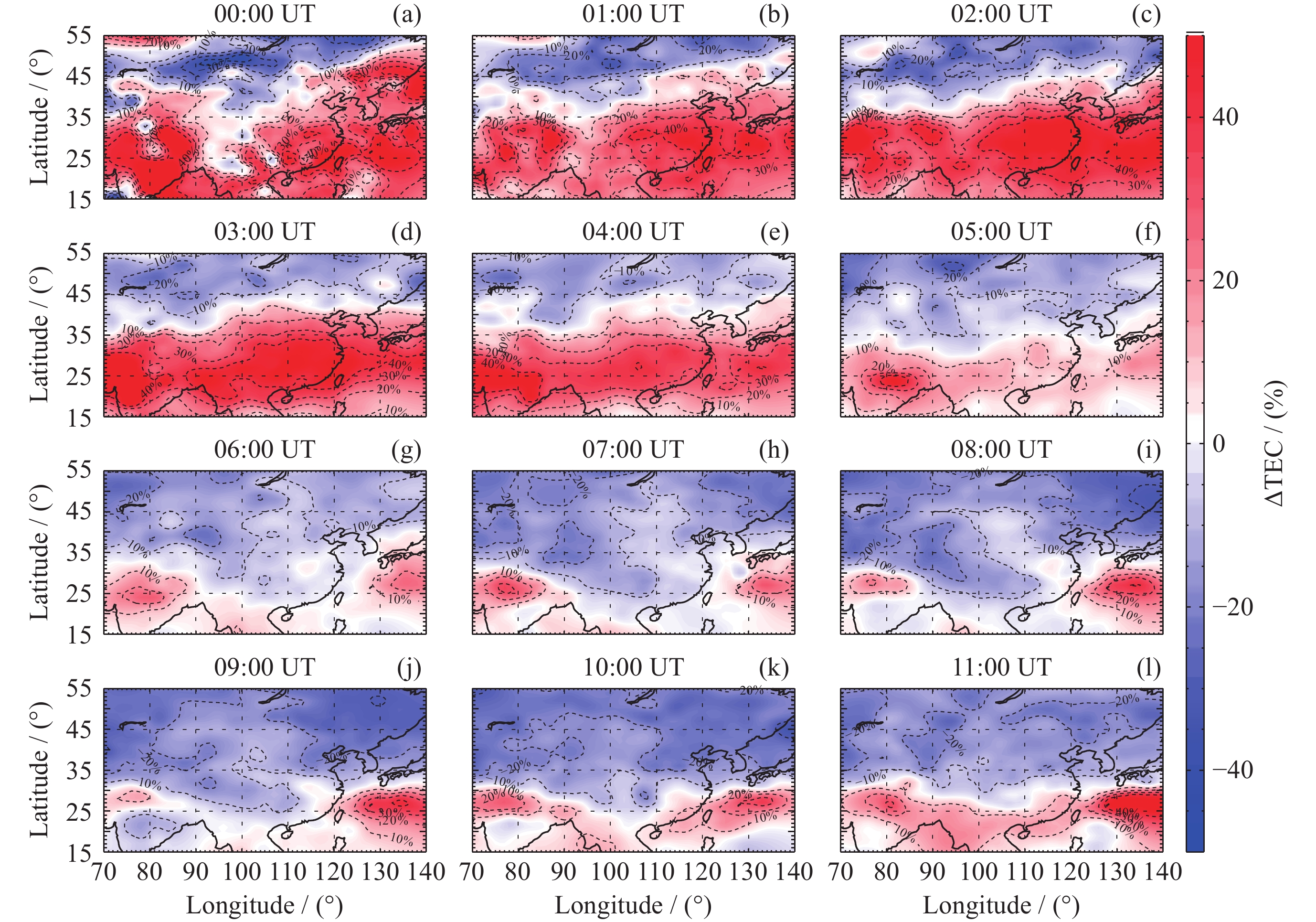

图 8 2025年4月17日00:00－11:00 UT基于数据同化结果得到的中国及周边区域电离层TEC的相对变化
Figure 8. Ionospheric delta TEC variation from data assimilation over China and adjacent regions during 00:00－11:00 UT on 16 April 2025

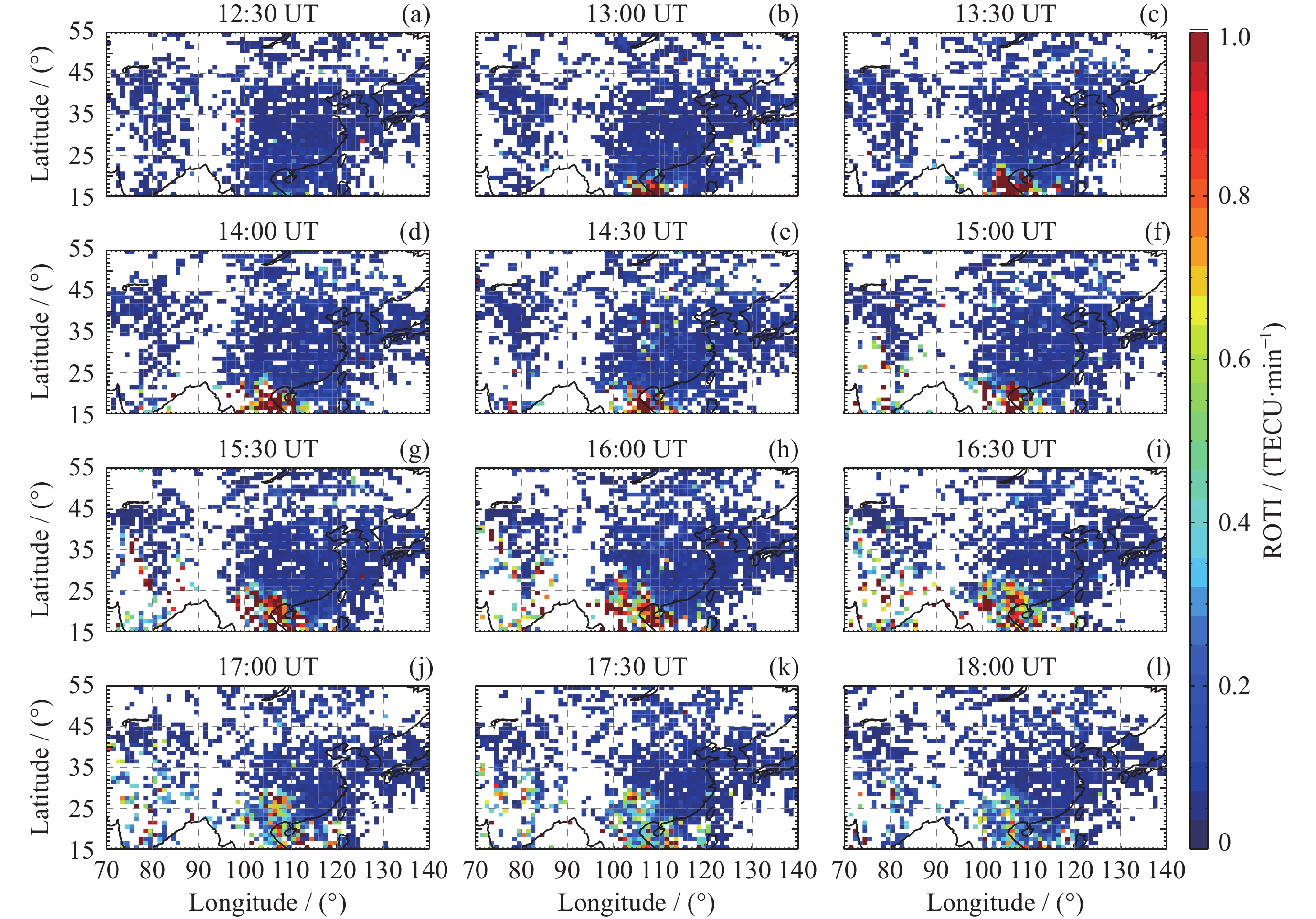

图 9 2025年4月16日12:30－18:00 UT中国及周边区域电离层ROTI指数的变化地图
Figure 9. ROTI maps of ionospheric irregularities over China and adjacent areas during 12:30－18:00 UT on 16 April 2025

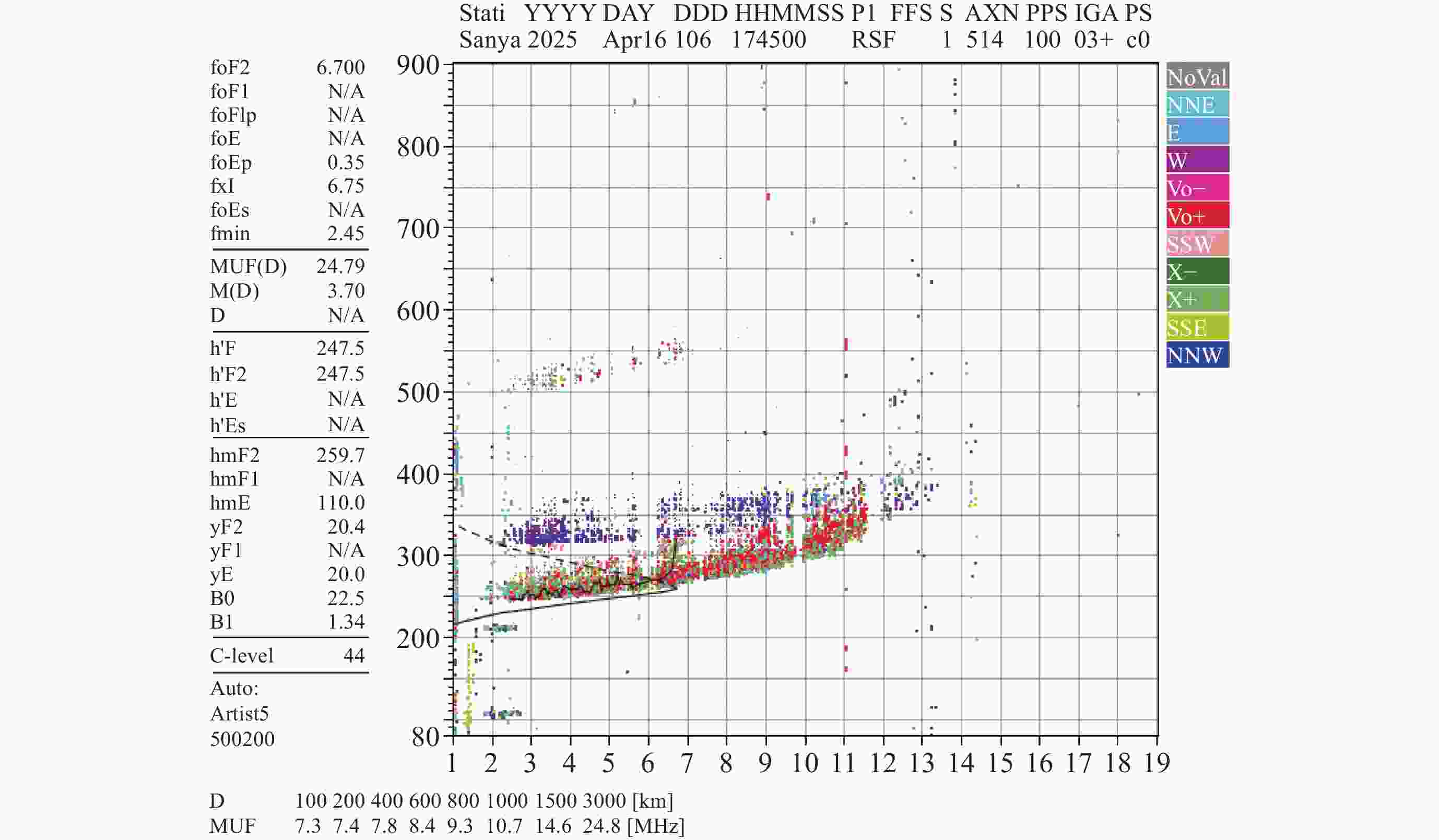

图 10 2025年4月16日17:45 UT三亚数字测高仪频高图中记录的扩展F现象
Figure 10. Ionogram with range-type spread F recorded in Sanya digisonde at 17:45 UT on 16 April 2025
-

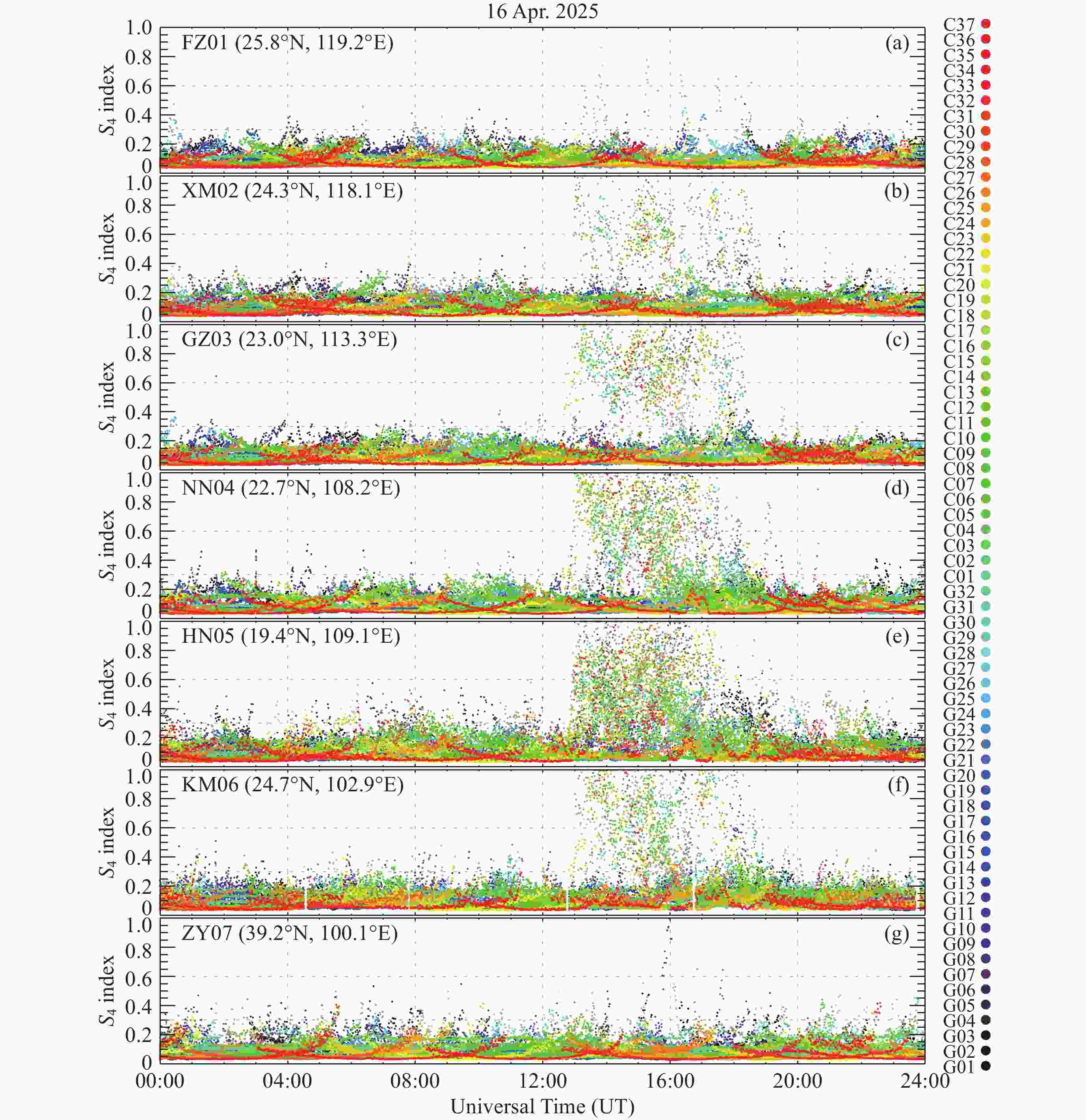

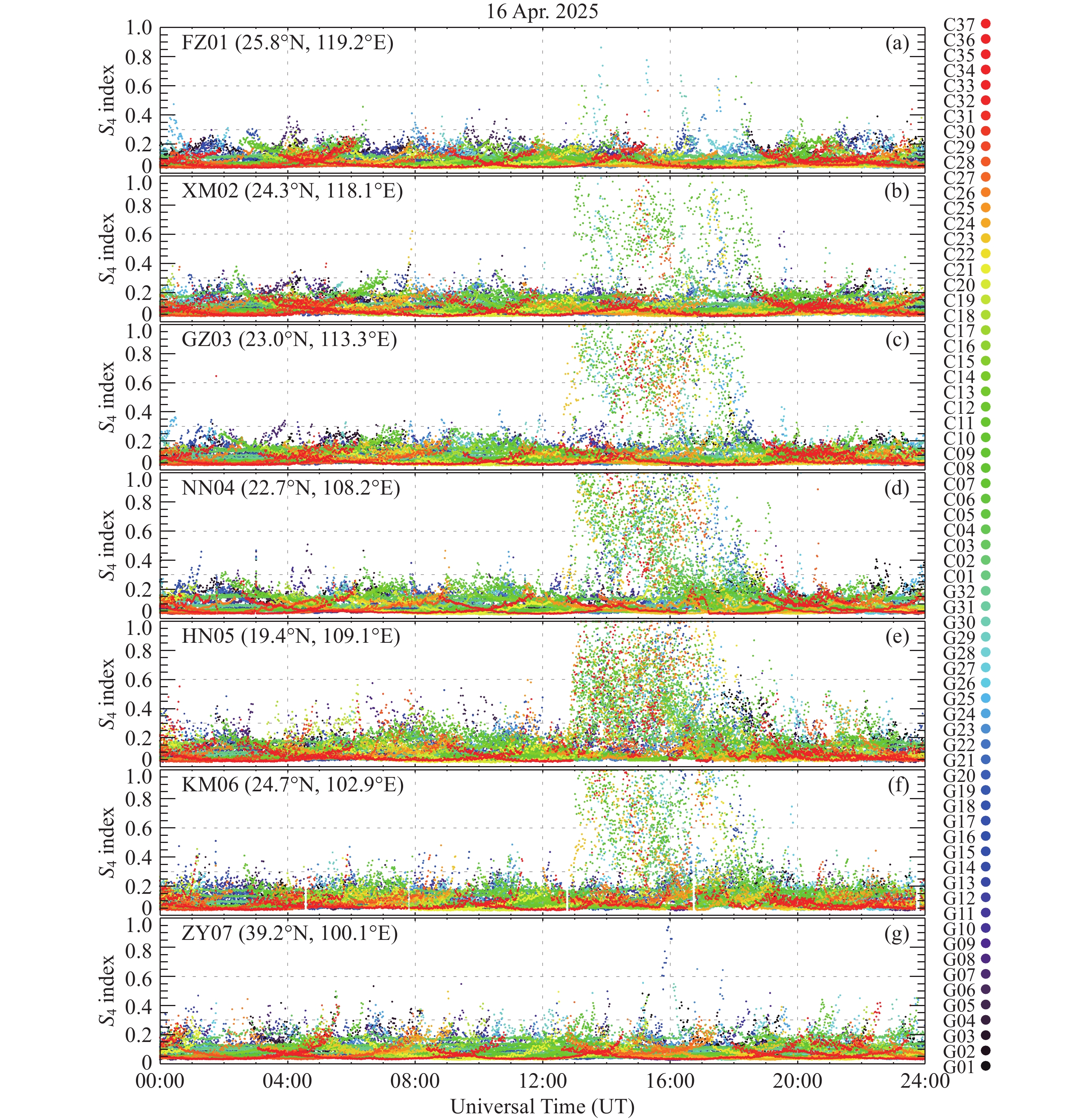

[1] JAKOWSKI N, BÉNIGUEL Y, DE FRANCESCHI G, et al. Monitoring, tracking and forecasting ionospheric perturbations using GNSS techniques[J]. Journal of Space Weather and Space Climate, 2012, 2: A22 doi: 10.1051/swsc/2012022 [2] HERNÁNDEZ-PAJARES M, JUAN J M, SANZ J, et al. The IGS VTEC maps: a reliable source of ionospheric information since 1998[J]. Journal of Geodesy, 2009, 83(3/4): 263-275 doi: 10.1007/s00190-008-0266-1 [3] RIDEOUT W, COSTER A. Automated GPS processing for global total electron content data[J]. GPS Solutions, 2006, 10(3): 219-228 doi: 10.1007/s10291-006-0029-5 [4] 阿尔察, 刘四清, 黄文耿, 等. 中国电离层TEC同化现报系统[J]. 地球物理学报, 2018, 61(6): 2186-2197 doi: 10.6038/cjg2018L0349A Ercha, LIU Siqing, HUANG Wengeng, et al. Ionospheric TEC data assimilation and now-casting system over China[J]. Chinese Journal of Geophysics, 2018, 61(6): 2186-2197 doi: 10.6038/cjg2018L0349 [5] WANG C M, HAJJ G, PI X Q, et al. Development of the global assimilative ionospheric model[J]. Radio Science, 2004, 39(1): RS1S06 doi: 10.1029/2002RS002854 [6] HAJJ G A, WILSON B D, WANG C, et al. Data assimilation of ground GPS total electron content into a physics-based ionospheric model by use of the Kalman filter[J]. Radio Science, 2004, 39(1): RS1S05 doi: 10.1029/2002RS002859 [7] SCHUNK R W, SCHERLIESS L, SOJKA J J, et al. Global Assimilation of Ionospheric Measurements (GAIM)[J]. Radio Science, 2004, 39(1): RS1S02 doi: 10.1029/2002RS002794 [8] SCHERLIESS L, SCHUNK R W, SOJKA J J, et al. Utah State university global assimilation of ionospheric measurements Gauss-Markov Kalman filter model of the ionosphere: model description and validation[J]. Journal of Geophysical Research: Space Physics, 2006, 111(A11): A11315 doi: 10.1029/2006JA011712 [9] CHEN C H, LIN C, CHEN W H, et al. Modeling the ionospheric prereversal enhancement by using coupled thermosphere-ionosphere data assimilation[J]. Geophysical Research Letters, 2017, 44(4): 1652-1659 doi: 10.1002/2016GL071812 [10] MATSUO T, ARAUJO-PRADERE E A. Role of thermosphere-ionosphere coupling in a global ionospheric specification[J]. Radio Science, 2011, 46(6): RS0D23 doi: 10.1029/2010RS004576 [11] LEE I T, MATSUO T, RICHMOND A D, et al. Assimilation of FORMOSAT-3/COSMIC electron density profiles into a coupled thermosphere/ionosphere model using ensemble Kalman filtering[J]. Journal of Geophysical Research: Space Physics, 2012, 117(A10): A10318 doi: 10.1029/2012JA017700 [12] PEDATELLA N M, RAEDER K, ANDERSON J L, et al. Ensemble data assimilation in the whole atmosphere community climate model[J]. Journal of Geophysical Research: Atmospheres, 2014, 119(16): 9793-9809 doi: 10.1002/2014JD021776 [13] PEDATELLA N M, ANDERSON J L, CHEN C H, et al. Assimilation of ionosphere observations in the Whole Atmosphere Community Climate Model with Thermosphere-ionosphere EXtension (WACCMX)[J]. Journal of Geophysical Research: Space Physics, 2020, 125(9): e2020JA028251 doi: 10.1029/2020JA028251 [14] HE J H, YUE X N, WANG W B, et al. EnKF ionosphere and thermosphere data assimilation algorithm through a sparse matrix method[J]. Journal of Geophysical Research: Space Physics, 2019, 124(8): 7356-7365 doi: 10.1029/2019JA026554 [15] HSU C T, MATSUO T, WANG W B, et al. Effects of inferring unobserved thermospheric and ionospheric state variables by using an Ensemble Kalman Filter on global ionospheric specification and forecasting[J]. Journal of Geophysical Research: Space Physics, 2014, 119(11): 9256-9267 doi: 10.1002/2014JA020390 [16] 何建辉, 乐新安. 基于热层电离层耦合数据同化的热层参量估计[J]. 地球物理学报, 2020, 63(7): 2497-2505 doi: 10.6038/cjg2020N0267HE Jianhui, YUE Xin’an. The estimation of thermosphere state variables based on coupled thermosphere and ionosphere data assimilation[J]. Chinese Journal of Geophysics, 2020, 63(7): 2497-2505 doi: 10.6038/cjg2020N0267 [17] BUST G S, GARNER T W, GAUSSIRAN T L. Ionospheric Data Assimilation three-dimensional (IDA3D): a global, multisensor, electron density specification algorithm[J]. Journal of Geophysical Research: Space Physics, 2004, 109(A11): A11312 doi: 10.1029/2003JA010234 [18] BUST G S, CROWLEY G, GARNER T W, et al. Four-dimensional GPS imaging of space weather storms[J]. Space Weather, 2007, 5(2): S02003 doi: 10.1029/2006SW000237 [19] LIN C Y, MATSUO T, LIU J Y, et al. Ionospheric assimilation of radio occultation and ground-based GPS data using non-stationary background model error covariance[J]. Atmospheric Measurement Techniques, 2015, 8(1): 171-182 doi: 10.5194/amt-8-171-2015 [20] LIN C Y, MATSUO T, LIU J Y, et al. Data assimilation of ground-based GPS and radio occultation total electron content for global ionospheric specification[J]. Journal of Geophysical Research: Space Physics, 2017, 122(10): 10,876-10,886 doi: 10.1002/2017JA024185 [21] GALKIN I A, REINISCH B W, HUANG X, et al. Assimilation of GIRO data into a real-time IRI[J]. Radio Science, 2012, 47(4): RS0L07 doi: 10.1029/2011RS004952 [22] AA E, HUANG W G, YU S M, et al. A regional ionospheric TEC mapping technique over China and adjacent areas on the basis of data assimilation[J]. Journal of Geophysical Research: Space Physics, 2015, 120(6): 5049-5061 doi: 10.1002/2015JA021140 [23] AA E, LIU S Q, HUANG W G, et al. Regional 3-D ionospheric electron density specification on the basis of data assimilation of ground-based GNSS and radio occultation data[J]. Space Weather, 2016, 14(6): 433-448 doi: 10.1002/2016SW001363 [24] YUE X A, SCHREINER W S, KUO Y H, et al. Observing system simulation experiment study on imaging the ionosphere by assimilating observations from ground GNSS, LEO-based radio occultation and ocean reflection, and cross link[J]. IEEE Transactions on Geoscience and Remote Sensing, 2014, 52(7): 3759-3773 doi: 10.1109/TGRS.2013.2275753 [25] YUE X A, SCHREINER W S, KUO Y H, et al. Global 3-D ionospheric electron density reanalysis based on multisource data assimilation[J]. Journal of Geophysical Research: Space Physics, 2012, 117(A9): A09325 doi: 10.1029/2012JA017968 [26] WANG S C, HUANG S X, FANG H X. Estimating of the global ionosphere maps using hybrid data assimilation method and their background influence analysis[J]. Journal of Geophysical Research: Space Physics, 2020, 125(8): e2020JA028047 doi: 10.1029/2020JA028047 [27] AA E, RIDLEY A, HUANG W G, et al. An ionosphere specification technique based on data ingestion algorithm and empirical orthogonal function analysis method[J]. Space Weather, 2018, 16(9): 1410-1423 doi: 10.1029/2018SW001987 [28] NAVA B, RADICELLA S M, AZPILICUETA F. Data ingestion into NeQuick 2[J]. Radio Science, 2011, 46(6): RS0D17 doi: 10.1029/2010RS004635 [29] BRUNINI C, AZPILICUETA F, GENDE M, et al. Ground- and space-based GPS data ingestion into the NeQuick model[J]. Journal of Geodesy, 2011, 85(12): 931-939 doi: 10.1007/s00190-011-0452-4 [30] ZHAI C Z, LU G, YAO Y B, et al. 3-D tomographic reconstruction of SED plume during 17 March 2013 storm[J]. Journal of Geophysical Research: Space Physics, 2020, 125(11): e2020JA028257 doi: 10.1029/2020JA028257 [31] FULLER-ROWELL T, ARAUJO-PRADERE E, MINTER C, et al. US-TEC: a new data assimilation product from the space environment center characterizing the ionospheric total electron content using real-time GPS data[J]. Radio Science, 2006, 41(6): RS6003 doi: 10.1029/2005RS003393 [32] MIYAKE W, JIN H. Near-real time monitoring of TEC over Japan at NICT (RWC Tokyo of ISES)[J]. Advances in Geosciences, 2010, 21: 143-153 [33] AA E, ZHANG S R, ERICKSON P J, et al. 3-D regional ionosphere imaging and SED reconstruction with a new TEC-based ionospheric data assimilation system (TIDAS)[J]. Space Weather, 2022, 20(4): e2022SW003055 doi: 10.1029/2022SW003055 [34] AA E, ZHANG S R, WANG W B, et al. Multiple longitude sector Storm-Enhanced Density (SED) and long-lasting Subauroral Polarization Stream (SAPS) during the 26-28 February 2023 geomagnetic storm[J]. Journal of Geophysical Research: Space Physics, 2023, 128(9): e2023JA031815 doi: 10.1029/2023JA031815 [35] AA E, ZHANG S R, ERICKSON P J, et al. 3-D ionospheric imaging over the South American region with a new TEC-based Ionospheric Data Assimilation System (TIDAS-SA)[J]. Space Weather, 2024, 22(2): e2023SW003792 doi: 10.1029/2023SW003792 [36] AA E, FORSYTHE V V, ZHANG S R, et al. Next-decade needs for 3-D ionosphere imaging[J]. Frontiers in Astronomy and Space Sciences, 2023, 10: 1186513 doi: 10.3389/fspas.2023.1186513 [37] WANG X, AA E, CHEN Y H, et al. Midlatitude neutral wind response during the mother’s day super-intense geomagnetic storm in 2024 using observations from the chinese meridian project[J]. Journal of Geophysical Research: Space Physics, 2025, 130(4): e2024JA033574 doi: 10.1029/2024JA033574 [38] CHEN Y H, AA E, YUAN T J, et al. The extreme depletion of ionospheric electron density and its hemispheric asymmetry during the May 2024 storm[J]. National Science Review, 2025, 12(10): nwaf307 doi: 10.1093/nsr/nwaf307 [39] 万卫星, 宁百齐, 刘立波, 等. 中国电离层TEC现报系统[J]. 地球物理学进展, 2007, 22(4): 1040-1045WAN Weixing, NING Baiqi, LIU Libo, et al. Nowcasting the ionospheric total electron content over China[J]. Progress in Geophysics, 2007, 22(4): 1040-1045 [40] A E C, HUANG W G, LIU S Q, et al. A regional ionospheric TEC mapping technique over China and adjacent areas: GNSS data processing and DINEOF analysis[J]. Science China Information Sciences, 2015, 58(10): 1-11 doi: 10.1007/s11432-015-5399-2 [41] 熊波, 李肖霖, 王宇晴, 等. 基于长短时记忆神经网络的中国地区电离层TEC预测[J]. 地球物理学报, 2022, 65(7): 2365-2377XIONG Bo, LI Xiaolin, WANG Yuqing, et al. Prediction of ionospheric TEC over China based on long and short-term memory neural network[J]. Chinese Journal of Geophysics, 65(7): 2365-2377 [42] WANG Y Q, LE H J, LIU L B, et al. Mapping the ionosphere over East Asia based on ground-based GNSS TEC data in 2010–2023[J]. Space Weather, 2025, 23(7): e2025SW004343 doi: 10.1029/2025SW004343 [43] 乐新安, 万卫星, 刘立波, 等. 基于Gauss-Markov卡尔曼滤波的电离层数值同化现报预报系统的构建——以中国及周边地区为例的观测系统模拟试验[J]. 地球物理学报, 2010, 53(4): 787-795 doi: 10.3969/j.issn.0001-5733.2010.04.003YUE Xin’an, WAN Weixing, LIU Libo, et al. Development of an ionospheric numerical assimilation nowcast and forecast system based on Gauss-Markov Kalman filter—an observation system simulation experiment taking example for China and its surrounding area[J]. Chinese Journal of Geophysics, 2010, 53(4): 787-795 doi: 10.3969/j.issn.0001-5733.2010.04.003 [44] WANG C, XU J Y, CHEN Z Q, et al. China’s ground-based space environment monitoring network-Chinese Meridian Project (CMP)[J]. Space Weather, 2024, 22(7): e2024SW003972 doi: 10.1029/2024SW003972 [45] WANG C, BLANC M, ZHANG S R, et al. Progress of international meridian circle program[J]. Chinese Journal of Space Science, 2024, 44(4): 741-745 doi: 10.11728/cjss2024.04.2024-yg24 [46] WANG C, XU J Y, LIU L B, et al. Contribution of the Chinese Meridian Project to space environment research: highlights and perspectives[J]. Science China Earth Sciences, 2023, 66(7): 1423-1438 doi: 10.1007/s11430-022-1043-3 [47] 王赤, 陈志青, 胡连欢, 等. 我国空间环境天/地基监测平台的发展态势和展望[J]. 航天器环境工程, 2021, 38(3): 225-239WANG Chi, CHEN Zhiqing, HU Lianhuan, et al. Development and prospect of China’s space-based and ground-based space environment monitoring platforms[J]. Spacecraft Environment Engineering, 2021, 38(3): 225-239 [48] ZHANG D H, ZHANG W, LI Q, et al. Accuracy analysis of the GPS instrumental bias estimated from observations in middle and low latitudes[J]. Annales Geophysicae, 2010, 28(8): 1571-1580 doi: 10.5194/angeo-28-1571-2010 [49] KALMAN R E. A new approach to linear filtering and prediction problems[J]. Journal of Basic Engineering, 1960, 82(1): 35-45 doi: 10.1115/1.3662552 [50] KALMAN R E, BUCY R S. New results in linear filtering and prediction theory[J]. Journal of Basic Engineering, 1961, 83(1): 95-108 doi: 10.1115/1.3658902 [51] BARKER D M, HUANG W, GUO Y R, et al. A three-dimensional variational data assimilation system for MM5: implementation and initial results[J]. Monthly Weather Review, 2004, 132(4): 897-914 doi: 10.1175/1520-0493(2004)132<0897:ATVDAS>2.0.CO;2 [52] LI G Z, NING B Q, WANG C, et al. Storm-enhanced development of postsunset equatorial plasma bubbles around the meridian 120°E/60°W on 7-8 September 2017[J]. Journal of Geophysical Research: Space Physics, 2018, 123(9): 7985-7998 doi: 10.1029/2018JA025871 [53] HU L H, LI G Z, NING B Q, et al. Extremely long-range observations of ionospheric irregularities in a large longitude zone from Pacific to Africa using a low latitude over-the-Horizon radar in China[J]. Geophysical Research Letters, 2024, 51(16): e2024GL109579 doi: 10.1029/2024GL109579 [54] SUN W J, WU B Y, WU Z, et al. IONISE: an ionospheric observational network for irregularity and scintillation in East and Southeast Asia[J]. Journal of Geophysical Research: Space Physics, 2020, 125(8): e2020JA028055 doi: 10.1029/2020JA028055 [55] AA E, HUANG W G, LIU S Q, et al. Midlatitude plasma bubbles over China and adjacent areas during a magnetic storm on 8 September 2017[J]. Space Weather, 2018, 16(3): 321-331 doi: 10.1002/2017SW001776 [56] SUN W J, LI G Z, ZHANG S R, et al. Regional ionospheric super bubble induced by significant upward plasma drift during the 1 December 2023 geomagnetic storm[J]. Journal of Geophysical Research: Space Physics, 2024, 129(6): e2024JA032430 doi: 10.1029/2024JA032430 [57] CHERNIAK I, ZAKHARENKOVA I. First observations of super plasma bubbles in Europe[J]. Geophysical Research Letters, 2016, 43(21): 11,137-11,145 doi: 10.1002/2016GL071421 [58] AA E, ZOU S S, RIDLEY A, et al. Merging of storm time midlatitude traveling ionospheric disturbances and equatorial plasma bubbles[J]. Space Weather, 2019, 17(2): 285-298 doi: 10.1029/2018SW002101 [59] AA E, ZHANG S R, ERICKSON P J, et al. 3-D ionospheric electron density variations during the 2017 great American solar eclipse: a revisit[J]. Atmosphere, 2023, 14(9): 1379 doi: 10.3390/atmos14091379 [60] AA E, COSTER A J, ZHANG S R, et al. 2-D total electron content and 3-D ionospheric electron density variations during the 14 October 2023 annular solar eclipse[J]. Journal of Geophysical Research: Space Physics, 2024, 129(3): e2024JA032447 doi: 10.1029/2024JA032447 [61] AA E, HUBA J, ZHANG S R, et al. Multi-instrument and SAMI3-TIDAS data assimilation analysis of three-dimensional ionospheric electron density variations during the April 2024 total solar eclipse[J]. Journal of Geophysical Research: Space Physics, 2024, 129(9): e2024JA032955 doi: 10.1029/2024JA032955 -
-
