2019年12月8日中国低纬区域电离层行扰事件传播演化过程
doi: 10.11728/cjss2026.05.2025-0221 cstr: 32142.14.cjss.2025-0221
-
罗吉 女, 1993年8月出生于湖南省邵阳市, 现为长沙理工大学专任教师, 硕士生导师, 主要研究方向为中电离层不规则体、中高层大气等. E-mail: llluoji@126.com -
吴坤 男, 1989年12月出生于云南省昆明市, 现为长沙理工大学专任教师, 硕士生导师, 主要研究方向为中低纬电离层等. E-mail: kunwu1220@163.com
-
刘斯 女, 1984年3月出生于湖南省新化县, 现为长沙理工大学教授, 博士生导师, 主要研究方向为等离子体物理、空间等离子体波动等. E-mail: liu.si@hotmail.com
作者简介:
通讯作者:
Propagation and Evolution of MSTIDs over the Low-Latitude Region of China during 8 December 2019
-
摘要: 利用子午工程富克台站(19.5°N, 109.1°E)气辉成像仪观测数据、数字测高仪探测数据、北海台站(21.7°N, 109.2°E) GPS(Global Positioning System)-TEC(Total Electron Content)探测数据及TIE-GCM(Thermosphere-Ionosphere-Electrodynamics General Circulation Model)模拟数据, 对中国低纬区域2019年12月8日富克台站上空的夜间中尺度电离层行进式扰动(Medium-scale Travelling Ionospheric Disturbances, MSTIDs)事件进行了研究. 结果表明, 在夜间中国低纬区域上空观测到典型的北半球MSTID结构, 其相平面呈西北–东南分布的明暗相间条带, 向西南方向传播. 在传播过程中, MSTIDs两条暗条带发生了追赶现象, 后出现在观测视野中的暗条带追赶上了先出现的暗条带. 利用TIE-GCM模型模拟了夜间背景风场与电子密度分布, 模拟结果显示, 电离层背景纬向风场梯度差异与低纬区域赤道电离异常区高密度电子密度分布的协同作用是调控此次MSTIDs发生追赶过程的主要原因. 本研究为不均匀的中性风场以及电子密度分布对MSTIDs传播特征的影响提供了理论依据.Abstract: This study investigates a nighttime medium-scale traveling ionospheric disturbance (MSTID) event observed over Fuke Station (19.5°N, 109.1°E) in low-latitude China on 8 December 2019, using airglow imaging and Digisonde observations from the Chinese Meridian Project’s Fuke Station, Global Positioning System (GPS) total electron content (TEC) measurements from Beihai Station (21.7°N, 109.2°E), and simulations from the Thermosphere-Ionosphere-Electrodynamics General Circulation Model (TIE-GCM). The observations reveal typical northern hemisphere nighttime MSTID structures, characterized by alternating bright and dark bands with northwest–southeast-oriented bands propagating southwestward. During the propagating process, two dark bands exhibited a chasing phenomenon, in which the band that entered the field of view later caught up with the preceding band. The TIE-GCM was used to simulate the nighttime background neutral wind and electron density distribution. The simulation results suggest that the combined effects of spatial variations in the background zonal wind gradient and enhanced electron densities within the low-latitude equatorial ionization anomaly region were primarily responsible for regulating this chasing process. This study provides a theoretical basis for understanding how spatially nonuniform neutral winds and electron density distributions influence MSTID propagation.
-

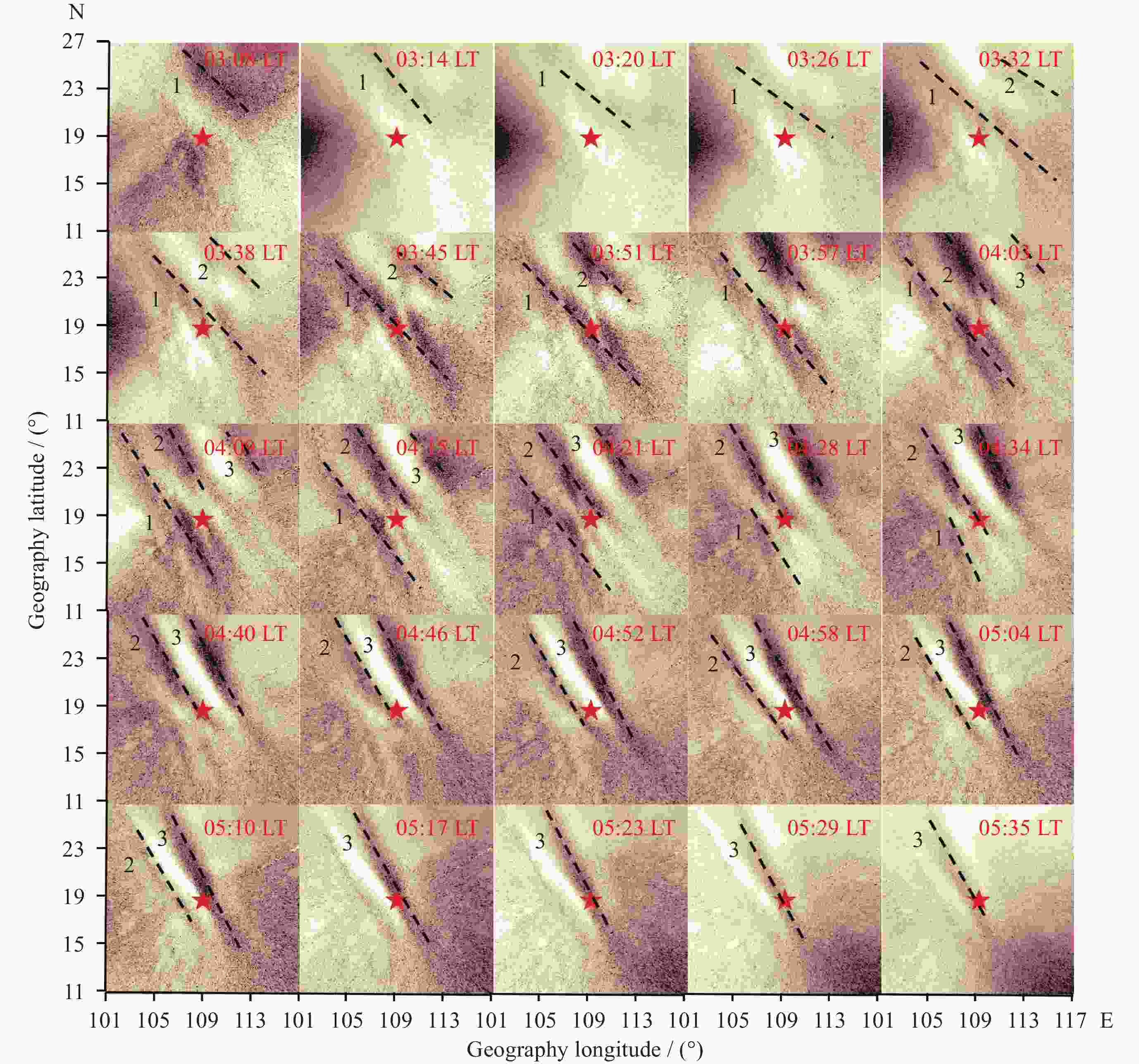

图 1 2019年12月8日富克台站气辉观测结果 (数字1, 2, 3是根据暗条带进入气辉观测视野的先后顺序, 五角星代表富克观测站地理位置)
Figure 1. Airglow observations at Fuke station on 8 December 2019 (Number1,2,and 3 are assigned according to the sequence where the dark bands enter the airglow field of view, and the red pentagram represents the geographic location of the Fuke Station)

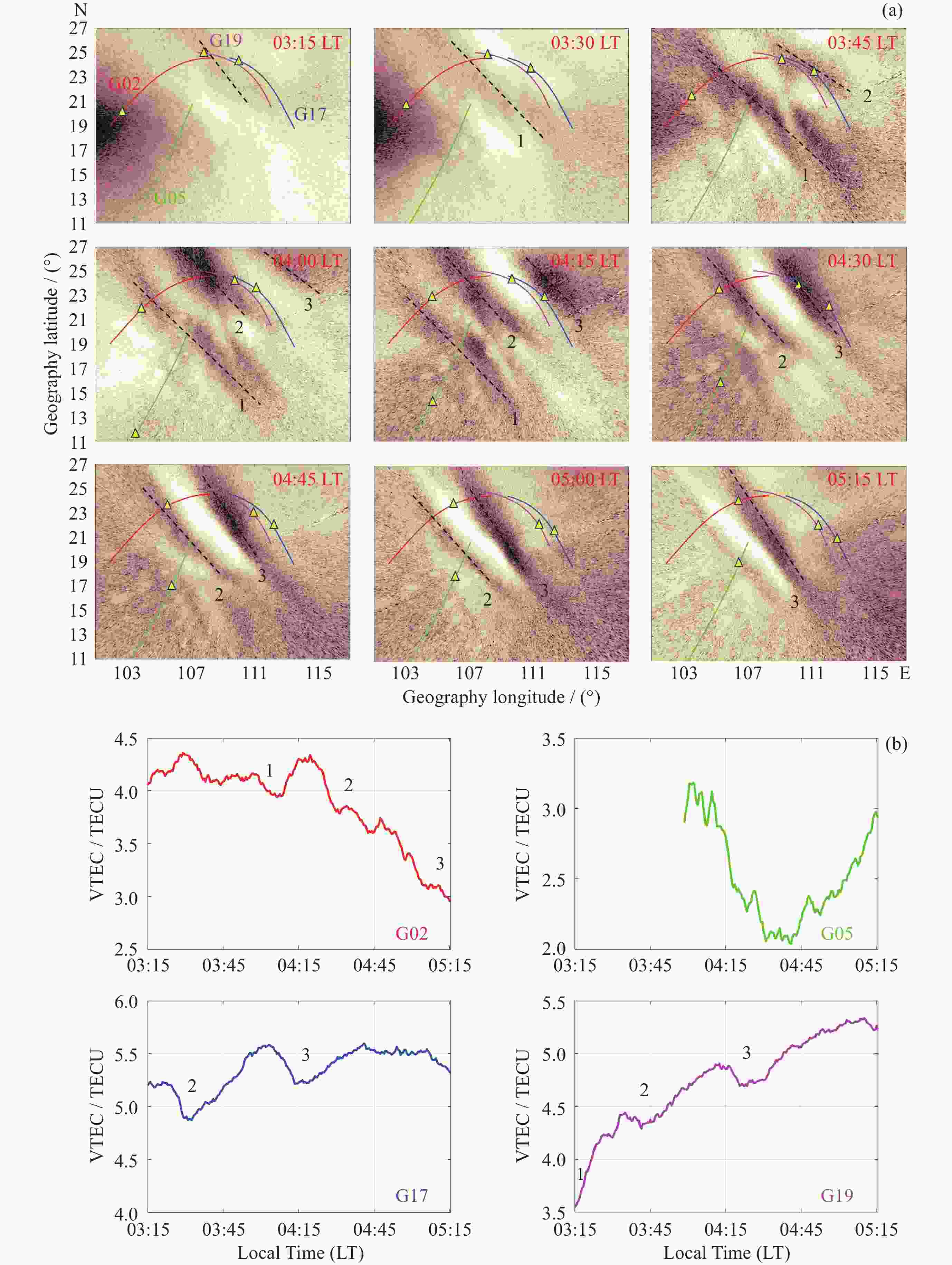

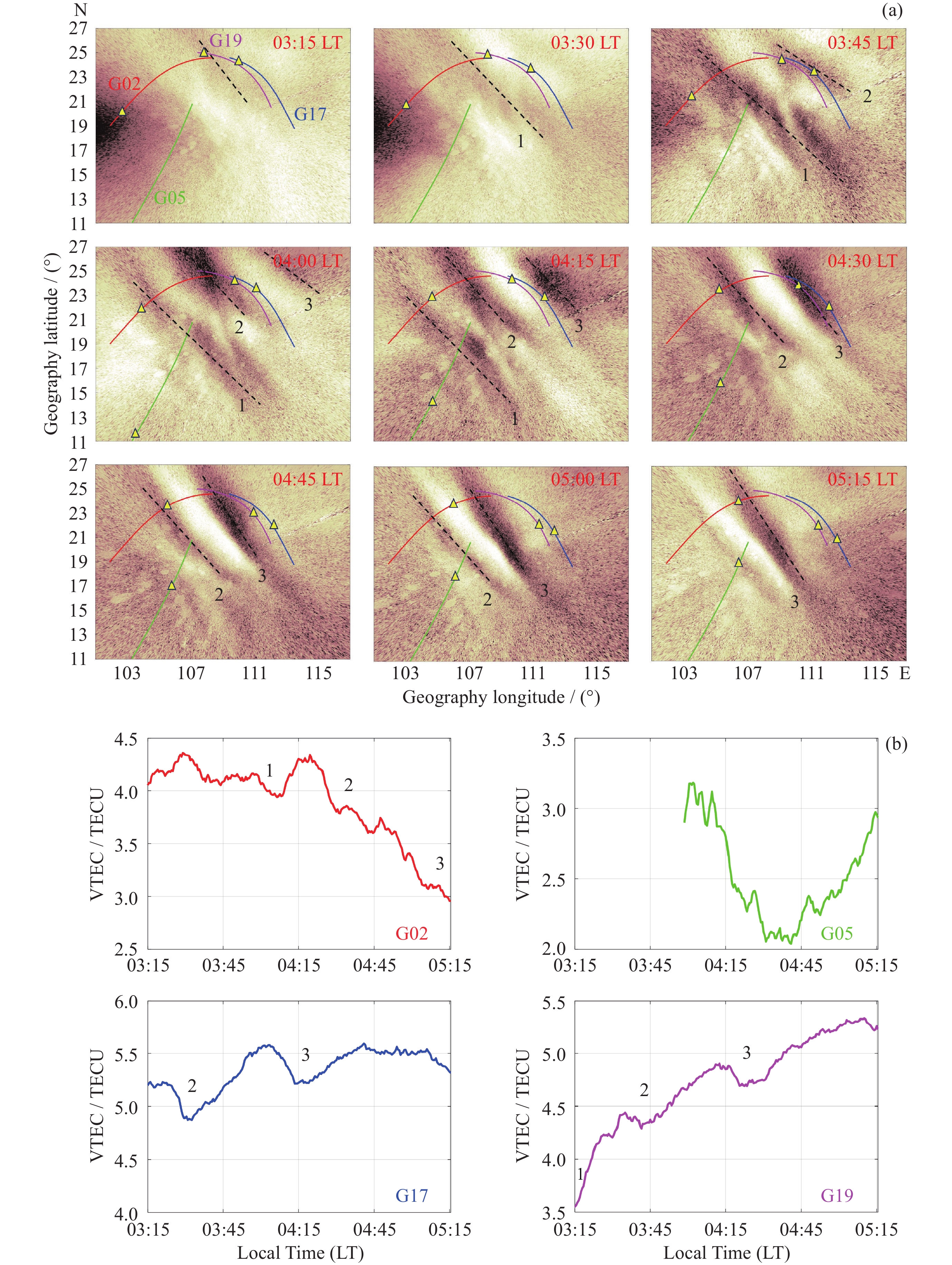

图 2 2019年12月8日GPS-TEC与气辉同时观测结果. (b)中曲线对应(a)中相同颜色的轨道轨迹
Figure 2. Simultaneous observation results of GPS-TEC and airglow on 8 December 2019. Colored curves in chart (b) match the same -colored obital trajectories in chart (a)

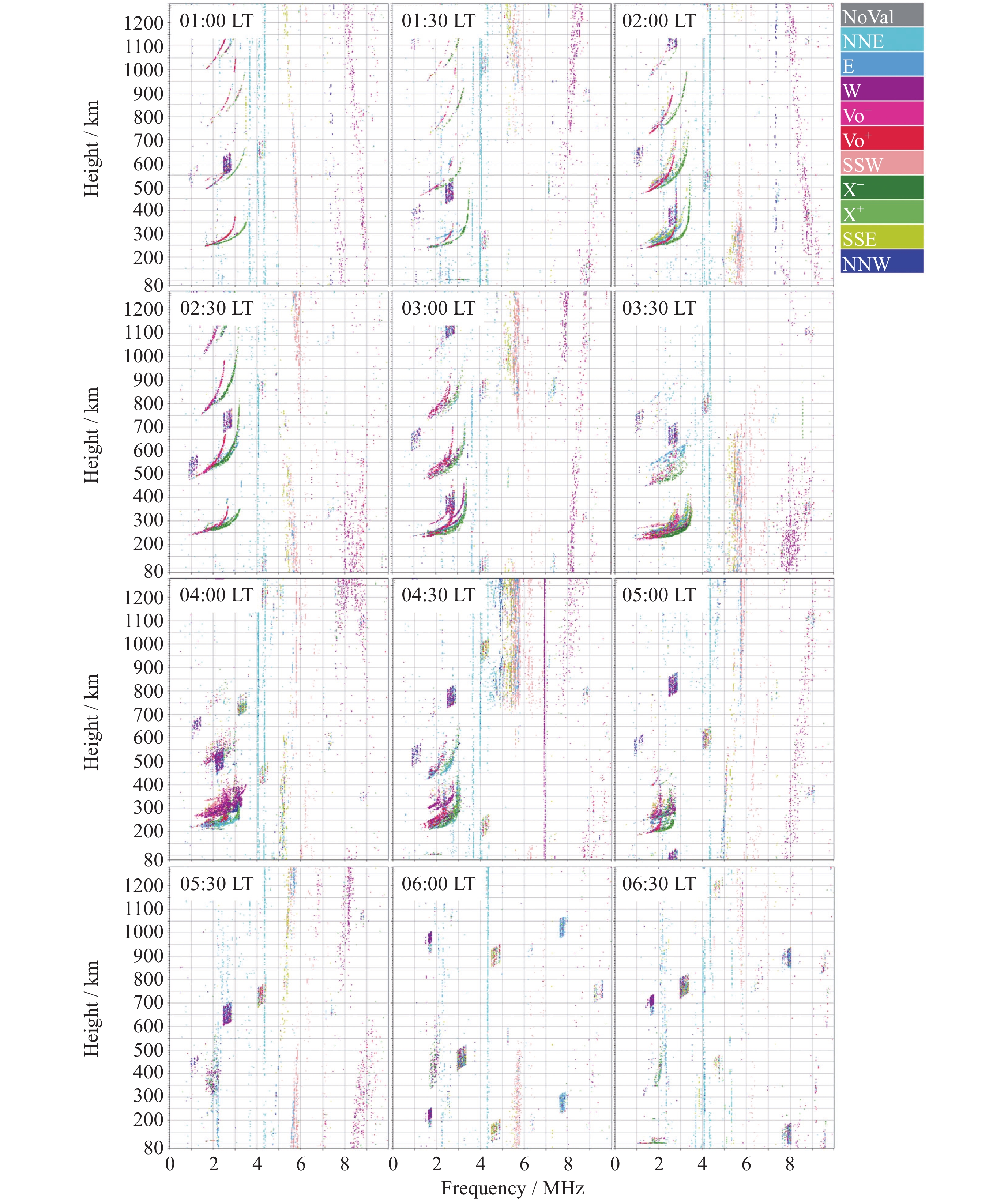

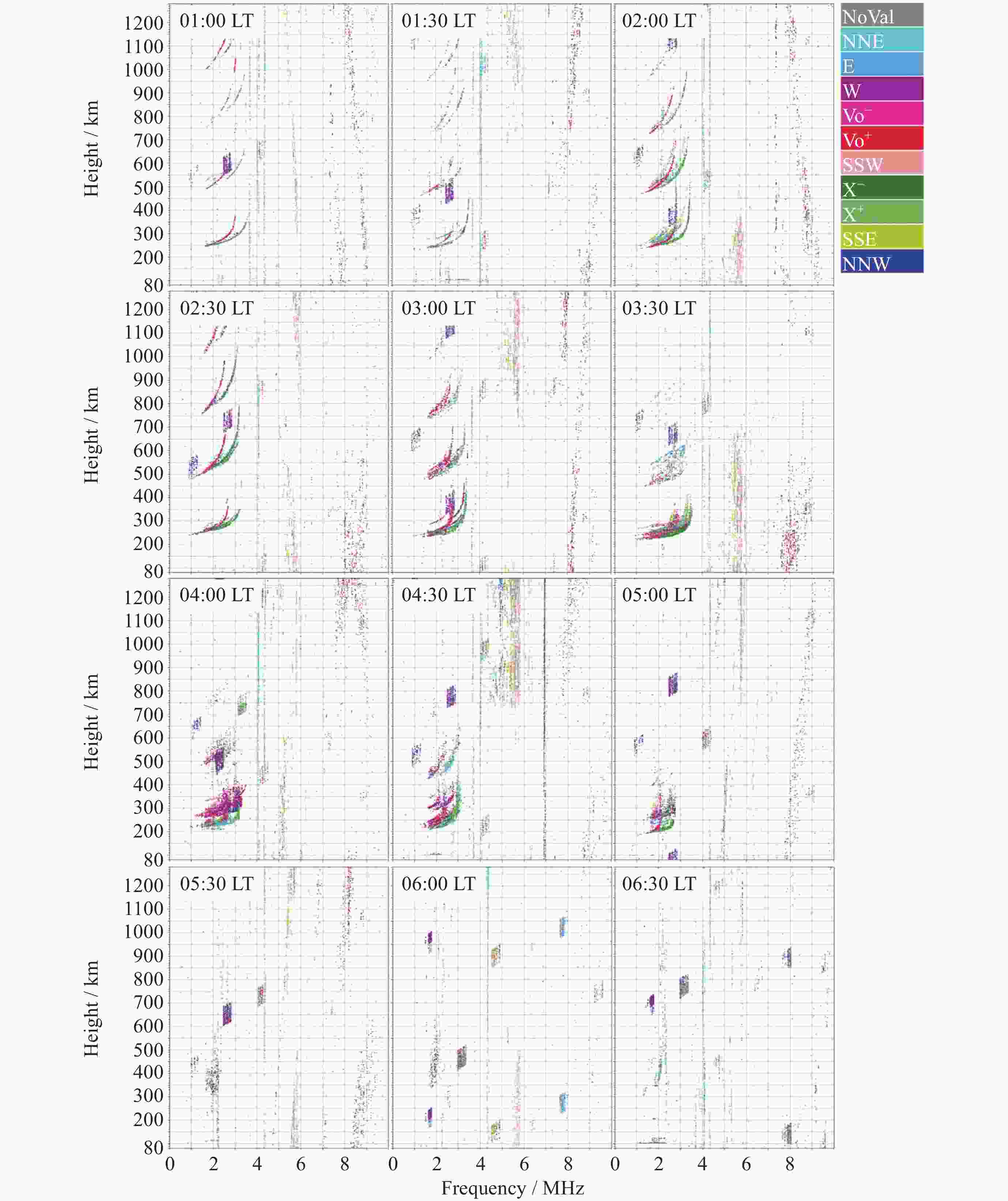

图 3 2019年12月8日富克台站数字测高仪观测结果
Figure 3. Digisonde observations at Fuke Station on 8 December 2019

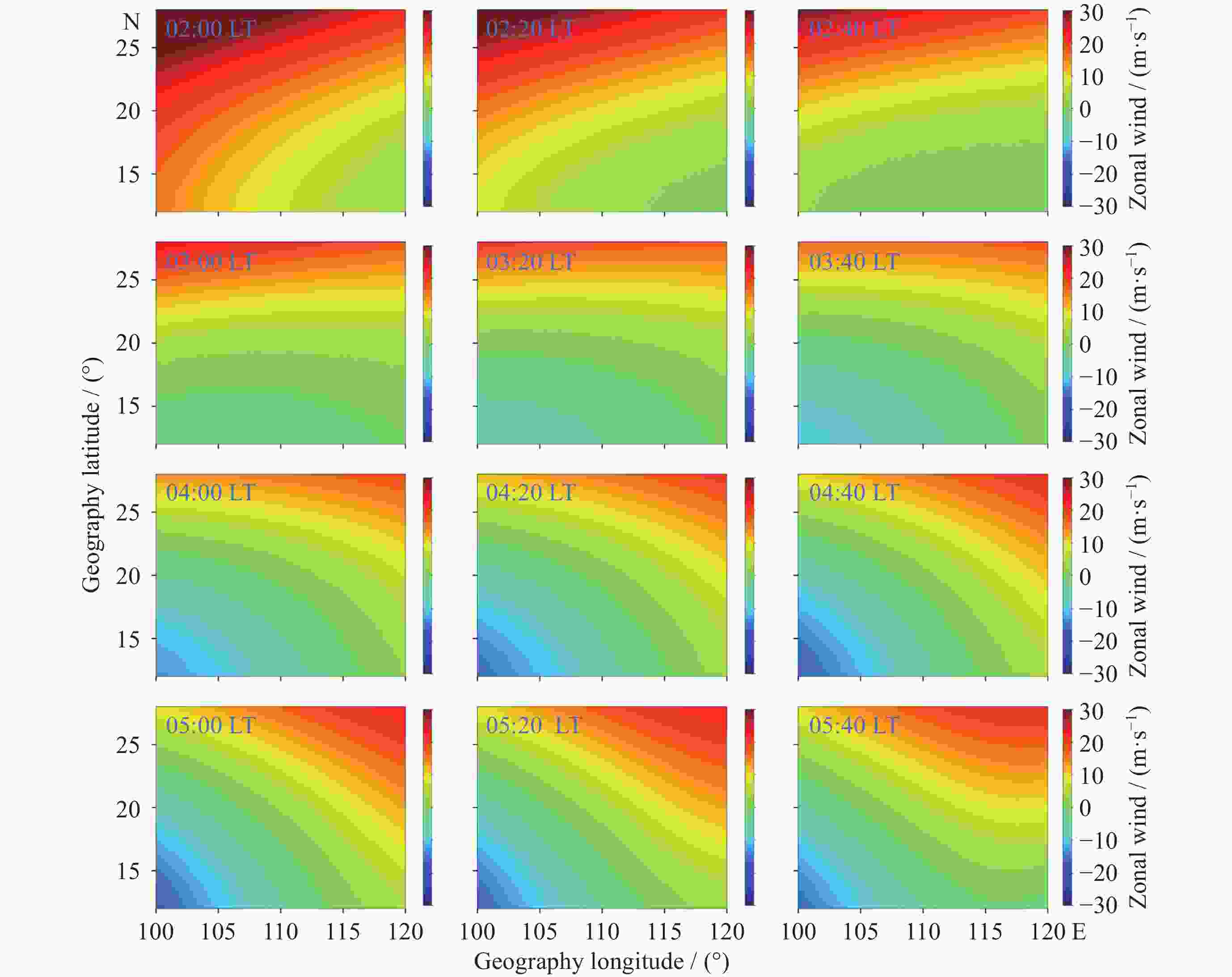

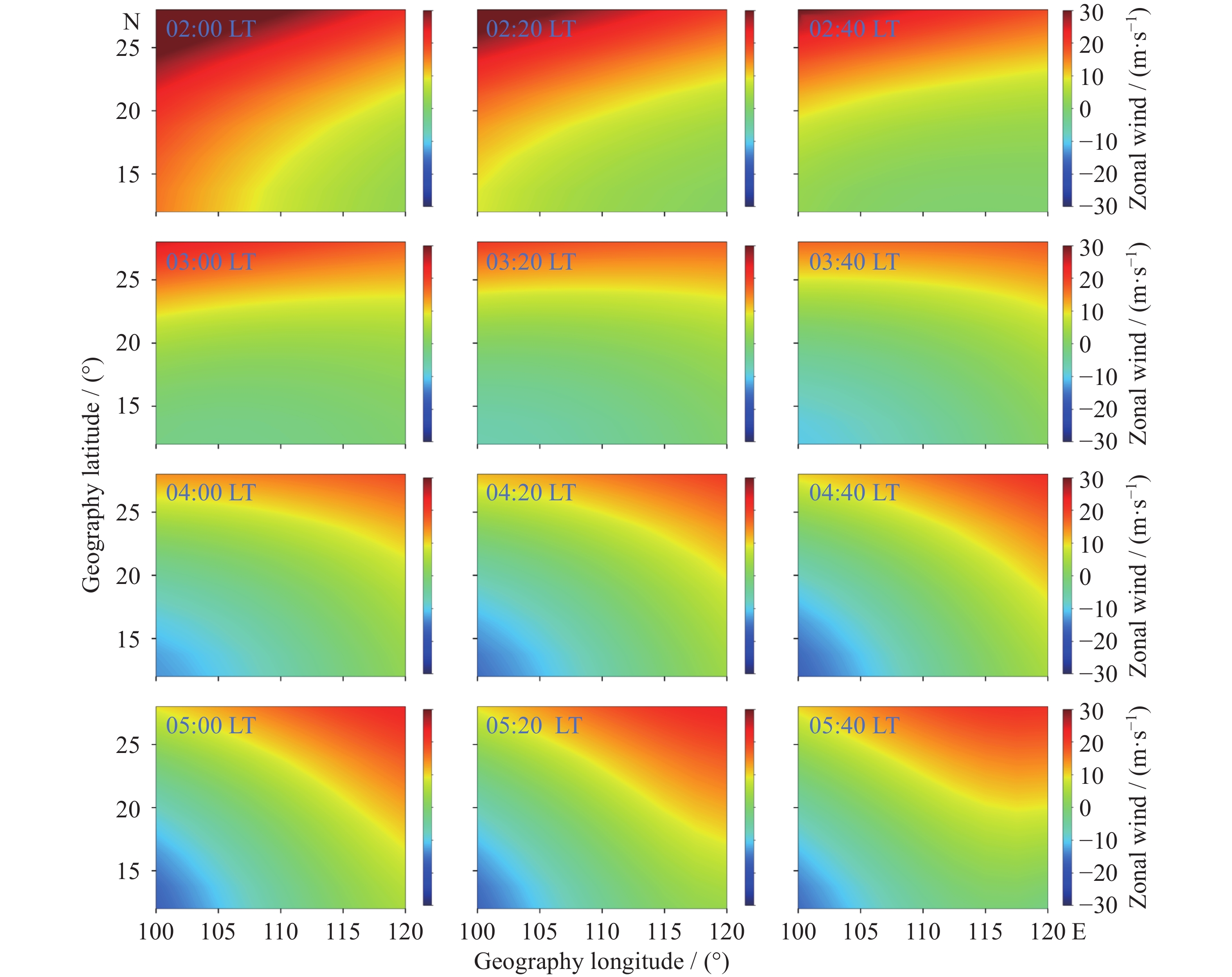

图 4 TIE-GCM模拟的2019年12月8日02:00－05:40 LT 100°E－120°E, 11.5°N－27.5°N区域250 km高度纬向风
Figure 4. Zonal wind at 250 km altitude from TIE-GCM simulation for the region by 100°E－120°E and 11.5°N－27.5°N at 02:00－05:40 LT on 8 December 2019

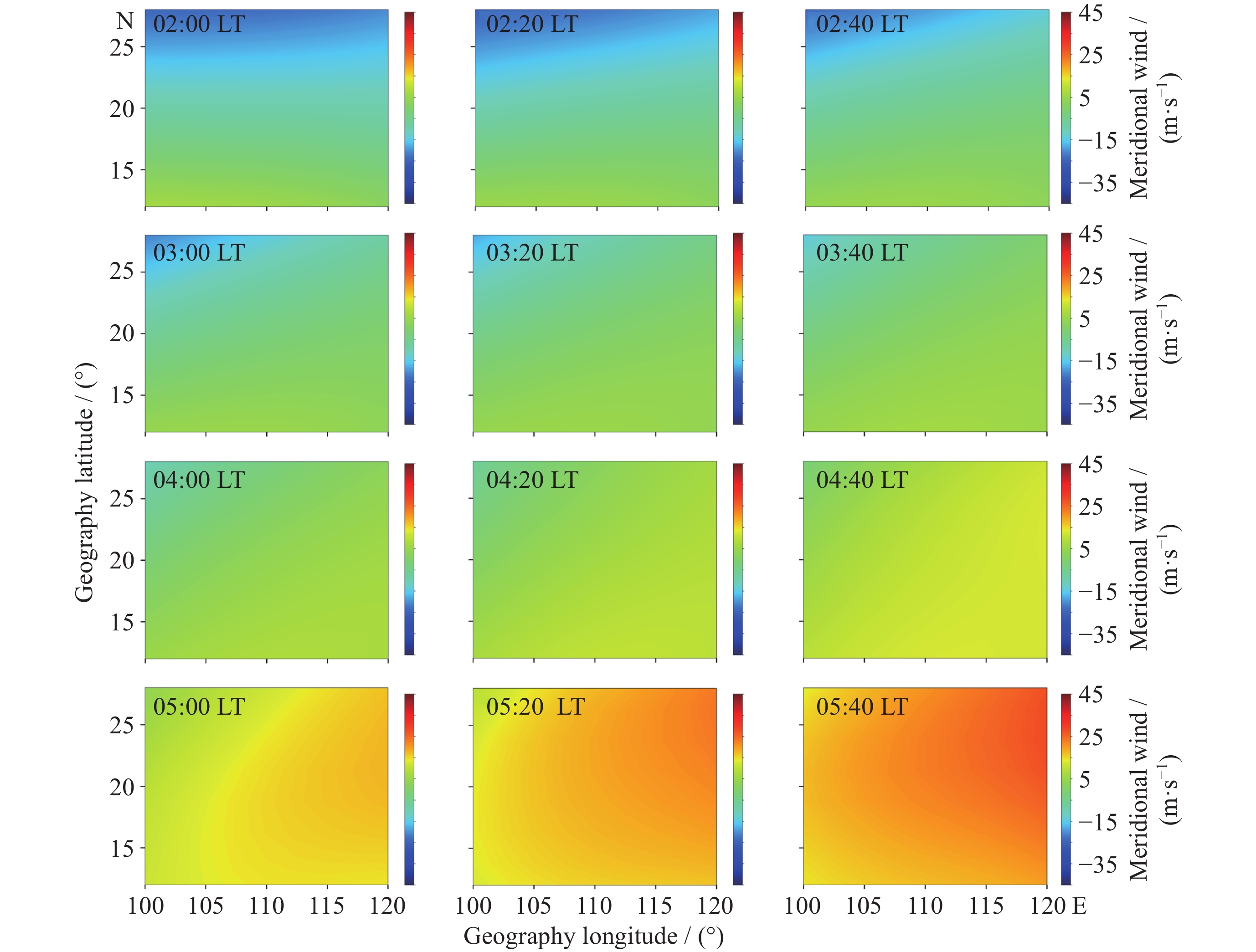

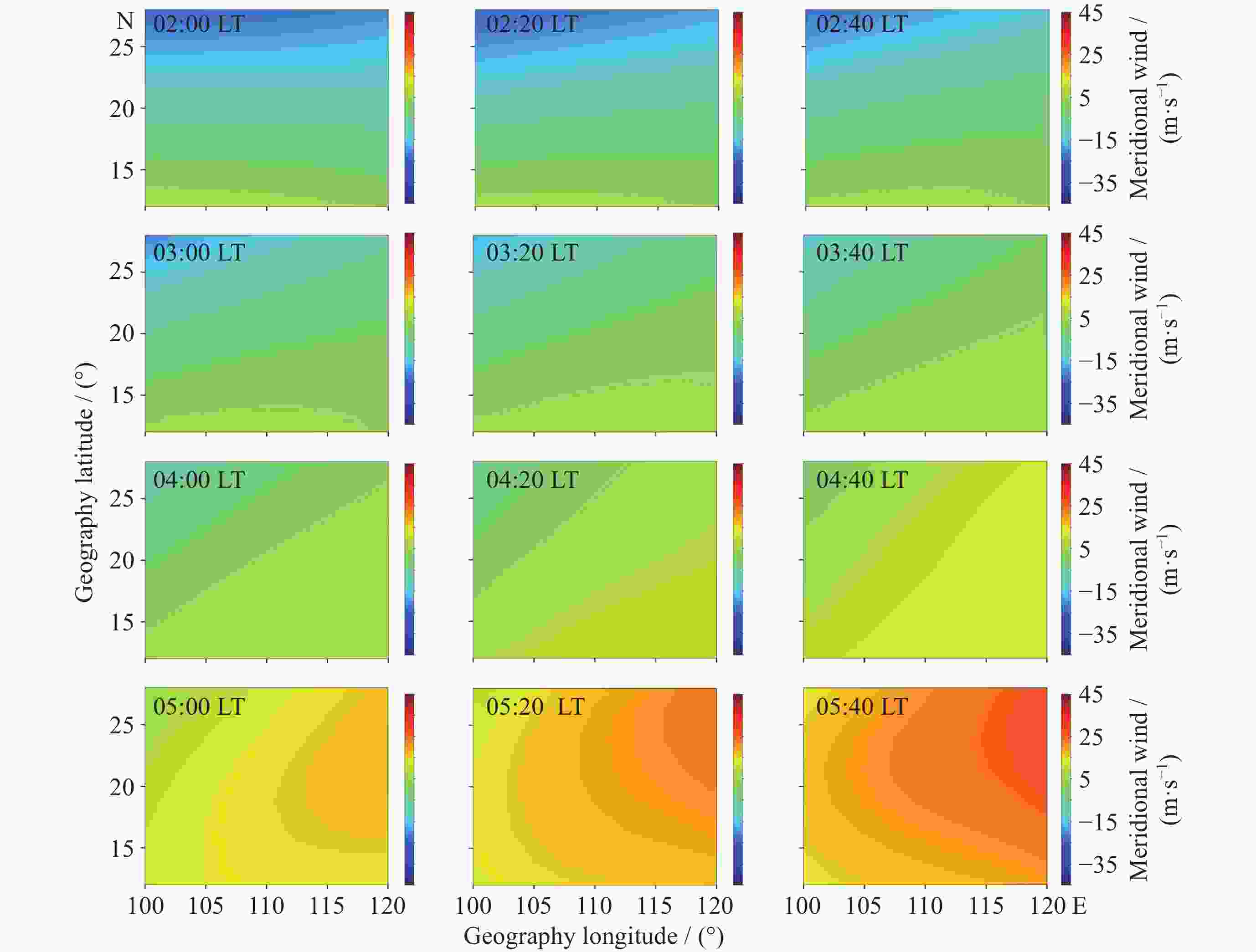

图 5 TIE-GCM模拟的2019年12月8日02:00－05:40 LT 100°E－120°E, 11.5°N－27.5°N区域250 km高度经向风
Figure 5. Meridional wind at 250 km altitude from TIE-GCM simulation for the region by 100°E－120°E and 11.5°N－27.5°N at 02:00－05:40 LT on 8 December 2019
-
[1] PERKINS F. Spread F and ionospheric currents[J]. Journal of Geophysical Research, 1973, 78(1): 218-226 doi: 10.1029/JA078i001p00218 [2] HUNSUCKER R D. Atmospheric gravity waves generated in the high-latitude ionosphere: a review[J]. Reviews of Geophysics, 1982, 20(2): 293-315 doi: 10.1029/RG020i002p00293 [3] KELLEY M C, MILLER C A. Mid-latitude thermospheric plasma physics and electrodynamics: a review[J]. Journal of Atmospheric and Solar-Terrestrial Physics, 1997, 59(13): 1643-1654 doi: 10.1016/S1364-6826(96)00163-0 [4] OGAWA T, NISHITANI N, OTSUKA Y, et al. Medium-scale traveling ionospheric disturbances observed with the SuperDARN Hokkaido radar, all-sky imager, and GPS network and their relation to concurrent sporadic E irregularities[J]. Journal of Geophysical Research: Space Physics, 2009, 114(A3): A03316 doi: 10.1029/2008ja013893 [5] SHIOKAWA K, OTSUKA Y, TSUGAWA T, et al. Geomagnetic conjugate observation of nighttime medium-scale and large-scale traveling ionospheric disturbances: FRONT3 campaign[J]. Journal of Geophysical Research: Space Physics, 2005, 110(A5): A05303 doi: 10.1029/2004ja010845 [6] GARCIA F J, KELLEY M C, MAKELA J J, et al. Airglow observations of mesoscale low-velocity traveling ionospheric disturbances at midlatitudes[J]. Journal of Geophysical Research: Space Physics, 2000, 105(A8): 18407-18415 doi: 10.1029/1999JA000305 [7] SHIOKAWA K, IHARA C, OTSUKA Y, et al. Statistical study of nighttime medium-scale traveling ionospheric disturbances using midlatitude airglow images[J]. Journal of Geophysical Research: Space Physics, 2003, 108(A1): 1052 doi: 10.1029/2002ja009491 [8] MILLER C A, SWARTZ W E, KELLEY M C, et al. Electrodynamics of midlatitude spread F: 1. Observations of unstable, gravity wave-induced ionospheric electric fields at tropical latitudes[J]. Journal of Geophysical Research: Space Physics, 1997, 102(A6): 11521-11532 doi: 10.1029/96JA03839 [9] HUANG F Q, LEI J H, DOU X K, et al. Nighttime medium-scale traveling ionospheric disturbances from airglow imager and global navigation satellite systems observations[J]. Geophysical Research Letters, 2018, 45(1): 31-38 doi: 10.1002/2017GL076408 [10] KIL H, PAXTON L J. Global distribution of nighttime medium-scale traveling ionospheric disturbances seen by swarm satellites[J]. Geophysical Research Letters, 2017, 44(18): 9176-9182 doi: 10.1002/2017GL074750 [11] SUZUKI S, HOSOKAWA K, OTSUKA Y, et al. Coordinated observations of nighttime medium-scale traveling ionospheric disturbances in 630-nm airglow and HF radar echoes at midlatitudes[J]. Journal of Geophysical Research: Space Physics, 2009, 114(A7): A07312 doi: 10.1029/2008ja013963 [12] OTSUKA Y, SHIOKAWA K, OGAWA T, et al. Geomagnetic conjugate observations of medium-scale traveling ionospheric disturbances at midlatitude using all-sky airglow imagers[J]. Geophysical Research Letters, 2004, 31(15): L15803 doi: 10.1029/2004gl020262 [13] MARTINIS C, BAUMGARDNER J, WROTEN J, et al. All-sky imaging observations of conjugate medium-scale traveling ionospheric disturbances in the American sector[J]. Journal of Geophysical Research: Space Physics, 2011, 116(A5): A05326 doi: 10.1029/2010ja016264 [14] LUO J, XU J Y, WU K, et al. The influence of ionospheric neutral wind variations on the morphology and propagation of medium scale traveling ionospheric disturbances on 8th August 2016[J]. Journal of Geophysical Research: Space Physics, 2021, 126(6): e2020JA029037 doi: 10.1029/2020JA029037 [15] LUO J, XU J Y, WU K, et al. Investigation on chasing and interaction of traveling ionospheric disturbances based on multi-instrument[J]. Journal of Geophysical Research: Space Physics, 2024, 129(8): e2023JA032283 doi: 10.1029/2023JA032283 [16] YADAV V, RATHI R, GAUR G, et al. Interaction between nighttime MSTID and mid-latitude field-aligned plasma depletion structure over the transition region of geomagnetic low-mid latitude: first results from Hanle, India[J]. Journal of Atmospheric and Solar-Terrestrial Physics, 2021, 217: 105589 doi: 10.1016/j.jastp.2021.105589 [17] YADAV V, RATHI R, SARKHEL S, et al. A unique case of complex interaction between MSTIDs and mid-latitude field-aligned plasma depletions over geomagnetic low-mid latitude transition region[J]. Journal of Geophysical Research: Space Physics, 2021, 126(1): e2020JA028620 doi: 10.1029/2020JA028620 [18] PATGIRI D, RATHI R, YADAV V, et al. A case study on multiple self-interactions of MSTID bands: new insights[J]. Advances in Space Research, 2024, 73(7): 3595-3612 doi: 10.1016/j.asr.2023.05.047 [19] FUKUSHIMA D, SHIOKAWA K, OTSUKA Y, et al. Observation of equatorial nighttime medium-scale traveling ionospheric disturbances in 630-nm airglow images over 7 years[J]. Journal of Geophysical Research: Space Physics, 2012, 117(A10): A10324 doi: 10.1029/2012ja017758 [20] LEE C C, LIOU Y A, OTSUKA Y, et al. Nighttime medium-scale traveling ionospheric disturbances detected by network GPS receivers in Taiwan[J]. Journal of Geophysical Research: Space Physics, 2008, 113(A12): A12316 doi: 10.1029/2008ja013250 [21] MAKELA J J, MILLER E S, TALAAT E R. Nighttime medium-scale traveling ionospheric disturbances at low geomagnetic latitudes[J]. Geophysical Research Letters, 2010, 37(24): L24104 doi: 10.1029/2010gl045922 [22] SHIOKAWA K, OTSUKA Y, EJIRI M K, et al. Imaging observations of the equatorward limit of midlatitude traveling ionospheric disturbances[J]. Earth, Planets and Space, 2002, 54(1): 57-62 doi: 10.1186/bf03352421 [23] OTSUKA Y, SHIOKAWA K, OGAWA T. Disappearance of equatorial plasma bubble after interaction with mid-latitude medium-scale traveling ionospheric disturbance[J]. Geophysical Research Letters, 2012, 39(14): L14105 doi: 10.1029/2012gl052286 [24] WU K, XU J Y, WANG W B, et al. Interaction of oppositely traveling medium-scale traveling ionospheric disturbances observed in low latitudes during geomagnetically quiet nighttime[J]. Journal of Geophysical Research: Space Physics, 2021, 126(2): e2020JA028723 doi: 10.1029/2020JA028723 [25] WU K, QIAN L Y. Interactions between MSTIDs and ionospheric irregularities in the equatorial region observed on 13-14 May 2013[J]. Remote Sensing, 2024, 16(13): 2413 doi: 10.3390/rs16132413 [26] WU K, XU J Y, WANG W B, et al. Morphology and evolution of plasma density enhancement events in the equatorial ionospheric F region on 8 February and 4 November 2018[J]. Journal of Geophysical Research: Space Physics, 2022, 127(9): e2022JA030482 doi: 10.1029/2022JA030482 [27] WU K, XU J Y, ZHU Y J, et al. Ionospheric plasma vertical drift and zonal wind variations cause unusual evolution of EPBs during a geomagnetically quiet night[J]. Journal of Geophysical Research: Space Physics, 2021, 126(12): e2021JA029893 doi: 10.1029/2021JA029893 [28] WU K, XU J Y, ZHU Y J, et al. Occurrence characteristics of branching structures in equatorial plasma bubbles: a statistical study based on all-sky imagers in China[J]. Earth and Planetary Physics, 2021, 5(5): 407-415 doi: 10.26464/epp2021044 [29] GARCIA F J, TAYLOR M J, KELLEY M C. Two-dimensional spectral analysis of mesospheric airglow image data[J]. Applied Optics, 1997, 36(29): 7374-7385 doi: 10.1364/AO.36.007374 [30] SHI J K, WANG G J, REINISCH B W, et al. Relationship between strong range spread F and ionospheric scintillations observed in Hainan from 2003 to 2007[J]. Journal of Geophysical Research: Space Physics, 2011, 116(A8): A08306 doi: 10.1029/2011ja016806 [31] WANG G J, SHI J K, REINISCH B W, et al. Ionospheric plasma bubbles observed concurrently by multi-instruments over low-latitude station Hainan[J]. Journal of Geophysical Research: Space Physics, 2015, 120(3): 2288-2298 doi: 10.1002/2014JA020245 [32] WANG Z, ZHAN M Y, GAO P D, et al. Automatic detection and classification of spread-F from ionosonde at Hainan with image-based deep learning method[J]. Space Weather, 2023, 21(11): e2023SW003498 doi: 10.1029/2023SW003498 [33] LI G Z, NING B Q, ABDU M A, et al. Precursor signatures and evolution of post-sunset equatorial spread-F observed over Sanya[J]. Journal of Geophysical Research: Space Physics, 2012, 117(A8): A08321 doi: 10.1029/2012ja017820 [34] WU H N, WANG W B, PHAM K H, et al. The NCAR-TIEGCM version 3.0[J]. Journal of Geophysical Research: Space Physics, 2025, 130(9): e2025JA034219 doi: 10.1029/2025JA034219 [35] MARTINIS C, BAUMGARDNER J, WROTEN J, et al. Seasonal dependence of MSTIDs obtained from 630.0 nm airglow imaging at Arecibo[J]. Geophysical Research Letters, 2010, 37(11): L11103 doi: 10.1029/2010gl043569 [36] PAULINO I, MEDEIROS A F, VADAS S L, et al. Periodic waves in the lower thermosphere observed by OI630 nm airglow images[J]. Annales Geophysicae, 2016, 34(2): 293-301 doi: 10.5194/angeo-34-293-2016 [37] KELLEY M C, FUKAO S. Turbulent upwelling of the mid-latitude ionosphere: 2. Theoretical framework[J]. Journal of Geophysical Research: Space Physics, 1991, 96(A3): 3747-3753 doi: 10.1029/90JA02252 [38] WALDOCK J A, JONES T B. The effects of neutral winds on the propagation of medium-scale atmospheric gravity waves at mid-latitudes[J]. Journal of Atmospheric and Terrestrial Physics, 1984, 46(3): 217-231 doi: 10.1016/0021-9169(84)90149-1 [39] NARAYANAN V L, SHIOKAWA K, OTSUKA Y, et al. Airglow observations of nighttime medium-scale traveling ionospheric disturbances from Yonaguni: statistical characteristics and low-latitude limit[J]. Journal of Geophysical Research: Space Physics, 2014, 119(11): 9268-9282 doi: 10.1002/2014JA020368 [40] SIVAKANDAN M, CHAKRABARTY D, RAMKUMAR T K, et al. Evidence for deep ingression of the midlatitude MSTID into as low as ~3.5° magnetic latitude[J]. Journal of Geophysical Research: Space Physics, 2019, 124(1): 749-764 doi: 10.1029/2018JA026103 -
-
