单星模拟器多星点自动更换装置设计
doi: 10.11728/cjss2026.01.2025-0003 cstr: 32142.14.cjss.2025-0003
-
葛世蕊 女, 1998年3月出生于黑龙江哈尔滨市, 现为长春理工大学硕士研究生, 主要研究方向为星模拟技术等. E-mail: gsr0309@163.com -
苏拾 男, 1978年5月出生于吉林长春市, 现为长春理工大学光电工程学院教授, 主要研究方向为精密测量技术、太阳模拟技术与LED应用技术等. E-mail: sushi@cust.edu.cn
作者简介:
通讯作者:
Design of Automatic Changing Device for Multiple Star Points of Single Star Simulator
-

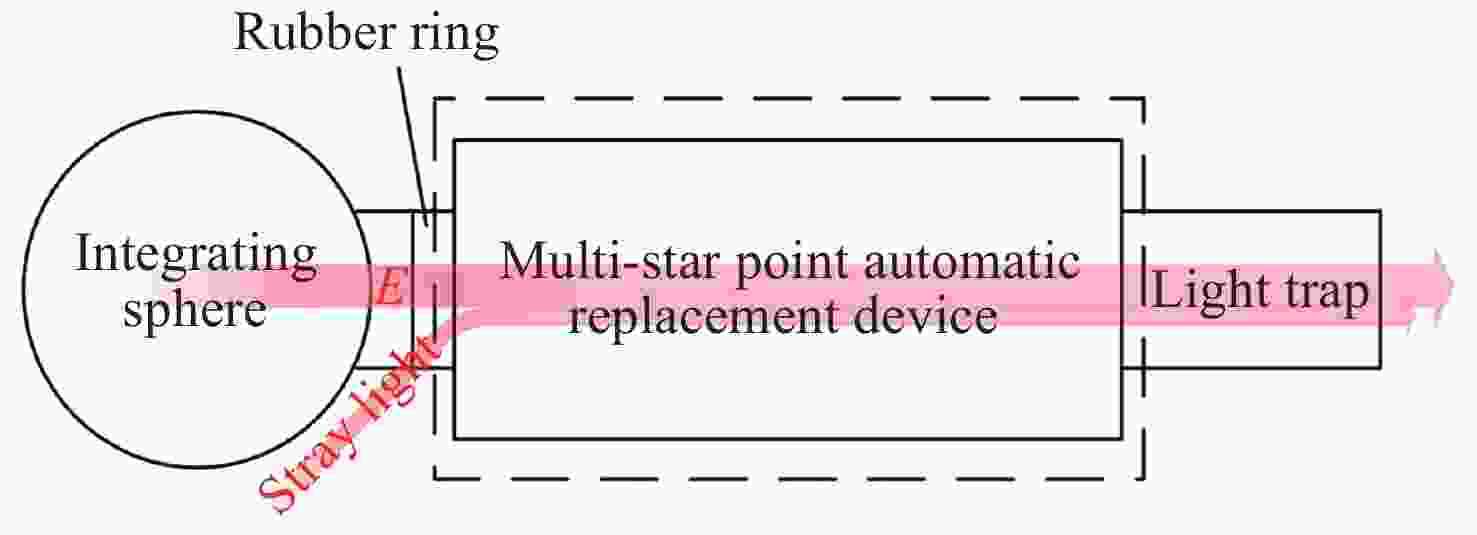

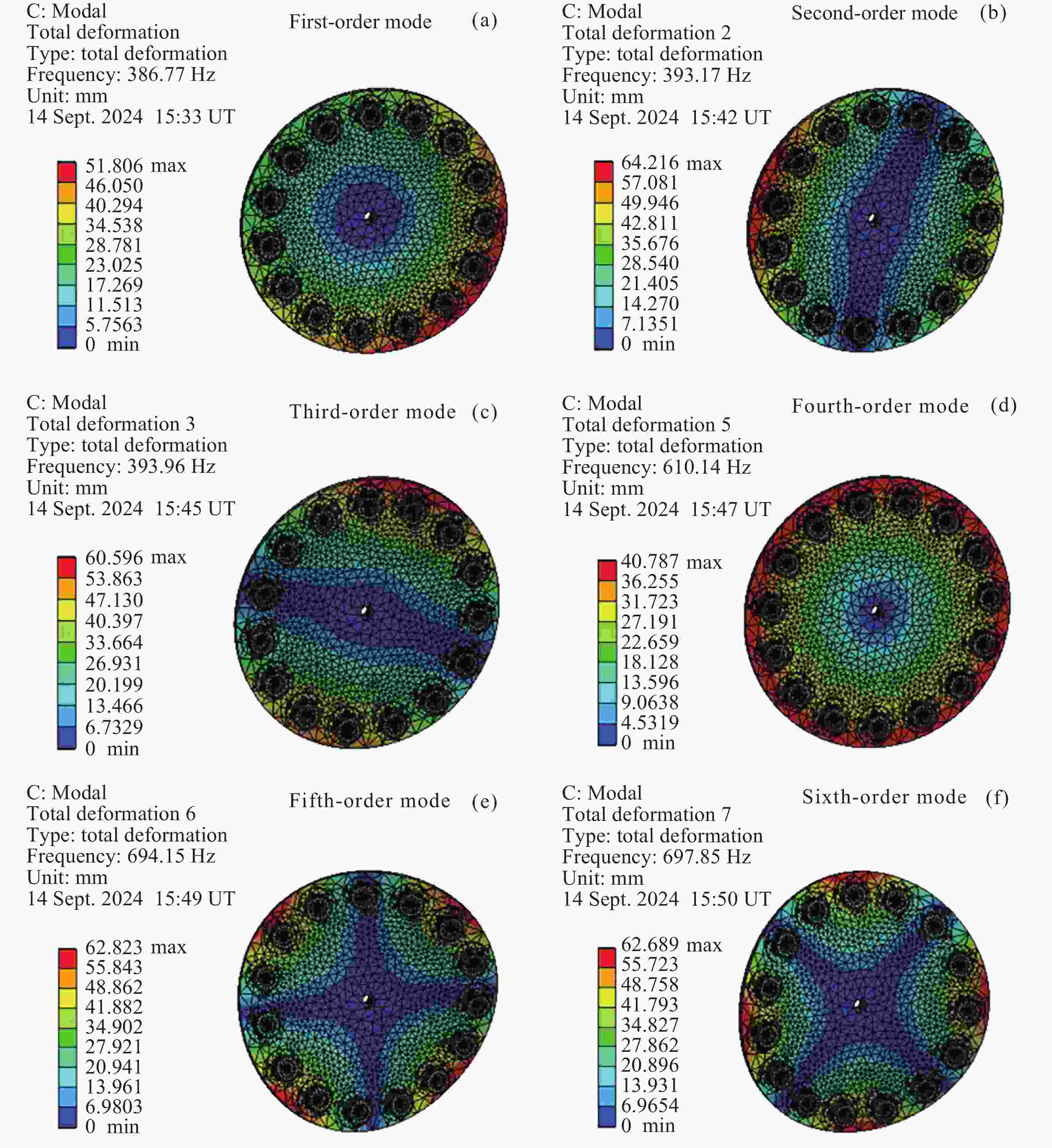

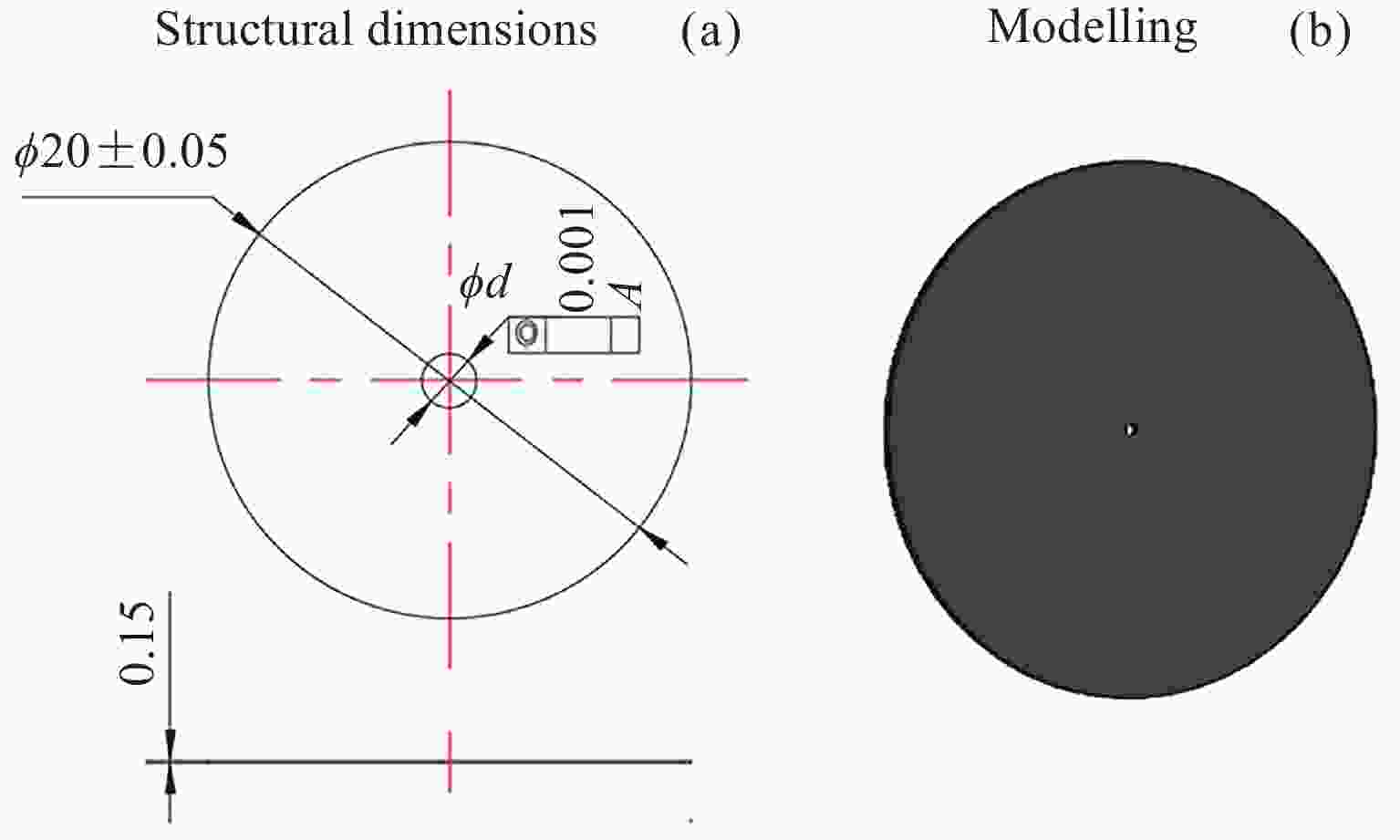

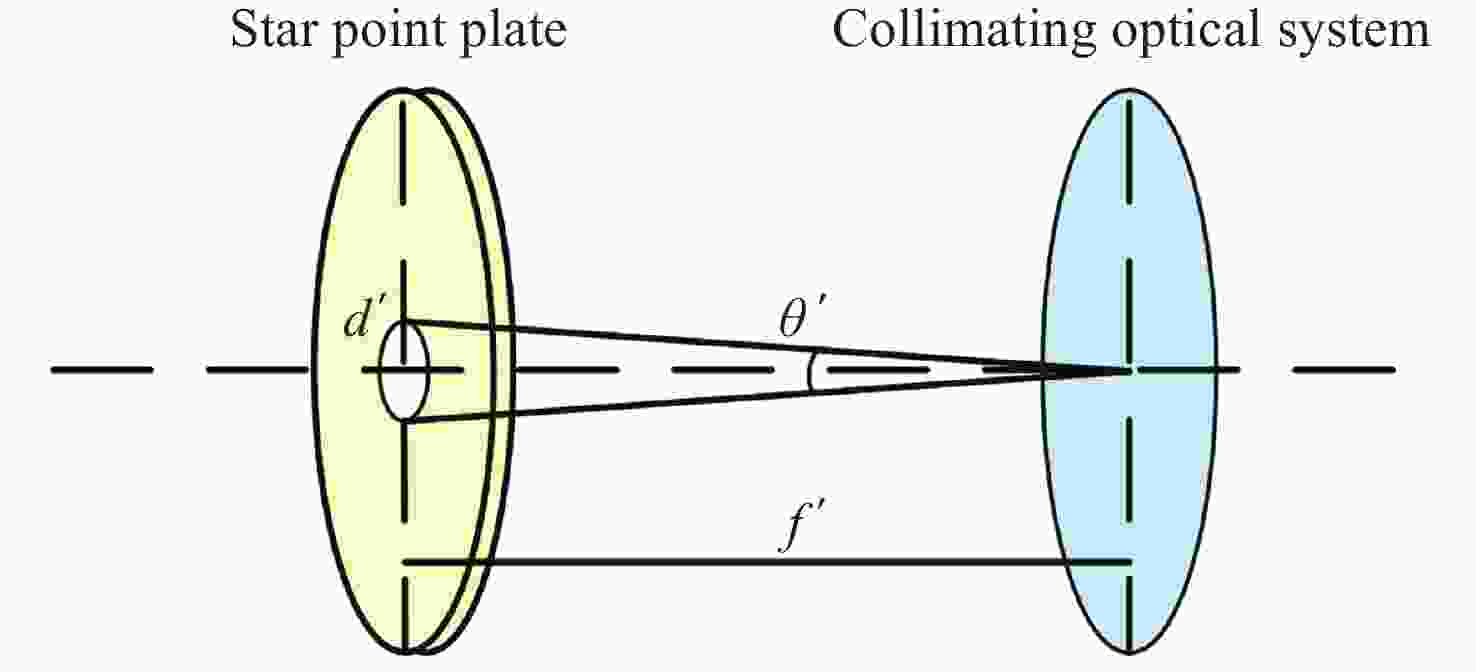

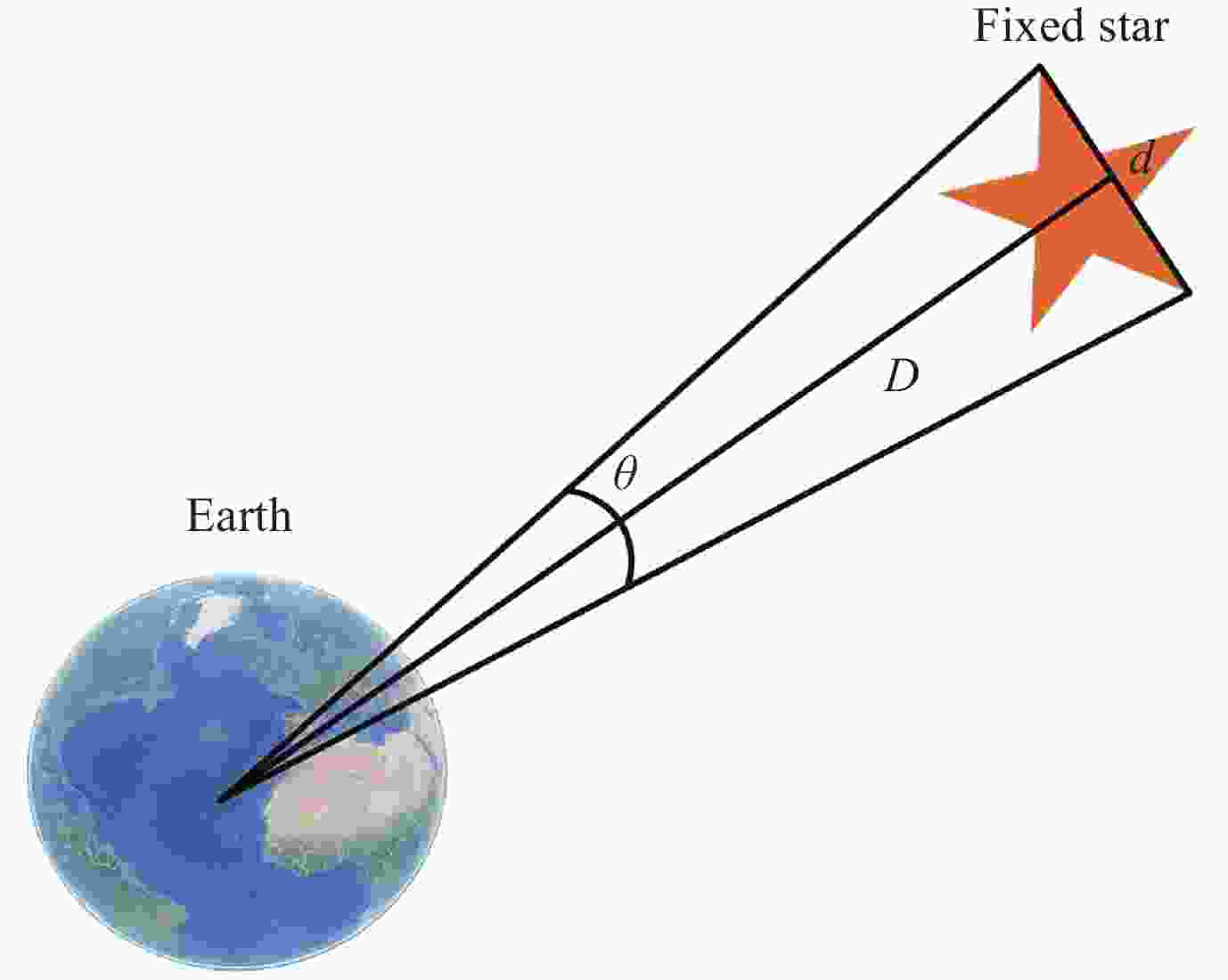

摘要: 为解决单星模拟器模拟不同恒星目标时需要手动更换星点板、检定效率低、光轴一致性差等问题, 设计一种单星模拟器多星点自动更换装置. 基于离轴反射式单星模拟器工作原理提出一种转轮式多星点自动更换装置, 根据恒星模拟理论和设计要求确定星点板微孔尺寸, 设计星点板安装及调整结构, 以轻量化为目标对星点盘进行有限元分析与优化; 分析杂光传输来源, 设计消杂光结构, 降低对星等模拟的影响; 设计电控系统实现星点板自动切换, 通过自校正控制减少星点板的轴向偏移误差, 并对影响星点板切换精度的误差源进行分析. 结果表明, 星点单星张角误差优于1.2'', 星点位置光轴一致性优于10 μm, 满足了单星模拟器模拟不同恒星目标时的高效性和星点张角与位置的精确性要求.Abstract: In order to solve the problems of manually changing the star point plate when simulating different stellar targets with a single star simulator, low efficiency of calibration, poor consistency of the optical axis, etc. A single-star simulator multi-star point automatic replacement device is designed. Based on the working principle of off-axis reflective single star simulator, a rotating wheel type multi-star point automatic replacement device is proposed, according to the theory and design requirements of the stellar simulator to determine the size of the star point plate micro-aperture, to design the mounting and adjustment structure of the star point plate, to adjust the consistency of the star point micro-aperture with the optical axis of the optical system, and to carry out the finite element analysis and optimization of the star point disc with the goal of light weighting. Circularity, the sources of stray light transmission are analyzed and suppression measures are summarized, and a stray light cancellation structure is designed to reduce the impact on the magnitude simulation. The design of the electronic control system to achieve the automatic switching of the star point plate and the precision analysis of the error source of the influence. The results show: the single star point tensor angle error is better than 1.2″, and the optical axis consistency of the star point position is better than 10 μm, which meets the accuracy requirements of the single star tensor angle and the star point position of the single-star simulator when simulating different stellar targets, and improves the efficiency of the checking and simulation accuracy of the simulation of different stellar targets.
-

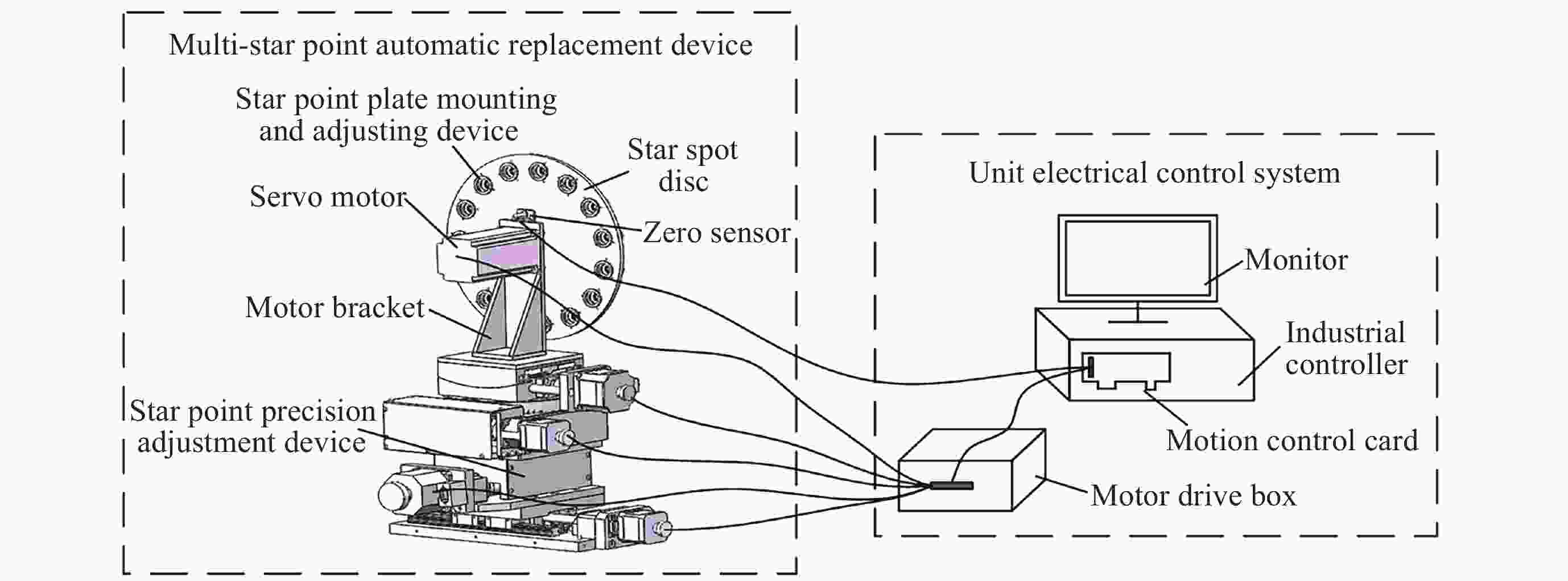

图 4 多星点自动更换装置总体结构
Figure 4. Overall structure of automatic multi-star point changing device

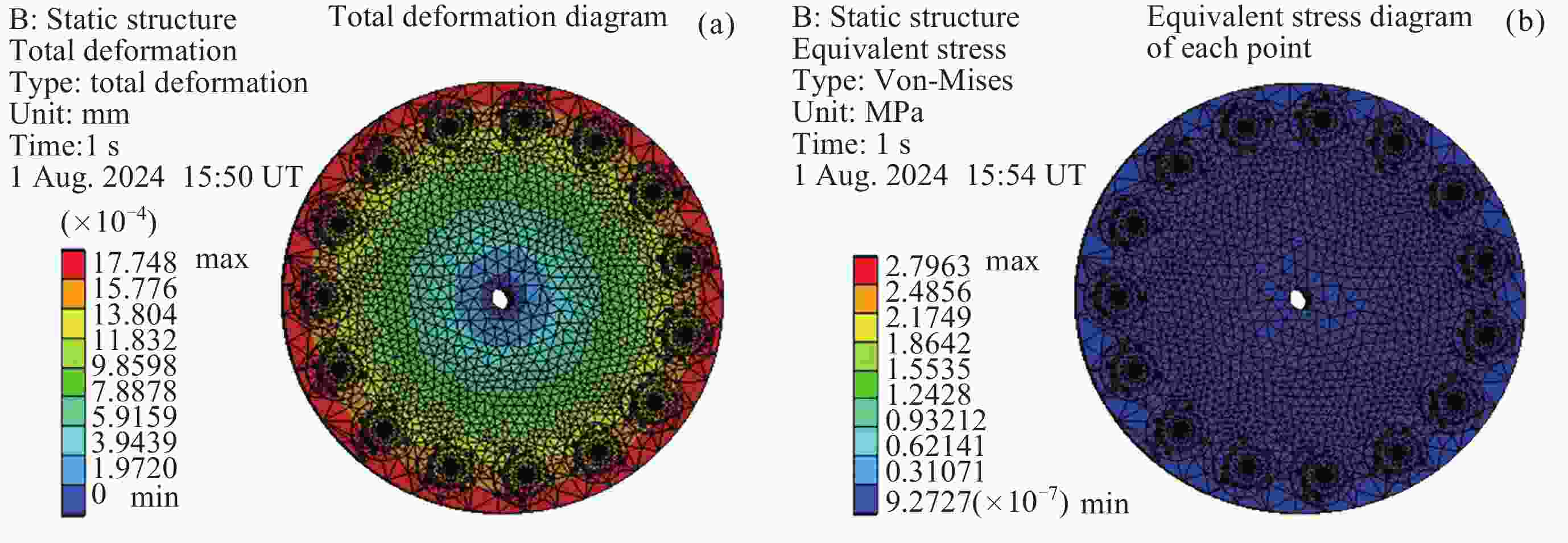

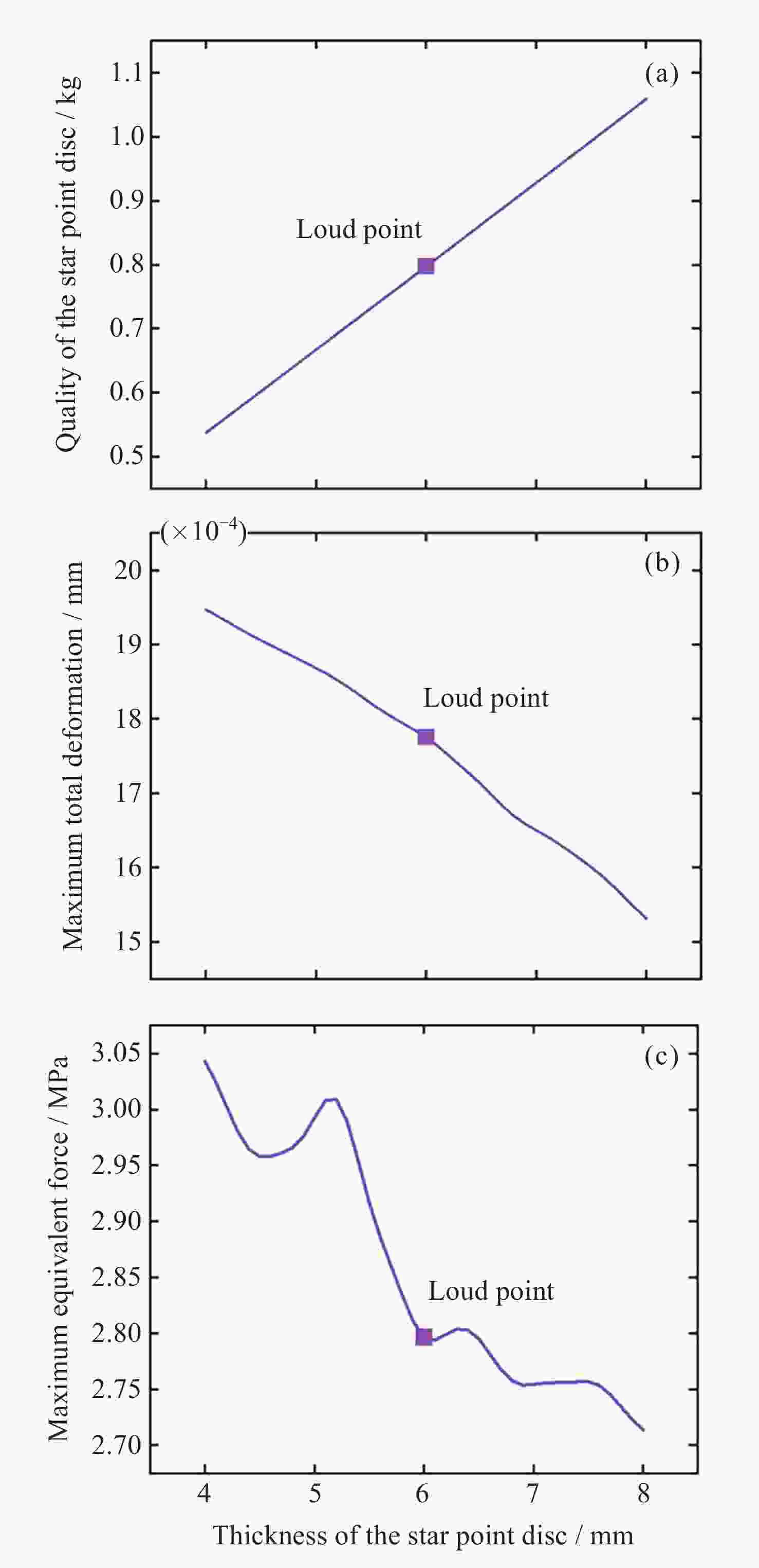

图 9 各输出量关于星点盘厚度的局部灵敏度曲线
Figure 9. Local sensitivity curves for each output with respect to the thickness of the star point disc

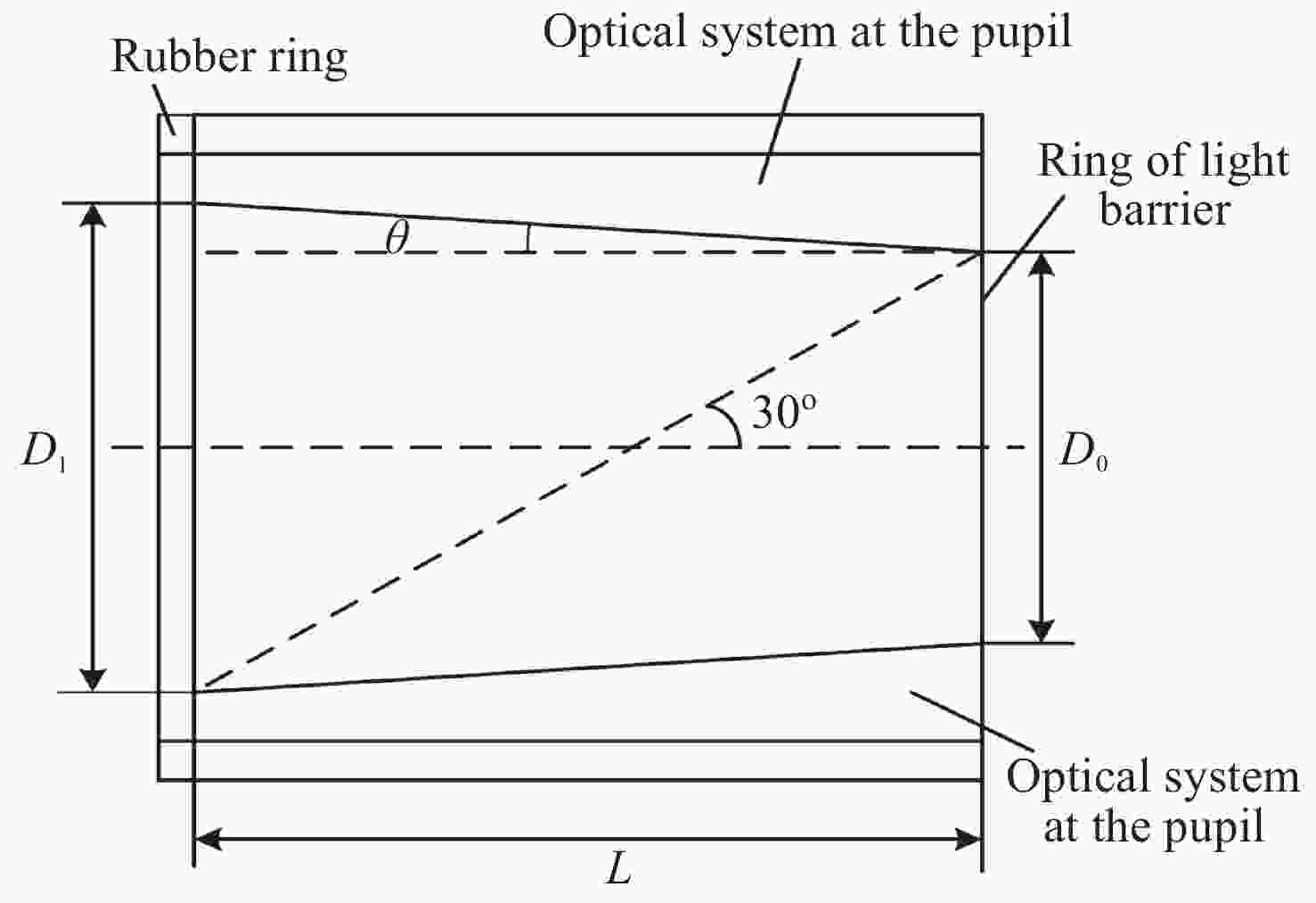

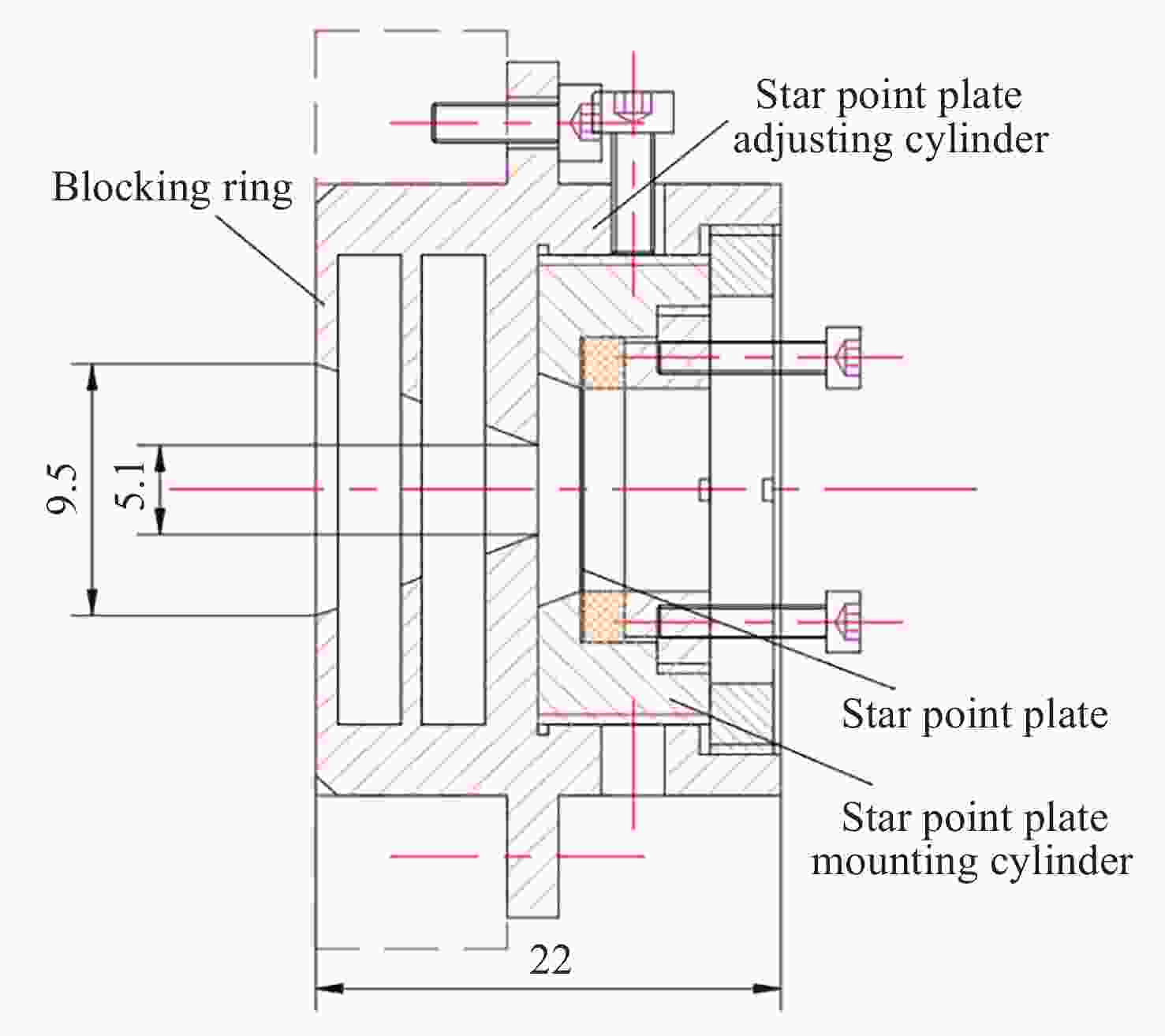

图 12 星点板调节筒消杂光结构
Figure 12. Stray light suppression structure of Star target adjustment tube

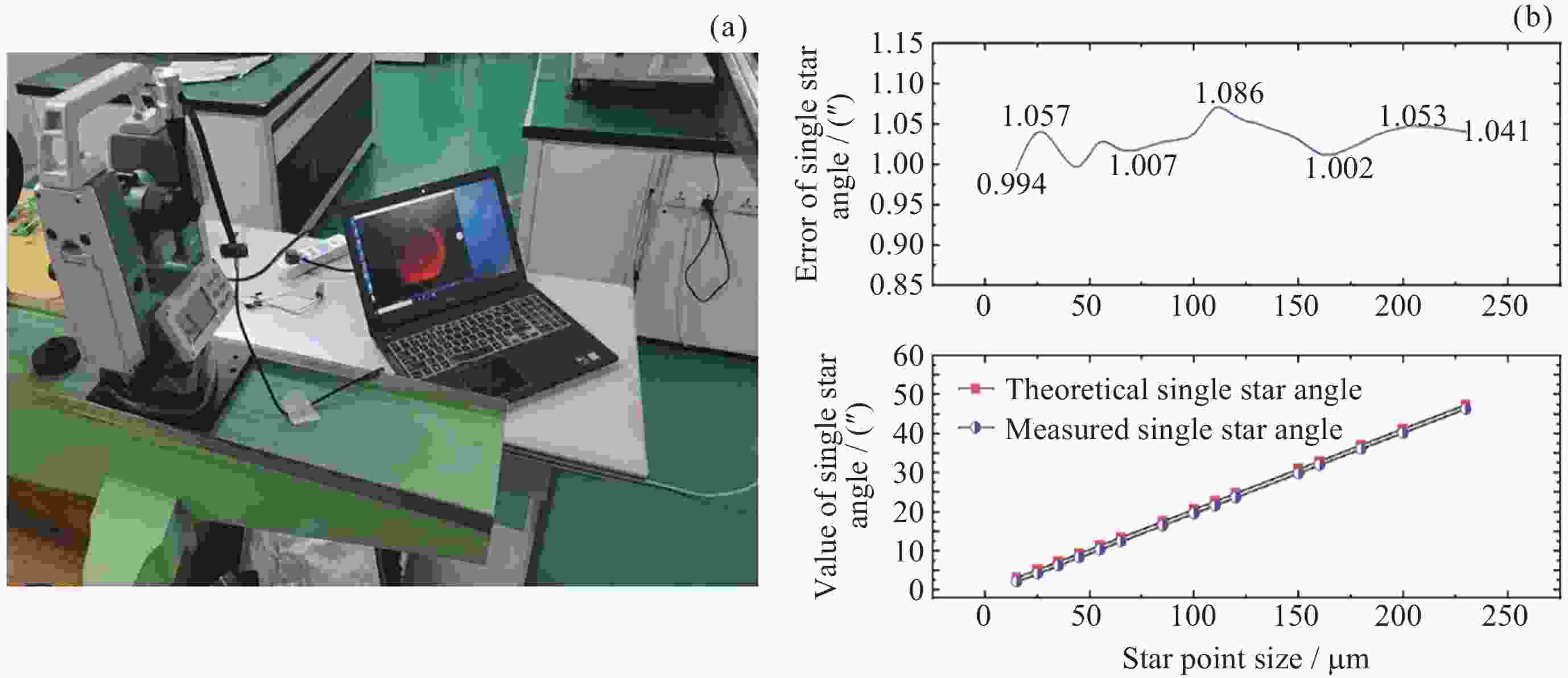

图 15 单星张角误差分析. (a)经纬仪实测单星张角, (b)实测单星张角与理论单星张角对比
Figure 15. Error analysis of single-star angular diameter . (a) Single-star angular diameter measured by theodolite, (b) Comparison diagram of measured and theoretical single star anglular diameter
表 1 多星点自动更换装置设计指标
Table 1. Design index of multi-star point automatic replacement device
技术指标 设计要求 模拟星点数量 15 星点尺寸范围/μm 15～230 单星张角误差/('') <1.2 星点光轴一致性误差/μm <10 星点板更换方式 electric control
下载: 导出CSV
表 2 三个候选优化结果
Table 2. Three candidate optimization results
候选点 1 2 3 星点盘厚度/mm 4.3088 4.3321 4.3773 星点盘质量/kg 参数值 0.5773 0.5803 0.5862 与参考值的偏差 –27.56% –27.18% –26.45% 最大总变形/mm 参数值 0.0019208 0.0019188 0.0019151 与参考值的偏差 8.23% 8.12% 7.91% 最大等效应力/MPa 参数值 2.9784 2.9742 2.9673 与参考值的偏差 6.51% 6.36% 6.11%
下载: 导出CSV
表 3 优化前后各数值对照表
Table 3. Comparison table of values before and after optimization
优化目标 星点盘厚度/mm 星点盘质量/kg 最大总变形/mm 最大等效应力/MPa 初始值 6.0000 0.7970 0.0018 2.7963 优化值 4.3773 0.5862 0.0019 2.9673
下载: 导出CSV
-
[1] ZHENG Ru, LIU Bo, GAO Yue, et al. Research on star points position analysis and simulation technology of infrared star simulators[J]. Chinese Journal of Scientific Instrument, 2022, 43(9): 115-121 (郑茹, 刘博, 高越, 等. 红外星模拟器星点位置分析与模拟技术研究[J]. 仪器仪表学报, 2022, 43(9): 115-121 doi: 10.19650/j.cnki.cjsi.J2108678ZHENG Ru, LIU Bo, GAO Yue, et al. Research on star points position analysis and simulation technology of infrared star simulators[J]. Chinese Journal of Scientific Instrument, 2022, 43(9): 115-121 doi: 10.19650/j.cnki.cjsi.J2108678 [2] LIU Shi, ZHANG Guoyu, SUN Gaofei, et al. Design of dynamic star simulator based on LCOS optical splicing technology[J]. Chinese Journal of Space Science, 2013, 33(2): 200-206 (刘石, 张国玉, 孙高飞, 等. 基于LCOS拼接技术的动态星模拟器设计[J]. 空间科学学报, 2013, 33(2): 200-206 doi: 10.11728/cjss2013.02.200LIU Shi, ZHANG Guoyu, SUN Gaofei, et al. Design of dynamic star simulator based on LCOS optical splicing technology[J]. Chinese Journal of Space Science, 2013, 33(2): 200-206 doi: 10.11728/cjss2013.02.200 [3] WANG Lingyun, WANG Bo, ZHANG Guoyu, et al. Study on high precise and high dynamic star simulator[J]. Chinese Journal of Space Science, 2015, 35(3): 356-361 (王凌云, 王博, 张国玉, 等. 高精度高动态星模拟器研究[J]. 空间科学学报, 2015, 35(3): 356-361 doi: 10.11728/cjss2015.03.356WANG Lingyun, WANG Bo, ZHANG Guoyu, et al. Study on high precise and high dynamic star simulator[J]. Chinese Journal of Space Science, 2015, 35(3): 356-361 doi: 10.11728/cjss2015.03.356 [4] PITTELKAU M E. Kalman filtering for spacecraft system alignment calibration[J]. Journal of Guidance, Control and Dynamics, 2001, 24(6): 1187-1195 doi: 10.2514/2.4834 [5] ZAKRZWSKI C, SANNEMAN P, HUNT T, et al. Design of the EO-1 pulsed plasma thruster attitude control experiment[C]//37th Joint Propulsion Conference and Exhibit. Salt Lake City: AAAI, 2001 [6] FENG Guangjun, MA Zhen, LI Yingcai. Design and performance analysis of standard starlight simulator[J]. Journal of Applied Optics, 2010, 31(1): 39-42 (冯广军, 马臻, 李英才. 一种高星等标准星光模拟器的设计与性能分析[J]. 应用光学, 2010, 31(1): 39-42FENG Guangjun, MA Zhen, LI Yingcai. Design and performance analysis of standard starlight simulator[J]. Journal of Applied Optics, 2010, 31(1): 39-42 [7] GAN X J, GAO X H, CHEN Y, et al. Design of single star simulator based on LED light source[J]. Applied Mechanics and Materials, 2013, 397-400: 932-935 [8] LIU Hongxing, REN Jianwei, LIU Zexun, et al. LED-based single star simulator with multi-color-temperature and multi-star-magnitude output[J]. Acta Optica Sinica, 2015, 35(2): 0212003 (刘洪兴, 任建伟, 刘则洵, 等. 基于LED的多色温多星等单星模拟器[J]. 光学学报, 2015, 35(2): 0212003 doi: 10.3788/AOS201535.0212003LIU Hongxing, REN Jianwei, LIU Zexun, et al. LED-based single star simulator with multi-color-temperature and multi-star-magnitude output[J]. Acta Optica Sinica, 2015, 35(2): 0212003 doi: 10.3788/AOS201535.0212003 [9] LIU Shangkuo, XUE Xun, LI Kun, et al. Design and calibration of weak-light single star simulator[J]. Acta Optica Sinica, 2017, 37(10): 1012001 (刘尚阔, 薛勋, 李坤, 等. 弱光单星模拟器的设计与标定[J]. 光学学报, 2017, 37(10): 1012001 doi: 10.3788/AOS201737.1012001LIU Shangkuo, XUE Xun, LI Kun, et al. Design and calibration of weak-light single star simulator[J]. Acta Optica Sinica, 2017, 37(10): 1012001 doi: 10.3788/AOS201737.1012001 [10] ZHU Haoran, LIU Yunqing, ZHANG Wenying. Design of optical system for off-axis reflective star sensor ground calibration equipment[J]. Chinese Journal of Space Science, 2017, 37(6): 752-759 (朱浩然, 刘云清, 张文颖. 离轴反射式星敏感器地面标定设备光学系统设计[J]. 空间科学学报, 2017, 37(6): 752-759 doi: 10.11728/cjss2017.06.752ZHU Haoran, LIU Yunqing, ZHANG Wenying. Design of optical system for off-axis reflective star sensor ground calibration equipment[J]. Chinese Journal of Space Science, 2017, 37(6): 752-759 doi: 10.11728/cjss2017.06.752 [11] XU Da, ZHANG Guoyu, SUN Gaofei. Design of star simulator with spatial background light[J]. Chinese Journal of Space Science, 2018, 38(4): 575-582 (徐达, 张国玉, 孙高飞. 空间背景光星模拟器系统设计[J]. 空间科学学报, 2018, 38(4): 575-582 doi: 10.11728/cjss2018.04.575XU Da, ZHANG Guoyu, SUN Gaofei. Design of star simulator with spatial background light[J]. Chinese Journal of Space Science, 2018, 38(4): 575-582 doi: 10.11728/cjss2018.04.575 [12] CHEN Zeyi. Research on Methods to Improve the Accuracy of Single Star Simulators[D]. Changchun: Changchun University of Science and Technology, 2023 (陈泽弈. 单星模拟器精度提高方法研究[D]. 长春: 长春理工大学, 2023CHEN Zeyi. Research on Methods to Improve the Accuracy of Single Star Simulators[D]. Changchun: Changchun University of Science and Technology, 2023 [13] DONG S, GONG R, YE Z L, et al. The analysis of the impact of star sensor calibration precision about single star simulator pin hole size specification[C]//Proceedings Volume 10697, Fourth Seminar on Novel Optoelectronic Detection Technology and Application. Nanjing: SPIE, 2017 [14] WANG Shiran, WANG Lingyun, ZHENG Ru, et al. Design of collimating optical system for static star simulator with long exit pupil distance[J]. Journal of Changchun University of Science and Technology (Natural Science Edition), 2023, 46(3): 39-45 (王诗然, 王凌云, 郑茹, 等. 长出瞳距静态星模拟器准直光学系统设计[J]. 长春理工大学学报(自然科学版), 2023, 46(3): 39-45WANG Shiran, WANG Lingyun, ZHENG Ru, et al. Design of collimating optical system for static star simulator with long exit pupil distance[J]. Journal of Changchun University of Science and Technology (Natural Science Edition), 2023, 46(3): 39-45 [15] LIU Xinrui, YU Xiwei, JIANG Jibin. Workbench-based optimized design of tapered roller bearings[J]. Intelligent Manufacturing, 2024(4): 66-70 (刘鑫瑞, 俞希伟, 江吉彬. 基于Workbench的圆锥滚子轴承优化设计[J]. 智能制造, 2024(4): 66-70LIU Xinrui, YU Xiwei, JIANG Jibin. Workbench-based optimized design of tapered roller bearings[J]. Intelligent Manufacturing, 2024(4): 66-70 [16] JIN Darong, YU Qiang, YU Chun. Finite element analysis of actuator for active vibration isolation system[J]. Chinese Journal of Space Science, 2010, 30(1): 73-78 (金大荣, 于强, 余春. 主动隔振系统中驱动器的有限元分析[J]. 空间科学学报, 2010, 30(1): 73-78 doi: 10.11728/cjss2010.01.073JIN Darong, YU Qiang, YU Chun. Finite element analysis of actuator for active vibration isolation system[J]. Chinese Journal of Space Science, 2010, 30(1): 73-78 doi: 10.11728/cjss2010.01.073 [17] ZHANG Lei, JIN Guang. Structure design and modes analysis for the truss of light high resolution space camera[J]. Chinese Journal of Space Science, 2008, 28(3): 260-263 (张雷, 金光. 轻型空间相机桁架结构设计与模态分析[J]. 空间科学学报, 2008, 28(3): 260-263 doi: 10.11728/cjss2008.03.260ZHANG Lei, JIN Guang. Structure design and modes analysis for the truss of light high resolution space camera[J]. Chinese Journal of Space Science, 2008, 28(3): 260-263 doi: 10.11728/cjss2008.03.260 [18] JIANG Shouwang, XIA Zhentao, SUN Yongxue, et al. Optical design and stray-light analysis of urban night-light remote sensing imaging system[J]. Laser :Times New Roman;">& Optoelectronics Progress, 2020, 57(1): 012201 (姜守望, 夏振涛, 孙永雪, 等. 城市夜光遥感成像系统设计与杂散光分析[J]. 激光与光电子学进展, 2020, 57(1): 012201JIANG Shouwang, XIA Zhentao, SUN Yongxue, et al. Optical design and stray-light analysis of urban night-light remote sensing imaging system[J]. Laser & Optoelectronics Progress, 2020, 57(1): 012201 [19] JIA Xuezhi, JIN Guang, JIA Jiqiang, et al. Topology optimization design for main board of lightweight space camera[J]. Chinese Journal of Space Science, 2011, 31(3): 395-400 (贾学志, 金光, 贾继强, 等. 轻型空间相机主承力基板结构拓扑优化计[J]. 空间科学学报, 2011, 31(3): 395-400 doi: 10.11728/cjss2011.03.395JIA Xuezhi, JIN Guang, JIA Jiqiang, et al. Topology optimization design for main board of lightweight space camera[J]. Chinese Journal of Space Science, 2011, 31(3): 395-400 doi: 10.11728/cjss2011.03.395 [20] YANG Moxin, ZHANG Aibing, XIE Shijun. Lightweight design and verification of electrostatic analyzer for space exploration[J]. Chinese Journal of Space Science, 2023, 43(2): 330-339 (杨墨欣, 张爱兵, 解世君. 用于空间探测的静电分析器轻量化设计与验证[J]. 空间科学学报, 2023, 43(2): 330-339 doi: 10.11728/cjss2023.02.220303024YANG Moxin, ZHANG Aibing, XIE Shijun. Lightweight design and verification of electrostatic analyzer for space exploration[J]. Chinese Journal of Space Science, 2023, 43(2): 330-339 doi: 10.11728/cjss2023.02.220303024 [21] SUN Mingzhe, ZHANG Hongxin, LU Zhenwu, et al. Stray light suppression of the large field of view coronagraph optical system[J]. Laser :Times New Roman;">& Optoelectronics Progress, 2014, 51(5): 052203 (孙明哲, 张红鑫, 卢振武, 等. 大视场日冕仪光学系统杂散光抑制[J]. 激光与光电子学进展, 2014, 51(5): 052203SUN Mingzhe, ZHANG Hongxin, LU Zhenwu, et al. Stray light suppression of the large field of view coronagraph optical system[J]. Laser & Optoelectronics Progress, 2014, 51(5): 052203 [22] ZHOU Xingyu, SUN Liang, PAN Qiao, et al. Large relative aperture receiving optical system and stray light suppression for laser ranging[J]. Laser :Times New Roman;">& Optoelectronics Progress, 2024, 61(5): 0528001 (周星宇, 孙亮, 潘俏, 等. 大相对孔径激光测距接收光学系统及杂散光抑制[J]. 激光与光电子学进展, 2024, 61(5): 0528001ZHOU Xingyu, SUN Liang, PAN Qiao, et al. Large relative aperture receiving optical system and stray light suppression for laser ranging[J]. Laser & Optoelectronics Progress, 2024, 61(5): 0528001 [23] STAUNDER J L. Stray Light Comparison of Off-Axis and On-Axis Telescopes[D]. Logan: Utah State University, 2000 [24] CHEN Xing, HU Chunhui, YAN Changxiang, et al. Analysis and suppression of space stray light ofvisible cameras with wide field of view[J]. Chinese Optics, 2019, 12(3): 678-685 (陈醒, 胡春晖, 颜昌翔, 等. 大视场空间可见光相机的杂散光分析与抑制[J]. 中国光学, 2019, 12(3): 678-685 doi: 10.3788/co.20191203.0678CHEN Xing, HU Chunhui, YAN Changxiang, et al. Analysis and suppression of space stray light ofvisible cameras with wide field of view[J]. Chinese Optics, 2019, 12(3): 678-685 doi: 10.3788/co.20191203.0678 [25] WANG Yifan, LI Lingyin. Stray light suppression of star photoelectric detection system for space target in daytime[J]. Optics and Precision Engineering, 2011, 19(12): 2854-2861 (王一凡, 李零印. 白天观测空间目标的恒星光电探测系统的杂散光抑制[J]. 光学精密工程, 2011, 19(12): 2854-2861 doi: 10.3788/OPE.20111912.2854WANG Yifan, LI Lingyin. Stray light suppression of star photoelectric detection system for space target in daytime[J]. Optics and Precision Engineering, 2011, 19(12): 2854-2861 doi: 10.3788/OPE.20111912.2854 -
-
下载:
图(16) / 表(3)
