2020－2025年北斗三号广播星历及电离层模型性能研究
doi: 10.11728/cjss2026.01.2025-0101 cstr: 32142.14.cjss.2025-0101
-
郝鑫宇 男, 2001年2月出生于河北省遵化市, 现为中国电子科技集团公司第十五研究所硕士研究生. E-mail: 1009734093@qq.com -
何倩倩 女, 1990年6月出生于新疆维吾尔自治区奇台县, 现为中国电子科技集团公司第十五研究所高级工程师, 北京航空航天大学博士研究生. E-mail: heqq.90629@qq.com
作者简介:
通讯作者:
Research on the Performance of Beidou-3 Broadcast Ephemeris and Ionospheric Model from 2020 to 2025
-
摘要: 北斗三号全球卫星导航系统(BDS-3)于2020年7月31日正式开通, 其空间段服务能力是决定系统整体性能表现的重要因素. 本文对广播轨道、广播钟差、空间信号测距误差、广播电离层精度的评估计算方法进行了分析, 分别以GFZ(German Research Centre for Geosciences)和iGMAS (international GNSS Monitoring and Assessment System)的最终产品为参考基准, 对系统从2020年正式开通至2025年的变化情况进行了评估分析. 研究表明, BDS-3广播轨道精度呈现明显的卫星类型相关性, MEO卫星高于IGSO卫星, 与GFZ产品和iGMAS产品相比, 径向、切向、法向 95% 的 RMS值均得到不同程度地改善; 广播钟差误差与SISRE(Signal-In-Space Range Error)95%的 RMS值则提升了分米级的精度, 电离层模型误差方面, 在评估周期内, Klobuchar模型的VTEC值分布范围相对较广, 低VTEC区间BDGIM模型的频次分布更为集中; 与CODE和iGMAS电离层产品相比, 在太阳活动极小期的2020年BDGIM(Beidou Global Lonospheric Delay Correction Model) 模型VTEC平均RMS值优于Klobuchar模型, 而在太阳活动极大期的2025年两模型的VTEC平均RMS值均呈上升的趋势, 且BDGIM模型的稳定性更强.Abstract: The BeiDou Navigation Satellite System (BDS-3) officially began providing global services on 31 July 2020. As the core component of satellite navigation systems, the space segment’s service capability determines the overall system performance. This paper first introduces calculation and analysis methods for broadcast orbit errors, broadcast clock errors, Signal-in-space range error and broadcast ionospheric errors. Then, based on the final products of German Geosciences Research Centre (GFZ)and International Global Navigation Satellite System Monitoring and Assessment System (iGMAS), it conducts an evaluation of the changes in broadcast ephemeris accuracy and ionospheric model precision throughout a complete cycle from 2020 to 2025. Research shows that the BDS-3 broadcast orbit error shows a clear dependence on satellite type, with MEO satellites outperforming IGSO satellites. Compared with GFZ products, the 95% RMS of the radial, along-track and cross-track error falls from 0.104, 0.482, 0.589 m respectively in 2020 to 0.080, 0.351, 0.364 m respectively in 2025; and compared with iGMAS products, these data fall from 0.086, 0.386, 0.461 m respectively in 2020 to 0.073 m、0.341 m、0.350 m in 2025. Regarding broadcast clock error, based on GFZ products, the 95% RMS improves from 0.705 m in 2020 to 0.540 m in 2025; and based on iGMAS products, the 95% RMS in 2020 is 0.811 m and 0.640 m in 2025.The SISRE of MEO satellites is generally smaller than that of IGSO satellites, and the statistical accuracies of 95% RMS of SISRE in 2020 based on GFZ and iGMAS products reaches 0.705 m and 0.817 m, and in 2025 reaches 0.549 m and 0.645 m, respectively. In terms of ionospheric model errors, throughout the evaluation period, the Klobuchar model exhibited a relatively broad distribution range of VTEC values. The BDGIM model demonstrated a more concentrated frequency distribution in the low VTEC intervals, while the Klobuchar model showed a relatively dispersed distribution in the high VTEC intervals. Compared with CODE and IGMAS ionospheric products, during the solar minimum period (2020), the BDGIM model achieved average VTEC RMS values of 3.193, 6.240, 1.570 TECU and 3.176, 6.790, 1.480 TECU, respectively, while the Klobuchar model yielded 7.359, 35.440, 4.350 TECU and 7.367, 35.930, 4.140 TECU, respectively. During the solar maximum period (2025), the average VTEC RMS values increased to 11.481 TECU and 10.493 TECU, 22.211 TECU and 21.802 TECU, respectively. Based on CODE products as reference, the maximum and minimum VTEC RMS values for the Klobuchar model and BDGIM model were 34.500, 10.400 TECU and 35.330, 6.640 TECU, respectively. The corresponding data referenced against IGMAS products reached 33.810, 10.000 TECU and 35.950, 5.890 TECU, respectively. And the assessment results can provide support for BDS performance optimization.
-

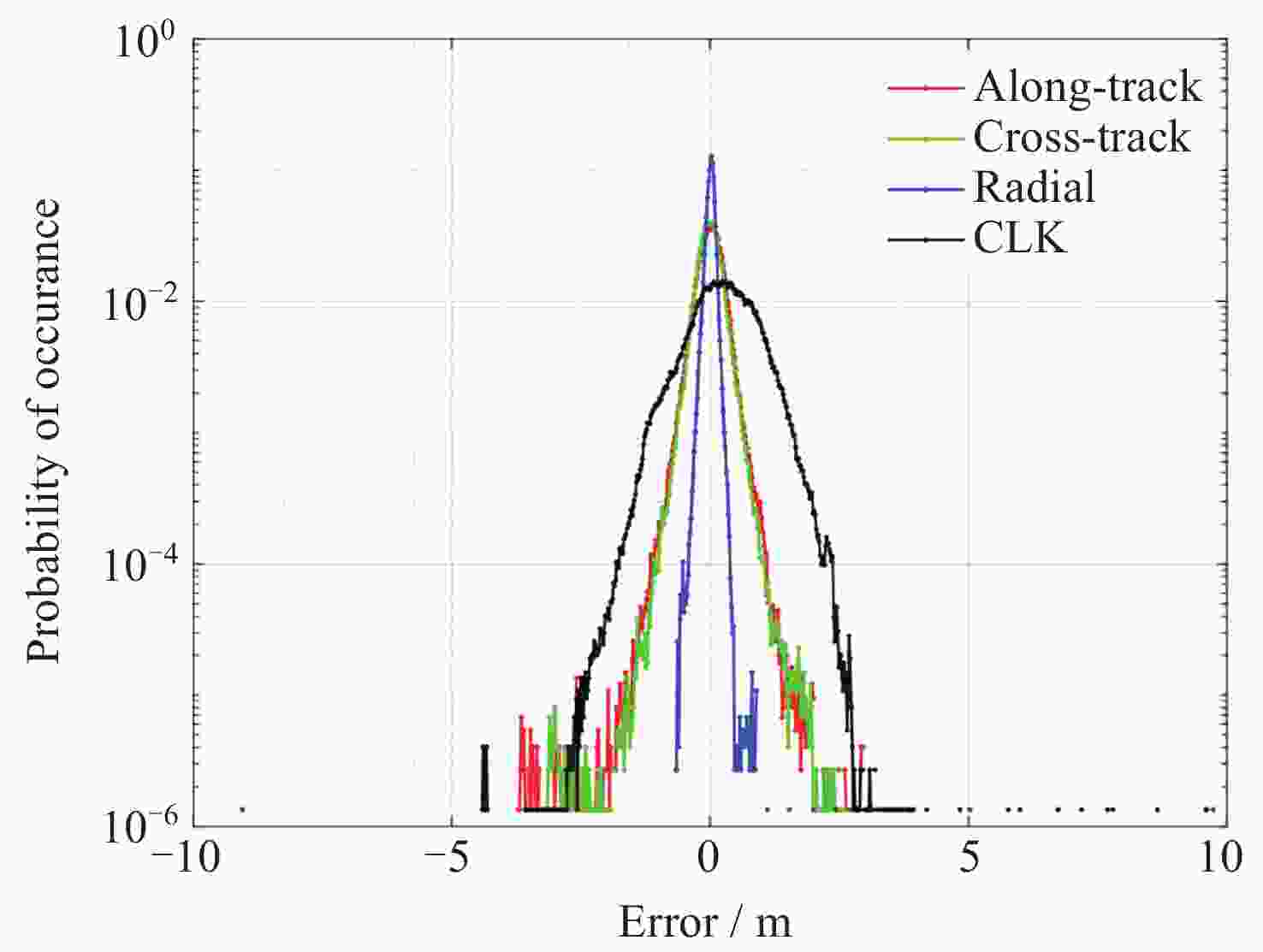

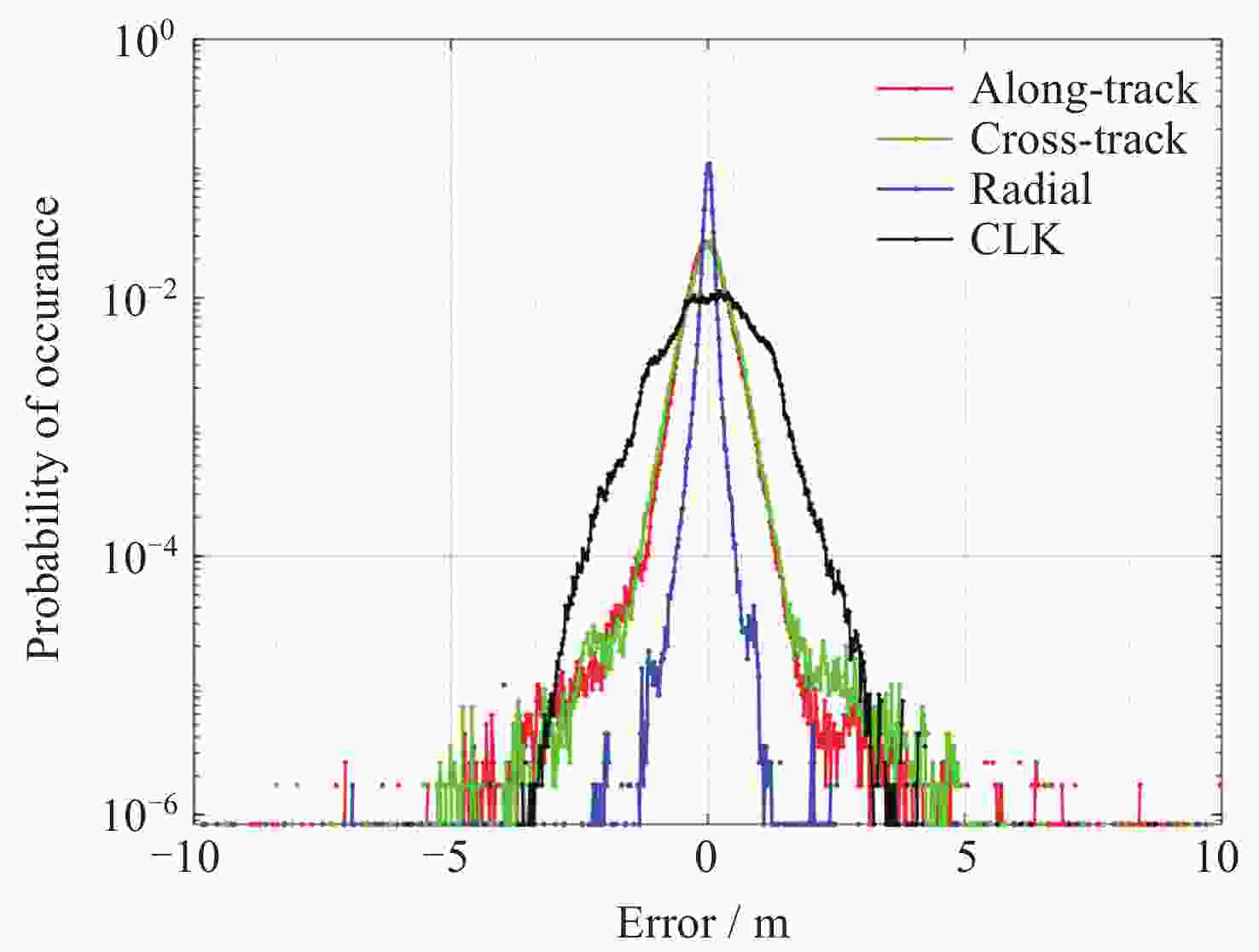

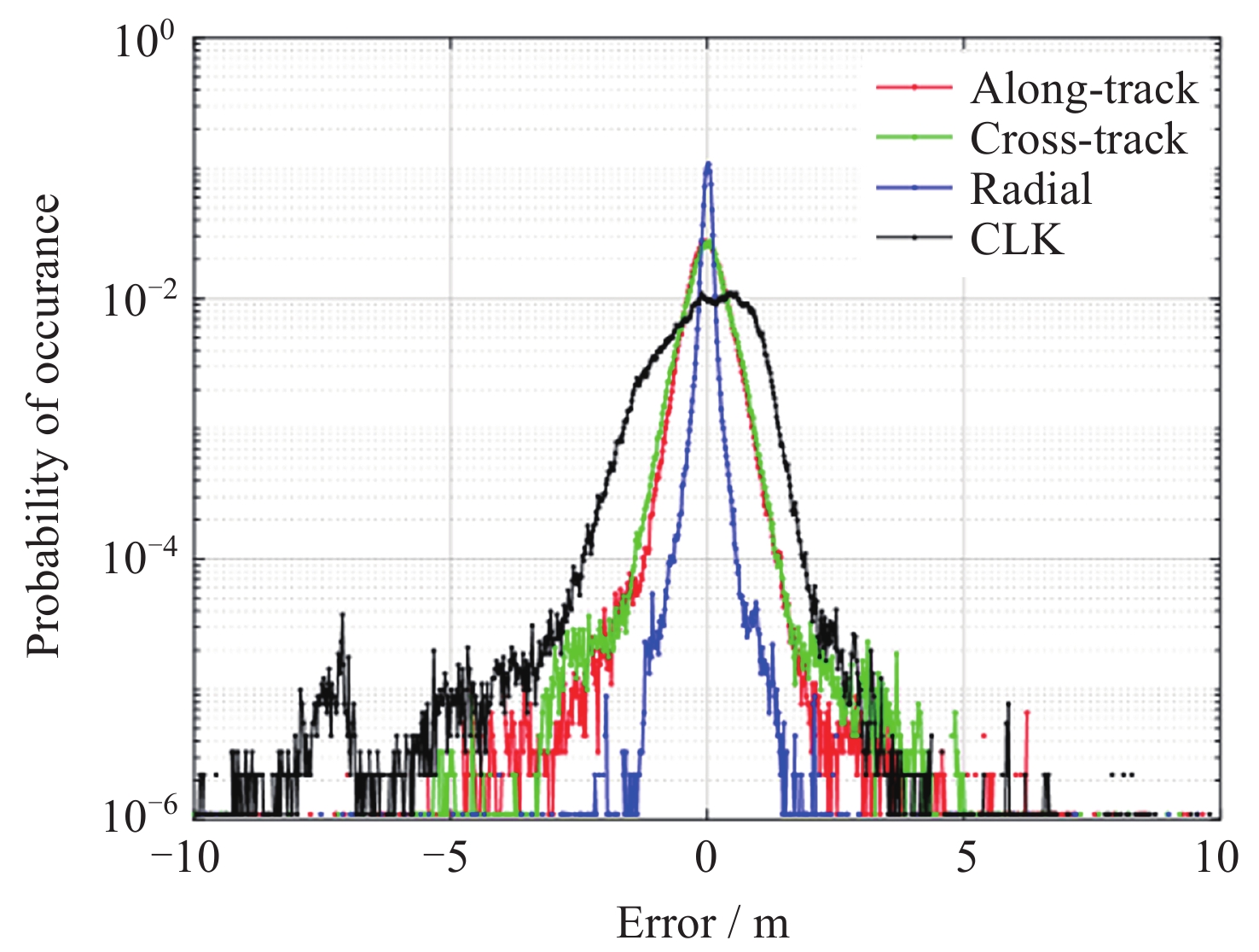

图 1 以GFZ产品为基准BDS-3在2020年的径向、切向、法向轨道误差及钟差误差概率分布
Figure 1. Radial, along-track and cross-track orbit error, clock error probability distribution plot of BDS-3, based on GFZ products in 2020

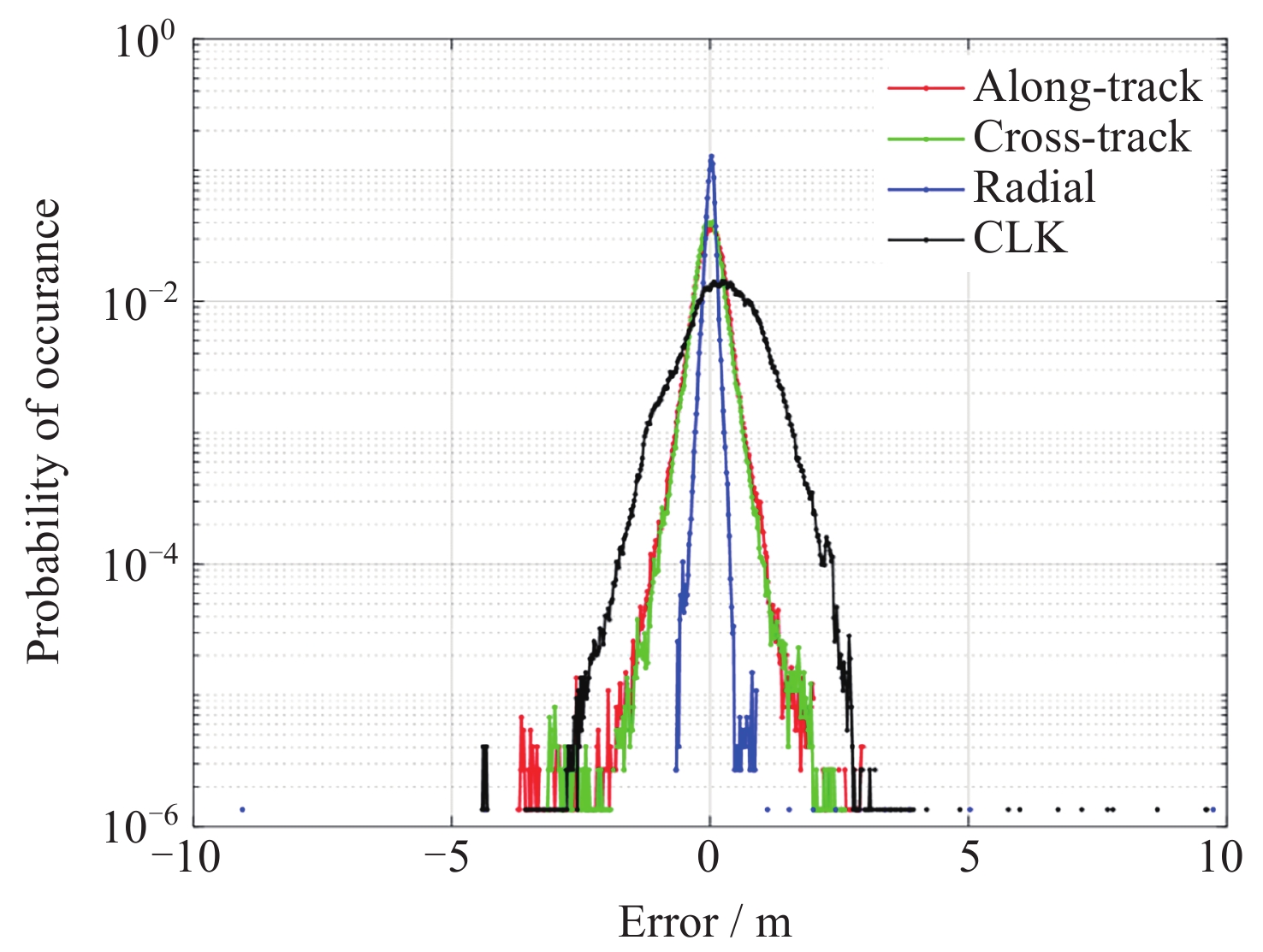

图 2 以GFZ产品为基准BDS-3在2025年的径向、切向、法向轨道误差及钟差误差概率分布
Figure 2. Radial, along-track and cross-track orbit error, clock error probability distribution plot of BDS-3, based on GFZ products in 2025

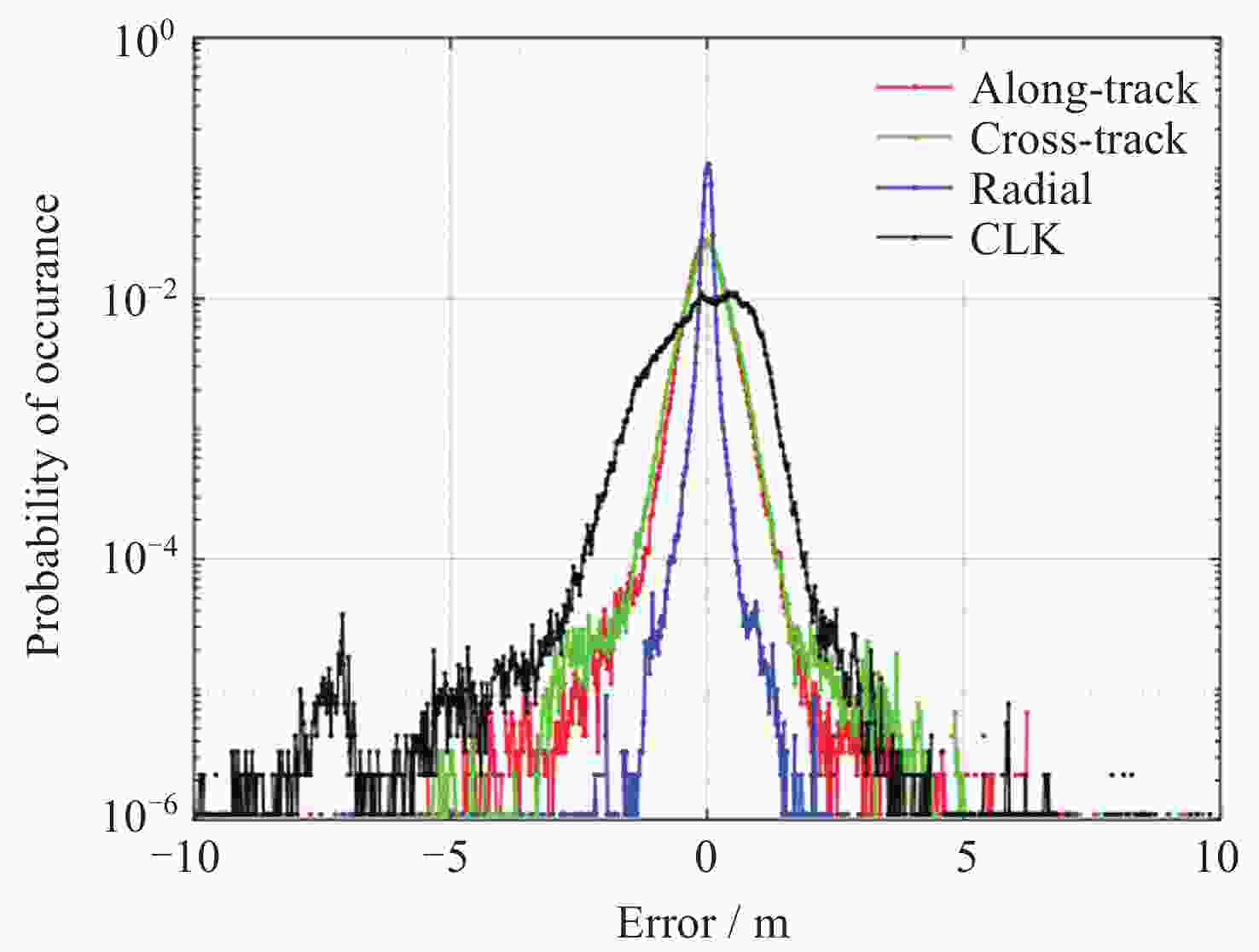

图 3 以iGMAS产品为基准BDS-3在2020年的径向、切向、法向轨道误差及钟差误差概率分布
Figure 3. Radial, along-track and cross-track orbit error, clock error probability distribution plot of BDS-3, based on iGMAS products in 2020

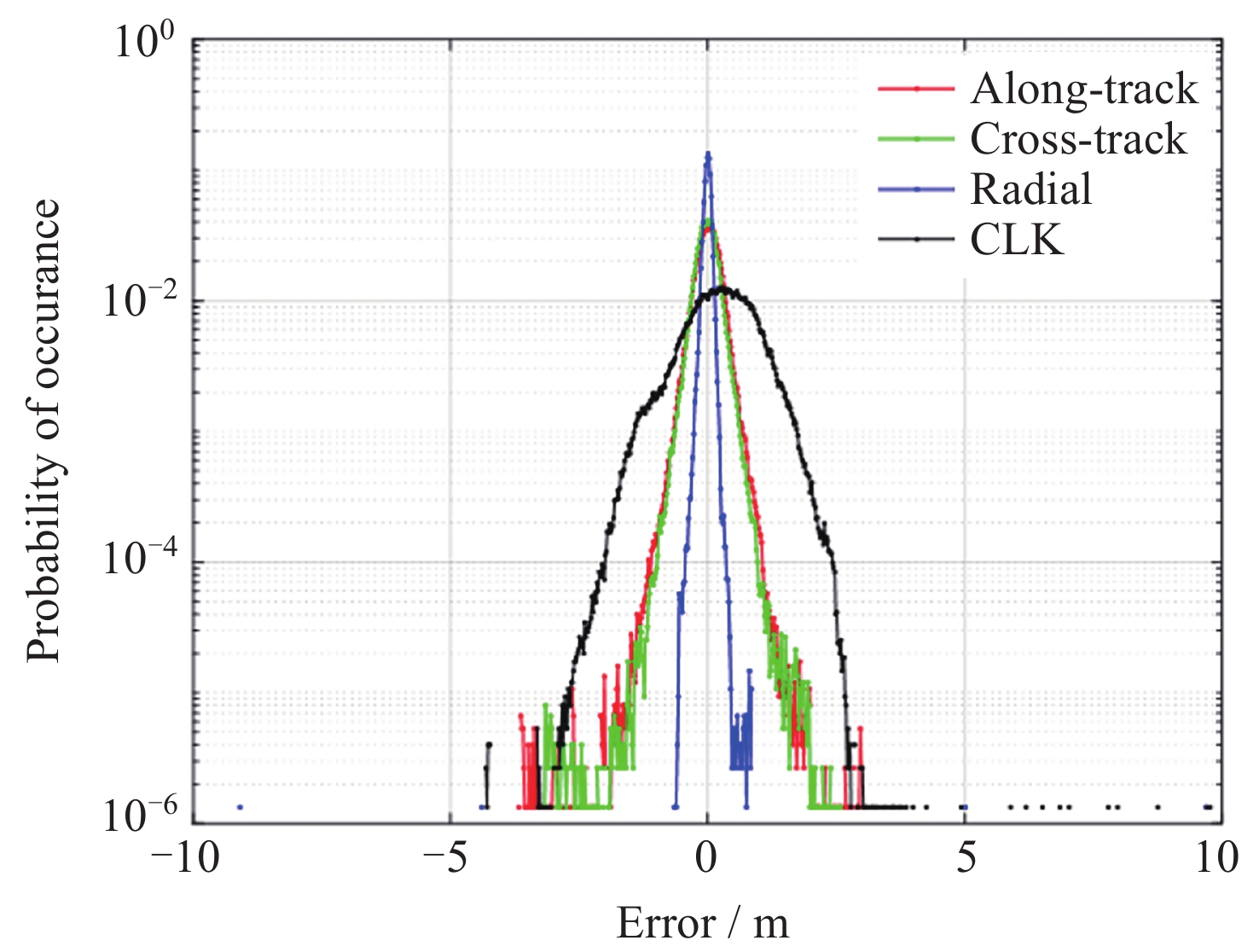

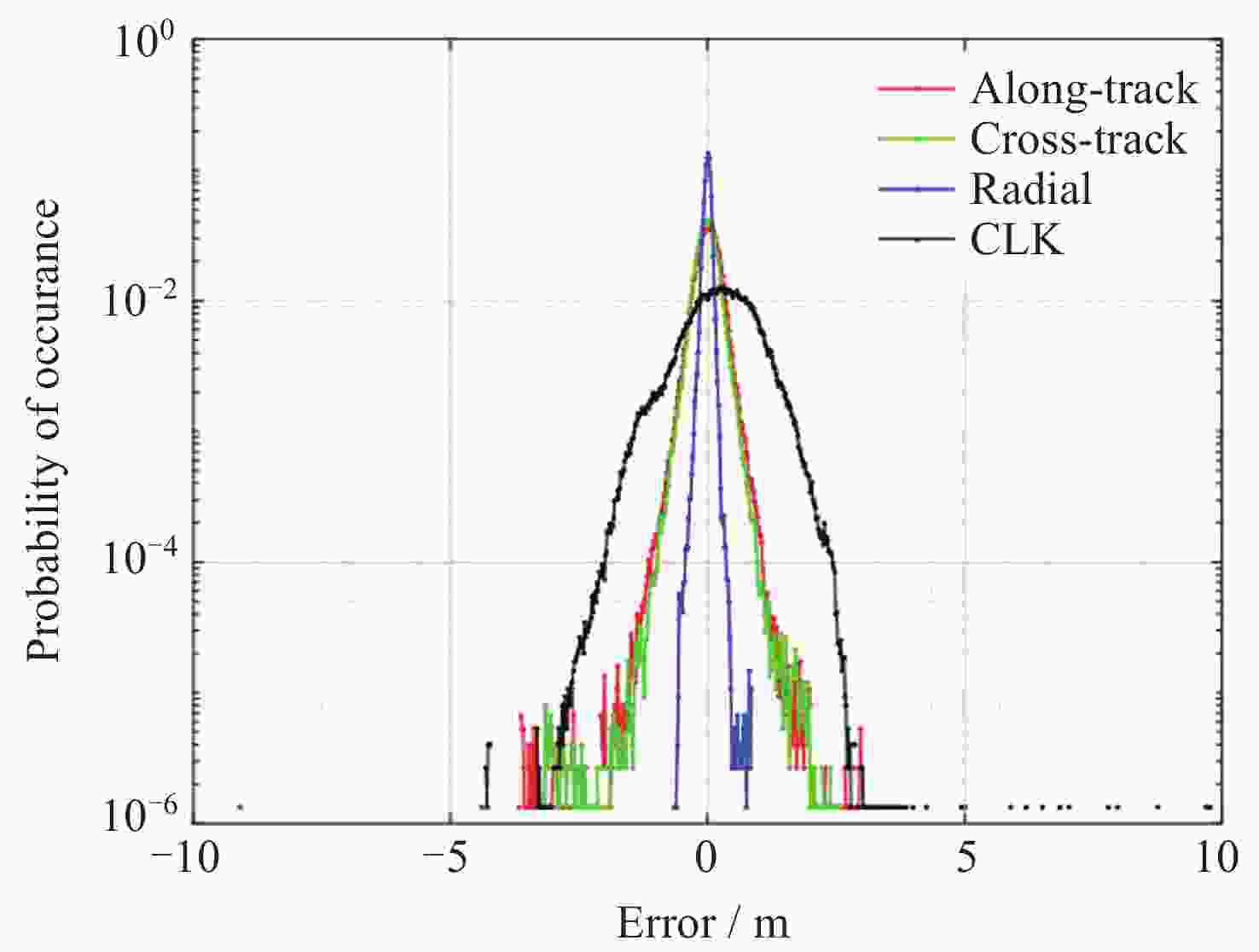

图 4 以iGMAS产品为基准BDS-3在2025年的径向、切向、法向轨道误差及钟差误差概率分布(2025年)
Figure 4. Radial, along-track and cross-track orbit error, clock error probability distribution plot of BDS-3, based on iGMAS products in 2025

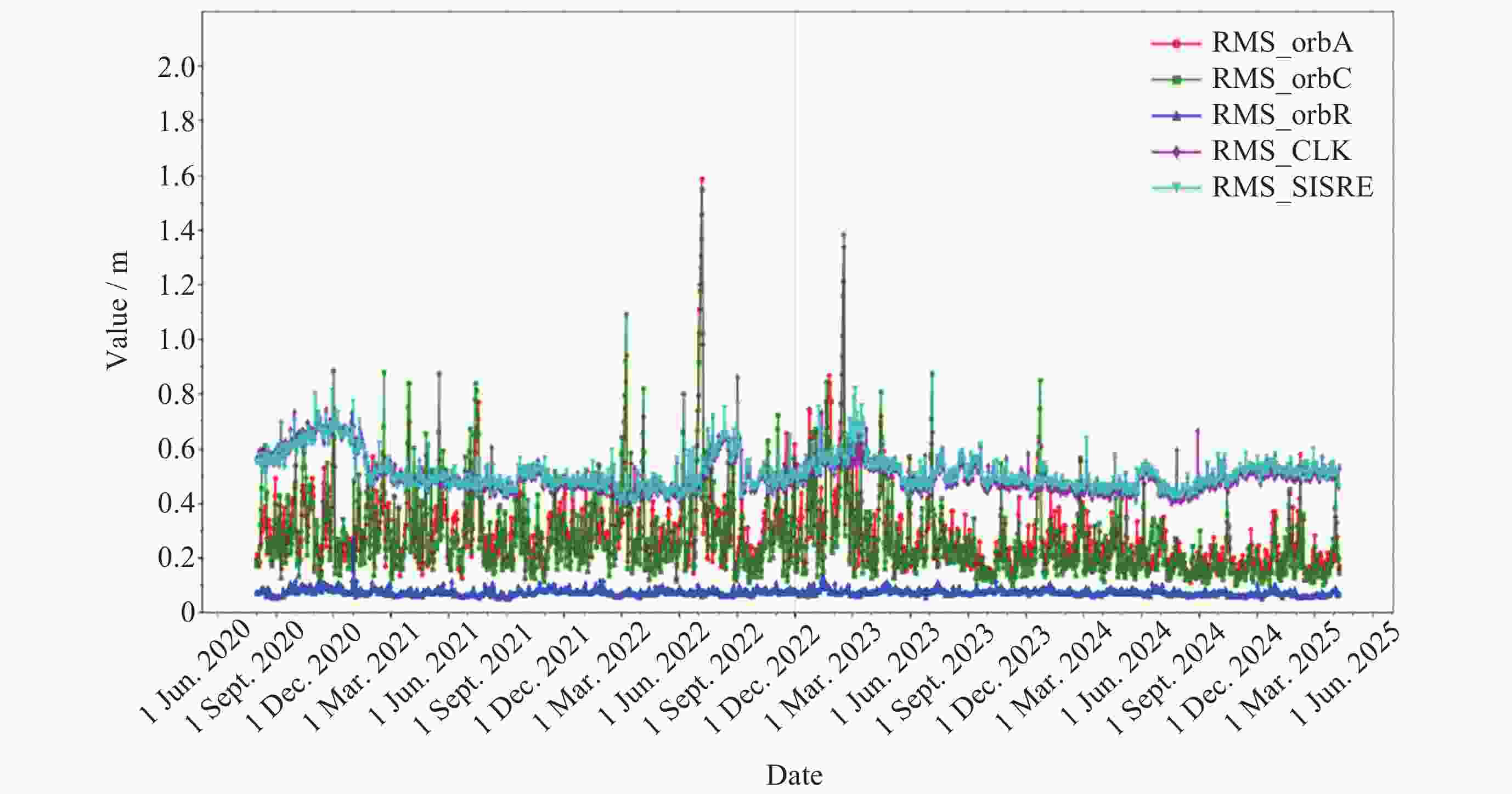

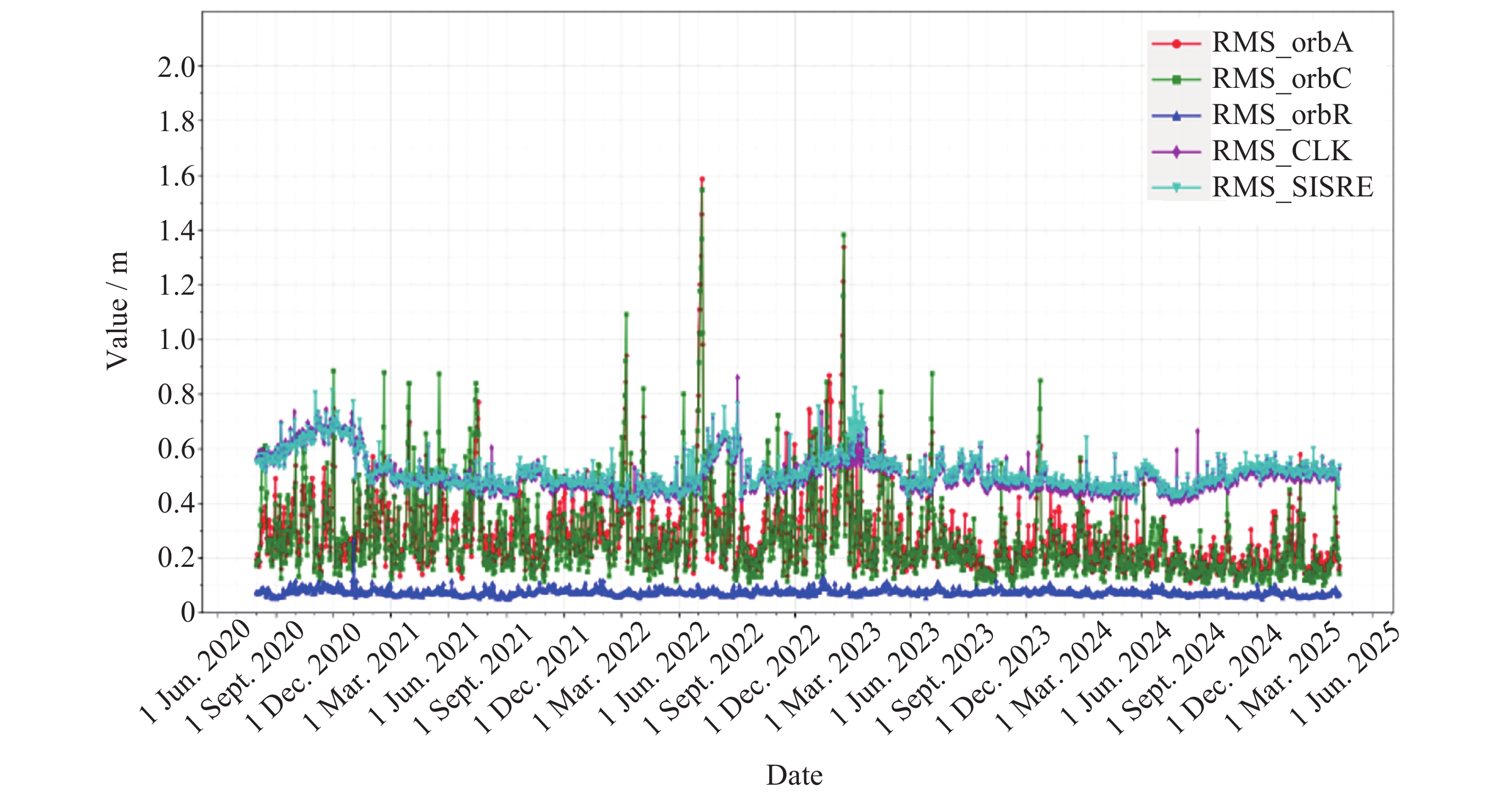

图 5 以GFZ产品为基准的BDS-3径向、切向、法向轨道误差、钟差误差及SISRE RMS变化
Figure 5. RMS variation of BDS-3 radial, along-track, cross-track orbital errors, clock error, and SISRE with GFZ products as reference

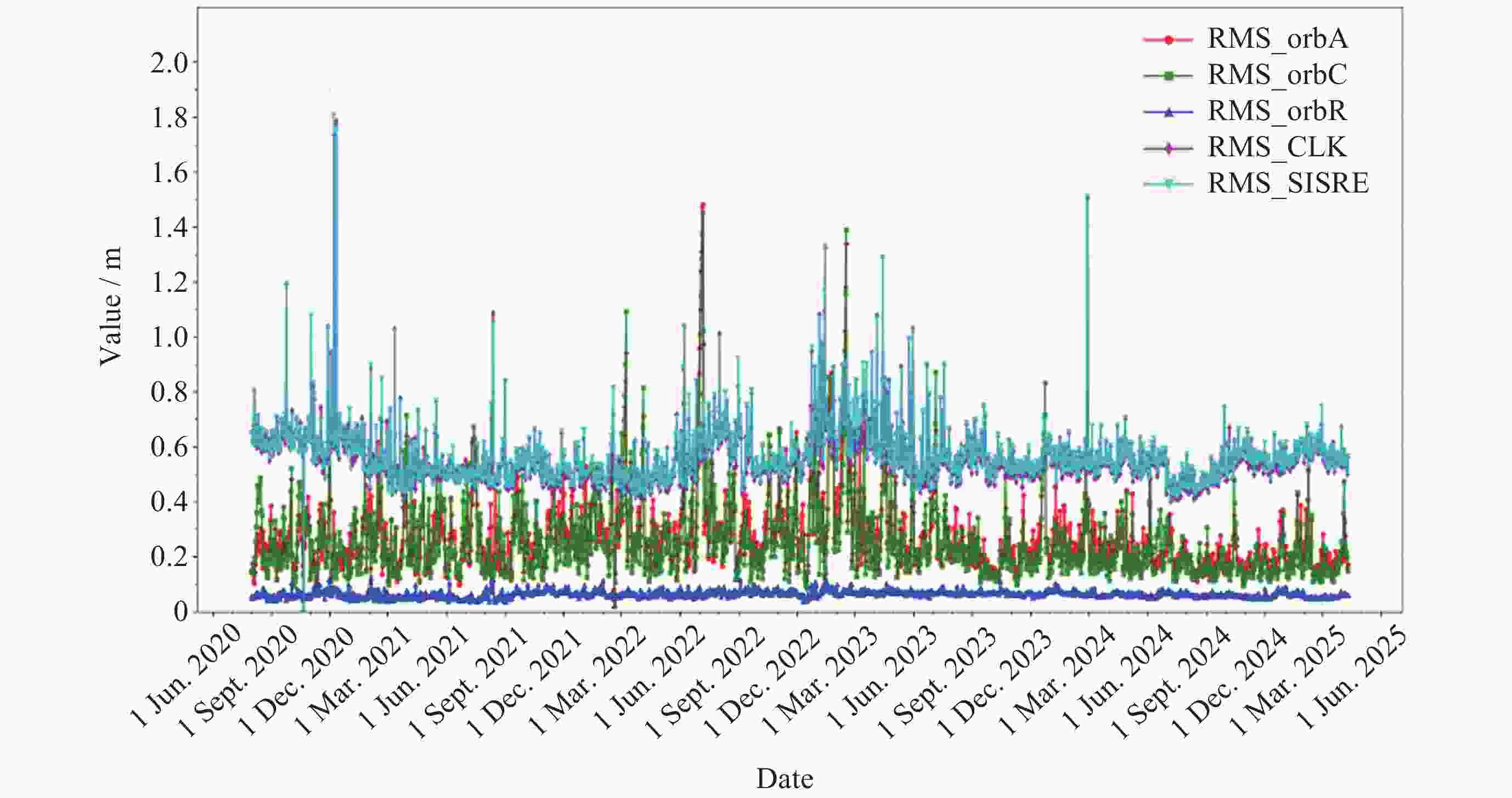

图 6 以iGMAS产品为基准的BDS-3径向、切向、法向轨道误差、钟差误差及SISRE RMS变化
Figure 6. RMS variation of BDS-3 radial, along-track, cross-track orbital errors, clock error, and SISRE with iGMAS products as reference

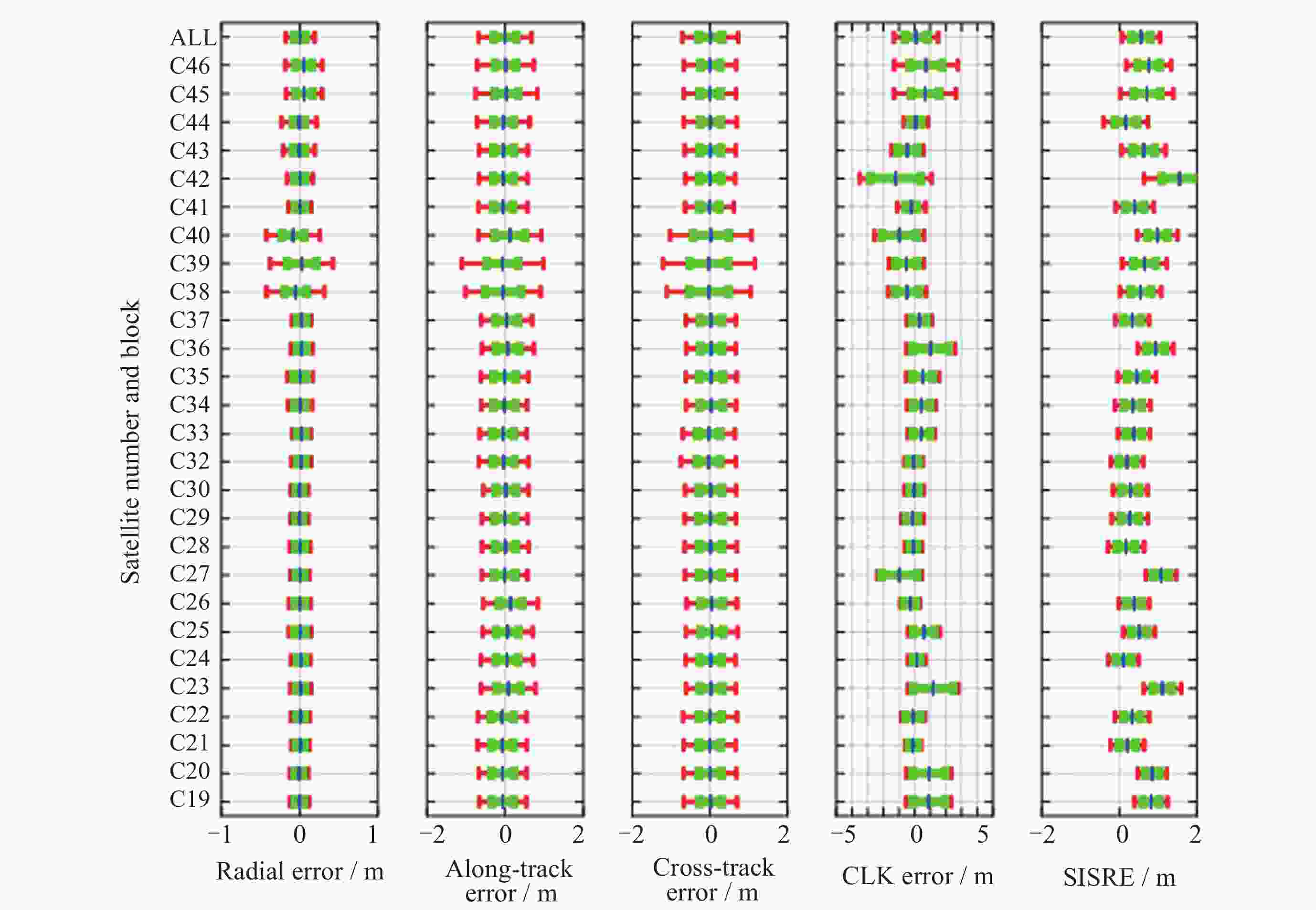

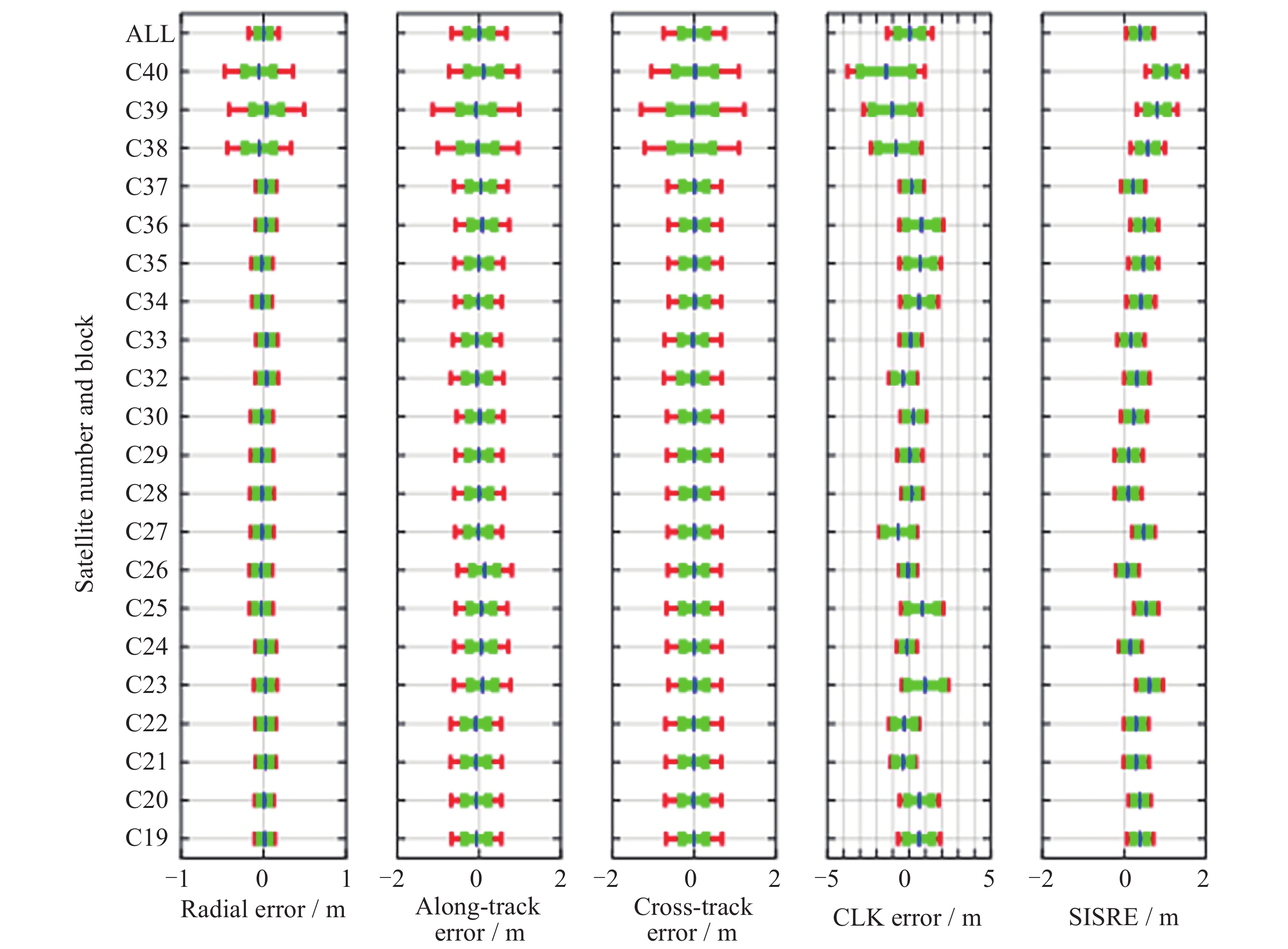

图 7 以GFZ产品为基准BDS-3在2020年的径向、切向、法向轨道误差、钟差误差及SISRE统计
Figure 7. Statistical plot of BDS-3 radial, along-track and cross-track orbit errors, clock errors and SISRE based on GFZ products in 2020

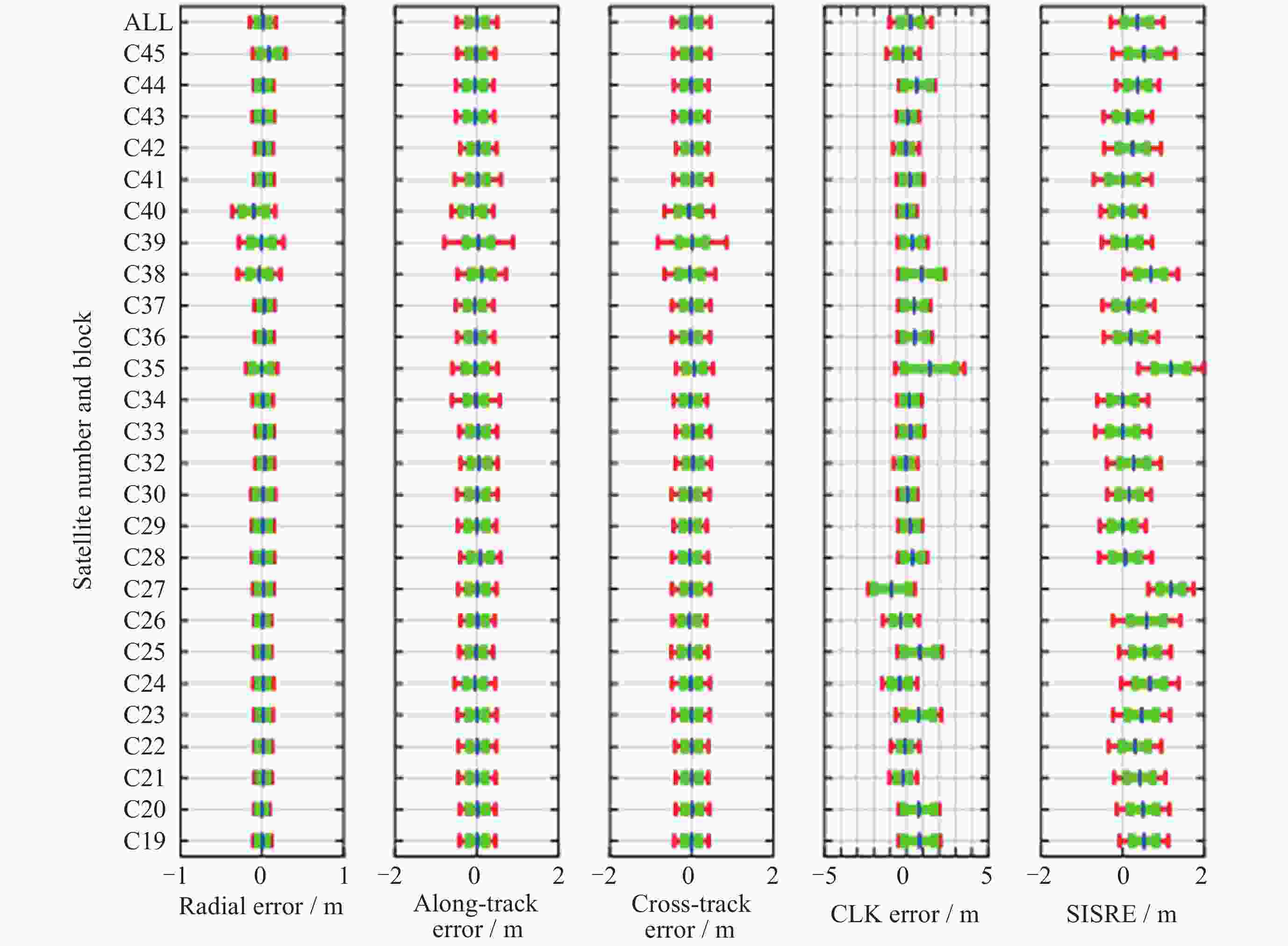

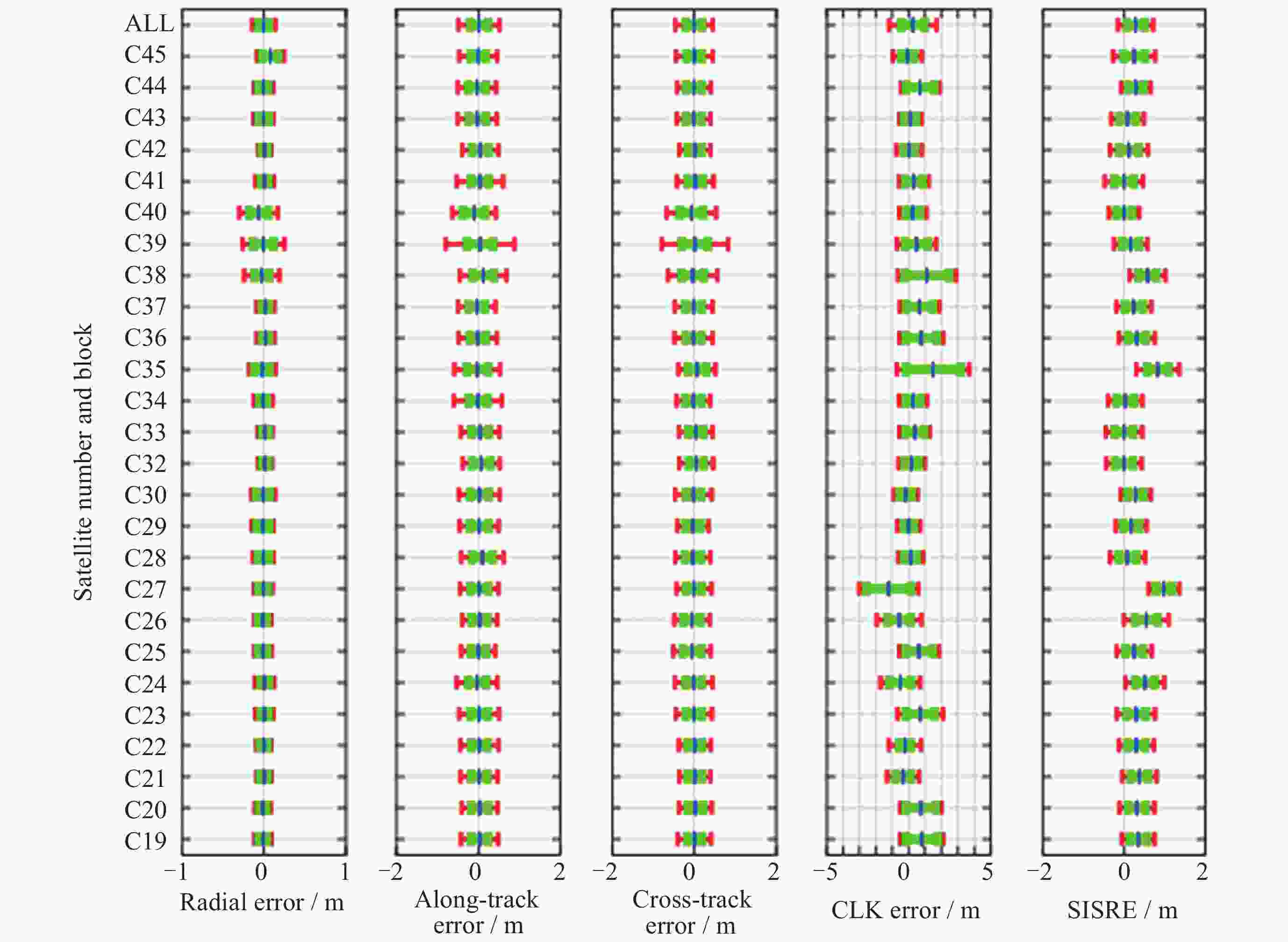

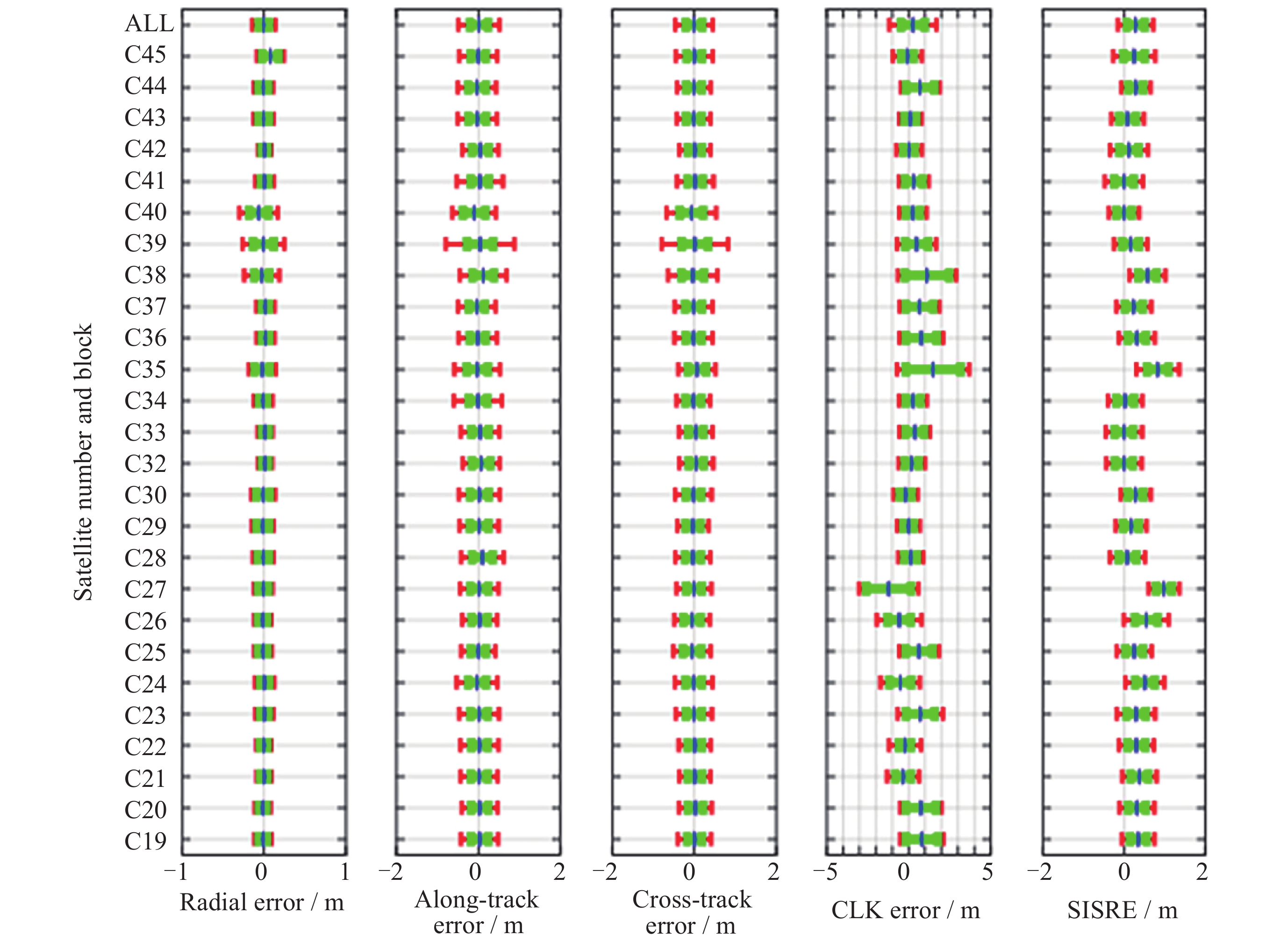

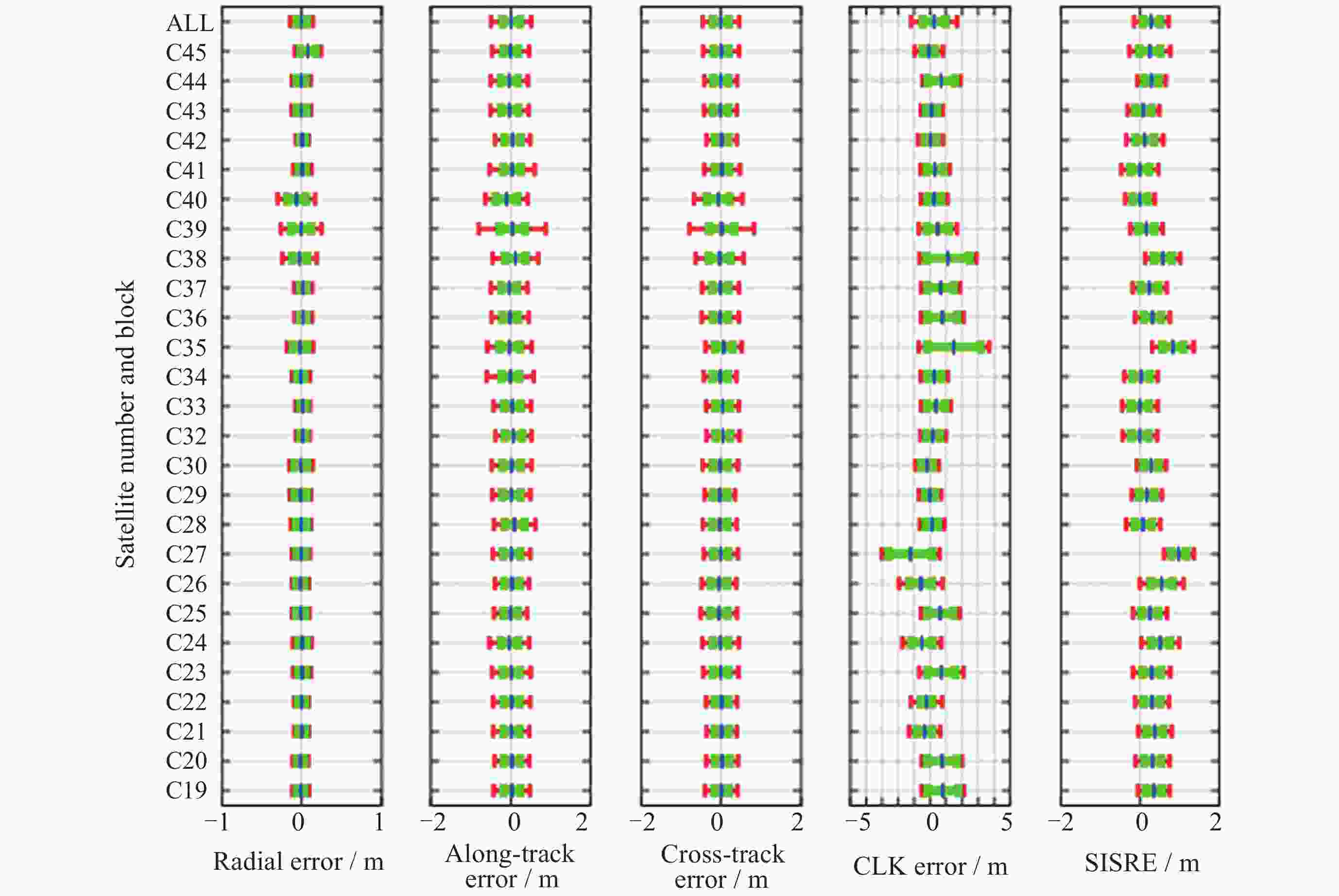

图 10 以iGMAS产品为基准BDS-3在2025年的径向、切向、法向轨道误差、钟差误差及SISRE统计
Figure 10. Statistical plot of BDS-3 radial, along-track, cross-track orbit errors, clock errors and SISRE based on iGMAS products in 2025

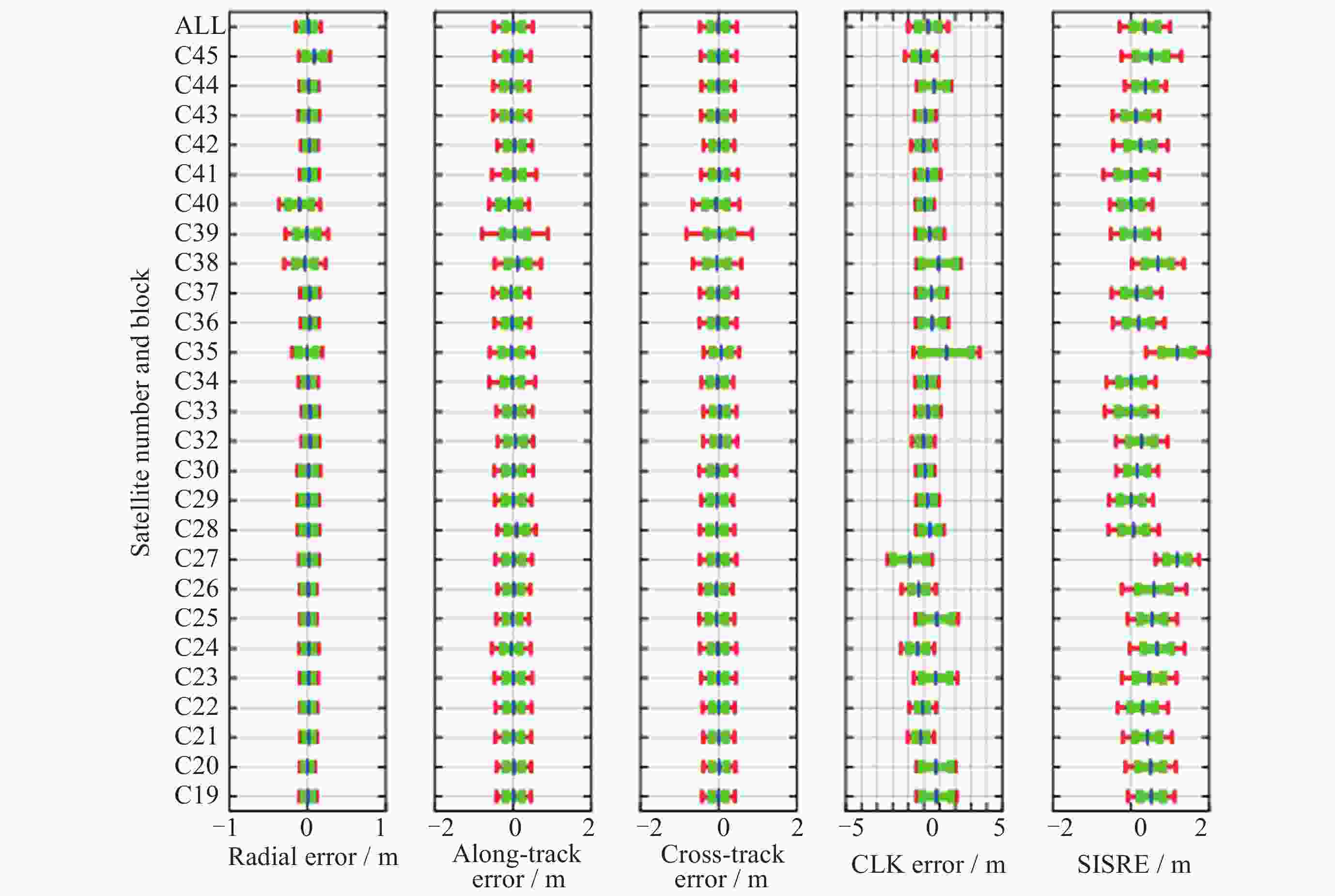

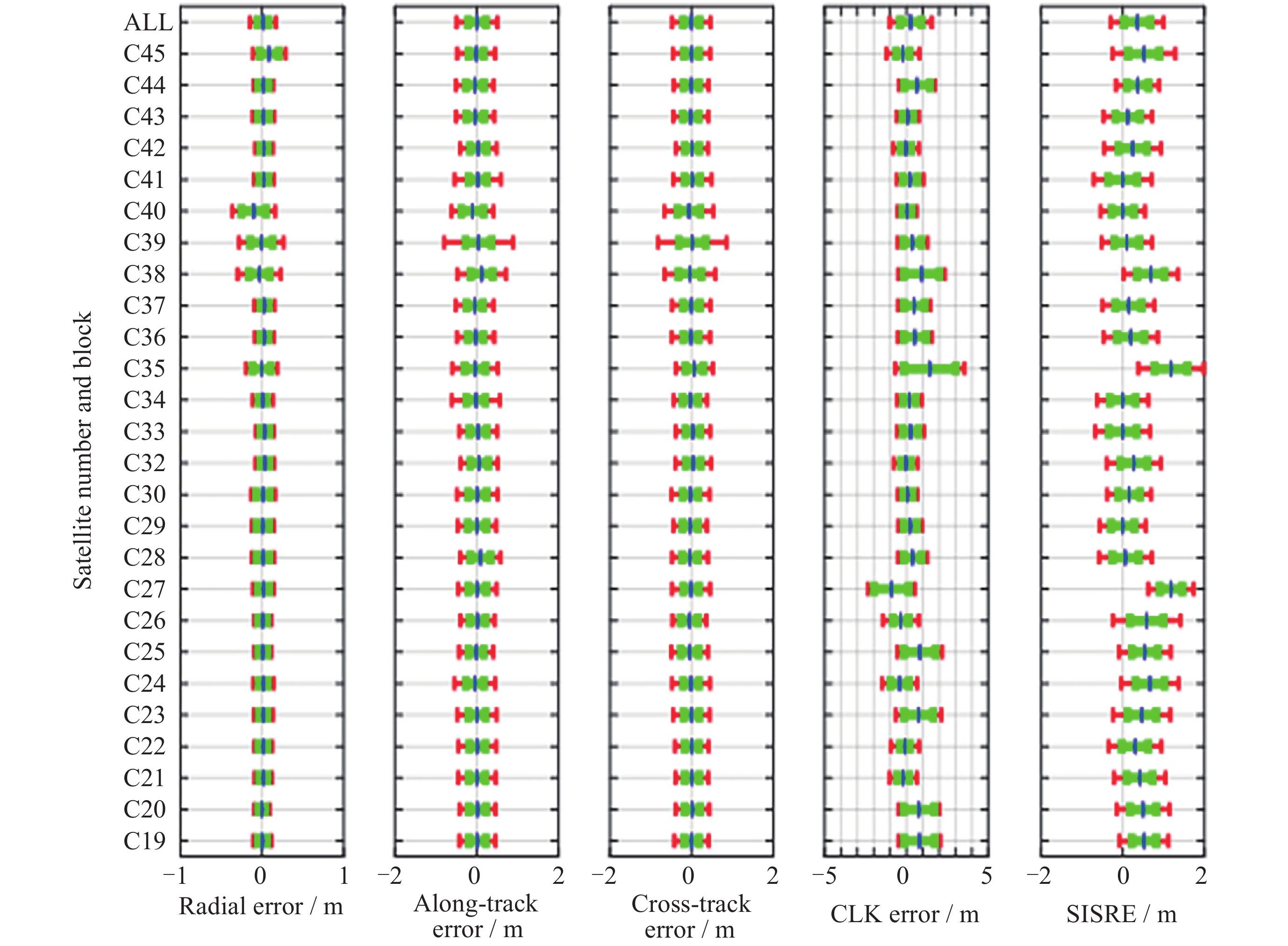

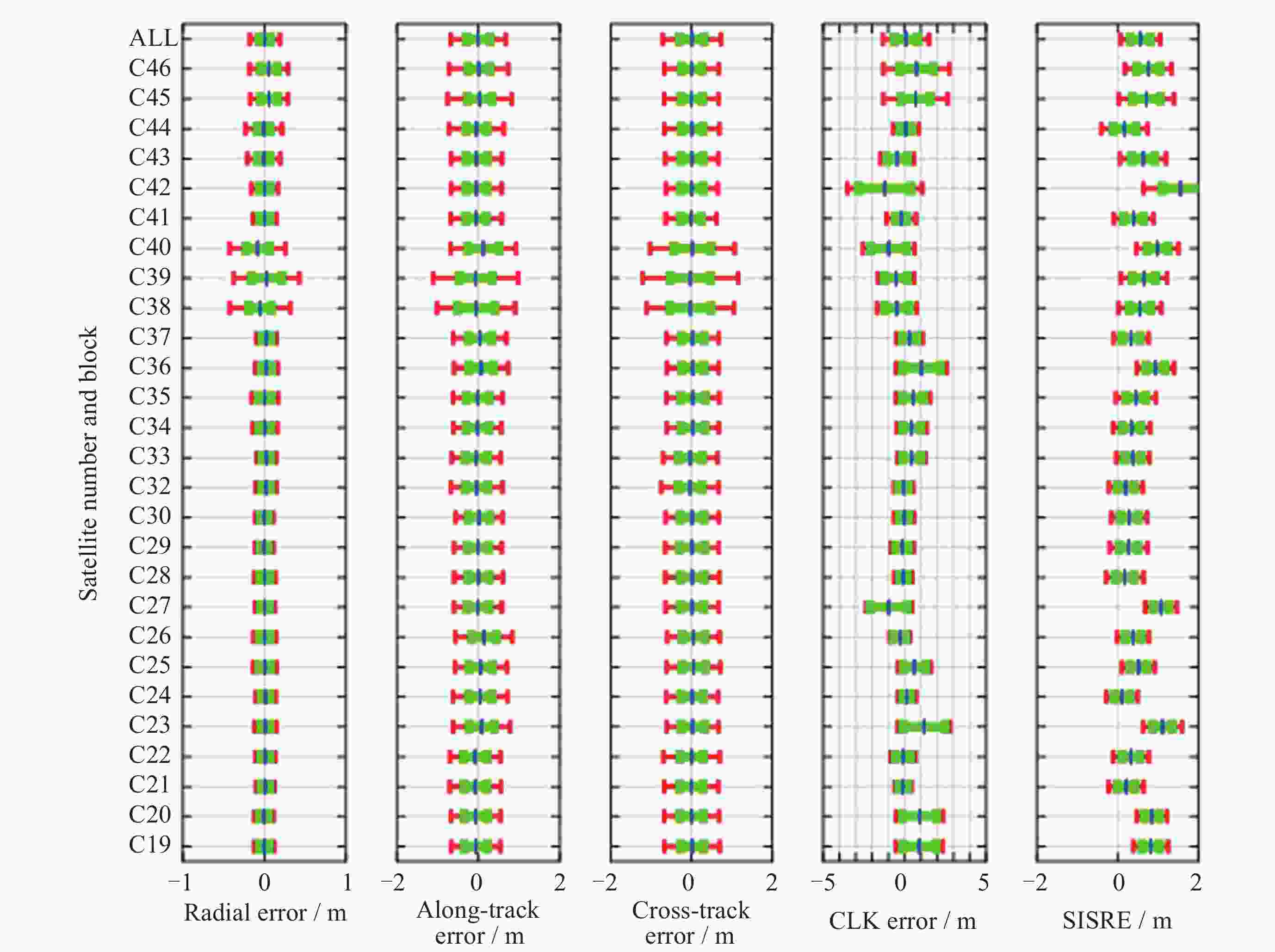

图 8 以GFZ产品为基准在2025年BDS-3径向、切向、法向轨道误差、钟差误差及SISRE统计
Figure 8. Statistical plot of BDS-3 radial, along-track and cross-track orbit errors, clock errors and SISRE based on GFZ products in 2025

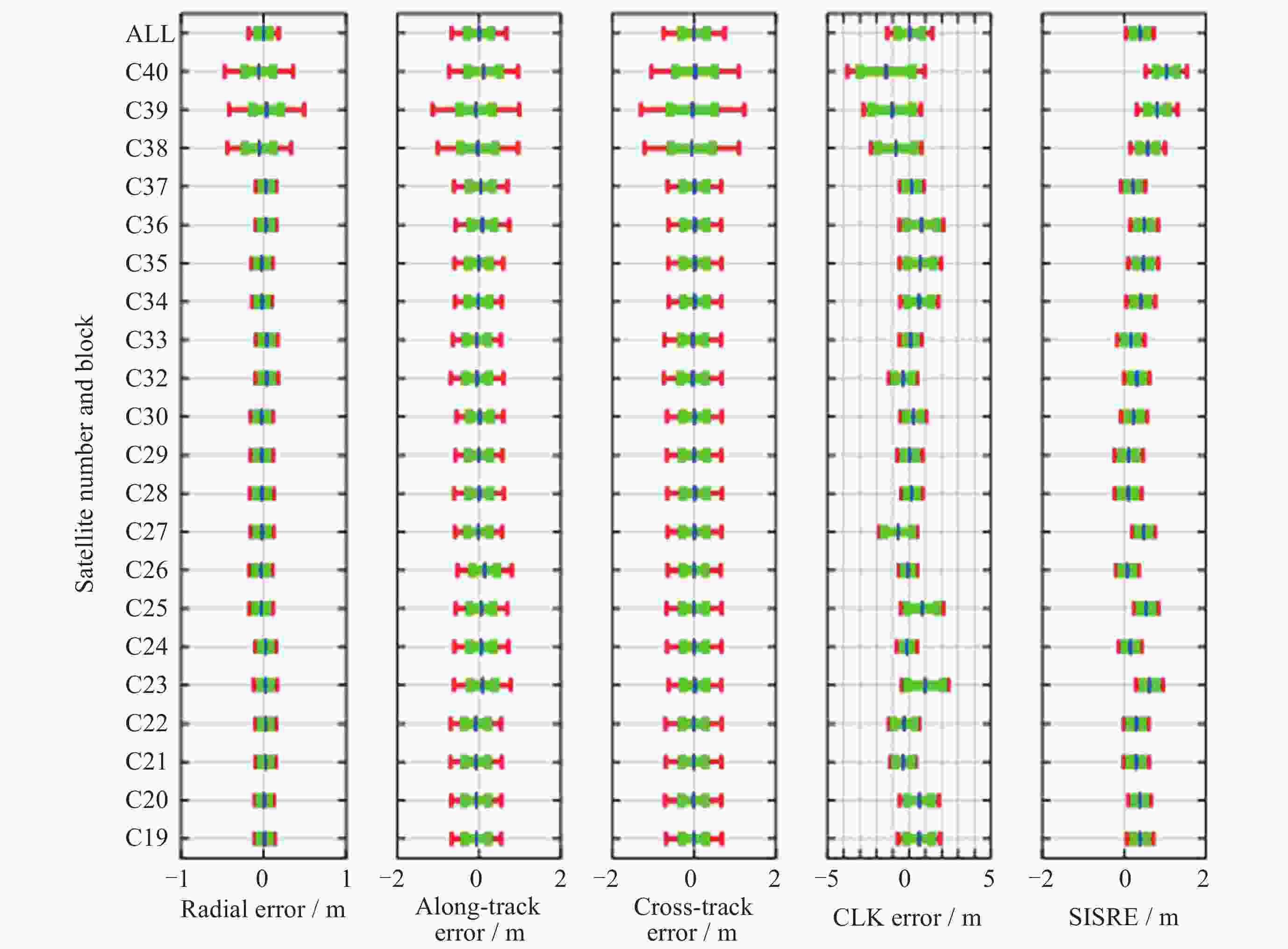

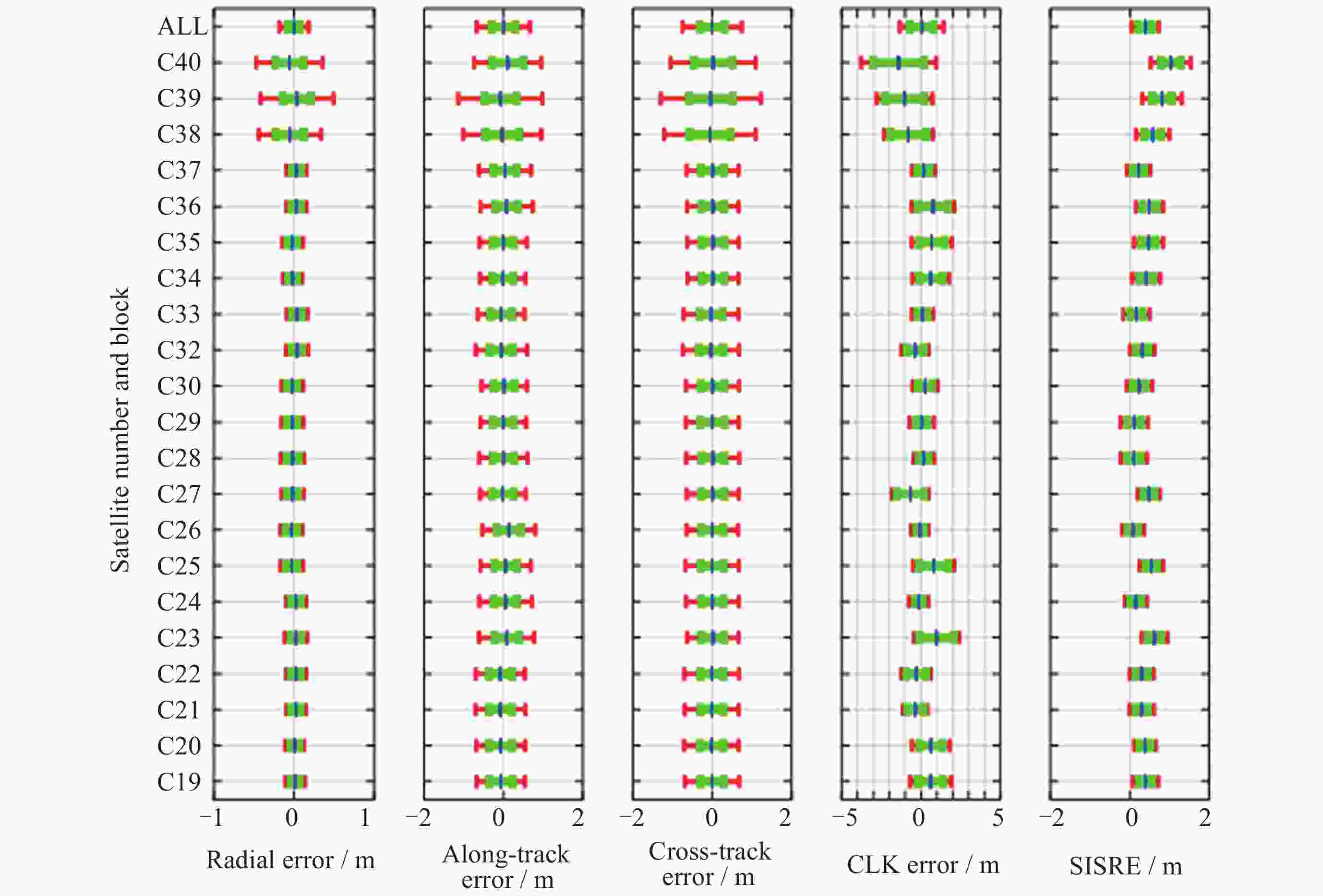

图 9 以iGMAS产品为基准BDS-3在2020年的径向、切向、法向轨道误差、钟差误差及SISRE统计
Figure 9. Statistical plot of BDS-3 radial, along-track and cross-track orbit errors, clock errors and SISRE based on iGMAS products in 2020

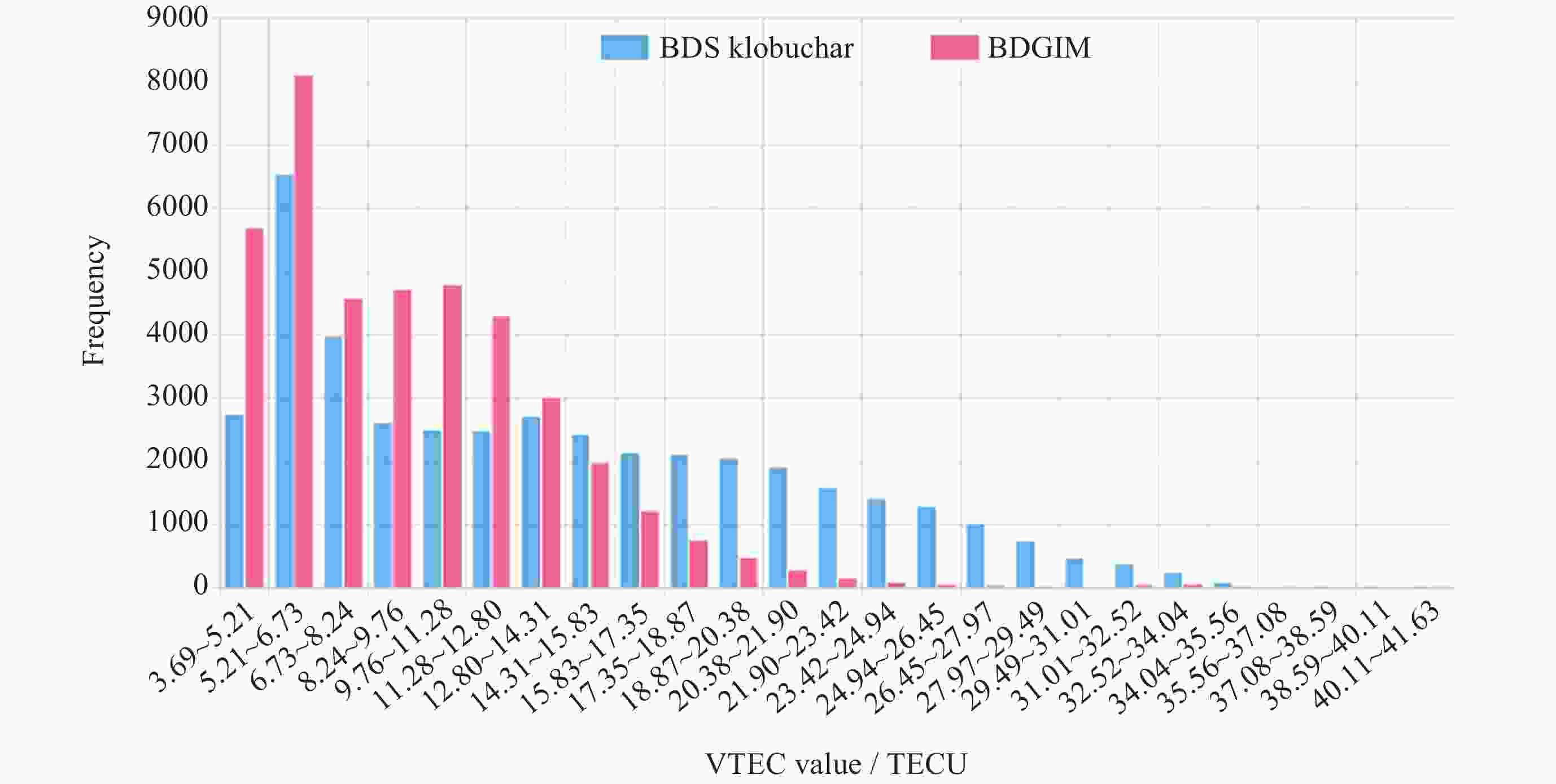

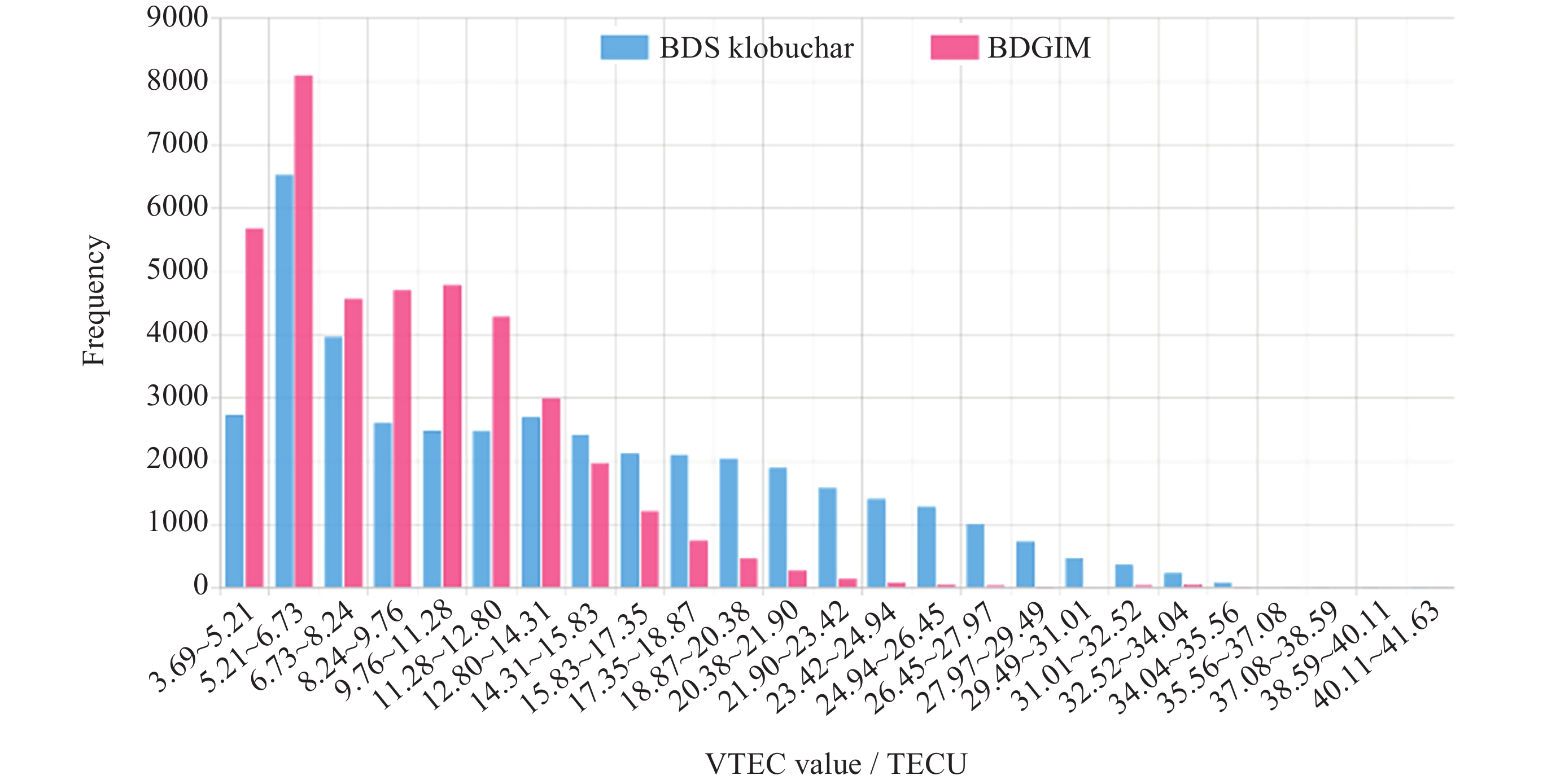

图 11 以CODE产品为基准2020－2025年的BDS Klobuchar模型与BDGIM模型VTEC RMS直方图
Figure 11. BDS Klobuchar model and BDGIM model VTEC RMS histogram based on CODE products in 2020－2025

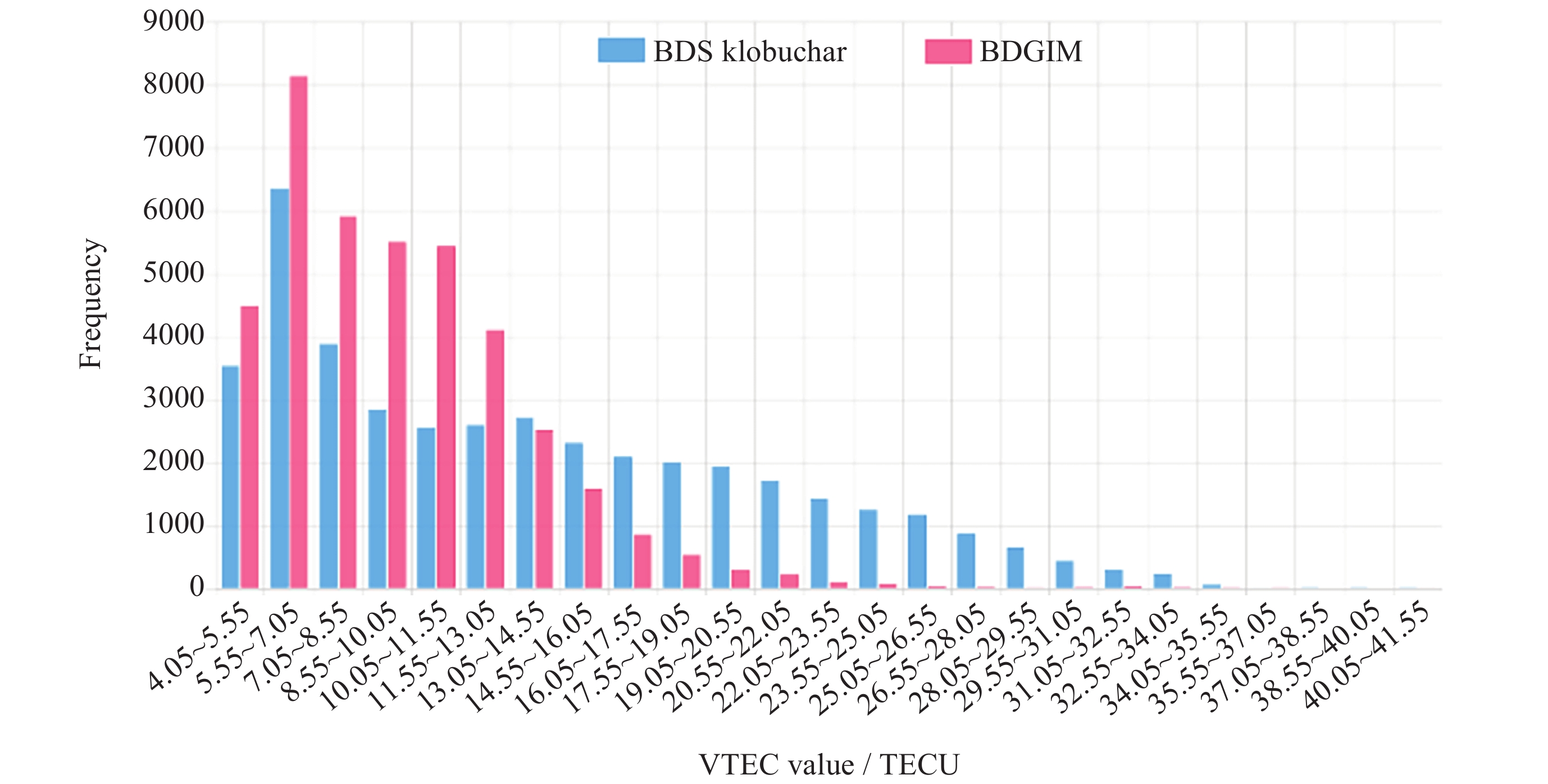

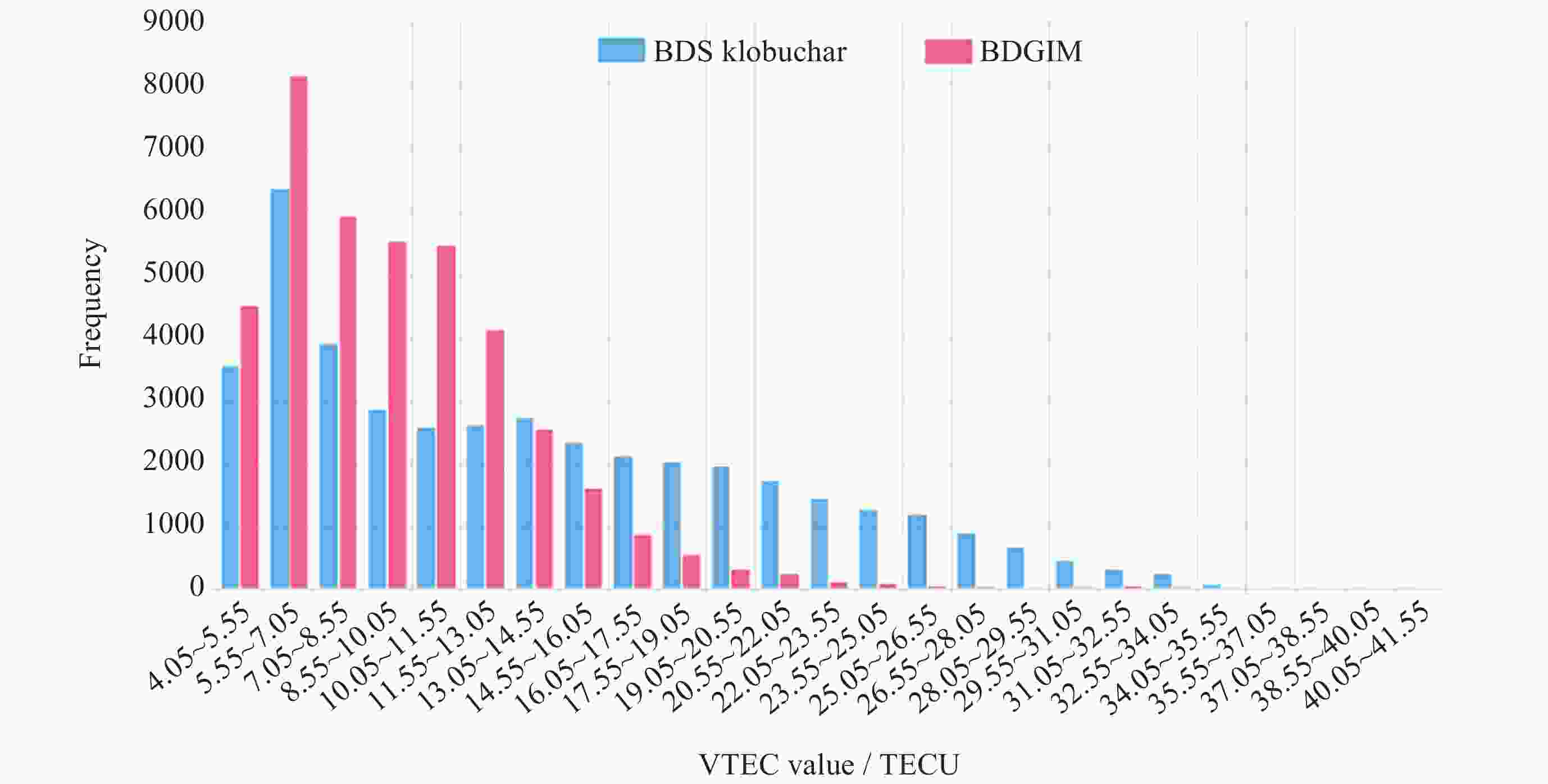

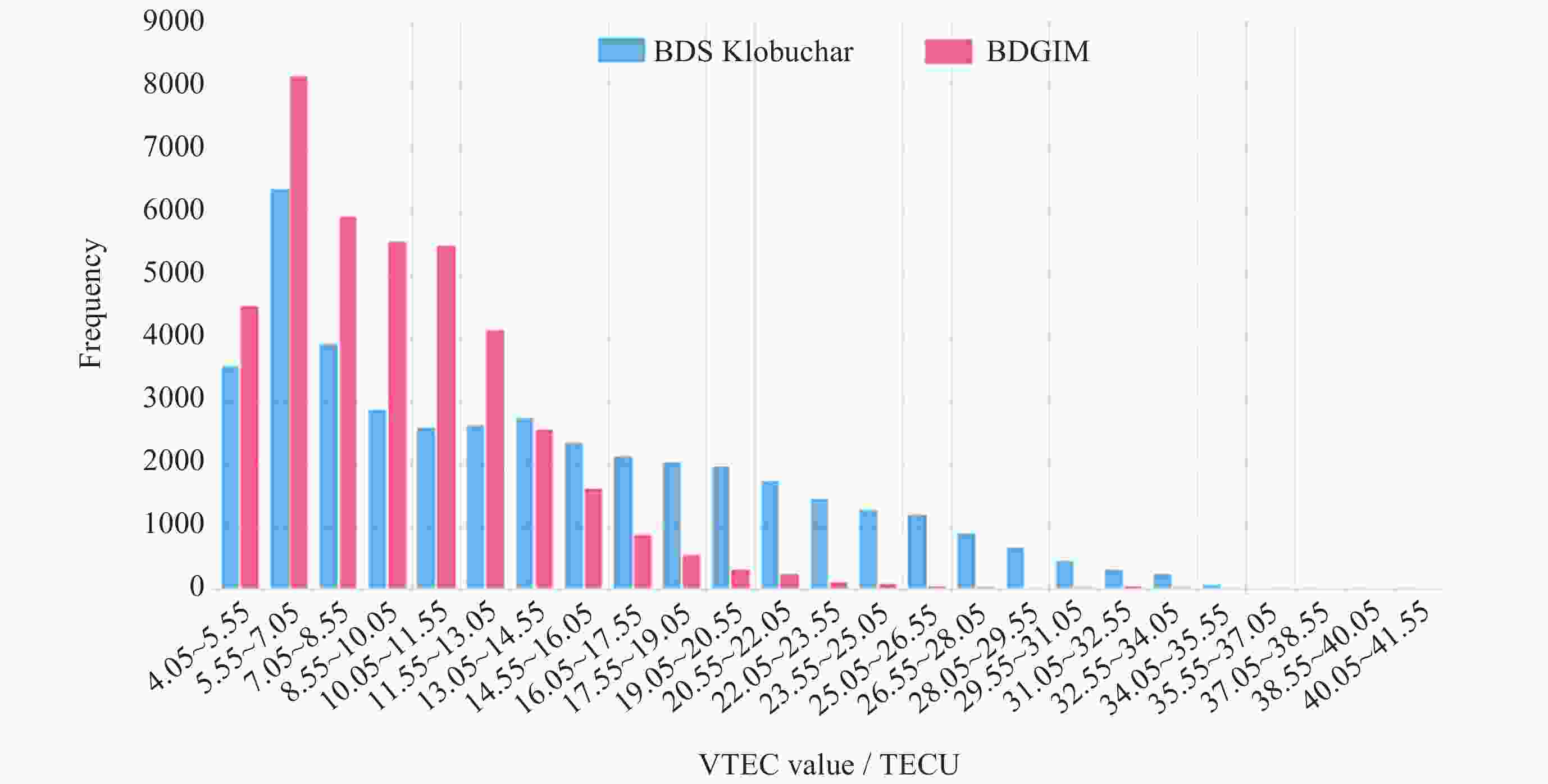

图 12 以iGMAS产品为基准2020－2025年的BDS Klobuchar模型与BDGIM模型VTEC RMS直方图
Figure 12. BDS Klobuchar model and BDGIM model VTEC RMS histogram based on iGMAS products in 2020―2025

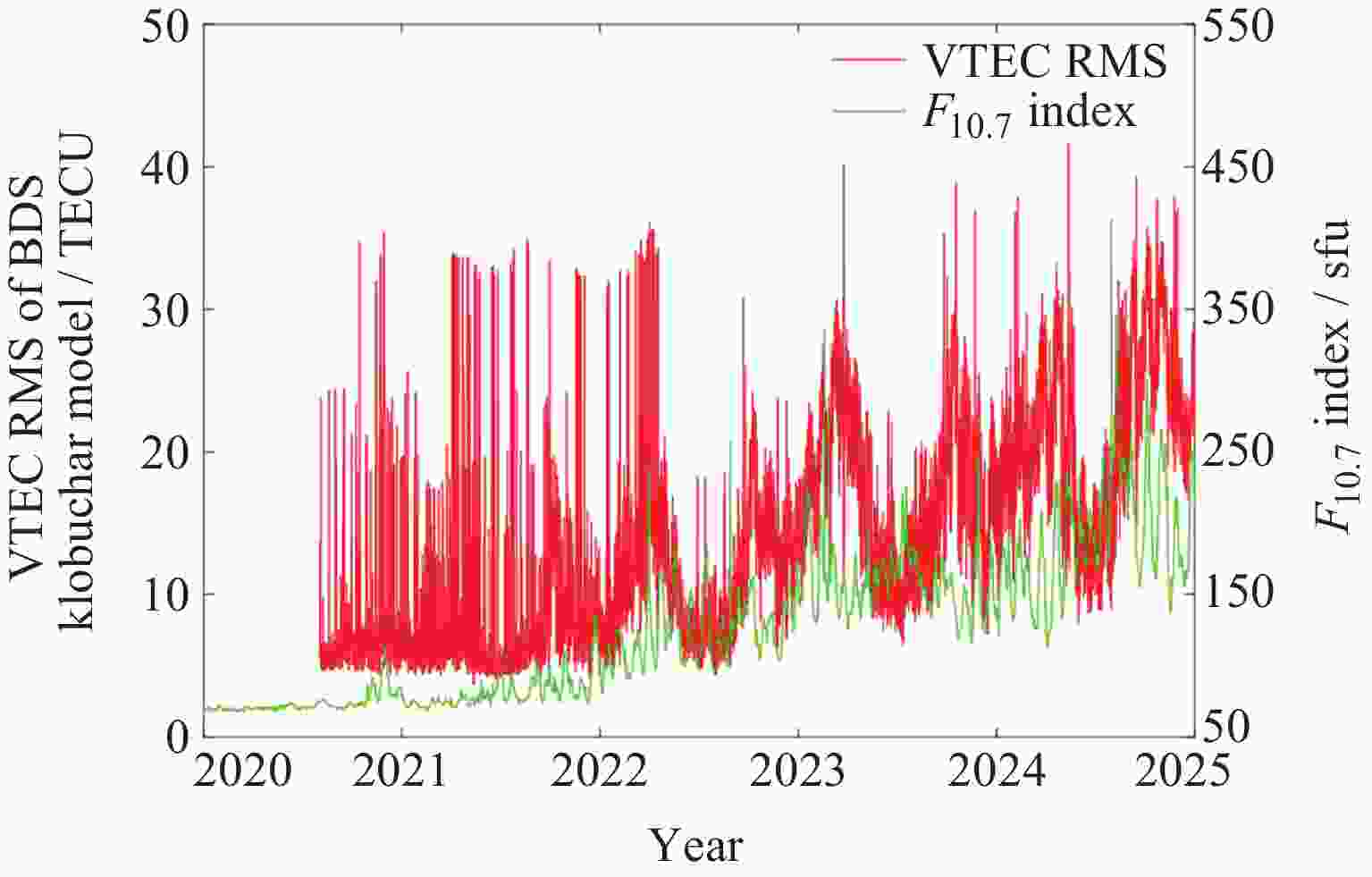

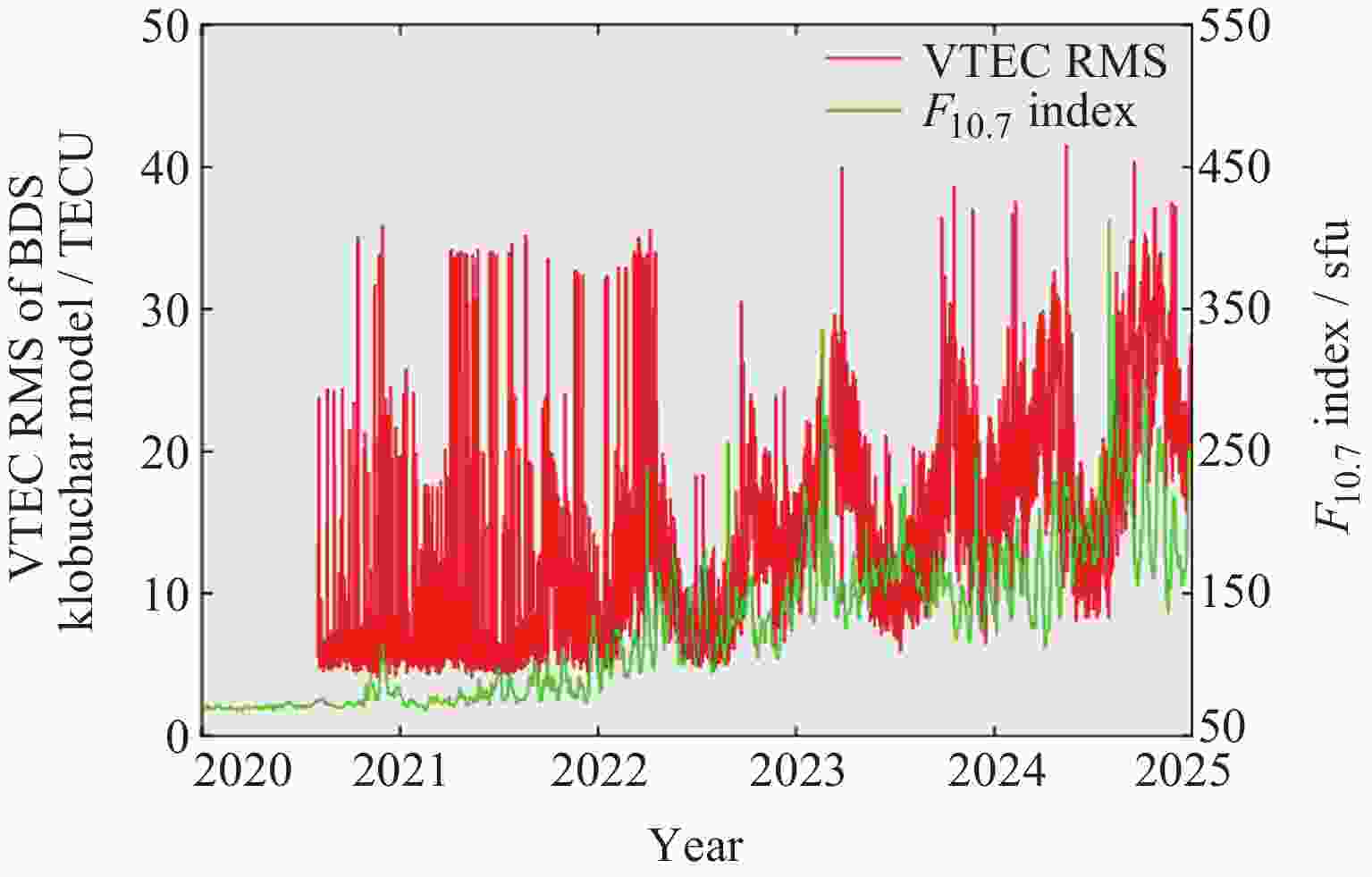

图 13 以CODE产品为基准的2020－2025年BDS Klobuchar模型VTEC RMS序列
Figure 13. BDS Klobuchar model VTEC RMS sequential diagram from 2020 to 2025 based on CODE products
图 14 以iGMAS产品为基准的2020－2025年BDS Klobuchar模型VTEC RMS序列图
Figure 14. BDS Klobuchar model VTEC RMS sequential diagram from 2020 to 2025 based on iGMAS products

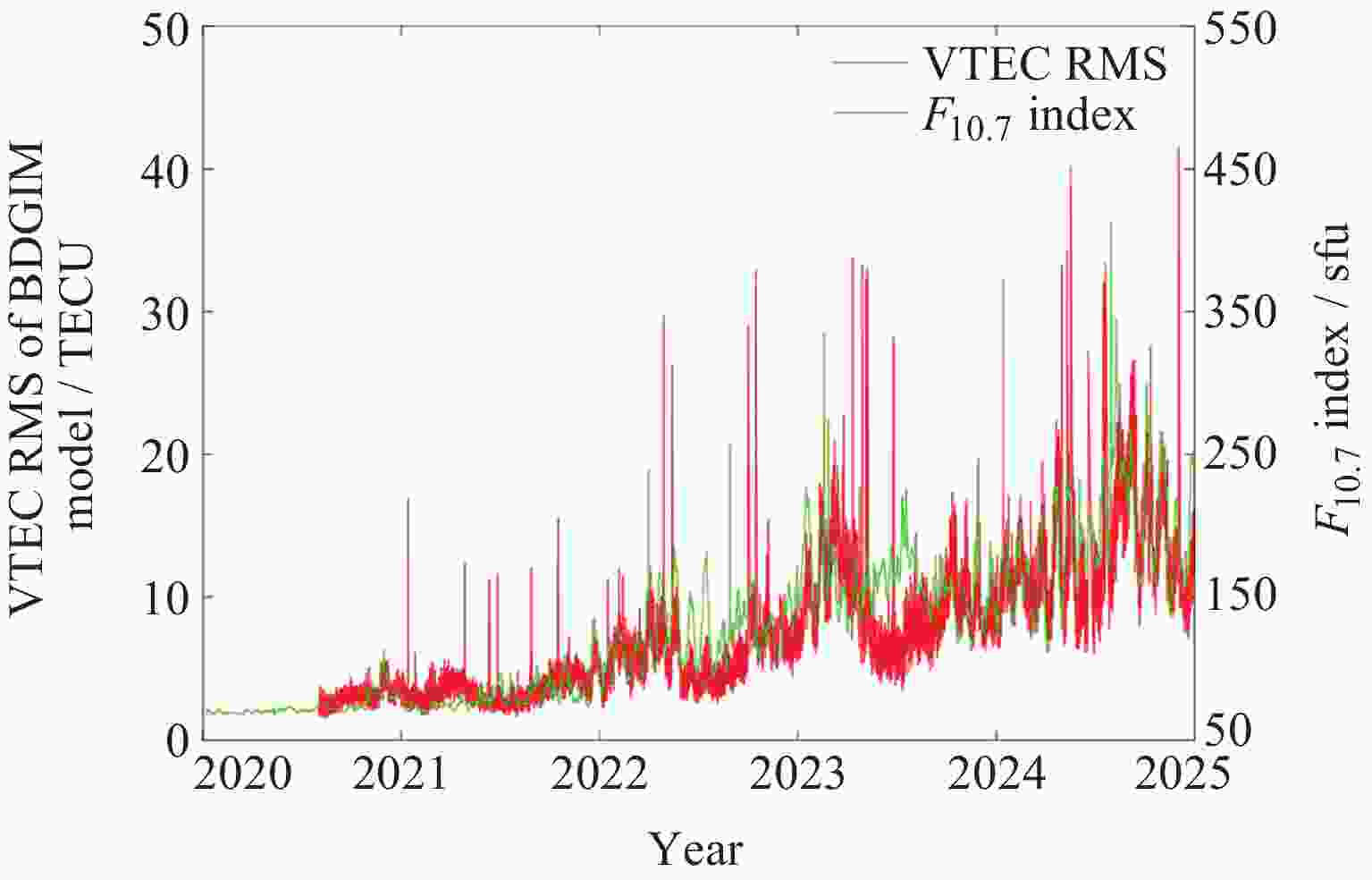

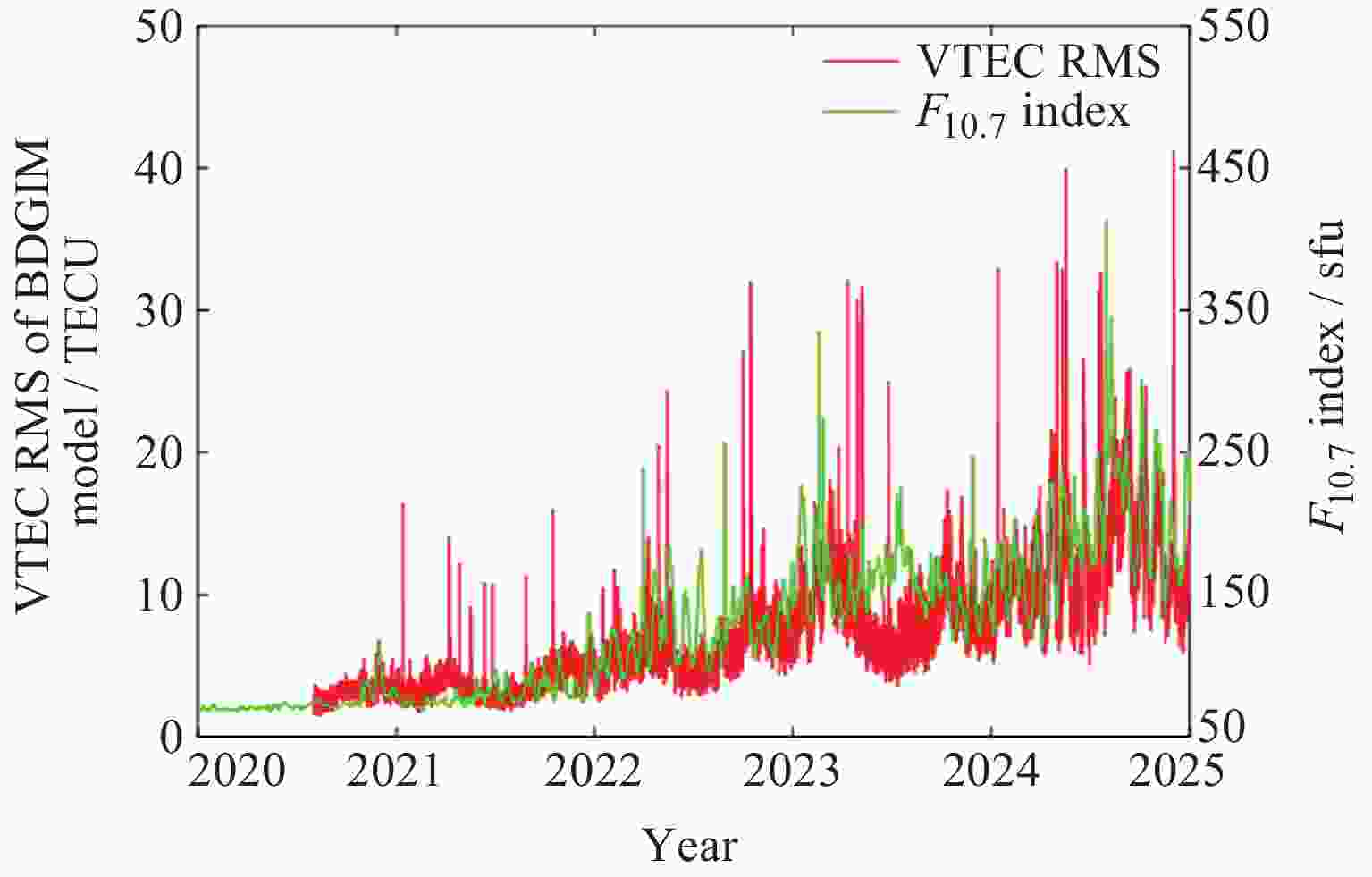

图 15 以CODE产品为基准的2020－2025年BDGIM模型VTEC RMS序列
Figure 15. BDGIM model VTEC RMS sequential diagram from 2020 to 2025 based on CODE products
图 16 以iGMAS产品为基准的2020－2025年BDGIM模型VTEC RMS序列
Figure 16. BDGIM model VTEC RMS sequential diagram from 2020 to 2025 based on iGMAS products
表 1 轨道数据、钟差数据及电离层数据下载链接
Table 1. Download links for orbit data, clock data and ionosphere data
Type Download links BRDM ftp://igs.gnsswhu.cn/pub/gps/data/daily/ GFZ ftp://ftp.gfz-potsdam.de/home/GNSS/products/mgex/ iGMAS http://www.igmas.org/Product/TreePage/
tree/cate_id/37.htmlCODE ftp://ftp.aiub.unibe.ch/CODE/
下载: 导出CSV
表 2 以GFZ产品为基准BDS-3在2020－2025年的轨道误差、钟差误差、SISRE RMS 95%统计精度
Table 2. BDS-3 orbit error, clock error and SISRE RMS 95% statistical precision based on GFZ products in 2020－2025
Year R/m A/m C/m CLK/m SISRE/m 2020 0.104 0.482 0.589 0.705 0.705 2021 0.096 0.502 0.601 0.572 0.580 2022 0.094 0.614 0.657 0.623 0.636 2023 0.097 0.645 0.631 0.584 0.668 2024 0.087 0.354 0.337 0.530 0.542 2025 0.080 0.351 0.364 0.540 0.549
下载: 导出CSV
表 3 以iGMAS产品为基准BDS-3在2020－2025年的轨道误差、钟差误差、SISRE的RMS 95%统计精度
Table 3. BDS-3 Orbit Error, Clock Error and SISRE RMS 95% statistical precision based on iGMAS products in 2020―2025
Year R/m A/m C/m CLK/m SISRE/m 2020 0.086 0.386 0.461 0.811 0.817 2021 0.086 0.456 0.505 0.662 0.666 2022 0.087 0.592 0.649 0.716 0.738 2023 0.086 0.635 0.647 0.846 0.883 2024 0.078 0.354 0.331 0.622 0.625 2025 0.073 0.341 0.350 0.640 0.645
下载: 导出CSV
表 4 以CODE产品为基准2020－2025年的BDS Klobuchar、BDGIM模型VTEC平均、最大、最小RMS
Table 4. Mean ,max and min RMS of VTEC for BDS Klobuchar and BDGIM models based on CODE products in 2020－2025
Year BDS Klobuchar/TECU BDGIM/TECU Mean Max Min Mean Max Min 2020 7.359 35.440 4.350 3.193 6.240 1.570 2021 7.420 34.940 3.690 3.545 16.900 1.660 2022 11.096 36.140 4.350 5.923 32.870 2.290 2023 16.626 40.150 6.420 9.337 33.740 3.520 2024 21.039 41.630 7.940 12.025 41.560 6.050 2025 22.211 34.500 10.400 11.481 35.330 6.640
下载: 导出CSV
表 5 以iGMAS产品为基准2020－2025的BDS Klobuchar、BDGIM模型VTEC平均、最大、最小RMS
Table 5. Mean ,max and min RMS of VTEC for BDS Klobuchar and BDGIM models based on iGMAS products in 2020－2025
Year BDS Klobuchar/TECU BDGIM/TECU Mean Max Min Mean Max Min 2020 7.367 35.930 4.140 3.176 6.790 1.480 2021 7.615 35.180 4.050 3.734 16.400 1.730 2022 10.951 35.590 4.640 5.956 32.030 2.490 2023 15.962 40.010 5.950 8.549 32.140 3.550 2024 20.759 41.550 8.120 11.257 41.210 5.090 2025 21.802 33.810 10.000 10.493 35.950 5.890
下载: 导出CSV
-
