Study on the Active Regulation Mechanism of Laser Photothermal Effect on Thermocapillary Convection of Double-layer Fluid

doi: 10.11728/cjss2024.02.2023-0036 cstr: 32142.14.cjss2024.02.2023-0036
  • 1.

    College of Mechanical and Electrical Engineering, Hohai University, Changzhou 213022

  • 2.

    Institute of Mechanics, Chinese Academy of Sciences, Beijing 100190

  • Received Date: 2023-03-17
  • Accepted Date: 2024-03-14
  • Rev Recd Date: 2023-06-29
    • Available Online: 2024-03-14
    Abstract

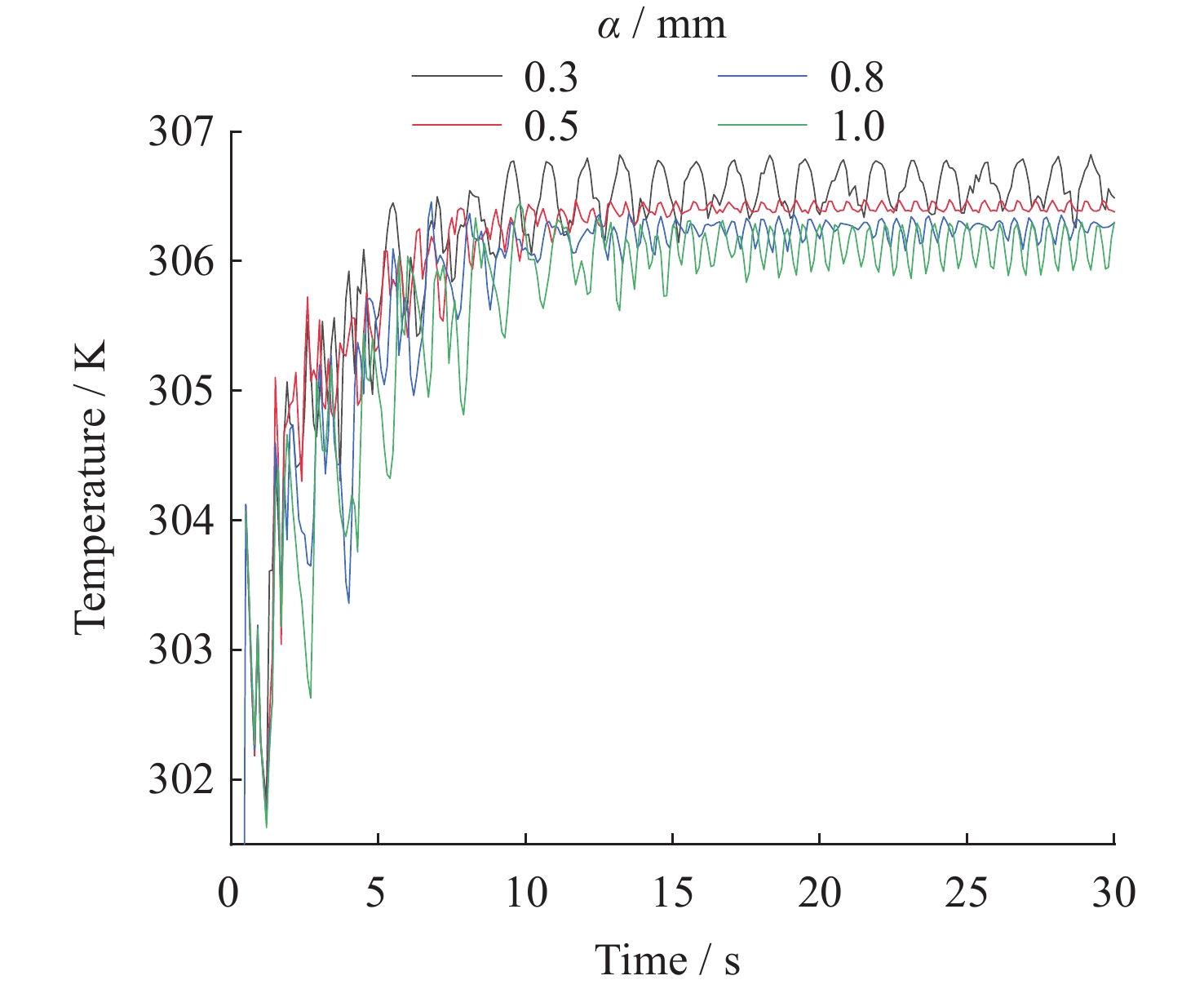

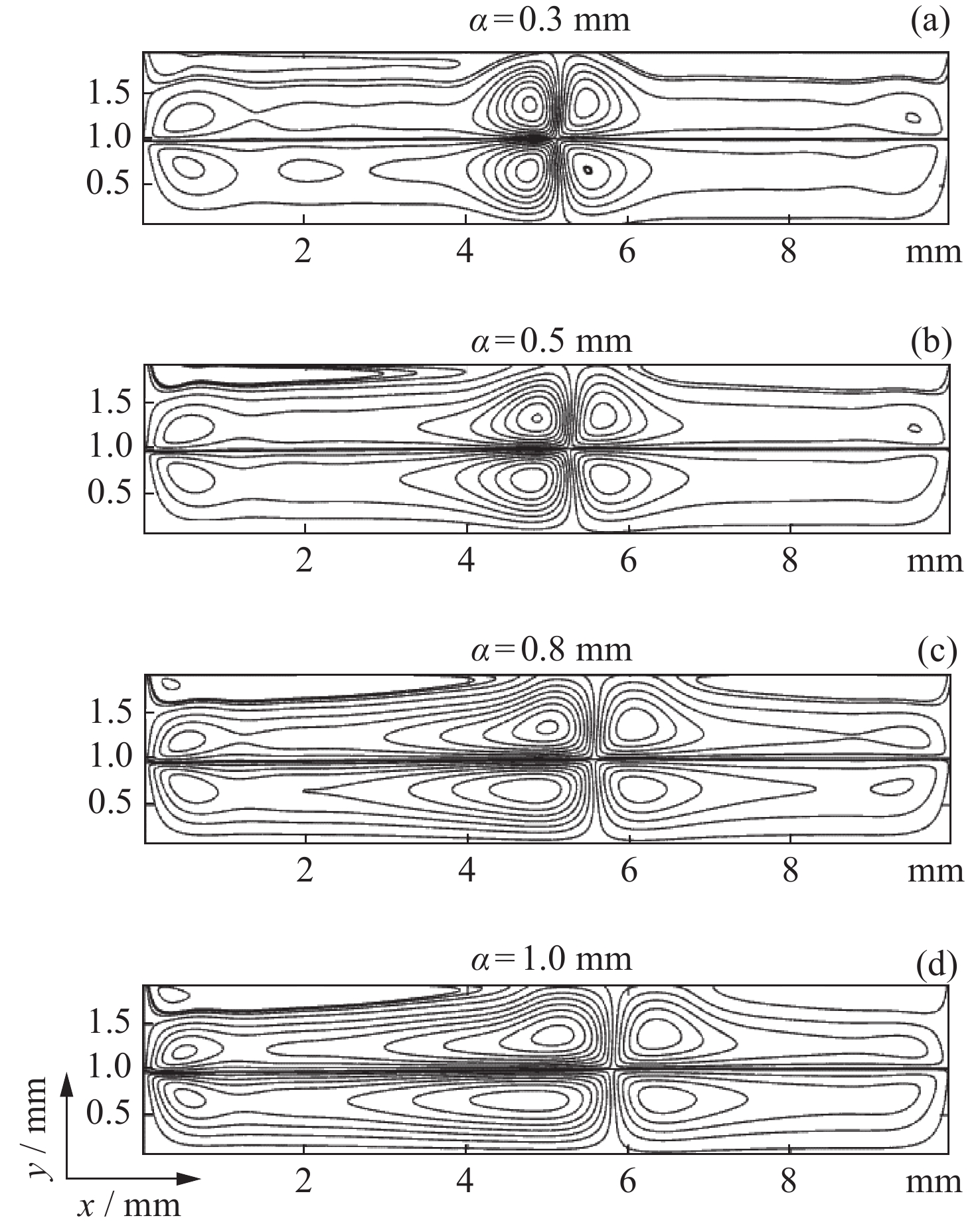

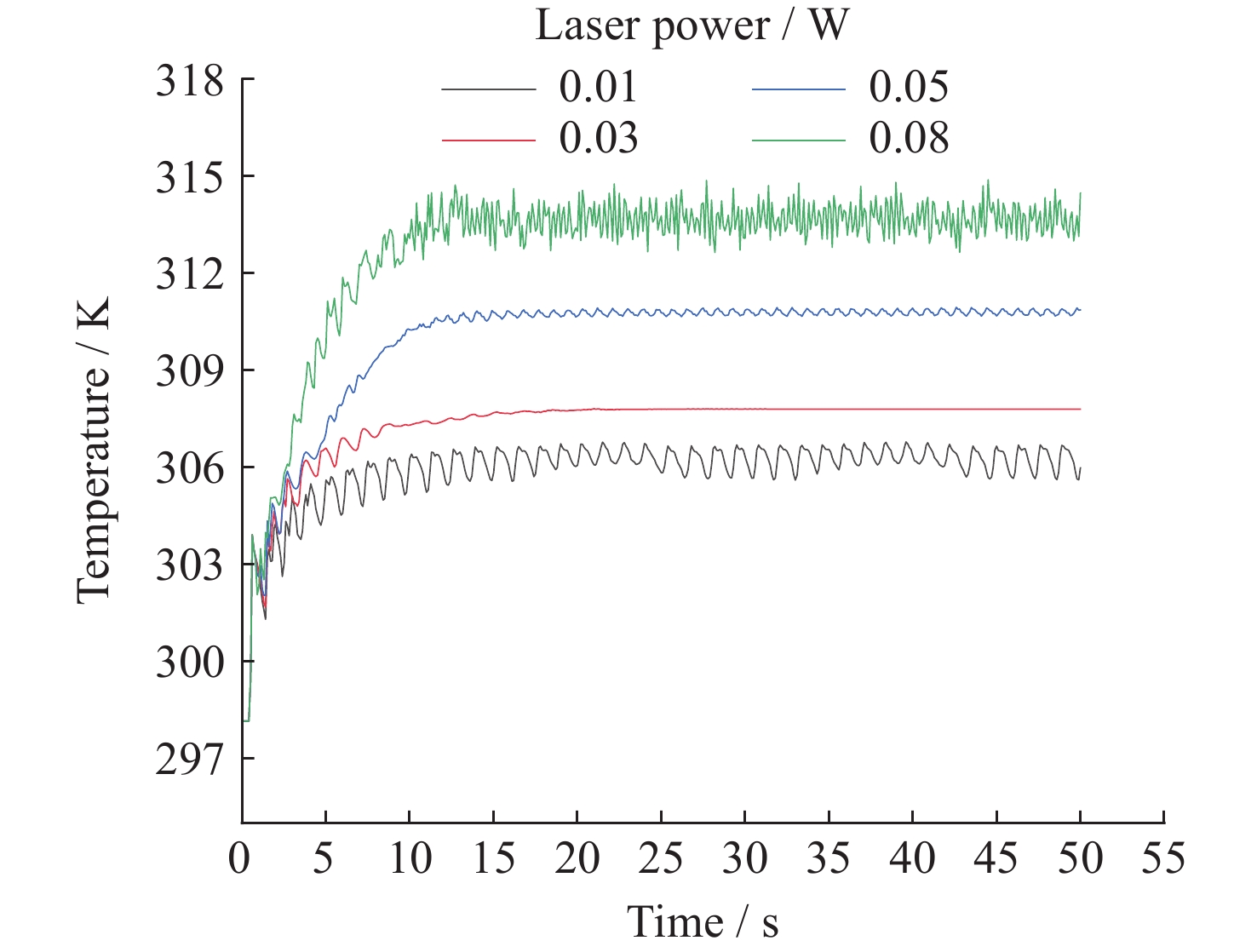

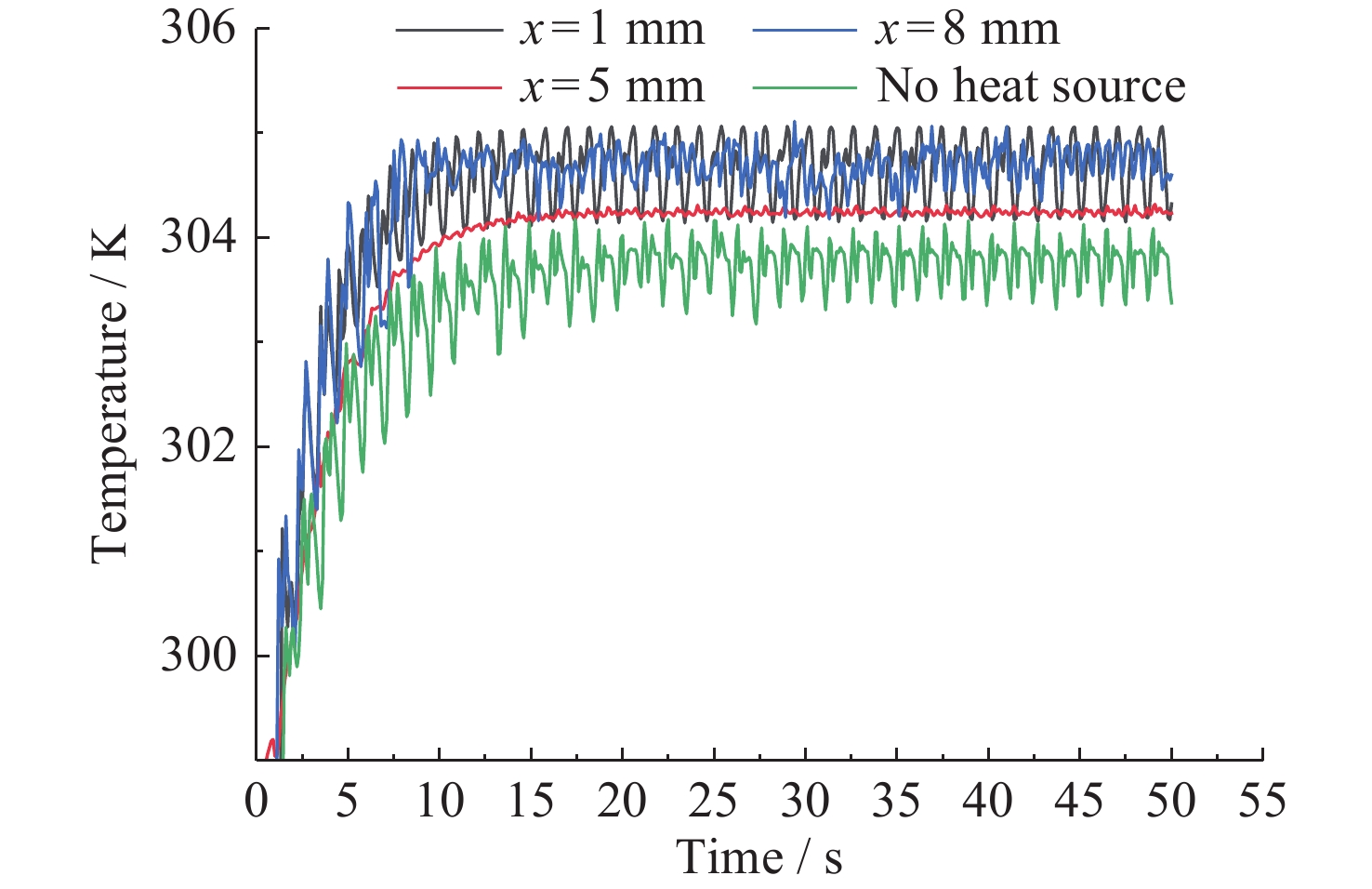

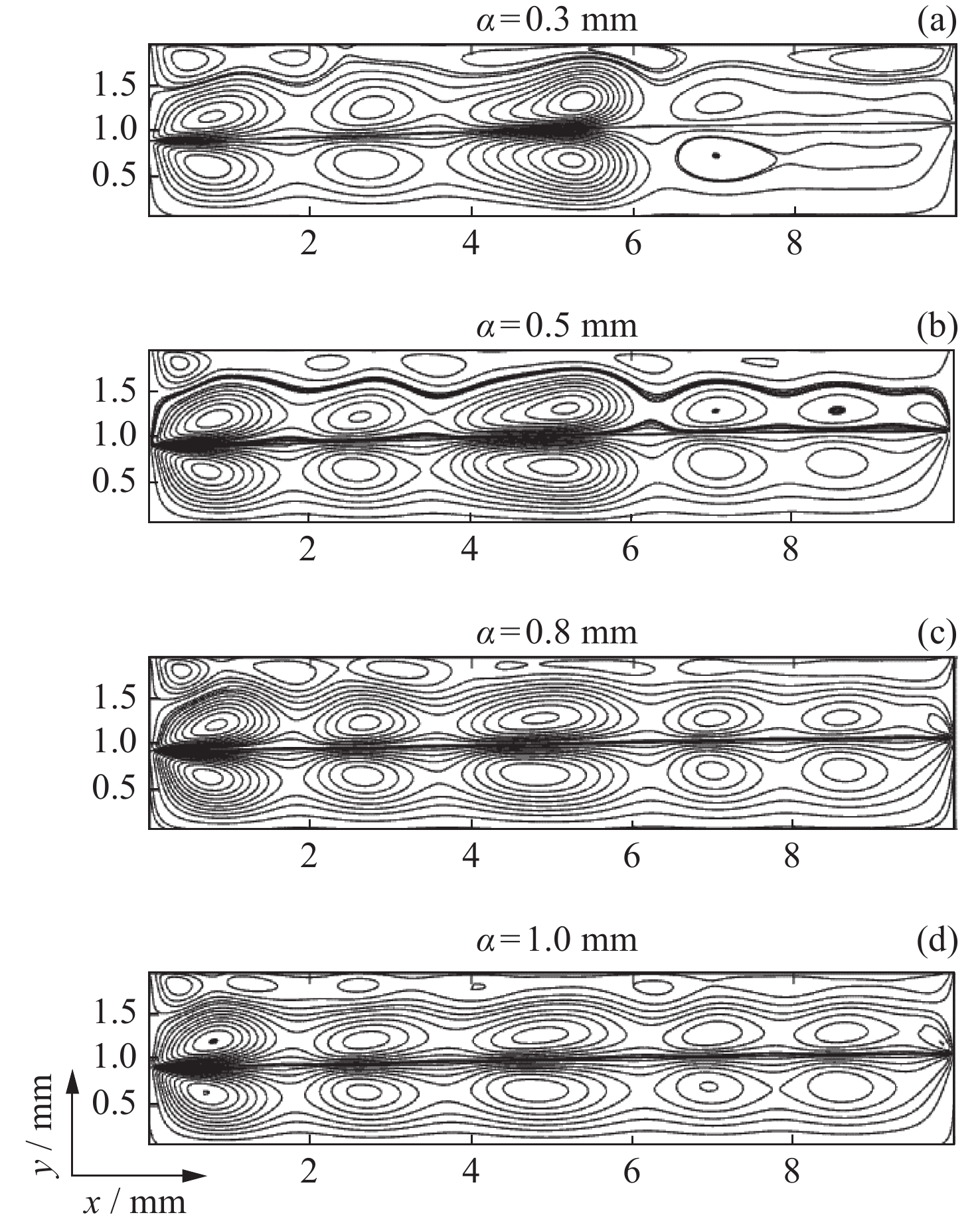

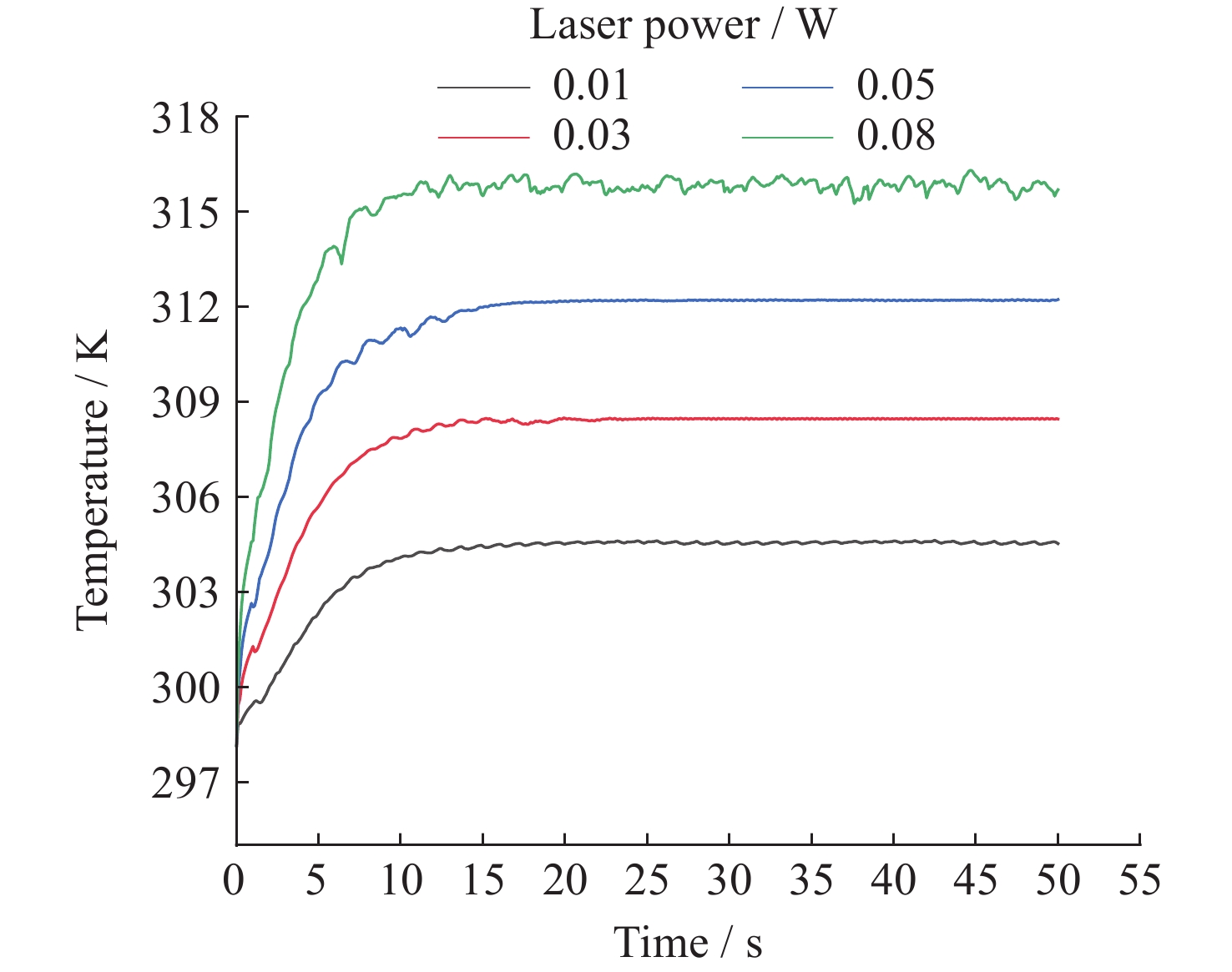

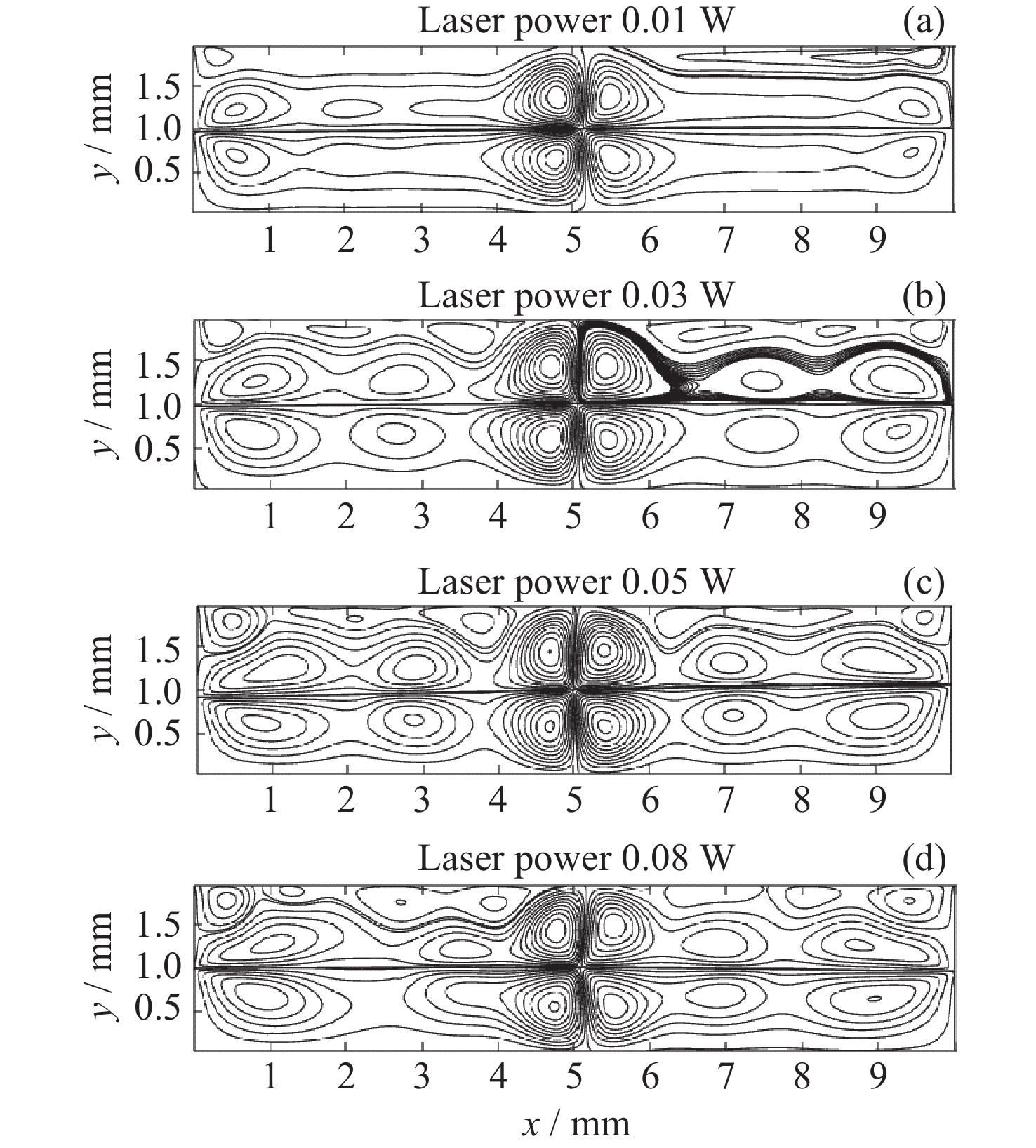

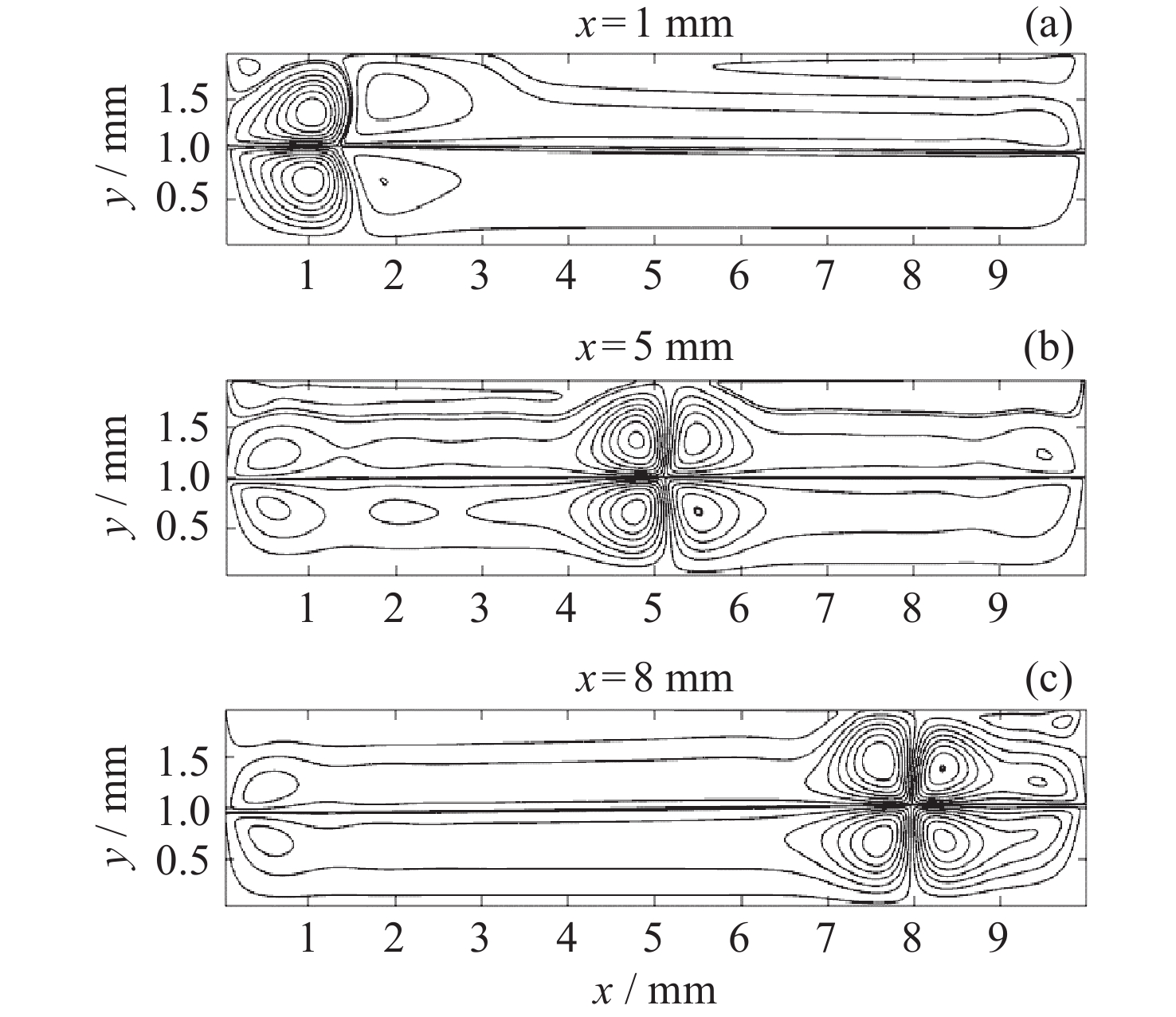

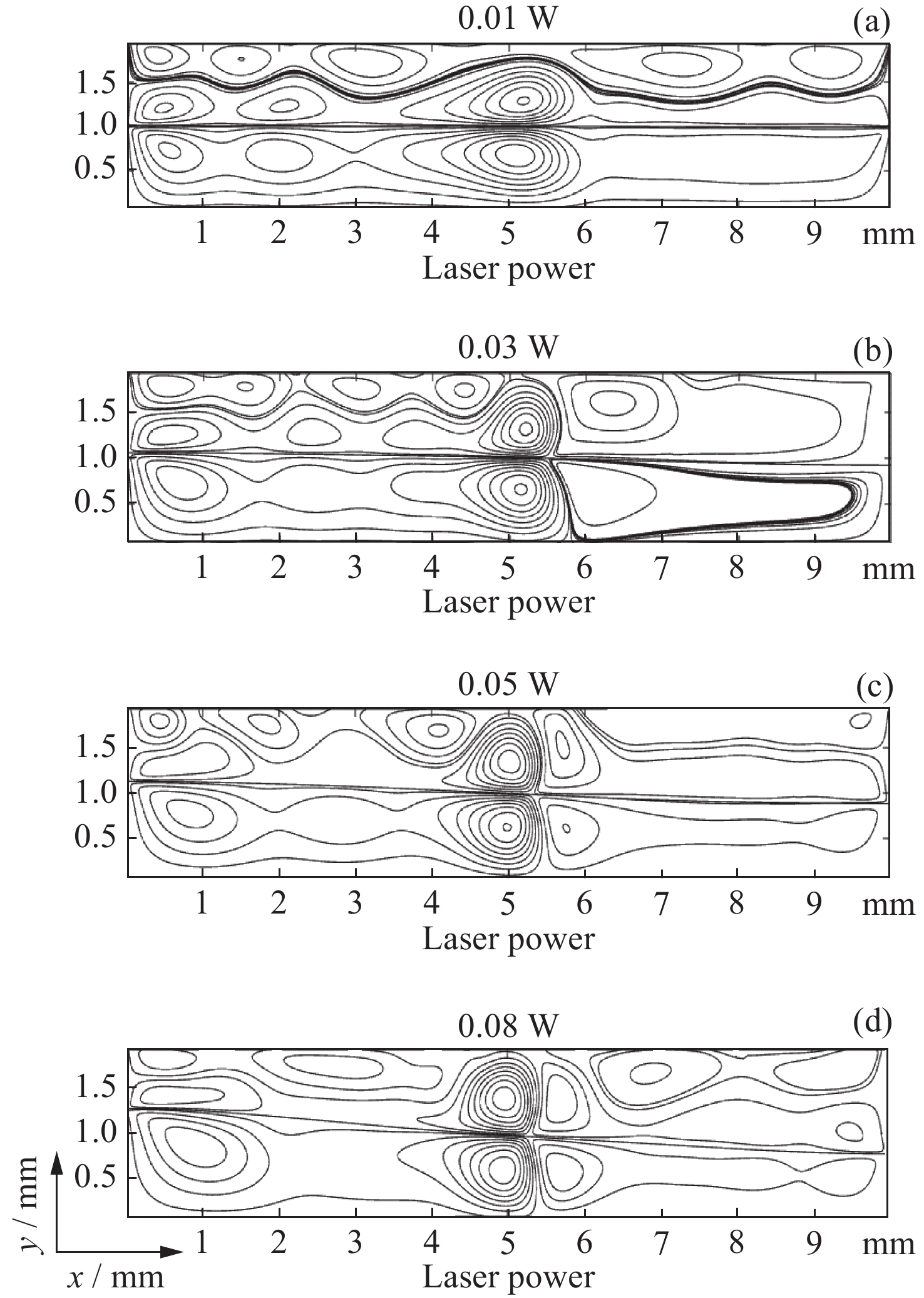

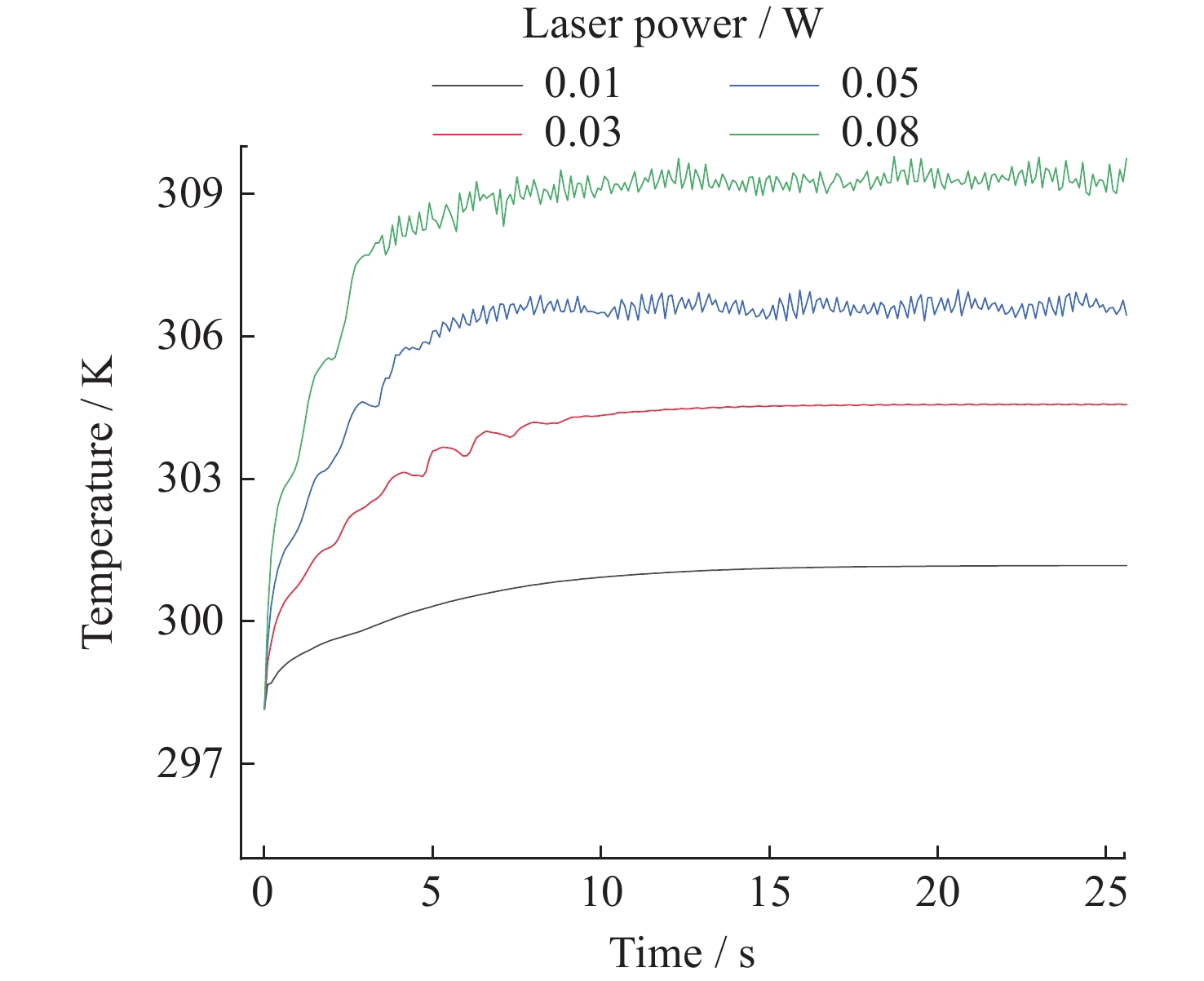

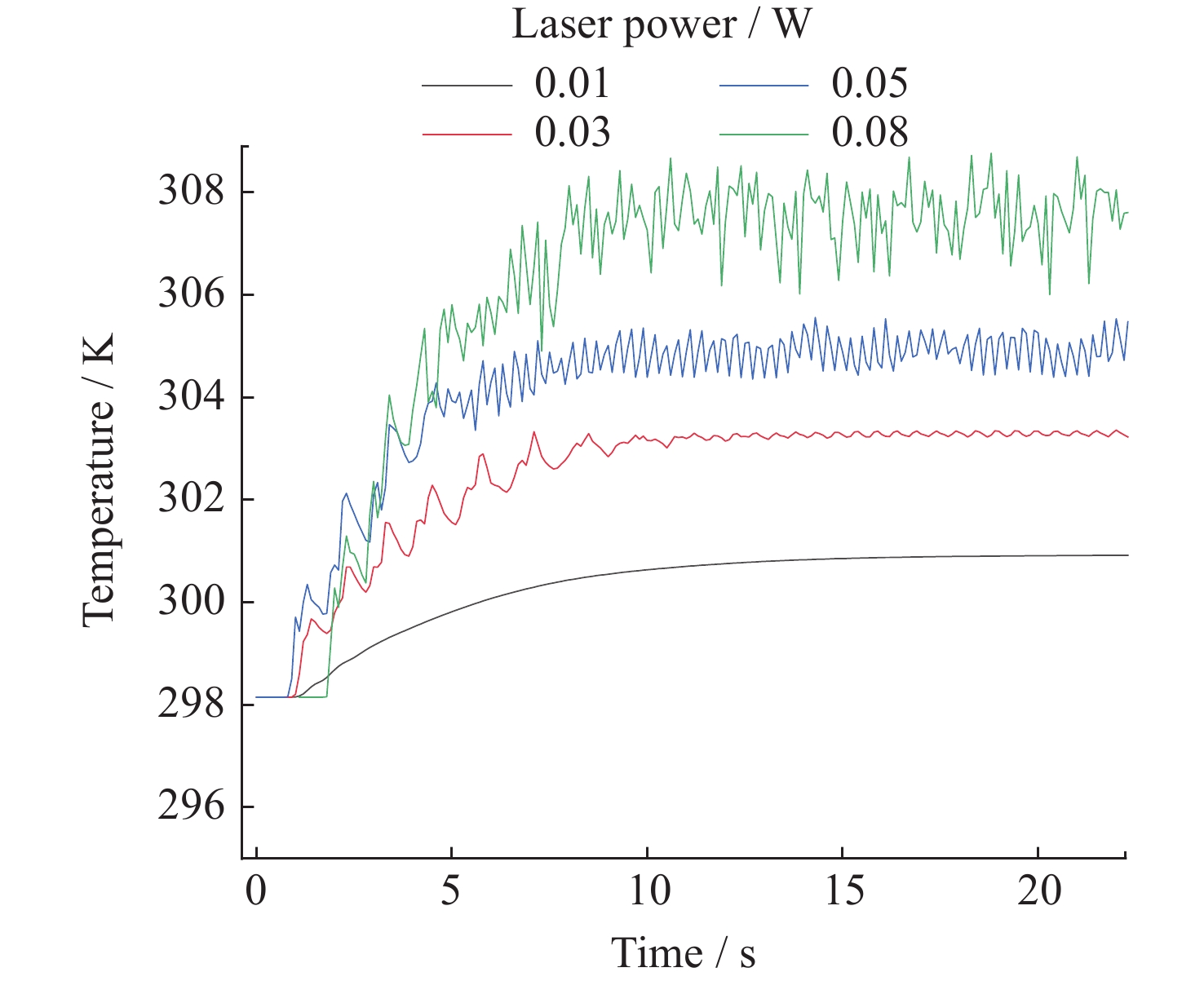

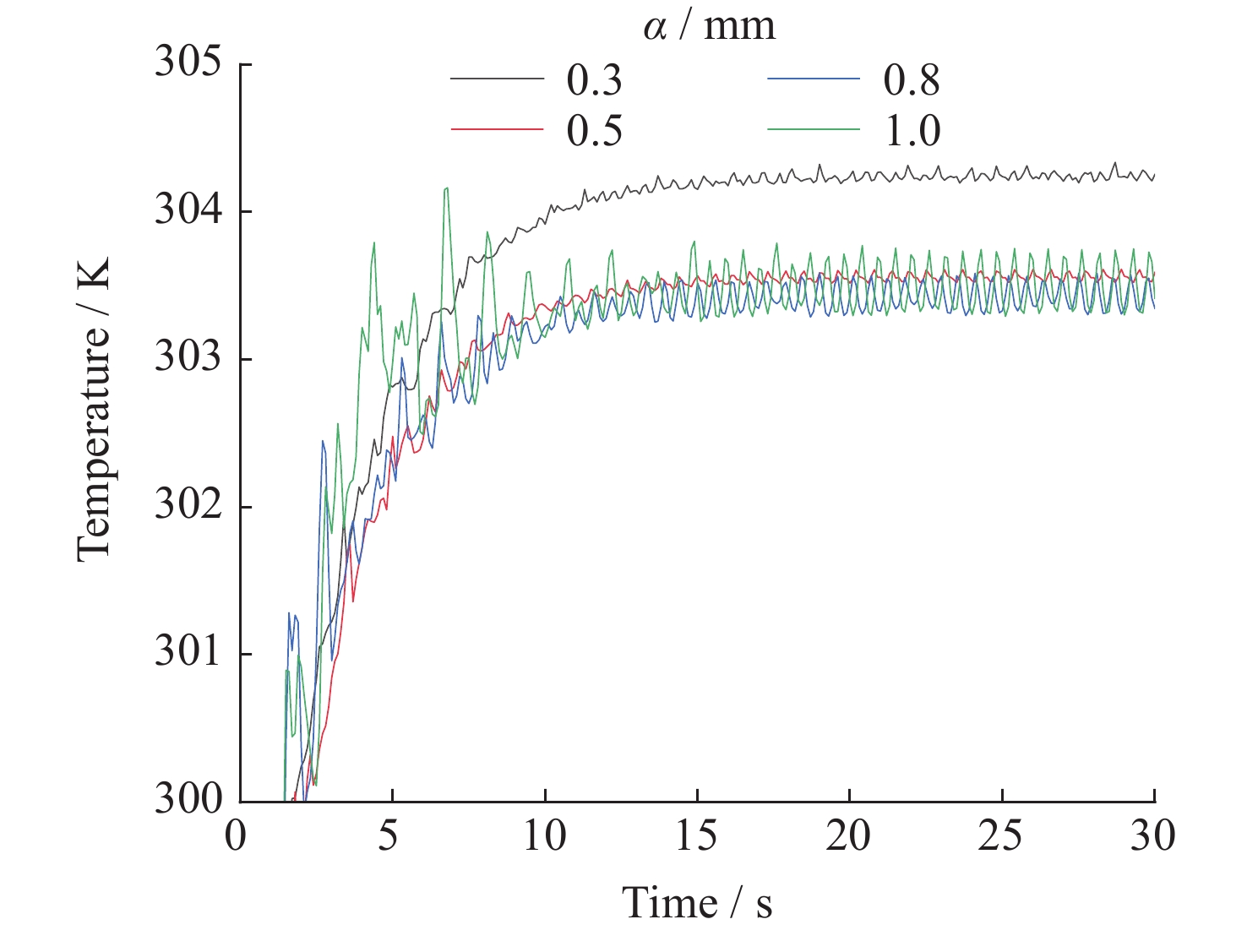

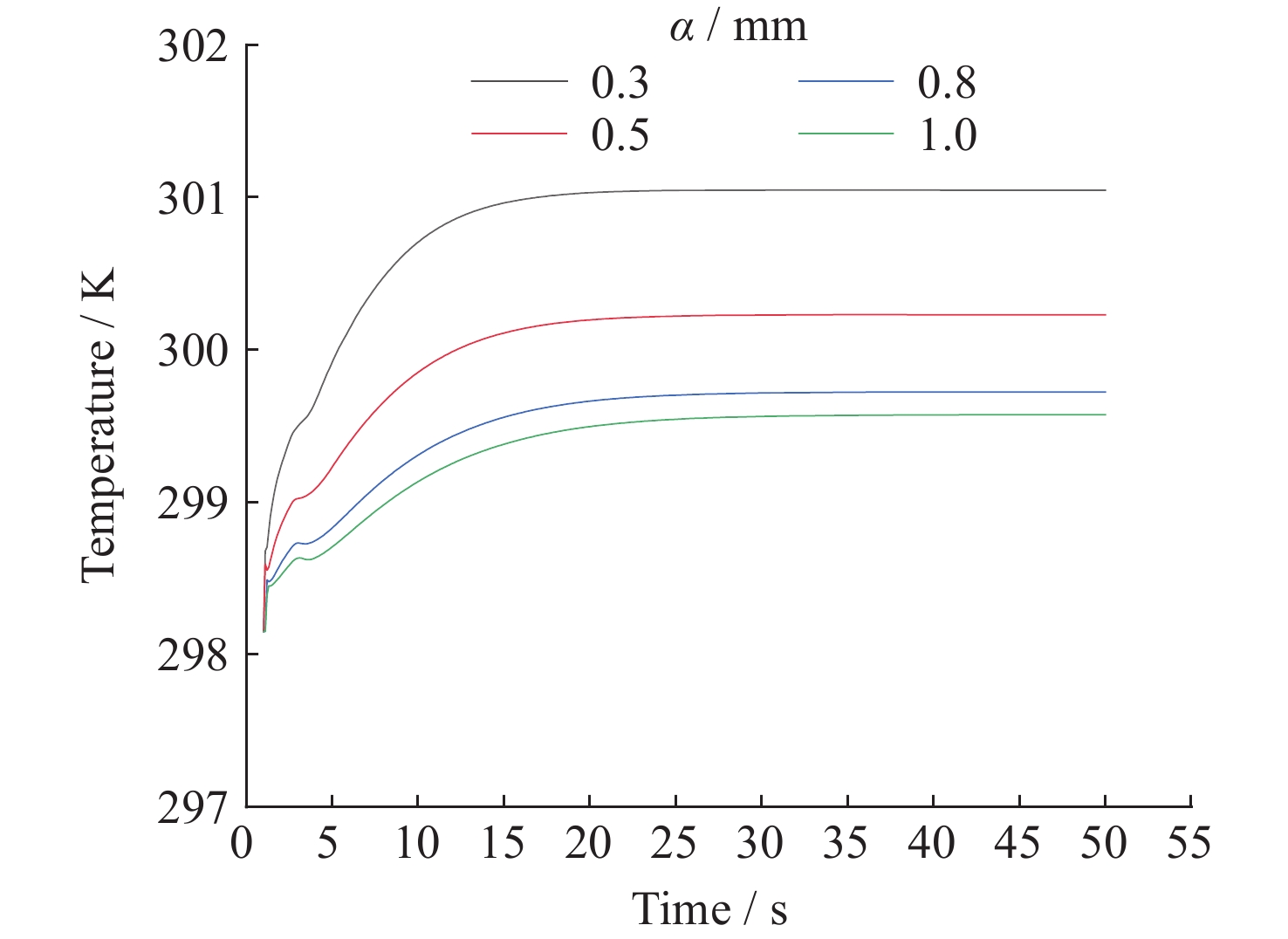

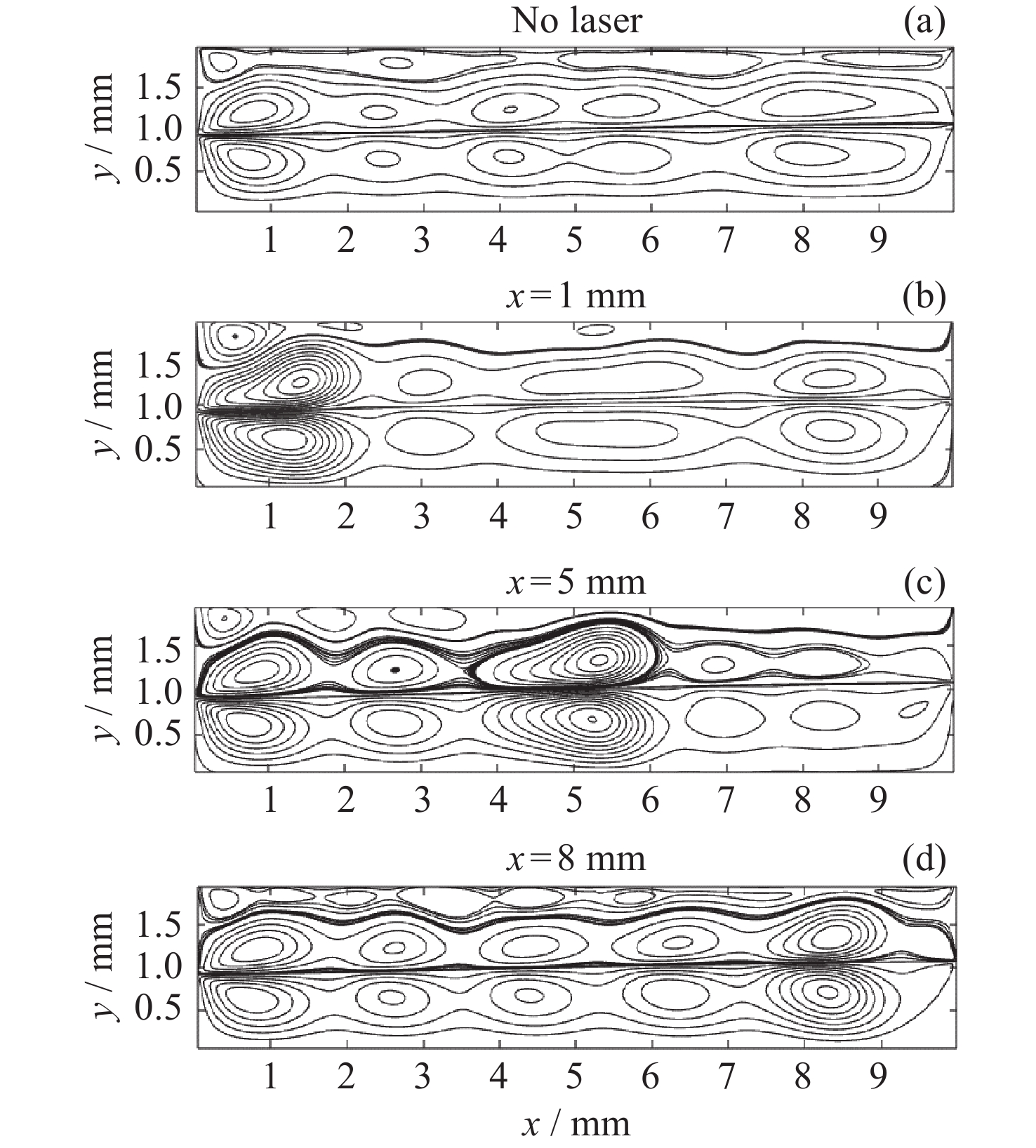

  • Active control of thermocapillary convective instability is a frontier scientific issue in the field of microgravity hydrodynamics and heat and mass transfer. In order to achieve effective control of thermocapillary convective instability of double-layer fluid, this paper innovatively proposes to use laser photothermal effect to actively control flow, the regulation mechanism of laser photothermal effect parameters (laser beam position, laser power and spot size) on the instability of double-layer thermocapillary convection are also studied. The calculation results show that the adjustment of laser power and spot size can significantly change the convective vortex structure in the spot area and weaken the vibration amplitude of temperature wave. Under certain working conditions, the temperature fluctuation range near the heat source changes significantly from 0.7 K to 0.1 K. The amplitude of temperature oscillation decreases first and then increases with the increase of spot size. The adjustment of the laser position can affect the position of the local convection vortex in the liquid layer, and then change the convection intensity on both sides of the laser position, so as to realize the control of the oscillating and unstable flow in the local region, the effective control of thermocapillary convection of double-layer fluid can be realized through the reasonable selection of photothermal effect parameters.



    • FullText(HTML)
  • loading
    • References(24)
  • [1]
    刘佳. 双向温度梯度作用下浮力–热毛细对流的线性稳定性分析[D]. 重庆: 重庆大学, 2019

    LIU Jia. Linear Stability Analysis of Buoyancy-thermocapillary Convection Driven by Bidirectional Temperature Gradients[D]. Chongqing: Chongqing University, 2019
    [2]
    JIANG Y N, CHI F X, CHEN Q S, et al. Effect of substrate microstructure on thermocapillary flow and heat transfer of nanofluid droplet on heated wall[J]. Microgravity Science and Technology, 2021, 33(3): 37 doi: 10.1007/s12217-021-09888-2
    [3]
    JIANG Y N, ZHOU X M, WANG Y. Effect of nanoparticle shapes on nanofluid mixed forced and thermocapillary convection in mini channel[J]. International Communications in Heat and Mass Transfer, 2020, 118: 104884 doi: 10.1016/j.icheatmasstransfer.2020.104884
    [4]
    JIANG Y N, ZHOU X M, WANG Y. Comprehensive heat transfer performance analysis of nanofluid mixed forced and thermocapillary convection around a gas bubble in minichannel[J]. International Communications in Heat and Mass Transfer, 2020, 110: 104386 doi: 10.1016/j.icheatmasstransfer.2019.104386
    [5]
    ZHOU X M, JIANG Y Q, WANG Y, et al. Comprehensive heat transfer performance analysis of liquid metal based nanofluid laminar flow in circular tube[J]. International Journal of Mechanical Sciences, 2020, 175: 105530 doi: 10.1016/j.ijmecsci.2020.105530
    [6]
    JIANG Y N, ZHOU X M, WANG Y. Effects of nanoparticle shapes on heat and mass transfer of nanofluid thermocapillary convection around a gas bubble[J]. Microgravity Science and Technology, 2020, 32(2): 167-177 doi: 10.1007/s12217-019-09757-z
    [7]
    ZHOU X M, JIANG Y N, HOU Y, et al. Thermocapillary convection instability in annular two-layer system under various gravity levels[J]. Microgravity Science and Technology, 2019, 31(5): 641-648 doi: 10.1007/s12217-019-09742-6
    [8]
    HAMED M, FLORYAN J M. Marangoni convection. Part 1. a cavity with differentially heated sidewalls[J]. Journal of Fluid Mechanics, 2000, 405: 79-110 doi: 10.1017/S002211209900734X
    [9]
    SOMEYA S, MUNAKATA T, NISHIO M, et al. Flow observation in two immiscible liquid layers subject to a horizontal temperature gradient[J]. Journal of Crystal Growth, 2002, 235(1/2/3/4): 626-632
    [10]
    FONTAINE J P, SANI R L. Thermocapillary effects in a multilayered fluid system[C]//Proceedings of the 30th Aerospace Sciences Meeting and Exhibit. Reno: AIAA, 1992
    [11]
    AZUMA H, YOSHIHARA S, OHNISHI M, et al. Upper layer flow phenomena in two immiscible liquid layers subject to a horizontal temperature gradient[C]. Microgravity Fluid Mechanics, 1992, 205-212
    [12]
    GÉORIS P, LEGROS J C. Pure thermocapillary convection in a multilayer system: first results from the IML-2 mission[C]//Proceedings of the IXth European Symposium on Gravity-Dependent Phenomena in Physical Sciences Held at Berlin. Berlin: Springer, 1996: 299-311
    [13]
    周炳红, 刘秋生, 胡良, 等. 两层流体热毛细对流空间实验研究[J]. 中国科学E辑, 2002, 32 (3): 316-322

    ZHOU Binghong, LIU Qiusheng, HU Liang, et al. Space experiments of thermocapillary convection in two-liquid layers[J]. Science in China Series E: Technological Science, 2002, 45 (5): 552-560
    [14]
    乔莉莉. 蒸发薄液层的热毛细对流实验[D]. 北京: 中国科学院力学研究所, 2019

    QIAO Lili. Thermocapillary Convection Experiment of the Thin Evaporating Liquid Layer[D]. Beijing: Institute of Mechanics, Chinese Academy of Sciences, 2019
    [15]
    朱志强, 纪岩, 刘秋生, 等. 蒸发效应与热毛细对流耦合现象的实验研究[J]. 空间科学学报, 2008, 28(1): 12-16 doi: 10.11728/cjss2008.01.012

    ZHU Zhiqiang, JI Yan, LIU Qiusheng, et al. Experimental study on the coupling of thermocapillary convection and evaporation effect in a liquid layer[J]. Chinese Journal of Space Science, 2008, 28(1): 12-16 doi: 10.11728/cjss2008.01.012
    [16]
    SHI W Y, RONG S M, FENG L. Marangoni convection instabilities induced by evaporation of liquid layer in an open rectangular pool[J]. Microgravity Science and Technology, 2017, 29(1): 91-96
    [17]
    VILLERS D, PLATTEN J K. Separation of Marangoni convection from gravitational convection in earth experiments[J]. Physico Chemical Hydrodynamics, 1987, 8(2): 173-183
    [18]
    GONG X W, MO D M, WU C M, et al. Linear-stability analysis of thermocapillary-buoyancy convection in annular two-layer system with a radial temperature gradient[J]. International Communications in Heat and Mass Transfer, 2015, 66: 58-62 doi: 10.1016/j.icheatmasstransfer.2015.03.003
    [19]
    LI H M, SHI W Y. Thermocapillary convection in a differentially heated two-layer annular system with and without rotation[J]. International Journal of Heat and Mass Transfer, 2017, 105: 684-689 doi: 10.1016/j.ijheatmasstransfer.2016.10.038
    [20]
    LIU Q S, ZHOU J Y, WANG A, et al. Thermovibrational instability of Rayleigh–Marangoni–Benard convection in two-layer fluid systems[J]. Advances in Space Research, 2008, 41(12): 2131-2136 doi: 10.1016/j.asr.2007.09.016
    [21]
    ZHOU X M, HUANG H L. MHD effects on the instability of thermocapillary convection in two-layer fluid system[J]. International Journal of Heat and Mass Transfer, 2010, 53(25/26): 5827-5834
    [22]
    SHIOMI J, KUDO M, UENO I, et al. Feedback control of oscillatory thermocapillary convection in a half-zone liquid bridge[J]. Journal of Fluid Mechanics, 2003, 496: 193-211 doi: 10.1017/S0022112003006323
    [23]
    ANTONOW G N. Sur la tension superficially à la limited de deux couches[J]. Journal de Chimie Physique, 1907, 5: 372-385 doi: 10.1051/jcp/1907050372
    [24]
    BEKEZHANOVA V B, FLIAGIN V M, GONCHAROVA O N, et al. Thermocapillary deformations of a two-layer system of liquids under laser beam heating[J]. International Journal of Multiphase Flow, 2020, 132: 103429 doi: 10.1016/j.ijmultiphaseflow.2020.103429
